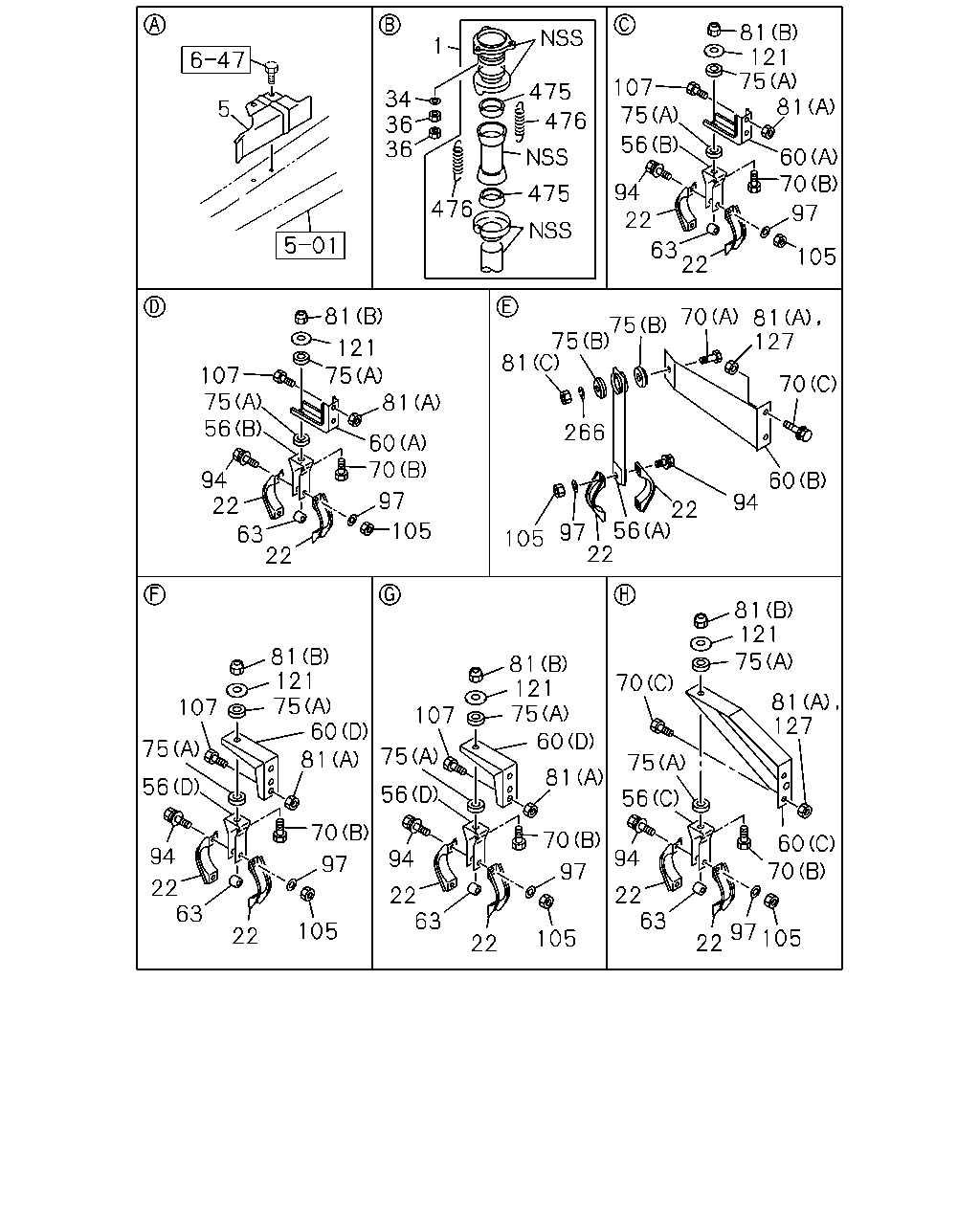

1-50 — EXHAUST PIPE AND SILENCER (#42712) — 61 parça

81 121 75 81 1 107 75 475 34 36 36 5 476 56 60 70 94 22 475 97 63 22 105 81 70 81 127 75 75 81 121 75 107 75 56 81 70 60 70 266 94 22 60 97 94 22 22 105 63 22 105 81 121 75 81 121 75 60 81 81 121 75 60 70 81 127 107 107 75 75 75 81 56 56 56 70 70 60 70 94 94 94 97 97 22 63 22 63 22 63 105 97 105 22 22 105 22 476

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH USER EXP GOVERNMENT<D6M>	1-22123-265-0	01	1	0008-
1	PIPE; EXH EXC. USER EXP GOVERNMENT<D6M>	1-22122-401-2	01	1	0008-
5	PROTECTOR; HEAT	1-33659-182-1	01	1	0008-
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	06	1	0008-
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	0008-0410
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0411-
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	0008-
56	BRACKET; CLAMP,EXH PIPE USER EXP GOVERNMENT<D6M> (C) H=67	1-22139-050-0	01	1	0008-
56	BRACKET; CLAMP,EXH PIPE USER EXP GOVERNMENT<D6M> (D)	1-22139-074-0	02	1	0008-
56	BRACKET; CLAMP,EXH PIPE EXC. USER EXP GOVERNMENT<D6M> (A)	1-22131-528-1	01	1	0008-
56	BRACKET; CLAMP,EXH PIPE EXC. USER EXP GOVERNMENT<D6M> (B) H=163	1-22139-049-0	02	1	0008-
60	BRACKET; FRAME TO BRKT USER EXP GOVERNMENT<D6M> (C)	1-22131-835-0	01	1	0008-
60	BRACKET; FRAME TO BRKT USER EXP GOVERNMENT<D6M> (D)	1-22151-501-1	02	1	0008-
60	BRACKET; FRAME TO BRKT EXC. USER EXP GOVERNMENT<D6M> (B)	1-22131-777-1	01	1	0008-
60	BRACKET; FRAME TO BRKT EXC. USER EXP GOVERNMENT<D6M> (A)	1-22151-433-1	02	1	0008-
63	TUBE; DIST,BRKT USER EXP GOVERNMENT<D6M> L=11	1-22139-026-0	03	1	0008-
63	TUBE; DIST,BRKT EXC. USER EXP GOVERNMENT<D6M> L=11	1-22139-026-0	02	1	0008-
70	BOLT; BRKT (C) M10X25 FLANGE	0-28681-025-0	02	1	0008-0512
70	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0601-0610
70	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	0611-
70	BOLT; BRKT USER EXP GOVERNMENT<D6M> (B) M10X50	0-10806-050-0	03	1	0008-0512
70	BOLT; BRKT USER EXP GOVERNMENT<D6M> (B) M10X50	0-10856-050-0	03	1	0601-
70	BOLT; BRKT EXC. USER EXP GOVERNMENT<D6M> (B) M10X50	0-10806-050-0	02	1	0008-0512
70	BOLT; BRKT EXC. USER EXP GOVERNMENT<D6M> (B) M10X50	0-10856-050-0	02	1	0601-
70	BOLT; BRKT EXC. USER EXP GOVERNMENT<D6M> (A) M10X55	0-10806-055-0	01	1	0008-
75	RUBBER; SUPPORT,BRKT USER EXP GOVERNMENT<D6M> (A) OD=30	1-22159-106-1	06	1	0008-
75	RUBBER; SUPPORT,BRKT EXC. USER EXP GOVERNMENT<D6M> (B) OD=40	1-22159-094-0	02	1	0008-
75	RUBBER; SUPPORT,BRKT EXC. USER EXP GOVERNMENT<D6M> (A) OD=30	1-22159-106-1	04	1	0008-
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	06	1	0008-0602
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	06	1	0603-0610
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0611-
81	NUT; BRKT USER EXP GOVERNMENT<D6M> (B) M10 LOCK NUT	9-09131-510-0	03	1	0008-0603
81	NUT; BRKT USER EXP GOVERNMENT<D6M> (B) M10 LOCK NUT	0-91370-010-0	03	1	0604-
81	NUT; BRKT USER EXP GOVERNMENT<D6M> (A) M10 FLANGE	0-91180-210-0	02	1	0611-
81	NUT; BRKT EXC. USER EXP GOVERNMENT<D6M> (C) M10	9-09110-510-0	01	1	0008-0512
81	NUT; BRKT EXC. USER EXP GOVERNMENT<D6M> (C) M10	0-91110-510-0	01	1	0601-
81	NUT; BRKT EXC. USER EXP GOVERNMENT<D6M> (B) M10 LOCK NUT	9-09131-510-0	02	1	0008-0603
81	NUT; BRKT EXC. USER EXP GOVERNMENT<D6M> (B) M10 LOCK NUT	0-91370-010-0	02	1	0604-
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	0008-0805
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	06	1	0806-
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	06	1	0008-
105	NUT; CLAMP M10	9-09110-510-0	06	1	0008-0512
105	NUT; CLAMP M10	0-91110-510-0	06	1	0601-
107	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	0008-0512
107	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0601-0610
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0611-
121	WASHER; PL,BRKT USER EXP GOVERNMENT<D6M> ID=10.5 OD=32	9-09164-810-0	03	1	0008-0605
121	WASHER; PL,BRKT USER EXP GOVERNMENT<D6M> ID=10.5 OD=32	0-91614-810-0	03	1	0606-
121	WASHER; PL,BRKT EXC. USER EXP GOVERNMENT<D6M> ID=10.5 OD=32	9-09164-810-0	02	1	0008-0605
121	WASHER; PL,BRKT EXC. USER EXP GOVERNMENT<D6M> ID=10.5 OD=32	0-91614-810-0	02	1	0606-
127	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0008-0212
266	WASHER; LK,BRKT EXC. USER EXP GOVERNMENT<D6M> ID=10.2	9-09150-510-0	01	1	0008-0603
266	WASHER; LK,BRKT EXC. USER EXP GOVERNMENT<D6M> ID=10.2	0-91510-510-0	01	1	0604-
475	BEARING; SEAL,VIBNON,EXH PIPE	1-22119-277-1	02	1	0008-
476	SPRING; VIBNON,EXH PIPE	1-09583-298-0	02	1	0008-

128 12 1 128 12 1

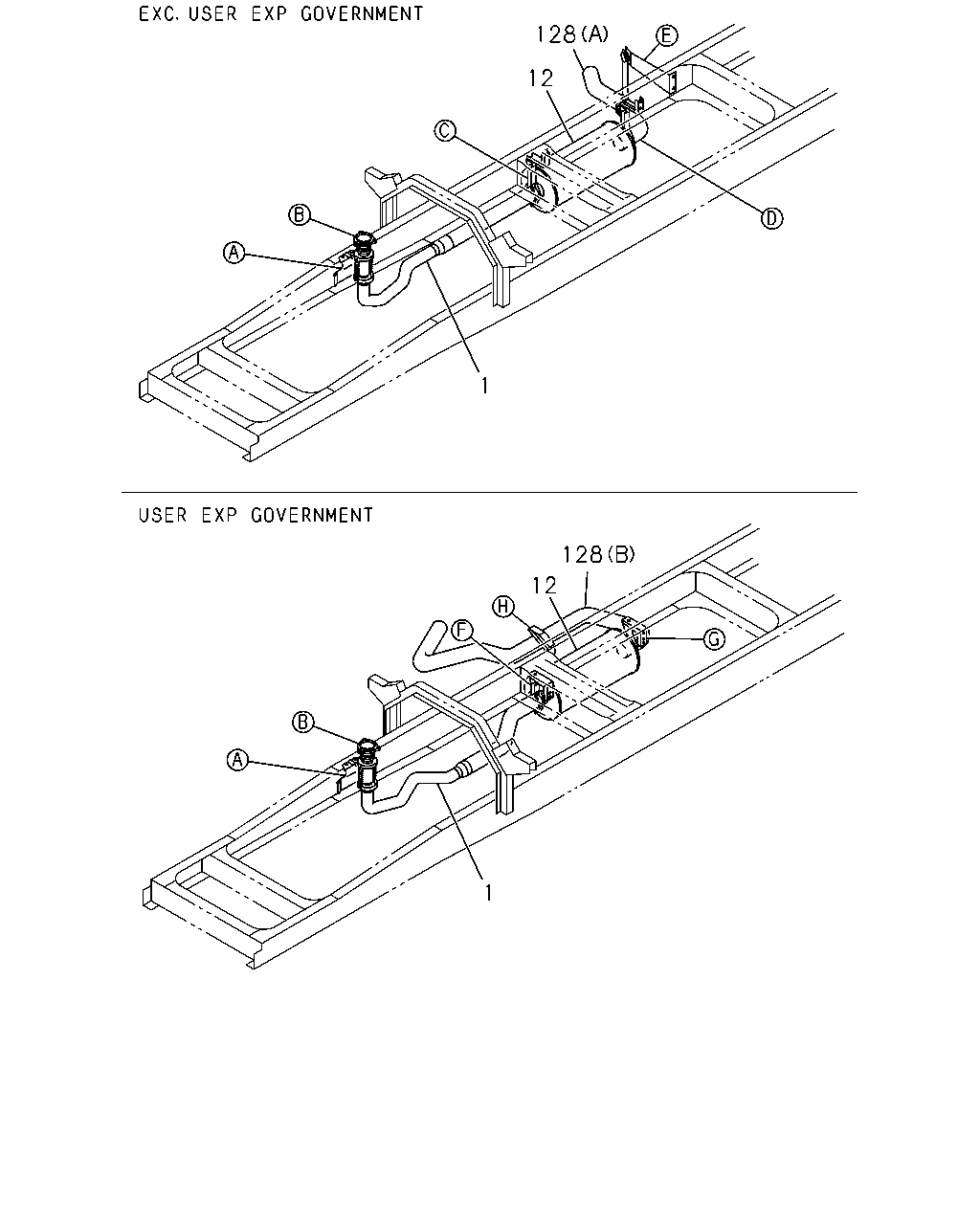

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH USER EXP GOVERNMENT<D6M>	1-22123-265-0	01	1	0008-
1	PIPE; EXH EXC. USER EXP GOVERNMENT<D6M>	1-22122-401-2	01	1	0008-
12	SILENCER ASM; EXH	1-22140-873-0	01	1	0008-0205
12	SILENCER ASM; EXH	1-22140-880-0	01	1	0206-
128	PIPE; EXH,RR USER EXP GOVERNMENT<D6M> (B)	1-22126-216-0	01	1	0008-
128	PIPE; EXH,RR EXC. USER EXP GOVERNMENT<D6M> (A)	1-22126-203-1	01	1	0008-
