Isuzu WW
▶
TRUCKS
▶
FSS
▶
11433 - FSS(BANGLADESH)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-45 - WATER SEDIMENTER; FUEL
▶

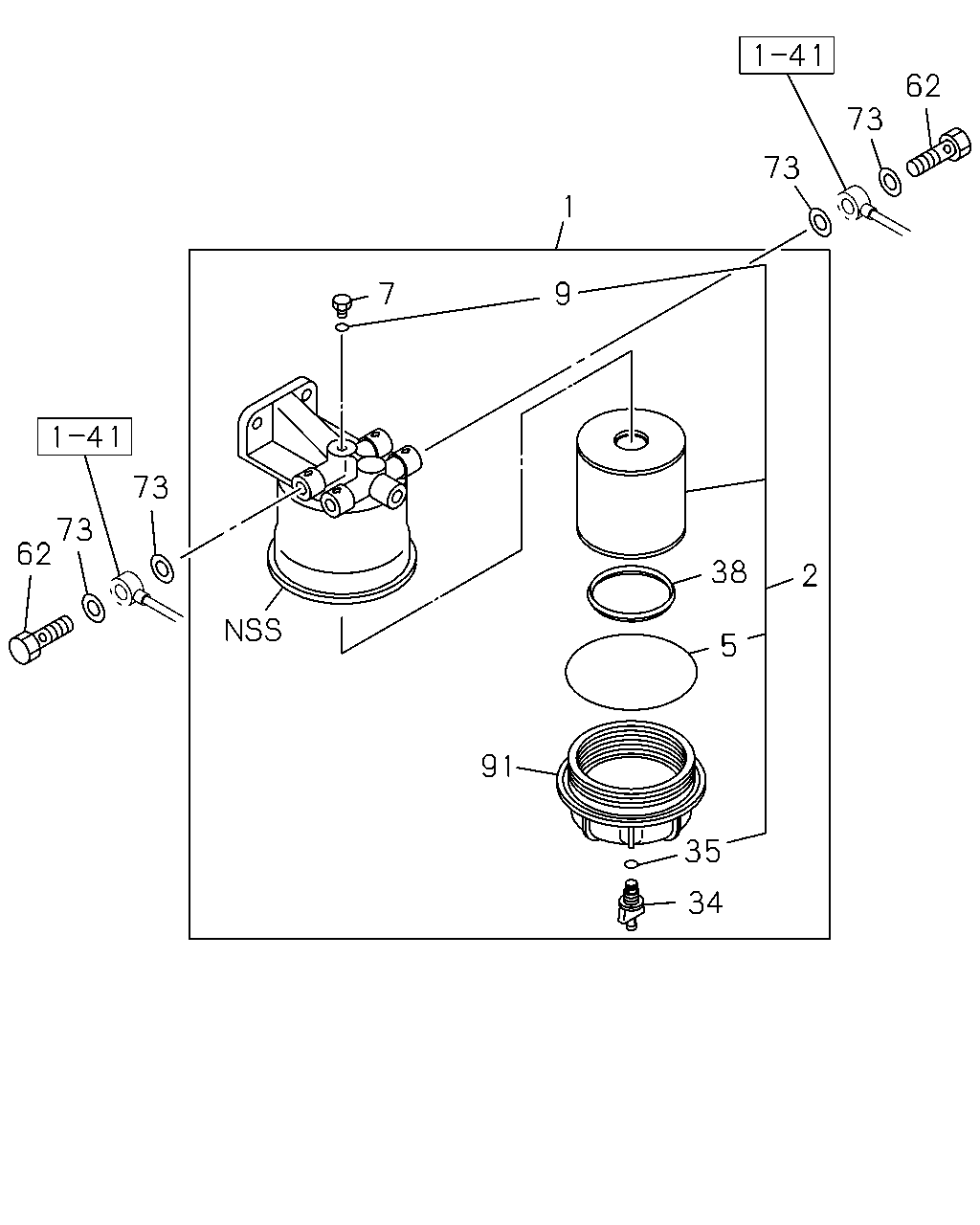

1-45 — WATER SEDIMENTER; FUEL
(#42711) — 13 parça
62
73
73
1
9
7
73
73
62
38
2
5
91
35
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SEDIMENTER; FUEL
FUEL PIPE STEEL<E2N>
1-13201-016-1
01
1
0008-
1
SEDIMENTER; FUEL
EXC. FUEL PIPE STEEL<E2N>
1-13201-017-1
01
1
0008-
2
ELEMENT; FUEL FILTER
1-13240-194-0
01
1
0008-
5
GASKET; UPR COVER,SEDIMENTER
1-13213-017-0
01
1
0008-
7
PLUG; DRAIN,SEDIMENTER
M8X10
9-09862-068-0
01
1
0008-
9
GASKET; DRAIN PLUG & CONNECTOR
5-09623-024-1
01
1
0008-
34
PLUG; DRAIN,FUEL FILTER
1-13219-314-0
01
1
0008-
35
GASKET; DRAIN PLUG
8-94416-377-0
01
1
0008-
38
FLOAT; SEDIMENTER
1-13219-313-0
01
1
0008-
62
BOLT; EYE,FUEL FILTER
FUEL PIPE STEEL<E2N> M14X27 FLANGE
1-09675-086-0
02
1
0008-
73
GASKET; EYE JOINT
FUEL PIPE STEEL<E2N> ID=14.2 OD=19.2
1-09630-085-0
04
1
0008-1312
73
GASKET; EYE JOINT
FUEL PIPE STEEL<E2N> ID=14.2 OD=19.2
8-98251-345-0
04
1
1401-
91
COVER; LWR,SEDIMENTER
1-13212-176-3
01
1
0008-
