◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11433 - FSS(BANGLADESH) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#42710) — 59 parça

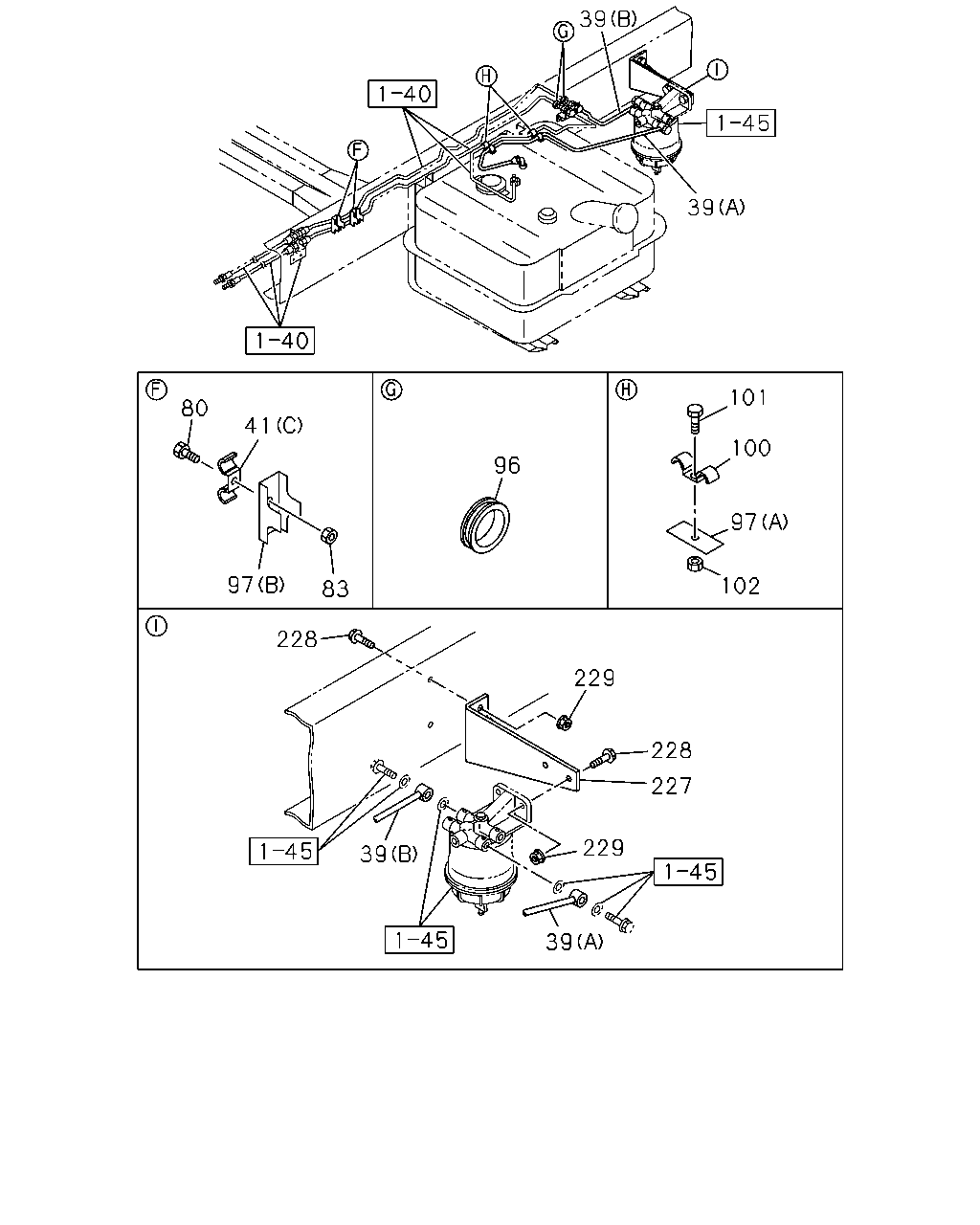

çizim 97055
39 39 101 80 41 100 96 97 97 102 83 228 229 228 227 229 39 39
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
FUEL PIPE STEEL<E2N> (A) 		1-22511-825-0 01 1 0008-0310
39 PIPE; FUEL
FUEL PIPE STEEL<E2N> (A) 		1-22511-913-0 01 1 0311-
39 PIPE; FUEL
FUEL PIPE STEEL<E2N> (B) 		1-22511-826-0 01 1 0008-0310
39 PIPE; FUEL
FUEL PIPE STEEL<E2N> (B) 		1-22511-914-0 01 1 0311-
41 CLIP; FUEL PIPE,FUEL TANK
FUEL PIPE STEEL<E2N> (C) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0008-0310
41 CLIP; FUEL PIPE,FUEL TANK
FUEL PIPE STEEL<E2N> (C) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0311-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (A) ID=14 		1-09704-102-0 04 1 0008-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (B) L=250 		5-09707-030-1 01 1 0008-
80 BOLT; CLIP,FUEL TANK
FUEL PIPE STEEL<E2N> M8X40 FLANGE 		0-28680-840-0 01 1 0008-0310
80 BOLT; CLIP,FUEL TANK
FUEL PIPE STEEL<E2N> M8X40 FLANGE 		0-28680-840-0 02 1 0311-0512
80 BOLT; CLIP,FUEL TANK
FUEL PIPE STEEL<E2N> M8X40 FLANGE 		0-28650-840-0 02 1 0601-
83 NUT; CLIP,FUEL TANK
FUEL PIPE STEEL<E2N> M8 FLANGE 		0-91150-108-0 01 1 0008-0310
83 NUT; CLIP,FUEL TANK
FUEL PIPE STEEL<E2N> M8 FLANGE 		0-91150-108-0 02 1 0311-0602
83 NUT; CLIP,FUEL TANK
FUEL PIPE STEEL<E2N> M8 FLANGE 		0-91180-108-0 02 1 0603-
96 GROMMET; PIPE,FUEL TANK
FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17 		9-09956-256-2 02 1 0008-
97 BRACKET; CLIP
FUEL PIPE STEEL<E2N> (A) L=50 		1-47475-299-2 02 1 0008-
97 BRACKET; CLIP
FUEL PIPE STEEL<E2N> (B) 		1-47475-427-1 01 1 0008-0310
97 BRACKET; CLIP
FUEL PIPE STEEL<E2N> (B) 		1-47475-427-1 02 1 0311-
100 CLIP; FUEL PIPE
FUEL PIPE STEEL<E2N> ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0008-
101 BOLT; CLIP,FUEL PIPE
FUEL PIPE STEEL<E2N> M8X16 FLANGE 		0-28080-816-0 02 1 0008-0512
101 BOLT; CLIP,FUEL PIPE
FUEL PIPE STEEL<E2N> M8X16 FLANGE 		0-28050-816-0 02 1 0601-
102 NUT; CLIP,FUEL PIPE
FUEL PIPE STEEL<E2N> M8 FLANGE 		0-91150-108-0 02 1 0008-0602
102 NUT; CLIP,FUEL PIPE
FUEL PIPE STEEL<E2N> M8 FLANGE 		0-91180-108-0 02 1 0603-
227 BRACKET; FUEL SEDIMENTER
FUEL PIPE STEEL<E2N> 		1-22518-161-0 01 1 0008-
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28681-035-0 02 1 0008-0008
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28681-035-0 02 1 0009-0512
228 BOLT; BRKT,SEDIMENTER
FUEL PIPE STEEL<E2N> M10X35 FLANGE 		0-28681-035-0 02 1 0009-0512
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28651-035-0 02 1 0601-
228 BOLT; BRKT,SEDIMENTER
FUEL PIPE STEEL<E2N> M10X35 FLANGE 		0-28651-035-0 02 1 0601-
228 BOLT; BRKT,SEDIMENTER
FUEL PIPE STEEL<E2N> M10X30 FLANGE 		0-28681-030-0 02 1 0008-0008
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0008-0602
229 NUT; BRKT,FUEL FILTER
FUEL PIPE STEEL<E2N> M10 FLANGE 		0-91150-210-0 02 1 0008-0602
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603-
229 NUT; BRKT,FUEL FILTER
FUEL PIPE STEEL<E2N> M10 FLANGE 		0-91180-210-0 02 1 0603-

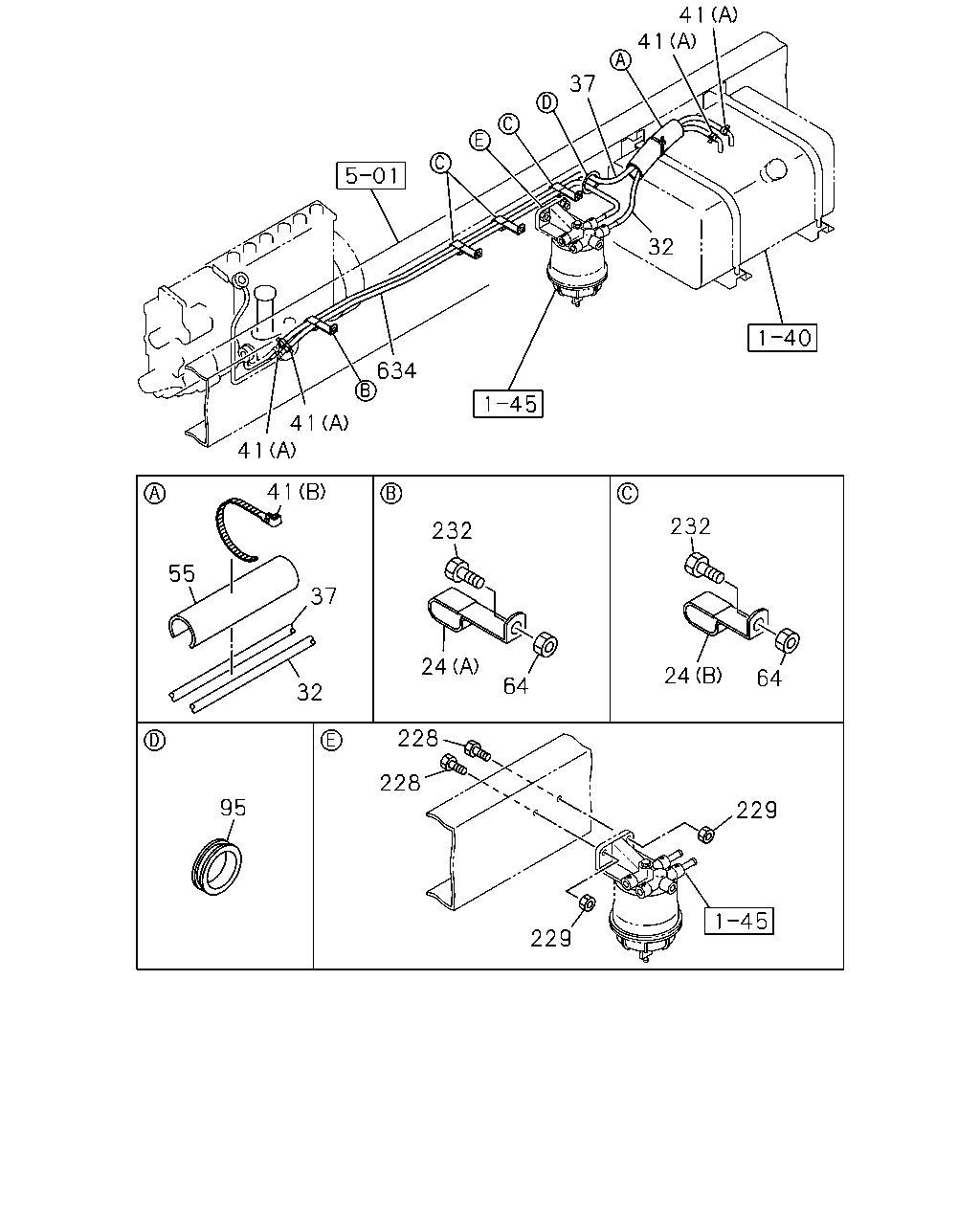

çizim 97670
41 41 37 32 634 41 41 41 232 232 55 37 24 24 64 64 32 228 228 95 229 229
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=30 L=25 		1-09701-101-0 02 1 0008-
24 CLIP; FUEL HOSE
EXC. FUEL PIPE STEEL<E2N> (A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0008-
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> L=500 SERVICED BY L=3000 		0-01260-300-0 01 1 0008-
37 HOSE; RUBBER DELIVERY
EXC. FUEL PIPE STEEL<E2N> L=1500 SERVICED BY L=3000 		0-01260-300-0 01 1 0008-
41 CLIP; FUEL PIPE,FUEL TANK
FUEL PIPE STEEL<E2N> (C) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0008-0310
41 CLIP; FUEL PIPE,FUEL TANK
FUEL PIPE STEEL<E2N> (C) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0311-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (A) ID=14 		1-09704-102-0 04 1 0008-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (B) L=250 		5-09707-030-1 01 1 0008-
55 COVER; PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> L=250 SERVICED BY L=1300 		1-09360-677-1 01 1 0008-
64 NUT; CLIP
EXC. FUEL PIPE STEEL<E2N> M8 FLANGE 		0-91150-108-0 03 1 0008-0602
64 NUT; CLIP
EXC. FUEL PIPE STEEL<E2N> M8 FLANGE 		0-91180-108-0 03 1 0603-
95 BUSHING; PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17 		9-09956-256-2 01 1 0008-
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28681-035-0 02 1 0008-0008
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28681-035-0 02 1 0009-0512
228 BOLT; BRKT,SEDIMENTER
FUEL PIPE STEEL<E2N> M10X35 FLANGE 		0-28681-035-0 02 1 0009-0512
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28651-035-0 02 1 0601-
228 BOLT; BRKT,SEDIMENTER
FUEL PIPE STEEL<E2N> M10X35 FLANGE 		0-28651-035-0 02 1 0601-
228 BOLT; BRKT,SEDIMENTER
FUEL PIPE STEEL<E2N> M10X30 FLANGE 		0-28681-030-0 02 1 0008-0008
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0008-0602
229 NUT; BRKT,FUEL FILTER
FUEL PIPE STEEL<E2N> M10 FLANGE 		0-91150-210-0 02 1 0008-0602
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603-
229 NUT; BRKT,FUEL FILTER
FUEL PIPE STEEL<E2N> M10 FLANGE 		0-91180-210-0 02 1 0603-
232 BOLT; CLIP,PIPE
EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE 		0-28680-825-0 03 1 0008-0512
232 BOLT; CLIP,PIPE
EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE 		0-28650-825-0 03 1 0601-
634 HOSE; RUBBER RETURN
EXC. FUEL PIPE STEEL<E2N> L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0008-
