1 |
HOUSING; PUMP,FUEL INJ
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15611-168-1 |
01 |
1 |
- |
| |
1 |
HOUSING; PUMP,FUEL INJ
ASM PART: A = 1-15603-059-2
|
1-15611-182-0 |
01 |
1 |
-9603 |
| |
1 |
HOUSING; PUMP,FUEL INJ
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15611-186-0 |
01 |
1 |
- |
| |
1 |
HOUSING; PUMP,FUEL INJ
ASM PART: B = 1-15603-060-2, C = 1-15603-061-2,
F = 1-15603-072-1, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, Q = 1-15603-227-2,
R = 1-15603-315-2
|
1-15611-187-0 |
01 |
1 |
- |
| |
1 |
HOUSING; PUMP,FUEL INJ
ASM PART: A = 1-15603-059-2
|
1-15611-187-0 |
01 |
1 |
9604- |
| |
5 |
PLUNGER COMPL; INJ PUMP
ASM PART: B = 1-15603-060-2, C = 1-15603-061-2,
F = 1-15603-072-1, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
R = 1-15603-315-2
|
1-15631-162-1 |
10 |
1 |
- |
| |
5 |
PLUNGER COMPL; INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15631-162-1 |
08 |
1 |
- |
| |
5 |
PLUNGER COMPL; INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15631-179-1 |
10 |
1 |
- |
| |
5 |
PLUNGER COMPL; INJ PUMP
ASM PART: A = 1-15603-059-2, H = 1-15603-201-2,
Q = 1-15603-227-2
|
1-15631-187-2 |
10 |
1 |
- |
| |
6 |
HOLDER; DELIVERY VLV,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15644-007-0 |
08 |
1 |
- |
| |
6 |
HOLDER; DELIVERY VLV,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15644-007-0 |
10 |
1 |
- |
| |
6 |
HOLDER; DELIVERY VLV,INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15644-017-0 |
10 |
1 |
- |
| |
7 |
GASKET; HOLDER,DELIVERY VLV
ASM PART: K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15629-088-0 |
08 |
1 |
-0202 |
| |
7 |
GASKET; HOLDER,DELIVERY VLV
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
G = 1-15603-123-2, P = 1-15603-209-1
|
1-15629-088-0 |
10 |
1 |
- |
| |
7 |
GASKET; HOLDER,DELIVERY VLV
ASM PART: I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, Q = 1-15603-227-2,
R = 1-15603-315-2
|
1-15629-088-0 |
10 |
1 |
-0202 |
| |
7 |
GASKET; HOLDER,DELIVERY VLV
ASM PART: H = 1-15603-201-2
|
1-15629-088-0 |
10 |
1 |
-0208 |
| |
7 |
GASKET; HOLDER,DELIVERY VLV
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2
|
1-15629-088-0 |
08 |
1 |
- |
| |
8 |
STOPPER; DELIVERY VLV,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15649-005-0 |
08 |
1 |
- |
| |
8 |
STOPPER; DELIVERY VLV,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15649-005-0 |
10 |
1 |
- |
| |
8 |
STOPPER; DELIVERY VLV,INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
8-97084-987-0 |
10 |
1 |
- |
| |
9 |
SPRING; DELIVERY VLV
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15643-010-0 |
10 |
1 |
- |
| |
9 |
SPRING; DELIVERY VLV
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15662-001-0 |
08 |
1 |
- |
| |
9 |
SPRING; DELIVERY VLV
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15662-001-0 |
10 |
1 |
- |
| |
10 |
GASKET; DELIVERY VLV,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
9-81215-174-0 |
08 |
1 |
- |
| |
10 |
GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81215-174-0 |
10 |
1 |
- |
| |
14 |
VALVE; DELIVERY,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15641-028-0 |
08 |
1 |
- |
| |
14 |
VALVE; DELIVERY,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15641-028-0 |
10 |
1 |
- |
| |
14 |
VALVE; DELIVERY,INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15641-042-0 |
10 |
1 |
- |
| |
19 |
PLUNGER ASM; INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15631-101-0 |
08 |
1 |
- |
| |
19 |
PLUNGER ASM; INJ PUMP
ASM PART: B = 1-15603-060-2, C = 1-15603-061-2,
F = 1-15603-072-1, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
R = 1-15603-315-2
|
1-15631-101-0 |
10 |
1 |
- |
| |
19 |
PLUNGER ASM; INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15632-018-0 |
10 |
1 |
- |
| |
19 |
PLUNGER ASM; INJ PUMP
ASM PART: A = 1-15603-059-2, H = 1-15603-201-2,
Q = 1-15603-227-2
|
1-15632-031-0 |
10 |
1 |
- |
| |
20 |
WASHER; PLUNGER BARREL
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15639-020-0 |
16 |
1 |
- |
| |
20 |
WASHER; PLUNGER BARREL
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-020-0 |
20 |
1 |
- |
| |
21 |
FLANGE; PLUNGER
ASM PART: K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15742-082-0 |
08 |
1 |
-0202 |
| |
21 |
FLANGE; PLUNGER
ASM PART: H = 1-15603-201-2
|
1-15742-082-0 |
10 |
1 |
-0208 |
| |
21 |
FLANGE; PLUNGER
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2
|
1-15742-082-0 |
08 |
1 |
- |
| |
21 |
FLANGE; PLUNGER
ASM PART: I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, Q = 1-15603-227-2,
R = 1-15603-315-2
|
1-15742-082-0 |
10 |
1 |
-0202 |
| |
21 |
FLANGE; PLUNGER
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1
|
1-15742-082-0 |
10 |
1 |
- |
| |
21 |
FLANGE; PLUNGER
ASM PART: I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, Q = 1-15603-227-2,
R = 1-15603-315-2
|
1-15742-141-0 |
10 |
1 |
0203- |
| |
21 |
FLANGE; PLUNGER
ASM PART: K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15742-141-0 |
08 |
1 |
0203- |
| |
21 |
FLANGE; PLUNGER
ASM PART: H = 1-15603-201-2
|
1-15742-141-0 |
10 |
1 |
0209- |
| |
21 |
FLANGE; PLUNGER
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15742-141-0 |
10 |
1 |
- |
| |
22 |
RING; PLUNGER,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2
|
1-15649-008-0 |
08 |
1 |
- |
| |
22 |
RING; PLUNGER,INJ PUMP
ASM PART: K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15649-008-0 |
08 |
1 |
-0202 |
| |
22 |
RING; PLUNGER,INJ PUMP
ASM PART: H = 1-15603-201-2
|
1-15649-008-0 |
10 |
1 |
-0208 |
| |
22 |
RING; PLUNGER,INJ PUMP
ASM PART: I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, Q = 1-15603-227-2,
R = 1-15603-315-2
|
1-15649-008-0 |
10 |
1 |
-0202 |
| |
22 |
RING; PLUNGER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1
|
1-15649-008-0 |
10 |
1 |
- |
| |
23 |
GASKET; PLUNGER,BARREL SIDE
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1
|
1-15629-089-0 |
10 |
1 |
- |
| |
23 |
GASKET; PLUNGER,BARREL SIDE
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2
|
1-15629-089-0 |
08 |
1 |
- |
| |
23 |
GASKET; PLUNGER,BARREL SIDE
ASM PART: H = 1-15603-201-2
|
1-15629-089-0 |
10 |
1 |
-0208 |
| |
23 |
GASKET; PLUNGER,BARREL SIDE
ASM PART: I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, Q = 1-15603-227-2,
R = 1-15603-315-2
|
1-15629-089-0 |
10 |
1 |
-0202 |
| |
23 |
GASKET; PLUNGER,BARREL SIDE
ASM PART: K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15629-089-0 |
08 |
1 |
-0202 |
| |
23 |
GASKET; PLUNGER,BARREL SIDE
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15629-106-0 |
10 |
1 |
- |
| |
24 |
WASHER; PLUNGER,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
9-88410-430-0 |
08 |
1 |
- |
| |
24 |
WASHER; PLUNGER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-88410-430-0 |
10 |
1 |
- |
| |
25 |
RING; SNAP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-88410-431-0 |
10 |
1 |
- |
| |
25 |
RING; SNAP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
9-88410-431-0 |
08 |
1 |
- |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: D = 1-15603-062-2, K = 1-15603-204-2,
L = 1-15603-205-2, N = 1-15603-207-2,
O = 1-15603-208-2
|
1-15619-424-0 |
08 |
1 |
- |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: A = 1-15603-059-2, F = 1-15603-072-1
|
1-15619-424-0 |
10 |
1 |
9604- |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: C = 1-15603-061-2
|
1-15619-424-0 |
10 |
1 |
9612- |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: B = 1-15603-060-2
|
1-15619-424-0 |
10 |
1 |
9607- |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15619-424-0 |
10 |
1 |
- |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: E = 1-15603-063-2
|
1-15619-424-0 |
08 |
1 |
9612- |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: C = 1-15603-061-2
|
1-15629-113-0 |
10 |
1 |
-9611 |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: B = 1-15603-060-2
|
1-15629-113-0 |
10 |
1 |
-9606 |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: A = 1-15603-059-2, F = 1-15603-072-1
|
1-15629-113-0 |
10 |
1 |
-9603 |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: E = 1-15603-063-2
|
1-15629-113-0 |
08 |
1 |
-9611 |
| |
27 |
GASKET; PLUNGER LWR
ASM PART: G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15619-424-0 |
10 |
1 |
- |
| |
27 |
GASKET; PLUNGER LWR
ASM PART: B = 1-15603-060-2
|
1-15619-424-0 |
10 |
1 |
9607- |
| |
27 |
GASKET; PLUNGER LWR
ASM PART: C = 1-15603-061-2
|
1-15619-424-0 |
10 |
1 |
9612- |
| |
27 |
GASKET; PLUNGER LWR
ASM PART: A = 1-15603-059-2, F = 1-15603-072-1
|
1-15619-424-0 |
10 |
1 |
9604- |
| |
27 |
GASKET; PLUNGER LWR
ASM PART: D = 1-15603-062-2, K = 1-15603-204-2,
L = 1-15603-205-2, N = 1-15603-207-2,
O = 1-15603-208-2
|
1-15619-424-0 |
08 |
1 |
- |
| |
27 |
GASKET; PLUNGER LWR
ASM PART: E = 1-15603-063-2
|
1-15619-424-0 |
08 |
1 |
9612- |
| |
27 |
GASKET; PLUNGER LWR
ASM PART: C = 1-15603-061-2
|
1-15629-113-0 |
10 |
1 |
-9611 |
| |
27 |
GASKET; PLUNGER LWR
ASM PART: A = 1-15603-059-2, F = 1-15603-072-1
|
1-15629-113-0 |
10 |
1 |
-9603 |
| |
27 |
GASKET; PLUNGER LWR
ASM PART: B = 1-15603-060-2
|
1-15629-113-0 |
10 |
1 |
-9606 |
| |
27 |
GASKET; PLUNGER LWR
ASM PART: E = 1-15603-063-2
|
1-15629-113-0 |
08 |
1 |
-9611 |
| |
28 |
DEFLECTOR; PLUNGER
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15629-093-0 |
10 |
1 |
- |
| |
28 |
DEFLECTOR; PLUNGER
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15639-086-0 |
08 |
1 |
- |
| |
28 |
DEFLECTOR; PLUNGER
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-086-0 |
10 |
1 |
- |
| |
29 |
STUD; PLUNGER FIX,PUMP HSG
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
9-88410-432-0 |
16 |
1 |
- |
| |
29 |
STUD; PLUNGER FIX,PUMP HSG
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-88410-432-0 |
20 |
1 |
- |
| |
30 |
PLUG; SCREW,INJ PUMP HSG
(A) ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81215-130-0 |
10 |
1 |
- |
| |
30 |
PLUG; SCREW,INJ PUMP HSG
(A) ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
9-81215-130-0 |
08 |
1 |
- |
| |
31 |
HANGER; FRT,INJ PUMP
(C) ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, K = 1-15603-204-2,
L = 1-15603-205-2, M = 1-15603-206-2,
N = 1-15603-207-2, O = 1-15603-208-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15619-163-0 |
01 |
1 |
- |
| |
31 |
HANGER; FRT,INJ PUMP
(A) ASM PART: G = 1-15603-123-2
|
1-15619-403-0 |
01 |
1 |
- |
| |
31 |
HANGER; FRT,INJ PUMP
(B) ASM PART: P = 1-15603-209-1
|
1-15619-444-0 |
01 |
1 |
- |
| |
32 |
BOLT; HANGER TO INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15619-039-0 |
01 |
1 |
- |
| |
32 |
BOLT; HANGER TO INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, K = 1-15603-204-2,
L = 1-15603-205-2, M = 1-15603-206-2,
N = 1-15603-207-2, O = 1-15603-208-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15619-039-0 |
02 |
1 |
- |
| |
33 |
GASKET; FUEL FEED PUMP,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15619-320-0 |
01 |
1 |
- |
| |
34 |
BUSHING; CONT RACK,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81215-123-0 |
02 |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.500
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-024-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.525
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-025-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.550
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-026-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.575
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-027-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.600
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-028-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.625
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-029-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.650
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-030-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.675
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-031-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.700
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-032-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.725
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-033-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.750
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-034-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.775
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-035-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.800
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-036-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.825
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-037-0 |
AR |
1 |
- |
| |
38 |

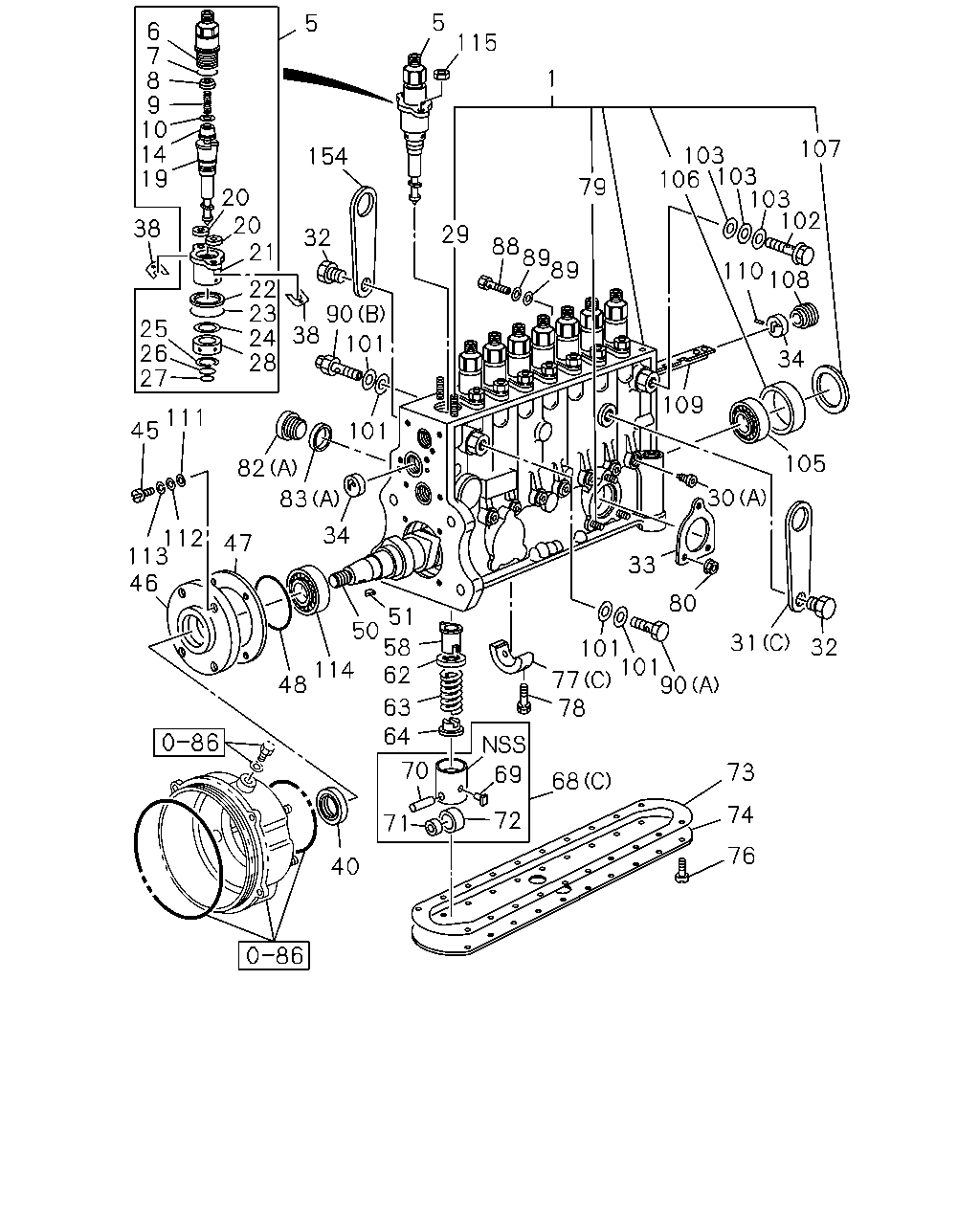

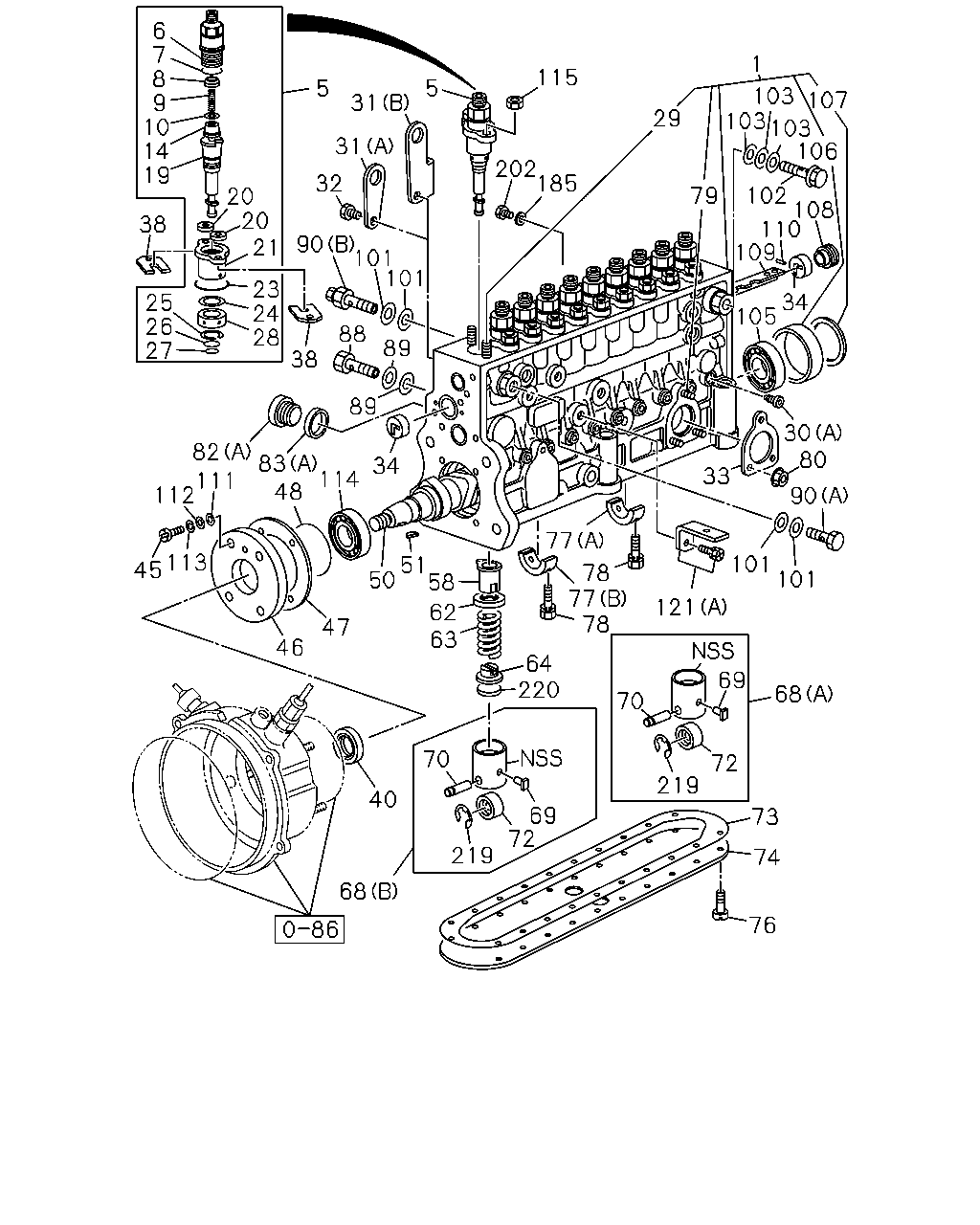

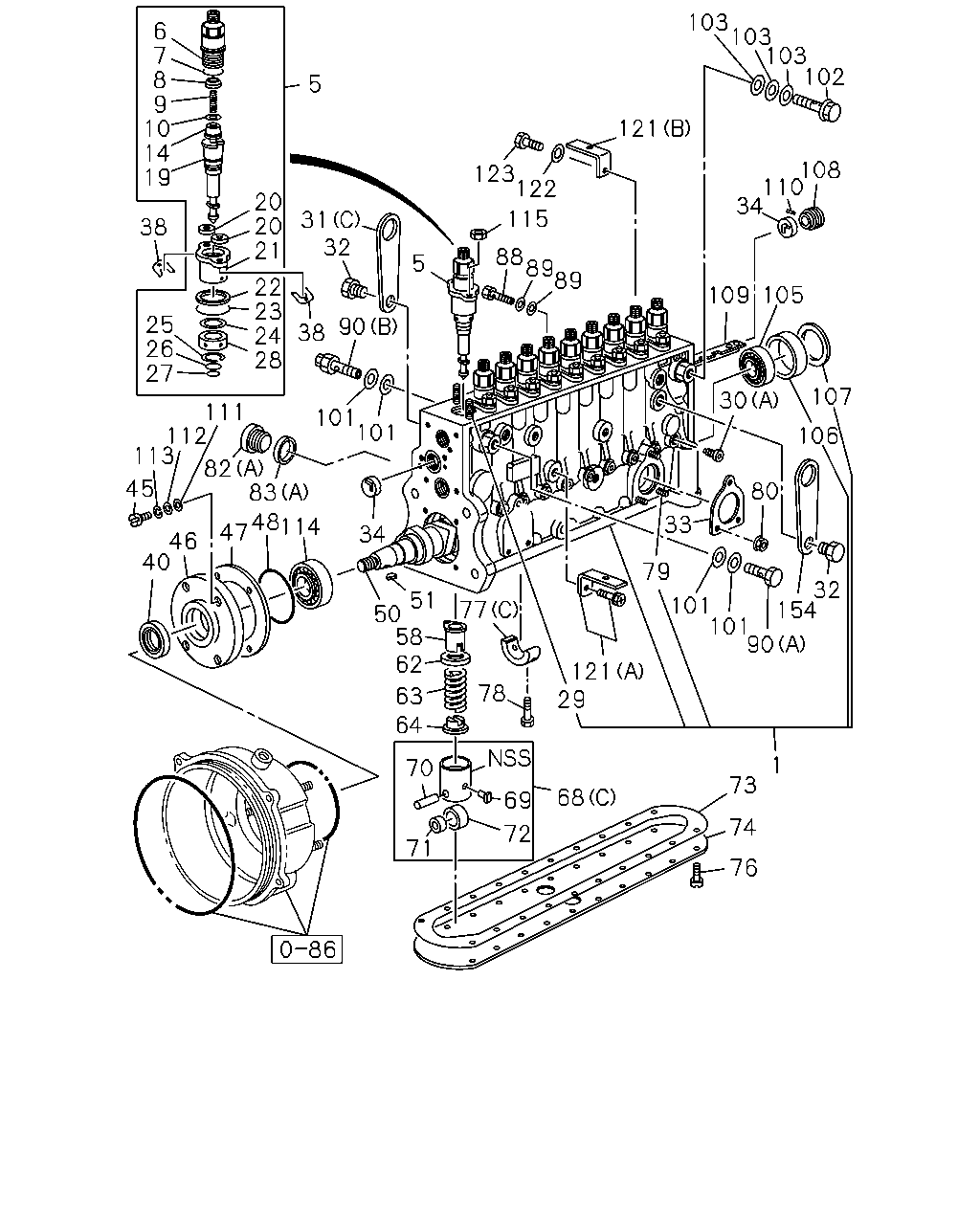

SHIM; PLUNGER BARREL,INJ PUMP
T=0.850
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-038-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.875
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-039-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.900
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-040-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.925
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-041-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.950
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-042-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=0.975
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-043-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.000
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-044-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.025
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-045-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.050
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-046-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.075
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-047-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.100
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-048-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.125
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-049-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.150
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-050-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.175
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-051-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.200
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-052-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.225
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-053-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.250
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-054-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.275
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-055-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.300
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-056-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.325
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-057-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.350
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-058-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.375
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-059-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.400
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-060-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.425
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-061-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.450
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-062-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.475
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-063-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.500
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-064-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.525
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-065-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.550
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-066-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.575
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-067-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.600
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-068-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.625
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-069-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.650
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-070-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.675
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-071-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.700
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-072-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.725
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-073-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.750
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-074-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.775
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-075-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.800
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-076-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.825
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-077-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.850
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-078-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.875
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-079-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.900
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-080-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.925
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-081-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.950
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-082-0 |
AR |
1 |
- |
| |
38 |
SHIM; PLUNGER BARREL,INJ PUMP
T=1.975
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-083-0 |
AR |
1 |
- |
| |
40 |
SEAL; OIL,CM/SHF FRT,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15619-317-0 |
01 |
1 |
- |
| |
45 |
BOLT; FRT COVER TO HSG
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15619-308-0 |
04 |
1 |
- |
| |
46 |
COVER; FRT,PUMP HSG
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, K = 1-15603-204-2,
L = 1-15603-205-2, M = 1-15603-206-2,
N = 1-15603-207-2, O = 1-15603-208-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15629-037-0 |
01 |
1 |
- |
| |
46 |
COVER; FRT,PUMP HSG
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15629-120-0 |
01 |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.10
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-88410-445-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.12
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-88410-446-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.14
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-88410-447-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.16
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-88410-448-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.18
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-88410-449-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.30
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-88410-450-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.50
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-88410-451-0 |
AR |
1 |
- |
| |
48 |
GASKET; FRT COVER TO HSG
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15619-318-0 |
01 |
1 |
- |
| |
50 |
CAMSHAFT; INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15621-071-0 |
01 |
1 |
- |
| |
50 |
CAMSHAFT; INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15621-083-0 |
01 |
1 |
- |
| |
50 |
CAMSHAFT; INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15621-099-0 |
01 |
1 |
- |
| |
51 |
KEY; DRIVE GEAR,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15629-009-0 |
01 |
1 |
- |
| |
58 |
SLEEVE; CONT,INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15629-085-0 |
10 |
1 |
- |
| |
58 |
SLEEVE; CONT,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15635-001-0 |
10 |
1 |
- |
| |
58 |
SLEEVE; CONT,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15635-001-0 |
08 |
1 |
- |
| |
62 |
SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81215-136-0 |
10 |
1 |
- |
| |
62 |
SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
9-81215-136-0 |
08 |
1 |
- |
| |
63 |
SPRING; PLUNGER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15634-008-0 |
10 |
1 |
- |
| |
63 |
SPRING; PLUNGER,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15634-008-0 |
08 |
1 |
- |
| |
63 |
SPRING; PLUNGER,INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15643-008-0 |
10 |
1 |
- |
| |
64 |
SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15643-004-0 |
08 |
1 |
- |
| |
64 |
SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15643-004-0 |
10 |
1 |
- |
| |
64 |
SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15643-009-0 |
10 |
1 |
- |
| |
68 |
TAPPET; CM/SHF,INJ PUMP
(A) ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15622-009-0 |
02 |
1 |
- |
| |
68 |
TAPPET; CM/SHF,INJ PUMP
(B) ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15622-010-0 |
08 |
1 |
- |
| |
68 |
TAPPET; CM/SHF,INJ PUMP
(C) ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81221-240-0 |
10 |
1 |
- |
| |
68 |
TAPPET; CM/SHF,INJ PUMP
(C) ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
9-81221-240-0 |
08 |
1 |
- |
| |
69 |
GUIDE; TAPPET,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15629-063-0 |
10 |
1 |
- |
| |
69 |
GUIDE; TAPPET,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15629-063-0 |
08 |
1 |
- |
| |
70 |
PIN; TAPPET ROLLER,INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15619-313-0 |
10 |
1 |
- |
| |
70 |
PIN; TAPPET ROLLER,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
9-81225-062-0 |
08 |
1 |
- |
| |
70 |
PIN; TAPPET ROLLER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81225-062-0 |
10 |
1 |
- |
| |
71 |
BUSHING; TAPPET ROLLER,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
9-81225-061-0 |
08 |
1 |
- |
| |
71 |
BUSHING; TAPPET ROLLER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81225-061-0 |
10 |
1 |
- |
| |
72 |
ROLLER; TAPPET,INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15619-312-0 |
10 |
1 |
- |
| |
72 |
ROLLER; TAPPET,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
9-81225-060-0 |
08 |
1 |
- |
| |
72 |
ROLLER; TAPPET,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81225-060-0 |
10 |
1 |
- |
| |
73 |
GASKET; COVER TO HSG
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15629-091-0 |
01 |
1 |
- |
| |
73 |
GASKET; COVER TO HSG
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15629-104-0 |
01 |
1 |
- |
| |
74 |
COVER; HSG,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15612-019-0 |
01 |
1 |
- |
| |
74 |
COVER; HSG,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15629-051-0 |
01 |
1 |
- |
| |
76 |
BOLT; COVER TO HSG
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15619-066-0 |
14 |
1 |
- |
| |
76 |
BOLT; COVER TO HSG
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15619-066-0 |
16 |
1 |
- |
| |
77 |
BEARING; CM/SHF CENTER,INJ PUMP
(A) ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15619-392-0 |
02 |
1 |
- |
| |
77 |
BEARING; CM/SHF CENTER,INJ PUMP
(B) ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15619-393-0 |
02 |
1 |
- |
| |
77 |
BEARING; CM/SHF CENTER,INJ PUMP
(C) ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
9-81225-066-0 |
01 |
1 |
- |
| |
77 |
BEARING; CM/SHF CENTER,INJ PUMP
(C) ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81225-066-0 |
02 |
1 |
- |
| |
78 |
BOLT; CENTER BRG,INJ PUMP
M6X25
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15729-242-0 |
08 |
1 |
- |
| |
78 |
BOLT; CENTER BRG,INJ PUMP
M6X20
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
9-81325-187-0 |
02 |
1 |
- |
| |
78 |
BOLT; CENTER BRG,INJ PUMP
M6X20
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81325-187-0 |
04 |
1 |
- |
| |
79 |
STUD; FUEL FEED PUMP TO HSG
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81215-115-0 |
03 |
1 |
- |
| |
80 |
NUT; FUEL FEED PUMP FIX
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
8-94171-110-0 |
03 |
1 |
- |
| |
82 |
PLUG; HSG,INJ PUMP
(A) ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81215-129-0 |
01 |
1 |
- |
| |
83 |
GASKET; HSG PLUG
(A) ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15619-067-0 |
01 |
1 |
- |
| |
88 |
BOLT; EYE,OIL FEED,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, K = 1-15603-204-2,
L = 1-15603-205-2, M = 1-15603-206-2,
N = 1-15603-207-2, O = 1-15603-208-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15619-092-0 |
01 |
1 |
- |
| |
88 |
BOLT; EYE,OIL FEED,INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15759-011-0 |
01 |
1 |
- |
| |
89 |
GASKET; OIL FEED BOLT,INJ PUMP
ID=14.2 OD=19.2
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-09630-085-0 |
02 |
1 |
- |
| |
89 |
GASKET; OIL FEED BOLT,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, K = 1-15603-204-2,
L = 1-15603-205-2, M = 1-15603-206-2,
N = 1-15603-207-2, O = 1-15603-208-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15719-093-0 |
02 |
1 |
- |
| |
90 |
VALVE; OVERFLOW,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15619-321-0 |
01 |
1 |
- |
| |
101 |
GASKET; OVERFLOW VLV,INJ PUMP
ID=14.2 OD=19.2
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-09630-085-0 |
02 |
1 |
- |
| |
102 |
VALVE; OVERFLOW,INJ PUMP
ASM PART: R = 1-15603-315-2
|
1-15619-367-0 |
01 |
1 |
-0011 |
| |
102 |
VALVE; OVERFLOW,INJ PUMP
ASM PART: R = 1-15603-315-2
|
1-15619-367-0 |
01 |
1 |
0203- |
| |
102 |
VALVE; OVERFLOW,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2
|
1-15619-367-0 |
01 |
1 |
- |
| |
103 |
GASKET; OVERFLOW VLV,INJ PUMP
ID=14.2 OD=19.2
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-09630-085-0 |
03 |
1 |
- |
| |
105 |
BEARING; CM/SHF RR,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81225-068-0 |
01 |
1 |
- |
| |
106 |
RING; HSG,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81225-064-0 |
01 |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=0.60
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15639-019-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=1.50
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81215-176-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=1.80
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81215-177-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=2.00
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81215-178-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=1.20
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-88410-441-0 |
AR |
1 |
- |
| |
108 |
BUSHING; CONT RACK END,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81215-125-0 |
01 |
1 |
- |
| |
109 |
RACK; CONT,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15637-014-0 |
01 |
1 |
- |
| |
109 |
RACK; CONT,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15637-015-0 |
01 |
1 |
- |
| |
110 |
PIN; CONT RACK,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-88410-440-0 |
01 |
1 |
- |
| |
111 |
GASKET; FRT COVER FIX
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15629-024-0 |
04 |
1 |
- |
| |
112 |
SHIM; FRT COVER FIX
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81315-216-0 |
04 |
1 |
- |
| |
113 |
WASHER; LK,FRT COVER TO HSG
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
8-94128-928-0 |
04 |
1 |
- |
| |
114 |
BEARING; CM/SHF FRT,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-81225-068-0 |
01 |
1 |
- |
| |
115 |
NUT; PLUNGER FIX,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
9-88410-456-0 |
20 |
1 |
- |
| |
115 |
NUT; PLUNGER FIX,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
9-88410-456-0 |
16 |
1 |
- |
| |
121 |
BRACKET; INJ PUMP HSG
(A) ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
G = 1-15603-123-2
|
1-15619-375-0 |
01 |
1 |
- |
| |
121 |
BRACKET; INJ PUMP HSG
(B) ASM PART: A = 1-15603-059-2
|
1-15779-254-0 |
01 |
1 |
-9603 |
| |
122 |
WASHER; LK,BRKT
ASM PART: A = 1-15603-059-2
|
1-83579-492-0 |
01 |
1 |
-9603 |
| |
123 |
BOLT; BRKT TO HSG
ASM PART: A = 1-15603-059-2
|
1-15729-555-0 |
01 |
1 |
-9603 |
| |
154 |
HANGER; RR,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, K = 1-15603-204-2,
L = 1-15603-205-2, M = 1-15603-206-2,
N = 1-15603-207-2, O = 1-15603-208-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15619-163-0 |
01 |
1 |
- |
