1-40 — FUEL TANK (#42709) — 55 parça

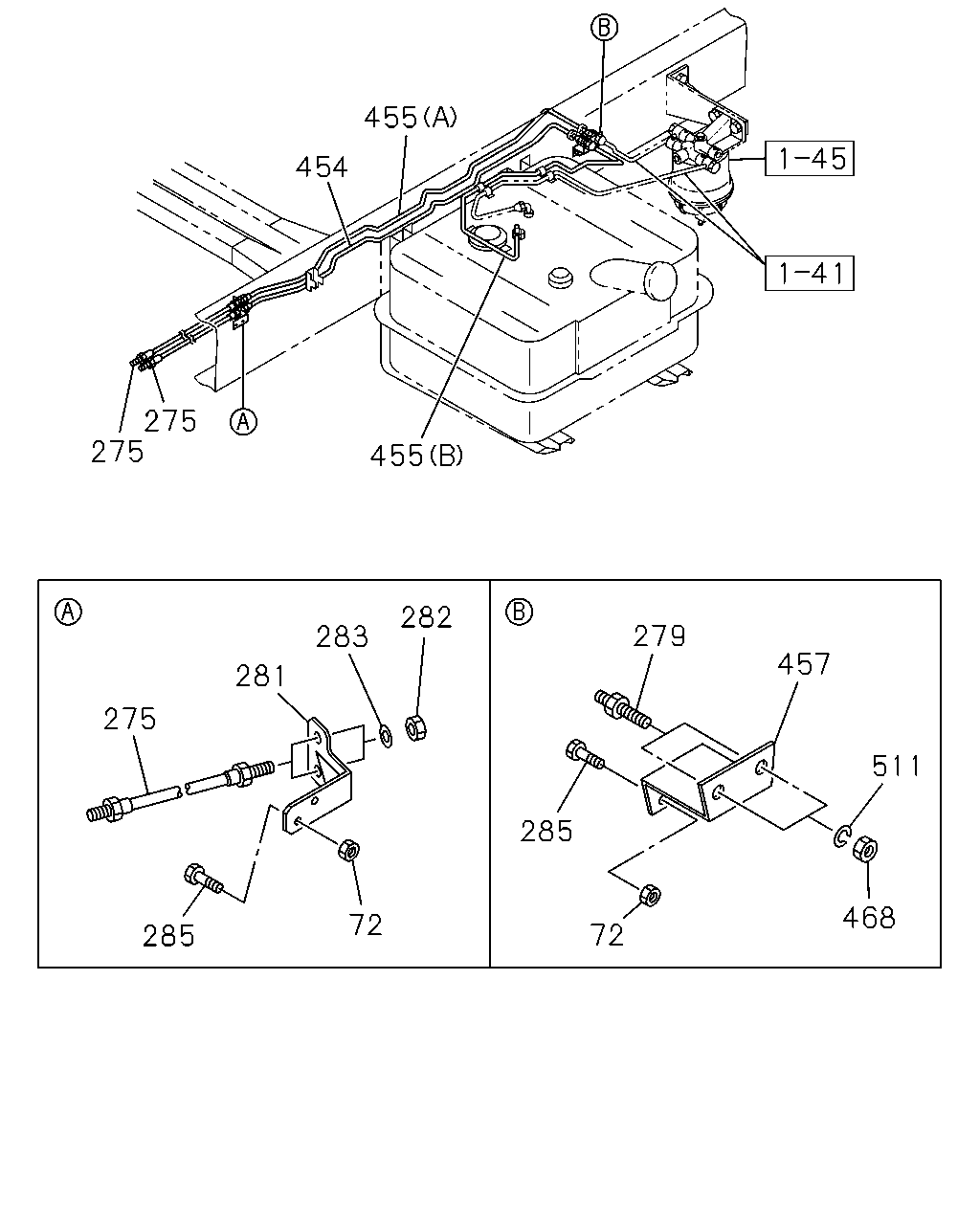

455 454 275 275 455 282 279 283 457 281 275 511 285 468 72 72 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	NUT; BRKT FUEL PIPE STEEL<E2N> M8 FLANGE	0-91150-108-0	04	1	0008-0602
72	NUT; BRKT FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	04	1	0603-
275	HOSE; FLEX,FUEL TANK FUEL PIPE STEEL<E2N>	1-09364-951-1	02	1	0008-
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> M16 L=74	9-09233-310-1	02	1	0008-0607
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> M16 L=74	0-92123-310-0	02	1	0608-
281	BRACKET; FLEX HOSE FUEL PIPE STEEL<E2N>	1-47477-641-0	01	1	0008-
282	NUT; FLEX HOSE,FUEL TANK FUEL PIPE STEEL<E2N> M16	9-99111-416-0	02	1	0008-0512
282	NUT; FLEX HOSE,FUEL TANK FUEL PIPE STEEL<E2N> M16	0-91111-516-0	02	1	0601-
283	WASHER; LK,FLEX HOSE,FUEL TANK FUEL PIPE STEEL<E2N> ID=16.2	9-09150-516-0	02	1	0008-0603
283	WASHER; LK,FLEX HOSE,FUEL TANK FUEL PIPE STEEL<E2N> ID=16.2	0-91510-516-0	02	1	0604-
285	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28680-825-0	04	1	0008-0512
285	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	04	1	0601-
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N>	1-22511-851-0	01	1	0008-0205
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N>	1-22511-891-0	01	1	0206-0310
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N>	1-22511-912-0	01	1	0311-
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (B)	1-22511-829-0	01	1	0008-0310
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (B)	1-22511-915-0	01	1	0311-
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (A)	1-22511-850-0	01	1	0008-0205
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (A)	1-22511-892-0	01	1	0206-0310
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (A)	1-22511-916-0	01	1	0311-
457	BRACKET; UNION,FUEL PIPE FUEL PIPE STEEL<E2N>	1-47475-400-2	01	1	0008-
468	NUT FUEL PIPE STEEL<E2N> M16	9-99111-416-0	02	1	0008-0512
468	NUT FUEL PIPE STEEL<E2N> M16	0-91111-516-0	02	1	0601-
511	WASHER FUEL PIPE STEEL<E2N> ID=16.2	9-09150-516-0	02	1	0008-0603
511	WASHER FUEL PIPE STEEL<E2N> ID=16.2	0-91510-516-0	02	1	0604-

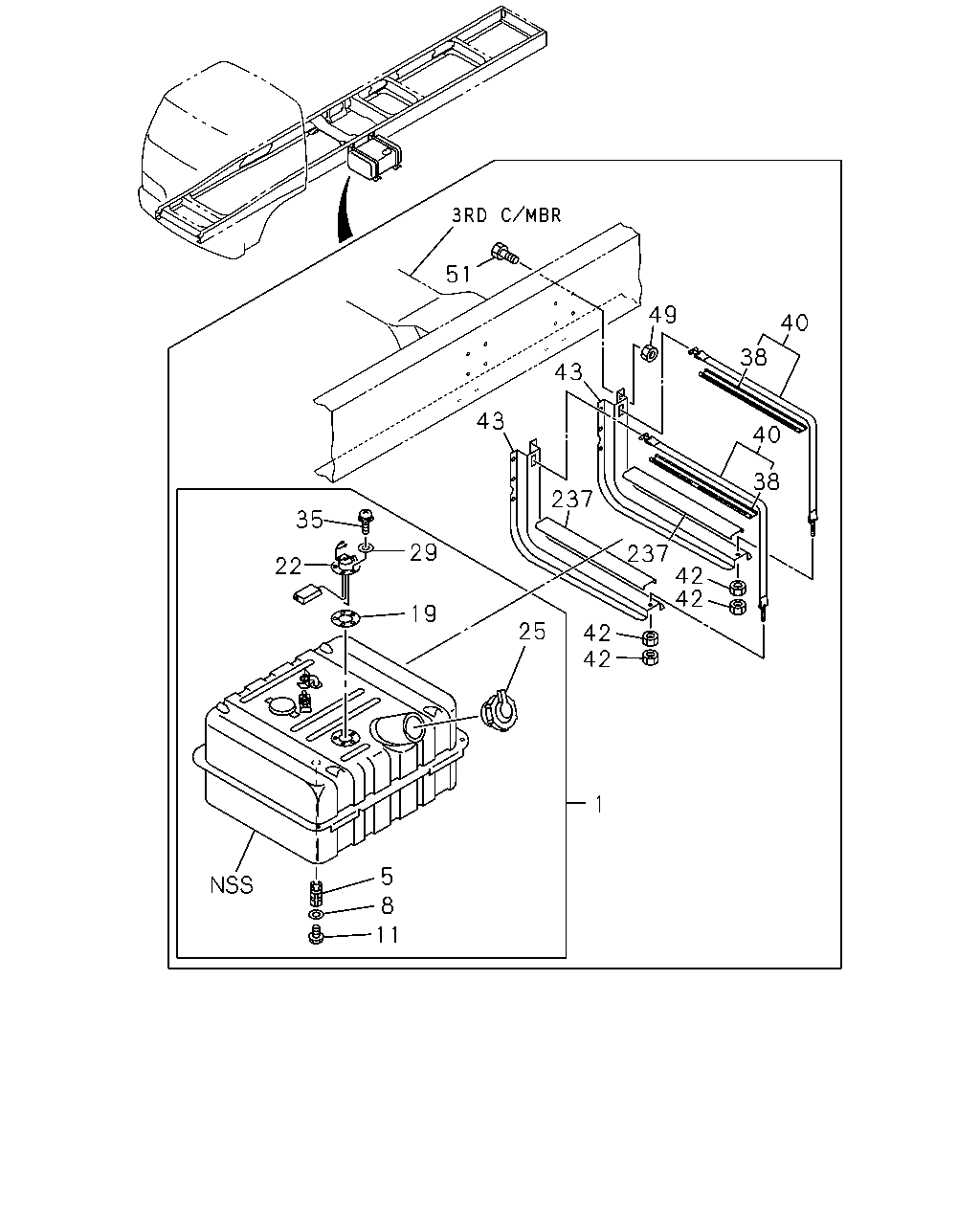

51 49 40 38 43 43 40 38 237 35 29 237 42 42 22 19 25 42 42 1 5 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL PIPE STEEL<E2N> 720X610X353 140L	1-22401-146-1	01	1	0008-0810
1	TANK; FUEL FUEL PIPE STEEL<E2N> 720X610X353 140L	8-98127-383-0	01	1	0811-
1	TANK; FUEL EXC. FUEL PIPE STEEL<E2N> 720X610X353 140L	1-22401-115-0	01	1	0008-
5	STRAINER; FUEL TANK FUEL PIPE STEEL<E2N>	1-22460-001-1	01	1	0008-0112
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	0008-0509
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL PIPE STEEL<E2N> T=2.0	9-09923-030-0	01	1	0510-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL PIPE STEEL<E2N> T=2.0	8-98030-375-0	01	1	0510-
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	0008-
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0008-
22	UNIT; FUEL TANK	1-83141-123-0	01	1	0008-
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0008-0109
25	CAP; FILLER,FUEL TANK	1-22440-070-0	01	1	0110-0810
25	CAP; FILLER,FUEL TANK EXC. FUEL PIPE STEEL<E2N>	1-22440-070-0	01	1	0811-
25	CAP; FILLER,FUEL TANK FUEL PIPE STEEL<E2N>	8-98115-778-0	01	1	0811-
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL PIPE STEEL<E2N> ID=5.3	9-09160-505-0	01	1	0008-0605
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL PIPE STEEL<E2N> ID=5.3	0-91610-505-0	01	1	0606-
35	SCREW; FUEL TANK UNIT FUEL PIPE STEEL<E2N> M5X12 W/LK WASHER	9-03910-512-0	05	1	0008-0604
35	SCREW; FUEL TANK UNIT FUEL PIPE STEEL<E2N> M5X12 W/LK WASHER	0-36220-512-0	05	1	0605-
35	SCREW; FUEL TANK UNIT EXC. FUEL PIPE STEEL<E2N> M5X10 W/LK WASHER	9-03910-510-0	05	1	0008-0604
35	SCREW; FUEL TANK UNIT EXC. FUEL PIPE STEEL<E2N> M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	0008-
40	BELT; SUPPORT,FUEL TANK L=905	1-22550-183-2	02	1	0008-
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0008-0512
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-
43	BRACKET; FUEL TANK	1-53461-401-1	02	1	0008-
49	NUT; BRKT M12 FLANGE	0-91150-212-0	08	1	0008-0602
49	NUT; BRKT M12 FLANGE	0-91180-212-0	08	1	0603-
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	08	1	0008-0512
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	08	1	0601-
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	0008-
