Isuzu WW
▶
TRUCKS
▶
FSS
▶
11433 - FSS(BANGLADESH)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#42705) — 51 parça
◀
[110A] FAN GUIDE STAY (5 parça)

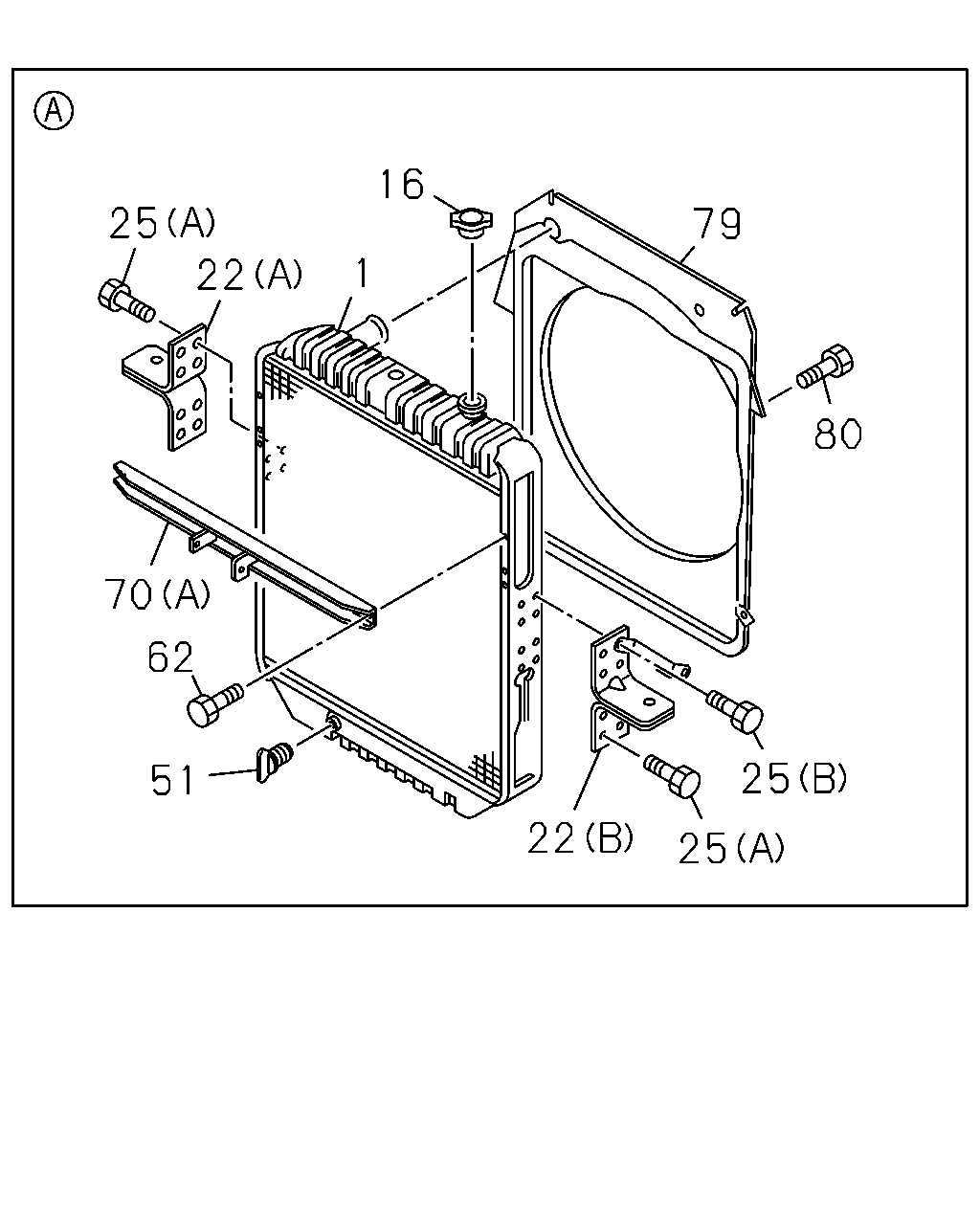

[110A] RADIATOR ASM (14 parça)

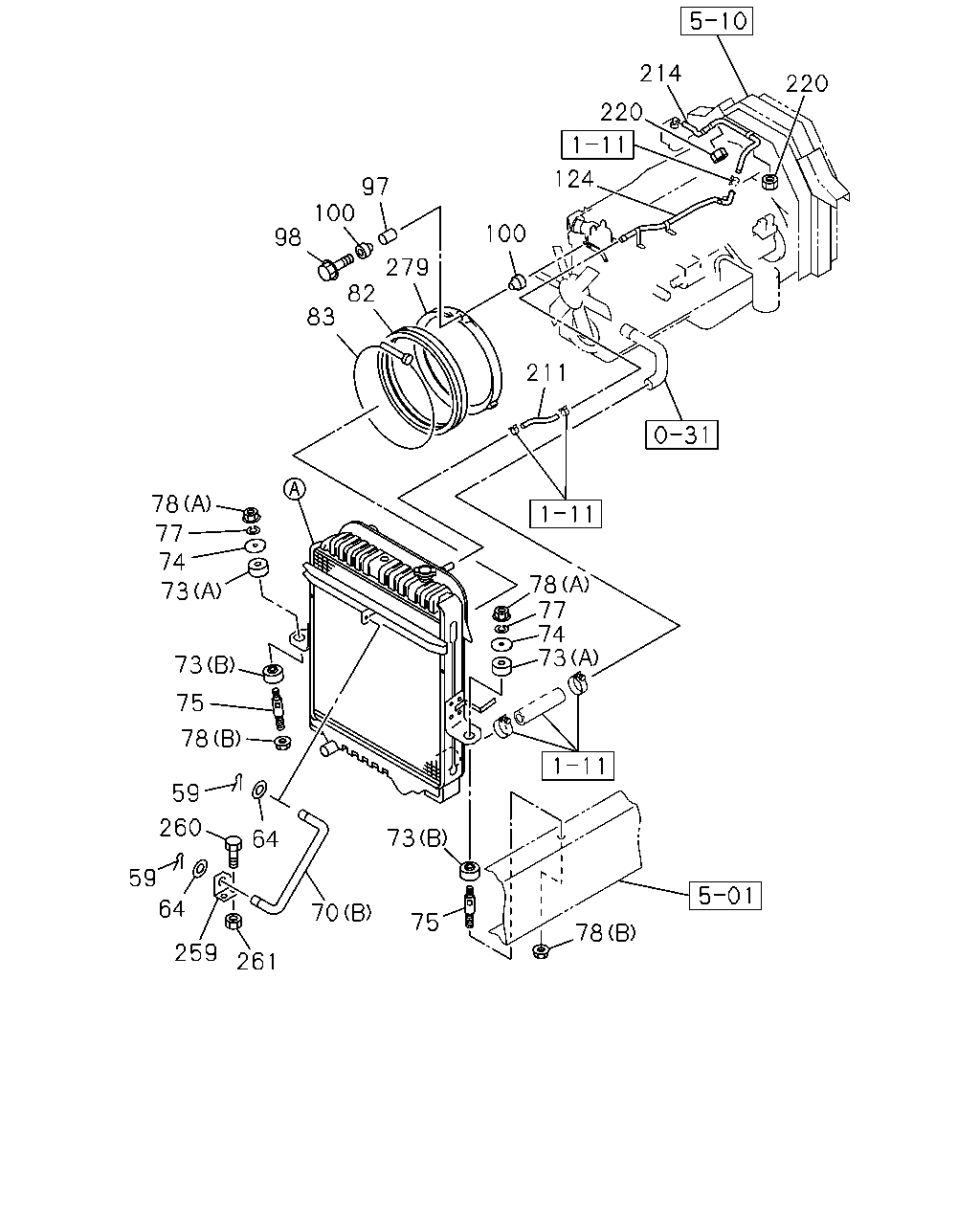

[110A] FIXING;ASM,HOSE AND OTHER PARTS (32 parça)
▶
87
87
96
87
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(A)
8-94394-775-0
01
1
0008-
87
STAY; FAN GUIDE
(B)
8-94396-496-1
01
1
0008-
87
STAY; FAN GUIDE
(C)
8-94397-395-1
01
1
0008-
96
BOLT; STAY FIX
M10X16 FLANGE
0-28181-016-0
02
1
0008-0512
96
BOLT; STAY FIX
M10X16 FLANGE
0-28151-016-0
02
1
0601-
16
25
22
79
1
80
70
62
25
51
22
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-674-1
01
1
0008-
16
CAP; RAD
1-21450-053-2
01
1
0008-0308
16
CAP; RAD
1-21450-142-0
01
1
0309-
22
BRACKET; RAD MTG
(A)
1-21464-361-0
01
1
0008-
22
BRACKET; RAD MTG
(B)
1-21464-544-0
01
1
0008-0203
22
BRACKET; RAD MTG
(B)
1-21464-548-0
01
1
0204-
25
BOLT; BRKT
(A) M8X12 FLANGE
0-28080-812-0
15
1
0008-
25
BOLT; BRKT
(B) M8X16 FLANGE
0-28080-816-0
01
1
0008-
51
PLUG; DRAIN
W/GASKET
1-09609-009-0
01
1
0008-
62
BOLT; STAY
M8X12 FLANGE
0-28080-812-0
02
1
0008-
70
STAY; RAD
(A)
1-21522-064-0
01
1
0008-
70
STAY; RAD
(B)
1-21522-069-0
01
1
0008-
79
GUIDE; FAN,RAD
1-21551-374-2
01
1
0008-
80
BOLT; FAN GUIDE
M6X10 FLANGE
0-28080-610-0
04
1
0008-
214
220
220
124
97
100
100
98
279
82
83
211
78
77
74
78
77
74
73
73
73
75
78
59
260
73
64
59
64
70
78
75
259
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
59
PIN; SNAP,STAY
1-09987-158-1
02
1
0008-
64
WASHER; STAY TO RAD
ID=12.5
9-09160-512-0
02
1
0008-0605
64
WASHER; STAY TO RAD
ID=12.5 OD=22
0-91610-512-0
02
1
0606-
70
STAY; RAD
(A)
1-21522-064-0
01
1
0008-
70
STAY; RAD
(B)
1-21522-069-0
01
1
0008-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
0008-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
0008-
74
WASHER; PL,CUSHION RUBBER
OD=55
9-09852-169-0
02
1
0008-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
0008-
77
WASHER; LK,CUSHION RUBBER
ID=12.2
9-09150-512-0
02
1
0008-0204
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91150-212-0
02
1
0008-0602
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
0603-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
5-09440-006-0
02
1
0008-
82
COVER; FAN,RAD
1-21559-340-0
01
1
0008-
83
CLIP; FAN COVER
1-09707-177-2
01
1
0008-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
0008-
98
BOLT; RAD FAN GUIDE
M8X30 FLANGE
0-28680-830-0
03
1
0008-0512
98
BOLT; RAD FAN GUIDE
M8X30 FLANGE
0-28650-830-0
03
1
0601-
100
RUBBER; MTG
OD=32
8-94395-766-0
06
1
0008-
124
PIPE; WATER,TANK TO RAD
8-94396-222-2
01
1
0008-
211
HOSE; RAD TO PIPE
L=290 SERVICED BY L=3000
0-03257-300-0
01
1
0008-0109
211
HOSE; RAD TO PIPE
L=290 SERVICED BY L=3000
0-03557-300-0
01
1
0110-
214
HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000
0-03257-300-0
01
1
0008-0109
214
HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000
0-03557-300-0
01
1
0110-
220
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
0008-0602
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0603-
259
BRACKET; RAD STAY
1-21523-024-0
01
1
0008-
260
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0008-0512
260
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0601-
261
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0008-0602
261
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
279
BELL MOUTH
8-94394-808-2
01
1
0008-
