Sayfa 0-80A - Isuzu EPC

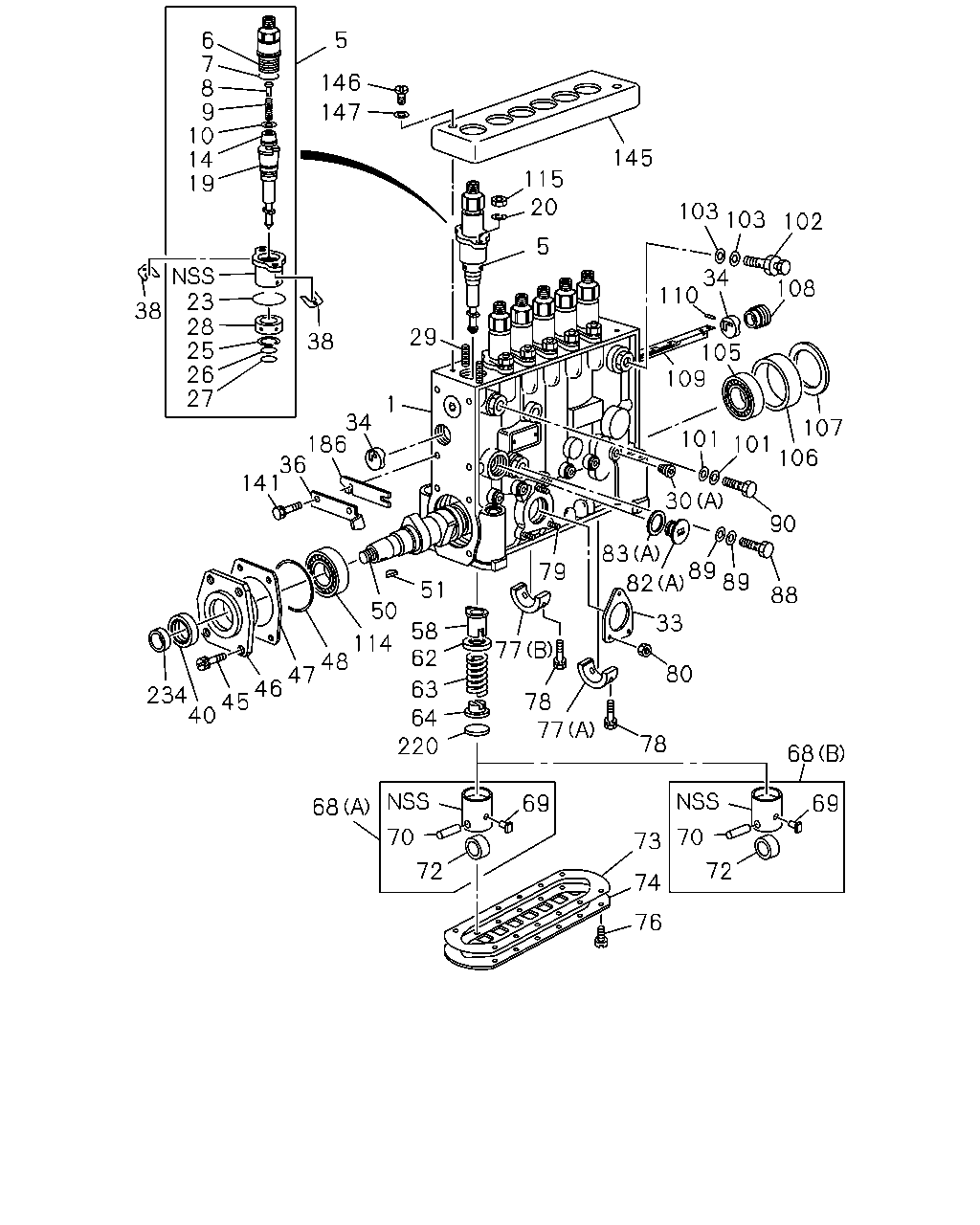

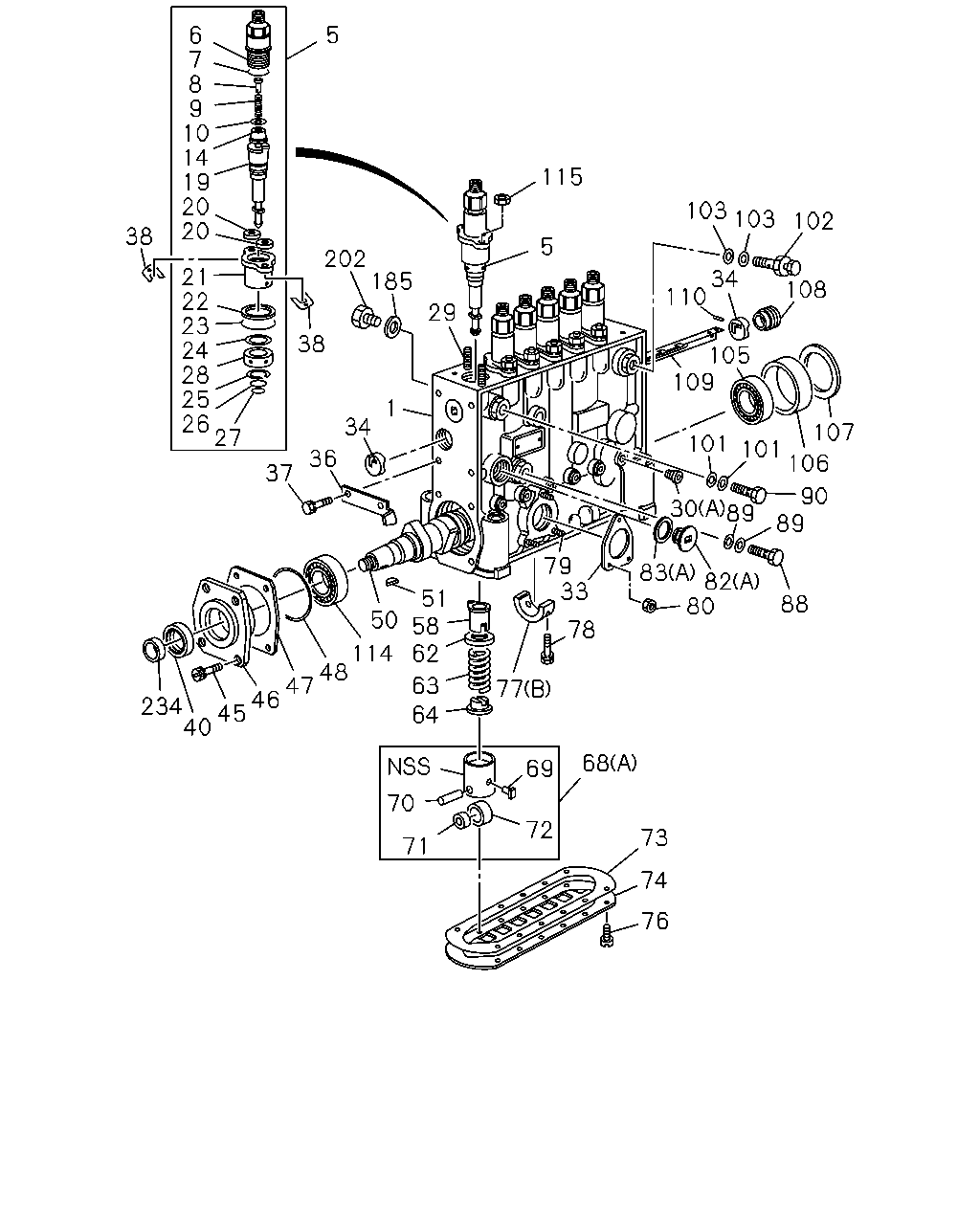

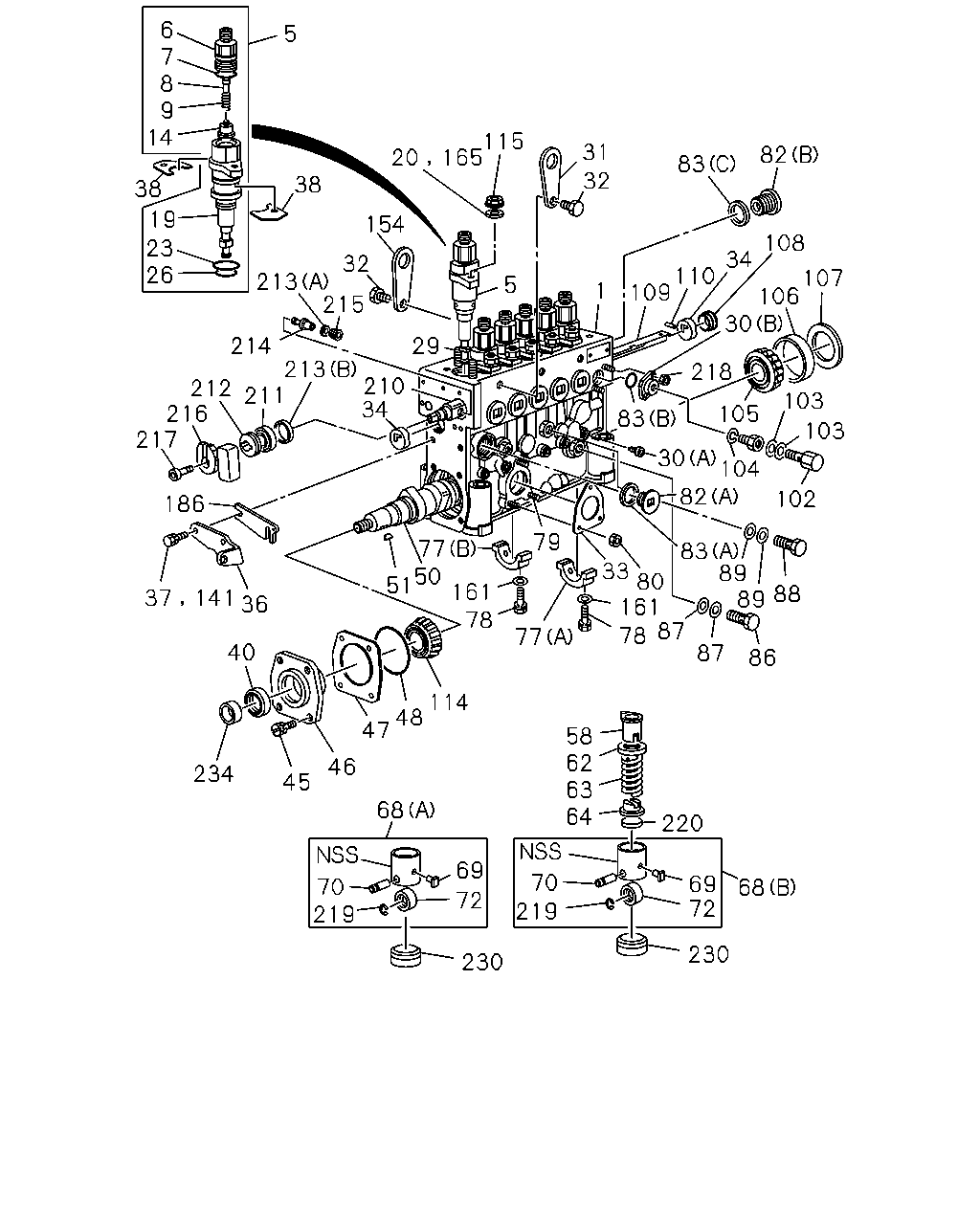

0-80A — INJECTION PUMP (#4270) — 951 parça

5 6 7 8 9 10 14 19 146 147 145 115 20 103 103 102 5 34 110 23 28 25 26 27 108 38 29 38 105 109 1 34 186 36 141 107 101 101 106 30 90 83 89 89 79 82 51 88 50 33 58 62 114 48 47 46 234 45 40 77 80 63 78 64 220 77 78 68 69 69 68 70 70 73 72 72 74 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15611-170-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15611-183-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15603-114-4	1-15611-189-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: J = 1-15603-290-5	1-15611-206-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15603-068-5, E = 1-15603-121-2	1-15631-188-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15631-193-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: D = 1-15603-115-2, F = 1-15603-122-1	1-15631-194-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15603-114-4	1-15631-195-1	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15631-201-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-412-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15644-016-1	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15644-017-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15603-114-4	1-15619-413-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-095-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15603-068-5, F = 1-15603-122-1	9-81235-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	9-81235-052-0	06	1	-0202
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	8-97084-987-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15643-010-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15643-130-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-414-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-174-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-411-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15641-041-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15641-042-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15632-017-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15603-068-5, E = 1-15603-121-2	1-15632-032-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15632-037-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 1-15603-115-2	1-15632-038-0	06	1	-0202
19	PLUNGER ASM; INJ PUMP ASM PART: F = 1-15603-122-1	1-15632-038-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15632-039-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-020-0	12	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-096-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15639-016-0	06	1	-
25	RING; SNAP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-431-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-114-4	1-15619-424-0	06	1	9611-
26	GASKET; PLUNGER UPR ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15619-424-0	06	1	0203-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-097-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-114-4	1-15629-113-0	06	1	-9610
26	GASKET; PLUNGER UPR ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	9-81215-120-0	06	1	-0202
26	GASKET; PLUNGER UPR ASM PART: B = 1-15603-068-5, F = 1-15603-122-1	9-81215-120-0	06	1	-
27	GASKET; PLUNGER LWR ASM PART: C = 1-15603-114-4	1-15619-424-0	06	1	9611-
27	GASKET; PLUNGER LWR ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15619-424-0	06	1	0203-
27	GASKET; PLUNGER LWR ASM PART: C = 1-15603-114-4	1-15629-113-0	06	1	-9610
27	GASKET; PLUNGER LWR ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	9-81215-120-0	06	1	-0202
27	GASKET; PLUNGER LWR ASM PART: B = 1-15603-068-5, F = 1-15603-122-1	9-81215-120-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15629-093-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: C = 1-15603-114-4	1-15629-126-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-328-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15603-114-4	1-15619-357-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-345-0	01	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-130-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: J = 1-15603-290-5	1-15619-461-0	02	1	9909-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	9-81215-123-0	02	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: J = 1-15603-290-5	9-81215-123-0	02	1	-9908
36	POINTER; TIMING,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-085-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-408-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-409-0	01	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-100-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15749-498-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-338-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	5-15729-027-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15629-067-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-097-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-098-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-099-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-100-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-101-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-102-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-103-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: C = 1-15603-114-4	1-15619-415-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-101-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15621-110-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15621-112-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15603-114-4	1-15621-113-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15621-114-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15629-009-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15629-085-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15635-005-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15634-013-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: G = 1-15603-156-1	1-15634-018-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15634-019-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15603-114-4	1-15643-008-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15603-114-4	1-15629-127-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15643-009-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15622-008-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15622-009-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15622-010-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: C = 1-15603-114-4	1-15622-012-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15622-013-0	02	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-063-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81225-062-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-288-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 1-15603-114-4	1-15629-129-0	06	1	-
73	GASKET; COVER TO HSG ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15629-094-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15612-012-0	01	1	-
76	BOLT; COVER TO HSG ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-066-0	12	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: C = 1-15603-114-4	1-15619-315-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15619-316-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-358-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-397-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09054-022-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: C = 1-15603-114-4	9-81325-187-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81325-187-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG (A) ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-067-0	01	1	-
83	GASKET; HSG PLUG (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-102-0	01	1	-
83	GASKET; HSG PLUG (C) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-022-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-321-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15719-346-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09630-085-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.60 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15603-068-5, F = 1-15603-122-1, G = 1-15603-156-1	1-15637-017-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15637-017-0	01	1	-9610
109	RACK; CONT,INJ PUMP ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15637-017-0	01	1	-0202
109	RACK; CONT,INJ PUMP ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15637-037-0	01	1	0203-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3	1-15637-037-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15637-037-0	01	1	9611-
109	RACK; CONT,INJ PUMP ASM PART: J = 1-15603-290-5	1-15637-040-0	01	1	-9908
109	RACK; CONT,INJ PUMP ASM PART: J = 1-15603-290-5	1-15637-053-0	01	1	9909-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-099-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-337-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-456-0	12	1	-
141	BOLT; POINTER ASM PART: C = 1-15603-114-4, G = 1-15603-156-1	5-15729-063-0	02	1	-
145	COVER; UPR,HSG ASM PART: C = 1-15603-114-4	1-15612-071-0	01	1	9611-
146	SCREW; UPR COVER ASM PART: C = 1-15603-114-4	1-15619-446-0	02	1	9611-
147	WASHER; LK,UPR COVER ASM PART: C = 1-15603-114-4	9-88410-452-0	02	1	9611-
186	SHIM; POINTER T=0.20 ASM PART: C = 1-15603-114-4, G = 1-15603-156-1	1-15619-302-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: C = 1-15603-114-4, G = 1-15603-156-1	1-15639-089-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: C = 1-15603-114-4, G = 1-15603-156-1	1-15639-090-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: C = 1-15603-114-4, G = 1-15603-156-1	1-15639-091-0	AR	1	-
186	SHIM; POINTER T=1.10 ASM PART: C = 1-15603-114-4, G = 1-15603-156-1	1-15639-092-0	AR	1	-
220	SEAT; TAPPET ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-311-0	06	1	-
220	SEAT; TAPPET ASM PART: C = 1-15603-114-4	1-15629-128-0	06	1	-
234	SLEEVE; FRT COVER ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15635-002-0	01	1	-
234	SLEEVE; FRT COVER ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15635-004-0	01	1	-

5 6 7 8 9 10 14 19 20 20 115 103 103 102 38 5 202 185 34 110 21 22 23 24 28 25 26 27 108 29 38 105 109 1 34 107 101 101 36 106 37 90 89 30 89 83 79 33 82 80 51 58 62 88 78 50 114 48 47 46 234 45 40 63 77 64 68 69 70 72 73 71 74 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15611-170-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15611-183-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15603-114-4	1-15611-189-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: J = 1-15603-290-5	1-15611-206-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15603-068-5, E = 1-15603-121-2	1-15631-188-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15631-193-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: D = 1-15603-115-2, F = 1-15603-122-1	1-15631-194-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15603-114-4	1-15631-195-1	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15631-201-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-412-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15644-016-1	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15644-017-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15603-114-4	1-15619-413-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-095-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15603-068-5, F = 1-15603-122-1	9-81235-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	9-81235-052-0	06	1	-0202
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	8-97084-987-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15643-010-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15643-130-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-414-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-174-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-411-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15641-041-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15641-042-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15632-017-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15603-068-5, E = 1-15603-121-2	1-15632-032-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15632-037-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 1-15603-115-2	1-15632-038-0	06	1	-0202
19	PLUNGER ASM; INJ PUMP ASM PART: F = 1-15603-122-1	1-15632-038-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15632-039-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-020-0	12	1	-
21	FLANGE; PLUNGER ASM PART: B = 1-15603-068-5, F = 1-15603-122-1	1-15742-082-0	06	1	-
21	FLANGE; PLUNGER ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15742-082-0	06	1	-0202
21	FLANGE; PLUNGER ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15742-141-0	06	1	0203-
22	RING; PLUNGER,INJ PUMP ASM PART: B = 1-15603-068-5, F = 1-15603-122-1	1-15649-008-0	06	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15649-008-0	06	1	-0202
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-096-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15639-016-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-430-0	06	1	-
25	RING; SNAP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-431-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-114-4	1-15619-424-0	06	1	9611-
26	GASKET; PLUNGER UPR ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15619-424-0	06	1	0203-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-097-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-114-4	1-15629-113-0	06	1	-9610
26	GASKET; PLUNGER UPR ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	9-81215-120-0	06	1	-0202
26	GASKET; PLUNGER UPR ASM PART: B = 1-15603-068-5, F = 1-15603-122-1	9-81215-120-0	06	1	-
27	GASKET; PLUNGER LWR ASM PART: C = 1-15603-114-4	1-15619-424-0	06	1	9611-
27	GASKET; PLUNGER LWR ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15619-424-0	06	1	0203-
27	GASKET; PLUNGER LWR ASM PART: C = 1-15603-114-4	1-15629-113-0	06	1	-9610
27	GASKET; PLUNGER LWR ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	9-81215-120-0	06	1	-0202
27	GASKET; PLUNGER LWR ASM PART: B = 1-15603-068-5, F = 1-15603-122-1	9-81215-120-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15629-093-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: C = 1-15603-114-4	1-15629-126-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-328-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15603-114-4	1-15619-357-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-345-0	01	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-130-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: J = 1-15603-290-5	1-15619-461-0	02	1	9909-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	9-81215-123-0	02	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: J = 1-15603-290-5	9-81215-123-0	02	1	-9908
36	POINTER; TIMING,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-085-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-408-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-409-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-063-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP M6X12 W/LK WASHER ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-01910-612-0	02	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-100-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15749-498-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-338-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	5-15729-027-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15629-067-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-097-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-098-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-099-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-100-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-101-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-102-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-103-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: C = 1-15603-114-4	1-15619-415-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-101-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15621-110-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15621-112-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15603-114-4	1-15621-113-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15621-114-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15629-009-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15629-085-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15635-005-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15634-013-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: G = 1-15603-156-1	1-15634-018-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15634-019-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15603-114-4	1-15643-008-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15603-114-4	1-15629-127-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15643-009-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15622-008-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15622-009-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15622-010-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: C = 1-15603-114-4	1-15622-012-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15622-013-0	02	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-063-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81225-062-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81225-061-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-288-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 1-15603-114-4	1-15629-129-0	06	1	-
73	GASKET; COVER TO HSG ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15629-094-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15612-012-0	01	1	-
76	BOLT; COVER TO HSG ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-066-0	12	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: C = 1-15603-114-4	1-15619-315-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15619-316-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-358-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-397-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09054-022-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: C = 1-15603-114-4	9-81325-187-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81325-187-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG (A) ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-067-0	01	1	-
83	GASKET; HSG PLUG (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-102-0	01	1	-
83	GASKET; HSG PLUG (C) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-022-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-321-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15719-346-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09630-085-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.60 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15603-068-5, F = 1-15603-122-1, G = 1-15603-156-1	1-15637-017-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15637-017-0	01	1	-9610
109	RACK; CONT,INJ PUMP ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15637-017-0	01	1	-0202
109	RACK; CONT,INJ PUMP ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15637-037-0	01	1	0203-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3	1-15637-037-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15637-037-0	01	1	9611-
109	RACK; CONT,INJ PUMP ASM PART: J = 1-15603-290-5	1-15637-040-0	01	1	-9908
109	RACK; CONT,INJ PUMP ASM PART: J = 1-15603-290-5	1-15637-053-0	01	1	9909-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-099-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-337-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-456-0	12	1	-
185	GASKET; PLUG ID=14.2 OD=19.2 ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09630-085-0	02	1	-
185	GASKET; PLUG ID=14.2 OD=19.2 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-09630-085-0	01	1	-
202	PLUG; PUMP,SIDE ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-19119-033-0	01	1	-
234	SLEEVE; FRT COVER ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15635-002-0	01	1	-
234	SLEEVE; FRT COVER ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15635-004-0	01	1	-

6 7 8 9 14 5 115 165 31 82 20 83 32 38 38 19 154 108 23 26 34 32 110 109 107 106 30 213 215 5 1 213 210 211 34 214 29 218 212 216 217 103 83 105 103 104 82 30 102 186 83 89 88 89 79 77 50 51 33 80 161 87 161 78 37 141 36 78 77 40 87 86 114 48 47 58 62 63 64 46 234 45 68 220 69 70 69 72 70 219 68 72 219 230 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15611-170-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15611-183-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15603-114-4	1-15611-189-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: J = 1-15603-290-5	1-15611-206-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15603-068-5, E = 1-15603-121-2	1-15631-188-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15631-193-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: D = 1-15603-115-2, F = 1-15603-122-1	1-15631-194-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15603-114-4	1-15631-195-1	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15631-201-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-412-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15644-016-1	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15644-017-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15603-114-4	1-15619-413-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-095-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15603-068-5, F = 1-15603-122-1	9-81235-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	9-81235-052-0	06	1	-0202
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	8-97084-987-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15643-010-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15643-130-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-411-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15641-041-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15641-042-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15632-017-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15603-068-5, E = 1-15603-121-2	1-15632-032-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15632-037-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 1-15603-115-2	1-15632-038-0	06	1	-0202
19	PLUNGER ASM; INJ PUMP ASM PART: F = 1-15603-122-1	1-15632-038-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15632-039-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-020-0	12	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-096-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15639-016-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-114-4	1-15619-424-0	06	1	9611-
26	GASKET; PLUNGER UPR ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15619-424-0	06	1	0203-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-097-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-114-4	1-15629-113-0	06	1	-9610
26	GASKET; PLUNGER UPR ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	9-81215-120-0	06	1	-0202
26	GASKET; PLUNGER UPR ASM PART: B = 1-15603-068-5, F = 1-15603-122-1	9-81215-120-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-328-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15603-114-4	1-15619-357-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-345-0	01	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-130-0	06	1	-
31	HANGER; FRT,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15619-347-0	01	1	-
31	HANGER; FRT,INJ PUMP ASM PART: J = 1-15603-290-5	1-15619-464-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: J = 1-15603-290-5	1-15789-098-0	03	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15789-098-0	02	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: J = 1-15603-290-5	1-15619-461-0	02	1	9909-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	9-81215-123-0	02	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: J = 1-15603-290-5	9-81215-123-0	02	1	-9908
36	POINTER; TIMING,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-085-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-408-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-409-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-063-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP M6X12 W/LK WASHER ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-01910-612-0	02	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-100-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15749-498-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-338-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	5-15729-027-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15629-067-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-097-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-098-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-099-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-100-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-101-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-102-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-103-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: C = 1-15603-114-4	1-15619-415-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-101-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15621-110-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15621-112-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15603-114-4	1-15621-113-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15621-114-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15629-009-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15629-085-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15635-005-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15634-013-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: G = 1-15603-156-1	1-15634-018-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15634-019-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15603-114-4	1-15643-008-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15603-114-4	1-15629-127-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15643-009-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15622-008-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15622-009-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15622-010-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: C = 1-15603-114-4	1-15622-012-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15622-013-0	02	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-063-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81225-062-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-288-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 1-15603-114-4	1-15629-129-0	06	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: C = 1-15603-114-4	1-15619-315-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15619-316-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-358-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-397-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09054-022-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: C = 1-15603-114-4	9-81325-187-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81325-187-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG (A) ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-067-0	01	1	-
83	GASKET; HSG PLUG (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-102-0	01	1	-
83	GASKET; HSG PLUG (C) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-022-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15759-011-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-09630-085-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-321-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15719-346-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09630-085-0	02	1	-
104	GASKET; OVERFLOW VLV ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15729-850-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.60 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15603-068-5, F = 1-15603-122-1, G = 1-15603-156-1	1-15637-017-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15637-017-0	01	1	-9610
109	RACK; CONT,INJ PUMP ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15637-017-0	01	1	-0202
109	RACK; CONT,INJ PUMP ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15637-037-0	01	1	0203-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3	1-15637-037-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15637-037-0	01	1	9611-
109	RACK; CONT,INJ PUMP ASM PART: J = 1-15603-290-5	1-15637-040-0	01	1	-9908
109	RACK; CONT,INJ PUMP ASM PART: J = 1-15603-290-5	1-15637-053-0	01	1	9909-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-099-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-337-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-456-0	12	1	-
141	BOLT; POINTER ASM PART: C = 1-15603-114-4, G = 1-15603-156-1	5-15729-063-0	02	1	-
154	HANGER; RR,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-347-0	01	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-099-0	06	1	-
165	WASHER; LK,PLUNGER FIX ASM PART: A = 1-15603-065-3, G = 1-15603-156-1	1-15639-020-0	12	1	-
186	SHIM; POINTER T=0.20 ASM PART: C = 1-15603-114-4, G = 1-15603-156-1	1-15619-302-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: C = 1-15603-114-4, G = 1-15603-156-1	1-15639-089-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: C = 1-15603-114-4, G = 1-15603-156-1	1-15639-090-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: C = 1-15603-114-4, G = 1-15603-156-1	1-15639-091-0	AR	1	-
186	SHIM; POINTER T=1.10 ASM PART: C = 1-15603-114-4, G = 1-15603-156-1	1-15639-092-0	AR	1	-
210	ROD; CONT ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15637-019-0	01	1	-
211	BEARING; CONT ROD ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-098-0	01	1	-
212	BUSHING; CONT ROD ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-330-0	01	1	-
213	WASHER; CONT ROD (A) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-331-0	06	1	-
213	WASHER; CONT ROD (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-336-0	01	1	-
214	PIN; CONT ROD ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-332-0	06	1	-
215	SCREW; CONT ROD ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-333-0	06	1	-
216	CONNECTOR; CONT ROD ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-334-0	01	1	-
217	BOLT; CONT ROD ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-335-0	01	1	-
218	NUT; PLUG ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-344-0	02	1	-
219	RING; SNAP,ROLLER ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-314-0	06	1	-
220	SEAT; TAPPET ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-311-0	06	1	-
220	SEAT; TAPPET ASM PART: C = 1-15603-114-4	1-15629-128-0	06	1	-
230	PLUG; TAPPET ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-388-0	06	1	-
234	SLEEVE; FRT COVER ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15635-002-0	01	1	-
234	SLEEVE; FRT COVER ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15635-004-0	01	1	-

6 7 8 9 14 5 115 154 20 83 82 38 38 32 31 32 19 108 23 26 34 5 110 109 107 106 213 1 215 29 213 212 210 211 34 216 217 30 214 218 103 105 83 103 104 30 102 82 83 33 80 89 9 79 77 50 51 37 88 161 78 36 77 40 161 78 58 62 63 64 220 114 48 47 46 234 45 68 68 69 70 72 70 219 69 72 219 230 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15611-170-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15611-183-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15603-114-4	1-15611-189-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: J = 1-15603-290-5	1-15611-206-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15603-068-5, E = 1-15603-121-2	1-15631-188-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15631-193-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: D = 1-15603-115-2, F = 1-15603-122-1	1-15631-194-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15603-114-4	1-15631-195-1	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15631-201-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-412-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15644-016-1	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15644-017-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15603-114-4	1-15619-413-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-095-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15603-068-5, F = 1-15603-122-1	9-81235-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	9-81235-052-0	06	1	-0202
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	8-97084-987-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15643-010-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15643-130-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-411-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15641-041-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15641-042-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15632-017-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15603-068-5, E = 1-15603-121-2	1-15632-032-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15632-037-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 1-15603-115-2	1-15632-038-0	06	1	-0202
19	PLUNGER ASM; INJ PUMP ASM PART: F = 1-15603-122-1	1-15632-038-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15632-039-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-020-0	12	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-096-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15639-016-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-114-4	1-15619-424-0	06	1	9611-
26	GASKET; PLUNGER UPR ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15619-424-0	06	1	0203-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-097-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-114-4	1-15629-113-0	06	1	-9610
26	GASKET; PLUNGER UPR ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	9-81215-120-0	06	1	-0202
26	GASKET; PLUNGER UPR ASM PART: B = 1-15603-068-5, F = 1-15603-122-1	9-81215-120-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-328-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15603-114-4	1-15619-357-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-345-0	01	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-130-0	06	1	-
31	HANGER; FRT,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15619-347-0	01	1	-
31	HANGER; FRT,INJ PUMP ASM PART: J = 1-15603-290-5	1-15619-464-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: J = 1-15603-290-5	1-15789-098-0	03	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15789-098-0	02	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: J = 1-15603-290-5	1-15619-461-0	02	1	9909-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	9-81215-123-0	02	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: J = 1-15603-290-5	9-81215-123-0	02	1	-9908
36	POINTER; TIMING,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-085-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-408-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-409-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-063-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP M6X12 W/LK WASHER ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-01910-612-0	02	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-100-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15749-498-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-338-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	5-15729-027-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15629-067-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-097-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-098-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-099-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-100-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-101-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-102-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-103-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: C = 1-15603-114-4	1-15619-415-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-101-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15621-110-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15621-112-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15603-114-4	1-15621-113-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15621-114-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15629-009-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15629-085-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15635-005-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15634-013-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: G = 1-15603-156-1	1-15634-018-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15634-019-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15603-114-4	1-15643-008-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15603-114-4	1-15629-127-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15643-009-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15622-008-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15622-009-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15622-010-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: C = 1-15603-114-4	1-15622-012-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15622-013-0	02	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-063-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81225-062-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-288-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 1-15603-114-4	1-15629-129-0	06	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: C = 1-15603-114-4	1-15619-315-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15619-316-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-358-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-397-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09054-022-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: C = 1-15603-114-4	9-81325-187-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81325-187-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG (A) ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-067-0	01	1	-
83	GASKET; HSG PLUG (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-102-0	01	1	-
83	GASKET; HSG PLUG (C) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-022-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15619-321-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15719-346-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09630-085-0	02	1	-
104	GASKET; OVERFLOW VLV ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15729-850-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.60 ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15603-068-5, F = 1-15603-122-1, G = 1-15603-156-1	1-15637-017-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15637-017-0	01	1	-9610
109	RACK; CONT,INJ PUMP ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15637-017-0	01	1	-0202
109	RACK; CONT,INJ PUMP ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15637-037-0	01	1	0203-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3	1-15637-037-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15637-037-0	01	1	9611-
109	RACK; CONT,INJ PUMP ASM PART: J = 1-15603-290-5	1-15637-040-0	01	1	-9908
109	RACK; CONT,INJ PUMP ASM PART: J = 1-15603-290-5	1-15637-053-0	01	1	9909-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-099-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-337-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-456-0	12	1	-
154	HANGER; RR,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-347-0	01	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-099-0	06	1	-
210	ROD; CONT ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15637-019-0	01	1	-
211	BEARING; CONT ROD ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-098-0	01	1	-
212	BUSHING; CONT ROD ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-330-0	01	1	-
213	WASHER; CONT ROD (A) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-331-0	06	1	-
213	WASHER; CONT ROD (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-336-0	01	1	-
214	PIN; CONT ROD ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-332-0	06	1	-
215	SCREW; CONT ROD ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-333-0	06	1	-
216	CONNECTOR; CONT ROD ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-334-0	01	1	-
217	BOLT; CONT ROD ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-335-0	01	1	-
218	NUT; PLUG ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-344-0	02	1	-
219	RING; SNAP,ROLLER ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-314-0	06	1	-
220	SEAT; TAPPET ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-311-0	06	1	-
220	SEAT; TAPPET ASM PART: C = 1-15603-114-4	1-15629-128-0	06	1	-
230	PLUG; TAPPET ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-388-0	06	1	-
234	SLEEVE; FRT COVER ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15635-002-0	01	1	-
234	SLEEVE; FRT COVER ASM PART: A = 1-15603-065-3, C = 1-15603-114-4, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15635-004-0	01	1	-

221 203 185 185 205 118 117 209 206 231 208 206 205 207 206 245 233 232 208 204 205 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
117	GASKET; EYE BOLT,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-099-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-148-0	01	1	-
185	GASKET; PLUG ID=14.2 OD=19.2 ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09630-085-0	02	1	-
185	GASKET; PLUG ID=14.2 OD=19.2 ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-09630-085-0	01	1	-
203	BOLT; FUEL INL ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15759-011-0	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15612-058-0	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15612-068-1	01	1	-
205	BOLT; ACTUATOR (A) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09054-032-0	04	1	-
205	BOLT; ACTUATOR (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-348-0	06	1	-
206	GASKET; ACTUATOR (A) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-145-0	01	1	-
206	GASKET; ACTUATOR (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-146-0	01	1	-
206	GASKET; ACTUATOR (C) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-147-0	01	1	-
207	HOUSING; ACTUATOR ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15611-164-1	01	1	-
207	HOUSING; ACTUATOR ASM PART: G = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15611-177-1	01	1	-
208	WASHER; LK,ACTUATOR ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	8-94128-928-0	04	1	-
209	WASHER; PL,ACTUATOR (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-351-0	01	1	-
209	WASHER; PL,ACTUATOR (A) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-352-0	03	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15612-059-0	01	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15612-067-0	01	1	-
231	COVER; ACTUATOR ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-378-0	01	1	-
232	BOLT; ACTUATOR COVER ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09054-032-0	04	1	-
233	WASHER; ACTUATOR COVER ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	8-94128-928-0	04	1	-
245	HOUSING; SOCKET,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-416-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
