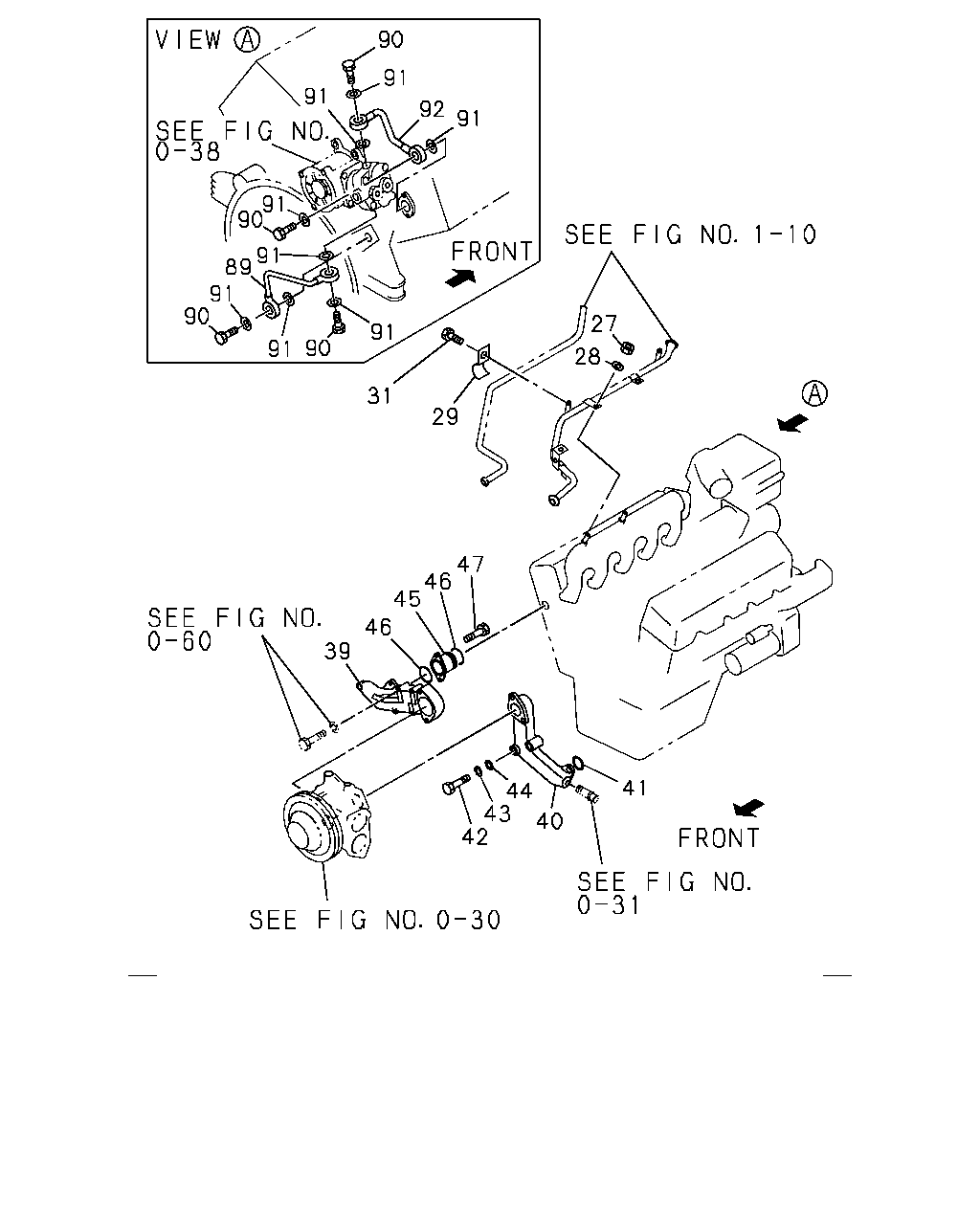

27 |
NUT; PIPE FIX
M8
|
9-09110-408-0 |
02 |
1 |
8712-9001 |
● |
|
| |
27 |
NUT; PIPE FIX
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9002- |
|
● |
| |
28 |
WASHER; LK,PIPE
ID=8.2
|
9-09150-508-0 |
02 |
1 |
8712-9001 |
● |
|
| |
29 |
CLIP; PIPE
ID=9.7 L=20
|
1-09700-878-1 |
04 |
1 |
8712- |
● |
● |
| |
31 |
BOLT; CLIP
M6X14
|
9-01910-614-0 |
04 |
1 |
8712-9001 |
● |
|
| |
31 |
BOLT; CLIP
M6X12
|
0-28020-612-0 |
04 |
1 |
9002-9005 |
|
● |
| |
31 |
BOLT; CLIP
M6X12 FLANGE
|
0-28080-612-0 |
04 |
1 |
9006- |
|
● |
| |
39 |
DUCT ASM; WATER,PUMP OUT
|
1-13711-073-1 |
01 |
1 |
8712-9001 |
● |
|
| |
39 |
DUCT ASM; WATER,PUMP OUT
|
1-13711-544-1 |
01 |
1 |
9002- |
|
● |
| |
40 |
DUCT; WATER
|
1-13711-104-1 |
01 |
1 |
8712-9001 |
● |
|
| |
40 |
DUCT; WATER
|
1-13711-382-1 |
01 |
1 |
9002- |
|
● |
| |
41 |
GASKET; WATER DUCT,PUMP OUT
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-196-0 |
01 |
1 |
8712-9001 |
● |
|
| |
41 |
GASKET; WATER DUCT,PUMP OUT
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-425-0 |
01 |
1 |
9002- |
|
● |
| |
42 |
BOLT; DUCT,PUMP OUT
M10X32
|
9-02351-032-0 |
04 |
1 |
8712-9001 |
● |
|
| |
42 |
BOLT; DUCT,PUMP OUT
M10X30
|
0-28121-030-0 |
04 |
1 |
9002-9002 |
|
● |
| |
42 |
BOLT; DUCT,PUMP OUT
M10X30 FLANGE
|
0-28181-030-0 |
04 |
1 |
9003- |
|
● |
| |
43 |
WASHER; LK,DUCT,PUMP OUT
ID=10.2
|
9-09150-510-0 |
04 |
1 |
8712-8811 |
● |
|
| |
44 |
WASHER; DUCT,PUMP OUT
ID=10.5 OD=18
|
9-09160-510-0 |
04 |
1 |
8712-8811 |
● |
|
| |
45 |
DUCT; WATER,TO OIL COOLER
|
1-13711-084-1 |
01 |
1 |
8712-9001 |
● |
|
| |
45 |
DUCT; WATER,TO OIL COOLER
|
1-13711-334-1 |
01 |
1 |
9002- |
|
● |
| |
46 |
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-196-0 |
02 |
1 |
8712-9001 |
● |
|
| |
46 |
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-425-0 |
02 |
1 |
9002- |
|
● |
| |
47 |
BOLT; DUCT,TO OIL COOLER
M10X30
|
9-01971-030-0 |
02 |
1 |
8712-9001 |
● |
|
| |
47 |
BOLT; DUCT,TO OIL COOLER
M10X25
|
0-28021-025-0 |
02 |
1 |
9002-9002 |
|
● |
| |
47 |
BOLT; DUCT,TO OIL COOLER
M10X25 FLANGE
|
0-28081-025-0 |
02 |
1 |
9003- |
|
● |
| |
89 |
PIPE; WATER,AIR CMPR,IN
|
1-13721-221-0 |
01 |
1 |
8712-8901 |
● |
|
| |
89 |
PIPE; WATER,AIR CMPR,IN
AIR COMPRESSOR HEAVY DUTY VAR2(E6A)
|
1-13721-363-0 |
01 |
1 |
8902-9001 |
● |
|
| |
89 |
PIPE; WATER,AIR CMPR,IN
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)
|
1-13721-221-0 |
01 |
1 |
8902-9001 |
● |
|
| |
89 |
PIPE; WATER,AIR CMPR,IN
AIR COMPRESSOR HEAVY DUTY(E1Q)
|
1-13721-379-0 |
01 |
1 |
9002-9307 |
|
● |
| |
89 |
PIPE; WATER,AIR CMPR,IN
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
|
1-13721-223-0 |
01 |
1 |
9002-9307 |
|
● |
| |
89 |
PIPE; WATER,AIR CMPR,IN
|
1-13721-223-0 |
01 |
1 |
9308- |
|
● |
| |
90 |
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27
|
1-09675-092-0 |
04 |
1 |
8712-8807 |
● |
|
| |
90 |
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
|
1-09675-193-0 |
04 |
1 |
8808- |
● |
● |
| |
91 |
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=14.2 OD=19.2
|
1-09630-085-0 |
08 |
1 |
8712-9306 |
● |
● |
| |
91 |
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=14.2 OD=19.2
|
1-09630-085-0 |
08 |
1 |
9307- |
|
● |
| |
92 |
PIPE; WATER,AIR CMPR,OUT
|
1-13721-223-0 |
01 |
1 |
8712-8901 |
● |
|
| |
92 |
PIPE; WATER,AIR CMPR,OUT
AIR COMPRESSOR HEAVY DUTY VAR2(E6A)
|
1-13721-379-0 |
01 |
1 |
8902-9001 |
● |
|
| |
92 |
PIPE; WATER,AIR CMPR,OUT
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)
|
1-13721-223-0 |
01 |
1 |
8902-9001 |
● |
|
| |
92 |
PIPE; WATER,AIR CMPR,OUT
AIR COMPRESSOR HEAVY DUTY(E1Q)
|
1-13721-376-0 |
01 |
1 |
9002-9307 |
|
● |
| |
92 |
PIPE; WATER,AIR CMPR,OUT
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
|
1-13721-345-0 |
01 |
1 |
9002-9307 |
|
● |
| |
92 |
PIPE; WATER,AIR CMPR,OUT
|
1-13721-345-0 |
01 |
1 |
9308- |
|
● |
