Sayfa 0-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11433 - FSS(BANGLADESH) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

0-50 — OIL COOLER AND OIL FILTER (#42691) — 85 parça

496 307 308 265 328 328 2 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER FLUID DRIVE FAN<KA3> (A)	1-13240-132-0	01	1	0008-0904
2	ELEMENT; OIL FILTER FLUID DRIVE FAN<KA3> (A)	8-98140-515-0	01	1	0905-1406
2	ELEMENT; OIL FILTER FLUID DRIVE FAN<KA3> (A)	8-98274-487-0	01	1	1407-
2	ELEMENT; OIL FILTER FLUID DRIVE FAN<KA3> (B)	1-87810-372-1	01	1	0008-1406
2	ELEMENT; OIL FILTER FLUID DRIVE FAN<KA3> (B)	8-98274-486-0	01	1	1407-
2	ELEMENT; OIL FILTER EXC. FLUID DRIVE FAN<KA3> (C)	8-94391-049-4	01	1	0008-
2	ELEMENT; OIL FILTER EXC. FLUID DRIVE FAN<KA3> (C) BEST VALUE PARTS	1-87610-064-0	01	1	0008-
265	BODY; OIL FILTER FLUID DRIVE FAN<KA3>	8-94393-503-0	01	1	0008-
265	BODY; OIL FILTER EXC. FLUID DRIVE FAN<KA3>	8-94391-016-4	01	1	0008-
307	VALVE; OVERFLOW FLUID DRIVE FAN<KA3>	8-97015-672-0	01	1	0008-
307	VALVE; OVERFLOW EXC. FLUID DRIVE FAN<KA3>	8-94395-700-0	01	1	0008-
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0008-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94399-339-0	01	1	0008-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER<KC1> (B) ID=9.8	8-94399-339-0	01	1	0008-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0008-
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28181-030-0	02	1	0008-0512
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28151-030-0	02	1	0601-
328	BOLT; OIL FILTER FLUID DRIVE FAN<KA3> (A) M10X135	8-94397-139-1	03	1	0008-
328	BOLT; OIL FILTER EXC. FLUID DRIVE FAN<KA3> (A) M10X90 FLANGE	0-28181-090-0	02	1	0008-0512
328	BOLT; OIL FILTER EXC. FLUID DRIVE FAN<KA3> (A) M10X90 FLANGE	0-28151-090-0	02	1	0601-
496	FILTER ASM; OIL FLUID DRIVE FAN<KA3> (B)	8-94392-898-2	01	1	0008-1406
496	FILTER ASM; OIL FLUID DRIVE FAN<KA3> (B)	8-98274-485-0	01	1	1407-
496	FILTER ASM; OIL EXC. FLUID DRIVE FAN<KA3> (A)	8-94391-015-8	01	1	0008-

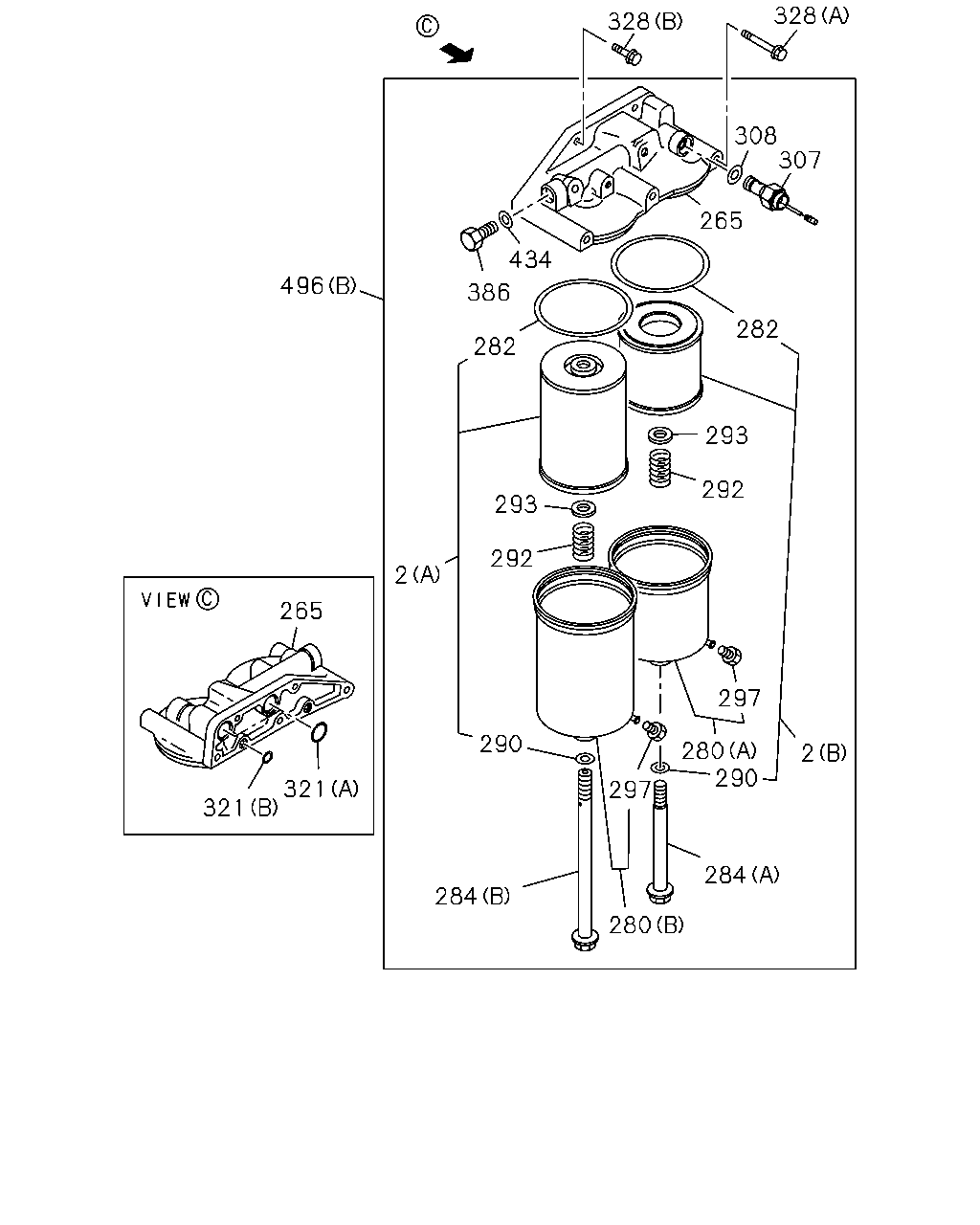

328 328 308 307 265 434 496 386 282 282 293 292 293 292 2 265 297 290 280 290 2 297 321 321 284 284 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER FLUID DRIVE FAN<KA3> (A)	1-13240-132-0	01	1	0008-0904
2	ELEMENT; OIL FILTER FLUID DRIVE FAN<KA3> (A)	8-98140-515-0	01	1	0905-1406
2	ELEMENT; OIL FILTER FLUID DRIVE FAN<KA3> (A)	8-98274-487-0	01	1	1407-
2	ELEMENT; OIL FILTER FLUID DRIVE FAN<KA3> (B)	1-87810-372-1	01	1	0008-1406
2	ELEMENT; OIL FILTER FLUID DRIVE FAN<KA3> (B)	8-98274-486-0	01	1	1407-
2	ELEMENT; OIL FILTER EXC. FLUID DRIVE FAN<KA3> (C)	8-94391-049-4	01	1	0008-
2	ELEMENT; OIL FILTER EXC. FLUID DRIVE FAN<KA3> (C) BEST VALUE PARTS	1-87610-064-0	01	1	0008-
265	BODY; OIL FILTER FLUID DRIVE FAN<KA3>	8-94393-503-0	01	1	0008-
265	BODY; OIL FILTER EXC. FLUID DRIVE FAN<KA3>	8-94391-016-4	01	1	0008-
280	CASE ASM; OIL FILTER FLUID DRIVE FAN<KA3> (A)	8-94393-504-1	01	1	0008-
280	CASE ASM; OIL FILTER FLUID DRIVE FAN<KA3> (B)	8-94393-505-1	01	1	0008-
282	GASKET; BODY TO CASE FLUID DRIVE FAN<KA3>	9-09920-311-0	02	1	0008-1406
282	GASKET; BODY TO CASE FLUID DRIVE FAN<KA3>	8-98274-489-0	02	1	1407-
284	BOLT; CENTER,OIL FILTER FLUID DRIVE FAN<KA3> (A)	1-13231-069-0	01	1	0008-
284	BOLT; CENTER,OIL FILTER FLUID DRIVE FAN<KA3> (B)	1-13231-070-1	01	1	0008-
290	GASKET; PLUG,OIL DRAIN FLUID DRIVE FAN<KA3> ID=15.5	9-09920-694-0	02	1	0008-1406
290	GASKET; PLUG,OIL DRAIN FLUID DRIVE FAN<KA3> ID=15.5	8-98274-488-0	02	1	1407-
292	SPRING; ELEMENT FLUID DRIVE FAN<KA3>	9-09941-283-0	02	1	0008-
293	SEAT; SPR FLUID DRIVE FAN<KA3>	9-13239-025-0	02	1	0008-
297	PLUG; COVER FLUID DRIVE FAN<KA3>	1-13219-275-0	02	1	0008-
307	VALVE; OVERFLOW FLUID DRIVE FAN<KA3>	8-97015-672-0	01	1	0008-
307	VALVE; OVERFLOW EXC. FLUID DRIVE FAN<KA3>	8-94395-700-0	01	1	0008-
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0008-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94399-339-0	01	1	0008-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER<KC1> (B) ID=9.8	8-94399-339-0	01	1	0008-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0008-
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28181-030-0	02	1	0008-0512
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28151-030-0	02	1	0601-
328	BOLT; OIL FILTER FLUID DRIVE FAN<KA3> (A) M10X135	8-94397-139-1	03	1	0008-
328	BOLT; OIL FILTER EXC. FLUID DRIVE FAN<KA3> (A) M10X90 FLANGE	0-28181-090-0	02	1	0008-0512
328	BOLT; OIL FILTER EXC. FLUID DRIVE FAN<KA3> (A) M10X90 FLANGE	0-28151-090-0	02	1	0601-
386	PLUG; OIL FILTER FLUID DRIVE FAN<KA3> M16X9	9-13226-011-0	01	1	0008-
434	GASKET; PLUG,OIL FILTER FLUID DRIVE FAN<KA3>	9-09920-526-0	01	1	0008-
496	FILTER ASM; OIL FLUID DRIVE FAN<KA3> (B)	8-94392-898-2	01	1	0008-1406
496	FILTER ASM; OIL FLUID DRIVE FAN<KA3> (B)	8-98274-485-0	01	1	1407-
496	FILTER ASM; OIL EXC. FLUID DRIVE FAN<KA3> (A)	8-94391-015-8	01	1	0008-

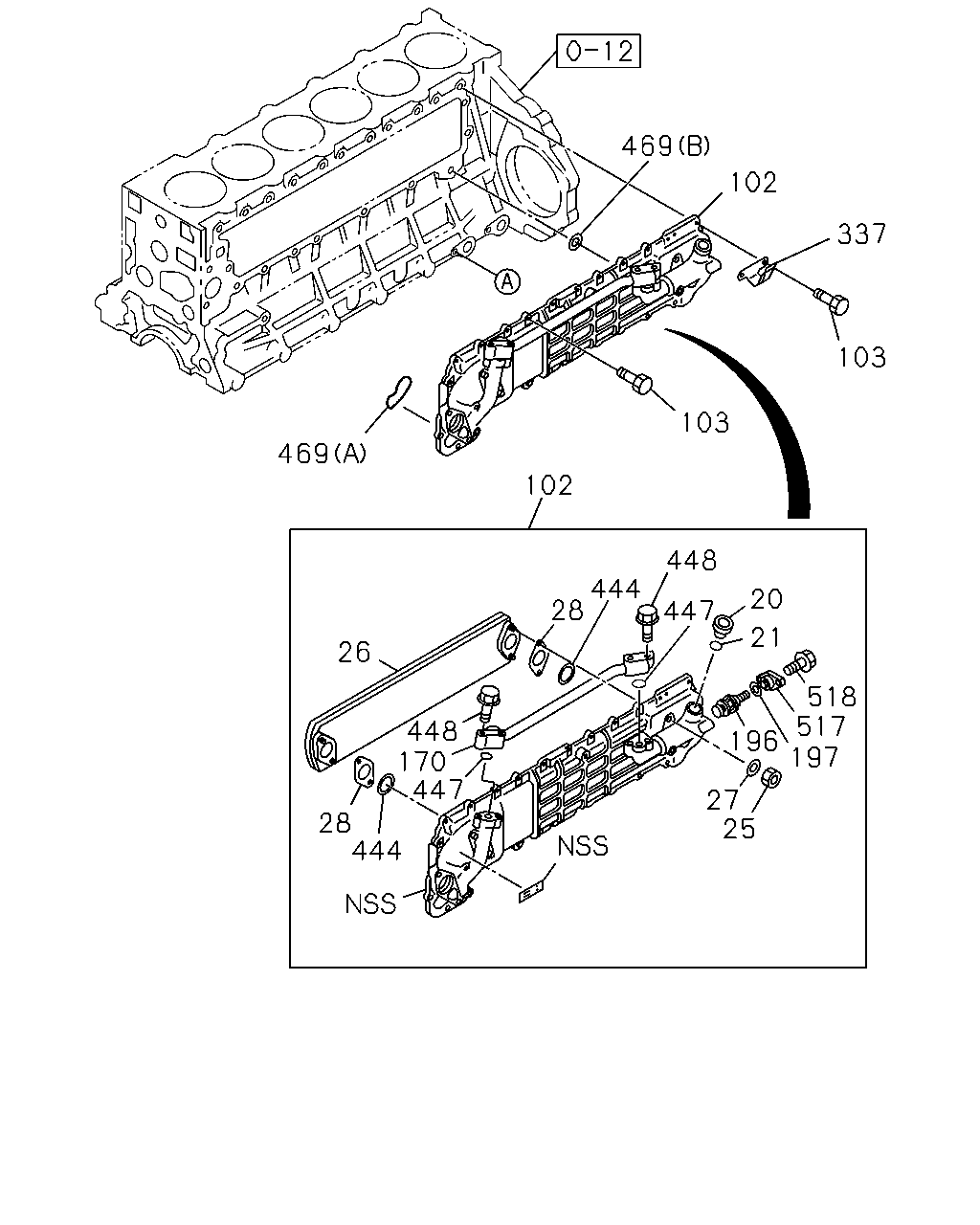

469 102 337 103 103 469 102 448 444 28 20 447 21 26 518 517 197 448 170 447 196 27 25 28 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	PLUG; COOLER BODY	8-94396-753-0	01	1	0008-
21	GASKET; PLUG M24	8-94396-755-0	01	1	0008-
25	NUT; CORE TO BODY M10	9-09111-410-0	04	1	0008-0512
25	NUT; CORE TO BODY M10	0-91111-510-0	04	1	0601-
26	CORE ASM; OIL COOLER	8-94395-711-0	01	1	0008-
27	WASHER; PL,CORE TO BODY ID=10.5	9-09164-510-0	04	1	0008-
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	0008-
102	COOLER ASM; OIL	8-94390-075-4	01	1	0008-
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	0008-
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	0008-0512
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	02	1	0601-
170	PIPE; BYPASS	8-94390-078-2	01	1	0008-
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	0008-0111
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0112-
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	0008-
337	BRACKET; FUEL PIPE	8-94396-688-1	01	1	0008-
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	0008-
447	GASKET; BYPASS PIPE ID=17.8	1-09623-588-0	02	1	0008-
448	BOLT; BYPASS PIPE M8X30 FLANGE	0-28080-830-0	04	1	0008-0512
448	BOLT; BYPASS PIPE M8X30 FLANGE	0-28050-830-0	04	1	0601-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0008-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	0008-0606
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0607-
517	PLUG; THERMOSTAT,OIL COOLER	8-94395-191-0	01	1	0008-
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	0008-0512
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
