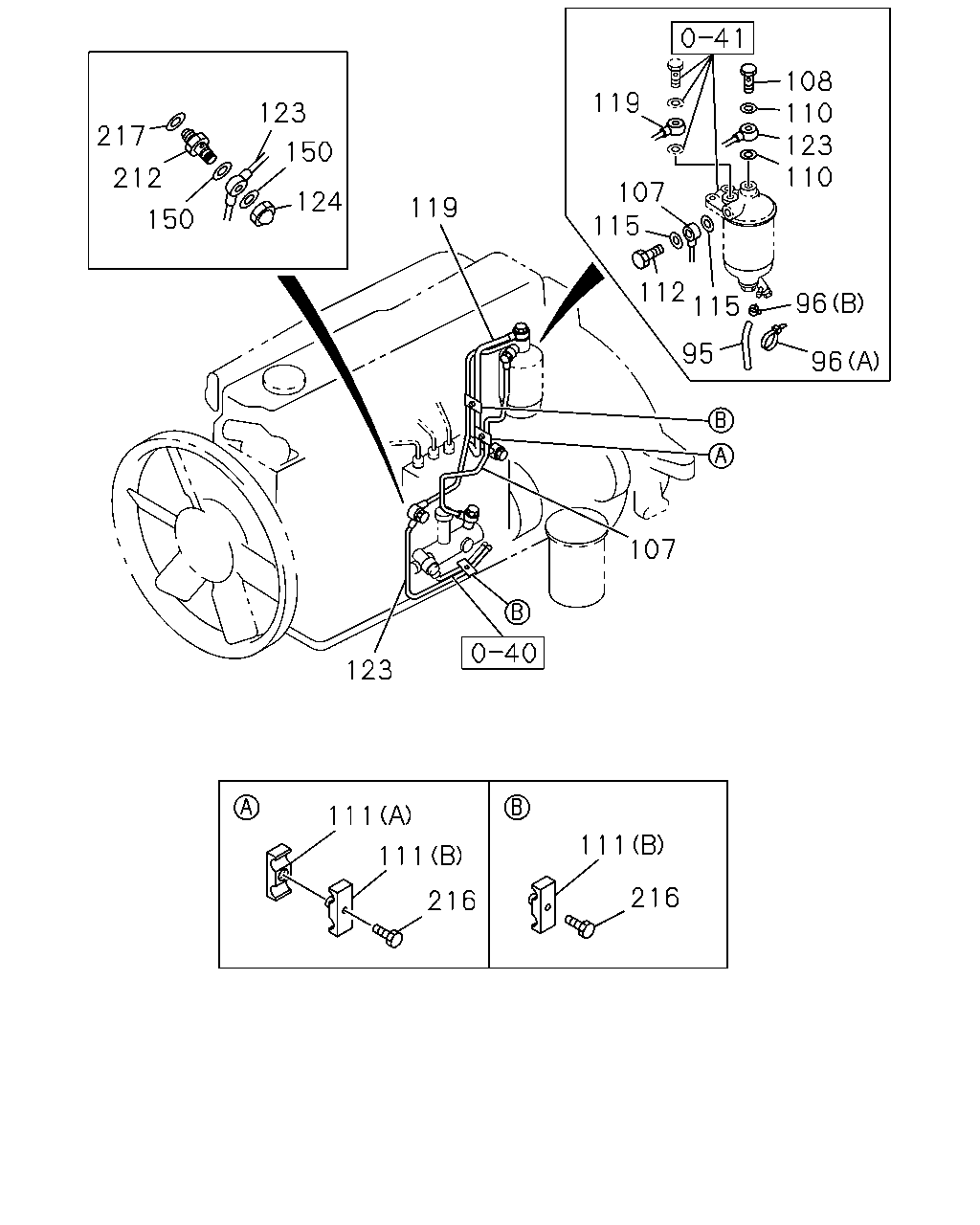

0-42 — FUEL PUMP AND PIPE (#42690) — 26 parça

108 110 123 110 119 123 217 150 212 107 115 124 119 150 112 115 96 95 96 107 123 111 111 111 216 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
95	PIPE; VINYL FLUID DRIVE FAN<KA3> L=650 SERVICED BY L=10000	9-09914-909-0	01	1	0008-
96	CLIP; VINYL PIPE FLUID DRIVE FAN<KA3> (A) L=100	5-09707-036-1	01	1	0008-1205
96	CLIP; VINYL PIPE FLUID DRIVE FAN<KA3> (A) L=100	8-98216-432-0	01	1	1206-
96	CLIP; VINYL PIPE FLUID DRIVE FAN<KA3> (B) ID=8	8-94107-762-0	01	1	0008-
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	0008-
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0008-
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0008-1312
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	0008-
111	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> (B) L=48	5-09709-103-0	02	1	0008-
111	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> (B)	8-94396-210-0	01	1	0008-
111	CLIP; FUEL PIPE EXC. FUEL PIPE STEEL<E2N> (B) L=48	5-09709-103-0	03	1	0008-
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0008-
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0008-1312
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	0008-
123	PIPE; FUEL,FUEL FILTER LEAK OFF FUEL PIPE STEEL<E2N>	8-94390-774-0	01	1	0008-
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. FUEL PIPE STEEL<E2N>	8-94394-556-1	01	1	0008-
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0008-
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0008-1312
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
212	VALVE; OVERFLOW	8-94399-087-0	01	1	0008-
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0008-0512
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0008-1312
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-
