Isuzu WW
▶
TRUCKS
▶
FSS
▶
11433 - FSS(BANGLADESH)
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

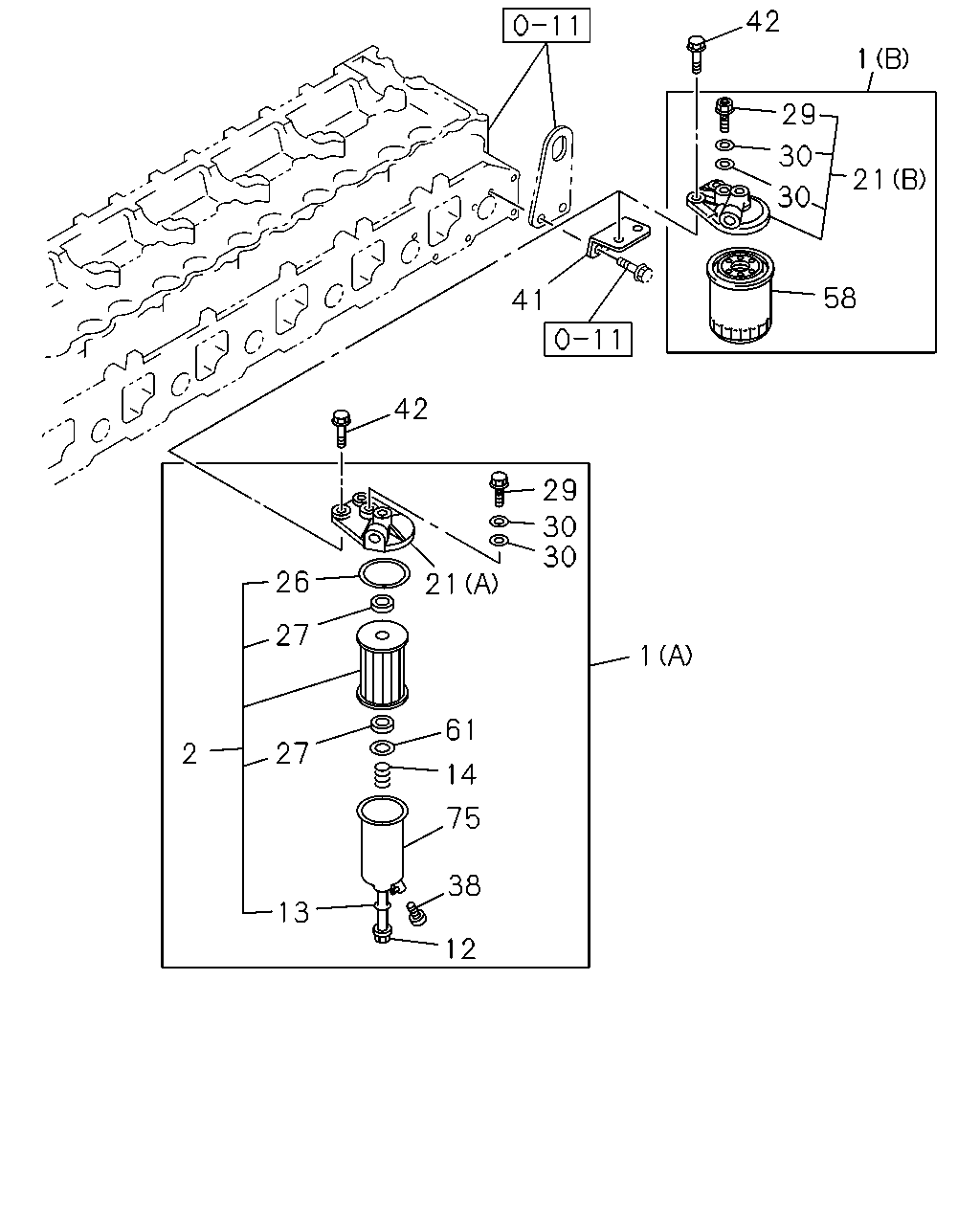

0-41 — FUEL FILTER AND BRACKET
(#42689) — 21 parça
42
1
29
30
21
30
58
41
42
29
30
30
26
21
27
1
61
27
2
14
75
38
13
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
FLUID DRIVE FAN<KA3> (A)
8-94397-113-3
01
1
0008-
1
FILTER ASM; FUEL
EXC. FLUID DRIVE FAN<KA3> (B)
8-94393-449-3
01
1
0008-
2
ELEMENT KIT; FUEL FILTER
FLUID DRIVE FAN<KA3>
9-88511-191-1
01
1
0008-
12
BOLT; CENTER,FUEL FILTER
FLUID DRIVE FAN<KA3>
1-13231-053-0
01
1
0008-
13
GASKET; CENTER BOLT
FLUID DRIVE FAN<KA3>
9-09720-541-0
01
1
0008-
14
SPRING; ELEMENT SUPPORT,FUEL FILTER
FLUID DRIVE FAN<KA3>
9-09742-109-0
01
1
0008-
21
COVER; UPR,FUEL FILTER
FLUID DRIVE FAN<KA3> (A)
9-13212-804-0
01
1
0008-
21
COVER; UPR,FUEL FILTER
EXC. FLUID DRIVE FAN<KA3> (B)
8-94396-669-1
01
1
0008-
26
GASKET; COVER TO BODY
FLUID DRIVE FAN<KA3>
9-13213-601-0
01
1
0008-
27
GASKET; ELEMENT
FLUID DRIVE FAN<KA3>
9-09720-542-0
02
1
0008-
29
VALVE; OVERFLOW
8-94399-170-0
01
1
0008-
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0008-1312
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
38
PLUG; DRAIN
FLUID DRIVE FAN<KA3>
1-13219-052-0
01
1
0008-
41
BRACKET; FUEL FILTER
8-94399-441-0
01
1
0008-
42
BOLT; FUEL FILTER
M10X35 FLANGE
0-28681-035-0
02
1
0008-0512
42
BOLT; FUEL FILTER
M10X35 FLANGE
0-28651-035-0
02
1
0601-
58
ELEMENT; FUEL FILTER
EXC. FLUID DRIVE FAN<KA3>
8-94394-079-2
01
1
0008-
58
ELEMENT; FUEL FILTER
EXC. FLUID DRIVE FAN<KA3> BEST VALUE PARTS
1-87610-054-1
01
1
0203-
61
SEAT; SPR ELEMENT
FLUID DRIVE FAN<KA3>
9-09651-068-0
01
1
0008-
75
BODY; FUEL FILTER
FLUID DRIVE FAN<KA3>
8-94393-518-1
01
1
0008-
