Isuzu WW
▶
TRUCKS
▶
FSS
▶
11433 - FSS(BANGLADESH)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶

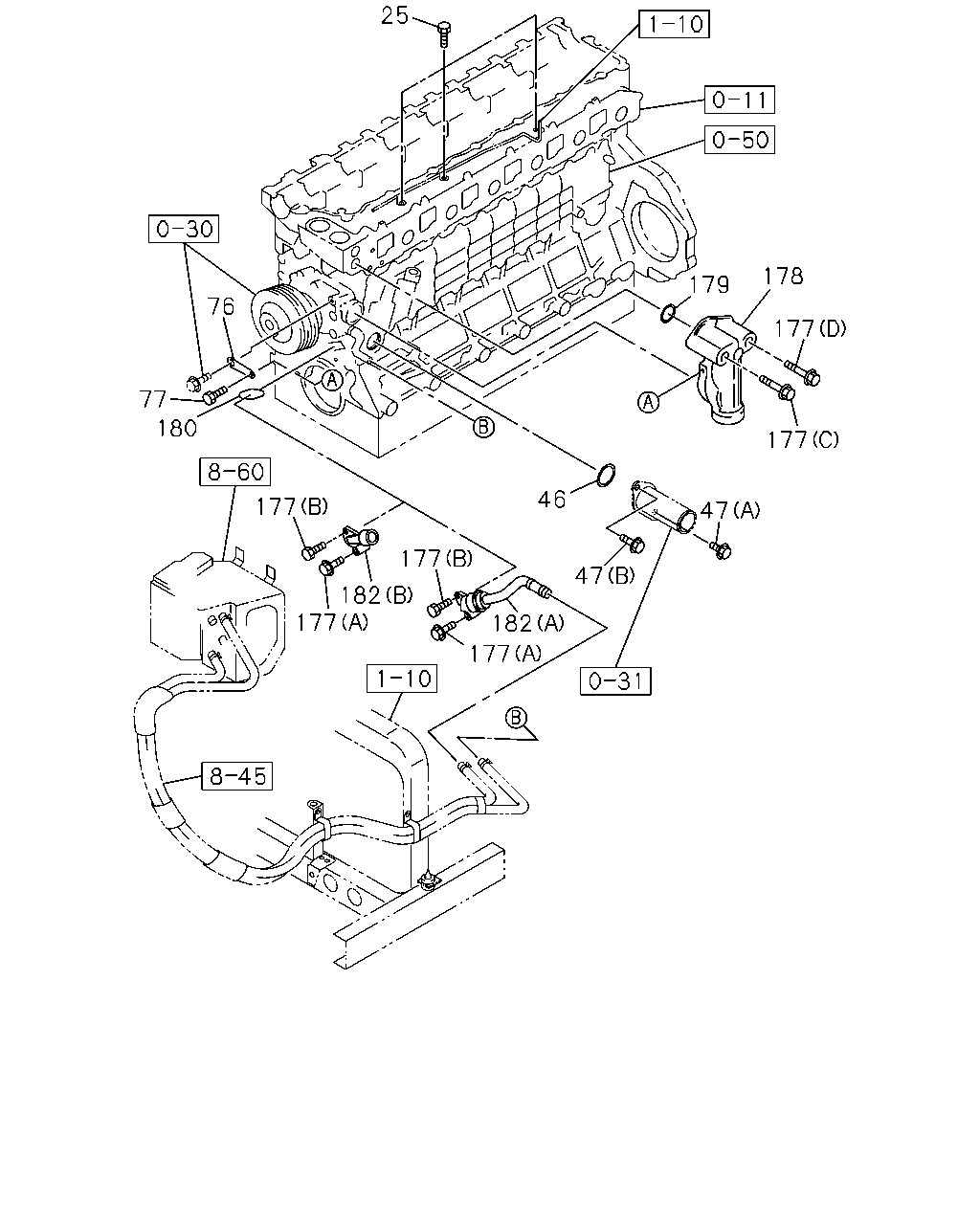

0-32 — WATER PIPING; ENGINE
(#42683) — 22 parça
25
178
179
76
177
77
180
177
46
177
47
177
47
182
177
182
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BOLT; WATER PIPE
M8X12 FLANGE
0-28080-812-0
03
1
0008-0512
25
BOLT; WATER PIPE
M8X12 FLANGE
0-28050-812-0
03
1
0601-
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3
8-94396-680-2
01
1
0008-
47
BOLT; DUCT,TO OIL COOLER
(B) M8X45 FLANGE
0-28080-845-0
01
1
0008-0512
47
BOLT; DUCT,TO OIL COOLER
(B) M8X45 FLANGE
0-28050-845-0
01
1
0601-
47
BOLT; DUCT,TO OIL COOLER
(A) M8X25 FLANGE
0-28680-825-0
01
1
0008-0512
47
BOLT; DUCT,TO OIL COOLER
(A) M8X25 FLANGE
0-28650-825-0
01
1
0601-
76
BRACKET; WATER DUCT,PUMP
8-94394-784-0
01
1
0008-
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE
0-28080-850-0
01
1
0008-0512
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE
0-28050-850-0
01
1
0601-
177
BOLT; WATER DUCT
(C) M8X80 FLANGE
0-28080-880-0
01
1
0008-0512
177
BOLT; WATER DUCT
(C) M8X80 FLANGE
0-28050-880-0
01
1
0601-
177
BOLT; WATER DUCT
(B) M8X25 FLANGE
0-28680-825-0
01
1
0008-0512
177
BOLT; WATER DUCT
(B) M8X25 FLANGE
0-28650-825-0
01
1
0601-
177
BOLT; WATER DUCT
(A) M8X65 FLANGE
1-09044-072-1
01
1
0008-
177
BOLT; WATER DUCT
(D) M16X75 FLANGE
8-94397-360-1
01
1
0008-
178
DUCT; WATER,BYPASS
8-94396-627-3
01
1
0008-
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-94396-679-0
01
1
0008-1408
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-98276-756-0
01
1
1409-
180
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94396-720-1
01
1
0008-
182
DUCT; WATER,HTR
HEATER & DEFROSTER(C41) (A)
8-94396-724-4
01
1
0008-
182
DUCT; WATER,HTR
EXC. HEATER & DEFROSTER(C41) (B)
8-94390-283-0
01
1
0008-
