Isuzu WW
▶
TRUCKS
▶
FSS
▶
11433 - FSS(BANGLADESH)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

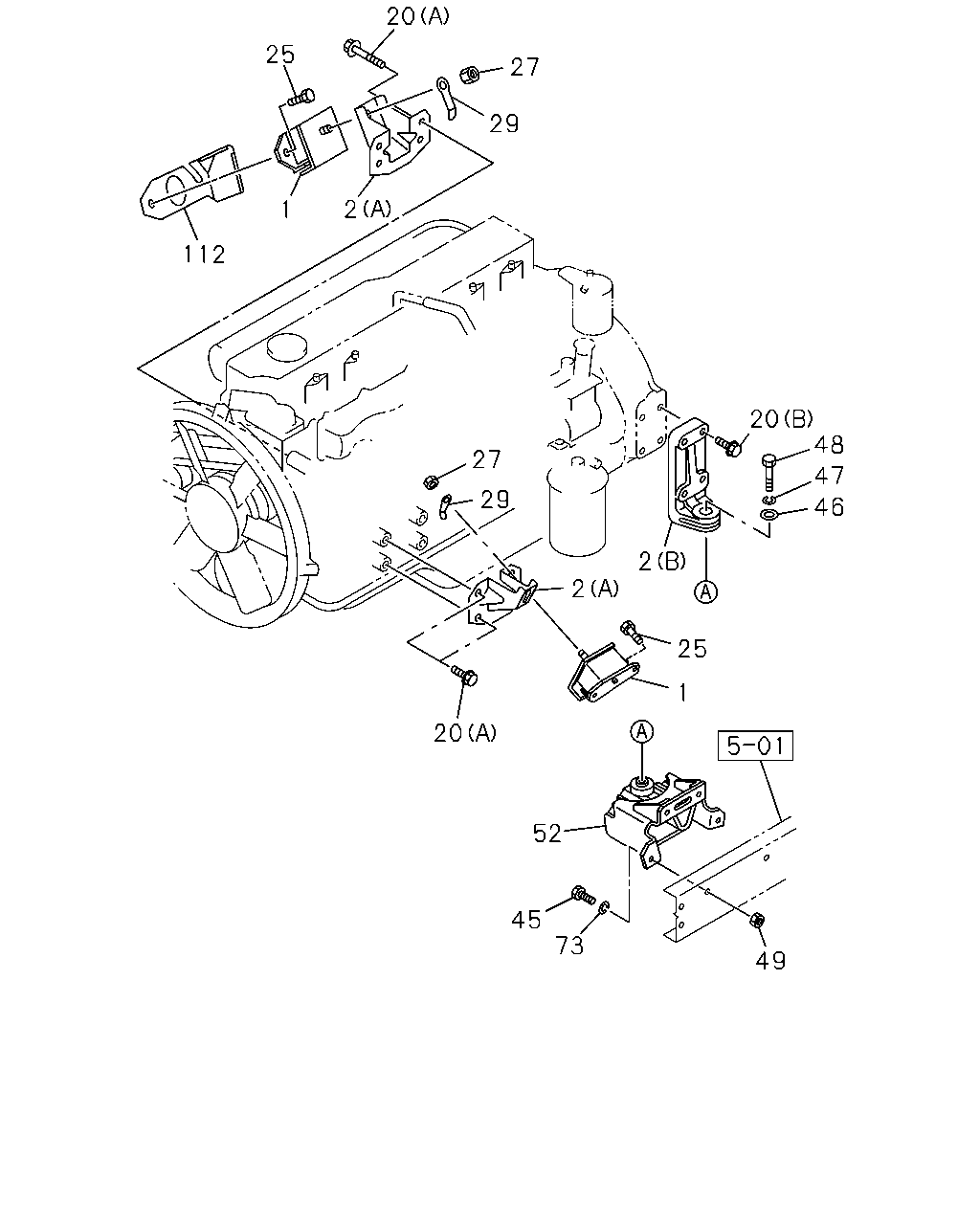

0-22 — ENGINE MOUNTING
(#42677) — 23 parça
20
25
27
29
2
1
112
20
48
27
47
29
46
2
2
25
1
20
52
45
73
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-173-0
02
1
0008-
2
FOOT; ENG
(A)
8-94393-491-1
02
1
0008-
2
FOOT; ENG
(B)
8-94399-490-0
02
1
0008-
20
BOLT; ENG FOOT
(A) M10X20 FLANGE
8-94395-721-0
08
1
0008-
20
BOLT; ENG FOOT
(B) M12X55
8-94399-884-1
08
1
0008-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28681-235-0
04
1
0008-0512
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0601-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12
9-99110-512-0
02
1
0008-0512
27
NUT; CUSHION RUBBER TO ENG FOOT
M12
0-91110-512-0
02
1
0601-
29
PLATE; LK,CUSHION RUBBER,FRT
1-53229-052-1
02
1
0008-
45
BOLT; CUSHION RUBBER TO FRAME
LOWER M12X35
9-92061-235-0
04
1
0008-0512
45
BOLT; CUSHION RUBBER TO FRAME
LOWER M12X35
0-20951-235-0
04
1
0601-
45
BOLT; CUSHION RUBBER TO FRAME
UPPER M12X40
9-92061-240-0
04
1
0008-0512
45
BOLT; CUSHION RUBBER TO FRAME
UPPER M12X40
0-20951-240-0
04
1
0601-
46
WASHER; PL,CUSHION TO ENG,RR
ID=19
9-09160-518-0
02
1
0010-
47
WASHER; LK,CUSHION RUBBER
ID=18.2
9-09150-518-0
02
1
0008-0009
48
BOLT; CUSHION RUBBER TO ENG
M18X65
8-94393-260-1
02
1
0008-
49
NUT; CUSHION RUBBER TO FRAME
M12
9-99110-512-0
08
1
0008-0512
49
NUT; CUSHION RUBBER TO FRAME
M12
0-91110-512-0
08
1
0601-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-228-2
02
1
0008-
73
WASHER; LK,CUSHION RUBBER TO FRAME
ID=12.2
9-09150-612-0
08
1
0008-0603
73
WASHER; LK,CUSHION RUBBER TO FRAME
ID=12.2
0-91510-612-0
08
1
0604-
112
PROTECTOR; HEAT
1-53219-629-4
01
1
0008-
