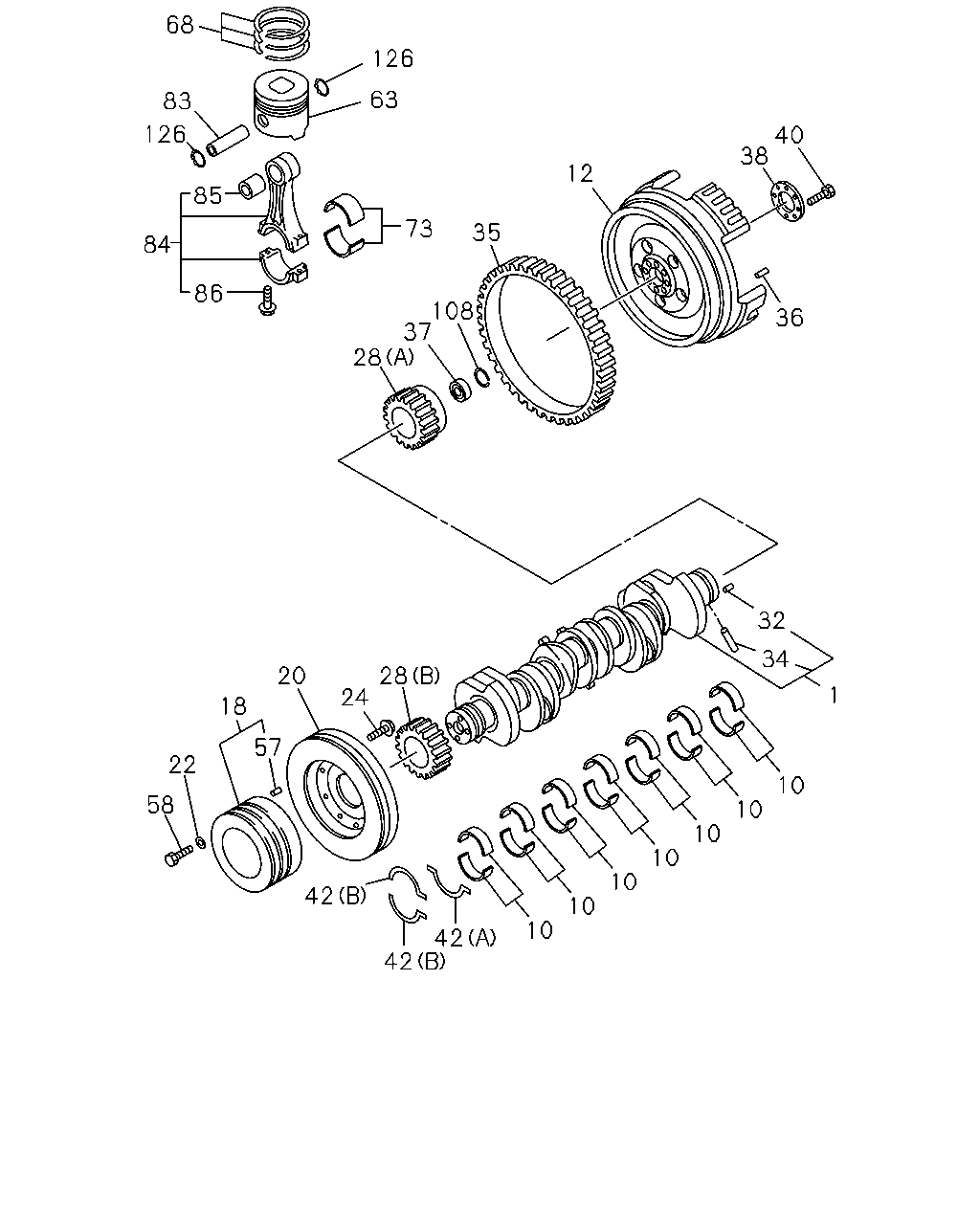

1 |
CRANKSHAFT
|
8-94393-291-4 |
01 |
1 |
0008-0305 |
| |
1 |
CRANKSHAFT
|
8-97603-003-1 |
01 |
1 |
0306- |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97372-076-1 |
07 |
1 |
0309- |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97372-077-1 |
07 |
1 |
0309- |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97372-078-1 |
07 |
1 |
0309- |
| |
12 |
FLYWHEEL
|
8-94390-131-1 |
01 |
1 |
0008- |
| |
18 |
PULLEY; CR/SHF
3-GROOVE
|
8-94395-286-3 |
01 |
1 |
0008- |
| |
20 |
DAMPER; CR/SHF
|
8-94395-314-3 |
01 |
1 |
0008- |
| |
22 |
PLATE; PULLEY
ID=17 OD=30
|
9-09851-935-0 |
04 |
1 |
0008- |
| |
24 |
BOLT; DAMPER
M10X16 FLANGE
|
0-28181-016-0 |
06 |
1 |
0008-0512 |
| |
24 |
BOLT; DAMPER
M10X16 FLANGE
|
0-28151-016-0 |
06 |
1 |
0601- |
| |
28 |
GEAR; CR/SHF
(A)
Z=42
|
8-94394-342-4 |
01 |
1 |
0008- |
| |
28 |
GEAR; CR/SHF
(B)
Z=41
|
8-94396-954-2 |
01 |
1 |
0008- |
| |
32 |
PIN; FLYWHEEL
OD=8 L=16
|
9-08150-816-0 |
02 |
1 |
0008- |
| |
34 |
PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
0008- |
| |
35 |
GEAR; RING
ID=361 Z=129
|
8-94393-132-0 |
01 |
1 |
0008- |
| |
36 |
PIN; FLYWHEEL
OD=10 L=22
|
9-08151-022-0 |
02 |
1 |
0008- |
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
|
8-94392-288-0 |
01 |
1 |
0008- |
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS
|
1-87610-157-0 |
01 |
1 |
0008- |
| |
38 |
WASHER; FLYWHEEL
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
0008- |
| |
40 |
BOLT; FLYWHEEL
M16X62
|
8-94393-070-2 |
08 |
1 |
0008- |
| |
42 |
WASHER; THRUST,CR/SHF
(A)
|
8-94399-277-0 |
01 |
1 |
0008-0703 |
| |
42 |
WASHER; THRUST,CR/SHF
(A)
|
8-97386-548-0 |
01 |
1 |
0704- |
| |
42 |
WASHER; THRUST,CR/SHF
(B)
|
8-94399-283-0 |
02 |
1 |
0008-0703 |
| |
42 |
WASHER; THRUST,CR/SHF
(B)
|
8-97386-549-0 |
02 |
1 |
0704- |
| |
57 |
PIN; PULLEY
OD=8 L=16
|
8-94391-156-0 |
01 |
1 |
0008- |
| |
58 |
BOLT; CR/SHF PULLEY
M16X50
|
9-92061-650-0 |
04 |
1 |
0008-0512 |
| |
58 |
BOLT; CR/SHF PULLEY
M16X50
|
0-20951-650-0 |
04 |
1 |
0601- |
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-94391-606-1 |
06 |
1 |
0008- |
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-94390-799-2 |
06 |
1 |
0008- |
| |
73 |
METAL SET; CONN ROD,STANDARD
|
8-94393-328-0 |
12 |
1 |
0008- |
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94396-589-1 |
06 |
1 |
0008- |
| |
84 |
ROD ASM; CONN
|
8-94396-394-8 |
06 |
1 |
0008- |
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
1-12251-036-0 |
06 |
1 |
0008-0805 |
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-98075-233-0 |
06 |
1 |
0806-0905 |
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-98121-309-0 |
06 |
1 |
0906- |
| |
86 |
BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
12 |
1 |
0008-1004 |
| |
86 |
BOLT; CONNROD
M13X57 FLANGE
|
8-98091-141-0 |
12 |
1 |
1005- |
| |
108 |
RING; SNAP,BRG SET
OD=59.2
|
9-09180-155-0 |
01 |
1 |
0008- |
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
8-94318-798-2 |
12 |
1 |
0008- |
