0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

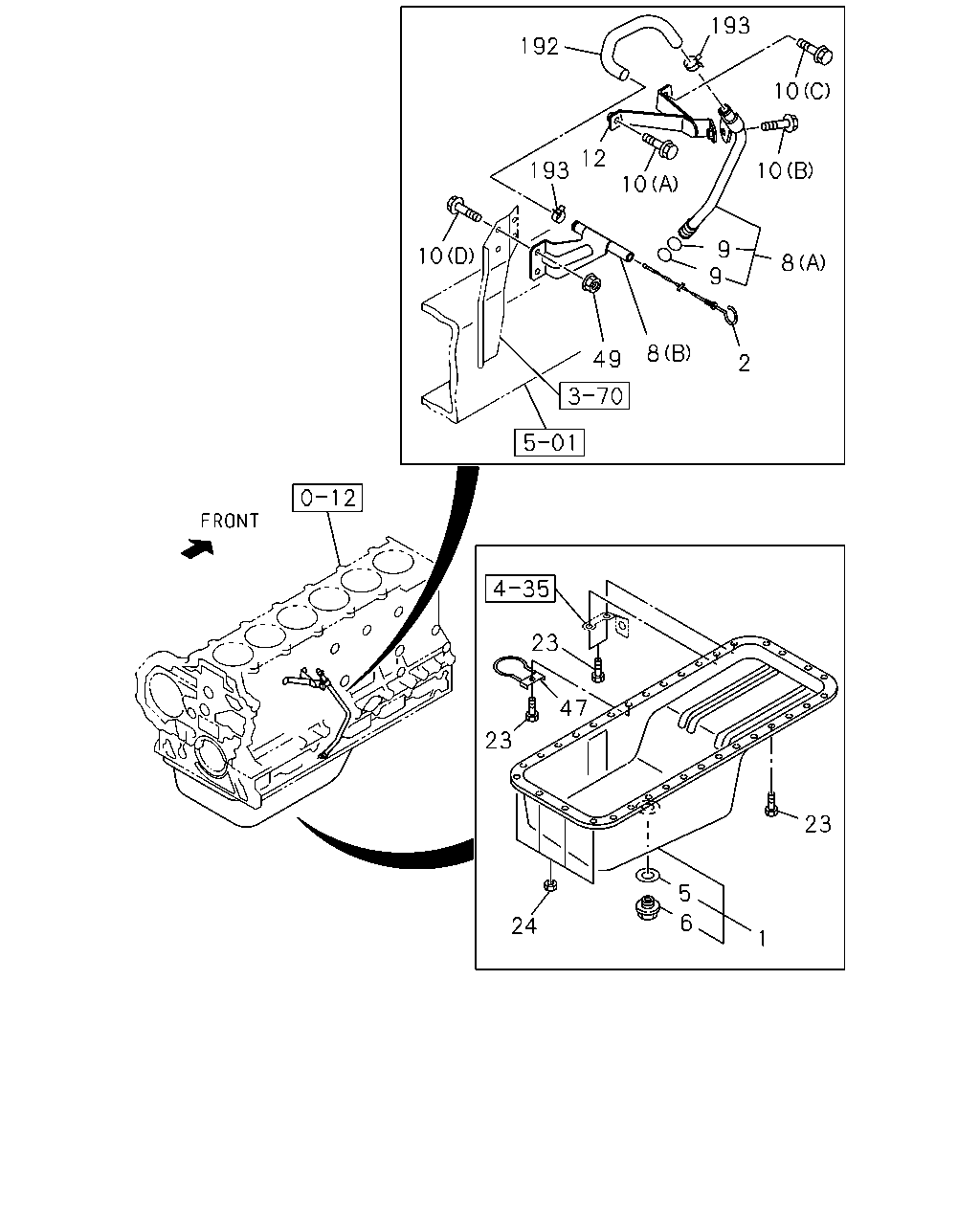

0-13 — OIL PAN AND LEVEL GAUGE
(#42673) — 28 parça
193
192
10
12
193
10
10
9
9
10
8
8
49
2
23
47
23
23
5
6
24
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-94395-861-1
01
1
0008-
2
GAUGE; OIL LEVEL
1-11760-396-1
01
1
0008-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0008-
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
0008-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-452-0
01
1
0008-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-94395-114-3
01
1
0008-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
5-09623-002-0
02
1
0008-0112
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
0201-
10
BOLT; GUIDE TUBE
(A) M8X12 FLANGE
0-28080-812-0
01
1
0008-0512
10
BOLT; GUIDE TUBE
(A) M8X12 FLANGE
0-28050-812-0
01
1
0601-
10
BOLT; GUIDE TUBE
(B) M8X16 FLANGE
0-28080-816-0
01
1
0008-0512
10
BOLT; GUIDE TUBE
(B) M8X16 FLANGE
0-28050-816-0
01
1
0601-
10
BOLT; GUIDE TUBE
(C) M8X30 FLANGE
0-28080-830-0
01
1
0008-0512
10
BOLT; GUIDE TUBE
(C) M8X30 FLANGE
0-28050-830-0
01
1
0601-
10
BOLT; GUIDE TUBE
(D) M8X25 FLANGE
0-28680-825-0
02
1
0008-0107
10
BOLT; GUIDE TUBE
(D) M8X20 FLANGE
0-28680-820-0
02
1
0108-0512
10
BOLT; GUIDE TUBE
(D) M8X20 FLANGE
0-28650-820-0
02
1
0601-
12
BRACKET; TUBE,OIL LEVEL GAUGE
8-94395-150-0
01
1
0008-
23
BOLT; OIL PAN
M8X18 FLANGE
0-28080-818-0
30
1
0008-
24
NUT; OIL PAN
M8 FLANGE
0-91150-108-0
04
1
0008-0602
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
04
1
0603-
47
CLIP; HOSE,AIR BREATHER
1-11369-115-0
01
1
0008-1506
47
CLIP; HOSE,AIR BREATHER
8-98303-447-0
01
1
1507-
49
NUT; GUIDE TUBE
M8
9-09110-408-0
02
1
0008-0512
49
NUT; GUIDE TUBE
M8
0-91110-508-0
02
1
0601-
192
HOSE; GUIDE TUBE
L=300
1-09360-945-1
01
1
0008-0305
192
HOSE; GUIDE TUBE
L=300
1-09360-978-0
01
1
0306-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
0008-
