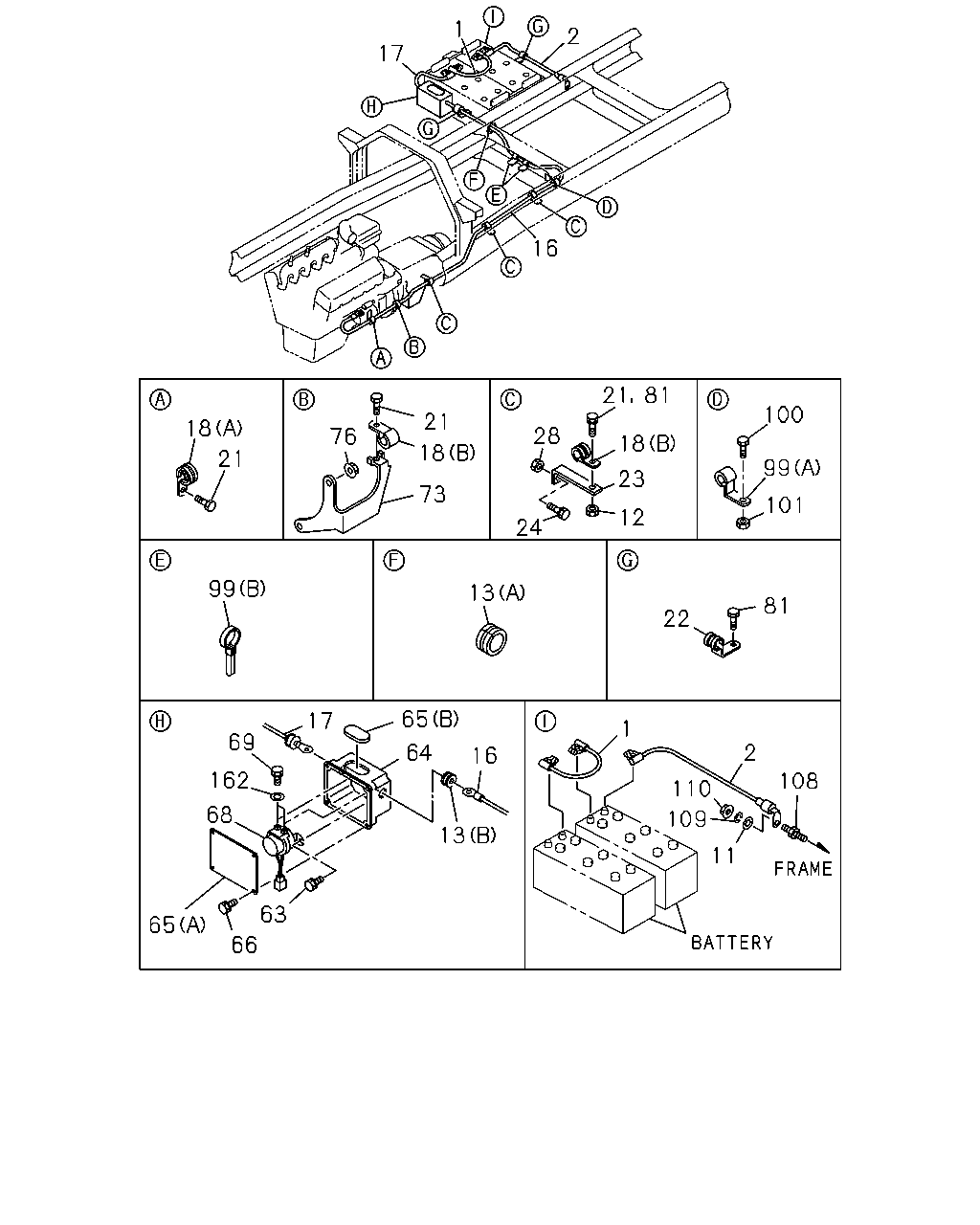

0-61B — BATTERY AND ENGINE ELECTRICAL PARTS (#4267) — 115 parça

1 2 17 16 21 81 100 21 18 28 76 18 18 21 99 23 73 101 12 24 99 13 81 22 65 17 1 69 64 2 16 162 108 110 68 109 13 11 63 65 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-281-2	01	1	9603-9904	●	●
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-281-2	01	1	9905-	●	●	●	●
1	CABLE; BATTERY EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	9603-9904	●	●
1	CABLE; BATTERY EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	9905-	●	●	●	●
2	CABLE; BATTERY L=690	1-82650-147-0	01	1	9603-9904	●	●
2	CABLE; BATTERY L=690	1-82650-147-0	01	1	9905-	●	●	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	9603-9904	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	9905-	●	●	●	●
12	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	03	1	9603-9606	●	●
12	NUT; BATTERY CABLE CLIP M10 FLANGE	0-91150-210-0	03	1	9607-9708	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	9709-9904	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	9905-	●	●	●	●
12	NUT; BATTERY CABLE CLIP SHORT CHASSIS(CXZ5MC) THAILAND EQUIPMENT(PM9) M8	9-09110-408-0	01	1	9604-9606		●
12	NUT; BATTERY CABLE CLIP SHORT CHASSIS(CXZ5MC) THAILAND EQUIPMENT(PM9) M10 FLANGE	0-91150-210-0	01	1	9607-9706		●
12	NUT; BATTERY CABLE CLIP SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) M10 FLANGE	0-91150-210-0	01	1	9707-9708		●
12	NUT; BATTERY CABLE CLIP SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE	0-91150-108-0	01	1	9709-9904		●
12	NUT; BATTERY CABLE CLIP SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE	0-91150-108-0	01	1	9905-			●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9603-9904	●	●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9905-	●	●	●	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9606-9904	●	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9905-	●	●	●	●
16	CABLE; STARTER TO RELAY L=3850	1-82652-601-0	01	1	9603-9608	●	●
16	CABLE; STARTER TO RELAY L=2790	1-82652-634-0	01	1	9609-9904	●	●
16	CABLE; STARTER TO RELAY L=2790	1-82652-634-0	01	1	9905-	●	●	●	●
17	CABLE; BATTERY (+) TO RELAY L=390	1-82652-531-0	01	1	9603-9904	●	●
17	CABLE; BATTERY (+) TO RELAY L=390	1-82652-531-0	01	1	9905-	●	●	●	●
18	CLIP; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	9603-9603	●	●
18	CLIP; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	9604-9706	●	●
18	CLIP; BATTERY CABLE SHORT CHASSIS(CXZ5MC) THAILAND EQUIPMENT(PM9) (B) ID=18 L=28	1-09701-067-0	01	1	9604-9706		●
18	CLIP; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	9707-9904	●	●
18	CLIP; BATTERY CABLE SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) (B) ID=18 L=28	1-09701-067-0	01	1	9707-9904		●
18	CLIP; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	9905-	●	●	●	●
18	CLIP; BATTERY CABLE SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B) ID=18 L=28	1-09701-067-0	01	1	9905-			●
18	CLIP; BATTERY CABLE ZF M/T<X9E> (B) ID=20 H=23 L=27	1-09700-861-0	01	1	9603-9904		●
18	CLIP; BATTERY CABLE ZF M/T<X9E> (B) ID=20 H=23 L=27	1-09700-861-0	01	1	9905-		●	●	●
18	CLIP; BATTERY CABLE (B) ID=18 L=28	1-09701-067-0	03	1	9603-9904	●	●
18	CLIP; BATTERY CABLE (B) ID=18 L=28	1-09701-067-0	03	1	9905-	●	●	●	●
18	CLIP; BATTERY CABLE (A) ID=19 L=28	9-09525-856-0	01	1	9603-9904	●	●
18	CLIP; BATTERY CABLE (A) ID=19 L=28	9-09525-856-0	01	1	9905-	●	●	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	04	1	9603-9603	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	05	1	9604-9606	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	05	1	9607-9904	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	05	1	9905-	●	●	●	●
21	BOLT; CLIP CABLE SHORT CHASSIS(CXZ5MC) THAILAND EQUIPMENT(PM9) M8X20 FLANGE	0-28080-820-0	01	1	9604-9606		●
21	BOLT; CLIP CABLE SHORT CHASSIS(CXZ5MC) THAILAND EQUIPMENT(PM9) M8X20 FLANGE	0-28680-820-0	01	1	9607-9706		●
21	BOLT; CLIP CABLE SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) M8X20 FLANGE	0-28680-820-0	01	1	9707-9904		●
21	BOLT; CLIP CABLE SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X20 FLANGE	0-28680-820-0	01	1	9905-			●
22	CLIP; BATTERY CABLE ID=18 H=23 L=28	1-09701-070-0	02	1	9603-9904	●	●
22	CLIP; BATTERY CABLE ID=18 H=23 L=28	1-09701-070-0	02	1	9905-	●	●	●	●
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	03	1	9603-9904	●	●
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	03	1	9905-	●	●	●	●
23	BRACKET; CABLE CLIP TO FRAME SHORT CHASSIS(CXZ5MC) THAILAND EQUIPMENT(PM9) L=120	1-82699-465-0	01	1	9604-9706		●
23	BRACKET; CABLE CLIP TO FRAME SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) L=120	1-82699-465-0	01	1	9707-9904		●
23	BRACKET; CABLE CLIP TO FRAME SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) L=120	1-82699-465-0	01	1	9905-			●
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	03	1	9607-9904	●	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	03	1	9905-	●	●	●	●
24	BOLT; BRKT TO FRAME SHORT CHASSIS(CXZ5MC) THAILAND EQUIPMENT(PM9) M8X25 FLANGE	0-28080-825-0	01	1	9604-9606		●
24	BOLT; BRKT TO FRAME SHORT CHASSIS(CXZ5MC) THAILAND EQUIPMENT(PM9) M8X30 FLANGE	0-28680-830-0	01	1	9607-9706		●
24	BOLT; BRKT TO FRAME SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) M8X30 FLANGE	0-28680-830-0	01	1	9707-9904		●
24	BOLT; BRKT TO FRAME SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X30 FLANGE	0-28680-830-0	01	1	9905-			●
28	NUT; BRKT TO FRAME M8	9-09110-408-0	03	1	9603-9606	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	03	1	9607-9904	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	03	1	9905-	●	●	●	●
28	NUT; BRKT TO FRAME SHORT CHASSIS(CXZ5MC) THAILAND EQUIPMENT(PM9) M8	9-09110-408-0	01	1	9604-9606		●
28	NUT; BRKT TO FRAME SHORT CHASSIS(CXZ5MC) THAILAND EQUIPMENT(PM9) M8 FLANGE	0-91150-108-0	01	1	9607-9706		●
28	NUT; BRKT TO FRAME SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE	0-91150-108-0	01	1	9707-9904		●
28	NUT; BRKT TO FRAME SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE	0-91150-108-0	01	1	9905-			●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9603-9904	●	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9905-	●	●	●	●
64	BOX; BATTERY RELAY	1-82699-352-2	01	1	9603-9611	●	●
64	BOX; BATTERY RELAY	1-82699-947-0	01	1	9612-9904	●	●
64	BOX; BATTERY RELAY	1-82699-947-0	01	1	9905-	●	●	●	●
65	COVER; BATTERY RELAY (B)	1-82699-354-2	01	1	9603-9611	●	●
65	COVER; BATTERY RELAY (B)	1-82699-980-0	01	1	9612-9904	●	●
65	COVER; BATTERY RELAY (B)	1-82699-980-0	01	1	9905-	●	●	●	●
65	COVER; BATTERY RELAY (A)	1-82699-353-1	01	1	9603-9904	●	●
65	COVER; BATTERY RELAY (A)	1-82699-353-1	01	1	9905-	●	●	●	●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9603-9904	●	●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9905-	●	●	●	●
68	RELAY; BATTERY	1-82550-228-2	01	1	9603-9711	●	●
68	RELAY; BATTERY	1-82550-282-0	01	1	9712-9904	●	●
68	RELAY; BATTERY	1-82550-282-0	01	1	9905-	●	●	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9603-9904	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9905-	●	●	●	●
73	BRACKET; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B>	1-82699-822-0	01	1	9603-9903	●	●
73	BRACKET; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B>	1-82698-139-0	01	1	9904-9904	●	●
73	BRACKET; BATTERY CABLE ISUZU M/T<X9A>	1-82698-139-0	01	1	9905-	●	●	●	●
76	NUT; BATTERY CABLE ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9603-9606	●	●
76	NUT; BATTERY CABLE ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-9706	●	●
76	NUT; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B> M10 FLANGE	0-91150-210-0	02	1	9707-9904	●	●
76	NUT; BATTERY CABLE ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28680-820-0	02	1	9607-9904	●	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●	●	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	01	1	9603-9904	●	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	01	1	9905-	●	●	●	●
99	CLIP; BATTERY CABLE (B) ID=20 L=50	9-09917-430-0	02	1	9603-9904	●	●
99	CLIP; BATTERY CABLE (B) ID=20 L=50	9-09917-430-0	02	1	9905-	●	●	●	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-9904	●	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●	●	●
101	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	01	1	9603-9606	●	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	9603-9904	●	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	9905-	●	●	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	9603-9603	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-508-0	01	1	9604-9810	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	9811-9904	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	9905-	●	●	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	9603-9904	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	9905-	●	●	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9603-9904	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9905-	●	●	●	●
