◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#42664) — 166 parça

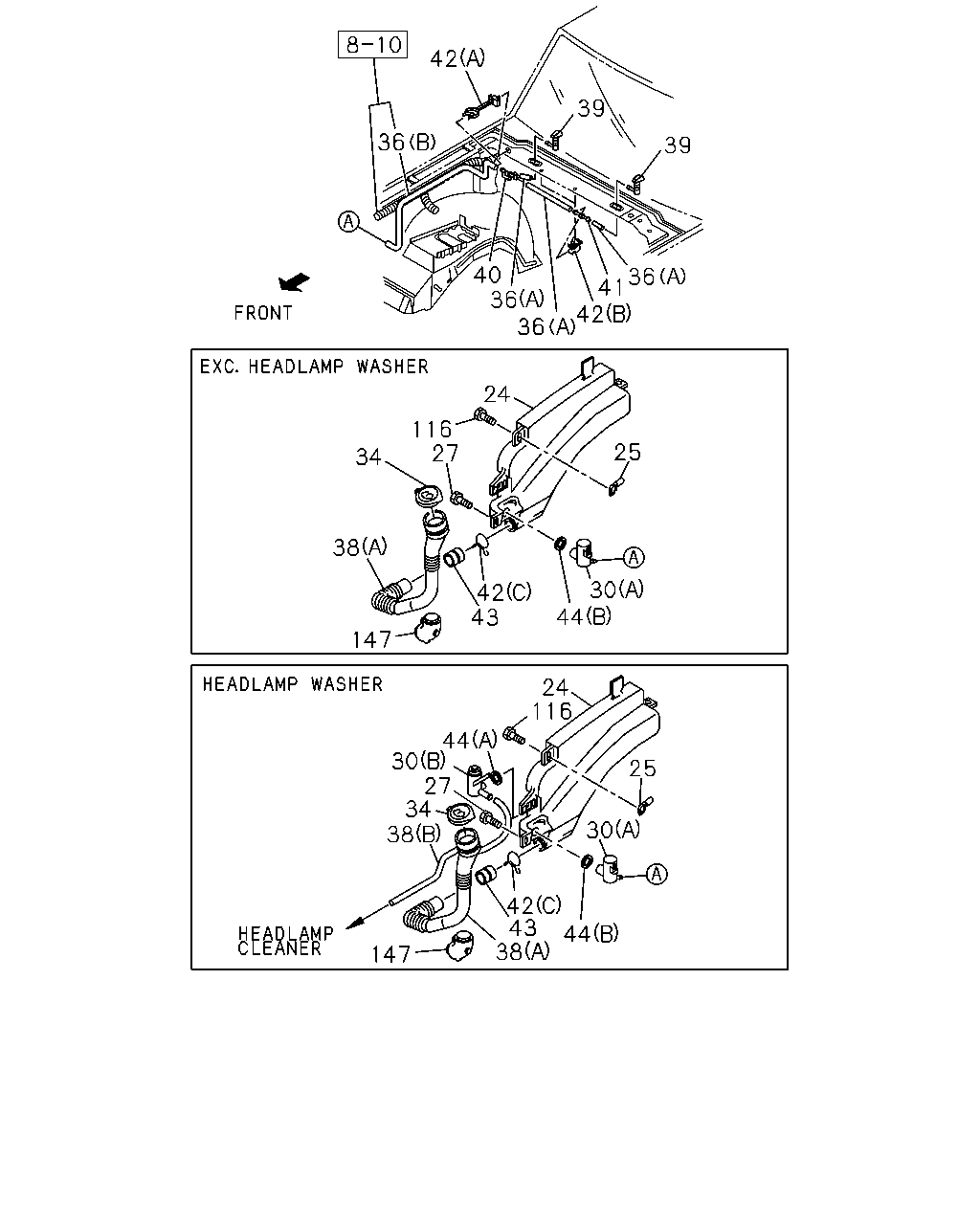

çizim 19835
42 39 36 39 40 36 36 36 41 42 24 116 27 25 34 38 30 44 42 43 147 24 116 44 30 27 34 38 25 30 42 43 44 3 147
BalonParca AdiParca NoAdetTipApplied Date A B C
3 16.063 PIVOT ASM; FRT WIPER
(A) 		8-97178-292-0 01 1 9712-0007 ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 		8-97178-292-0 01 1 0008-0212 ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 		8-97360-605-0 01 1 0301- ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 		8-97807-522-0 01 1 9712-0007 ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 		8-97807-522-0 01 1 0008-0212 ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 		8-97360-606-0 01 1 0301- ● ● ●
24 16.065 TANK ASM; WASHER
HEADLAMP WIPER & WASHER<CE3> 		8-97807-517-3 01 1 9712-0007 ● ●
24 16.065 TANK ASM; WASHER
HEADLAMP WIPER & WASHER<CE3> 		8-97807-517-4 01 1 0008- ● ● ●
24 16.065 TANK ASM; WASHER
EXC. HEADLAMP WIPER & WASHER<CE3> 		8-97807-510-3 01 1 9712-0007 ● ●
24 16.065 TANK ASM; WASHER
EXC. HEADLAMP WIPER & WASHER<CE3> 		8-97807-510-4 01 1 0008- ● ● ●
25 16.065 BRACKET; WASHER TANK 8-97807-513-0 01 1 9712-0007 ● ●
25 16.065 BRACKET; WASHER TANK 8-97807-513-0 01 1 0008- ● ● ●
27 16.065 BOLT; WASHER TANK
07.833 M6X14 W/LK&PL WASHER 		8-94382-066-1 02 1 9712-0007 ● ●
27 16.065 BOLT; WASHER TANK
07.833 M6X14 W/LK&PL WASHER 		8-94382-066-1 02 1 0008- ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK
(A) 		8-97807-511-0 01 1 9712-0007 ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK
(A) 		8-97807-511-0 01 1 0008- ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK
HEADLAMP WIPER & WASHER<CE3> (B) 		8-97807-538-0 01 1 9712-0007 ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK
HEADLAMP WIPER & WASHER<CE3> (B) 		8-97807-538-0 01 1 0008- ● ● ●
34 16.065 CAP; WASHER TANK 8-97807-514-0 01 1 9712-0007 ● ●
34 16.065 CAP; WASHER TANK 8-97807-514-0 01 1 0008- ● ● ●
36 16.065 HOSE; WASHER
10.155 (A) SERVICED BY L=10000 		8-94389-303-0 AR 1 9712-0007 ● ●
36 16.065 HOSE; WASHER
10.155 (A) SERVICED BY L=10000 		8-94389-303-0 AR 1 0008- ● ● ●
36 16.065 HOSE; WASHER
(B) L=1260 		8-97130-714-0 01 1 9712-0007 ● ●
36 16.065 HOSE; WASHER
(B) L=1260 		8-97130-714-0 01 1 0008- ● ● ●
38 16.065 HOSE; JOINT,TANK
(A) 		8-94358-854-0 01 1 9712-0007 ● ●
38 16.065 HOSE; JOINT,TANK
(A) 		8-94358-854-0 01 1 0008- ● ● ●
38 16.065 HOSE; JOINT,TANK
HEADLAMP WIPER & WASHER<CE3> (B) 		8-97807-636-0 01 1 9712-0007 ● ●
38 16.065 HOSE; JOINT,TANK
HEADLAMP WIPER & WASHER<CE3> (B) 		8-97807-636-0 01 1 0008- ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97802-674-0 01 1 9712-0007 ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97802-674-0 01 1 0008- ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-94358-853-0 01 1 9712-0007 ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-94358-853-0 01 1 0008- ● ● ●
40 16.065 JOINT; WASHER HOSE 8-97807-498-0 01 1 9712-0007 ● ●
40 16.065 JOINT; WASHER HOSE 8-97807-498-0 01 1 0008- ● ● ●
41 16.065 VALVE; CHECK,WASHER TANK 8-97807-499-0 01 1 9712-0007 ● ●
41 16.065 VALVE; CHECK,WASHER TANK 8-97807-499-0 01 1 0008- ● ● ●
42 16.065 CLIP; WASHER HOSE
10.156 (A) L=46 		8-94154-654-1 01 1 9712-0007 ● ●
42 16.065 CLIP; WASHER HOSE
10.156 (A) L=46 		8-94154-654-1 01 1 0008- ● ● ●
42 16.065 CLIP; WASHER HOSE
10.156 (B) ID=5.8 L=8 		8-94155-681-0 02 1 9712-0007 ● ●
42 16.065 CLIP; WASHER HOSE
10.156 (B) ID=5.8 L=8 		8-94155-681-0 02 1 0008- ● ● ●
42 16.065 CLIP; WASHER HOSE
(C) 		8-97807-516-3 01 1 9712-0007 ● ●
42 16.065 CLIP; WASHER HOSE
(C) 		8-97807-516-3 01 1 0008- ● ● ●
43 16.065 RUBBER; GASKET,TANK 8-97807-515-0 01 1 9712-0007 ● ●
43 16.065 RUBBER; GASKET,TANK 8-97807-515-0 01 1 0008- ● ● ●
44 16.065 GASKET; MOTOR TO TANK
(B) 		8-97807-512-0 01 1 9712-0007 ● ●
44 16.065 GASKET; MOTOR TO TANK
(B) 		8-97807-512-0 01 1 0008- ● ● ●
44 16.065 GASKET; MOTOR TO TANK
HEADLAMP WIPER & WASHER<CE3> 10.154 (A) 		8-94352-050-0 01 1 9712-0007 ● ●
44 16.065 GASKET; MOTOR TO TANK
HEADLAMP WIPER & WASHER<CE3> 10.154 (A) 		8-94352-050-0 01 1 0008- ● ● ●
116 16.065 SCREW; TANK TO BRKT 8-97807-451-0 01 1 9712-0007 ● ●
116 16.065 SCREW; TANK TO BRKT 8-97807-451-0 01 1 0008-0010 ● ● ●
116 16.065 SCREW; TANK TO BRKT
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0011- ● ● ●
147 16.065 PROTECTOR; WASHER TANK 8-97807-637-0 01 1 9712-0007 ● ●
147 16.065 PROTECTOR; WASHER TANK 8-97807-637-0 01 1 0008-0010 ● ● ●

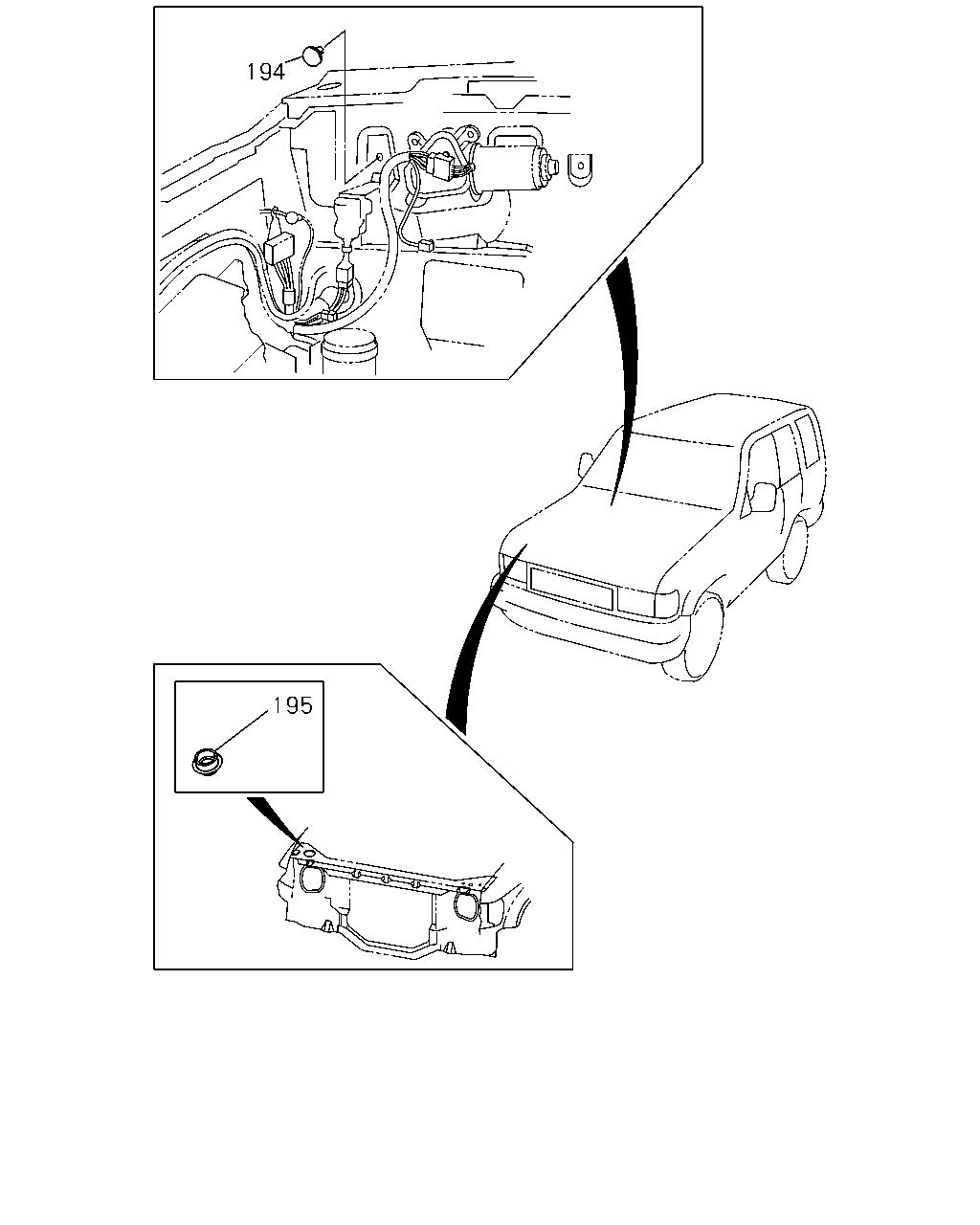

çizim 19838
194 195
BalonParca AdiParca NoAdetTipApplied Date A B C
194 16.065 PLUG; HOLE,CLIP
6VD1 ENG(RLV) 		8-97807-966-0 01 1 9712-0007 ● ●
194 16.065 PLUG; HOLE,CLIP
6VE1 ENG(RJQ) A/T THM(RMQ) 		8-97807-966-0 01 1 9712-0007 ● ●
194 16.065 PLUG; HOLE,CLIP
ANTI THEFT<UA6> 		8-97807-966-0 01 1 0008- ● ● ●
194 16.065 PLUG; HOLE,CLIP
6VE1 ENG(RJQ) A/T THM(RMQ) EXC. ANTI THEFT<UA6> 		8-97807-966-0 01 1 0008- ● ●
194 16.065 PLUG; HOLE,CLIP
6VD1 ENG(RLV) EXC. ANTI THEFT<UA6> 		8-97807-966-0 01 1 0008- ● ●
195 16.065 PROTECTOR; FILLER NECK 8-97114-362-0 01 1 9712-0007 ● ●
195 16.065 PROTECTOR; FILLER NECK 8-97114-362-0 01 1 0008- ● ● ●

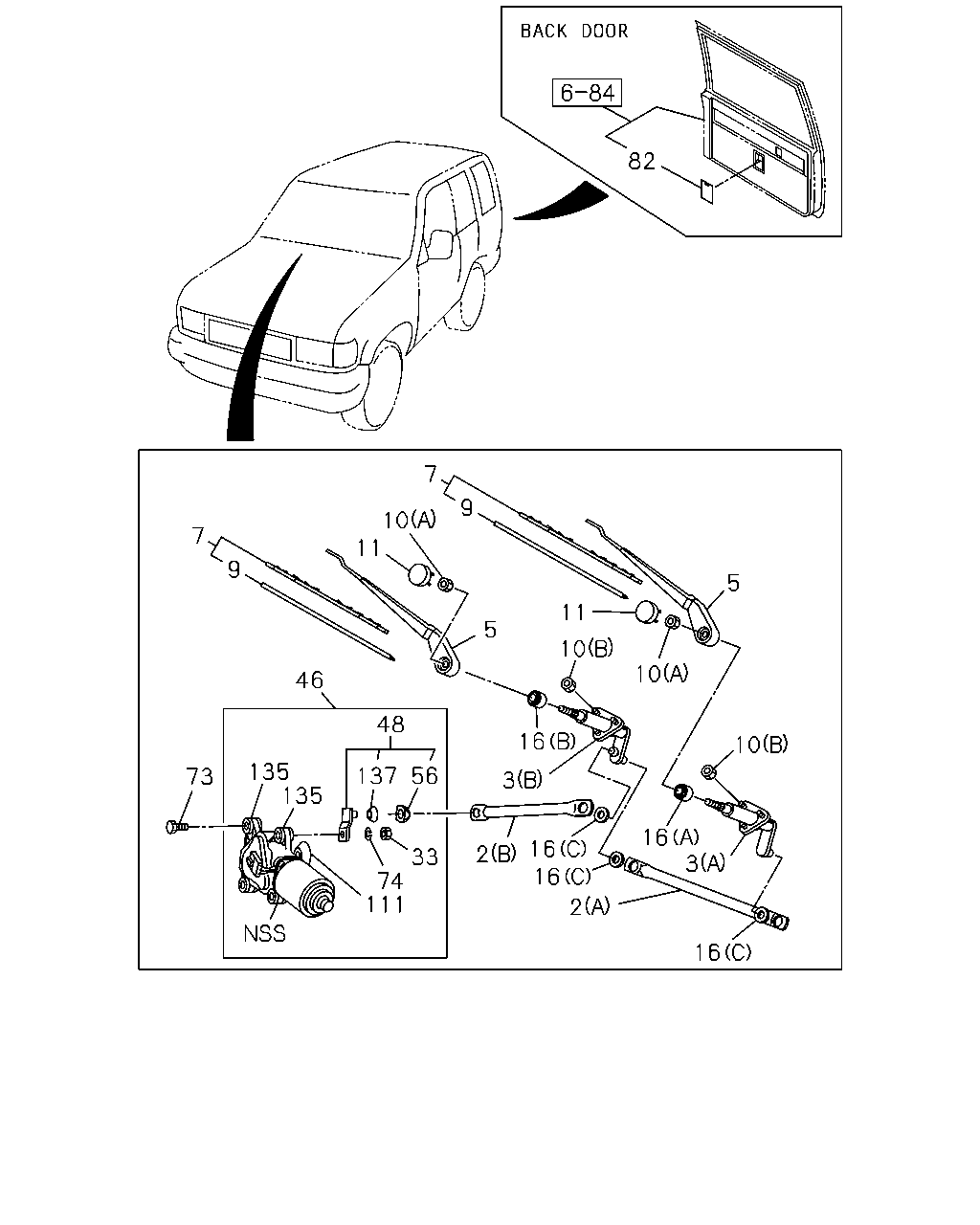

çizim 69041
82 7 9 10 11 7 9 5 11 5 10 10 46 48 16 10 135 135 137 56 73 3 16 3 16 16 2 33 74 111 2 16
BalonParca AdiParca NoAdetTipApplied Date A B C
2 16.063 LINK; FRT WIPER
(B) 		8-97807-519-0 01 1 9712-0007 ● ●
2 16.063 LINK; FRT WIPER
(B) 		8-97807-519-0 01 1 0008-0212 ● ● ●
2 16.063 LINK; FRT WIPER
(B) 		8-97360-609-0 01 1 0301- ● ● ●
2 16.063 LINK; FRT WIPER
(A) 		8-97807-523-0 01 1 9712-0007 ● ●
2 16.063 LINK; FRT WIPER
(A) 		8-97807-523-0 01 1 0008-0212 ● ● ●
2 16.063 LINK; FRT WIPER
(A) 		8-97360-611-0 01 1 0301- ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 		8-97178-292-0 01 1 9712-0007 ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 		8-97178-292-0 01 1 0008-0212 ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 		8-97360-605-0 01 1 0301- ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 		8-97807-522-0 01 1 9712-0007 ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 		8-97807-522-0 01 1 0008-0212 ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 		8-97360-606-0 01 1 0301- ● ● ●
5 16.063 ARM; WIPER
EUROPE EQUIPMENT(EK4) 		8-97808-970-1 01 1 9712-0003 ● ●
5 16.063 ARM; WIPER
EUROPE EQUIPMENT(EK4) 		8-97254-656-0 01 1 0004-0005 ● ●
5 16.063 ARM; WIPER
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97254-656-0 01 1 0006- ● ●
5 16.063 ARM; WIPER
EUROPE EQUIPMENT(EK4) 		8-97808-694-1 01 1 9712-0002 ● ●
5 16.063 ARM; WIPER 8-97808-694-1 01 1 0003-0003 ● ●
5 16.063 ARM; WIPER 8-97254-660-0 01 1 0004-0007 ● ●
5 16.063 ARM; WIPER 8-97254-660-0 01 1 0008- ● ● ●
5 16.063 ARM; WIPER
EXC. EUROPE EQUIPMENT(EK4) 		8-97139-592-1 01 1 9712-0002 ● ●
5 16.063 ARM; WIPER
EXC. EUROPE EQUIPMENT(EK4) 		8-97808-692-1 01 1 0003-0003 ● ●
5 16.063 ARM; WIPER
EXC. EUROPE EQUIPMENT(EK4) 		8-97254-657-0 01 1 0004-0005 ● ●
5 16.063 ARM; WIPER
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97254-657-0 01 1 0006-0007 ● ●
5 16.063 ARM; WIPER
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97254-657-0 01 1 0008- ● ●
5 16.063 ARM; WIPER 8-97254-657-0 01 1 0008- ●
5 16.063 ARM; WIPER
EXC. EUROPE EQUIPMENT(EK4) 		8-97139-594-1 01 1 9712-0002 ● ●
7 16.062 BLADE; WIPER
EUROPE EQUIPMENT(EK4) L=500 		8-97134-560-0 01 1 9712-0002 ● ●
7 16.062 BLADE; WIPER
L=500 		8-97134-560-0 01 1 0003-0003 ● ●
7 16.062 BLADE; WIPER
L=500 		8-97254-764-0 01 1 0004-0007 ● ●
7 16.062 BLADE; WIPER
L=500 		8-97254-764-0 01 1 0008- ● ● ●
7 16.062 BLADE; WIPER
EUROPE EQUIPMENT(EK4) L=500 		8-97134-561-0 01 1 9712-0002 ● ●
7 16.062 BLADE; WIPER
L=500 		8-97134-561-0 01 1 0003-0003 ● ●
7 16.062 BLADE; WIPER
L=500 		8-97254-766-0 01 1 0004-0007 ● ●
7 16.062 BLADE; WIPER
L=500 		8-97254-766-0 01 1 0008- ● ● ●
7 16.062 BLADE; WIPER
EXC. EUROPE EQUIPMENT(EK4) L=500 		8-97139-626-0 02 1 9712-0002 ● ●
9 16.062 RUBBER; FRT WIPER BLADE
EUROPE EQUIPMENT(EK4) L=500 		8-97807-964-0 01 1 9712-0002 ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=500 		8-97807-964-0 01 1 0003-0003 ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=500 		8-97257-975-0 01 1 0004-0007 ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=500 		8-97257-975-0 01 1 0008- ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
EUROPE EQUIPMENT(EK4) L=500 		8-97807-965-0 01 1 9712-0002 ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=500 		8-97807-965-0 01 1 0003-0003 ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97257-976-0 01 1 0004-0007 ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97257-976-0 01 1 0008- ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
EXC. EUROPE EQUIPMENT(EK4) L=500 		8-97178-835-0 02 1 9712-0002 ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
07.347 (A) M10 FLANGE 		8-94144-220-0 02 1 9712-0007 ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
07.347 (A) M10 FLANGE 		8-94144-220-0 02 1 0008- ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
10.147 (B) M6 W/DISHED WASHER 		8-94423-325-0 06 1 9712-0007 ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
10.147 (B) M6 W/DISHED WASHER 		8-94423-325-0 06 1 0008- ● ● ●
11 16.063 COVER; WIPER ARM 8-97148-349-0 02 1 9712-0007 ● ●
11 16.063 COVER; WIPER ARM 8-97148-349-0 02 1 0008- ● ● ●
16 16.063 SEAL; BALL JOINT
10.159 (C) 		8-97025-889-0 03 1 9712-0007 ● ●
16 16.063 SEAL; BALL JOINT
10.159 (C) 		8-97025-889-0 03 1 0008-0105 ● ● ●
16 16.063 SEAL; BALL JOINT
10.159 (C) 		8-97025-889-0 03 1 0106- ● ● ●
16 16.063 SEAL; BALL JOINT
10.159 (B) 		8-94377-722-0 01 1 9712-0007 ● ●
16 16.063 SEAL; BALL JOINT
10.159 (B) 		8-94377-722-0 01 1 0008- ● ● ●
16 16.063 SEAL; BALL JOINT
(A) 		8-97178-228-0 01 1 9712-0007 ● ●
16 16.063 SEAL; BALL JOINT
(A) 		8-97178-228-0 01 1 0008- ● ● ●
33 16.064 NUT; MOTOR TO ARM
00.787 M8 		9-09111-408-0 01 1 9712-0007 ● ●
33 16.064 NUT; MOTOR TO ARM
00.787 M8 		9-09111-408-0 01 1 0008- ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97808-112-0 01 1 9712-0007 ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97808-112-0 01 1 0008-0405 ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97360-030-0 01 1 0406- ● ● ●
48 16.063 ARM; WIPER MOTOR
02.780 		8-97807-638-0 01 1 9712-0007 ● ●
48 16.063 ARM; WIPER MOTOR
02.780 		8-97807-638-0 01 1 0008-0405 ● ● ●
48 16.063 ARM; WIPER MOTOR 8-97360-614-0 01 1 0406- ● ● ●
56 16.063 JOINT; OUTER,WIPER MOTOR
10.151 		8-94323-719-0 01 1 9712-0007 ● ●
56 16.063 JOINT; OUTER,WIPER MOTOR
10.151 		8-94323-719-0 01 1 0008- ● ● ●
73 16.063 BOLT
M6X33 W/PL WASHER 		8-97164-266-0 04 1 9712-0007 ● ●
73 16.063 BOLT
M6X33 W/PL WASHER 		8-97164-266-0 04 1 0008- ● ● ●
74 16.063 WASHER; ARM TO MOTOR
00.002 ID=8.2 		9-09150-508-0 01 1 9712-0007 ● ●
74 16.063 WASHER; ARM TO MOTOR
00.002 ID=8.2 		9-09150-508-0 01 1 0008- ● ● ●
82 16.067 LID; WASHER TANK
DARK GRAY 		8-97098-644-2 01 1 9712-9908 ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-644-3 01 1 9909-0004 ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97098-644-3 01 1 0005-0005 ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97098-644-3 01 1 0005-0005 ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97098-644-3 01 1 0006-0006 ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97098-644-3 01 1 0006-0006 ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-644-4 01 1 0006-0007 ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-644-4 01 1 0008-0105 ● ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-644-4 01 1 0106-0309 ● ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-644-4 01 1 0310- ● ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-644-4 01 1 0310- ● ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-900-3 01 1 9909-0004 ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4) LIGHT BEIGE 		8-97290-900-3 01 1 0005-0005 ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4) EXC. 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97290-900-3 01 1 0005-0005 ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4) LIGHT BEIGE 		8-97290-900-3 01 1 0006-0006 ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97290-900-3 01 1 0006-0006 ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-900-4 01 1 0006-0007 ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-900-4 01 1 0008-0105 ● ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-900-4 01 1 0106-0309 ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-900-4 01 1 0310- ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-900-4 01 1 0310- ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR BEIGE(181) EXC. EUROPE EQUIPMENT(EK4) LIGHT BEIGE 		8-97296-256-0 01 1 0005-0005 ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) LIGHT BEIGE 		8-97296-256-0 01 1 0005-0005 ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR BEIGE(181) EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) LIGHT BEIGE 		8-97296-256-0 01 1 0006-0006 ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) LIGHT BEIGE 		8-97296-256-0 01 1 0006-0006 ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR MEDIUM GRAY(113) EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97296-255-0 01 1 0005-0005 ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97296-255-0 01 1 0005-0005 ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR MEDIUM GRAY(113) EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97296-255-0 01 1 0006-0006 ● ●
82 16.067 LID; WASHER TANK
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97296-255-0 01 1 0006-0006 ●
111 16.064 SEAL; FRT WIPER MOTOR TO BRKT
10.152 		8-94387-086-0 01 1 9712-0007 ● ●
111 16.064 SEAL; FRT WIPER MOTOR TO BRKT
10.152 		8-94387-086-0 01 1 0008- ● ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR
10.152 		8-94387-088-0 04 1 9712-0007 ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR
10.152 		8-94387-088-0 04 1 0008- ● ● ●
137 16.063 SEAL; JOINT,WIPER MOTOR
10.151 		8-94167-624-0 01 1 9712-0007 ● ●
137 16.063 SEAL; JOINT,WIPER MOTOR
10.151 		8-94167-624-0 01 1 0008- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
