Sayfa 8-78 - Isuzu EPC

8-78 — COOLER KIT (#42663) — 231 parça

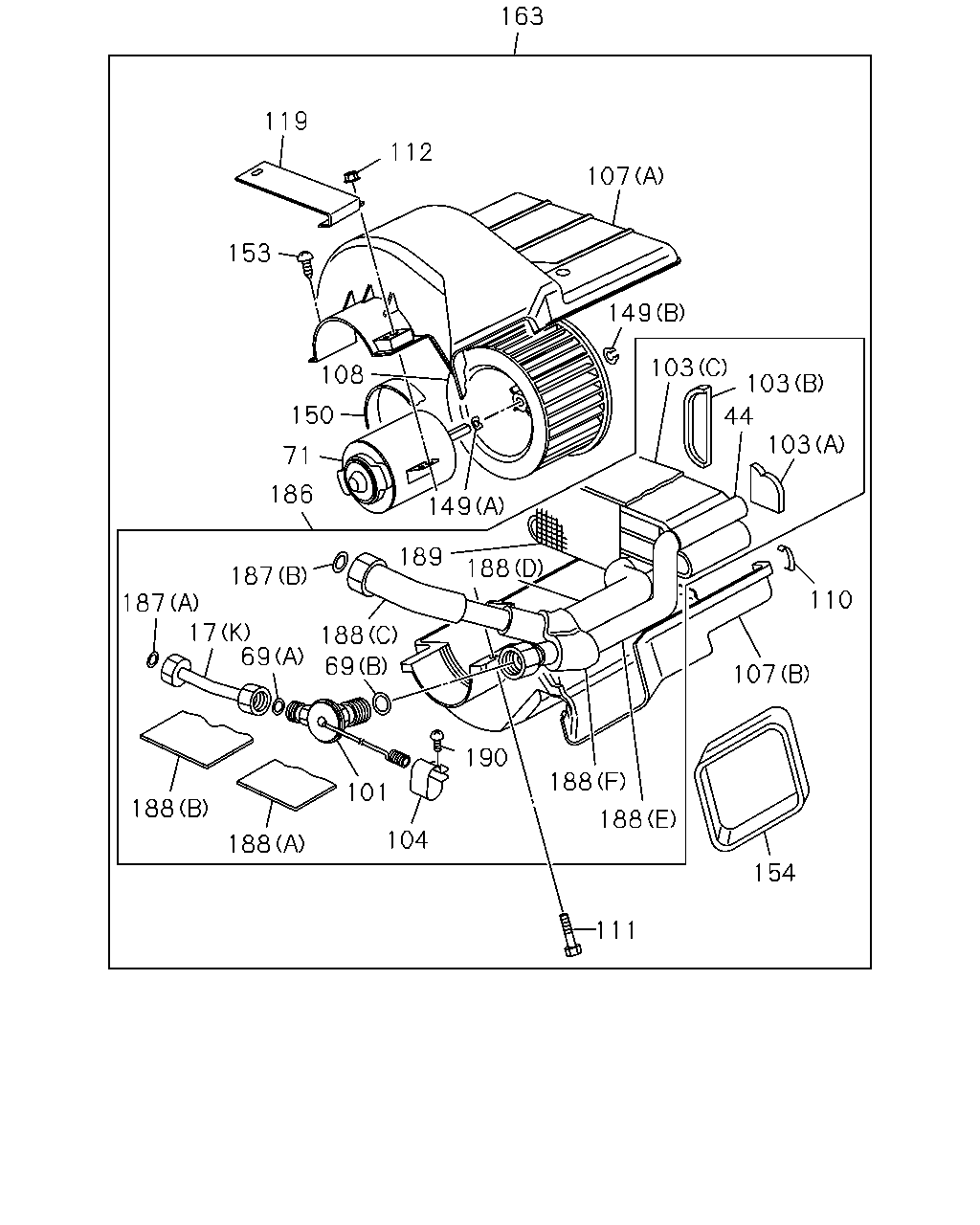

163 119 112 107 153 149 103 108 103 150 44 103 71 186 149 189 188 187 110 187 17 69 188 69 107 190 188 101 188 188 104 188 154 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	09.260 PIPE; A/C RR COOLER<7UL> (K)	8-97252-900-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (H)	8-97209-090-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (I)	8-97209-091-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (J)	8-97209-092-0	01	1	0003-
17	09.260 PIPE; A/C RR COOLER<7UL> 08.846 (B)	8-97205-812-0	01	1	0003-
17	09.260 PIPE; A/C RR COOLER<7UL> 08.846 (C)	8-97205-813-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (A)	8-97205-808-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (D)	8-97209-581-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (E)	8-97209-582-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (F)	8-97209-583-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (G)	8-97209-584-0	01	1	0003-
44	09.211 EVAPORATOR; A/C RR COOLER<7UL>	8-97252-898-0	01	1	0003-
69	09.260 GASKET; VLV RR COOLER<7UL> 09.195 (A) ID=6.07	8-94461-902-0	01	1	0003-
69	09.260 GASKET; VLV RR COOLER<7UL> 09.214 (B)	8-94481-717-0	01	1	0003-
71	09.215 MOTOR ASM; FAN RR COOLER<7UL>	8-97252-912-0	01	1	0003-
101	09.262 VALVE; EXPANSION RR COOLER<7UL>	8-97252-899-0	01	1	0003-
103	09.211 LINING; EVAPORATOR RR COOLER<7UL> (A)	8-97252-904-0	02	1	0003-
103	09.211 LINING; EVAPORATOR RR COOLER<7UL> (B)	8-97252-905-0	01	1	0003-
103	09.211 LINING; EVAPORATOR RR COOLER<7UL> (C)	8-97252-906-0	01	1	0003-
104	09.262 CLIP; EXPANSION VLV RR COOLER<7UL> 09.214	1-83574-214-0	01	1	0003-
107	09.215 CASE; BLOWER UNIT RR COOLER<7UL> (A)	8-97252-894-0	01	1	0003-
107	09.215 CASE; BLOWER UNIT RR COOLER<7UL> (B)	8-97252-895-0	01	1	0003-
108	09.290 IMPELLER; FAN MOTOR RR COOLER<7UL>	8-97252-896-0	01	1	0003-
110	09.216 CLIP; BLOWER UNIT RR COOLER<7UL> 08.846	5-09709-026-0	04	1	0003-
111	09.216 BOLT; CASE RR COOLER<7UL>	1-15729-920-0	01	1	0003-
112	09.216 NUT; BLOWER UNIT RR COOLER<7UL> 07.829 M6 FLANGE	5-09440-004-0	01	1	0003-
119	09.216 BRACKET; BLOWER RR COOLER<7UL>	8-97252-909-0	01	1	0003-
149	09.216 RING; SNAP,FAN MOTOR RR COOLER<7UL> 08.857 (A)	5-83569-088-0	01	1	0003-
149	09.216 RING; SNAP,FAN MOTOR RR COOLER<7UL> 08.857 (B)	8-94243-962-0	01	1	0003-
150	09.216 ISOLATOR; A/C UNIT RR COOLER<7UL>	8-97252-911-0	01	1	0003-
153	09.216 SCREW; TAPPING,BLOWER RR COOLER<7UL> 08.852 M4X16	8-94324-850-0	02	1	0003-
154	09.216 LINING; BLOWER RR COOLER<7UL>	8-97252-910-0	01	1	0003-
163	09.226 COOLING UNIT RR COOLER<7UL> 08.845	8-97205-823-0	01	1	0003-
186	09.215 EVAPORATOR ASM; COOLER KIT RR COOLER<7UL>	8-97252-897-0	01	1	0003-
187	09.260 GASKET; PIPE RR COOLER<7UL> 09.195 (A)	8-97161-776-0	01	1	0003-
187	09.260 GASKET; PIPE RR COOLER<7UL> 09.225 (B) ID=18.3	8-97161-778-0	01	1	0003-
188	09.216 INSULATOR; PIPE RR COOLER<7UL> 09.214 (A)	1-83579-784-0	01	1	0003-
188	09.216 INSULATOR; PIPE RR COOLER<7UL> 09.211 (B) T=3.0	5-83569-104-0	01	1	0003-
188	09.216 INSULATOR; PIPE RR COOLER<7UL> (C)	8-97252-901-0	01	1	0003-
188	09.216 INSULATOR; PIPE RR COOLER<7UL> (D)	8-97252-902-0	01	1	0003-
188	09.216 INSULATOR; PIPE RR COOLER<7UL> (E)	8-97252-903-0	01	1	0003-
188	09.216 INSULATOR; PIPE RR COOLER<7UL> (F)	8-97252-907-0	01	1	0003-
189	09.215 ELIMINATOR; EVAPORATOR RR COOLER<7UL>	8-97252-908-0	01	1	0003-
190	09.216 SCREW; TAPPING,CLIP RR COOLER<7UL> 09.214	8-97130-601-0	01	1	0003-

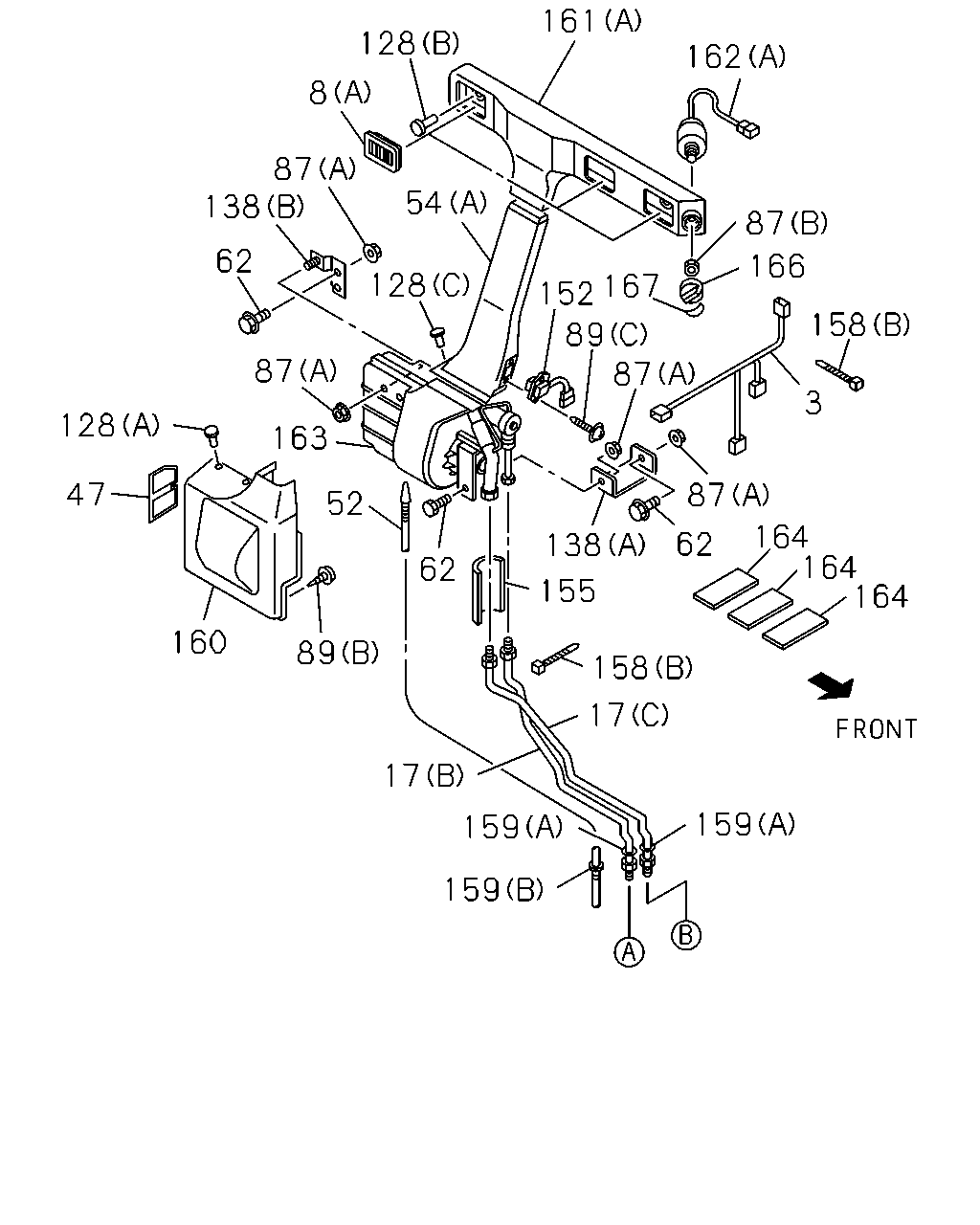

161 128 162 8 87 138 54 87 62 128 166 167 152 158 89 87 87 3 163 128 47 87 52 164 164 164 62 138 62 155 160 89 158 17 17 159 159 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	08.852 HARNESS; WIRE,A/C KIT RR COOLER<7UL> 08.846	8-97205-832-1	01	1	0003-
8	09.273 GRILLE ASM; A/C KIT 4JG2 ENG(RJC) RR COOLER<7UL> (B)	8-97235-032-0	04	1	0003-
8	09.273 GRILLE ASM; A/C KIT RR COOLER<7UL> 08.845 (A)	8-97205-827-0	03	1	0003-
8	09.273 GRILLE ASM; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (B)	8-94340-920-0	04	1	0003-
17	09.260 PIPE; A/C RR COOLER<7UL> (K)	8-97252-900-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (H)	8-97209-090-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (I)	8-97209-091-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (J)	8-97209-092-0	01	1	0003-
17	09.260 PIPE; A/C RR COOLER<7UL> 08.846 (B)	8-97205-812-0	01	1	0003-
17	09.260 PIPE; A/C RR COOLER<7UL> 08.846 (C)	8-97205-813-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (A)	8-97205-808-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (D)	8-97209-581-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (E)	8-97209-582-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (F)	8-97209-583-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (G)	8-97209-584-0	01	1	0003-
47	09.170 FILTER; AIR INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97248-916-0	01	1	0003-
47	09.170 FILTER; AIR INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-830-0	01	1	0003-
52	09.290 HOSE; DRAIN,A/C PIPING RR COOLER<7UL> 08.846	8-97205-841-1	01	1	0003-
54	09.262 DUCT; A/C UNIT INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	8-97235-029-0	01	1	0003-
54	09.262 DUCT; A/C UNIT INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.847 (A)	8-97238-623-0	01	1	0003-
54	09.262 DUCT; A/C UNIT INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.847 (A)	8-97205-825-1	01	1	0003-
54	09.262 DUCT; A/C UNIT INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97235-028-0	01	1	0003-
62	09.216 BOLT; BRKT RR COOLER<7UL> 01.073 M6X14 W/LK WASHER	9-01900-614-0	04	1	0003-
87	09.169 NUT; A/C KIT RR COOLER<7UL> 07.829 (A) M6 FLANGE	5-09440-004-0	05	1	0003-
87	09.169 NUT; A/C KIT RR COOLER<7UL> 08.845 (B)	8-97205-836-0	01	1	0003-
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC) RR COOLER<7UL> 16.165 (D) M6X16 TAPPING W/PL WASHER	0-74300-616-0	06	1	0003-
89	09.169 SCREW; A/C KIT RR COOLER<7UL> (B)	1-83569-021-0	10	1	0003-
89	09.169 SCREW; A/C KIT RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	04	1	0003-
89	09.169 SCREW; A/C KIT RR COOLER<7UL> (E)	8-97235-035-0	04	1	0003-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	04	1	0003-
128	09.262 RIVET; A/C UNIT INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845 (A)	8-97248-917-0	03	1	0003-
128	09.262 RIVET; A/C UNIT INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (A)	8-97205-835-0	03	1	0003-
128	09.262 RIVET; A/C UNIT RR COOLER<7UL> 08.845 (B)	8-97205-833-0	03	1	0003-
128	09.262 RIVET; A/C UNIT RR COOLER<7UL> 08.845 (C)	8-97205-834-0	01	1	0003-
138	09.264 BRACKET; A/C UNIT RR COOLER<7UL> 08.845 (A)	8-97205-817-0	01	1	0003-
138	09.264 BRACKET; A/C UNIT RR COOLER<7UL> 08.845 (B)	8-97205-818-1	01	1	0003-
138	09.264 BRACKET; A/C UNIT RR COOLER<7UL> 08.845 (C)	8-97209-096-0	01	1	0003-
152	09.276 RESISTOR; A/C UNIT RR COOLER<7UL> 08.845	8-97205-831-0	01	1	0003-
155	09.262 INSULATOR; A/C RR COOLER<7UL> 09.214	5-83579-024-0	01	1	0003-
158	09.262 CLIP; A/C UNIT RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	02	1	0003-
158	09.262 CLIP; A/C UNIT RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	05	1	0003-
159	09.262 GROMMET; A/C UNIT RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0003-
159	09.262 GROMMET; A/C UNIT RR COOLER<7UL> 08.846 (B)	8-97205-822-0	01	1	0003-
160	09.262 COVER ASM; A/C UNIT INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97235-031-0	01	1	0003-
160	09.262 COVER ASM; A/C UNIT INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-826-1	01	1	0003-
161	09.262 DUCT ASM; A/C KIT INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	8-97235-027-0	01	1	0003-
161	09.262 DUCT ASM; A/C KIT INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.847 (A)	8-97238-624-0	01	1	0003-
161	09.262 DUCT ASM; A/C KIT INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.847 (A)	8-97205-824-0	01	1	0003-
161	09.262 DUCT ASM; A/C KIT INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97235-025-0	01	1	0003-
162	09.273 SWITCH; A/C KIT RR COOLER<7UL> 08.845 (A)	8-97205-828-0	01	1	0003-
162	09.273 SWITCH; A/C KIT RR COOLER<7UL> (B)	8-97235-033-0	01	1	0003-
163	09.226 COOLING UNIT RR COOLER<7UL> 08.845	8-97205-823-0	01	1	0003-
164	09.262 LINING; A/C UNIT RR COOLER<7UL> 08.845	8-97209-109-0	03	1	0003-
166	09.262 KNOB; A/C KIT RR COOLER<7UL> 09.787	8-97061-917-0	01	1	0003-
167	09.273 PANEL; A/C KIT RR COOLER<7UL> 08.845	8-97205-829-0	01	1	0003-

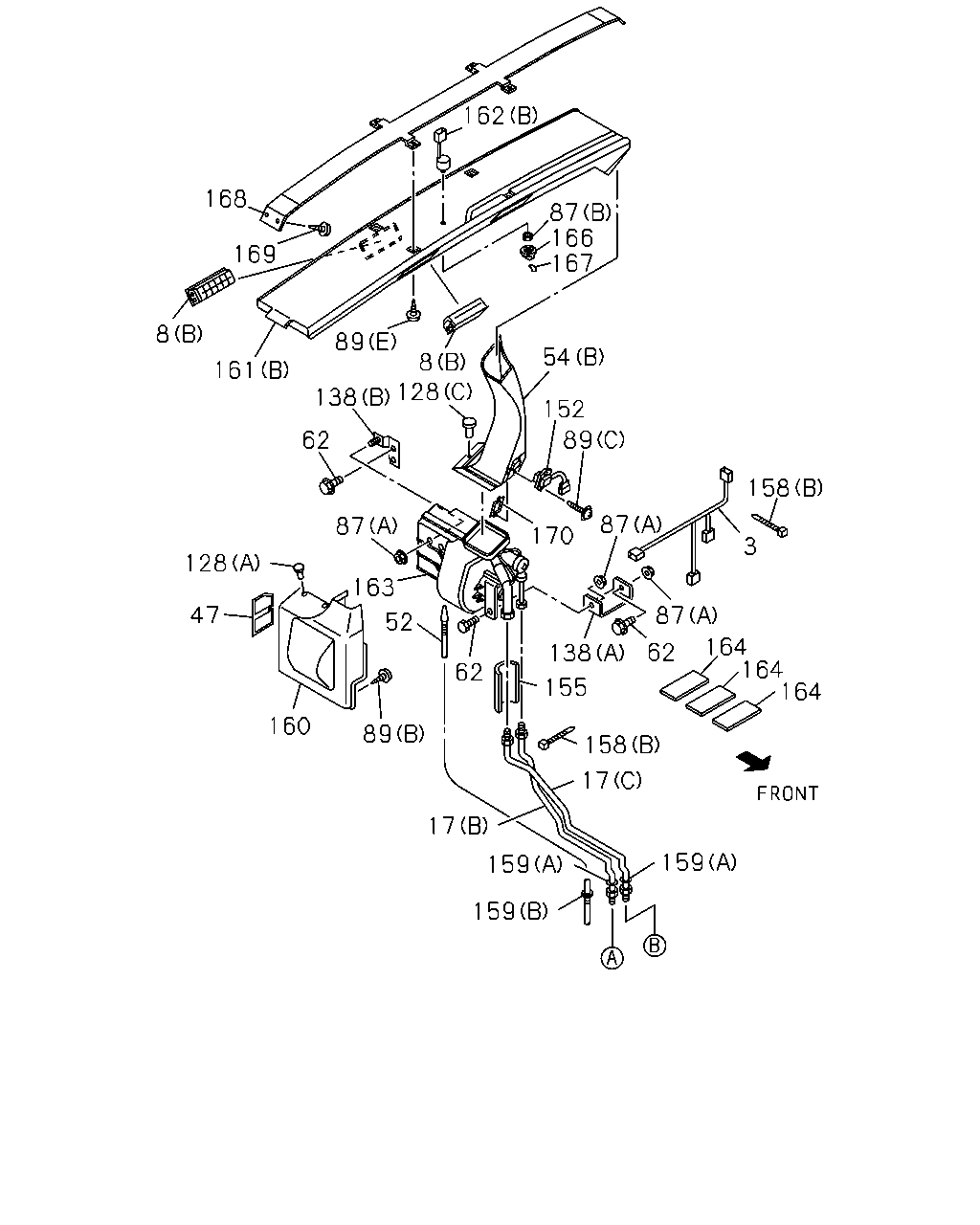

162 168 87 166 167 169 8 89 54 8 128 138 161 152 89 62 158 87 87 170 3 128 163 47 87 52 164 164 164 62 138 62 155 160 89 158 17 17 159 159 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	08.852 HARNESS; WIRE,A/C KIT RR COOLER<7UL> 08.846	8-97205-832-1	01	1	0003-
8	09.273 GRILLE ASM; A/C KIT 4JG2 ENG(RJC) RR COOLER<7UL> (B)	8-97235-032-0	04	1	0003-
8	09.273 GRILLE ASM; A/C KIT RR COOLER<7UL> 08.845 (A)	8-97205-827-0	03	1	0003-
8	09.273 GRILLE ASM; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (B)	8-94340-920-0	04	1	0003-
17	09.260 PIPE; A/C RR COOLER<7UL> (K)	8-97252-900-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (H)	8-97209-090-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (I)	8-97209-091-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (J)	8-97209-092-0	01	1	0003-
17	09.260 PIPE; A/C RR COOLER<7UL> 08.846 (B)	8-97205-812-0	01	1	0003-
17	09.260 PIPE; A/C RR COOLER<7UL> 08.846 (C)	8-97205-813-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (A)	8-97205-808-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (D)	8-97209-581-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (E)	8-97209-582-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (F)	8-97209-583-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (G)	8-97209-584-0	01	1	0003-
47	09.170 FILTER; AIR INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97248-916-0	01	1	0003-
47	09.170 FILTER; AIR INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-830-0	01	1	0003-
52	09.290 HOSE; DRAIN,A/C PIPING RR COOLER<7UL> 08.846	8-97205-841-1	01	1	0003-
54	09.262 DUCT; A/C UNIT INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	8-97235-029-0	01	1	0003-
54	09.262 DUCT; A/C UNIT INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.847 (A)	8-97238-623-0	01	1	0003-
54	09.262 DUCT; A/C UNIT INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.847 (A)	8-97205-825-1	01	1	0003-
54	09.262 DUCT; A/C UNIT INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97235-028-0	01	1	0003-
62	09.216 BOLT; BRKT RR COOLER<7UL> 01.073 M6X14 W/LK WASHER	9-01900-614-0	04	1	0003-
87	09.169 NUT; A/C KIT RR COOLER<7UL> 07.829 (A) M6 FLANGE	5-09440-004-0	05	1	0003-
87	09.169 NUT; A/C KIT RR COOLER<7UL> 08.845 (B)	8-97205-836-0	01	1	0003-
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC) RR COOLER<7UL> 16.165 (D) M6X16 TAPPING W/PL WASHER	0-74300-616-0	06	1	0003-
89	09.169 SCREW; A/C KIT RR COOLER<7UL> (B)	1-83569-021-0	10	1	0003-
89	09.169 SCREW; A/C KIT RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	04	1	0003-
89	09.169 SCREW; A/C KIT RR COOLER<7UL> (E)	8-97235-035-0	04	1	0003-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	04	1	0003-
128	09.262 RIVET; A/C UNIT INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845 (A)	8-97248-917-0	03	1	0003-
128	09.262 RIVET; A/C UNIT INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (A)	8-97205-835-0	03	1	0003-
128	09.262 RIVET; A/C UNIT RR COOLER<7UL> 08.845 (B)	8-97205-833-0	03	1	0003-
128	09.262 RIVET; A/C UNIT RR COOLER<7UL> 08.845 (C)	8-97205-834-0	01	1	0003-
138	09.264 BRACKET; A/C UNIT RR COOLER<7UL> 08.845 (A)	8-97205-817-0	01	1	0003-
138	09.264 BRACKET; A/C UNIT RR COOLER<7UL> 08.845 (B)	8-97205-818-1	01	1	0003-
138	09.264 BRACKET; A/C UNIT RR COOLER<7UL> 08.845 (C)	8-97209-096-0	01	1	0003-
152	09.276 RESISTOR; A/C UNIT RR COOLER<7UL> 08.845	8-97205-831-0	01	1	0003-
155	09.262 INSULATOR; A/C RR COOLER<7UL> 09.214	5-83579-024-0	01	1	0003-
158	09.262 CLIP; A/C UNIT RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	02	1	0003-
158	09.262 CLIP; A/C UNIT RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	05	1	0003-
159	09.262 GROMMET; A/C UNIT RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0003-
159	09.262 GROMMET; A/C UNIT RR COOLER<7UL> 08.846 (B)	8-97205-822-0	01	1	0003-
160	09.262 COVER ASM; A/C UNIT INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97235-031-0	01	1	0003-
160	09.262 COVER ASM; A/C UNIT INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-826-1	01	1	0003-
161	09.262 DUCT ASM; A/C KIT INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	8-97235-027-0	01	1	0003-
161	09.262 DUCT ASM; A/C KIT INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.847 (A)	8-97238-624-0	01	1	0003-
161	09.262 DUCT ASM; A/C KIT INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.847 (A)	8-97205-824-0	01	1	0003-
161	09.262 DUCT ASM; A/C KIT INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97235-025-0	01	1	0003-
162	09.273 SWITCH; A/C KIT RR COOLER<7UL> 08.845 (A)	8-97205-828-0	01	1	0003-
162	09.273 SWITCH; A/C KIT RR COOLER<7UL> (B)	8-97235-033-0	01	1	0003-
163	09.226 COOLING UNIT RR COOLER<7UL> 08.845	8-97205-823-0	01	1	0003-
164	09.262 LINING; A/C UNIT RR COOLER<7UL> 08.845	8-97209-109-0	03	1	0003-
166	09.262 KNOB; A/C KIT RR COOLER<7UL> 09.787	8-97061-917-0	01	1	0003-
167	09.273 PANEL; A/C KIT RR COOLER<7UL> 08.845	8-97205-829-0	01	1	0003-
168	09.262 STAY; A/C KIT RR COOLER<7UL>	8-97235-034-0	01	1	0003-
169	09.262 SCREW; TAPPING,A/C KIT RR COOLER<7UL>	8-94148-753-0	04	1	0003-
170	09.692 PLATE; RESISTOR RR COOLER<7UL> 09.262	8-97231-808-0	01	1	0003-

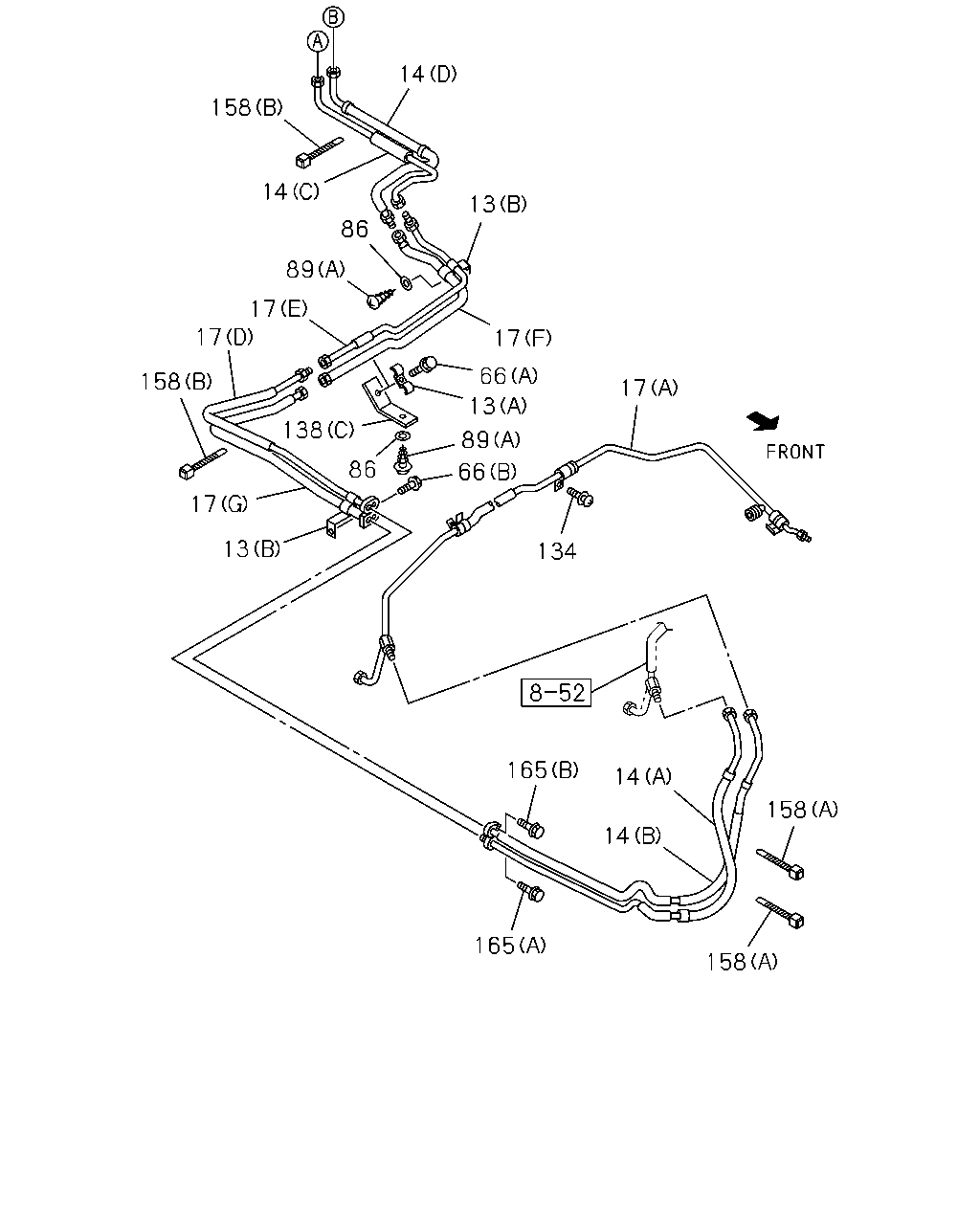

14 158 14 13 86 89 17 17 17 66 158 17 13 138 89 86 66 17 13 134 165 14 158 14 165 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	09.260 CLIP; PIPE,A/C RR COOLER<7UL> 08.846 (A)	8-97205-819-0	01	1	0003-
13	09.260 CLIP; PIPE,A/C RR COOLER<7UL> 08.846 (B)	8-97205-820-0	02	1	0003-
14	09.260 HOSE; PIPING,A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (E)	8-97209-094-1	01	1	0003-
14	09.260 HOSE; PIPING,A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (F)	8-97209-095-1	01	1	0003-
14	09.260 HOSE; PIPING,A/C RR COOLER<7UL> 08.846 (C)	8-97205-839-1	01	1	0003-
14	09.260 HOSE; PIPING,A/C RR COOLER<7UL> 08.846 (D)	8-97205-840-1	01	1	0003-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (A)	8-97205-837-1	01	1	0003-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (B)	8-97205-838-1	01	1	0003-
17	09.260 PIPE; A/C RR COOLER<7UL> (K)	8-97252-900-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (H)	8-97209-090-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (I)	8-97209-091-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (J)	8-97209-092-0	01	1	0003-
17	09.260 PIPE; A/C RR COOLER<7UL> 08.846 (B)	8-97205-812-0	01	1	0003-
17	09.260 PIPE; A/C RR COOLER<7UL> 08.846 (C)	8-97205-813-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (A)	8-97205-808-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (D)	8-97209-581-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (E)	8-97209-582-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (F)	8-97209-583-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (G)	8-97209-584-0	01	1	0003-
66	09.260 BOLT; CLIP RR COOLER<7UL> 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0003-
66	09.260 BOLT; CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0003-
86	09.169 WASHER; LK,A/C KIT 4JG2 ENG(RJC) RR COOLER<7UL> 02.183 ID=6.4 OD=14	9-09160-606-0	03	1	0003-
86	09.169 WASHER; LK,A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 02.183 ID=6.4 OD=14	9-09160-606-0	02	1	0003-
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC) RR COOLER<7UL> 16.165 (D) M6X16 TAPPING W/PL WASHER	0-74300-616-0	06	1	0003-
89	09.169 SCREW; A/C KIT RR COOLER<7UL> (B)	1-83569-021-0	10	1	0003-
89	09.169 SCREW; A/C KIT RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	04	1	0003-
89	09.169 SCREW; A/C KIT RR COOLER<7UL> (E)	8-97235-035-0	04	1	0003-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	04	1	0003-
134	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC) RR COOLER<7UL> 12.801 D6.8X12	8-94198-687-0	02	1	0003-
134	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 12.801 D6.8X12	8-94198-687-0	02	1	0003-
138	09.264 BRACKET; A/C UNIT RR COOLER<7UL> 08.845 (A)	8-97205-817-0	01	1	0003-
138	09.264 BRACKET; A/C UNIT RR COOLER<7UL> 08.845 (B)	8-97205-818-1	01	1	0003-
138	09.264 BRACKET; A/C UNIT RR COOLER<7UL> 08.845 (C)	8-97209-096-0	01	1	0003-
158	09.262 CLIP; A/C UNIT RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	02	1	0003-
158	09.262 CLIP; A/C UNIT RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	05	1	0003-
165	09.264 BOLT; HOSE RR COOLER<7UL> 02.559 (A) M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	0003-
165	09.264 BOLT; HOSE RR COOLER<7UL> 02.559 (B) M6X25	8-97095-660-0	01	1	0003-

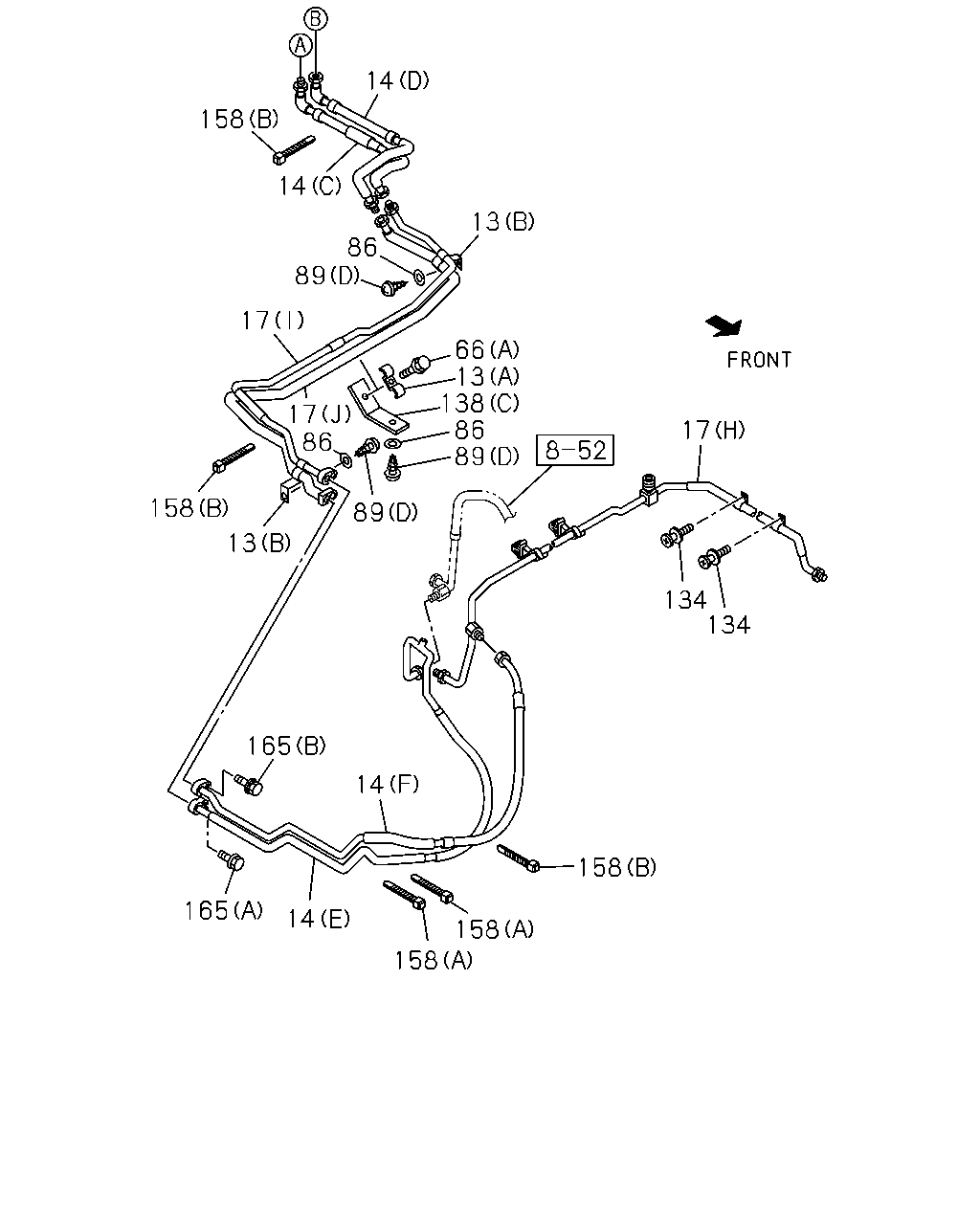

14 158 14 13 86 89 17 66 13 138 86 89 17 86 17 158 89 13 134 134 165 14 158 165 14 158 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	09.260 CLIP; PIPE,A/C RR COOLER<7UL> 08.846 (A)	8-97205-819-0	01	1	0003-
13	09.260 CLIP; PIPE,A/C RR COOLER<7UL> 08.846 (B)	8-97205-820-0	02	1	0003-
14	09.260 HOSE; PIPING,A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (E)	8-97209-094-1	01	1	0003-
14	09.260 HOSE; PIPING,A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (F)	8-97209-095-1	01	1	0003-
14	09.260 HOSE; PIPING,A/C RR COOLER<7UL> 08.846 (C)	8-97205-839-1	01	1	0003-
14	09.260 HOSE; PIPING,A/C RR COOLER<7UL> 08.846 (D)	8-97205-840-1	01	1	0003-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (A)	8-97205-837-1	01	1	0003-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (B)	8-97205-838-1	01	1	0003-
17	09.260 PIPE; A/C RR COOLER<7UL> (K)	8-97252-900-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (H)	8-97209-090-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (I)	8-97209-091-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) RR COOLER<7UL> 08.846 (J)	8-97209-092-0	01	1	0003-
17	09.260 PIPE; A/C RR COOLER<7UL> 08.846 (B)	8-97205-812-0	01	1	0003-
17	09.260 PIPE; A/C RR COOLER<7UL> 08.846 (C)	8-97205-813-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (A)	8-97205-808-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (D)	8-97209-581-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (E)	8-97209-582-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (F)	8-97209-583-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 08.846 (G)	8-97209-584-0	01	1	0003-
66	09.260 BOLT; CLIP RR COOLER<7UL> 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0003-
66	09.260 BOLT; CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0003-
86	09.169 WASHER; LK,A/C KIT 4JG2 ENG(RJC) RR COOLER<7UL> 02.183 ID=6.4 OD=14	9-09160-606-0	03	1	0003-
86	09.169 WASHER; LK,A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 02.183 ID=6.4 OD=14	9-09160-606-0	02	1	0003-
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC) RR COOLER<7UL> 16.165 (D) M6X16 TAPPING W/PL WASHER	0-74300-616-0	06	1	0003-
89	09.169 SCREW; A/C KIT RR COOLER<7UL> (B)	1-83569-021-0	10	1	0003-
89	09.169 SCREW; A/C KIT RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	04	1	0003-
89	09.169 SCREW; A/C KIT RR COOLER<7UL> (E)	8-97235-035-0	04	1	0003-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	04	1	0003-
134	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC) RR COOLER<7UL> 12.801 D6.8X12	8-94198-687-0	02	1	0003-
134	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 12.801 D6.8X12	8-94198-687-0	02	1	0003-
138	09.264 BRACKET; A/C UNIT RR COOLER<7UL> 08.845 (A)	8-97205-817-0	01	1	0003-
138	09.264 BRACKET; A/C UNIT RR COOLER<7UL> 08.845 (B)	8-97205-818-1	01	1	0003-
138	09.264 BRACKET; A/C UNIT RR COOLER<7UL> 08.845 (C)	8-97209-096-0	01	1	0003-
158	09.262 CLIP; A/C UNIT RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	02	1	0003-
158	09.262 CLIP; A/C UNIT RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	05	1	0003-
165	09.264 BOLT; HOSE RR COOLER<7UL> 02.559 (A) M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	0003-
165	09.264 BOLT; HOSE RR COOLER<7UL> 02.559 (B) M6X25	8-97095-660-0	01	1	0003-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
