◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#42660) — 123 parça

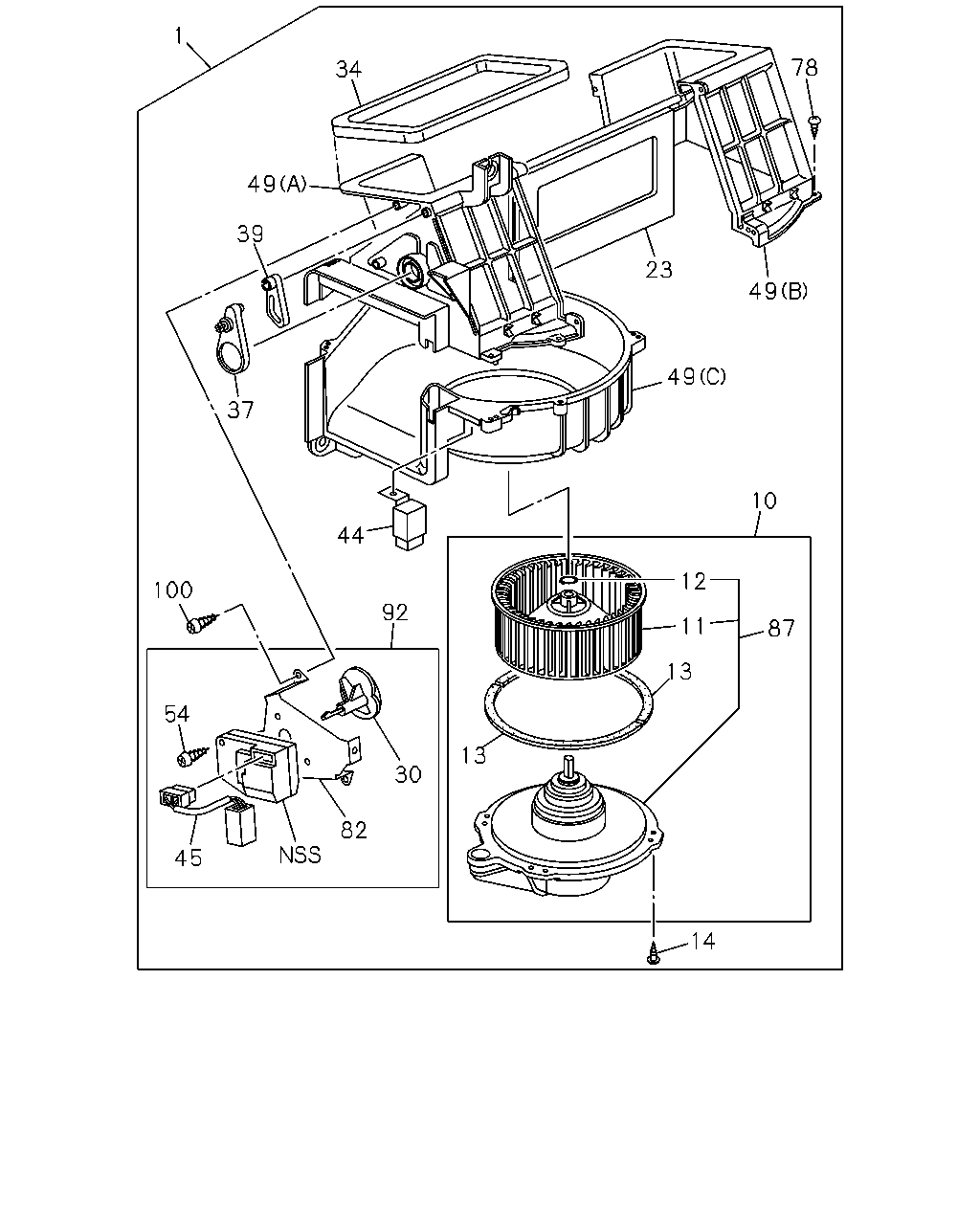

çizim 69003
1 78 34 49 39 23 49 49 37 10 44 12 100 92 11 87 13 54 13 30 82 45 14
BalonParca AdiParca NoAdetTipApplied Date A B C
1 08.855 BLOWER ASM 8-97102-681-1 01 1 9712-9907 ● ●
1 08.855 BLOWER ASM 8-97231-609-0 01 1 9908-9908 ● ●
1 08.855 BLOWER ASM
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97231-609-0 01 1 9909-0007 ● ●
1 08.855 BLOWER ASM
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97231-609-0 01 1 0008- ● ●
1 08.855 BLOWER ASM 8-97231-609-0 01 1 0008- ●
1 08.855 BLOWER ASM
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97218-694-1 01 1 9909-0005 ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97254-247-1 01 1 0006-0105 ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97310-737-0 01 1 0106- ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97103-727-0 01 1 9712-9907 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97231-635-0 01 1 9908-0007 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97231-635-0 01 1 0008- ● ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97096-067-0 01 1 9712-0007 ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97096-067-0 01 1 0008- ● ● ●
12 08.857 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 9712-0007 ● ●
12 08.857 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 0008- ● ● ●
13 08.856 LINING; BLOWER UNIT 8-94324-816-0 02 1 9712-0007 ● ●
13 08.856 LINING; BLOWER UNIT 8-94324-816-0 02 1 0008- ● ● ●
14 08.857 SCREW; COVER TO CASE
08.846 M5X16 		8-94248-820-0 04 1 9712-9907 ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 9908-9908 ● ●
14 08.857 SCREW; COVER TO CASE
AIR CONDITIONER FULL AUTO CONT(C68) 10.240 M5X20 		9-09829-324-1 05 1 9909-0105 ● ●
14 08.857 SCREW; COVER TO CASE
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 10.240 M5X20 		9-09829-324-1 04 1 9909-0007 ● ●
14 08.857 SCREW; COVER TO CASE
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 10.240 M5X20 		9-09829-324-1 04 1 0008-0105 ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 0008-0105 ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 0106- ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97072-039-0 01 1 9712-9908 ● ●
23 08.857 SHUTTER; BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97072-039-0 01 1 9909-0007 ● ●
23 08.857 SHUTTER; BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97072-039-0 01 1 0008- ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97072-039-0 01 1 0008- ●
23 08.857 SHUTTER; BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-818-2 01 1 9909-0105 ● ●
23 08.857 SHUTTER; BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97314-137-0 01 1 0106- ● ●
30 09.786 LEVER; ACTUATOR
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97226-478-0 01 1 9909- ● ●
34 08.856 LINING; BLOWER UNIT 8-94327-437-0 01 1 9712-0007 ● ●
34 08.856 LINING; BLOWER UNIT 8-94327-437-0 01 1 0008- ● ● ●
37 09.786 LEVER; MODE LEVER 8-94324-819-2 01 1 9712-9908 ● ●
37 09.786 LEVER; MODE LEVER
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-819-2 01 1 9909-0007 ● ●
37 09.786 LEVER; MODE LEVER
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-819-2 01 1 0008- ● ●
37 09.786 LEVER; MODE LEVER 8-94324-819-2 01 1 0008- ●
37 09.786 LEVER; MODE LEVER
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97221-321-0 01 1 9909- ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
08.852 		8-94324-820-0 01 1 9712-9908 ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 08.852 		8-94324-820-0 01 1 9909-0007 ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 08.852 		8-94324-820-0 01 1 0008- ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
08.852 		8-94324-820-0 01 1 0008- ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97239-225-0 01 1 9909- ● ●
44 08.855 RELAY; BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97011-283-0 01 1 9909-0105 ● ●
45 08.852 HARNESS; BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97226-479-3 01 1 9909- ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-94324-808-4 01 1 9712-9907 ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-97221-323-0 01 1 9908-0007 ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-97221-323-0 01 1 0008- ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-94324-809-1 01 1 9712-0007 ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-94324-809-1 01 1 0008- ● ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-94324-810-4 01 1 9712-9907 ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-97221-322-0 01 1 9908-0007 ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-97221-322-0 01 1 0008- ● ● ●
54 08.856 SCREW; ACTUATOR TO CASE
AIR CONDITIONER FULL AUTO CONT(C68) 		1-83579-163-0 02 1 9909- ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 10 1 9712-9907 ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 9908-0007 ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 0008- ● ● ●
82 08.857 BRACKET; BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97226-477-1 01 1 9909- ● ●
87 08.855 MOTOR ASM; FAN 8-97106-492-0 01 1 9712-9907 ● ●
87 08.855 MOTOR ASM; FAN 8-97226-476-2 01 1 9908-0005 ● ●
92 08.857 ACTUATOR; BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97221-312-1 01 1 9909-0009 ● ●
92 08.857 ACTUATOR; BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97305-202-1 01 1 0010- ● ●
100 08.857 SCREW; BRKT
AIR CONDITIONER FULL AUTO CONT(C68) 08.852 M4X16 		8-94324-850-0 03 1 0006-0105 ● ●
100 08.857 SCREW; BRKT
AIR CONDITIONER FULL AUTO CONT(C68) 08.852 M4X16 		8-94324-850-0 03 1 9909- ● ●

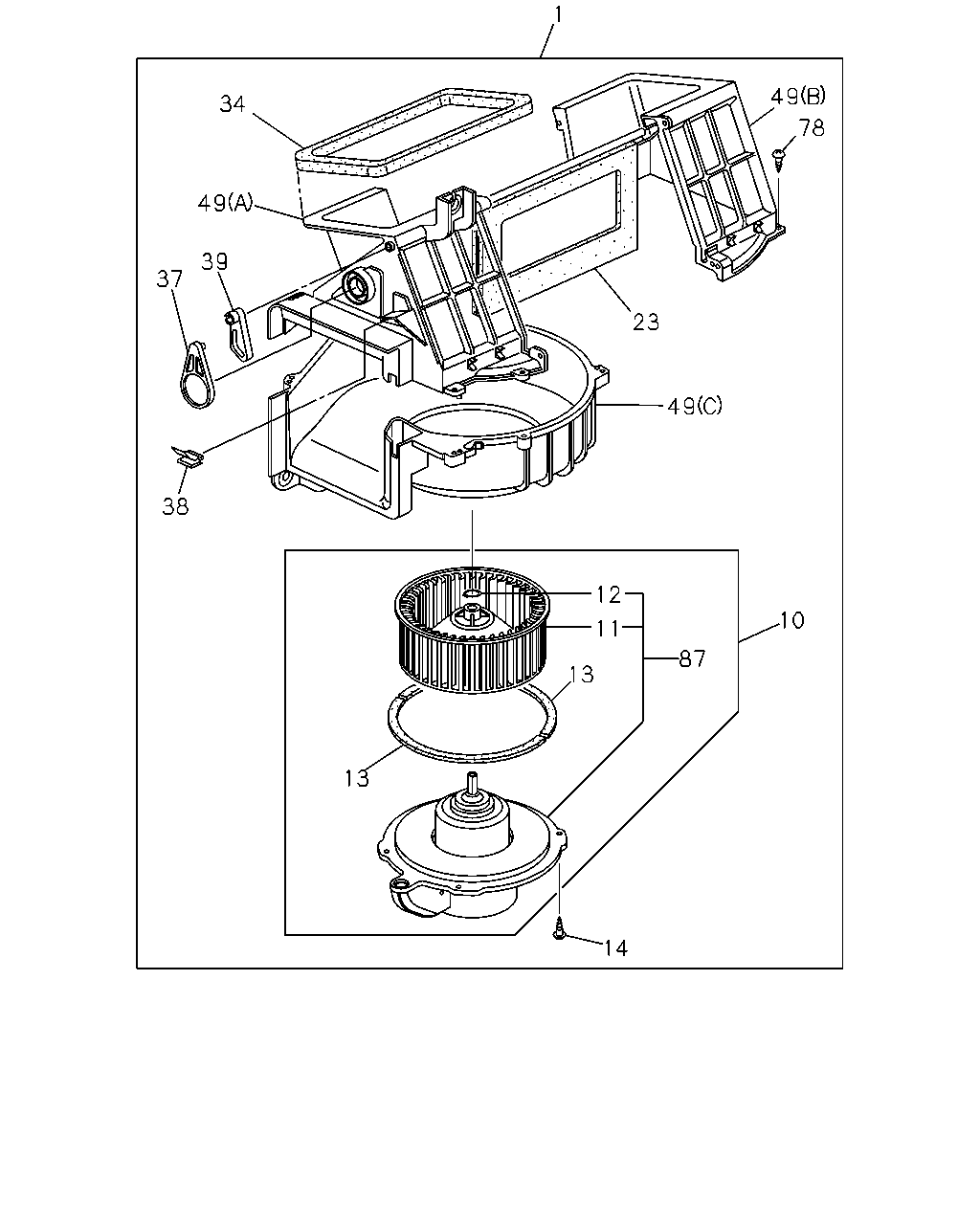

çizim 69440
1 49 34 78 49 39 37 23 49 38 12 10 11 87 13 13 14
BalonParca AdiParca NoAdetTipApplied Date A B C
1 08.855 BLOWER ASM 8-97102-681-1 01 1 9712-9907 ● ●
1 08.855 BLOWER ASM 8-97231-609-0 01 1 9908-9908 ● ●
1 08.855 BLOWER ASM
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97231-609-0 01 1 9909-0007 ● ●
1 08.855 BLOWER ASM
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97231-609-0 01 1 0008- ● ●
1 08.855 BLOWER ASM 8-97231-609-0 01 1 0008- ●
1 08.855 BLOWER ASM
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97218-694-1 01 1 9909-0005 ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97254-247-1 01 1 0006-0105 ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97310-737-0 01 1 0106- ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97103-727-0 01 1 9712-9907 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97231-635-0 01 1 9908-0007 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97231-635-0 01 1 0008- ● ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97096-067-0 01 1 9712-0007 ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97096-067-0 01 1 0008- ● ● ●
12 08.857 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 9712-0007 ● ●
12 08.857 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 0008- ● ● ●
13 08.856 LINING; BLOWER UNIT 8-94324-816-0 02 1 9712-0007 ● ●
13 08.856 LINING; BLOWER UNIT 8-94324-816-0 02 1 0008- ● ● ●
14 08.857 SCREW; COVER TO CASE
08.846 M5X16 		8-94248-820-0 04 1 9712-9907 ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 9908-9908 ● ●
14 08.857 SCREW; COVER TO CASE
AIR CONDITIONER FULL AUTO CONT(C68) 10.240 M5X20 		9-09829-324-1 05 1 9909-0105 ● ●
14 08.857 SCREW; COVER TO CASE
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 10.240 M5X20 		9-09829-324-1 04 1 9909-0007 ● ●
14 08.857 SCREW; COVER TO CASE
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 10.240 M5X20 		9-09829-324-1 04 1 0008-0105 ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 0008-0105 ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 0106- ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97072-039-0 01 1 9712-9908 ● ●
23 08.857 SHUTTER; BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97072-039-0 01 1 9909-0007 ● ●
23 08.857 SHUTTER; BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97072-039-0 01 1 0008- ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97072-039-0 01 1 0008- ●
23 08.857 SHUTTER; BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-818-2 01 1 9909-0105 ● ●
23 08.857 SHUTTER; BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97314-137-0 01 1 0106- ● ●
34 08.856 LINING; BLOWER UNIT 8-94327-437-0 01 1 9712-0007 ● ●
34 08.856 LINING; BLOWER UNIT 8-94327-437-0 01 1 0008- ● ● ●
37 09.786 LEVER; MODE LEVER 8-94324-819-2 01 1 9712-9908 ● ●
37 09.786 LEVER; MODE LEVER
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-819-2 01 1 9909-0007 ● ●
37 09.786 LEVER; MODE LEVER
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-819-2 01 1 0008- ● ●
37 09.786 LEVER; MODE LEVER 8-94324-819-2 01 1 0008- ●
37 09.786 LEVER; MODE LEVER
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97221-321-0 01 1 9909- ● ●
38 09.787 CLIP; BLOWER UNIT 8-94337-654-0 01 1 9712-9908 ● ●
38 09.787 CLIP; BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-94337-654-0 01 1 9909-0007 ● ●
38 09.787 CLIP; BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-94337-654-0 01 1 0008- ● ●
38 09.787 CLIP; BLOWER UNIT 8-94337-654-0 01 1 0008- ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
08.852 		8-94324-820-0 01 1 9712-9908 ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 08.852 		8-94324-820-0 01 1 9909-0007 ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 08.852 		8-94324-820-0 01 1 0008- ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
08.852 		8-94324-820-0 01 1 0008- ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97239-225-0 01 1 9909- ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-94324-808-4 01 1 9712-9907 ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-97221-323-0 01 1 9908-0007 ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-97221-323-0 01 1 0008- ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-94324-809-1 01 1 9712-0007 ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-94324-809-1 01 1 0008- ● ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-94324-810-4 01 1 9712-9907 ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-97221-322-0 01 1 9908-0007 ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-97221-322-0 01 1 0008- ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 10 1 9712-9907 ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 9908-0007 ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 0008- ● ● ●
87 08.855 MOTOR ASM; FAN 8-97106-492-0 01 1 9712-9907 ● ●
87 08.855 MOTOR ASM; FAN 8-97226-476-2 01 1 9908-0005 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
