◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61A - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61A — BATTERY AND ENGINE ELECTRICAL PARTS (#4266) — 109 parça

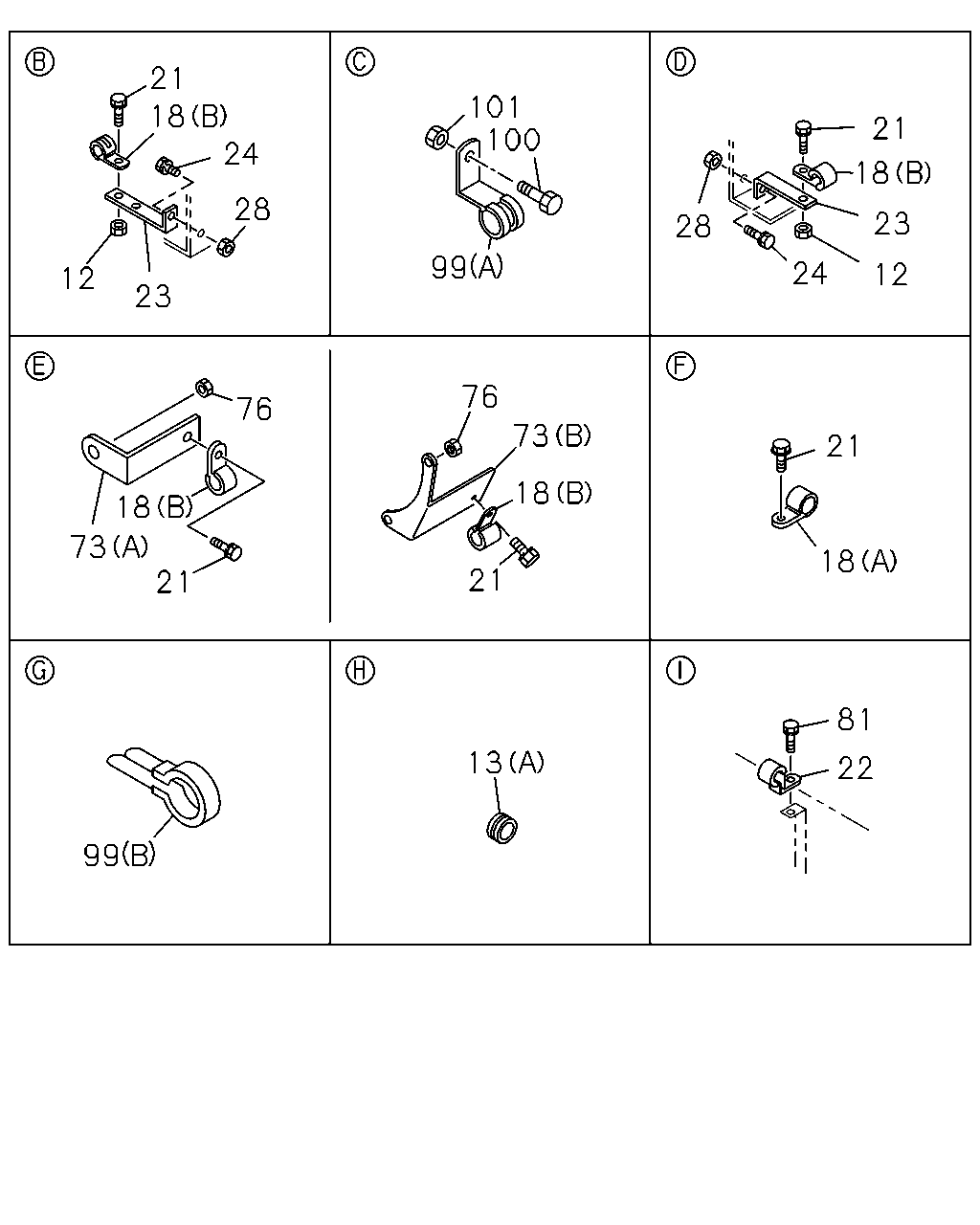

çizim 40005
21 18 24 101 100 21 18 28 23 28 99 24 12 12 23 76 76 73 21 18 18 73 21 18 21 81 13 22 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 03 1 9603-9606 ●
12 NUT; BATTERY CABLE CLIP
M10 FLANGE 		0-91150-210-0 03 1 9607-9708 ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9709-9904 ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9905- ● ● ● ●
12 NUT; BATTERY CABLE CLIP
SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE 		0-91150-108-0 01 1 9905- ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9603-9904 ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9905- ● ● ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9606-9904 ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9905- ● ● ● ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A>,FULLER M/T<X9B> (B) ID=18 L=28 		1-09701-067-0 01 1 9603-9603 ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A>,FULLER M/T<X9B> (B) ID=18 L=28 		1-09701-067-0 01 1 9604-9706 ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A>,FULLER M/T<X9B> (B) ID=18 L=28 		1-09701-067-0 01 1 9707-9904 ● ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A>,FULLER M/T<X9B> (B) ID=18 L=28 		1-09701-067-0 01 1 9905- ● ● ● ●
18 CLIP; BATTERY CABLE
SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B) ID=18 L=28 		1-09701-067-0 01 1 9905- ●
18 CLIP; BATTERY CABLE
ZF M/T<X9E> (B) ID=20 H=23 L=27 		1-09700-861-0 01 1 9603-9904 ●
18 CLIP; BATTERY CABLE
ZF M/T<X9E> (B) ID=20 H=23 L=27 		1-09700-861-0 01 1 9905- ● ●
18 CLIP; BATTERY CABLE
(B) ID=18 L=28 		1-09701-067-0 03 1 9603-9904 ● ●
18 CLIP; BATTERY CABLE
(B) ID=18 L=28 		1-09701-067-0 03 1 9905- ● ● ● ●
18 CLIP; BATTERY CABLE
(A) ID=19 L=28 		9-09525-856-0 01 1 9603-9904 ● ●
18 CLIP; BATTERY CABLE
(A) ID=19 L=28 		9-09525-856-0 01 1 9905- ● ● ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28080-820-0 04 1 9603-9603 ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28080-820-0 05 1 9604-9606 ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 05 1 9607-9904 ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 05 1 9905- ● ● ● ●
21 BOLT; CLIP CABLE
SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X20 FLANGE 		0-28680-820-0 01 1 9905- ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 02 1 9603-9904 ● ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 02 1 9905- ● ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 03 1 9603-9904 ● ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 03 1 9905- ● ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) L=120 		1-82699-465-0 01 1 9905- ●
24 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28080-825-0 03 1 9603-9606 ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 03 1 9607-9904 ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 03 1 9905- ● ● ● ●
24 BOLT; BRKT TO FRAME
SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8X30 FLANGE 		0-28680-830-0 01 1 9905- ●
28 NUT; BRKT TO FRAME
M8 		9-09110-408-0 03 1 9603-9606 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 9607-9904 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 9905- ● ● ● ●
28 NUT; BRKT TO FRAME
SHORT CHASSIS(CXZ5MC) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE 		0-91150-108-0 01 1 9905- ●
73 BRACKET; BATTERY CABLE
FULLER M/T<X9B> (A) 		1-82699-104-0 01 1 9603-9706 ●
73 BRACKET; BATTERY CABLE
FULLER M/T<X9B> (A) 		1-82699-104-0 01 1 9707-9904 ● ●
73 BRACKET; BATTERY CABLE
FULLER M/T<X9B> (A) 		1-82699-104-0 01 1 9905- ● ●
73 BRACKET; BATTERY CABLE
ISUZU M/T<X9A> (B) 		1-82699-493-0 01 1 9603-9904 ●
73 BRACKET; BATTERY CABLE
ISUZU M/T<X9A> (B) 		1-82699-493-0 01 1 9905-9910 ● ●
73 BRACKET; BATTERY CABLE
ISUZU M/T<X9A> (B) 		1-82699-493-0 01 1 9911- ● ● ● ●
76 NUT; BATTERY CABLE
FULLER M/T<X9B> M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ●
76 NUT; BATTERY CABLE
FULLER M/T<X9B> M10 FLANGE 		0-91150-210-0 01 1 9607-9706 ●
76 NUT; BATTERY CABLE
FULLER M/T<X9B> M10 FLANGE 		0-91150-210-0 01 1 9707-9904 ● ●
76 NUT; BATTERY CABLE
FULLER M/T<X9B> M10 FLANGE 		0-91150-210-0 01 1 9905- ● ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-110-0 02 1 9603-9606 ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 9607-9706 ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 9707-9904 ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 9905- ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9607-9904 ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ● ● ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 9603-9904 ● ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 9905- ● ● ● ●
99 CLIP; BATTERY CABLE
(B) ID=20 L=50 		9-09917-430-0 02 1 9603-9904 ● ●
99 CLIP; BATTERY CABLE
(B) ID=20 L=50 		9-09917-430-0 02 1 9905- ● ● ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9607-9904 ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9905- ● ● ● ●
101 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 01 1 9603-9606 ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-9904 ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ●

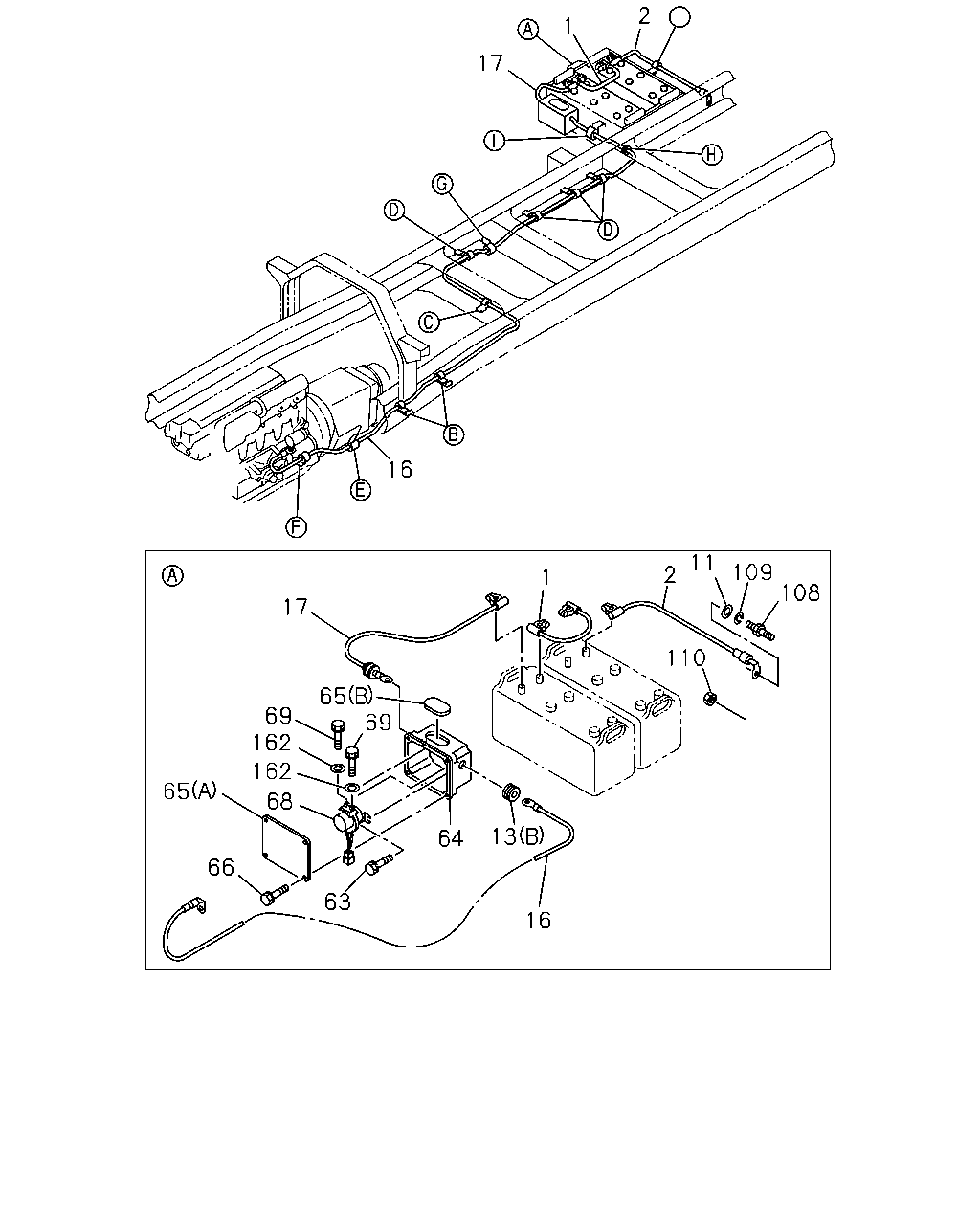

çizim 40495
2 1 17 16 11 109 2 1 108 17 110 65 69 69 162 162 65 68 13 64 66 63 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-281-2 01 1 9603-9904 ● ●
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-281-2 01 1 9905- ● ● ● ●
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-2 01 1 9603-9904 ● ●
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-2 01 1 9905- ● ● ● ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 9603-9904 ● ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 9905- ● ● ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 9603-9904 ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 9905- ● ● ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9603-9904 ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9905- ● ● ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9606-9904 ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9905- ● ● ● ●
16 CABLE; STARTER TO RELAY
L=3350 		1-82652-602-0 01 1 9603-9608 ●
16 CABLE; STARTER TO RELAY
L=3350 		1-82652-635-0 01 1 9609-9904 ● ●
16 CABLE; STARTER TO RELAY
L=3350 		1-82652-635-0 01 1 9905- ● ● ● ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 9603-9904 ● ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 9905- ● ● ● ●
63 BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9603-9904 ● ●
63 BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9905- ● ● ● ●
64 BOX; BATTERY RELAY 1-82699-352-2 01 1 9603-9611 ●
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 9612-9904 ● ●
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 9905- ● ● ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-354-2 01 1 9603-9611 ●
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 9612-9904 ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 9905- ● ● ● ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 9603-9904 ● ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 9905- ● ● ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9603-9904 ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9905- ● ● ● ●
68 RELAY; BATTERY 1-82550-228-2 01 1 9603-9711 ● ●
68 RELAY; BATTERY 1-82550-282-0 01 1 9712-9904 ● ●
68 RELAY; BATTERY 1-82550-282-0 01 1 9905- ● ● ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9603-9904 ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9905- ● ● ● ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 9603-9904 ● ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 9905- ● ● ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9603-9603 ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-508-0 01 1 9604-9810 ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9811-9904 ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9905- ● ● ● ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 9603-9904 ● ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 9905- ● ● ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9603-9904 ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9905- ● ● ● ●
