8-50 — AIR CONDITIONING SYSTEM; FRONT (#42656) — 30 parça

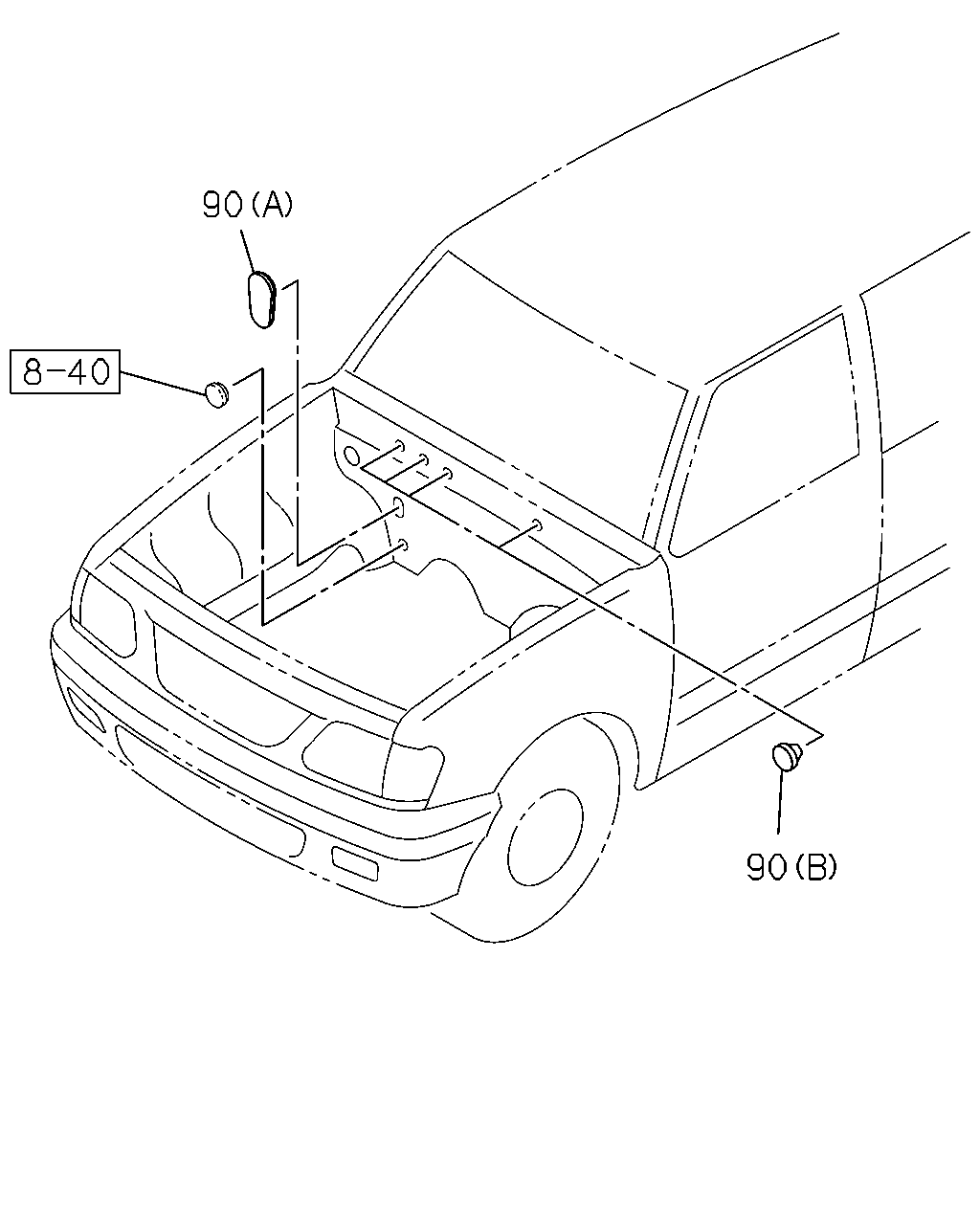

çizim 19195
90 90
BalonParca AdiParca NoAdetTipApplied Date
90 PLUG; PIPE HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94222-310-1 01 1 9707-0307
90 PLUG; PIPE HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) OD=12 		9-09956-122-0 02 1 9707-9710
90 PLUG; PIPE HOLE
(B) OD=12 		9-09956-122-0 02 1 9711-0307
90 PLUG; PIPE HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) OD=12 		9-09956-122-0 02 1 9711-0307
90 PLUG; PIPE HOLE
(B) OD=12 		9-09956-122-0 02 1 0308-0402
90 PLUG; PIPE HOLE
OD=12 		9-09956-122-0 02 1 0403-

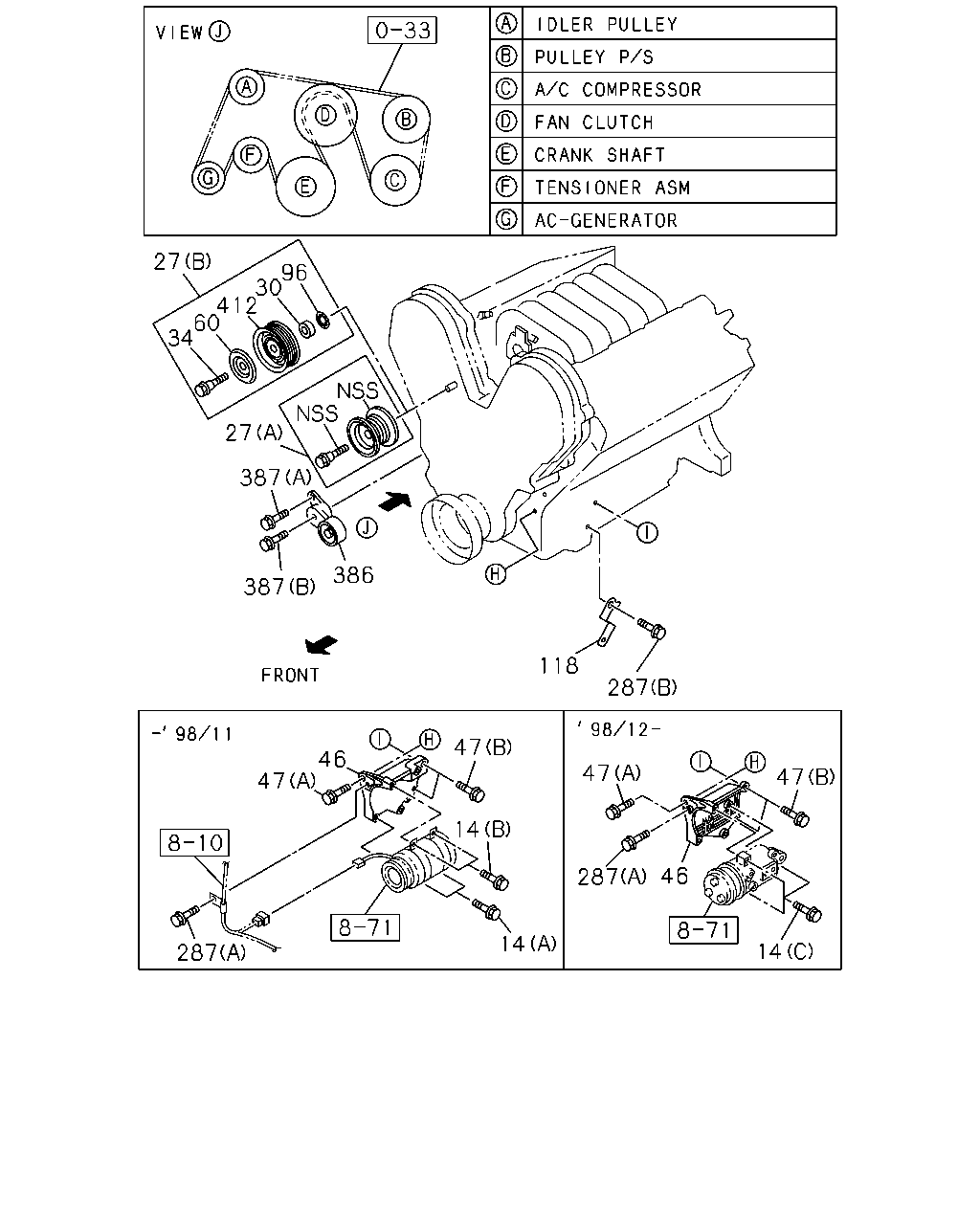

çizim 69562
27 96 30 412 60 34 27 387 386 387 118 287 47 46 47 47 47 14 46 287 14 14 287
BalonParca AdiParca NoAdetTipApplied Date
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) (A) M8X80 FLANGE 		0-28080-880-0 02 1 9707-9811
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) (C) M8X70 FLANGE 		0-28080-870-0 04 1 9812-0307
14 BOLT; CMPR
(C) M8X70 FLANGE 		0-28080-870-0 04 1 0308-
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) (B) M8X65 FLANGE 		1-09044-072-1 02 1 9707-9811
27 PULLEY; IDLE,A/C
(A) 		8-97130-359-0 01 1 9707-0102
27 PULLEY; IDLE,A/C
(B) 		8-97178-354-0 01 1 0102-
30 COLLAR; IDLE PULLEY 8-97185-854-0 01 1 0102-
34 SHAFT; IDLE PULLEY 8-97185-858-0 01 1 0102-
46 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) 		8-97130-360-1 01 1 9707-0307
46 BRACKET; CMPR 8-97130-360-1 01 1 0308-
47 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) (A) M10X80 FLANGE 		0-28181-080-0 01 1 9707-0307
47 BOLT; BRKT TO BODY
(A) M10X80 FLANGE 		0-28181-080-0 01 1 0308-
47 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) (B) M10X30 FLANGE 		0-28781-030-0 02 1 9707-0307
47 BOLT; BRKT TO BODY
(B) M10X30 FLANGE 		0-28781-030-0 02 1 0308-
60 COVER; IDLER PULLEY 8-97185-857-0 01 1 0102-
96 WASHER; LK 8-97185-853-0 01 1 0102-
118 BRACKET; HARNESS CLIP,A/C
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97039-000-0 01 1 9707-0307
287 BOLT; BRKT,HARNESS
AIR CONDITIONER MANUAL CONT(C60) (A) M6X10 FLANGE 		0-28080-610-0 01 1 9707-0307
287 BOLT; BRKT,HARNESS
(A) M6X10 FLANGE 		0-28080-610-0 01 1 0308-
287 BOLT; BRKT,HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) M10X16 FLANGE 		0-28181-016-0 01 1 9707-0307
386 TENSIONER ASM 8-97125-860-1 01 1 9707-
387 BOLT; TENSIONER FIX
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9707-
387 BOLT; TENSIONER FIX
(B) M10X65 		9-05821-065-0 01 1 9707-
412 PULLEY; IDLER WITH BRG 8-97185-859-0 01 1 0102-
