Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶

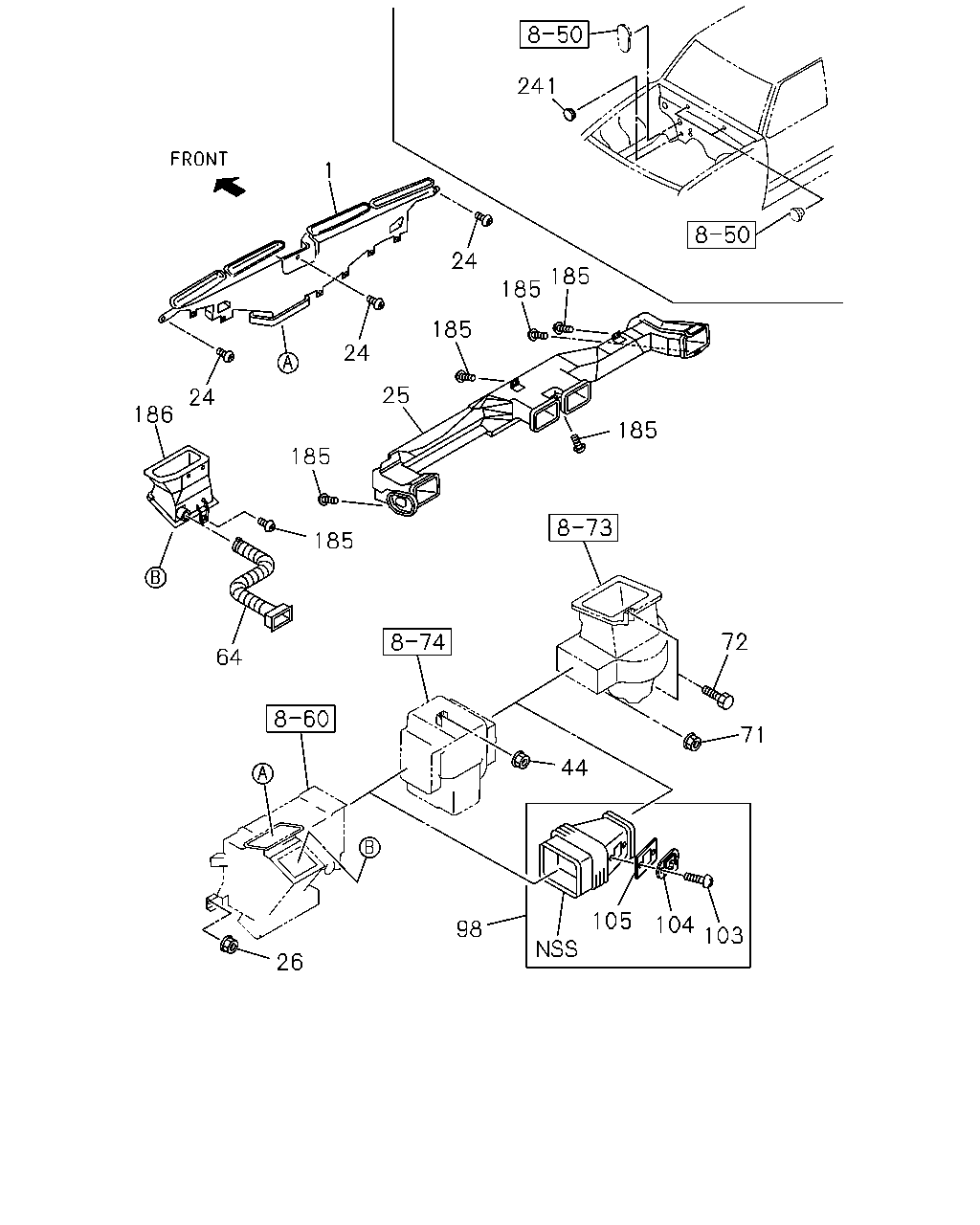

8-40 — HEATER SYSTEM
(#42653) — 20 parça
241
1
24
185
185
185
24
25
24
186
185
185
185
72
64
71
44
105
104
98
103
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
NOZZLE; DEFROSTER,INST PNL
8-97121-712-2
01
1
9707-
24
SCREW; NOZZLE TO INST PNL
M5X16
8-94295-854-0
03
1
9707-0110
24
SCREW; NOZZLE TO INST PNL
M5X16
8-94295-854-0
02
1
0111-
25
DUCT; CENTER
8-97121-718-1
01
1
9707-0206
25
DUCT; CENTER
8-97320-869-2
01
1
0207-
26
NUT; HTR
M6 FLANGE
8-97063-399-0
04
1
9707-
44
NUT; EVAP
AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE
8-97063-399-0
02
1
9707-0307
44
NUT; EVAP
M6 FLANGE
8-97063-399-0
02
1
0308-
64
DUCT; VENT,DRIVER SIDE
8-97121-722-0
01
1
9707-9908
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE
8-97063-399-0
01
1
9707-
72
BOLT; BLOWER UNIT
M6X16 FLANGE
0-28480-616-0
02
1
9707-
98
DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97063-960-0
01
1
9707-0307
103
SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60) M4X16 TAPPING
1-83579-114-0
02
1
9707-0307
104
RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97074-700-0
01
1
9707-0307
105
PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97074-701-0
01
1
9707-0307
185
SCREW; VENT DUCT
M5X16
8-94295-854-0
06
1
9707-0206
185
SCREW; VENT DUCT
M5X16
8-94295-854-0
05
1
0207-
186
DUCT; VENTILATOR
8-97121-720-1
01
1
9707-9908
186
DUCT; VENTILATOR
8-97208-705-0
01
1
9909-
241
PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-94222-309-1
01
1
9707-0307
