◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#42652) — 152 parça

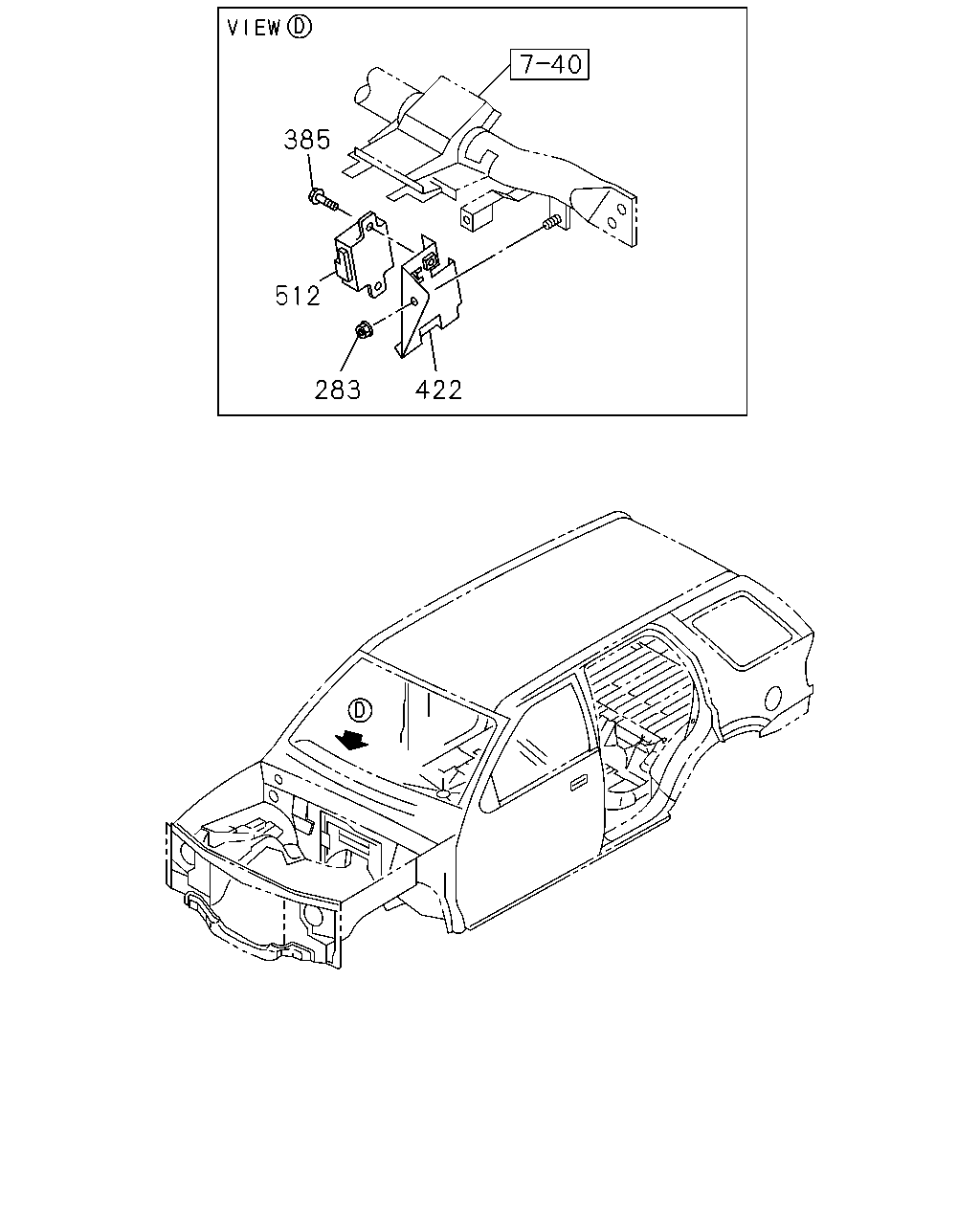

çizim 18553
385 512 283 422
BalonParca AdiParca NoAdetTipApplied Date
283 NUT; BRKT
M6 FLANGE 		0-91150-106-0 04 1 9707-9908
283 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0207-
385 BOLT; CONT UNIT
M6X16 FLANGE 		0-28480-616-0 01 1 0207-
422 BRACKET; CONT UNIT 8-97244-760-0 01 1 0207-
512 CONTROL UNIT; IMMOBILIZER 8-97244-759-0 01 1 0207-0406
512 CONTROL UNIT; IMMOBILIZER 8-97377-323-0 01 1 0407-

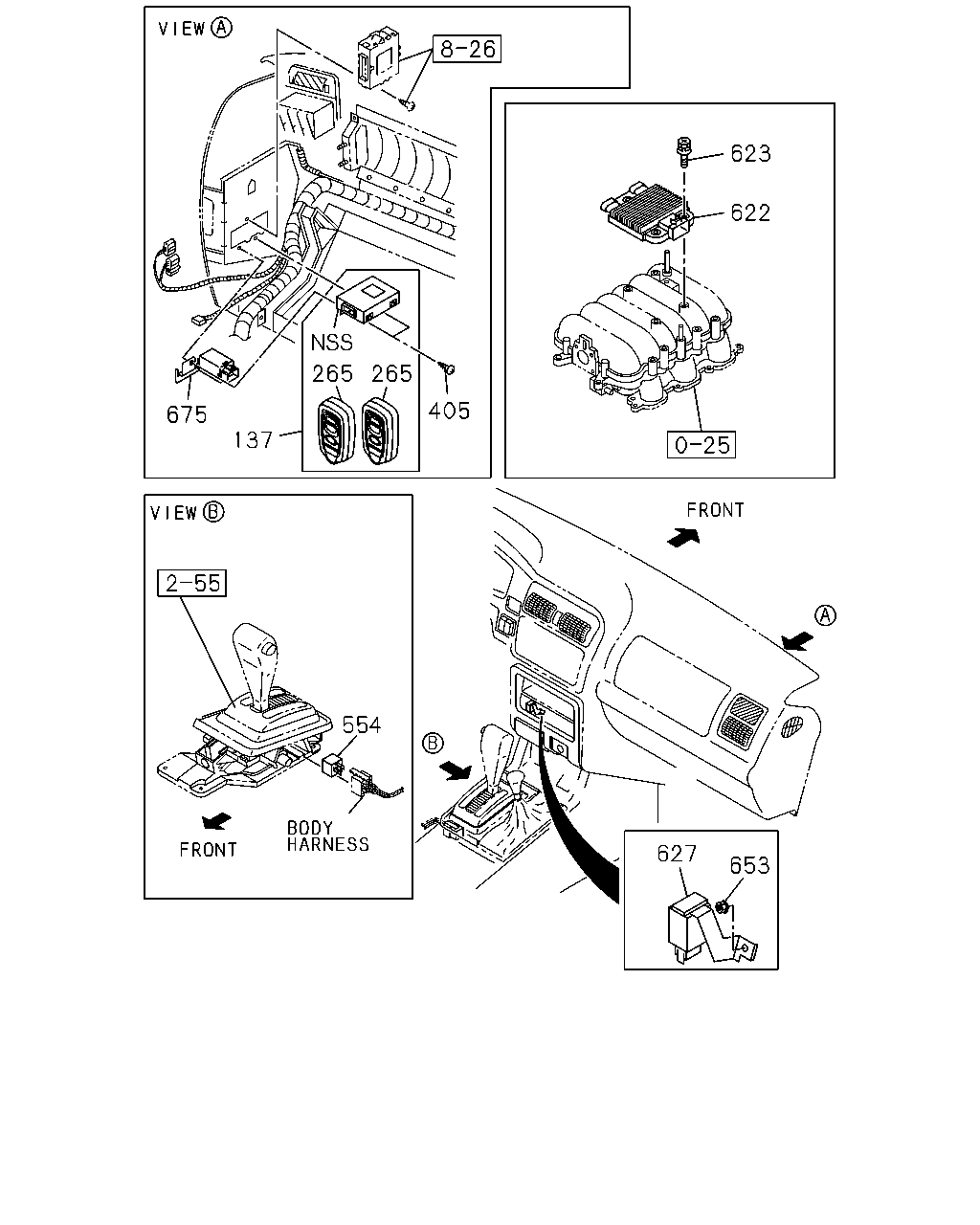

çizim 20425
623 622 265 265 405 675 137 554 627 653
BalonParca AdiParca NoAdetTipApplied Date
137 CONTROL UNIT; ANTI THEFT
ANTI THEFT<UA6> 		8-97135-930-2 01 1 9707-9807
137 CONTROL UNIT; ANTI THEFT
ANTI THEFT<UA6> 		8-97210-415-1 01 1 9808-9908
137 CONTROL UNIT; ANTI THEFT
ANTI THEFT<UA6> 		8-97225-500-1 01 1 9909-0001
137 CONTROL UNIT; ANTI THEFT
ANTI THEFT<UA6> 		8-97240-991-0 01 1 0002-0106
137 CONTROL UNIT; ANTI THEFT
ANTI THEFT<UA6> 		8-97287-582-1 01 1 0107-0206
137 CONTROL UNIT; ANTI THEFT
ANTI THEFT<UA6> 		8-97316-926-2 01 1 0207-0307
137 CONTROL UNIT; ANTI THEFT
ANTI THEFT<UA6> 		8-97316-925-1 01 1 0308-
265 TRANSMITTER ASM; AUTO DOOR LOCK
ANTI THEFT<UA6> 		8-97149-392-0 02 1 9707-9807
265 TRANSMITTER ASM; AUTO DOOR LOCK
ANTI THEFT<UA6> 		8-97192-347-0 02 1 9808-9908
265 TRANSMITTER ASM; AUTO DOOR LOCK
ANTI THEFT<UA6> 		8-97225-521-1 02 1 9909-0206
265 TRANSMITTER ASM; AUTO DOOR LOCK
ANTI THEFT<UA6> 		8-97318-944-0 02 1 0207-
405 SCREW; CONTROLLER
ANTI THEFT<UA6> M5X12 		8-94120-094-0 02 1 9707-
554 RELAY; SHIFT LOCK
A/T THM(RMQ) 12V OMRON 		8-97125-441-1 01 1 9707-0206
554 RELAY; SHIFT LOCK
A/T AISIN(RMD) 12V OMRON 		8-97125-441-1 01 1 0207-0307
554 RELAY; SHIFT LOCK
12V OMRON 		8-97125-441-1 01 1 0308-
622 MODULE ASM; SENSOR,ION 8-09375-749-1 01 1 9909-9909
622 MODULE ASM; SENSOR,ION 8-09383-689-0 01 1 9910-
623 BOLT; MODULE
M5X12 		8-94386-089-0 03 1 9909-
627 CONTROLLER; SHIFT ON THE FLY 8-97211-143-3 01 1 9909-0206
653 NUT; CONTROLLER,SHIFT ON THE FLY
EXC. ACTIVE RIDE CONTROL(7WD) M6 FLANGE 		0-91150-106-0 01 1 9909-0206
675 TIMER; MAP LAMP 8-97260-609-0 01 1 0008-0106

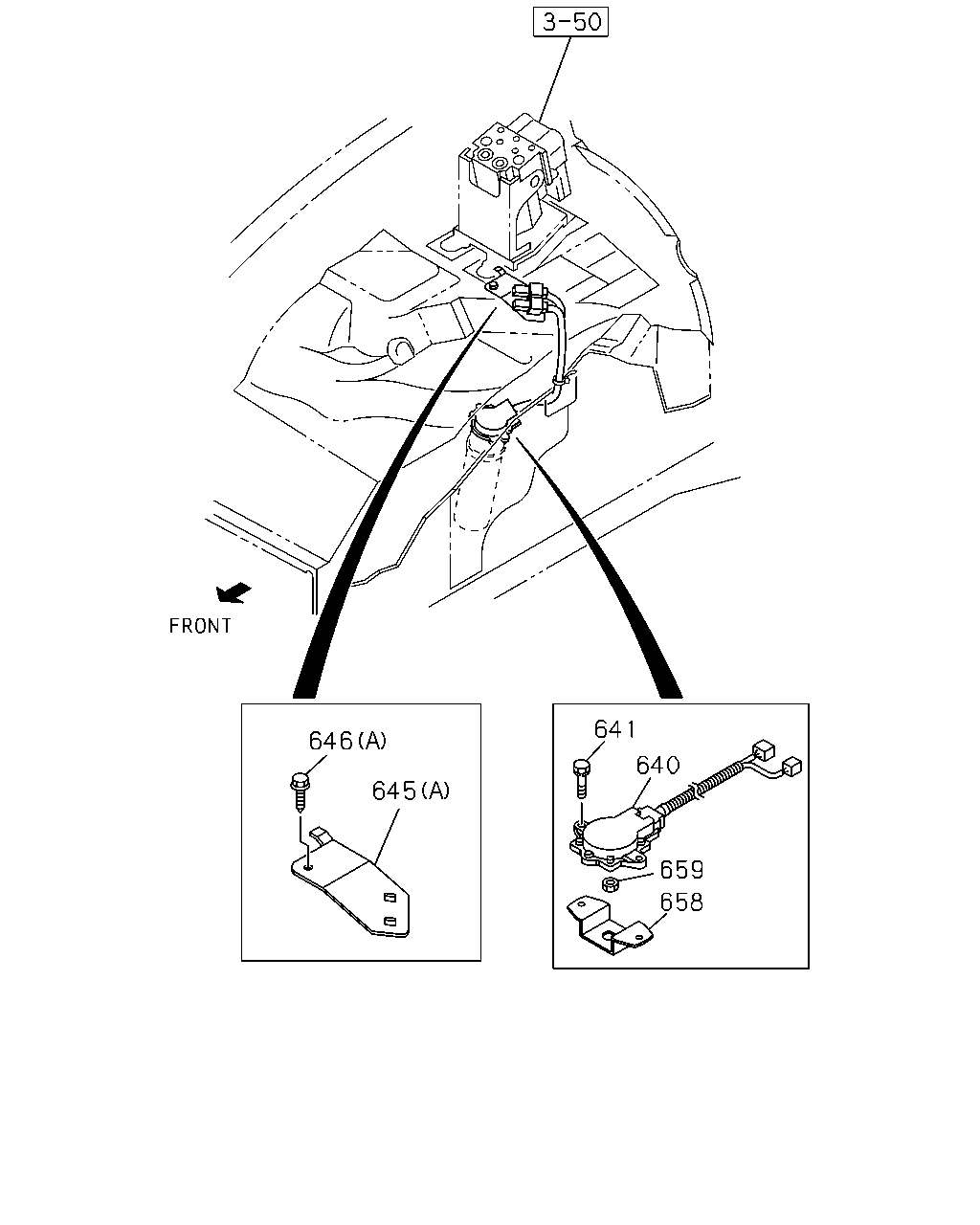

çizim 20426
641 646 640 645 659 658
BalonParca AdiParca NoAdetTipApplied Date
640 ACTUATOR; S/ABS
ACTIVE RIDE CONTROL(7WD) 		8-97214-166-3 02 1 9909-
641 BOLT; ACTUATOR
ACTIVE RIDE CONTROL(7WD) M5X20 W/LK WASHER 		8-94428-007-0 04 1 9909-
645 BRACKET; CONNECTOR
ACTIVE RIDE CONTROL(7WD) (A) 		8-97216-512-3 01 1 9909-
645 BRACKET; CONNECTOR
ACTIVE RIDE CONTROL(7WD) (B) 		8-97216-513-0 02 1 9909-
646 BOLT; BRKT,CONNECTOR
ACTIVE RIDE CONTROL(7WD) (A) M6X16 FLANGE 		0-28480-616-0 01 1 9909-
646 BOLT; BRKT,CONNECTOR
ACTIVE RIDE CONTROL(7WD) (B) M8X20 FLANGE 		0-28480-820-0 02 1 9909-
658 BRACKET; ACTUATOR,S/ABS
ACTIVE RIDE CONTROL(7WD) 		8-97220-374-0 02 1 9909-
659 NUT; BRKT,ACTUATOR
ACTIVE RIDE CONTROL(7WD) M12 		9-99111-412-0 02 1 9909-
çizim 68937
646 660 645 647 646 645
BalonParca AdiParca NoAdetTipApplied Date
645 BRACKET; CONNECTOR
ACTIVE RIDE CONTROL(7WD) (A) 		8-97216-512-3 01 1 9909-
645 BRACKET; CONNECTOR
ACTIVE RIDE CONTROL(7WD) (B) 		8-97216-513-0 02 1 9909-
646 BOLT; BRKT,CONNECTOR
ACTIVE RIDE CONTROL(7WD) (A) M6X16 FLANGE 		0-28480-616-0 01 1 9909-
646 BOLT; BRKT,CONNECTOR
ACTIVE RIDE CONTROL(7WD) (B) M8X20 FLANGE 		0-28480-820-0 02 1 9909-
647 SENSOR; VERTICAL G
ACTIVE RIDE CONTROL(7WD) 		8-97214-138-1 01 1 9909-
660 BOLT; BRKT,SENSOR
ACTIVE RIDE CONTROL(7WD) M6X25 FLANGE 		0-28480-625-0 02 1 9909-

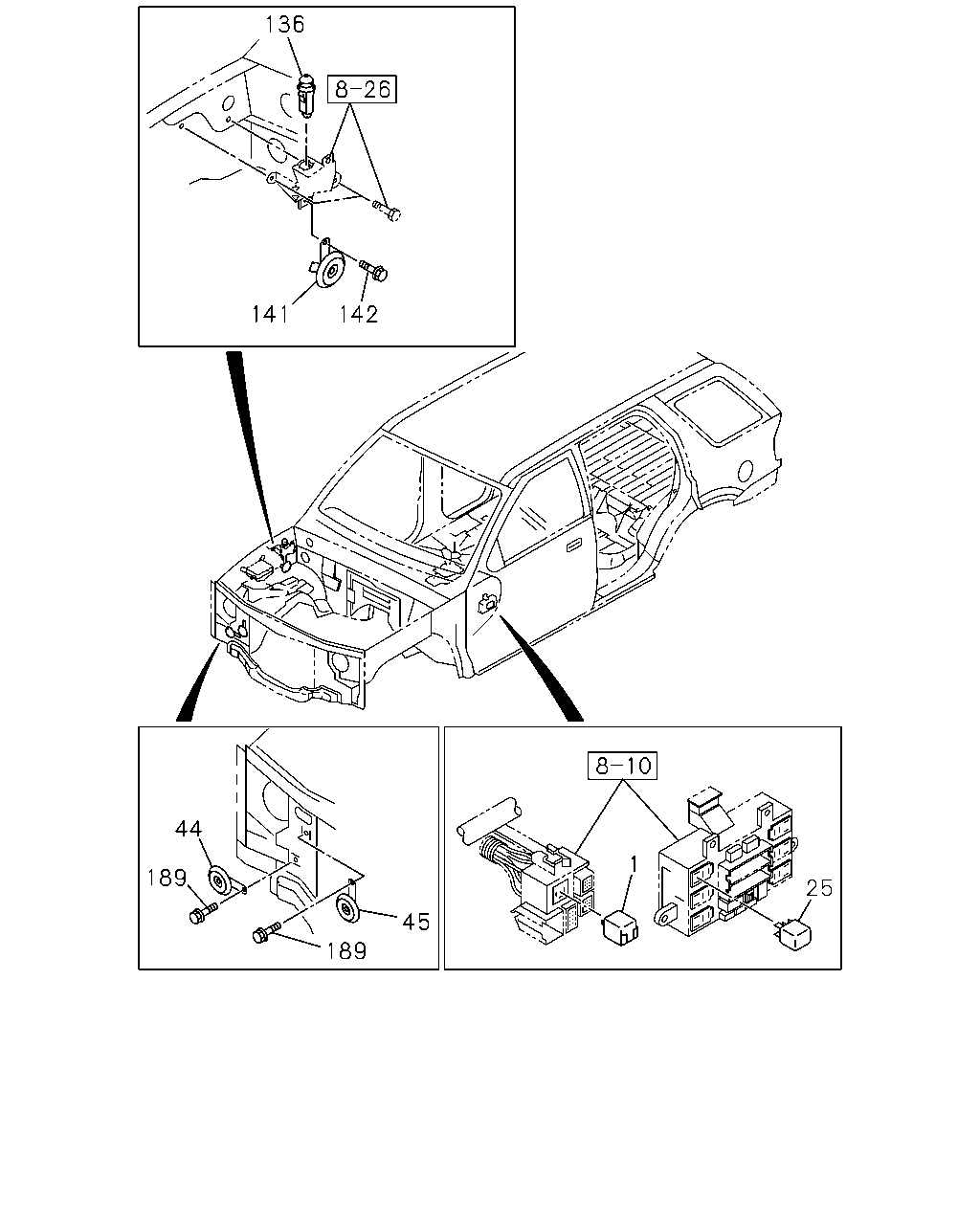

çizim 69481
136 142 141 44 1 189 25 45 189
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 8-97147-862-1 01 1 9707-0402
1 UNIT; FLASHER 8-97147-862-1 01 1 0403-
25 RELAY; TAIL LAMP 8-97125-444-0 01 1 9707-0402
25 RELAY; TAIL LAMP 8-97125-444-0 01 1 0403-
44 HORN; HIGH NOTE
GRADE LS/LSE(RBD) 		8-97148-561-2 01 1 9707-0007
44 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97148-561-2 01 1 0008-0307
44 HORN; HIGH NOTE 8-97148-561-2 01 1 0308-
45 HORN; LOW NOTE 8-97148-563-2 01 1 9707-0402
45 HORN; LOW NOTE 8-97148-563-2 01 1 0403-
136 SWITCH; ENG HOOD
ANTI THEFT<UA6> 		8-97138-496-0 01 1 9707-
141 HORN; ANTI THEFT
ANTI THEFT<UA6> 		8-97148-613-2 01 1 9707-
142 BOLT; HORN,ANTI THEFT
ANTI THEFT<UA6> M6X16 FLANGE 		0-28480-616-0 01 1 9707-
189 BOLT; HORN
GRADE LS/LSE(RBD) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9707-9908
189 BOLT; HORN
GRADE S(RBA) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9707-9908
189 BOLT; HORN
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9909-0007
189 BOLT; HORN
GRADE LS/LSE(RBD) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9909-0007
189 BOLT; HORN
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0008-0011
189 BOLT; HORN
DUAL TONE HORN<U05> M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0008-0011
189 BOLT; HORN
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0012-0307
189 BOLT; HORN
DUAL TONE HORN<U05> M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0012-0307
189 BOLT; HORN
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0308-
189 BOLT; HORN
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0308-

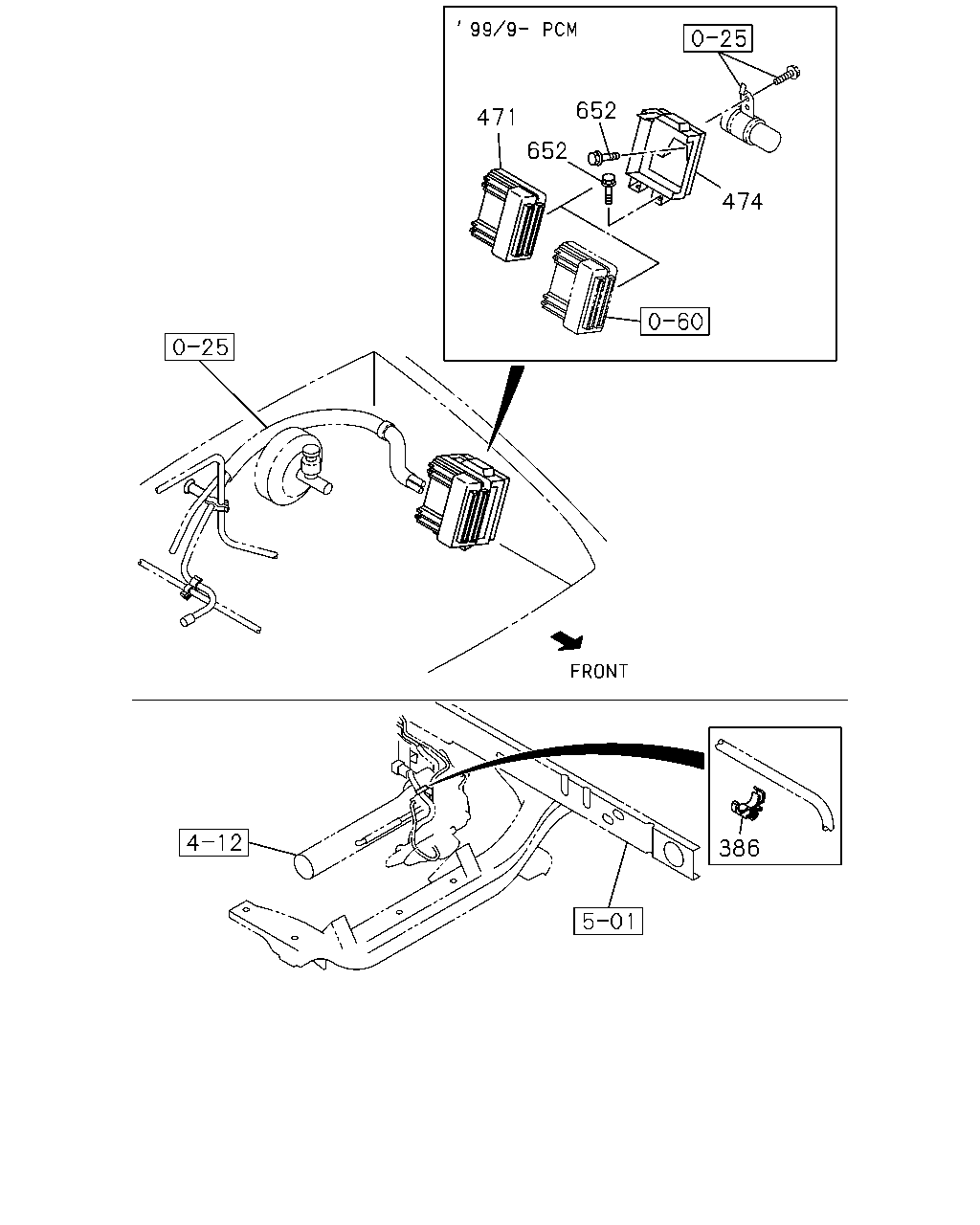

çizim 72356
652 471 652 474 386
BalonParca AdiParca NoAdetTipApplied Date
386 CLIP; HARNESS
ID=7-10 		8-94472-578-0 01 1 9909-0402
386 CLIP; HARNESS
ID=7-10 		8-94472-578-0 01 1 0403-
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) 		8-09392-189-0 01 1 9909-0001
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) 		8-09393-549-0 01 1 0002-0007
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) 		8-12206-369-0 01 1 0008-0011
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) 		8-12210-419-0 01 1 0012-0102
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) 		8-12214-029-0 01 1 0103-0104
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) 		8-12216-569-0 01 1 0105-0106
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) 		8-97264-880-3 01 1 0107-0206
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) CALIFORNIA EMISSION SYSTEM(NB7) 		8-16242-929-1 01 1 9707-9710
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09353-669-0 01 1 9711-9712
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09360-819-0 01 1 9801-9804
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09364-949-0 01 1 9805-9805
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09369-999-0 01 1 9806-9807
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09370-009-0 01 1 9808-9908
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-16242-919-1 01 1 9707-9710
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-09353-659-0 01 1 9711-9712
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-09360-839-0 01 1 9801-9804
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-09364-929-0 01 1 9805-9805
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-09369-979-0 01 1 9806-9908
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) 		8-09392-179-0 01 1 9909-0001
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) 		8-09393-539-0 01 1 0002-0007
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) 		8-12206-349-0 01 1 0008-0011
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) 		8-12210-409-0 01 1 0012-0102
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) 		8-12214-009-0 01 1 0103-0104
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) 		8-12216-599-0 01 1 0105-0106
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) 		8-97264-882-2 01 1 0107-0206
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) CALIFORNIA EMISSION SYSTEM(NB7) 		8-16242-909-0 01 1 9707-9711
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09353-649-0 01 1 9712-9712
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09360-829-0 01 1 9801-9804
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09364-939-0 01 1 9805-9805
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09369-989-0 01 1 9806-9908
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-16242-899-0 01 1 9707-9710
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-09353-639-0 01 1 9711-9712
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-09360-849-0 01 1 9801-9804
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-09364-919-0 01 1 9805-9805
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-09369-969-0 01 1 9806-9908
474 BRACKET; PCM 8-97125-870-1 01 1 9707-9908
474 BRACKET; PCM 8-97125-869-1 01 1 9707-9908
474 BRACKET; PCM 8-97208-955-1 01 1 9909-
652 BOLT; BRKT,PCM
M6X16 FLANGE 		0-28480-616-0 03 1 9909-

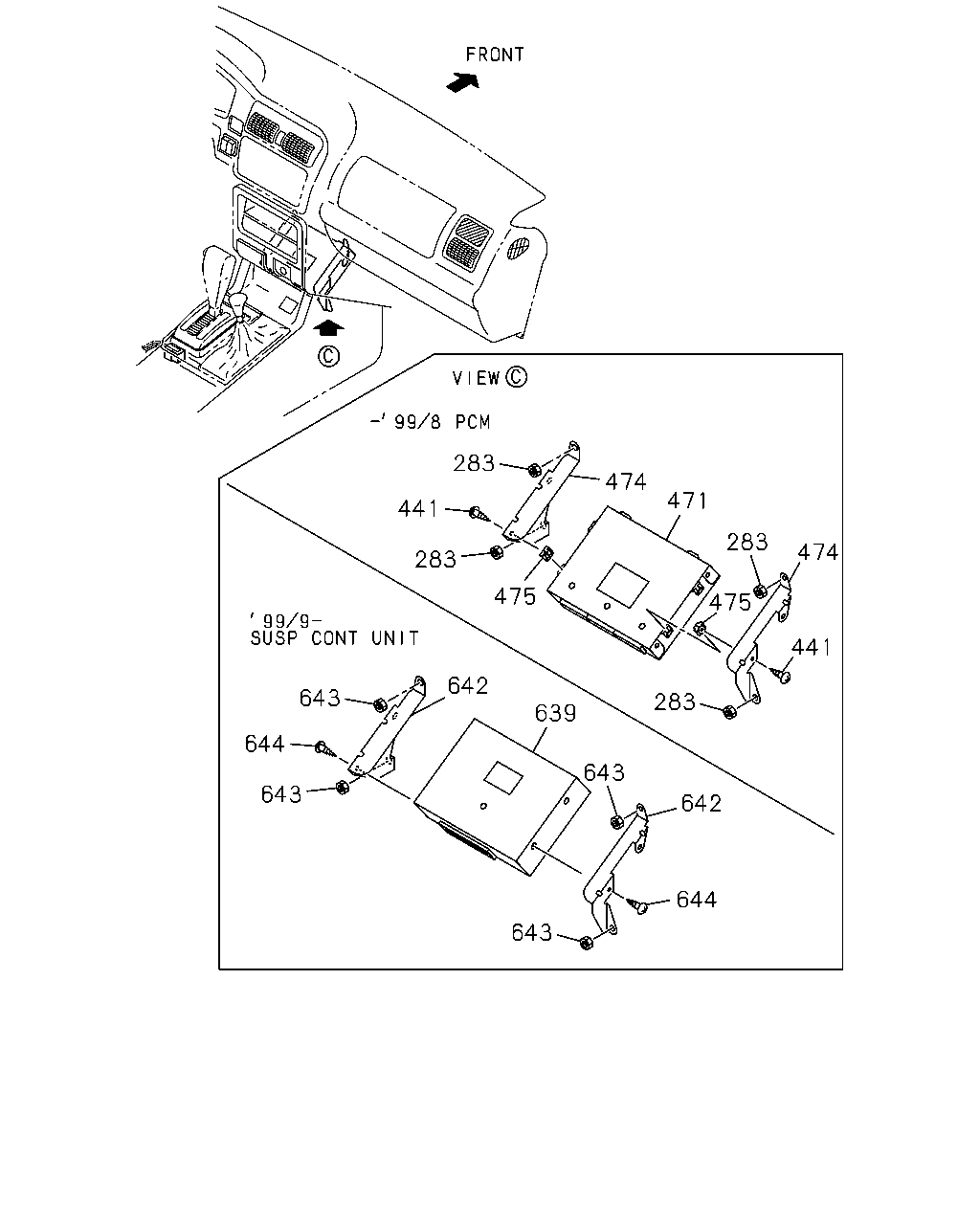

çizim 72402
283 474 471 441 283 474 283 475 475 441 642 643 283 639 644 643 643 642 644 643
BalonParca AdiParca NoAdetTipApplied Date
283 NUT; BRKT
M6 FLANGE 		0-91150-106-0 04 1 9707-9908
283 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0207-
441 SCREW; CONT UNIT
M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 9707-9908
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) 		8-09392-189-0 01 1 9909-0001
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) 		8-09393-549-0 01 1 0002-0007
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) 		8-12206-369-0 01 1 0008-0011
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) 		8-12210-419-0 01 1 0012-0102
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) 		8-12214-029-0 01 1 0103-0104
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) 		8-12216-569-0 01 1 0105-0106
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) 		8-97264-880-3 01 1 0107-0206
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) CALIFORNIA EMISSION SYSTEM(NB7) 		8-16242-929-1 01 1 9707-9710
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09353-669-0 01 1 9711-9712
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09360-819-0 01 1 9801-9804
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09364-949-0 01 1 9805-9805
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09369-999-0 01 1 9806-9807
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09370-009-0 01 1 9808-9908
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-16242-919-1 01 1 9707-9710
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-09353-659-0 01 1 9711-9712
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-09360-839-0 01 1 9801-9804
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-09364-929-0 01 1 9805-9805
471 CONTROL MODULE; POWER TRAIN
A/T THM(RMQ) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-09369-979-0 01 1 9806-9908
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) 		8-09392-179-0 01 1 9909-0001
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) 		8-09393-539-0 01 1 0002-0007
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) 		8-12206-349-0 01 1 0008-0011
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) 		8-12210-409-0 01 1 0012-0102
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) 		8-12214-009-0 01 1 0103-0104
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) 		8-12216-599-0 01 1 0105-0106
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) 		8-97264-882-2 01 1 0107-0206
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) CALIFORNIA EMISSION SYSTEM(NB7) 		8-16242-909-0 01 1 9707-9711
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09353-649-0 01 1 9712-9712
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09360-829-0 01 1 9801-9804
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09364-939-0 01 1 9805-9805
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) CALIFORNIA EMISSION SYSTEM(NB7) 		8-09369-989-0 01 1 9806-9908
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-16242-899-0 01 1 9707-9710
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-09353-639-0 01 1 9711-9712
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-09360-849-0 01 1 9801-9804
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-09364-919-0 01 1 9805-9805
471 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-09369-969-0 01 1 9806-9908
474 BRACKET; PCM 8-97125-870-1 01 1 9707-9908
474 BRACKET; PCM 8-97125-869-1 01 1 9707-9908
474 BRACKET; PCM 8-97208-955-1 01 1 9909-
475 GROMMET; PCM 8-97110-216-1 04 1 9707-9908
639 CONTROL UNIT; SUSP
ACTIVE RIDE CONTROL(7WD) 		8-97208-886-3 01 1 9909-0106
639 CONTROL UNIT; SUSP
ACTIVE RIDE CONTROL(7WD) 		8-97300-929-0 01 1 0107-
642 BRACKET; CONT UNIT,SUSP
ACTIVE RIDE CONTROL(7WD) 		8-97125-870-1 01 1 9909-
642 BRACKET; CONT UNIT,SUSP
ACTIVE RIDE CONTROL(7WD) 		8-97125-869-1 01 1 9909-
643 NUT; BRKT,CONT UNIT
ACTIVE RIDE CONTROL(7WD) M6 FLANGE 		0-91150-106-0 04 1 9909-
644 SCREW; CONT UNIT,SUSP
ACTIVE RIDE CONTROL(7WD) M4X10 W/PL WASHER 		9-03900-410-0 04 1 9909-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
