Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
▶

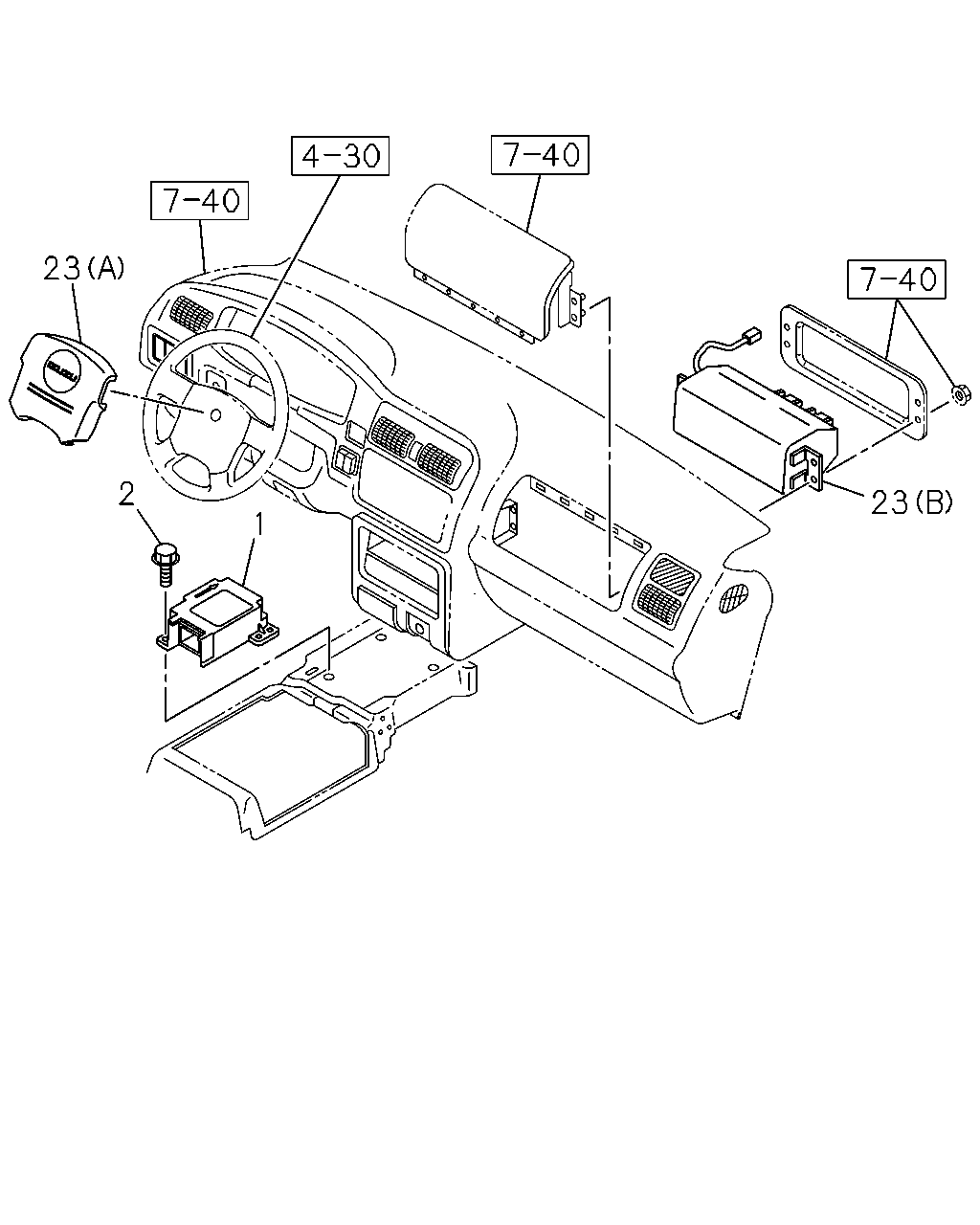

8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
(#42651) — 16 parça
23
2
23
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONTROL UNIT; SIR
8-16230-079-3
01
1
9707-9709
1
CONTROL UNIT; SIR
8-09352-679-2
01
1
9710-
2
BOLT; CONT UNIT,SIR
M6X18 W/PL WASHER
8-97105-796-0
03
1
9707-
23
AIR BAG UNIT
(A) BLACK
8-97159-881-5
01
1
9707-9908
23
AIR BAG UNIT
INTERIOR COLOR GRAY(180) (A) GRAY
8-97292-248-4
01
1
9909-0106
23
AIR BAG UNIT
INTERIOR COLOR GRAY(180) (A) GRAY
8-97298-770-0
01
1
0107-0206
23
AIR BAG UNIT
INTERIOR COLOR TAUPE GRAY(182) (A) DARK GRAY
8-97391-857-8
01
1
0207-0307
23
AIR BAG UNIT
INTERIOR COLOR TAUPE GRAY(182) (A) BLACK
8-97391-856-8
01
1
0308-
23
AIR BAG UNIT
(B)
8-97173-741-0
01
1
9707-9807
23
AIR BAG UNIT
(B)
8-97200-907-1
01
1
9808-9908
23
AIR BAG UNIT
(B)
8-97212-785-5
01
1
9909-0106
23
AIR BAG UNIT
(B)
8-97304-993-0
01
1
0107-0206
23
AIR BAG UNIT
(B)
8-97349-781-1
01
1
0207-
23
AIR BAG UNIT
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE
8-97292-249-4
01
1
9909-0106
23
AIR BAG UNIT
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE
8-97298-771-0
01
1
0107-0206
23
AIR BAG UNIT
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE
8-97391-858-8
01
1
0207-
