Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#42650) — 64 parça
◀
[826A] NO.4 (3 parça)
[826A] NO.1 (27 parça)
[826A] NO.3 (24 parça)
[826A] NO.2 (10 parça)
▶
524
389
234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

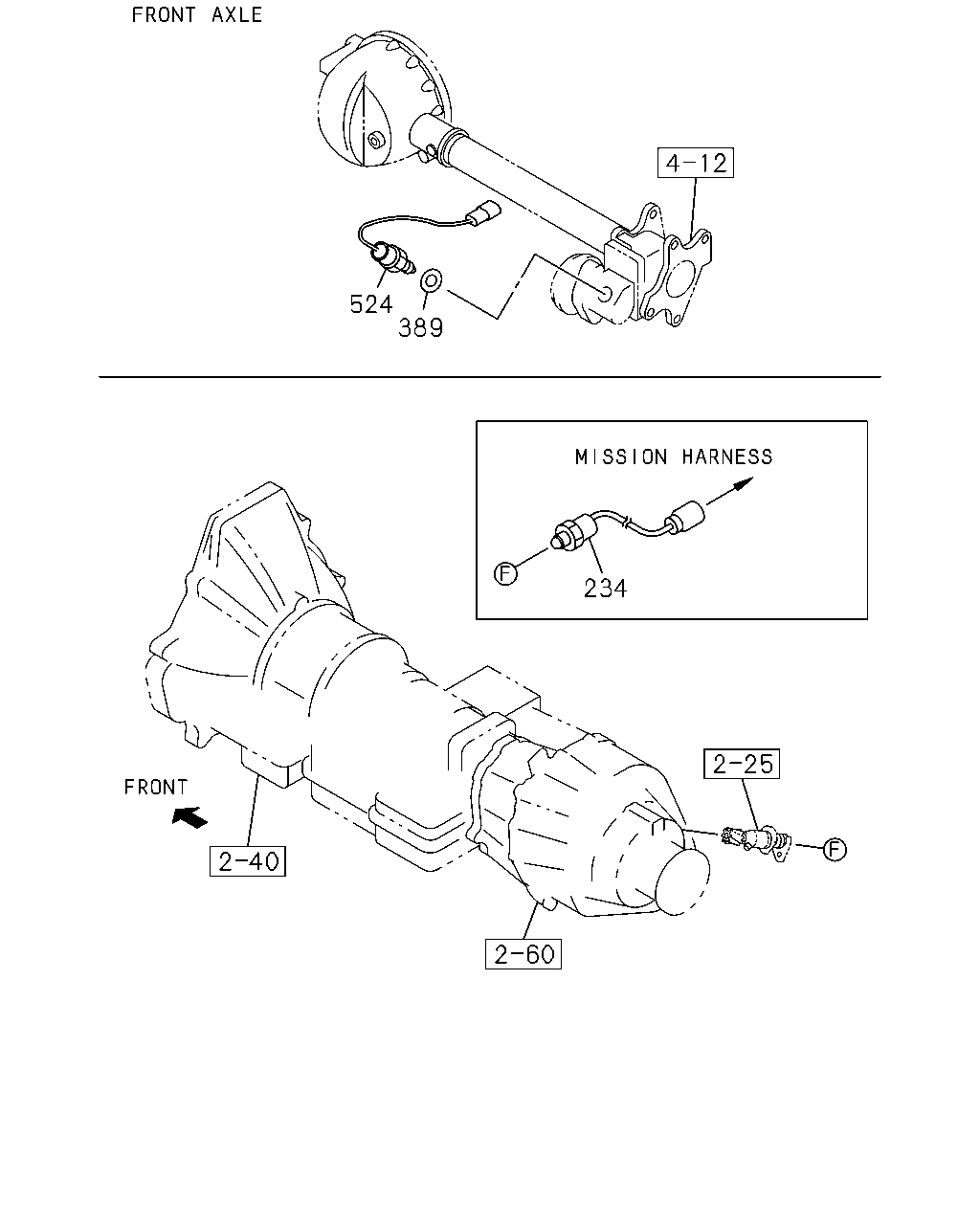

234
SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK
8-97129-704-0
01
1
9707-
389
GASKET; SWITCH
ID=14.2 OD=20.0
9-09571-414-0
01
1
9707-9908
524
SWITCH; DIFF
8-97142-332-1
01
1
9707-9908
562
305
265
534
21
377
686
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

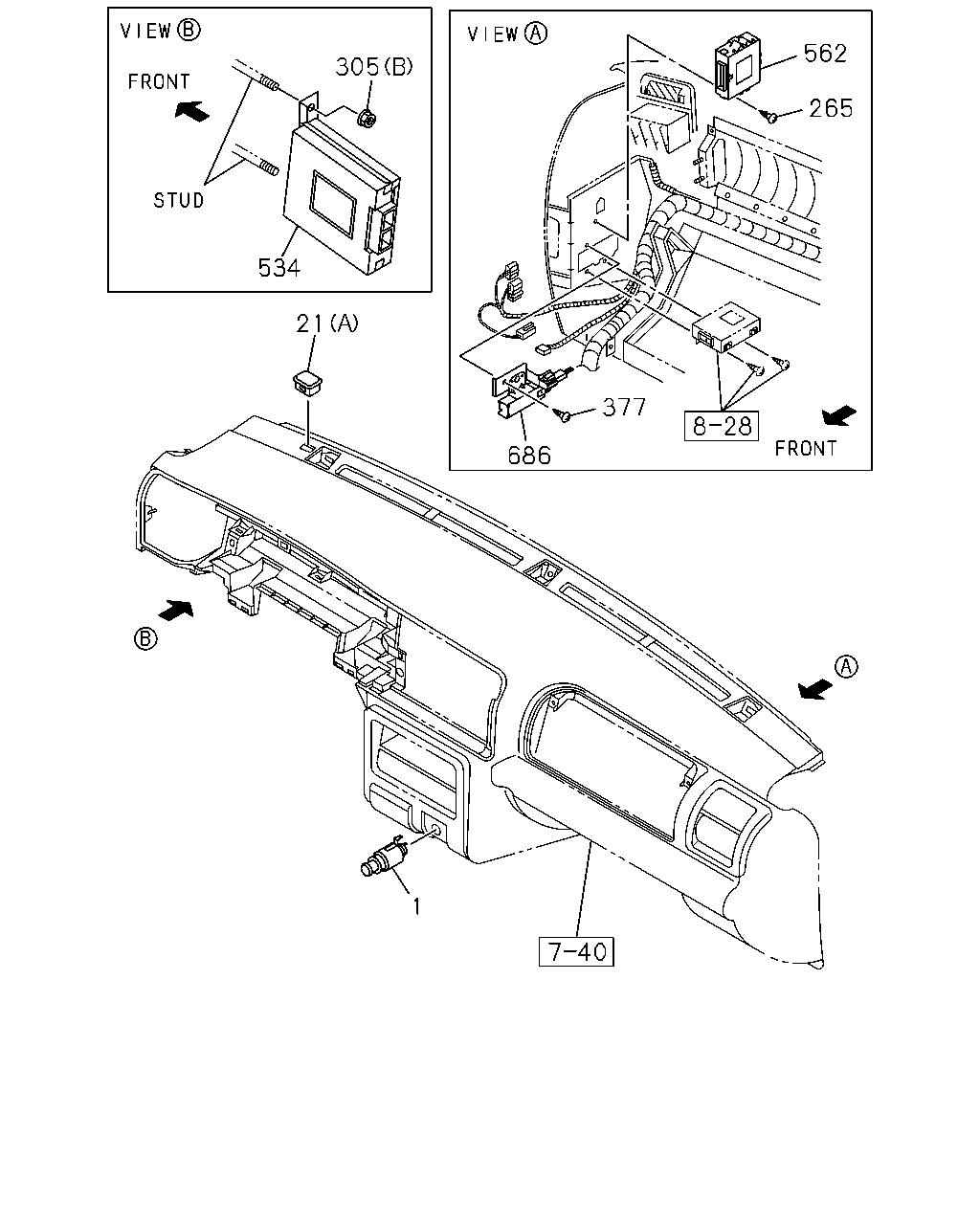

1
LIGHTER; CIGAR
8-97100-029-0
01
1
9707-
21
COVER; HOLE
(A) GRAY
8-97171-293-0
01
1
9707-9908
21
COVER; HOLE
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE
8-97228-572-0
01
1
9909-0206
21
COVER; HOLE
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE
8-97391-860-0
01
1
0207-
21
COVER; HOLE
EXC. ANTI THEFT<UA6> (B)
8-97081-617-1
01
1
9707-0206
21
COVER; HOLE
INTERIOR COLOR GRAY(180) (A) GRAY
8-97171-293-0
01
1
9909-0206
21
COVER; HOLE
INTERIOR COLOR TAUPE GRAY(182) (A) DARK GRAY
8-97391-859-0
01
1
0207-
265
SCREW; BRKT,CONT UNIT
M5X12
8-94120-094-0
01
1
9707-
305
NUT; CONT UNIT
AUTO CRUISE CONT<K30> (A) M6 FLANGE
8-97063-399-0
02
1
9707-9807
305
NUT; CONT UNIT
AUTO CRUISE CONT<K30> (A) M6 FLANGE
8-97063-399-0
01
1
9808-9908
305
NUT; CONT UNIT
(A) M6 FLANGE
8-97063-399-0
02
1
9909-0007
305
NUT; CONT UNIT
(A) M6 FLANGE
8-97063-399-0
02
1
0008-0206
305
NUT; CONT UNIT
A/T AISIN(RMD) (B) M8 FLANGE
0-91150-108-0
02
1
0207-0307
305
NUT; CONT UNIT
(B) M8 FLANGE
0-91150-108-0
02
1
0308-
377
SCREW; DROPPING REGISTER
EXC. POWER WINDOW<A30> M5X12
8-94120-094-0
01
1
0011-0106
534
CONTROL UNIT; AUTO MISSION
A/T AISIN(RMD)
8-97354-990-0
01
1
0207-0307
534
CONTROL UNIT; AUTO MISSION
8-97355-187-0
01
1
0308-
562
CONTROL UNIT; ALARM
A/T THM(RMQ)
8-97124-978-1
01
1
9707-9807
562
CONTROL UNIT; ALARM
A/T THM(RMQ)
8-97203-989-0
01
1
9808-9908
562
CONTROL UNIT; ALARM
8-97220-735-0
01
1
9909-9911
562
CONTROL UNIT; ALARM
8-97240-466-0
01
1
9912-0106
562
CONTROL UNIT; ALARM
POWER WINDOW<A30>
8-97313-022-0
01
1
0107-0206
562
CONTROL UNIT; ALARM
POWER WINDOW<A30>
8-97251-624-0
01
1
0207-0307
562
CONTROL UNIT; ALARM
8-97251-624-0
01
1
0308-
562
CONTROL UNIT; ALARM
M/T MUA 5 SPEED(RMN)
8-97124-977-2
01
1
9707-9908
562
CONTROL UNIT; ALARM
EXC. POWER WINDOW<A30>
8-97264-780-0
01
1
0107-0307
686
RESISTOR; MAP LAMP
EXC. POWER WINDOW<A30>
8-97306-253-0
01
1
0011-0106
64
341
68
53
659
33
125
33
591
691
305
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

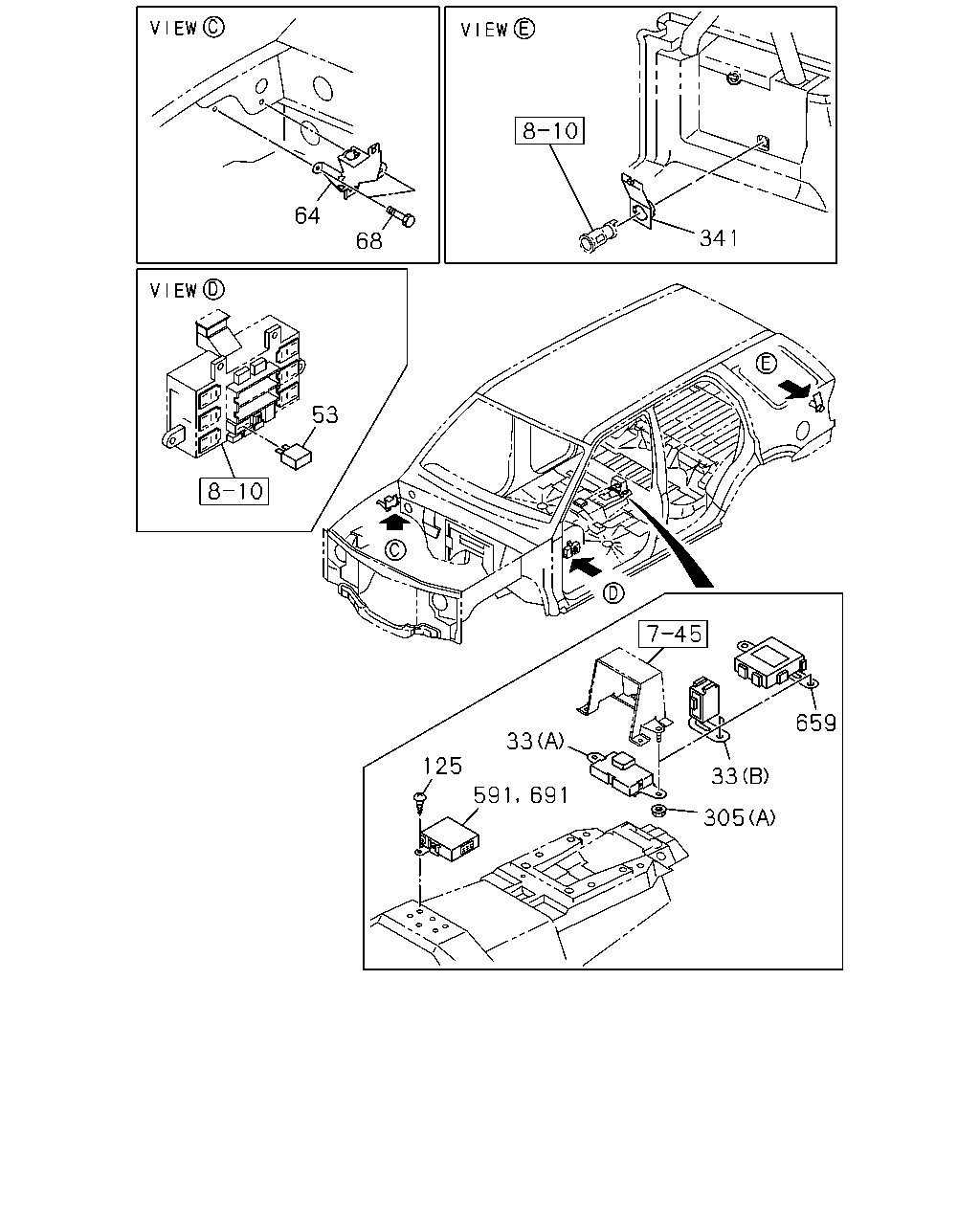

33
CONTROL UNIT; AUTO CRUISE
AUTO CRUISE CONT<K30> (A)
8-97139-317-1
01
1
9707-9807
33
CONTROL UNIT; AUTO CRUISE
AUTO CRUISE CONT<K30> (B)
8-97182-877-0
01
1
9808-9908
53
BREAKER; ELEC CIRCUIT
POWER WINDOW<A30>
8-97106-113-0
01
1
9707-0307
53
BREAKER; ELEC CIRCUIT
8-97106-113-0
01
1
0308-
64
BRACKET; CONTROLLER
ANTI THEFT<UA6>
8-97138-447-0
01
1
9707-
68
BOLT; BRKT
ANTI THEFT<UA6> M6X16 FLANGE
0-28480-616-0
02
1
9707-
125
SCREW; CONTROLLER
M5X12 TAPPING
9-09829-321-1
02
1
9707-0206
125
SCREW; CONTROLLER
M5X12 TAPPING
9-09829-321-1
02
1
0207-
305
NUT; CONT UNIT
AUTO CRUISE CONT<K30> (A) M6 FLANGE
8-97063-399-0
02
1
9707-9807
305
NUT; CONT UNIT
AUTO CRUISE CONT<K30> (A) M6 FLANGE
8-97063-399-0
01
1
9808-9908
305
NUT; CONT UNIT
(A) M6 FLANGE
8-97063-399-0
02
1
9909-0007
305
NUT; CONT UNIT
(A) M6 FLANGE
8-97063-399-0
02
1
0008-0206
305
NUT; CONT UNIT
A/T AISIN(RMD) (B) M8 FLANGE
0-91150-108-0
02
1
0207-0307
305
NUT; CONT UNIT
(B) M8 FLANGE
0-91150-108-0
02
1
0308-
341
COVER ASM
8-97146-121-0
01
1
9707-9807
341
COVER ASM
ACCESSORY SOCKET LUGGAGE ROOM<6MP>
8-97146-121-0
01
1
9808-9911
341
COVER ASM
ACCESSORY SOCKET LUGGAGE ROOM<6MP> BLACK
8-97293-933-0
01
1
9912-0007
341
COVER ASM
INTERIOR COLOR GRAY(180) ACCESSORY SOCKET LUGGAGE ROOM<6MP> BLACK
8-97293-933-0
01
1
0008-0206
341
COVER ASM
INTERIOR COLOR BEIGE(181) ACCESSORY SOCKET LUGGAGE ROOM<6MP> LIGHT BEIGE
8-97293-934-0
01
1
0008-0206
591
CONTROL UNIT; TRANSFER
8-97165-958-0
01
1
9707-0206
659
CONTROL UNIT; INDICATOR
8-97211-828-1
01
1
9909-0007
659
CONTROL UNIT; INDICATOR
8-97211-828-1
01
1
0008-0106
659
CONTROL UNIT; INDICATOR
8-97302-231-1
01
1
0107-0206
691
CONTROLLER; TRANSFER
8-97351-959-1
01
1
0207-
349
163
668
174
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

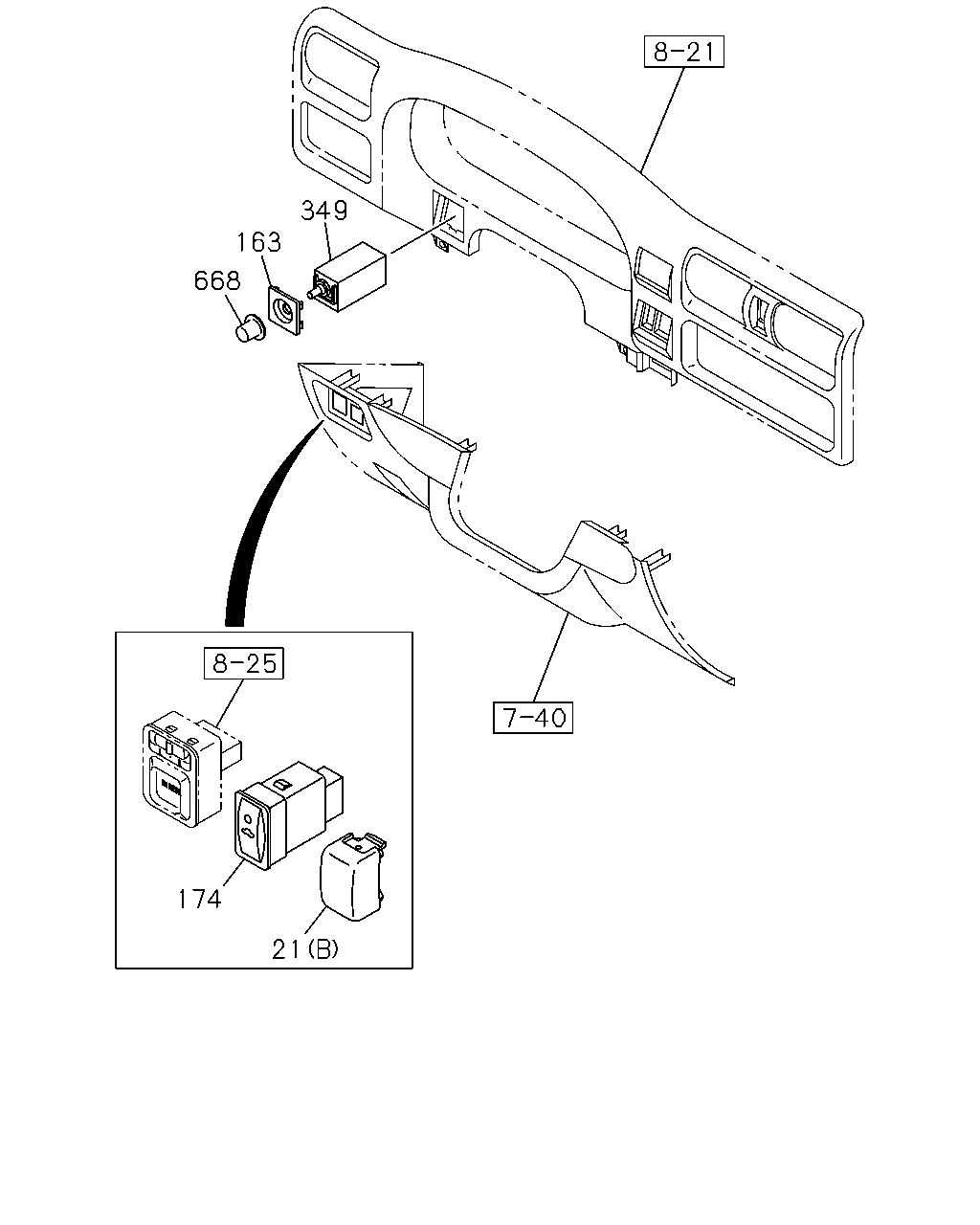

21
COVER; HOLE
(A) GRAY
8-97171-293-0
01
1
9707-9908
21
COVER; HOLE
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE
8-97228-572-0
01
1
9909-0206
21
COVER; HOLE
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE
8-97391-860-0
01
1
0207-
21
COVER; HOLE
EXC. ANTI THEFT<UA6> (B)
8-97081-617-1
01
1
9707-0206
21
COVER; HOLE
INTERIOR COLOR GRAY(180) (A) GRAY
8-97171-293-0
01
1
9909-0206
21
COVER; HOLE
INTERIOR COLOR TAUPE GRAY(182) (A) DARK GRAY
8-97391-859-0
01
1
0207-
163
BEZEL; RHEOSTAT
L=130.0
8-94434-436-1
01
1
9707-0206
174
INDICATOR; ANTI THEFT
ANTI THEFT<UA6>
8-97139-742-2
01
1
9707-0206
349
CONTROL; ILLUMINATION
8-97130-283-0
01
1
9707-0206
668
KNOB; ILLUMINATION CONT
8-94361-874-0
01
1
9707-0206
