Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10720 - CXZ RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-60B - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60B — ENGINE ELECTRICAL CONTROL PARTS
(#4265) — 134 parça
Tümü
A - 8PE1S
B - 10PE1S
C - 10PE1N
D - 10PE1H
◀
[060B] INSIDE (32 parça)
[060B] FIXING;RELAY,ENG CONT (2 parça)
[060B] CHASSIS SIDE (44 parça)
[060B] ENGINE SIDE (39 parça)
[060B] CLIP AND OTHER PARTS (17 parça)
▶

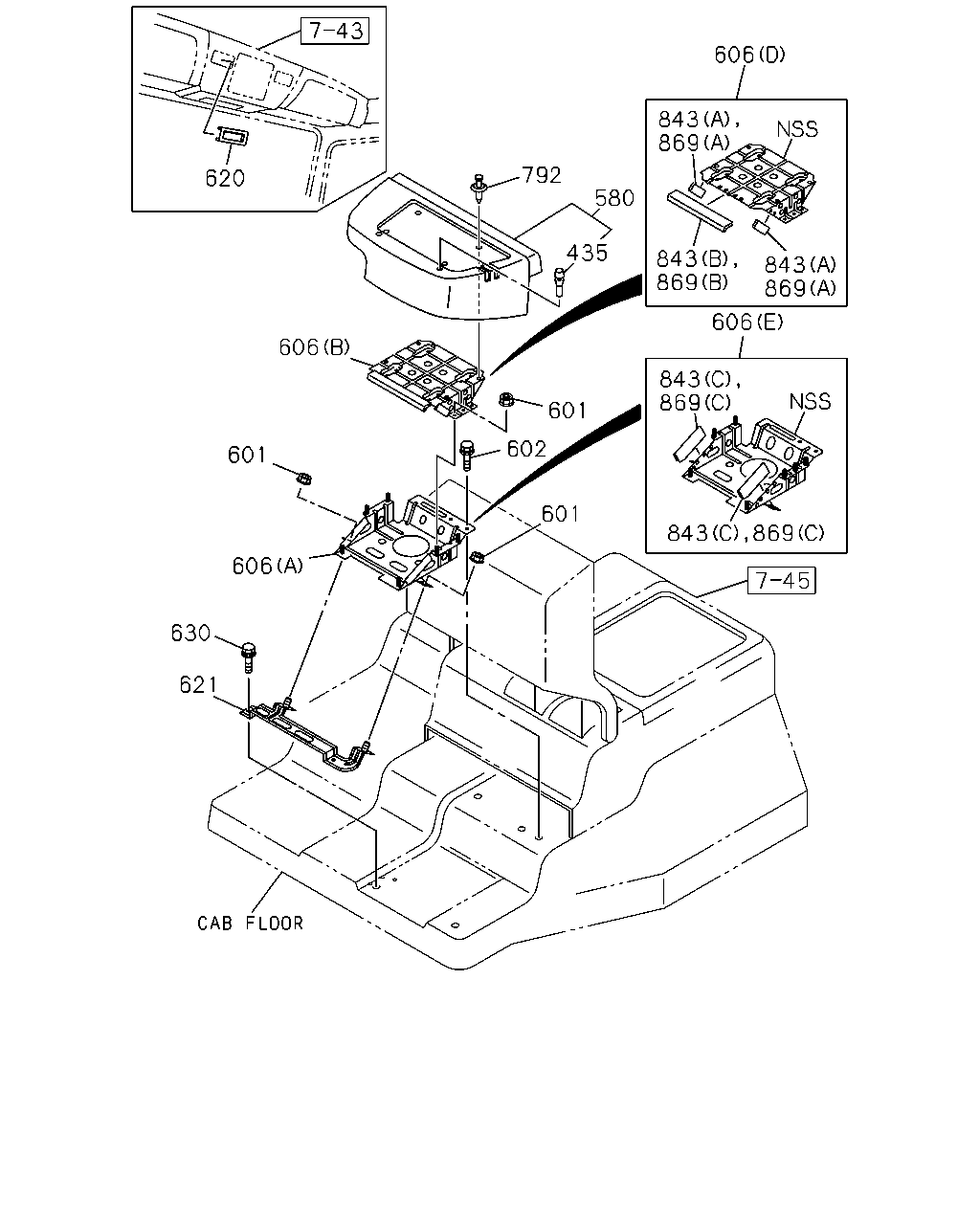

606
843
869
792
620
580
435
843
869
843
869
606
606
843
869
601
602
601
601
606
630
621
843
869
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
435
RUBBER; CUSHION
CENTER SEAT DELETE(SP9)
1-72537-138-0
02
1
9607-9904
●
●
435
RUBBER; CUSHION
CENTER SEAT DELETE(SP9)
1-72537-138-0
02
1
9905-
●
●
●
●
580
COVER; CONT UNIT
CENTER SEAT DELETE(SP9)
1-72537-102-3
01
1
9607-9904
●
●
580
COVER; CONT UNIT
CENTER SEAT DELETE(SP9)
1-72537-102-3
01
1
9905-
●
●
●
●
601
NUT; UNIT
CENTER SEAT DELETE(SP9) M6 FLANGE
0-91150-106-0
06
1
9607-9904
●
●
601
NUT; UNIT
CENTER SEAT DELETE(SP9) M6 FLANGE
0-91150-106-0
06
1
9905-
●
●
●
●
602
BOLT; BRKT
CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
9607-9904
●
●
602
BOLT; BRKT
CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
9905-
●
●
●
●
606
BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (B)
1-72537-112-5
01
1
9607-9611
●
●
606
BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (B)
1-72537-171-0
01
1
9612-9707
●
●
606
BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (D)
1-72537-197-1
01
1
9708-9812
●
●
606
BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (D)
1-72537-205-2
01
1
9901-
●
●
●
●
606
BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (A)
1-72537-099-3
01
1
9607-9707
●
●
606
BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (E)
1-72537-195-2
01
1
9708-9904
●
●
606
BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (E)
1-72537-195-2
01
1
9905-
●
●
●
●
620
BEZEL; CONT UNIT
1-72447-666-1
01
1
9706-9904
●
●
620
BEZEL; CONT UNIT
1-72447-666-1
01
1
9905-
●
●
●
●
621
SUPPORT; CONT UNIT
CENTER SEAT DELETE(SP9)
1-72537-097-1
01
1
9607-9904
●
●
621
SUPPORT; CONT UNIT
CENTER SEAT DELETE(SP9)
1-72537-097-1
01
1
9905-
●
●
●
●
630
SCREW; UNIT
CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
9607-9904
●
●
630
SCREW; UNIT
CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
9905-
●
●
●
●
792
FASTENER
CENTER SEAT DELETE(SP9)
1-09987-245-1
04
1
9607-9904
●
●
792
FASTENER
CENTER SEAT DELETE(SP9)
1-09987-245-1
04
1
9905-
●
●
●
●
843
SEAL; BRKT
CENTER SEAT DELETE(SP9) (A)
1-72497-062-0
02
1
9708-9709
●
●
843
SEAL; BRKT
CENTER SEAT DELETE(SP9) (C) 100X30
1-72498-014-1
02
1
9708-9709
●
●
843
SEAL; BRKT
CENTER SEAT DELETE(SP9) (B) 180X40
1-72498-019-0
01
1
9708-9709
●
●
869
FINISHER; BRKT
CENTER SEAT DELETE(SP9) (B) L=200 SERVICED BY L=880
1-73948-003-0
01
1
9710-9811
●
●
869
FINISHER; BRKT
CENTER SEAT DELETE(SP9) (B) L=200 SERVICED BY L=880
1-73948-003-0
01
1
9812-
●
●
●
●
869
FINISHER; BRKT
CENTER SEAT DELETE(SP9) (C) L=100 SERVICED BY L=880
1-73948-003-0
02
1
9710-9904
●
●
869
FINISHER; BRKT
CENTER SEAT DELETE(SP9) (C) L=100 SERVICED BY L=880
1-73948-003-0
02
1
9905-
●
●
●
●
869
FINISHER; BRKT
CENTER SEAT DELETE(SP9) (A) L=65 SERVICED BY L=880
1-73948-003-0
02
1
9710-9811
●
●
869
FINISHER; BRKT
CENTER SEAT DELETE(SP9) (A) L=65 SERVICED BY L=880
1-73948-003-0
02
1
9812-
●
●
●
●

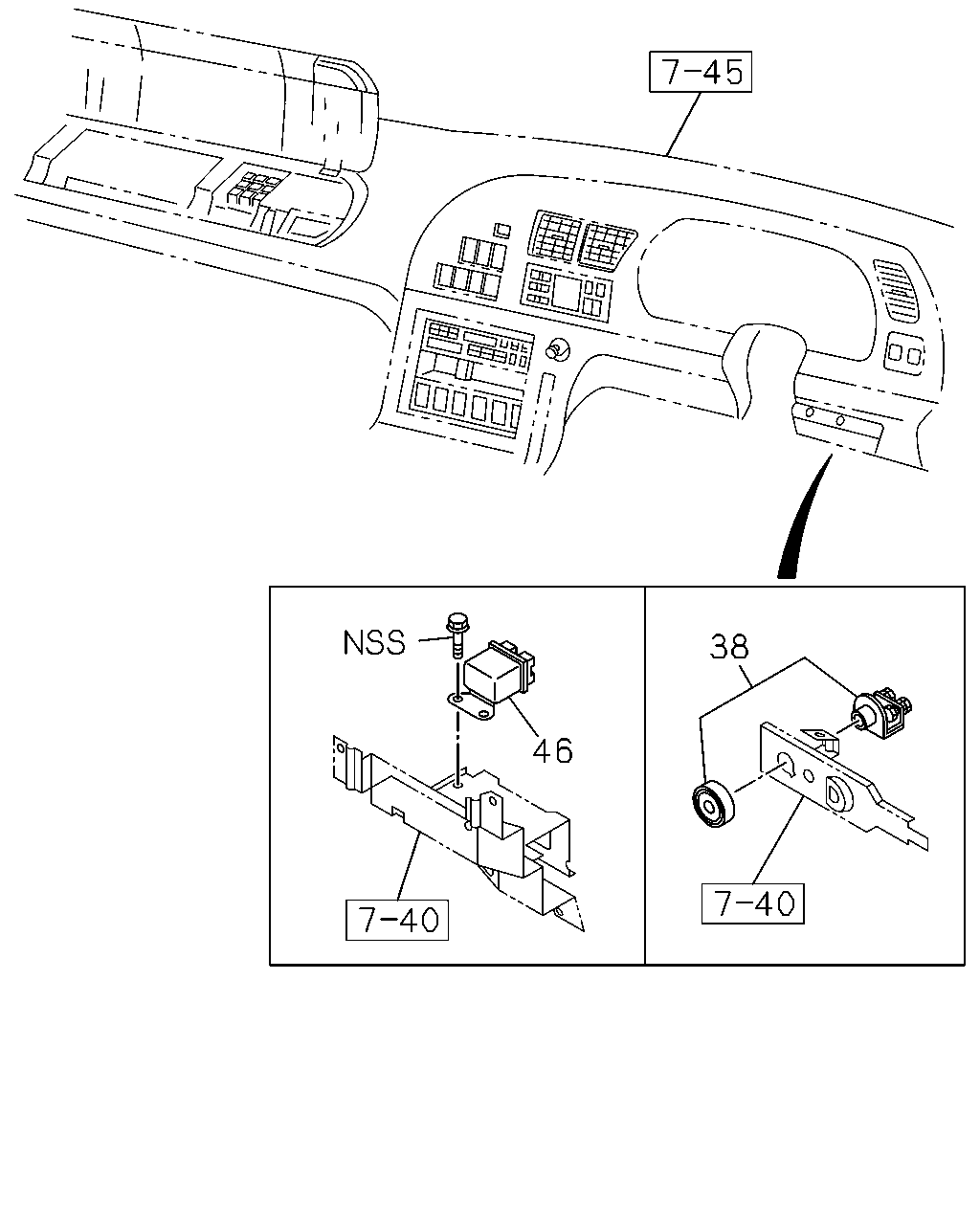

38
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
38
RESISTOR; CONT,GLOW PLUG
GLOW SYSTEM-FAST DIESEL ENGINE<KM6>
1-81402-008-0
01
1
0001-
●
●
●
●
46
RELAY; GLOW PLUG
GLOW SYSTEM-FAST DIESEL ENGINE<KM6>
8-94258-014-0
01
1
0001-
●
●
●
●

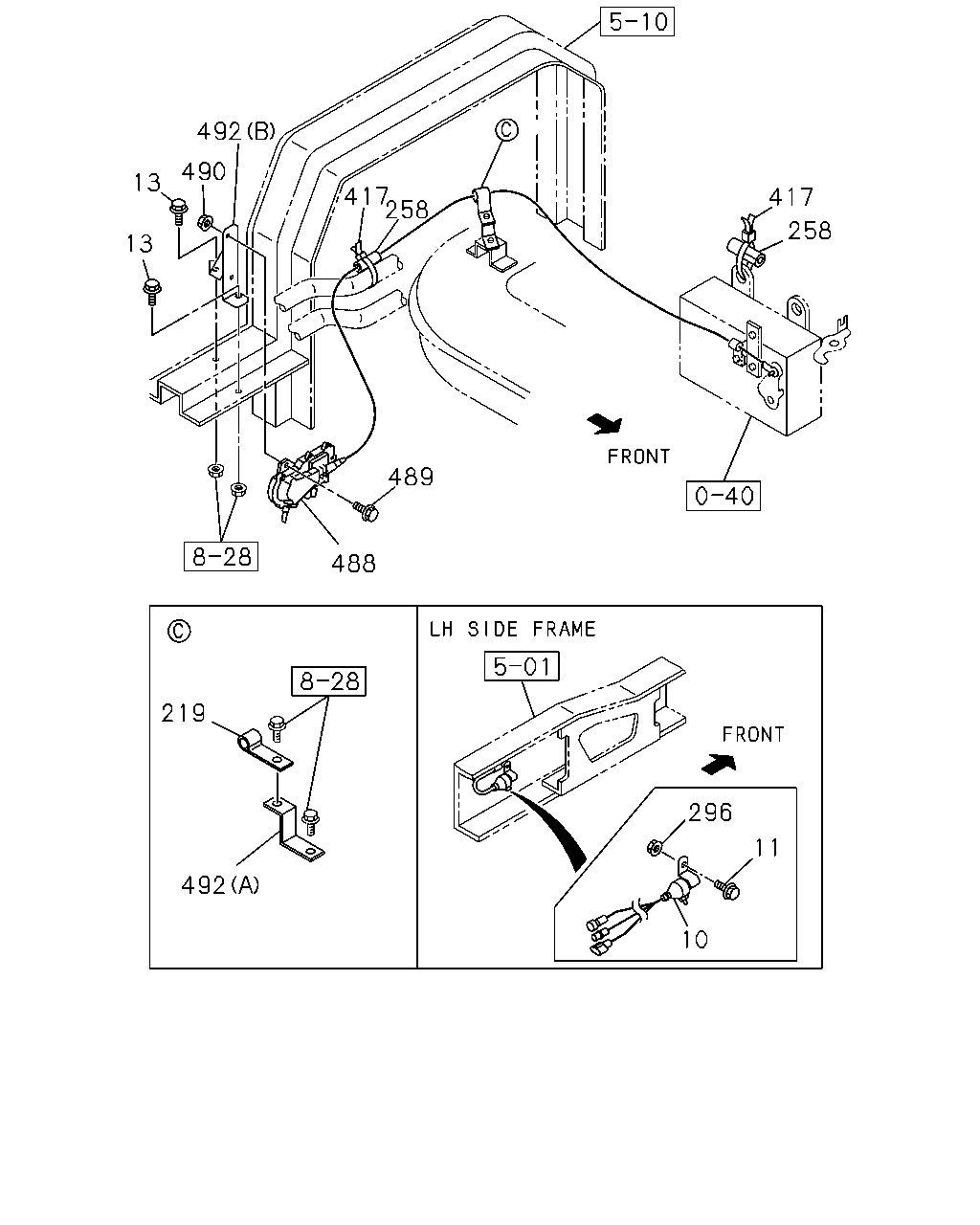

492
490
417
258
13
417
258
13
489
488
219
296
11
492
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
10
RELAY; STARTER
NIKKO
1-81171-071-0
01
1
9603-9606
●
●
10
RELAY; STARTER
NIKKO
1-81171-075-0
01
1
9607-9904
●
●
10
RELAY; STARTER
NIKKO
1-81171-075-1
01
1
9905-
●
●
●
●
10
RELAY; STARTER
HITACHI
1-81171-087-0
01
1
9904-9907
●
●
●
●
10
RELAY; STARTER
EXC. NIKKO<Y70> HITACHI
1-81171-087-0
01
1
9908-
●
●
●
●
11
BOLT; RELAY STARTER
M8X25 FLANGE
0-28080-825-0
02
1
9603-9606
●
●
11
BOLT; RELAY STARTER
M8X30 FLANGE
0-28680-830-0
02
1
9607-9802
●
●
11
BOLT; RELAY STARTER
FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE
0-28680-830-0
02
1
9803-9904
●
●
11
BOLT; RELAY STARTER
FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE
0-28680-830-0
02
1
9905-
●
●
●
●
11
BOLT; RELAY STARTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE
0-28680-825-0
02
1
9803-9904
●
●
11
BOLT; RELAY STARTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE
0-28680-825-0
02
1
9905-
●
●
●
●
13
BOLT; BRKT
EXC. RLD GOVERNOR(SD7) M8X20
0-28090-820-0
02
1
9603-9606
●
●
13
BOLT; BRKT
EXC. RLD GOVERNOR(SD7) M8X25 FLANGE
0-28690-825-0
02
1
9607-
●
●
219
CLIP; ENG STOP CABLE
ID=7 L=40
9-09524-675-0
01
1
9603-9904
●
●
219
CLIP; ENG STOP CABLE
ID=7 L=40
9-09524-675-0
01
1
9905-
●
●
●
●
258
SLEEVE; RUBBER OIL PIPE
ID=6 L=30
5-09360-352-0
02
1
9603-
●
258
SLEEVE; RUBBER OIL PIPE
ID=10 OD=14 L=30
9-09956-682-0
01
1
9603-9904
●
●
258
SLEEVE; RUBBER OIL PIPE
ID=10 OD=14 L=30
9-09956-682-0
01
1
9905-
●
●
●
●
258
SLEEVE; RUBBER OIL PIPE
ID=6 L=30
5-09360-352-0
01
1
9603-9904
●
258
SLEEVE; RUBBER OIL PIPE
ID=6 L=30
5-09360-352-0
01
1
9905-
●
●
●
296
NUT; RELAY,STARTER
M8
9-09110-408-0
02
1
9603-9606
●
●
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
9607-9904
●
●
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
9905-
●
●
●
●
417
CLIP
L=140
5-09707-031-1
02
1
9603-9904
●
417
CLIP
L=140
5-09707-031-1
02
1
9905-
●
●
●
488
STOPPER; ENG
1-82840-133-2
01
1
9603-9904
●
488
STOPPER; ENG
RLD GOVERNOR(SD7)
1-82840-133-2
01
1
9603-9904
●
488
STOPPER; ENG
1-82840-133-2
01
1
9905-
●
488
STOPPER; ENG
RLD GOVERNOR(SD7)
1-82840-133-2
01
1
9905-
●
488
STOPPER; ENG
EXC. RLD GOVERNOR(SD7)
1-82840-151-1
01
1
9603-9904
●
488
STOPPER; ENG
1-82840-151-1
01
1
9905-
●
●
488
STOPPER; ENG
EXC. RLD GOVERNOR(SD7)
1-82840-151-1
01
1
9905-
●
489
BOLT; ENG STOPPER
M8X20 FLANGE
0-28080-820-0
02
1
9603-9606
●
●
489
BOLT; ENG STOPPER
M8X25 FLANGE
0-28680-825-0
02
1
9607-9609
●
●
489
BOLT; ENG STOPPER
M8X25 FLANGE
0-28680-825-0
02
1
9610-9807
●
●
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER
0-50140-825-0
02
1
9808-9904
●
●
489
BOLT; ENG STOPPER
M8X25 FLANGE
0-28680-825-0
02
1
9905-
●
●
●
●
490
NUT; ENG STOP
M8
9-09110-408-0
02
1
9603-9606
●
●
490
NUT; ENG STOP
M8 FLANGE
0-91150-108-0
02
1
9607-9609
●
●
490
NUT; ENG STOP
M8 FLANGE
0-91150-108-0
02
1
9610-9904
●
●
490
NUT; ENG STOP
M8 FLANGE
0-91150-108-0
02
1
9905-
●
●
●
●
492
BRACKET; ENG STOPPER
(A)
1-47477-415-0
01
1
9603-9904
●
●
492
BRACKET; ENG STOPPER
(A)
1-47477-415-0
01
1
9905-
●
●
●
●
492
BRACKET; ENG STOPPER
EXC. RLD GOVERNOR(SD7) (B)
1-47475-654-2
01
1
9603-
●
●

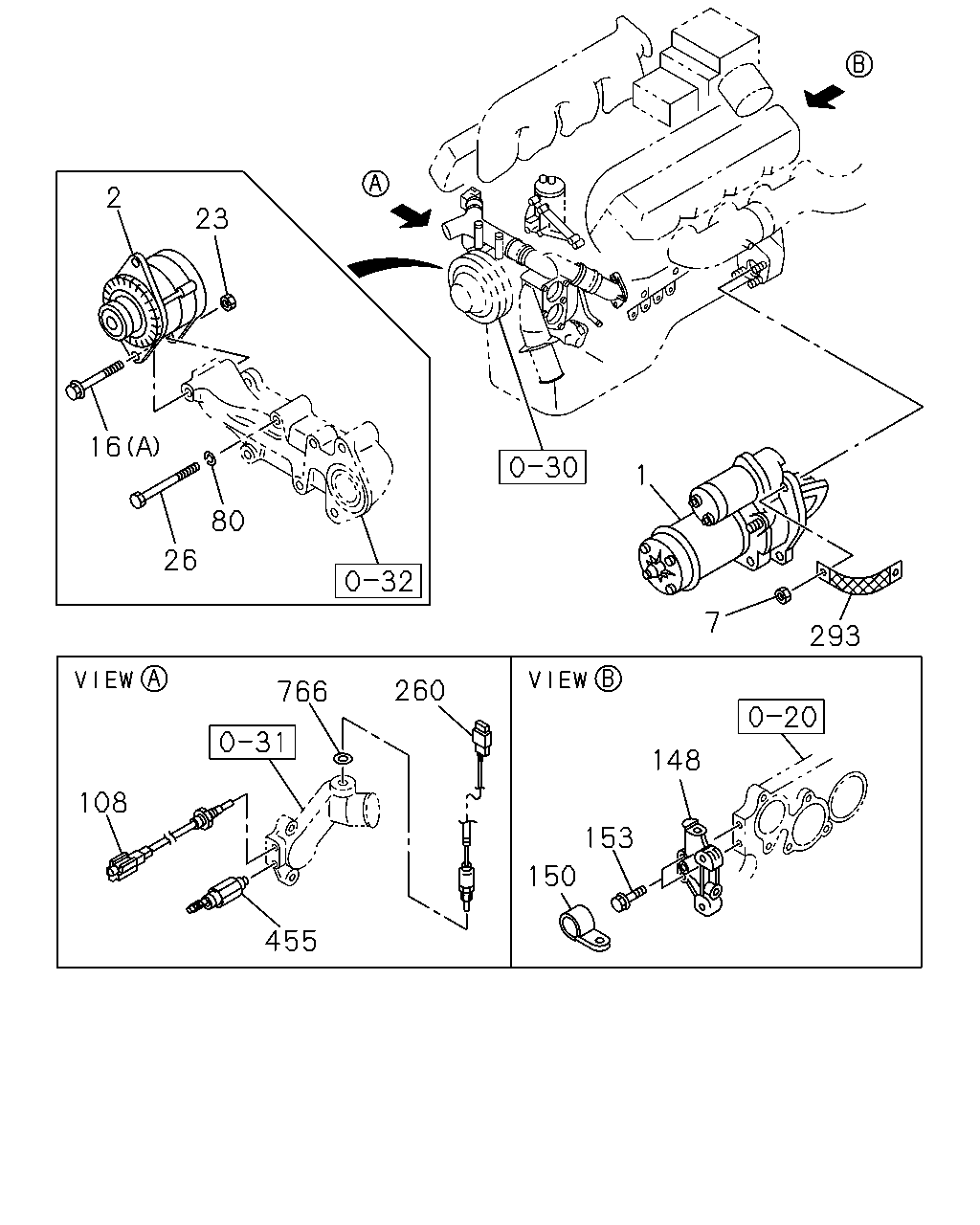

2
23
16
1
80
26
7
293
260
766
148
108
153
150
455
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO
1-81100-302-0
01
1
9603-9708
●
●
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO
1-81100-327-0
01
1
9709-9904
●
●
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO
1-81100-327-0
01
1
9905-
●
●
●
●
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI
1-81100-345-0
01
1
9904-9904
●
●
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI
1-81100-345-0
01
1
9905-9907
●
●
●
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO
1-81200-459-2
01
1
9603-9904
●
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A NIKKO
1-81200-470-3
01
1
9905-
●
●
●
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI
1-81200-521-0
01
1
9904-9904
●
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI
1-81200-522-0
01
1
9905-9907
●
●
●
●
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
03
1
9603-9706
●
●
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
03
1
9707-9904
●
●
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
03
1
9905-
●
●
●
●
16
BOLT; GEN
(A) M14X123
9-09801-204-1
01
1
9603-9706
●
●
16
BOLT; GEN
(A) M14X123
9-09801-204-1
01
1
9707-9904
●
●
16
BOLT; GEN
(A) M14X123
9-09801-204-1
01
1
9905-0010
●
●
●
●
16
BOLT; GEN
(A) M14X123
9-09801-204-1
01
1
0011-
●
●
●
●
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
9603-9904
●
●
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
9905-
●
●
●
●
26
BOLT; GEN BRKT
M10X70
9-01666-070-0
03
1
9603-9611
●
●
26
BOLT; GEN BRKT
M10X70
9-01661-070-0
03
1
9612-9904
●
●
26
BOLT; GEN BRKT
M10X70
9-01661-070-0
03
1
9905-
●
●
●
●
80
WASHER; LK,DUCT & BRKT
ID=10.2
9-09150-610-0
03
1
9603-9904
●
●
80
WASHER; LK,DUCT & BRKT
ID=10.2
9-09150-610-0
03
1
9905-
●
●
●
●
108
SWITCH; THERMO
1-83161-031-1
01
1
9603-9904
●
●
108
SWITCH; THERMO
1-83161-031-1
01
1
9905-
●
●
●
●
148
BRACKET; SOLENOID VLV
EXC. ENGINE REAR PTO(SV1)
1-81919-028-0
01
1
9603-9904
●
●
148
BRACKET; SOLENOID VLV
EXC. ENGINE REAR PTO(SV1)
1-81919-028-0
01
1
9905-
●
●
●
●
150
CLIP; HARNESS,SOLENOID VLV
ID=11 L=16
9-09525-025-0
01
1
9703-9904
●
●
150
CLIP; HARNESS,SOLENOID VLV
ID=11 L=16
9-09525-025-0
01
1
9905-
●
●
●
●
153
BOLT; BRKT FIX
EXC. ENGINE REAR PTO(SV1) M10X40 FLANGE
0-28181-040-0
02
1
9603-9904
●
●
153
BOLT; BRKT FIX
EXC. ENGINE REAR PTO(SV1) M10X40 FLANGE
0-28181-040-0
02
1
9905-
●
●
●
●
260
SENSOR; WATER TEMP
1-81535-053-1
01
1
9603-9904
●
●
293
CABLE; STARTER EARTH
L=350
1-82650-235-0
01
1
9603-9706
●
●
293
CABLE; STARTER EARTH
L=350
1-82650-235-0
01
1
9707-9904
●
●
293
CABLE; STARTER EARTH
L=350
1-82650-235-0
01
1
9905-
●
●
●
●
455
SWITCH; ENG OVER HEAT,WATER
1-82450-013-0
01
1
9603-9904
●
●
455
SWITCH; ENG OVER HEAT,WATER
1-82450-013-0
01
1
9905-9906
●
766
GASKET; SENSOR
ID=12.2
1-09630-084-0
01
1
9603-9904
●
●
766
GASKET; SENSOR
ID=12.2
1-09630-084-0
01
1
9905-
●
●
●
●
158
155
438
456
441
441
428
428
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
155
HOSE; FLEX,VGS GOV CONT
GOVERNOR CONTROL<W69>
0-07846-310-1
01
1
9603-
●
158
GASKET; FLEX HOSE
GOVERNOR CONTROL<W69> ID=11 OD=18
9-09572-510-0
02
1
9603-
●
428
CLIP; HARNESS
(A) ID=31.5 H=23 L=25
1-09701-017-0
01
1
9603-9904
●
●
428
CLIP; HARNESS
(A) ID=31.5 H=23 L=25
1-09701-017-0
01
1
9905-
●
●
●
●
428
CLIP; HARNESS
(B) ID=26 L=26
1-09701-236-0
01
1
9603-9904
●
●
428
CLIP; HARNESS
(B) ID=26 L=26
1-09701-236-0
01
1
9905-
●
●
●
●
428
CLIP; HARNESS
(B) ID=32 L=35
1-09701-244-0
01
1
9603-9904
●
●
428
CLIP; HARNESS
(B) ID=32 L=35
1-09701-244-0
01
1
9905-
●
●
●
●
438
CABLE; OIL FILTER SW
1-82657-062-0
01
1
9603-9904
●
●
438
CABLE; OIL FILTER SW
1-82657-062-1
01
1
9905-
●
●
●
●
441
BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE
0-28080-820-0
01
1
9603-9606
●
●
441
BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE
0-28680-820-0
01
1
9607-9705
●
●
441
BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE
0-28080-820-0
01
1
9706-9904
●
●
441
BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE
0-28080-820-0
01
1
9905-
●
●
●
●
441
BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
9603-9904
●
●
441
BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
9905-
●
●
●
●
456
CLIP; OIL PRESSURE SW
L=36
8-94224-891-1
01
1
9603-9906
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
