8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#42649) — 262 parça

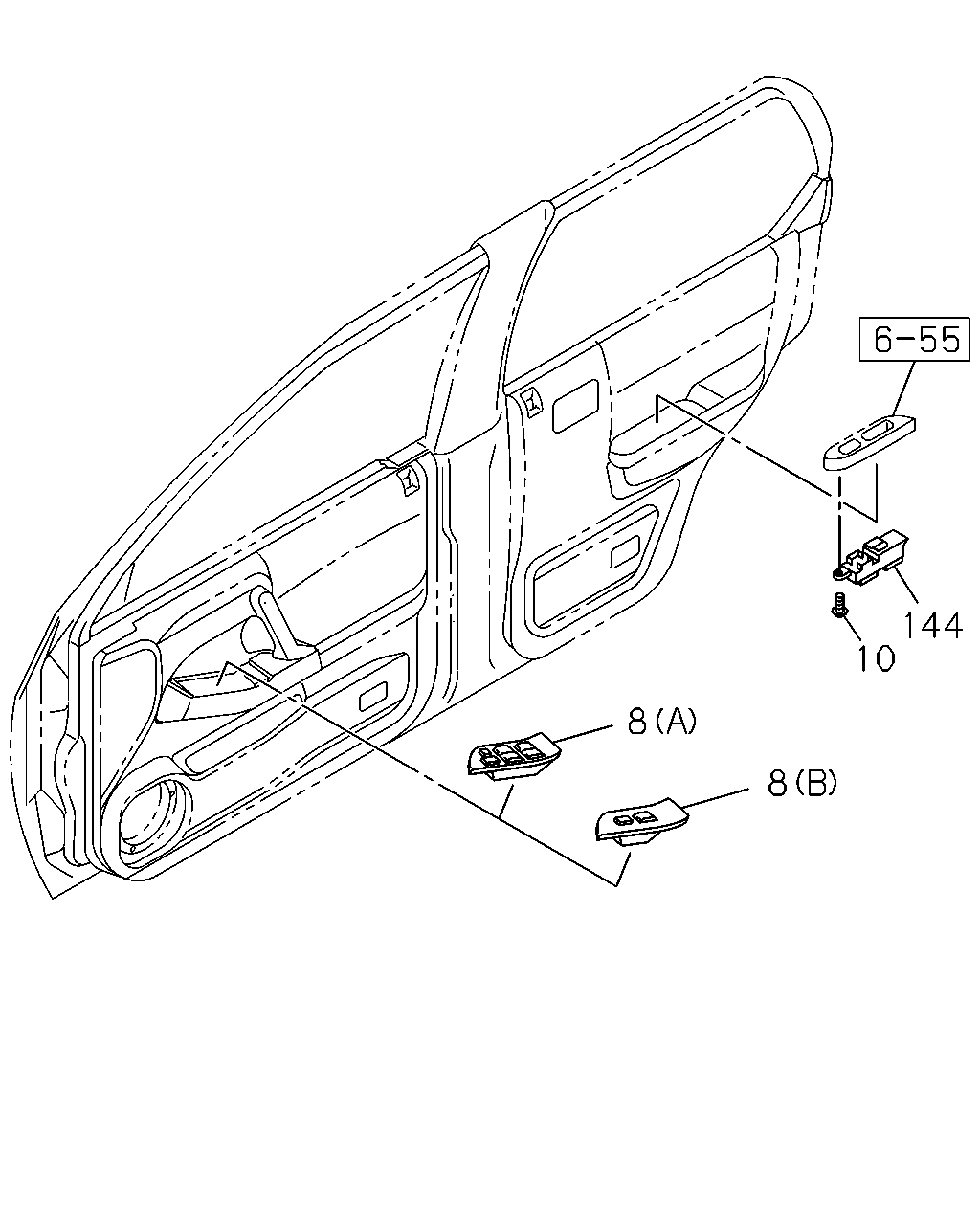

çizim 19538
144 10 8 8
BalonParca AdiParca NoAdetTipApplied Date
8 SWITCH; POWER WINDOW
GRADE LS/LSE(RBD) POWER WINDOW<A30> (A) 		8-97232-512-0 01 1 9909-0007
8 SWITCH; POWER WINDOW
GRADE LS/LSE(RBD) POWER WINDOW<A30> (A) 		8-97237-189-2 01 1 0008-0307
8 SWITCH; POWER WINDOW
GRADE LS/LSE(RBD) (A) 		8-97237-189-2 01 1 0308-
8 SWITCH; POWER WINDOW
GRADE LS/LSE(RBD) POWER WINDOW<A30> (B) 		8-97232-514-0 01 1 9909-0007
8 SWITCH; POWER WINDOW
GRADE LS/LSE(RBD) POWER WINDOW<A30> (B) 		8-97237-190-1 01 1 0008-0307
8 SWITCH; POWER WINDOW
GRADE LS/LSE(RBD) (B) 		8-97237-190-1 01 1 0308-
8 SWITCH; POWER WINDOW
GRADE S(RBA),GRADE LS(RBB) POWER WINDOW<A30> (A) 		8-97227-831-0 01 1 9909-0007
8 SWITCH; POWER WINDOW
GRADE S(RBA),GRADE LS(RBB) POWER WINDOW<A30> (A) BLACK 		8-97293-839-2 01 1 0008-0307
8 SWITCH; POWER WINDOW
GRADE LS(RBB) (A) BLACK 		8-97293-839-2 01 1 0308-
8 SWITCH; POWER WINDOW
GRADE S(RBA),GRADE LS(RBB) POWER WINDOW<A30> (B) 		8-97227-833-0 01 1 9909-0007
8 SWITCH; POWER WINDOW
GRADE S(RBA),GRADE LS(RBB) POWER WINDOW<A30> (B) BLACK 		8-97293-841-1 01 1 0008-0307
8 SWITCH; POWER WINDOW
GRADE LS(RBB) (B) BLACK 		8-97293-841-1 01 1 0308-
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> WOOD PRINT TRIM<7QR> (A) 		8-97135-927-1 01 1 9707-9908
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> WOOD PRINT TRIM<7QR> (B) 		8-97135-929-1 01 1 9707-9908
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> EXC. WOOD PRINT TRIM<7QR> (A) 		8-97122-100-1 01 1 9707-9807
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> EXC. WOOD PRINT TRIM<7QR> (A) 		8-97206-479-0 01 1 9808-9908
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> EXC. WOOD PRINT TRIM<7QR> (B) 		8-97122-101-1 01 1 9707-9807
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> EXC. WOOD PRINT TRIM<7QR> (B) 		8-97206-481-0 01 1 9808-9908
10 SCREW; POWER WINDOW SW
POWER WINDOW<A30> M3X10 TAPPING 		9-07076-310-0 06 1 9707-0307
10 SCREW; POWER WINDOW SW
M3X10 TAPPING 		9-07076-310-0 06 1 0308-
144 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> 		8-97122-102-1 02 1 9707-0307
144 SWITCH; POWER WINDOW,RR 8-97122-102-1 02 1 0308-
774 SWITCH; POWER & WINTER
A/T THM(RMQ) 		8-97122-096-2 01 1 9707-9908
774 SWITCH; POWER & WINTER
A/T THM(RMQ) 		8-97239-238-0 01 1 9909-0206
774 SWITCH; POWER & WINTER
A/T AISIN(RMD) 		8-97239-238-1 01 1 0207-0307
774 SWITCH; POWER & WINTER 8-97355-341-0 01 1 0308-

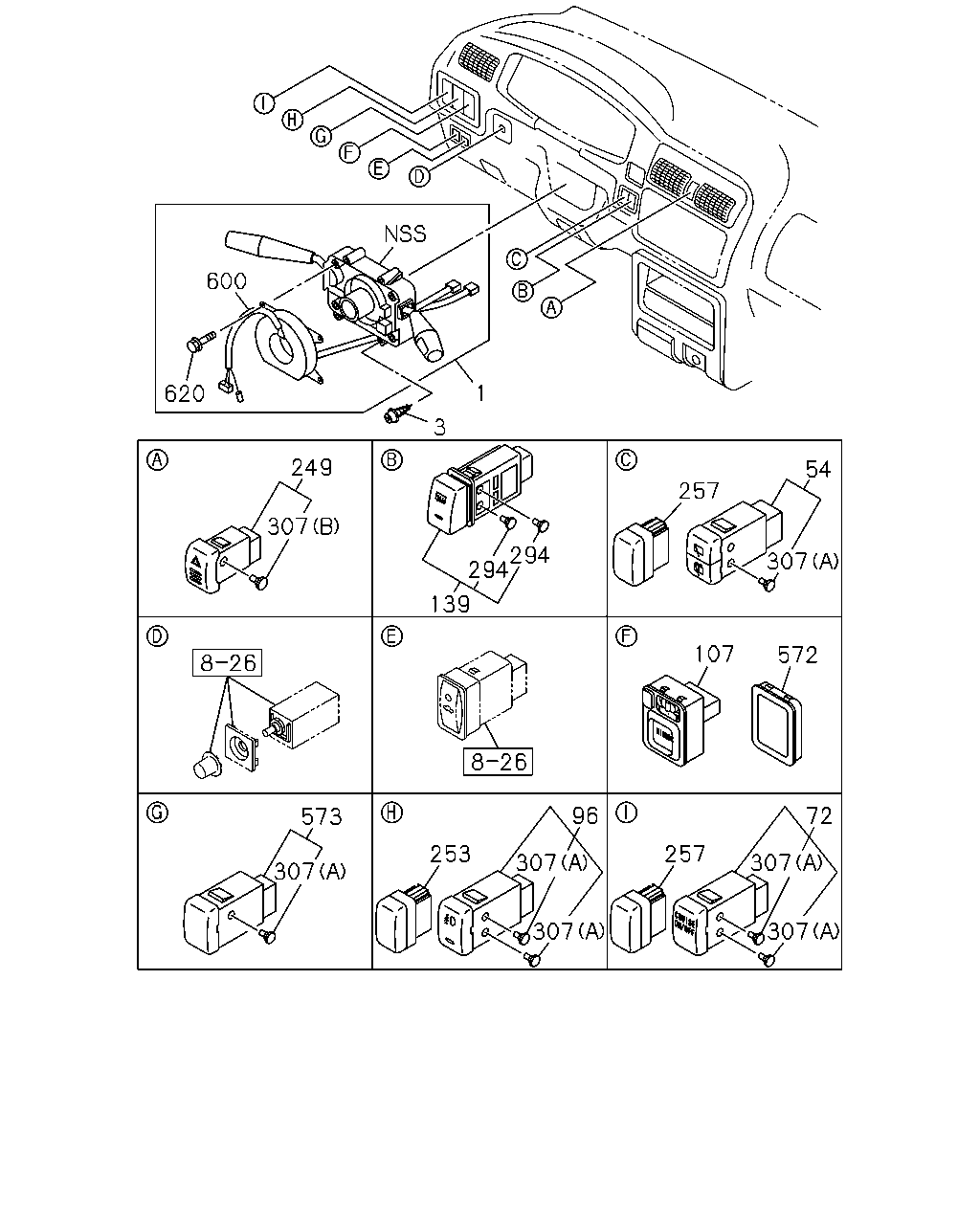

çizim 67248
600 1 620 3 249 54 257 307 294 294 307 139 107 572 96 72 573 253 257 307 307 307 307 307
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97167-402-2 01 1 9707-9807
1 SWITCH; COMB
AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97211-382-0 01 1 9808-9908
1 SWITCH; COMB
FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97211-382-2 01 1 9909-0007
1 SWITCH; COMB 8-97211-382-2 01 1 0008-0101
1 SWITCH; COMB 8-97310-448-2 01 1 0102-0206
1 SWITCH; COMB 8-97355-510-0 01 1 0207-
1 SWITCH; COMB
EXC. AUTO CRUISE CONT<K30>,FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97167-403-2 01 1 9707-9807
1 SWITCH; COMB
EXC. AUTO CRUISE CONT<K30>,FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97211-383-0 01 1 9808-9908
1 SWITCH; COMB
FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30> 		8-97211-388-0 01 1 9808-9908
1 SWITCH; COMB
EXC. FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97229-133-2 01 1 9911-0007
3 SCREW; COMB SW
M5X14 W/LK WASHER 		9-03910-514-0 04 1 9707-0402
3 SCREW; COMB SW
M5X14 W/LK WASHER 		9-03910-514-0 04 1 0403-
54 SWITCH; RR WIPER 8-97122-103-2 01 1 9707-9908
54 SWITCH; RR WIPER
RR WIPER W/INTERMITTENT<6WJ> 		8-97239-237-0 01 1 9909-0206
72 SWITCH; CRUISE CONT
AUTO CRUISE CONT<K30> 		8-97122-094-2 01 1 9707-9908
72 SWITCH; CRUISE CONT 8-97122-094-2 01 1 9909-0206
96 SWITCH; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97125-279-2 01 1 9707-0206
96 SWITCH; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97319-854-0 01 1 0207-
107 SWITCH; REMOTE CONT,MIRROR
DOOR MIRROR ELEC CONT W/DEF<7EV>,DOOR MIRROR ELEC CONT W/DEF BODY COLOR KEYED<7PP> 		8-97125-271-1 01 1 9707-9908
107 SWITCH; REMOTE CONT,MIRROR
DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELEC CONT W/DEF<7EV>,DOOR MIRROR ELEC CONT W/DEF BODY COLOR KEYED<7PP> 		8-97125-271-1 01 1 9909-0106
107 SWITCH; REMOTE CONT,MIRROR
DOOR MIRROR ELEC CONT W/DEF<7EV>,DOOR MIRROR ELEC CONT W/DEF BODY COLOR KEYED<7PP> 		8-97125-271-1 01 1 0107-
139 SWITCH; RR DEFOGGER 8-97125-277-2 01 1 9707-9711
139 SWITCH; RR DEFOGGER 8-97204-392-0 01 1 9712-9908
139 SWITCH; RR DEFOGGER 8-97239-232-0 01 1 9909-0206
139 SWITCH; RR DEFOGGER
RR WIPER W/INTERMITTENT<6WJ> 		8-97319-849-2 01 1 0207-0307
139 SWITCH; RR DEFOGGER 8-97319-849-2 01 1 0308-0402
139 SWITCH; RR DEFOGGER 8-97319-849-2 01 1 0403-
139 SWITCH; RR DEFOGGER
EXC. RR WIPER W/INTERMITTENT<6WJ> 		8-97319-850-2 01 1 0207-0307
249 SWITCH; HAZARD 8-97122-095-1 01 1 9707-0206
249 SWITCH; HAZARD 8-97320-055-1 01 1 0207-0402
249 SWITCH; HAZARD 8-97320-055-1 01 1 0403-
253 COVER; SW HOLE
EXC. FOG LAMP HALOGEN<T37> 		8-97122-099-1 01 1 9707-0206
253 COVER; SW HOLE
EXC. FOG LAMP HALOGEN<T37> 		8-97081-617-1 01 1 0207-
257 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> 		8-97122-099-0 01 1 9707-9908
257 COVER; HOLE,SW
EXC. RR WIPER W/INTERMITTENT<6WJ> 		8-97122-099-1 01 1 9909-0206
294 BULB; DEFOGGER SW
WHITE 		8-97207-552-0 01 1 9707-9908
294 BULB; DEFOGGER SW
AMBER 		8-97207-553-0 01 1 9707-0206
294 BULB; DEFOGGER SW
AMBER 		8-97352-441-0 01 1 0207-0402
294 BULB; DEFOGGER SW
AMBER 		8-97352-441-0 01 1 0403-
294 BULB; DEFOGGER SW
WHITE 		8-97225-933-0 01 1 9909-0206
294 BULB; DEFOGGER SW
RR WIPER W/INTERMITTENT<6WJ> WHITE 		8-97352-442-0 02 1 0207-0307
294 BULB; DEFOGGER SW
WHITE 		8-97352-442-0 02 1 0308-0402
294 BULB; DEFOGGER SW
WHITE 		8-97352-442-0 02 1 0403-
294 BULB; DEFOGGER SW
EXC. RR WIPER W/INTERMITTENT<6WJ> WHITE 		8-97352-442-0 01 1 0207-0307
307 BULB ASM; SW
(B) 		8-97229-470-0 01 1 9707-0206
307 BULB ASM; SW
(C) 		8-97352-440-0 01 1 0207-0402
307 BULB ASM; SW 8-97352-440-0 01 1 0403-
307 BULB ASM; SW
(G) WHITE 		8-97352-445-0 02 1 0207-
307 BULB ASM; SW
A/T THM(RMQ) (A) WHITE 		8-97207-552-0 02 1 9707-9908
307 BULB ASM; SW
(A) WHITE 		8-97207-552-0 02 1 9707-9908
307 BULB ASM; SW
(A) WHITE 		8-97207-552-0 01 1 9707-0206
307 BULB ASM; SW
(A) WHITE 		8-97207-552-0 01 1 9707-0206
307 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) WHITE 		8-97207-552-0 01 1 9707-0206
307 BULB ASM; SW
(F) GREEN 		8-97352-444-0 01 1 0207-
307 BULB ASM; SW
A/T THM(RMQ) (A) WHITE 		8-97225-933-0 02 1 9909-0206
307 BULB ASM; SW
RR WIPER W/INTERMITTENT<6WJ> (A) WHITE 		8-97225-933-0 02 1 9909-0206
307 BULB ASM; SW
A/T AISIN(RMD) (A) WHITE 		8-97225-933-0 02 1 0207-0307
307 BULB ASM; SW
ACTIVE RIDE CONTROL(7WD) (A) WHITE 		8-97225-933-0 01 1 0107-
307 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) GREEN 		8-97229-469-0 01 1 9707-9908
307 BULB ASM; SW
(A) GREEN 		8-97229-469-0 01 1 9909-0206
307 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) GREEN 		8-97229-469-0 01 1 9909-0206
307 BULB ASM; SW
(H) WHITE 		8-97352-443-0 01 1 0207-
307 BULB ASM; SW
FOG LAMP HALOGEN<T37> (D) 14V 0.7W 		8-97102-439-0 01 1 0207-
307 BULB ASM; SW
FOG LAMP HALOGEN<T37> (E) 14V 0.7W 		8-97211-939-0 01 1 0207-
572 LID; SW
EXC. DOOR MIRROR ELEC CONT W/DEF<7EV>,DOOR MIRROR ELEC CONT W/DEF BODY COLOR KEYED<7PP> 		8-97124-674-0 01 1 9707-9908
572 LID; SW
EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELEC CONT W/DEF<7EV>,DOOR MIRROR ELEC CONT W/DEF BODY COLOR KEYED<7PP> 		8-97124-674-0 01 1 9909-0106
572 LID; SW
EXC. DOOR MIRROR ELEC CONT W/DEF<7EV>,DOOR MIRROR ELEC CONT W/DEF BODY COLOR KEYED<7PP> 		8-97124-674-0 01 1 0107-
573 SWITCH; 4WD 8-97122-097-1 01 1 9707-0206
600 COIL ASM; SIR 8-97142-095-1 01 1 9708-9807
600 COIL ASM; SIR
EXC. AUTO CRUISE CONT<K30>,FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97211-392-0 01 1 9808-9908
600 COIL ASM; SIR
FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97211-392-0 01 1 9808-9908
600 COIL ASM; SIR
FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97211-392-2 01 1 9909-0007
600 COIL ASM; SIR 8-97211-392-2 01 1 0008-0101
600 COIL ASM; SIR 8-97310-444-0 01 1 0102-0204
600 COIL ASM; SIR 8-97324-849-0 01 1 0205-0206
600 COIL ASM; SIR 8-97355-615-0 01 1 0207-
620 SCREW; COIL,COMB SW 8-97166-506-0 06 1 9707-9908
620 SCREW; COIL,COMB SW
FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97166-506-0 06 1 9909-0007
620 SCREW; COIL,COMB SW 8-97166-506-0 06 1 0008-
774 SWITCH; POWER & WINTER
A/T THM(RMQ) 		8-97122-096-2 01 1 9707-9908
774 SWITCH; POWER & WINTER
A/T THM(RMQ) 		8-97239-238-0 01 1 9909-0206
774 SWITCH; POWER & WINTER
A/T AISIN(RMD) 		8-97239-238-1 01 1 0207-0307
774 SWITCH; POWER & WINTER 8-97355-341-0 01 1 0308-
çizim 71015
85 99 490 277 154 151 151 531 482 186
BalonParca AdiParca NoAdetTipApplied Date
85 RELAY; HEADLAMP
12V OMRON 		8-97125-441-0 01 1 9707-9908
85 RELAY; HEADLAMP 8-97231-264-0 01 1 9909-0402
85 RELAY; HEADLAMP 8-97231-264-0 01 1 0403-
99 RELAY; FOG LAMP
FOG LAMP HALOGEN<T37> 12V OMRON 		8-97125-441-0 01 1 9707-9908
99 RELAY; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97231-264-0 01 1 9909-
151 RELAY; HTR & A/C
12V OMRON 		8-97125-441-1 01 1 9707-0202
151 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 12V OMRON 		8-97125-441-1 01 1 9707-0202
151 RELAY; HTR & A/C 8-97332-169-0 01 1 0203-0307
151 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97332-169-0 01 1 0203-0307
151 RELAY; HTR & A/C 8-97332-169-0 01 1 0308-
151 RELAY; HTR & A/C 8-97332-169-0 01 1 0308-
154 RELAY; CONDENSER FAN
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 12V OMRON 		8-97125-441-0 01 1 9707-9908
154 RELAY; CONDENSER FAN
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97231-264-0 01 1 9909-0206
154 RELAY; CONDENSER FAN
A/T AISIN(RMD) AIR CONDITIONER MANUAL CONT(C60) 		8-97231-264-0 01 1 0207-0307
154 RELAY; CONDENSER FAN 8-97231-264-0 01 1 0308-
186 BRACKET; RELAY BOX
ACTIVE RIDE CONTROL(7WD) 		8-97183-113-0 01 1 9909-
277 RELAY; FUEL PUMP
12V OMRON 		8-97125-441-1 01 1 9707-0202
277 RELAY; FUEL PUMP 8-97332-169-0 01 1 0203-
482 BOLT; BRKT
ACTIVE RIDE CONTROL(7WD) M6X16 FLANGE 		0-28480-616-0 01 1 9909-
490 RELAY; THERMO
AIR CONDITIONER MANUAL CONT(C60) 12V OMRON 		8-97125-441-0 01 1 9707-9908
490 RELAY; THERMO
AIR CONDITIONER MANUAL CONT(C60) 		8-97231-264-0 01 1 9909-0307
490 RELAY; THERMO 8-97231-264-0 01 1 0308-
531 RELAY; ECU
12V OMRON 		8-97125-441-0 01 1 9707-9908
531 RELAY; ECU 8-97231-264-0 01 1 9909-
774 SWITCH; POWER & WINTER
A/T THM(RMQ) 		8-97122-096-2 01 1 9707-9908
774 SWITCH; POWER & WINTER
A/T THM(RMQ) 		8-97239-238-0 01 1 9909-0206
774 SWITCH; POWER & WINTER
A/T AISIN(RMD) 		8-97239-238-1 01 1 0207-0307
774 SWITCH; POWER & WINTER 8-97355-341-0 01 1 0308-

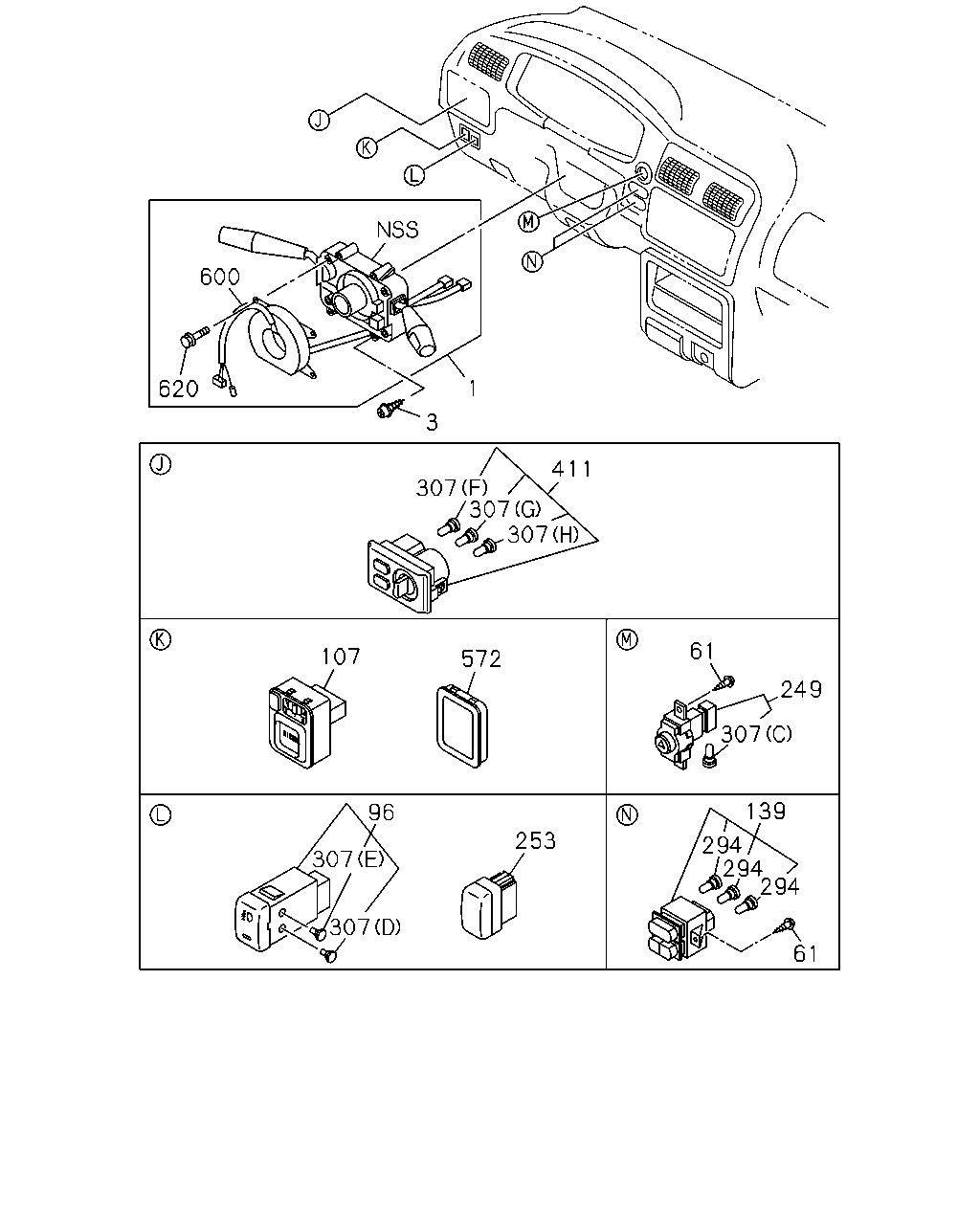

çizim 71863
600 1 620 3 411 307 307 307 61 107 572 249 307 139 96 253 294 294 294 307 307 61
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97167-402-2 01 1 9707-9807
1 SWITCH; COMB
AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97211-382-0 01 1 9808-9908
1 SWITCH; COMB
FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97211-382-2 01 1 9909-0007
1 SWITCH; COMB 8-97211-382-2 01 1 0008-0101
1 SWITCH; COMB 8-97310-448-2 01 1 0102-0206
1 SWITCH; COMB 8-97355-510-0 01 1 0207-
1 SWITCH; COMB
EXC. AUTO CRUISE CONT<K30>,FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97167-403-2 01 1 9707-9807
1 SWITCH; COMB
EXC. AUTO CRUISE CONT<K30>,FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97211-383-0 01 1 9808-9908
1 SWITCH; COMB
FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30> 		8-97211-388-0 01 1 9808-9908
1 SWITCH; COMB
EXC. FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97229-133-2 01 1 9911-0007
3 SCREW; COMB SW
M5X14 W/LK WASHER 		9-03910-514-0 04 1 9707-0402
3 SCREW; COMB SW
M5X14 W/LK WASHER 		9-03910-514-0 04 1 0403-
61 SCREW; SW
M5X16 		8-94295-854-0 04 1 0207-0402
61 SCREW; SW
M5X16 		8-94295-854-0 04 1 0403-
96 SWITCH; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97125-279-2 01 1 9707-0206
96 SWITCH; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97319-854-0 01 1 0207-
107 SWITCH; REMOTE CONT,MIRROR
DOOR MIRROR ELEC CONT W/DEF<7EV>,DOOR MIRROR ELEC CONT W/DEF BODY COLOR KEYED<7PP> 		8-97125-271-1 01 1 9707-9908
107 SWITCH; REMOTE CONT,MIRROR
DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELEC CONT W/DEF<7EV>,DOOR MIRROR ELEC CONT W/DEF BODY COLOR KEYED<7PP> 		8-97125-271-1 01 1 9909-0106
107 SWITCH; REMOTE CONT,MIRROR
DOOR MIRROR ELEC CONT W/DEF<7EV>,DOOR MIRROR ELEC CONT W/DEF BODY COLOR KEYED<7PP> 		8-97125-271-1 01 1 0107-
139 SWITCH; RR DEFOGGER 8-97125-277-2 01 1 9707-9711
139 SWITCH; RR DEFOGGER 8-97204-392-0 01 1 9712-9908
139 SWITCH; RR DEFOGGER 8-97239-232-0 01 1 9909-0206
139 SWITCH; RR DEFOGGER
RR WIPER W/INTERMITTENT<6WJ> 		8-97319-849-2 01 1 0207-0307
139 SWITCH; RR DEFOGGER 8-97319-849-2 01 1 0308-0402
139 SWITCH; RR DEFOGGER 8-97319-849-2 01 1 0403-
139 SWITCH; RR DEFOGGER
EXC. RR WIPER W/INTERMITTENT<6WJ> 		8-97319-850-2 01 1 0207-0307
249 SWITCH; HAZARD 8-97122-095-1 01 1 9707-0206
249 SWITCH; HAZARD 8-97320-055-1 01 1 0207-0402
249 SWITCH; HAZARD 8-97320-055-1 01 1 0403-
253 COVER; SW HOLE
EXC. FOG LAMP HALOGEN<T37> 		8-97122-099-1 01 1 9707-0206
253 COVER; SW HOLE
EXC. FOG LAMP HALOGEN<T37> 		8-97081-617-1 01 1 0207-
294 BULB; DEFOGGER SW
WHITE 		8-97207-552-0 01 1 9707-9908
294 BULB; DEFOGGER SW
AMBER 		8-97207-553-0 01 1 9707-0206
294 BULB; DEFOGGER SW
AMBER 		8-97352-441-0 01 1 0207-0402
294 BULB; DEFOGGER SW
AMBER 		8-97352-441-0 01 1 0403-
294 BULB; DEFOGGER SW
WHITE 		8-97225-933-0 01 1 9909-0206
294 BULB; DEFOGGER SW
RR WIPER W/INTERMITTENT<6WJ> WHITE 		8-97352-442-0 02 1 0207-0307
294 BULB; DEFOGGER SW
WHITE 		8-97352-442-0 02 1 0308-0402
294 BULB; DEFOGGER SW
WHITE 		8-97352-442-0 02 1 0403-
294 BULB; DEFOGGER SW
EXC. RR WIPER W/INTERMITTENT<6WJ> WHITE 		8-97352-442-0 01 1 0207-0307
307 BULB ASM; SW
(B) 		8-97229-470-0 01 1 9707-0206
307 BULB ASM; SW
(C) 		8-97352-440-0 01 1 0207-0402
307 BULB ASM; SW 8-97352-440-0 01 1 0403-
307 BULB ASM; SW
(G) WHITE 		8-97352-445-0 02 1 0207-
307 BULB ASM; SW
A/T THM(RMQ) (A) WHITE 		8-97207-552-0 02 1 9707-9908
307 BULB ASM; SW
(A) WHITE 		8-97207-552-0 02 1 9707-9908
307 BULB ASM; SW
(A) WHITE 		8-97207-552-0 01 1 9707-0206
307 BULB ASM; SW
(A) WHITE 		8-97207-552-0 01 1 9707-0206
307 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) WHITE 		8-97207-552-0 01 1 9707-0206
307 BULB ASM; SW
(F) GREEN 		8-97352-444-0 01 1 0207-
307 BULB ASM; SW
A/T THM(RMQ) (A) WHITE 		8-97225-933-0 02 1 9909-0206
307 BULB ASM; SW
RR WIPER W/INTERMITTENT<6WJ> (A) WHITE 		8-97225-933-0 02 1 9909-0206
307 BULB ASM; SW
A/T AISIN(RMD) (A) WHITE 		8-97225-933-0 02 1 0207-0307
307 BULB ASM; SW
ACTIVE RIDE CONTROL(7WD) (A) WHITE 		8-97225-933-0 01 1 0107-
307 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) GREEN 		8-97229-469-0 01 1 9707-9908
307 BULB ASM; SW
(A) GREEN 		8-97229-469-0 01 1 9909-0206
307 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) GREEN 		8-97229-469-0 01 1 9909-0206
307 BULB ASM; SW
(H) WHITE 		8-97352-443-0 01 1 0207-
307 BULB ASM; SW
FOG LAMP HALOGEN<T37> (D) 14V 0.7W 		8-97102-439-0 01 1 0207-
307 BULB ASM; SW
FOG LAMP HALOGEN<T37> (E) 14V 0.7W 		8-97211-939-0 01 1 0207-
411 SWITCH; TRANSFER
ANTI THEFT<UA6> BLACK 		8-97395-105-0 01 1 0207-
411 SWITCH; TRANSFER
EXC. ANTI THEFT<UA6> 		8-97319-836-2 01 1 0207-0212
411 SWITCH; TRANSFER
EXC. ANTI THEFT<UA6> BLACK 		8-97395-106-0 01 1 0301-
572 LID; SW
EXC. DOOR MIRROR ELEC CONT W/DEF<7EV>,DOOR MIRROR ELEC CONT W/DEF BODY COLOR KEYED<7PP> 		8-97124-674-0 01 1 9707-9908
572 LID; SW
EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELEC CONT W/DEF<7EV>,DOOR MIRROR ELEC CONT W/DEF BODY COLOR KEYED<7PP> 		8-97124-674-0 01 1 9909-0106
572 LID; SW
EXC. DOOR MIRROR ELEC CONT W/DEF<7EV>,DOOR MIRROR ELEC CONT W/DEF BODY COLOR KEYED<7PP> 		8-97124-674-0 01 1 0107-
600 COIL ASM; SIR 8-97142-095-1 01 1 9708-9807
600 COIL ASM; SIR
EXC. AUTO CRUISE CONT<K30>,FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97211-392-0 01 1 9808-9908
600 COIL ASM; SIR
FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97211-392-0 01 1 9808-9908
600 COIL ASM; SIR
FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97211-392-2 01 1 9909-0007
600 COIL ASM; SIR 8-97211-392-2 01 1 0008-0101
600 COIL ASM; SIR 8-97310-444-0 01 1 0102-0204
600 COIL ASM; SIR 8-97324-849-0 01 1 0205-0206
600 COIL ASM; SIR 8-97355-615-0 01 1 0207-
620 SCREW; COIL,COMB SW 8-97166-506-0 06 1 9707-9908
620 SCREW; COIL,COMB SW
FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97166-506-0 06 1 9909-0007
620 SCREW; COIL,COMB SW 8-97166-506-0 06 1 0008-
774 SWITCH; POWER & WINTER
A/T THM(RMQ) 		8-97122-096-2 01 1 9707-9908
774 SWITCH; POWER & WINTER
A/T THM(RMQ) 		8-97239-238-0 01 1 9909-0206
774 SWITCH; POWER & WINTER
A/T AISIN(RMD) 		8-97239-238-1 01 1 0207-0307
774 SWITCH; POWER & WINTER 8-97355-341-0 01 1 0308-
çizim 72258
17 633 29 30 29 30 242 631 140 307 307 524 12 57
BalonParca AdiParca NoAdetTipApplied Date
12 RELAY; POWER WINDOW
POWER WINDOW<A30> 		8-97125-444-0 01 1 9707-0307
12 RELAY; POWER WINDOW 8-97125-444-0 01 1 0308-
17 SWITCH; SUNROOF
INTERIOR COLOR BEIGE(181) SUNROOF<CF5> BEIGE 		8-97296-234-2 01 1 0008-0106
17 SWITCH; SUNROOF
INTERIOR COLOR BEIGE(181) SUNROOF<CF5> BEIGE 		8-97297-813-0 01 1 0107-
17 SWITCH; SUNROOF
SUNROOF<CF5> LIGHT GRAY 		8-97135-928-1 01 1 9707-0007
17 SWITCH; SUNROOF
INTERIOR COLOR GRAY(180) SUNROOF<CF5> LIGHT GRAY 		8-97135-928-2 01 1 0008-0106
17 SWITCH; SUNROOF
INTERIOR COLOR GRAY(180) SUNROOF<CF5> LIGHT GRAY 		8-97297-812-0 01 1 0107-0206
17 SWITCH; SUNROOF
INTERIOR COLOR TAUPE GRAY(182) SUNROOF<CF5> LIGHT GRAY 		8-97391-679-0 01 1 0207-
29 SWITCH; DOOR
(A) 		8-97031-639-2 02 1 9707-
29 SWITCH; DOOR
(B) 		8-97168-207-0 02 1 9707-0402
29 SWITCH; DOOR 8-97168-207-0 02 1 0403-
30 SCREW; DOOR SW
M5X14 		8-94120-095-0 04 1 9707-0402
30 SCREW; DOOR SW
M5X14 		8-94120-095-0 04 1 0403-
57 RELAY; SEAT HTR 8-97125-444-0 01 1 9707-0402
57 RELAY; SEAT HTR 8-97125-444-0 01 1 0403-
140 RELAY; RR DEFOGGER 8-97125-444-0 01 1 9707-
307 BULB ASM; SW
(B) 		8-97229-470-0 01 1 9707-0206
307 BULB ASM; SW
(C) 		8-97352-440-0 01 1 0207-0402
307 BULB ASM; SW 8-97352-440-0 01 1 0403-
307 BULB ASM; SW
(G) WHITE 		8-97352-445-0 02 1 0207-
307 BULB ASM; SW
A/T THM(RMQ) (A) WHITE 		8-97207-552-0 02 1 9707-9908
307 BULB ASM; SW
(A) WHITE 		8-97207-552-0 02 1 9707-9908
307 BULB ASM; SW
(A) WHITE 		8-97207-552-0 01 1 9707-0206
307 BULB ASM; SW
(A) WHITE 		8-97207-552-0 01 1 9707-0206
307 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) WHITE 		8-97207-552-0 01 1 9707-0206
307 BULB ASM; SW
(F) GREEN 		8-97352-444-0 01 1 0207-
307 BULB ASM; SW
A/T THM(RMQ) (A) WHITE 		8-97225-933-0 02 1 9909-0206
307 BULB ASM; SW
RR WIPER W/INTERMITTENT<6WJ> (A) WHITE 		8-97225-933-0 02 1 9909-0206
307 BULB ASM; SW
A/T AISIN(RMD) (A) WHITE 		8-97225-933-0 02 1 0207-0307
307 BULB ASM; SW
ACTIVE RIDE CONTROL(7WD) (A) WHITE 		8-97225-933-0 01 1 0107-
307 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) GREEN 		8-97229-469-0 01 1 9707-9908
307 BULB ASM; SW
(A) GREEN 		8-97229-469-0 01 1 9909-0206
307 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) GREEN 		8-97229-469-0 01 1 9909-0206
307 BULB ASM; SW
(H) WHITE 		8-97352-443-0 01 1 0207-
307 BULB ASM; SW
FOG LAMP HALOGEN<T37> (D) 14V 0.7W 		8-97102-439-0 01 1 0207-
307 BULB ASM; SW
FOG LAMP HALOGEN<T37> (E) 14V 0.7W 		8-97211-939-0 01 1 0207-
524 RELAY; LAMP 8-97125-444-0 01 1 0008-0106
631 SWITCH; SPORTS MODE
ACTIVE RIDE CONTROL(7WD) 		8-97215-836-2 01 1 0107-
633 RELAY; INTAKE ACTUATOR
12V OMRON 		8-97125-441-1 01 1 9909-0402
633 RELAY; INTAKE ACTUATOR
12V OMRON 		8-97125-441-1 01 1 0403-
774 SWITCH; POWER & WINTER
A/T THM(RMQ) 		8-97122-096-2 01 1 9707-9908
774 SWITCH; POWER & WINTER
A/T THM(RMQ) 		8-97239-238-0 01 1 9909-0206
774 SWITCH; POWER & WINTER
A/T AISIN(RMD) 		8-97239-238-1 01 1 0207-0307
774 SWITCH; POWER & WINTER 8-97355-341-0 01 1 0308-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
