8-15 — FIXING PARTS; WIRING HARNESS (#42646) — 238 parça

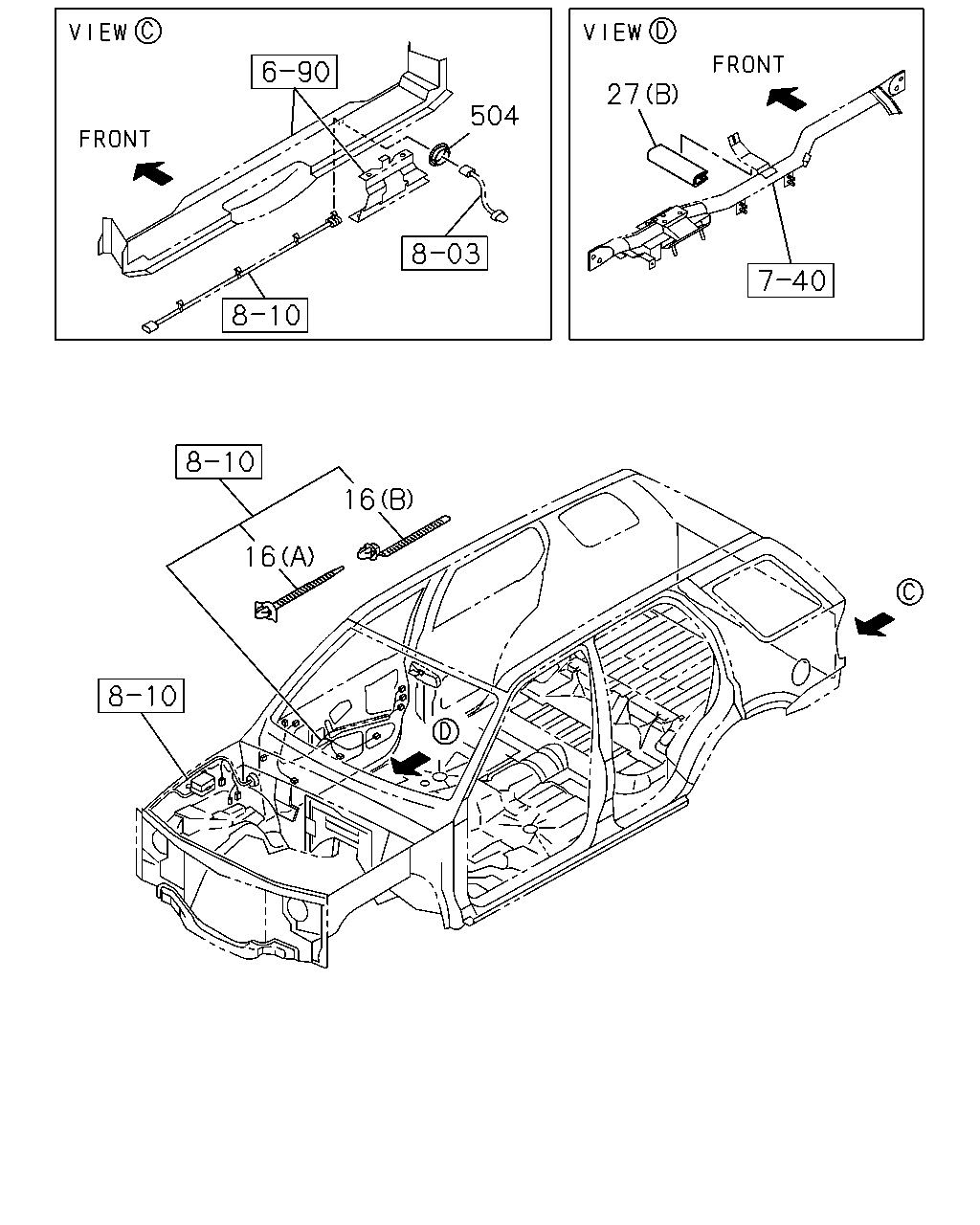

çizim 19536
27 504 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (C) ID=28 L=32 		1-09701-064-1 01 1 9707-9908
16 CLIP; HARNESS
POWER WINDOW<A30> (A) L=175 		8-97110-275-0 04 1 9707-9908
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=175 		8-97110-275-0 02 1 9909-0007
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6>,COURTESY LAMP<U29> (A) L=175 		8-97110-275-0 02 1 0008-0012
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (A) L=175 		8-97110-275-0 02 1 0101-0206
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=175 		8-97110-275-0 02 1 0207-0307
16 CLIP; HARNESS
POWER WINDOW<A30> (B) L=150 		8-97811-150-1 10 1 9707-0007
16 CLIP; HARNESS
POWER WINDOW<A30> COURTESY LAMP<U29> (B) L=150 		8-97811-150-1 10 1 0008-0012
16 CLIP; HARNESS
POWER WINDOW<A30> (B) L=150 		8-97811-150-1 10 1 0101-0307
16 CLIP; HARNESS
(B) L=150 		8-97811-150-1 10 1 0308-
16 CLIP; HARNESS
POWER WINDOW<A30> (A) L=175 		8-97110-275-0 04 1 9909-0007
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. ANTI THEFT<UA6>,COURTESY LAMP<U29> (A) L=175 		8-97110-275-0 04 1 0008-0012
16 CLIP; HARNESS
POWER WINDOW<A30> COURTESY LAMP<U29> (A) L=175 		8-97110-275-0 04 1 0008-0012
16 CLIP; HARNESS
POWER WINDOW<A30> (A) L=175 		8-97110-275-0 04 1 0101-0307
16 CLIP; HARNESS
(A) L=175 		8-97110-275-0 04 1 0308-
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=175 		8-97110-275-0 02 1 9707-9908
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=150 		8-97811-150-1 04 1 9707-0007
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. ANTI THEFT<UA6>,COURTESY LAMP<U29> (B) L=150 		8-97811-150-1 08 1 0008-0012
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (B) L=150 		8-97811-150-1 04 1 0101-0206
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=150 		8-97811-150-1 04 1 0207-0307
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6>,COURTESY LAMP<U29> (B) L=150 		8-97811-150-1 04 1 0008-0012
27 PROTECTOR; EDGE
(A) L=30 		8-94273-221-0 01 1 9707-0402
27 PROTECTOR; EDGE
L=30 		8-94273-221-0 01 1 0403-
27 PROTECTOR; EDGE
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) L=80 SERVICED BY L=240 		1-71998-400-0 01 1 9808-9908
27 PROTECTOR; EDGE
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) L=80 		5-71997-133-0 01 1 9909-0102
27 PROTECTOR; EDGE
(B) L=80 		5-71997-133-0 01 1 0103-0307
27 PROTECTOR; EDGE
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) L=80 		5-71997-133-0 01 1 0103-0307
27 PROTECTOR; EDGE
(B) L=80 		5-71997-133-0 01 1 0308-0402
27 PROTECTOR; EDGE
L=80 		5-71997-133-0 01 1 0403-
504 PROTECTOR; HARNESS 8-94340-075-0 01 1 9711-9802
504 PROTECTOR; HARNESS
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-94340-075-0 01 1 9803-

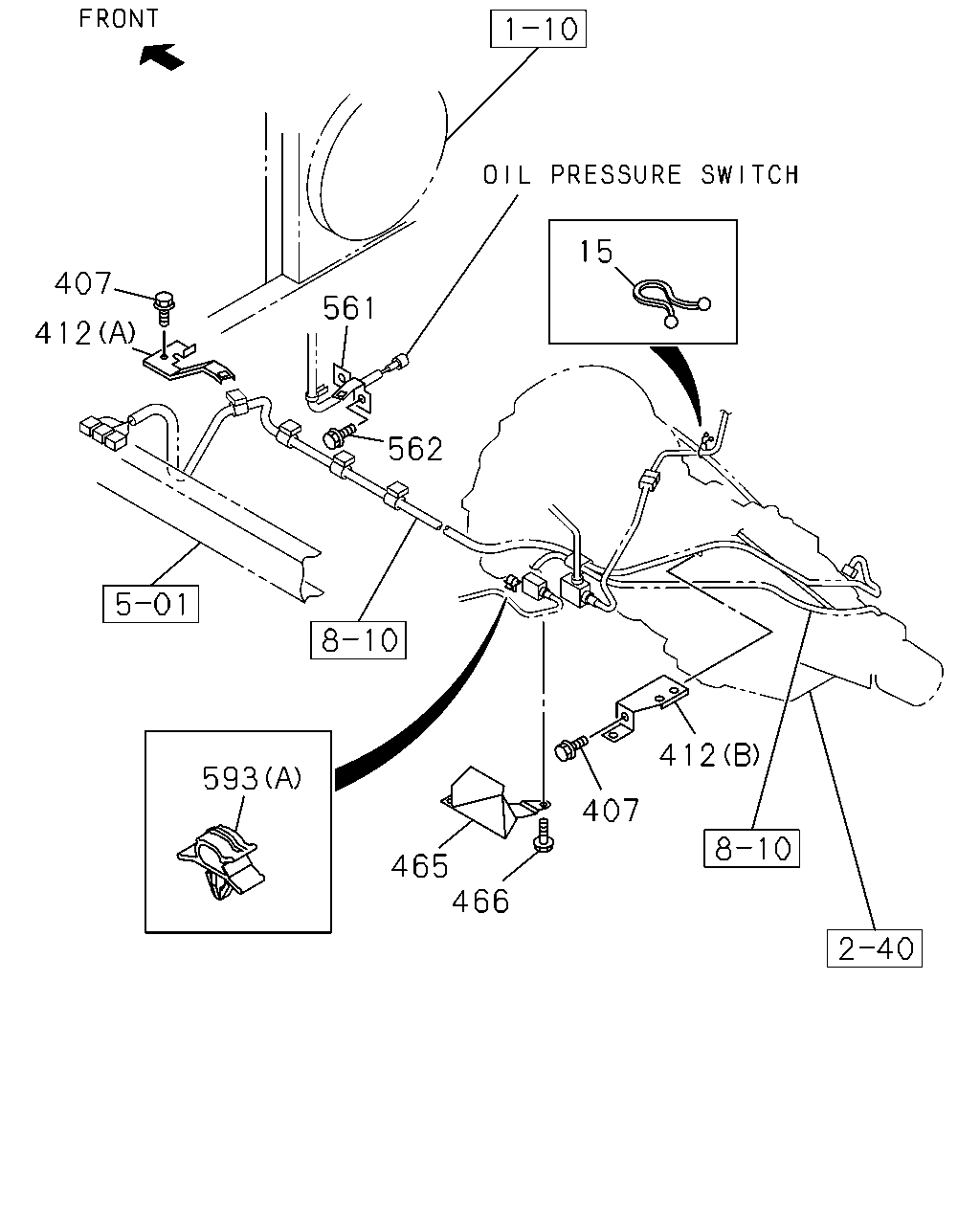

çizim 69587
15 407 561 412 562 412 593 407 465 466
BalonParca AdiParca NoAdetTipApplied Date
15 CLIP; PURSE LOCK
A/T AISIN(RMD) ID=20 		1-09709-068-0 01 1 0207-0307
15 CLIP; PURSE LOCK
ID=20 		1-09709-068-0 01 1 0308-
407 BOLT; HARNESS TO TRANS
A/T AISIN(RMD) M8X10 FLANGE 		0-28080-810-0 01 1 0207-0307
407 BOLT; HARNESS TO TRANS
M8X10 FLANGE 		0-28080-810-0 01 1 0308-
407 BOLT; HARNESS TO TRANS
A/T AISIN(RMD) M6X16 FLANGE 		0-28480-616-0 01 1 0207-0307
407 BOLT; HARNESS TO TRANS
M6X16 FLANGE 		0-28480-616-0 01 1 0308-
407 BOLT; HARNESS TO TRANS
M/T MUA 5 SPEED(RMN) M6X12 FLANGE 		0-28080-612-0 01 1 9707-9908
412 BRACKET; HARNESS,TRANS
A/T AISIN(RMD) (A) 		8-97165-492-0 01 1 0207-0307
412 BRACKET; HARNESS,TRANS
(A) 		8-97165-492-0 01 1 0308-
412 BRACKET; HARNESS,TRANS
A/T AISIN(RMD) (B) 		8-97310-674-0 01 1 0207-0307
412 BRACKET; HARNESS,TRANS
(B) 		8-97310-674-0 01 1 0308-
465 PROTECTOR; HEAT,HARNESS
A/T AISIN(RMD) 		8-97310-473-1 01 1 0207-0307
465 PROTECTOR; HEAT,HARNESS 8-97310-473-1 01 1 0308-
465 PROTECTOR; HEAT,HARNESS
A/T THM(RMQ) 		8-97169-910-0 01 1 9707-9908
465 PROTECTOR; HEAT,HARNESS
M/T MUA 5 SPEED(RMN) 		8-97809-116-1 01 1 9707-9908
466 BOLT; HEAT PROTECTOR
A/T AISIN(RMD) M6X16 FLANGE 		0-28680-616-0 02 1 0207-0307
466 BOLT; HEAT PROTECTOR
M6X16 FLANGE 		0-28680-616-0 02 1 0308-
466 BOLT; HEAT PROTECTOR
A/T THM(RMQ) M6X16 FLANGE 		0-28680-616-0 02 1 9707-9908
466 BOLT; HEAT PROTECTOR
M/T MUA 5 SPEED(RMN) M6X12 FLANGE 		0-28080-612-0 03 1 9707-9908
561 BRACKET; HARNESS,ENG SIDE
A/T AISIN(RMD) 		8-97304-585-0 01 1 0207-0307
561 BRACKET; HARNESS,ENG SIDE 8-97304-585-0 01 1 0308-
562 BOLT; BRKT,ENG SIDE HARNESS
A/T AISIN(RMD) M8X12 FLANGE 		0-28080-812-0 01 1 0207-0307
562 BOLT; BRKT,ENG SIDE HARNESS
M8X12 FLANGE 		0-28080-812-0 01 1 0308-
593 CLIP
(B) ID=8 		8-94107-659-0 01 1 0207-0402
593 CLIP
ID=8 		8-94107-659-0 01 1 0403-
593 CLIP
A/T AISIN(RMD) (A) ID=7 		5-09707-053-0 01 1 0207-0307
593 CLIP
(A) ID=7 		5-09707-053-0 01 1 0308-

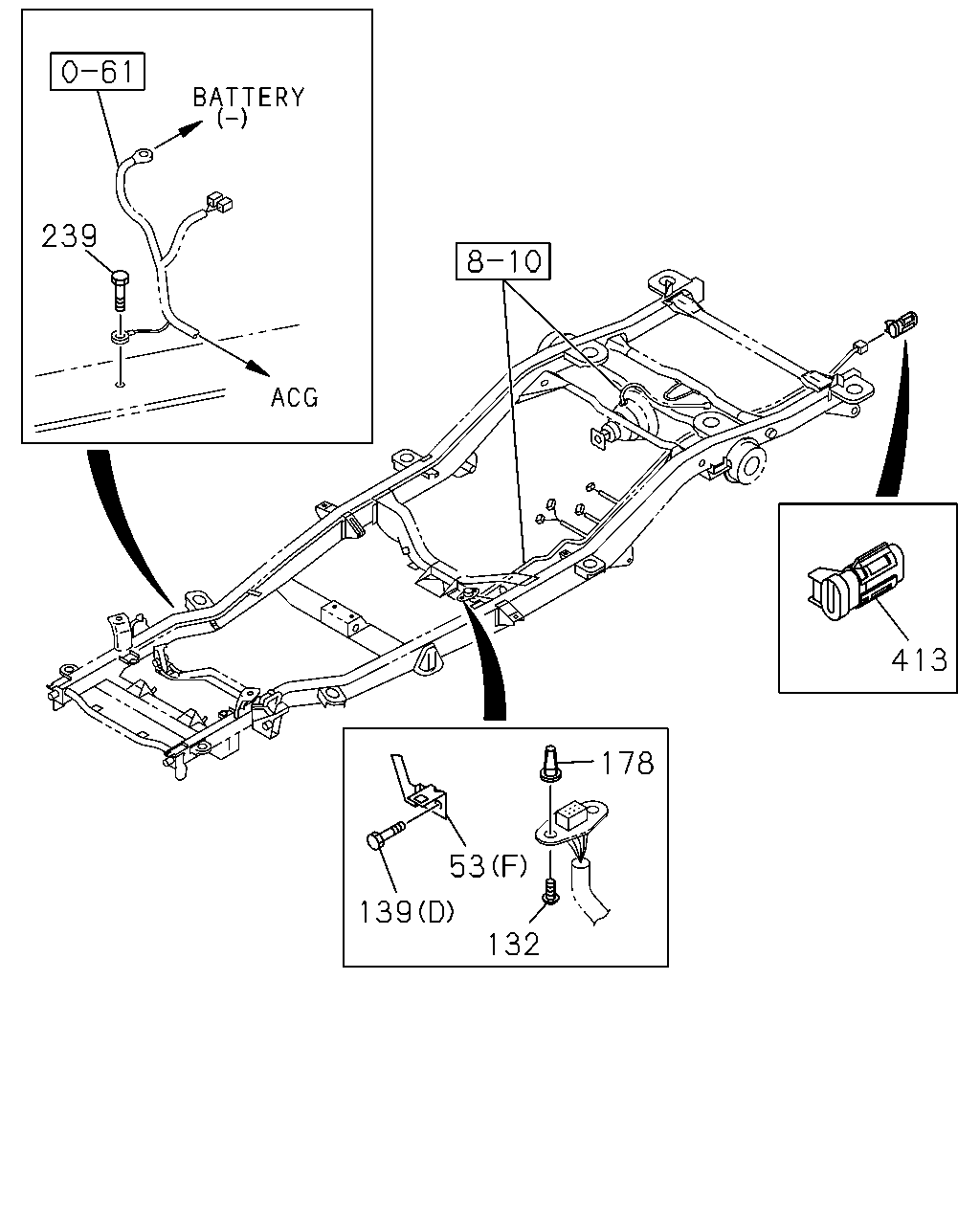

çizim 69630
239 413 178 53 139 132
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(A) 		8-97127-268-0 01 1 9707-0206
53 BRACKET; HARNESS
(D) 		8-97308-654-0 01 1 0207-0402
53 BRACKET; HARNESS
(D) 		8-97308-654-0 01 1 0403-
53 BRACKET; HARNESS
(B) 		8-97139-643-1 01 1 9707-
53 BRACKET; HARNESS
(C) 		8-97139-644-1 01 1 9707-
53 BRACKET; HARNESS
(D) 		8-97139-645-0 01 1 9707-9908
53 BRACKET; HARNESS
(E) 		8-97139-925-1 01 1 9707-0206
53 BRACKET; HARNESS
ACTIVE RIDE CONTROL(7WD) (E) 		8-97139-925-1 01 1 0207-
53 BRACKET; HARNESS
(F) 		8-97253-668-0 01 1 0008-0402
53 BRACKET; HARNESS 8-97253-668-0 01 1 0403-
53 BRACKET; HARNESS
ACTIVE RIDE CONTROL(7WD) (A) 		8-97127-268-0 01 1 0207-
132 SCREW; HARNESS
M5X14 		8-94120-095-0 02 1 9707-9908
132 SCREW; HARNESS
M5X14 		8-94120-095-0 03 1 9909-0402
132 SCREW; HARNESS
M5X14 		8-94120-095-0 03 1 0403-
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 01 1 9707-9908
139 BOLT; BRKT
(B) M10X16 FLANGE 		0-28181-016-0 01 1 9707-
139 BOLT; BRKT
(C) M6X16 FLANGE 		0-28680-616-0 01 1 9707-
139 BOLT; BRKT
(D) M6X16 FLANGE 		0-28480-616-0 01 1 0008-0402
139 BOLT; BRKT
M6X16 FLANGE 		0-28480-616-0 01 1 0403-
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 01 1 0207-
178 GROMMET; HARNESS
D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 9707-9908
178 GROMMET; HARNESS
D=7.9X7.9 L=20 M5 		8-94441-539-0 03 1 9909-0402
178 GROMMET; HARNESS
D=7.9X7.9 L=20 M5 		8-94441-539-0 03 1 0403-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9707-0010
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 0011-0402
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 0403-
239 BOLT; GRAND
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9707-9908
413 PLUG; CAVITY,HARNESS
SPARE TIRE UNDER FLOOR MTG<7PF> 		8-94443-789-0 01 1 9707-0307

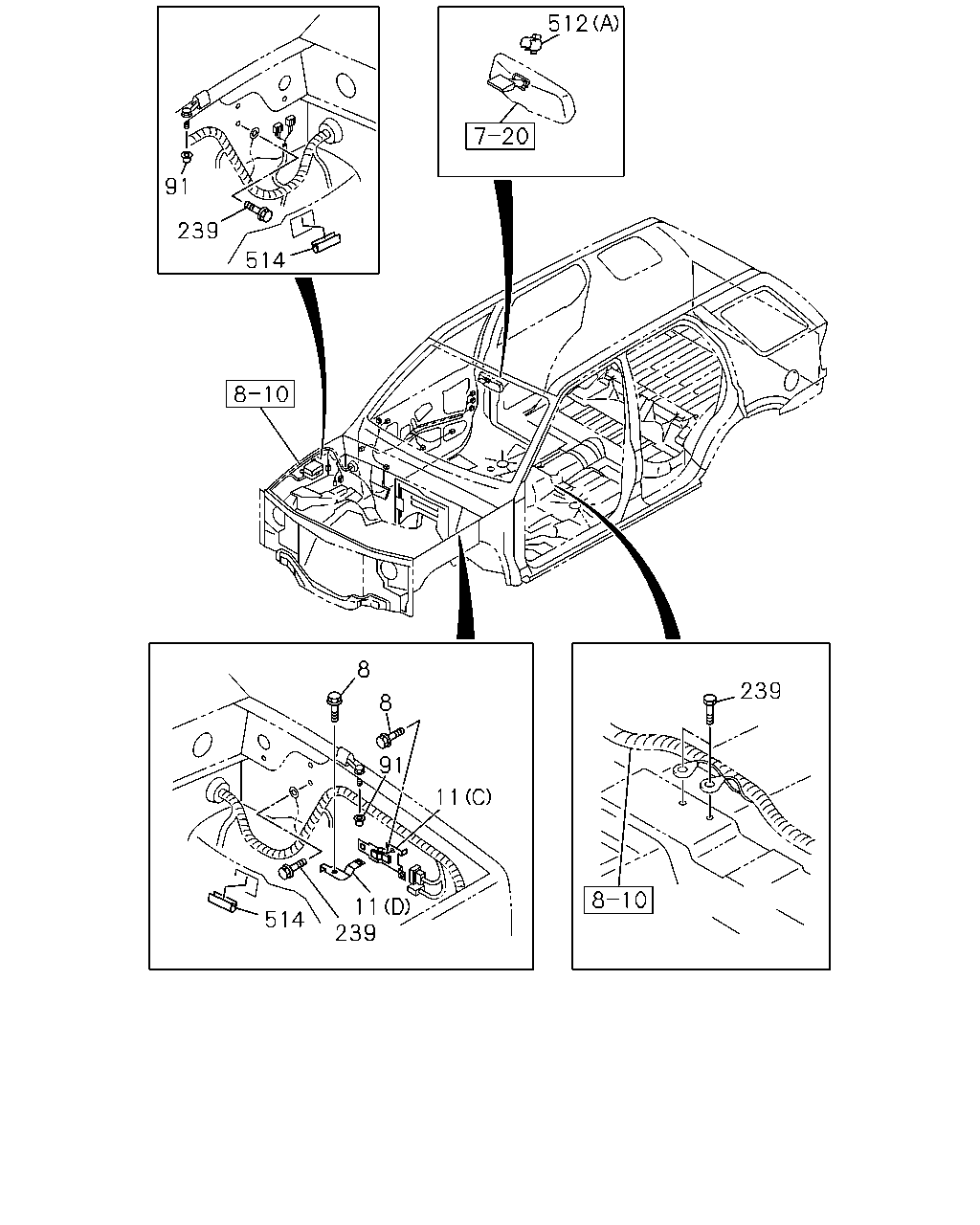

çizim 69658
512 91 239 514 8 239 8 91 11 11 239 514
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; BRKT,CONNECTOR
M6X16 FLANGE 		0-28480-616-0 04 1 9707-0206
8 BOLT; BRKT,CONNECTOR
M6X16 FLANGE 		0-28480-616-0 04 1 0207-0307
8 BOLT; BRKT,CONNECTOR
M6X16 FLANGE 		0-28480-616-0 05 1 0308-0402
8 BOLT; BRKT,CONNECTOR
M6X16 FLANGE 		0-28480-616-0 01 1 0403-
8 BOLT; BRKT,CONNECTOR
M6X16 FLANGE 		0-28480-616-0 02 1 0207-0307
8 BOLT; BRKT,CONNECTOR
M6X16 FLANGE 		0-28480-616-0 01 1 0308-0402
8 BOLT; BRKT,CONNECTOR
M6X16 FLANGE 		0-28480-616-0 05 1 0403-
11 BRACKET; CONNECTOR
(A) 		8-97127-273-2 02 1 9707-9908
11 BRACKET; CONNECTOR
(A) 		8-97127-273-2 01 1 9909-0206
11 BRACKET; CONNECTOR
(C) 		8-97321-389-0 01 1 0207-0307
11 BRACKET; CONNECTOR
(C) 		8-97321-389-0 01 1 0308-0402
11 BRACKET; CONNECTOR
(C) 		8-97321-389-0 01 1 0403-
11 BRACKET; CONNECTOR
(B) 		8-97231-567-0 01 1 9909-0206
11 BRACKET; CONNECTOR
(B) 		8-97231-567-0 02 1 0207-0402
11 BRACKET; CONNECTOR
(B) 		8-97231-567-0 02 1 0403-
11 BRACKET; CONNECTOR
(D) 		8-97321-390-1 01 1 0207-
91 CAP; BOLT,HARNESS 8-97146-861-0 02 1 9707-0101
91 CAP; BOLT,HARNESS 8-97303-179-1 02 1 0102-0402
91 CAP; BOLT,HARNESS 8-97303-179-1 02 1 0403-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9707-0010
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 0011-0402
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 0403-
239 BOLT; GRAND
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9707-9908
512 PROTECTOR; HARNESS
(B) L=80 SERVICED BY L=240 		5-71997-133-0 01 1 9707-0402
512 PROTECTOR; HARNESS
L=80 		5-71997-133-0 01 1 0403-
512 PROTECTOR; HARNESS
(C) 		8-94474-013-2 01 1 9707-0206
512 PROTECTOR; HARNESS
ACTIVE RIDE CONTROL(7WD) (C) 		8-94474-013-2 01 1 0207-
512 PROTECTOR; HARNESS
MAP LAMP<UF3> (A) 		8-97176-543-0 01 1 9707-9908
512 PROTECTOR; HARNESS
(A) 		8-97176-543-0 01 1 9909-0402
512 PROTECTOR; HARNESS 8-97176-543-0 01 1 0403-
514 FINISHER; HARNESS
ACTIVE RIDE CONTROL(7WD) L=80 		5-71997-133-0 02 1 9910-0002
514 FINISHER; HARNESS
ACTIVE RIDE CONTROL(7WD) L=80 		5-71997-133-0 01 1 0003-

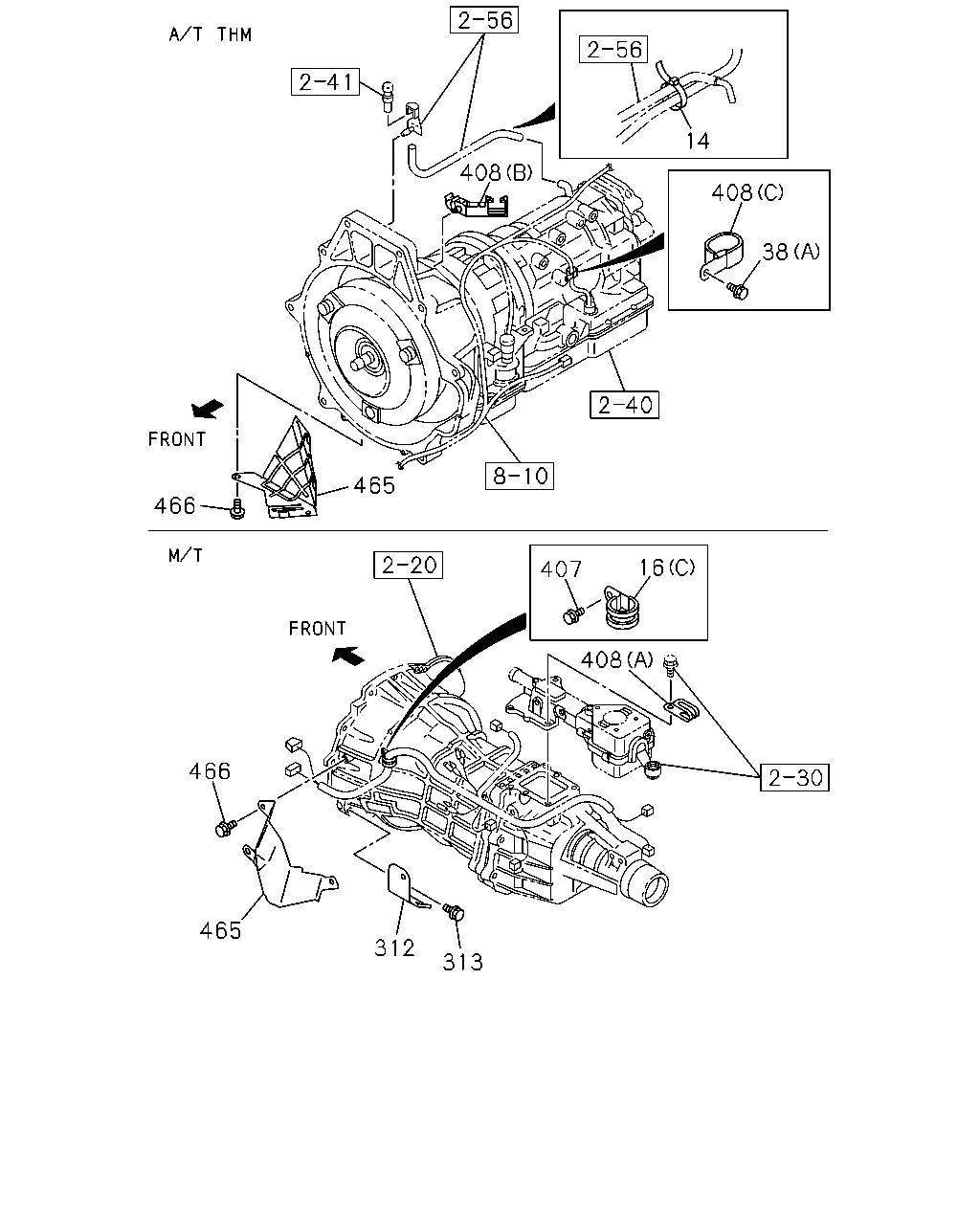

çizim 71017
14 408 408 38 465 466 16 407 408 466 465 312 313
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
A/T THM(RMQ) L=140 		5-09707-031-1 01 1 9707-0206
16 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) (C) ID=28 L=32 		1-09701-064-1 01 1 9707-9908
16 CLIP; HARNESS
POWER WINDOW<A30> (A) L=175 		8-97110-275-0 04 1 9707-9908
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=175 		8-97110-275-0 02 1 9909-0007
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6>,COURTESY LAMP<U29> (A) L=175 		8-97110-275-0 02 1 0008-0012
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (A) L=175 		8-97110-275-0 02 1 0101-0206
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=175 		8-97110-275-0 02 1 0207-0307
16 CLIP; HARNESS
POWER WINDOW<A30> (B) L=150 		8-97811-150-1 10 1 9707-0007
16 CLIP; HARNESS
POWER WINDOW<A30> COURTESY LAMP<U29> (B) L=150 		8-97811-150-1 10 1 0008-0012
16 CLIP; HARNESS
POWER WINDOW<A30> (B) L=150 		8-97811-150-1 10 1 0101-0307
16 CLIP; HARNESS
(B) L=150 		8-97811-150-1 10 1 0308-
16 CLIP; HARNESS
POWER WINDOW<A30> (A) L=175 		8-97110-275-0 04 1 9909-0007
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. ANTI THEFT<UA6>,COURTESY LAMP<U29> (A) L=175 		8-97110-275-0 04 1 0008-0012
16 CLIP; HARNESS
POWER WINDOW<A30> COURTESY LAMP<U29> (A) L=175 		8-97110-275-0 04 1 0008-0012
16 CLIP; HARNESS
POWER WINDOW<A30> (A) L=175 		8-97110-275-0 04 1 0101-0307
16 CLIP; HARNESS
(A) L=175 		8-97110-275-0 04 1 0308-
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=175 		8-97110-275-0 02 1 9707-9908
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=150 		8-97811-150-1 04 1 9707-0007
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. ANTI THEFT<UA6>,COURTESY LAMP<U29> (B) L=150 		8-97811-150-1 08 1 0008-0012
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (B) L=150 		8-97811-150-1 04 1 0101-0206
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=150 		8-97811-150-1 04 1 0207-0307
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6>,COURTESY LAMP<U29> (B) L=150 		8-97811-150-1 04 1 0008-0012
38 BOLT; CLIP,HARNESS
A/T THM(RMQ) (A) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9707-0206
38 BOLT; CLIP,HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) M10X16 FLANGE 		0-28181-016-0 01 1 9707-0307
312 BRACKET; CLIP HARNESS
M/T MUA 5 SPEED(RMN) 		8-94359-008-1 01 1 9707-9908
313 BOLT; BRKT
M/T MUA 5 SPEED(RMN) M8X40 FLANGE 		0-28680-840-0 01 1 9707-9908
407 BOLT; HARNESS TO TRANS
A/T AISIN(RMD) M8X10 FLANGE 		0-28080-810-0 01 1 0207-0307
407 BOLT; HARNESS TO TRANS
M8X10 FLANGE 		0-28080-810-0 01 1 0308-
407 BOLT; HARNESS TO TRANS
A/T AISIN(RMD) M6X16 FLANGE 		0-28480-616-0 01 1 0207-0307
407 BOLT; HARNESS TO TRANS
M6X16 FLANGE 		0-28480-616-0 01 1 0308-
407 BOLT; HARNESS TO TRANS
M/T MUA 5 SPEED(RMN) M6X12 FLANGE 		0-28080-612-0 01 1 9707-9908
408 CLIP; TRANS HARNESS
A/T THM(RMQ) (B) 		8-97180-221-0 01 1 9707-0206
408 CLIP; TRANS HARNESS
A/T THM(RMQ) (C) ID=16 		9-09525-522-0 01 1 9707-0206
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) (A) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9707-9710
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) (A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9711-9806
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) (A) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9807-0206
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5C(RSN) (A) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 0207-0307
465 PROTECTOR; HEAT,HARNESS
A/T AISIN(RMD) 		8-97310-473-1 01 1 0207-0307
465 PROTECTOR; HEAT,HARNESS 8-97310-473-1 01 1 0308-
465 PROTECTOR; HEAT,HARNESS
A/T THM(RMQ) 		8-97169-910-0 01 1 9707-9908
465 PROTECTOR; HEAT,HARNESS
M/T MUA 5 SPEED(RMN) 		8-97809-116-1 01 1 9707-9908
466 BOLT; HEAT PROTECTOR
A/T AISIN(RMD) M6X16 FLANGE 		0-28680-616-0 02 1 0207-0307
466 BOLT; HEAT PROTECTOR
M6X16 FLANGE 		0-28680-616-0 02 1 0308-
466 BOLT; HEAT PROTECTOR
A/T THM(RMQ) M6X16 FLANGE 		0-28680-616-0 02 1 9707-9908
466 BOLT; HEAT PROTECTOR
M/T MUA 5 SPEED(RMN) M6X12 FLANGE 		0-28080-612-0 03 1 9707-9908

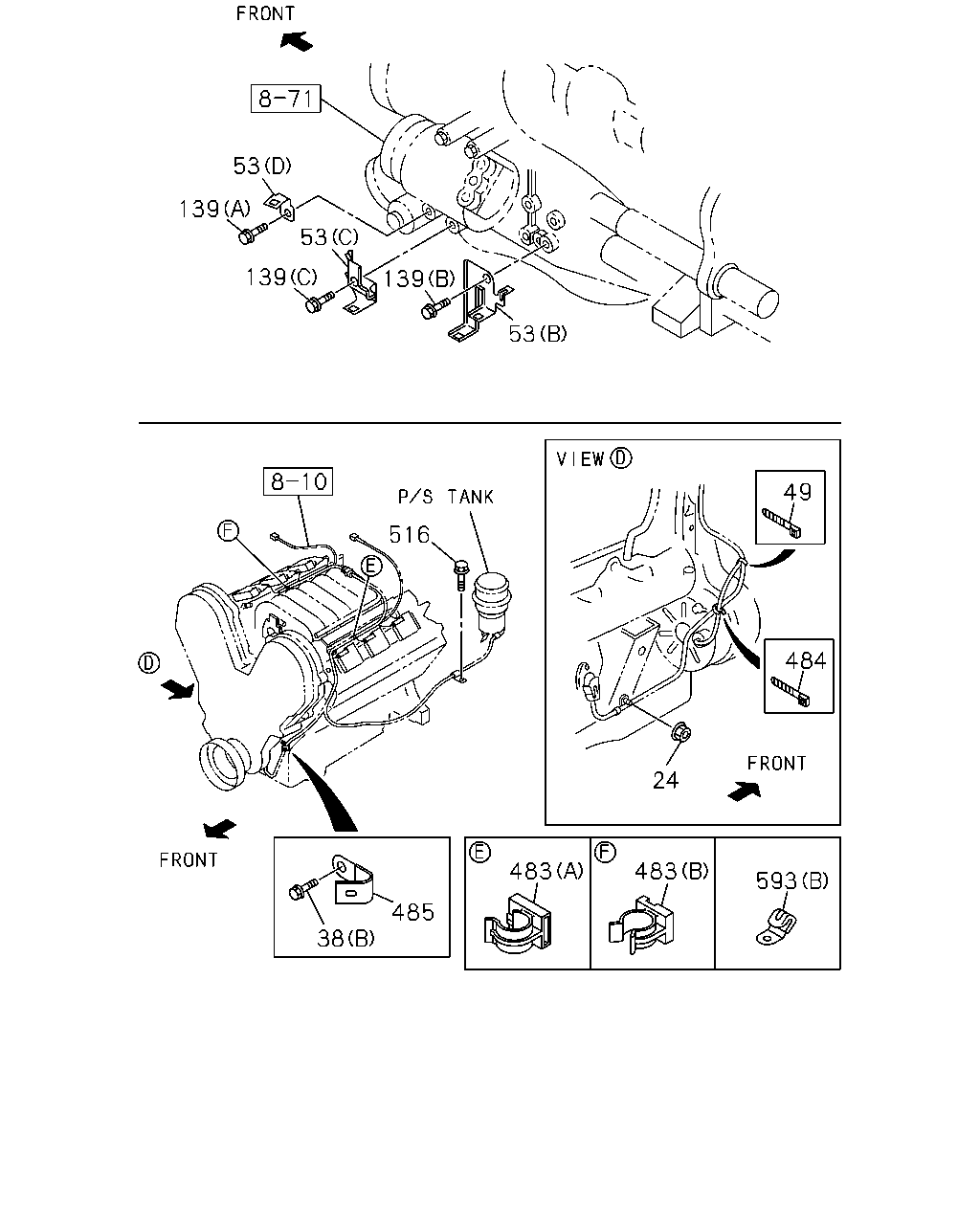

çizim 72149
53 53 139 139 139 53 49 516 484 24 483 483 593 485 38
BalonParca AdiParca NoAdetTipApplied Date
24 NUT; HARNESS
M8 W/LK WASHER 		8-94327-073-0 01 1 9707-
38 BOLT; CLIP,HARNESS
A/T THM(RMQ) (A) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9707-0206
38 BOLT; CLIP,HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) M10X16 FLANGE 		0-28181-016-0 01 1 9707-0307
49 CLIP; GEN HARNESS
L=140 		5-09707-031-1 01 1 9807-9908
53 BRACKET; HARNESS
(A) 		8-97127-268-0 01 1 9707-0206
53 BRACKET; HARNESS
(D) 		8-97308-654-0 01 1 0207-0402
53 BRACKET; HARNESS
(D) 		8-97308-654-0 01 1 0403-
53 BRACKET; HARNESS
(B) 		8-97139-643-1 01 1 9707-
53 BRACKET; HARNESS
(C) 		8-97139-644-1 01 1 9707-
53 BRACKET; HARNESS
(D) 		8-97139-645-0 01 1 9707-9908
53 BRACKET; HARNESS
(E) 		8-97139-925-1 01 1 9707-0206
53 BRACKET; HARNESS
ACTIVE RIDE CONTROL(7WD) (E) 		8-97139-925-1 01 1 0207-
53 BRACKET; HARNESS
(F) 		8-97253-668-0 01 1 0008-0402
53 BRACKET; HARNESS 8-97253-668-0 01 1 0403-
53 BRACKET; HARNESS
ACTIVE RIDE CONTROL(7WD) (A) 		8-97127-268-0 01 1 0207-
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 01 1 9707-9908
139 BOLT; BRKT
(B) M10X16 FLANGE 		0-28181-016-0 01 1 9707-
139 BOLT; BRKT
(C) M6X16 FLANGE 		0-28680-616-0 01 1 9707-
139 BOLT; BRKT
(D) M6X16 FLANGE 		0-28480-616-0 01 1 0008-0402
139 BOLT; BRKT
M6X16 FLANGE 		0-28480-616-0 01 1 0403-
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 01 1 0207-
483 CLIP; ENG HARNESS
(A) ID=23 		8-97310-905-0 01 1 0102-0106
483 CLIP; ENG HARNESS
(B) ID=17 		8-94421-571-0 01 1 0102-0106
483 CLIP; ENG HARNESS
(B) ID=21 		8-97363-710-0 01 1 0303-
484 CLIP; ECGI HARNESS TO C/MBR
L=100 		5-09707-036-1 01 1 9707-
485 CLIP; HARNESS,ECGI
EXC. AIR CONDITIONER MANUAL CONT(C60) L=22 ID=10.5 		8-94327-574-0 01 1 9707-0307
516 BOLT; HARNESS
M6X16 FLANGE 		0-28480-616-0 01 1 9707-9908
593 CLIP
(B) ID=8 		8-94107-659-0 01 1 0207-0402
593 CLIP
ID=8 		8-94107-659-0 01 1 0403-
593 CLIP
A/T AISIN(RMD) (A) ID=7 		5-09707-053-0 01 1 0207-0307
593 CLIP
(A) ID=7 		5-09707-053-0 01 1 0308-

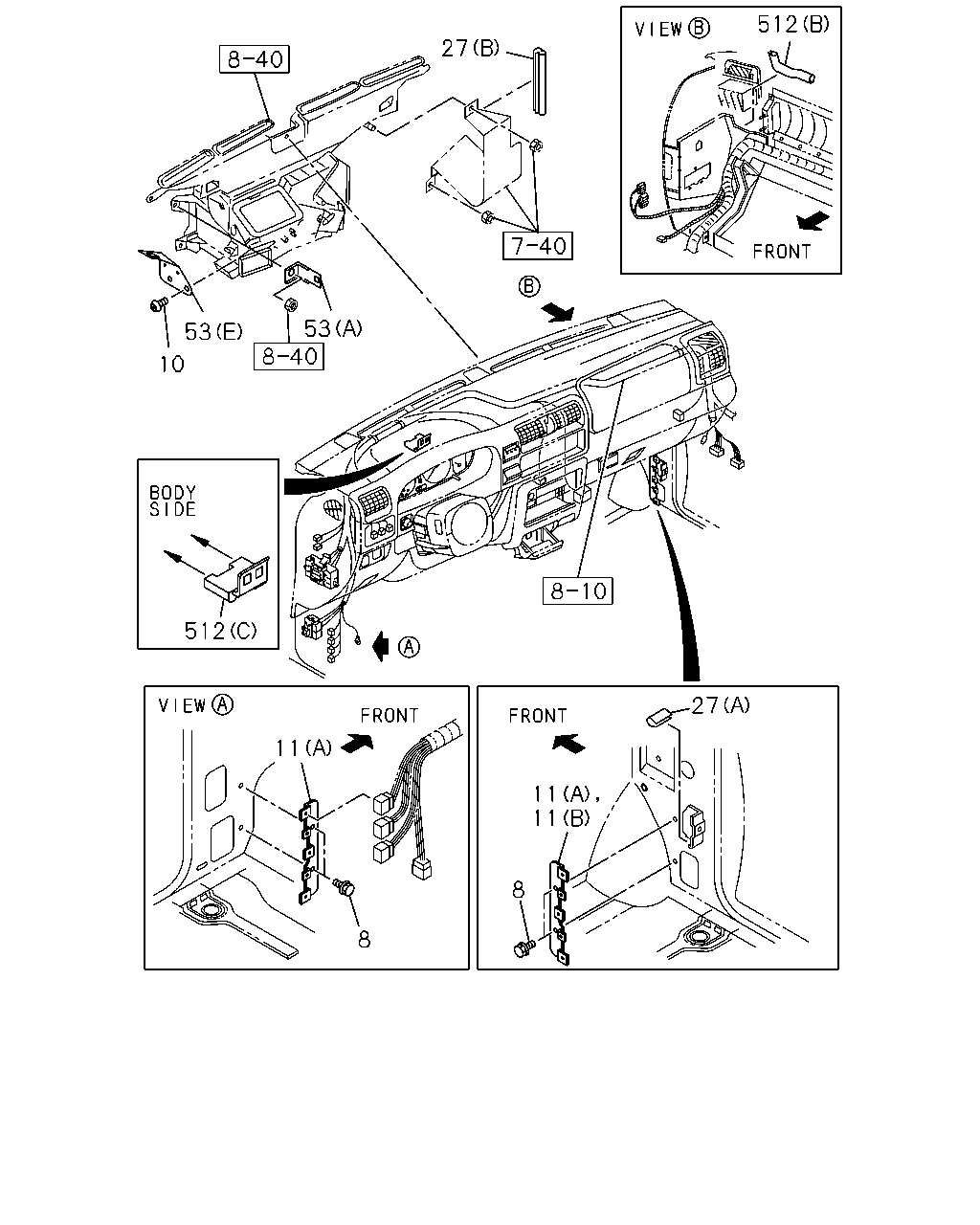

çizim 72263
512 27 53 53 10 512 27 11 11 11 8 8
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; BRKT,CONNECTOR
M6X16 FLANGE 		0-28480-616-0 04 1 9707-0206
8 BOLT; BRKT,CONNECTOR
M6X16 FLANGE 		0-28480-616-0 04 1 0207-0307
8 BOLT; BRKT,CONNECTOR
M6X16 FLANGE 		0-28480-616-0 05 1 0308-0402
8 BOLT; BRKT,CONNECTOR
M6X16 FLANGE 		0-28480-616-0 01 1 0403-
8 BOLT; BRKT,CONNECTOR
M6X16 FLANGE 		0-28480-616-0 02 1 0207-0307
8 BOLT; BRKT,CONNECTOR
M6X16 FLANGE 		0-28480-616-0 01 1 0308-0402
8 BOLT; BRKT,CONNECTOR
M6X16 FLANGE 		0-28480-616-0 05 1 0403-
10 SCREW; BRKT TO BODY
M5X16 		8-94295-854-0 02 1 9707-0206
10 SCREW; BRKT TO BODY
ACTIVE RIDE CONTROL(7WD) M5X16 		8-94295-854-0 02 1 0207-
11 BRACKET; CONNECTOR
(A) 		8-97127-273-2 02 1 9707-9908
11 BRACKET; CONNECTOR
(A) 		8-97127-273-2 01 1 9909-0206
11 BRACKET; CONNECTOR
(C) 		8-97321-389-0 01 1 0207-0307
11 BRACKET; CONNECTOR
(C) 		8-97321-389-0 01 1 0308-0402
11 BRACKET; CONNECTOR
(C) 		8-97321-389-0 01 1 0403-
11 BRACKET; CONNECTOR
(B) 		8-97231-567-0 01 1 9909-0206
11 BRACKET; CONNECTOR
(B) 		8-97231-567-0 02 1 0207-0402
11 BRACKET; CONNECTOR
(B) 		8-97231-567-0 02 1 0403-
11 BRACKET; CONNECTOR
(D) 		8-97321-390-1 01 1 0207-
27 PROTECTOR; EDGE
(A) L=30 		8-94273-221-0 01 1 9707-0402
27 PROTECTOR; EDGE
L=30 		8-94273-221-0 01 1 0403-
27 PROTECTOR; EDGE
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) L=80 SERVICED BY L=240 		1-71998-400-0 01 1 9808-9908
27 PROTECTOR; EDGE
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) L=80 		5-71997-133-0 01 1 9909-0102
27 PROTECTOR; EDGE
(B) L=80 		5-71997-133-0 01 1 0103-0307
27 PROTECTOR; EDGE
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) L=80 		5-71997-133-0 01 1 0103-0307
27 PROTECTOR; EDGE
(B) L=80 		5-71997-133-0 01 1 0308-0402
27 PROTECTOR; EDGE
L=80 		5-71997-133-0 01 1 0403-
53 BRACKET; HARNESS
(A) 		8-97127-268-0 01 1 9707-0206
53 BRACKET; HARNESS
(D) 		8-97308-654-0 01 1 0207-0402
53 BRACKET; HARNESS
(D) 		8-97308-654-0 01 1 0403-
53 BRACKET; HARNESS
(B) 		8-97139-643-1 01 1 9707-
53 BRACKET; HARNESS
(C) 		8-97139-644-1 01 1 9707-
53 BRACKET; HARNESS
(D) 		8-97139-645-0 01 1 9707-9908
53 BRACKET; HARNESS
(E) 		8-97139-925-1 01 1 9707-0206
53 BRACKET; HARNESS
ACTIVE RIDE CONTROL(7WD) (E) 		8-97139-925-1 01 1 0207-
53 BRACKET; HARNESS
(F) 		8-97253-668-0 01 1 0008-0402
53 BRACKET; HARNESS 8-97253-668-0 01 1 0403-
53 BRACKET; HARNESS
ACTIVE RIDE CONTROL(7WD) (A) 		8-97127-268-0 01 1 0207-
512 PROTECTOR; HARNESS
(B) L=80 SERVICED BY L=240 		5-71997-133-0 01 1 9707-0402
512 PROTECTOR; HARNESS
L=80 		5-71997-133-0 01 1 0403-
512 PROTECTOR; HARNESS
(C) 		8-94474-013-2 01 1 9707-0206
512 PROTECTOR; HARNESS
ACTIVE RIDE CONTROL(7WD) (C) 		8-94474-013-2 01 1 0207-
512 PROTECTOR; HARNESS
MAP LAMP<UF3> (A) 		8-97176-543-0 01 1 9707-9908
512 PROTECTOR; HARNESS
(A) 		8-97176-543-0 01 1 9909-0402
512 PROTECTOR; HARNESS 8-97176-543-0 01 1 0403-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
