◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#42645) — 305 parça

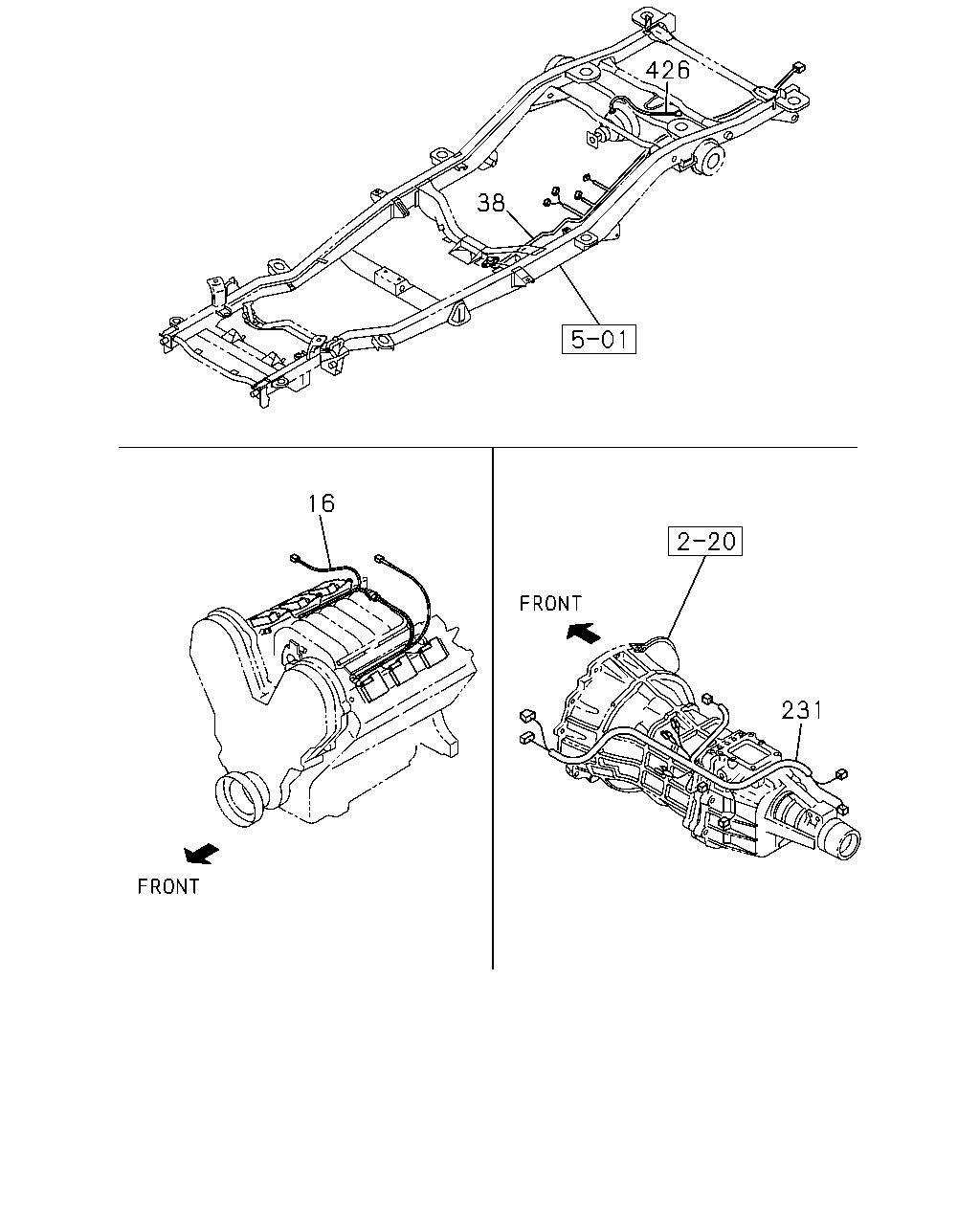

çizim 17946
426 38 16 231
BalonParca AdiParca NoAdetTipApplied Date
16 HARNESS; ENG,ECGI 8-97131-972-8 01 1 9707-9908
16 HARNESS; ENG,ECGI
A/T THM(RMQ) 		8-97211-219-6 01 1 9909-0007
16 HARNESS; ENG,ECGI
A/T THM(RMQ) 		8-97234-352-4 01 1 0008-0103
16 HARNESS; ENG,ECGI
A/T THM(RMQ) 		8-97310-276-0 01 1 0104-0106
16 HARNESS; ENG,ECGI
A/T THM(RMQ) 		8-97256-690-2 01 1 0107-0206
16 HARNESS; ENG,ECGI
M/T MUA 5 SPEED 5C(RSN) 		8-97288-489-2 01 1 0207-0307
16 HARNESS; ENG,ECGI
M/T MUA 5 SPEED(RMN) 		8-97213-220-6 01 1 9909-0007
16 HARNESS; ENG,ECGI
M/T MUA 5 SPEED(RMN) 		8-97234-354-4 01 1 0008-0104
16 HARNESS; ENG,ECGI
M/T MUA 5 SPEED(RMN) 		8-97310-274-0 01 1 0105-0106
16 HARNESS; ENG,ECGI
M/T MUA 5 SPEED(RMN) 		8-97256-691-2 01 1 0107-0206
16 HARNESS; ENG,ECGI
A/T AISIN(RMD) 		8-97288-487-3 01 1 0207-0307
16 HARNESS; ENG,ECGI 8-97288-487-3 01 1 0308-0309
16 HARNESS; ENG,ECGI 8-97363-797-0 01 1 0310-
38 HARNESS; CHAS 8-97125-345-4 01 1 9707-9908
38 HARNESS; CHAS
ACTIVE RIDE CONTROL(7WD) 		8-97233-282-1 01 1 9909-0007
38 HARNESS; CHAS
ACTIVE RIDE CONTROL(7WD) 		8-97259-743-3 01 1 0008-0307
38 HARNESS; CHAS
ACTIVE RIDE CONTROL(7WD) EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97356-749-0 01 1 0308-
38 HARNESS; CHAS
EXC. ACTIVE RIDE CONTROL(7WD) 		8-97233-280-0 01 1 9909-0007
38 HARNESS; CHAS
EXC. ACTIVE RIDE CONTROL(7WD) 		8-97259-742-2 01 1 0008-0307
38 HARNESS; CHAS
EXC. SPARE TIRE UNDER FLOOR MTG<7PF>,ACTIVE RIDE CONTROL(7WD) 		8-97356-748-0 01 1 0308-
38 HARNESS; CHAS
SPARE TIRE UNDER FLOOR MTG<7PF> ACTIVE RIDE CONTROL(7WD) 		8-97234-179-4 01 1 0308-
38 HARNESS; CHAS
SPARE TIRE UNDER FLOOR MTG<7PF> EXC. ACTIVE RIDE CONTROL(7WD) 		8-97312-830-1 01 1 0308-
231 HARNESS; TRANS
A/T AISIN(RMD) 		8-97310-209-2 01 1 0207-0307
231 HARNESS; TRANS 8-97310-209-2 01 1 0308-
231 HARNESS; TRANS
A/T THM(RMQ) 		8-97125-353-7 01 1 9707-9908
231 HARNESS; TRANS
M/T MUA 5 SPEED(RMN) 		8-97125-351-7 01 1 9707-9908
426 HARNESS; ABS 8-97138-834-3 01 1 9707-9908

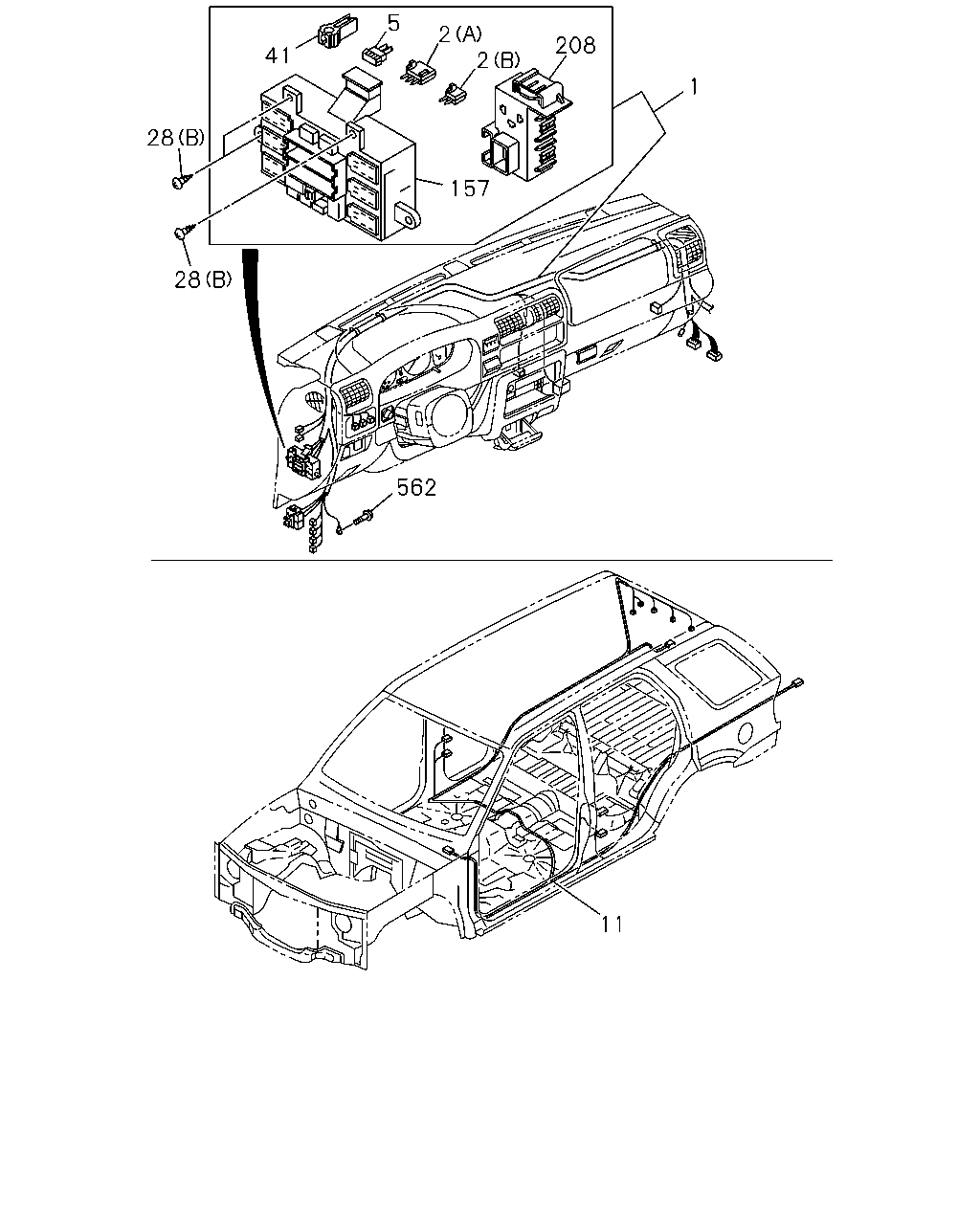

çizim 69020
5 2 2 208 41 1 28 157 28 562 11
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
A/T AISIN(RMD) DOOR MIRROR ELEC CONT W/DEF<7EV>,DOOR MIRROR ELEC CONT W/DEF BODY COLOR KEYED<7PP> EXC. ANTI THEFT<UA6> 		8-97374-390-0 01 1 0310-0402
1 HARNESS; CAB
EXC. ANTI THEFT<UA6> 		8-97368-810-2 01 1 0403-
1 HARNESS; CAB
A/T THM(RMQ) REMOTE CONT DOOR LOCK<6NF> 		8-97124-981-9 01 1 9707-9707
1 HARNESS; CAB
A/T THM(RMQ) REMOTE CONT DOOR LOCK<6NF> 		8-97189-153-0 01 1 9708-9711
1 HARNESS; CAB
A/T THM(RMQ) REMOTE CONT DOOR LOCK<6NF> 		8-97204-070-0 01 1 9712-9807
1 HARNESS; CAB
A/T THM(RMQ) ANTI THEFT<UA6> 		8-97201-400-3 01 1 9808-9908
1 HARNESS; CAB
A/T THM(RMQ) ANTI THEFT<UA6> 		8-97229-991-3 01 1 9909-0007
1 HARNESS; CAB
A/T THM(RMQ) ANTI THEFT<UA6> 		8-97256-100-2 01 1 0008-0012
1 HARNESS; CAB
A/T THM(RMQ) ANTI THEFT<UA6> 		8-97302-626-0 01 1 0101-0106
1 HARNESS; CAB
A/T THM(RMQ) ANTI THEFT<UA6> 		8-97287-927-4 01 1 0107-0206
1 HARNESS; CAB
M/T MUA 5 SPEED 5C(RSN) ANTI THEFT<UA6> 		8-97289-682-3 01 1 0207-0307
1 HARNESS; CAB
A/T THM(RMQ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-97124-982-9 01 1 9707-9707
1 HARNESS; CAB
A/T THM(RMQ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-97189-154-0 01 1 9708-9711
1 HARNESS; CAB
A/T THM(RMQ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-97204-069-0 01 1 9712-9807
1 HARNESS; CAB
A/T THM(RMQ) EXC. ANTI THEFT<UA6> 		8-97201-399-3 01 1 9808-9908
1 HARNESS; CAB
A/T THM(RMQ) EXC. ANTI THEFT<UA6> 		8-97229-990-3 01 1 9909-0007
1 HARNESS; CAB
A/T THM(RMQ) EXC. ANTI THEFT<UA6> 		8-97256-099-1 01 1 0008-0010
1 HARNESS; CAB
A/T THM(RMQ) EXC. ANTI THEFT<UA6> 		8-97306-391-0 01 1 0011-0012
1 HARNESS; CAB
A/T THM(RMQ) EXC. ANTI THEFT<UA6> 		8-97302-625-0 01 1 0101-0106
1 HARNESS; CAB
A/T THM(RMQ) EXC. ANTI THEFT<UA6> 		8-97287-923-4 01 1 0107-0206
1 HARNESS; CAB
M/T MUA 5 SPEED 5C(RSN) EXC. ANTI THEFT<UA6> 		8-97289-676-3 01 1 0207-0307
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) REMOTE CONT DOOR LOCK<6NF> 		8-97124-979-9 01 1 9707-9707
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) REMOTE CONT DOOR LOCK<6NF> 		8-97189-151-0 01 1 9708-9711
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) REMOTE CONT DOOR LOCK<6NF> 		8-97204-072-0 01 1 9712-9807
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> 		8-97201-397-3 01 1 9808-9908
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> 		8-97229-988-3 01 1 9909-0007
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> 		8-97256-097-2 01 1 0008-0012
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> 		8-97302-624-0 01 1 0101-0106
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> 		8-97287-925-4 01 1 0107-0206
1 HARNESS; CAB
A/T AISIN(RMD) ANTI THEFT<UA6> 		8-97289-683-3 01 1 0207-0307
1 HARNESS; CAB
ANTI THEFT<UA6> 		8-97360-800-1 01 1 0308-0402
1 HARNESS; CAB
ANTI THEFT<UA6> 		8-97368-812-1 01 1 0403-
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-97124-980-9 01 1 9707-9707
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-97189-152-0 01 1 9708-9711
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-97204-071-0 01 1 9712-9807
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) EXC. ANTI THEFT<UA6> 		8-97201-396-3 01 1 9808-9908
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) EXC. ANTI THEFT<UA6> 		8-97229-987-3 01 1 9909-0007
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) EXC. ANTI THEFT<UA6> 		8-97256-096-1 01 1 0008-0010
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) EXC. ANTI THEFT<UA6> 		8-97306-389-0 01 1 0011-0012
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) EXC. ANTI THEFT<UA6> 		8-97302-623-0 01 1 0101-0106
1 HARNESS; CAB
M/T MUA 5 SPEED(RMN) EXC. ANTI THEFT<UA6> 		8-97287-922-4 01 1 0107-0206
1 HARNESS; CAB
A/T AISIN(RMD) EXC. ANTI THEFT<UA6> 		8-97289-677-3 01 1 0207-0307
1 HARNESS; CAB
EXC. ANTI THEFT<UA6> 		8-97360-799-2 01 1 0308-0309
1 HARNESS; CAB
A/T AISIN(RMD) EXC. ANTI THEFT<UA6>,DOOR MIRROR ELEC CONT W/DEF<7EV>,DOOR MIRROR ELEC CONT W/DEF BODY COLOR KEYED<7PP> 		8-97360-799-2 01 1 0310-0402
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94416-438-1 AR 1 9707-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9707-
5 FUSE; FACIA HARNESS
10A RED 		8-97103-481-0 AR 1 9707-
5 FUSE; FACIA HARNESS
15A BLUE 		8-97103-482-0 AR 1 9707-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-97103-483-0 AR 1 9707-
11 HARNESS; BODY
A/T THM(RMQ) ANTI THEFT<UA6> 		8-97137-994-7 01 1 9707-9807
11 HARNESS; BODY
A/T THM(RMQ) ANTI THEFT<UA6> 		8-97201-375-4 01 1 9808-9908
11 HARNESS; BODY
A/T THM(RMQ) POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97137-989-7 01 1 9707-9807
11 HARNESS; BODY
A/T THM(RMQ) POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97201-374-4 01 1 9808-9908
11 HARNESS; BODY
A/T THM(RMQ) EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> 		8-97137-990-7 01 1 9707-9807
11 HARNESS; BODY
A/T THM(RMQ) EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> 		8-97201-373-2 01 1 9808-9908
11 HARNESS; BODY
ACTIVE RIDE CONTROL(7WD) 		8-97230-647-5 01 1 9909-0001
11 HARNESS; BODY
ACTIVE RIDE CONTROL(7WD) 		8-97257-409-0 01 1 0002-0007
11 HARNESS; BODY
GRADE S(RBA) RR WIPER W/INTERMITTENT<6WJ> EXC. POWER WINDOW<A30> 		8-97256-089-2 01 1 0008-0106
11 HARNESS; BODY
POWER WINDOW<A30> RR WIPER W/INTERMITTENT<6WJ> FRT SEAT DRIVER SIDE 4 WAY POWER ADJ<8BS>,FRT SEAT DRIVER & PASS SIDE 4 WAY POWER ADJ<8BT> EXC. ACTIVE RIDE CONTROL(7WD) 		8-97287-909-3 01 1 0107-0204
11 HARNESS; BODY
POWER WINDOW<A30> RR WIPER W/INTERMITTENT<6WJ> EXC. ACTIVE RIDE CONTROL(7WD) 		8-97287-909-5 01 1 0205-0206
11 HARNESS; BODY
POWER WINDOW<A30> ANTI THEFT<UA6> RR WIPER W/INTERMITTENT<6WJ> ACTIVE RIDE CONTROL(7WD) 		8-97289-692-4 01 1 0207-0307
11 HARNESS; BODY
ANTI THEFT<UA6> ACTIVE RIDE CONTROL(7WD) 		8-97329-893-2 01 1 0308-
11 HARNESS; BODY
GRADE LS(RBB),GRADE LS/LSE(RBD) ACTIVE RIDE CONTROL(7WD) 		8-97256-088-2 01 1 0008-0106
11 HARNESS; BODY
POWER WINDOW<A30> EXC. RR WIPER W/INTERMITTENT<6WJ>,ACTIVE RIDE CONTROL(7WD),FRT SEAT DRIVER SIDE 4 WAY POWER ADJ<8BS>,F RT SEAT DRIVER & PASS SIDE 4 WAY POWER ADJ<8BT> 		8-97287-907-6 01 1 0107-0206
11 HARNESS; BODY
POWER WINDOW<A30> RR WIPER W/INTERMITTENT<6WJ> EXC. ANTI THEFT<UA6>,ACTIVE RIDE CONTROL(7WD) 		8-97289-697-3 01 1 0207-0307
11 HARNESS; BODY
GRADE LS(RBB),GRADE LS/LSE(RBD) EXC. ACTIVE RIDE CONTROL(7WD) 		8-97256-086-2 01 1 0008-0106
11 HARNESS; BODY
RR WIPER W/INTERMITTENT<6WJ> EXC. POWER WINDOW<A30>,ACTIVE RIDE CONTROL(7WD), FRTSEAT DRIVER SIDE 4 WAY POWER ADJ<8BS>,FRT SEAT DRIVER & PASS SIDE 4 WAY POWER ADJ<8BT> 		8-97287-906-6 01 1 0107-0206
11 HARNESS; BODY
POWER WINDOW<A30> ANTI THEFT<UA6> RR WIPER W/INTERMITTENT<6WJ> EXC. ACTIVE RIDE CONTROL(7WD) 		8-97289-695-3 01 1 0207-0307
11 HARNESS; BODY
ANTI THEFT<UA6> EXC. ACTIVE RIDE CONTROL(7WD) 		8-97329-890-2 01 1 0308-0402
11 HARNESS; BODY
ANTI THEFT<UA6> EXC. ACTIVE RIDE CONTROL(7WD) 		8-97368-574-0 01 1 0403-
11 HARNESS; BODY
M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> 		8-97137-995-7 01 1 9707-9807
11 HARNESS; BODY
M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> 		8-97201-378-4 01 1 9808-9908
11 HARNESS; BODY
M/T MUA 5 SPEED(RMN) POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97137-991-7 01 1 9707-9807
11 HARNESS; BODY
M/T MUA 5 SPEED(RMN) POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97201-377-4 01 1 9808-9908
11 HARNESS; BODY
M/T MUA 5 SPEED(RMN) EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> 		8-97137-992-7 01 1 9707-9807
11 HARNESS; BODY
M/T MUA 5 SPEED(RMN) EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> 		8-97201-376-2 01 1 9808-9908
11 HARNESS; BODY
POWER WINDOW<A30> EXC. ACTIVE RIDE CONTROL(7WD) 		8-97230-645-3 01 1 9909-0001
11 HARNESS; BODY
POWER WINDOW<A30> EXC. ACTIVE RIDE CONTROL(7WD) 		8-97257-407-0 01 1 0002-0007
11 HARNESS; BODY
GRADE S(RBA) POWER WINDOW<A30> RR WIPER W/INTERMITTENT<6WJ> 		8-97256-091-2 01 1 0008-0106
11 HARNESS; BODY
POWER WINDOW<A30> RR WIPER W/INTERMITTENT<6WJ> ACTIVE RIDE CONTROL(7WD) FRT SEAT DRIVER SIDE 4 WAY POWER ADJ<8BS>,FRT SEAT DRIVER & PASS SIDE 4 WAY POWER ADJ<8BT> 		8-97287-911-3 01 1 0107-0204
11 HARNESS; BODY
POWER WINDOW<A30> RR WIPER W/INTERMITTENT<6WJ> ACTIVE RIDE CONTROL(7WD) 		8-97287-911-5 01 1 0205-0206
11 HARNESS; BODY
POWER WINDOW<A30> RR WIPER W/INTERMITTENT<6WJ> ACTIVE RIDE CONTROL(7WD) EXC. ANTI THEFT<UA6> 		8-97328-401-4 01 1 0207-0307
11 HARNESS; BODY
EXC. ANTI THEFT<UA6> 		8-97329-889-2 01 1 0308-0309
11 HARNESS; BODY
EXC. ANTI THEFT<UA6> 		8-97374-389-0 01 1 0310-
11 HARNESS; BODY
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6>,RR WIPER W/INTERMITTENT<6WJ>,ACTIVE RIDE CONTROL(7WD) 		8-97302-442-3 01 1 0207-0307
11 HARNESS; BODY
EXC. POWER WINDOW<A30>,RR WIPER W/INTERMITTENT<6WJ> 		8-97231-331-2 01 1 9909-0001
11 HARNESS; BODY
EXC. POWER WINDOW<A30>,RR WIPER W/INTERMITTENT<6WJ> 		8-97257-413-0 01 1 0002-0007
11 HARNESS; BODY
GRADE S(RBA) EXC. POWER WINDOW<A30>,RR WIPER W/INTERMITTENT<6WJ> 		8-97256-090-2 01 1 0008-0106
11 HARNESS; BODY
POWER WINDOW<A30> RR WIPER W/INTERMITTENT<6WJ> EXC. ACTIVE RIDE CONTROL(7WD),FRT SEAT DRIVER SIDE 4 WAY POWER ADJ<8BS>,FRT SEAT DRIVER & PASS SIDE 4 WAY POWER ADJ<8BT> 		8-97287-908-5 01 1 0107-0204
11 HARNESS; BODY
EXC. POWER WINDOW<A30>,RR WIPER W/INTERMITTENT<6WJ> ,ACTIVE RIDE CONTROL(7WD),FRT SEAT DRIVER SIDE 4 WAY POWER ADJ<8BS>,FRT SEAT DRIVER & PASS SIDE 4 WAYPOWER ADJ<8BT> 		8-97287-905-6 01 1 0107-0206
11 HARNESS; BODY
POWER WINDOW<A30> EXC. ANTI THEFT<UA6>,RR WIPER W/INTERMITTENT<6WJ>, ACTIVE RIDE CONTROL(7WD) 		8-97302-441-3 01 1 0207-0307
11 HARNESS; BODY
RR WIPER W/INTERMITTENT<6WJ> EXC. POWER WINDOW<A30> 		8-97230-644-3 01 1 9909-0001
11 HARNESS; BODY
RR WIPER W/INTERMITTENT<6WJ> EXC. POWER WINDOW<A30> 		8-97257-405-0 01 1 0002-0007
11 HARNESS; BODY
GRADE S(RBA) POWER WINDOW<A30> EXC. RR WIPER W/INTERMITTENT<6WJ> 		8-97256-092-2 01 1 0008-0106
11 HARNESS; BODY
POWER WINDOW<A30> RR WIPER W/INTERMITTENT<6WJ> ACTIVE RIDE CONTROL(7WD) EXC. FRT SEAT DRIVER SIDE 4 WAY POWER ADJ<8BS>,FRT SEAT DRIVER & PASS SIDE 4 WAY POWER ADJ<8BT> 		8-97287-910-3 01 1 0107-0204
11 HARNESS; BODY
RR WIPER W/INTERMITTENT<6WJ> EXC. POWER WINDOW<A30>,ANTI THEFT<UA6>,ACTIVE RIDE CONTROL(7WD) 		8-97313-455-3 01 1 0207-0307
28 SCREW; FUSE BOX
(B) M5X16 		8-94295-854-0 03 1 9707-
28 SCREW; FUSE BOX
(A) 		8-97249-192-0 04 1 9707-
41 PULLER; FUSE 8-97103-388-0 01 1 9707-
157 BOX ASM; RELAY & FUSE,BODY HARNESS 8-97126-513-0 01 1 9707-
208 HOLDER; CONNECTOR 8-97127-278-0 01 1 9707-
562 BOLT; GRAND,SRS
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9707-

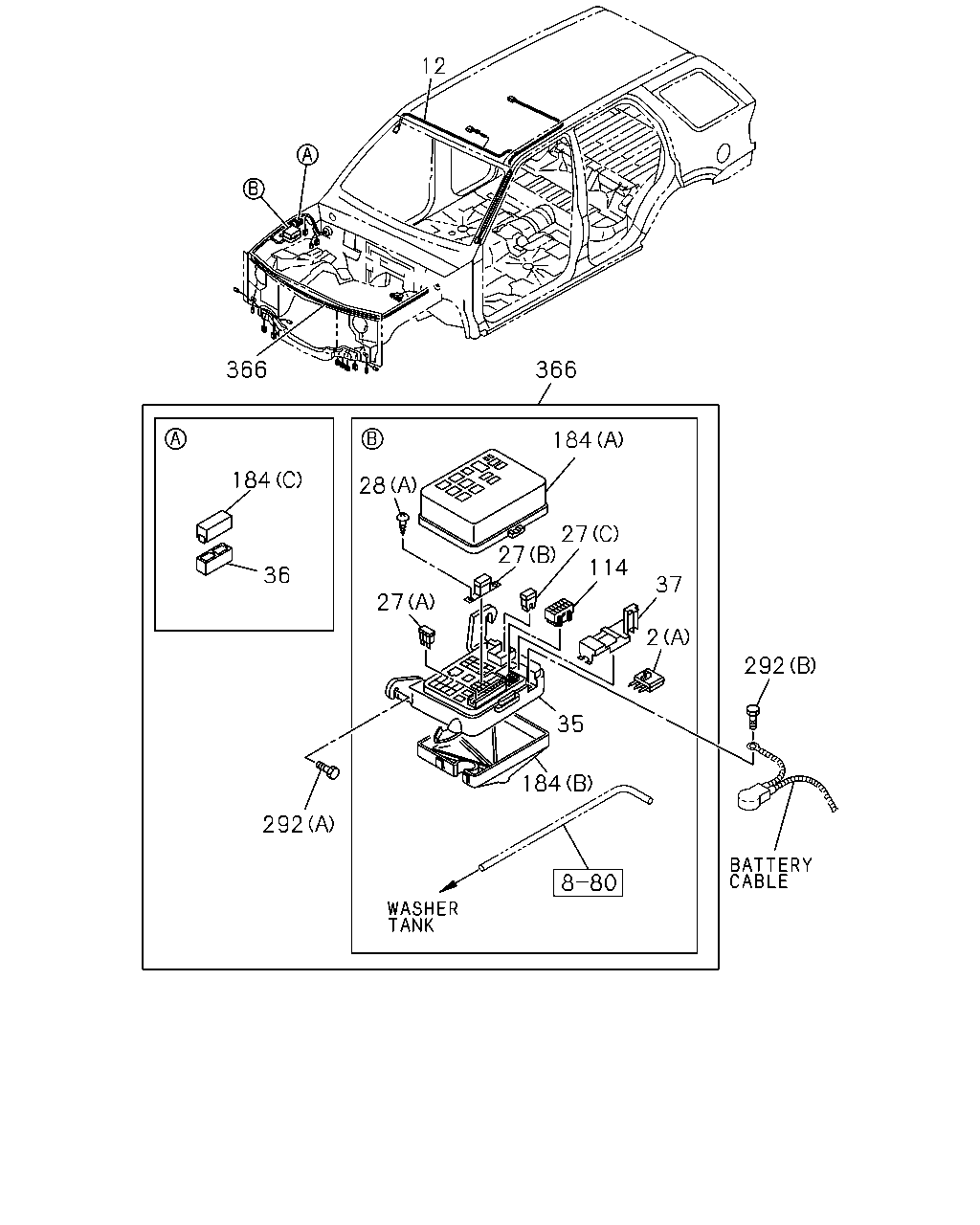

çizim 69051
12 366 366 184 184 28 27 27 114 36 37 27 2 292 35 184 292
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94416-438-1 AR 1 9707-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9707-
12 HARNESS; ROOF
GRADE LS/LSE(RBD) SUNROOF<CF5> 		8-97130-938-3 01 1 9707-9908
12 HARNESS; ROOF
SUNROOF<CF5> 		8-97220-219-1 01 1 9909-0006
12 HARNESS; ROOF
SUNROOF<CF5> 		8-97257-451-0 01 1 0007-0007
12 HARNESS; ROOF
SUNROOF<CF5> 		8-97287-497-0 01 1 0008-0009
12 HARNESS; ROOF
SUNROOF<CF5> 		8-97254-256-1 01 1 0010-0206
12 HARNESS; ROOF
GRADE LS/LSE(RBD) SUNROOF<CF5> 		8-97334-290-0 01 1 0207-0207
12 HARNESS; ROOF
GRADE LS(RBB) SUNROOF<CF5> LEATHER SEAT<6TB> 		8-97334-290-1 01 1 0208-
12 HARNESS; ROOF
GRADE LS/LSE(RBD) SUNROOF<CF5> 		8-97334-290-1 01 1 0208-
12 HARNESS; ROOF
GRADE LS/LSE(RBD) EXC. SUNROOF<CF5> 		8-97124-995-3 01 1 9707-9908
12 HARNESS; ROOF
EXC. SUNROOF<CF5> 		8-97220-217-1 01 1 9909-0006
12 HARNESS; ROOF
EXC. SUNROOF<CF5> 		8-97257-447-0 01 1 0007-0007
12 HARNESS; ROOF
EXC. SUNROOF<CF5> 		8-97287-496-0 01 1 0008-0009
12 HARNESS; ROOF
GRADE LS/LSE(RBD) EXC. SUNROOF<CF5> 		8-97334-289-0 01 1 0207-0207
12 HARNESS; ROOF
GRADE LS(RBB) LEATHER SEAT<6TB> EXC. SUNROOF<CF5> 		8-97334-289-1 01 1 0208-
12 HARNESS; ROOF
GRADE LS/LSE(RBD) EXC. SUNROOF<CF5> 		8-97334-289-1 01 1 0208-
12 HARNESS; ROOF
GRADE S(RBA) 		8-97320-430-0 01 1 0207-0207
12 HARNESS; ROOF
GRADE LS(RBB) EXC. SUNROOF<CF5> 		8-97320-430-0 01 1 0207-0207
12 HARNESS; ROOF
GRADE S(RBA) 		8-97320-430-1 01 1 0208-0307
12 HARNESS; ROOF
GRADE LS(RBB) EXC. SUNROOF<CF5>,LEATHER SEAT<6TB> 		8-97320-430-1 01 1 0208-0307
12 HARNESS; ROOF
GRADE LS(RBB) EXC. SUNROOF<CF5>,LEATHER SEAT<6TB> 		8-97320-430-1 01 1 0308-
12 HARNESS; ROOF
GRADE S(RBA) SUNROOF<CF5> 		8-97136-967-3 01 1 9707-9908
12 HARNESS; ROOF
GRADE S(RBA) EXC. SUNROOF<CF5> 		8-97124-996-3 01 1 9707-9908
12 HARNESS; ROOF
EXC. SUNROOF<CF5> 		8-97254-255-1 01 1 0010-0206
12 HARNESS; ROOF
GRADE LS(RBB) SUNROOF<CF5> 		8-97320-431-0 01 1 0207-0207
12 HARNESS; ROOF
GRADE LS(RBB) SUNROOF<CF5> EXC. LEATHER SEAT<6TB> 		8-97320-431-1 01 1 0208-
27 FUSE UNIT
(B) 60A YELLOW 		8-94388-303-1 AR 1 9707-
27 FUSE UNIT
(B) 100A BLUE 		8-94388-306-1 AR 1 9707-
27 FUSE UNIT
(C) 30A PINK 		8-94468-661-0 AR 1 9707-
27 FUSE UNIT
(C) 60A YELLOW 		8-94468-664-0 AR 1 9707-9908
27 FUSE UNIT
(A) 10A RED 		8-97103-481-0 AR 1 9707-
27 FUSE UNIT
(A) 15A BLUE 		8-97103-482-0 AR 1 9707-
27 FUSE UNIT
(A) 20A YELLOW 		8-97103-483-0 AR 1 9707-
27 FUSE UNIT
(A) 10A MINI RED 		8-97062-022-0 AR 1 9909-
27 FUSE UNIT
(A) 15A MINI BLUE 		8-97062-023-0 AR 1 9909-
27 FUSE UNIT
(A) 20A MINI YELLOW 		8-97062-024-0 AR 1 9909-
27 FUSE UNIT
(C) 30A PINK 		8-97183-643-0 AR 1 9909-
27 FUSE UNIT
(C) 50A RED 		8-97183-645-0 AR 1 9909-
28 SCREW; FUSE BOX
(B) M5X16 		8-94295-854-0 03 1 9707-
28 SCREW; FUSE BOX
(A) 		8-97249-192-0 04 1 9707-
35 BOX; RELAY & FUSE 8-97104-108-2 01 1 9707-9908
35 BOX; RELAY & FUSE 8-97940-316-1 01 1 9909-
36 BOX; RELAY
ACTIVE RIDE CONTROL(7WD) 		8-97104-122-1 01 1 9909-
37 COVER; FUSE,RELAY & FUSE BOX 8-97104-120-0 01 1 9707-9807
114 BOX ASM; FUSE 8-97104-121-0 01 1 9707-9908
184 COVER; RELAY & FUSE BOX
(B) 		8-97104-115-1 01 1 9707-
184 COVER; RELAY & FUSE BOX
(A) 		8-97176-135-1 01 1 9707-9908
184 COVER; RELAY & FUSE BOX
(A) 		8-97239-368-0 01 1 9909-0206
184 COVER; RELAY & FUSE BOX
(A) 		8-97325-441-0 01 1 0207-
184 COVER; RELAY & FUSE BOX
ACTIVE RIDE CONTROL(7WD) (C) 		8-97225-105-1 01 1 9909-0206
184 COVER; RELAY & FUSE BOX
ACTIVE RIDE CONTROL(7WD) (C) 		8-97302-743-0 01 1 0207-0307
184 COVER; RELAY & FUSE BOX
ACTIVE RIDE CONTROL(7WD) (C) 		8-97225-105-1 01 1 0308-
292 BOLT; BOX
(B) M6X16 FLANGE 		0-28680-616-0 01 1 9707-9908
292 BOLT; BOX
(B) M6X16 FLANGE 		0-28680-616-0 02 1 9909-
292 BOLT; BOX
(A) M6X20 		8-94412-422-0 02 1 9707-
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 		8-97125-348-9 01 1 9707-9709
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) EXC. ANTI THEFT<UA6> 		8-97125-348-9 01 1 9710-9711
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 		8-97204-039-2 01 1 9712-9807
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 		8-97201-361-2 01 1 9808-9908
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) ACTIVE RIDE CONTROL(7WD) 		8-97230-609-4 01 1 9909-0007
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) ACTIVE RIDE CONTROL(7WD) 		8-97247-807-4 01 1 0008-0106
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) ACTIVE RIDE CONTROL(7WD) 		8-97287-860-2 01 1 0107-0206
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5C(RSN) ACTIVE RIDE CONTROL(7WD) 		8-97289-663-5 01 1 0207-0307
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) EXC. ACTIVE RIDE CONTROL(7WD) 		8-97230-605-4 01 1 9909-0007
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) EXC. ACTIVE RIDE CONTROL(7WD) 		8-97247-803-4 01 1 0008-0106
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) EXC. ACTIVE RIDE CONTROL(7WD) 		8-97287-856-2 01 1 0107-0206
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5C(RSN) EXC. ACTIVE RIDE CONTROL(7WD) 		8-97289-659-5 01 1 0207-0307
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) ANTI THEFT<UA6> 		8-97192-659-0 01 1 9710-9711
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) 		8-97125-346-8 01 1 9707-9709
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) EXC. ANTI THEFT<UA6> 		8-97125-346-8 01 1 9710-9711
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) 		8-97204-038-2 01 1 9712-9807
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) 		8-97201-359-2 01 1 9808-9908
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) ACTIVE RIDE CONTROL(7WD) 		8-97230-607-4 01 1 9909-0007
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) ACTIVE RIDE CONTROL(7WD) 		8-97247-805-4 01 1 0008-0106
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) ACTIVE RIDE CONTROL(7WD) 		8-97287-858-2 01 1 0107-0206
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) ACTIVE RIDE CONTROL(7WD) 		8-97289-665-6 01 1 0207-0307
366 HARNESS; CABLE,ENG ROOM
ACTIVE RIDE CONTROL(7WD) 		8-97360-463-4 01 1 0308-0309
366 HARNESS; CABLE,ENG ROOM
ACTIVE RIDE CONTROL(7WD) 		8-97374-103-0 01 1 0310-0402
366 HARNESS; CABLE,ENG ROOM
ACTIVE RIDE CONTROL(7WD) 		8-97368-571-2 01 1 0403-
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) EXC. ACTIVE RIDE CONTROL(7WD) 		8-97230-603-4 01 1 9909-0007
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) EXC. ACTIVE RIDE CONTROL(7WD) 		8-97247-801-4 01 1 0008-0106
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) EXC. ACTIVE RIDE CONTROL(7WD) 		8-97287-854-2 01 1 0107-0206
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) EXC. ACTIVE RIDE CONTROL(7WD) 		8-97289-661-6 01 1 0207-0307
366 HARNESS; CABLE,ENG ROOM
EXC. ACTIVE RIDE CONTROL(7WD) 		8-97360-461-4 01 1 0308-0309
366 HARNESS; CABLE,ENG ROOM
EXC. ACTIVE RIDE CONTROL(7WD) 		8-97374-101-0 01 1 0310-0402
366 HARNESS; CABLE,ENG ROOM
EXC. ACTIVE RIDE CONTROL(7WD) 		8-97368-569-2 01 1 0403-
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> 		8-97192-658-0 01 1 9710-9711

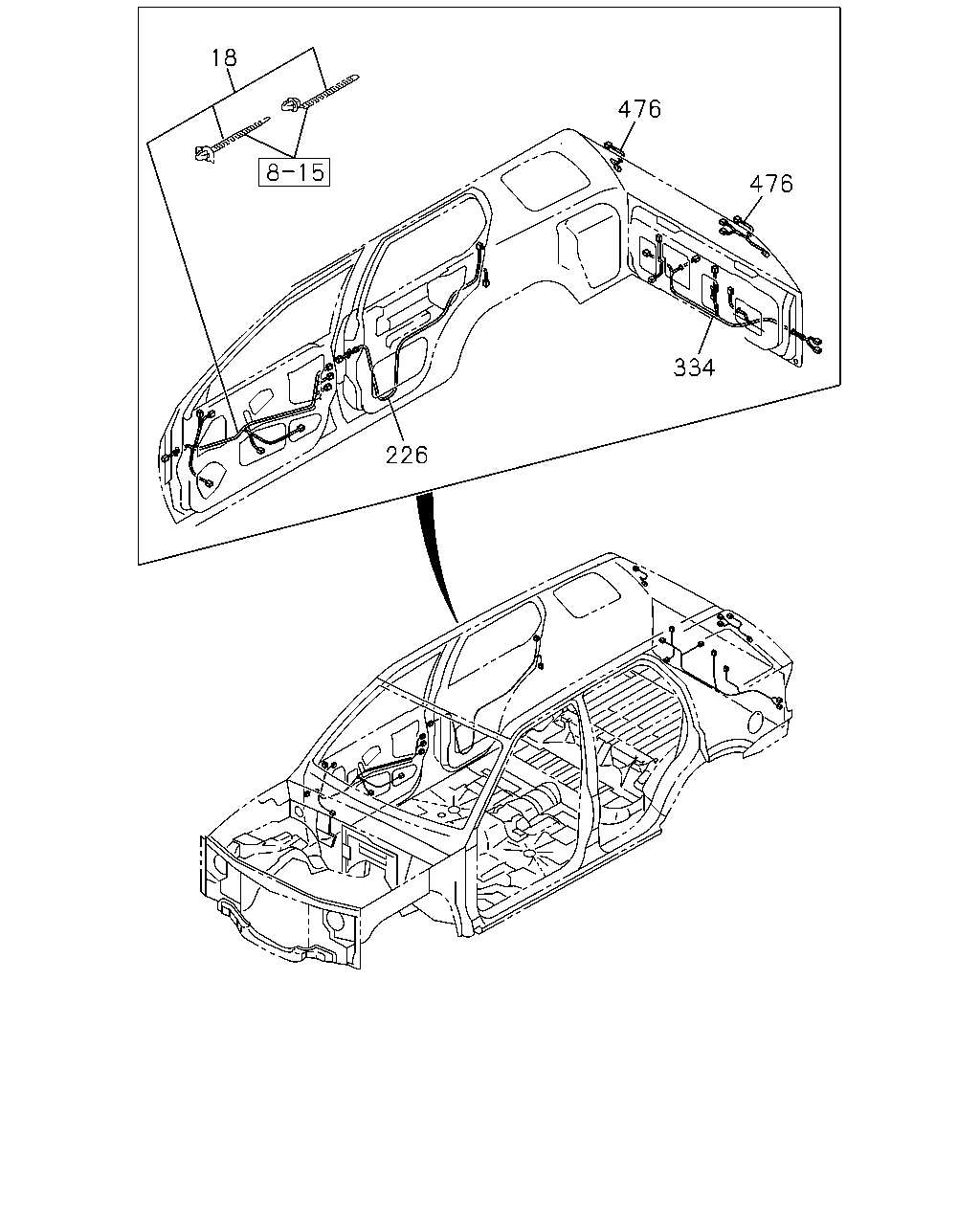

çizim 69618
18 476 476 334 226
BalonParca AdiParca NoAdetTipApplied Date
18 HARNESS; DOOR
POWER WINDOW<A30> ANTI THEFT<UA6> 		8-97137-982-7 01 1 9707-9908
18 HARNESS; DOOR
POWER WINDOW<A30> ANTI THEFT<UA6> 		8-97220-214-1 01 1 9909-0007
18 HARNESS; DOOR
POWER WINDOW<A30> ANTI THEFT<UA6> COURTESY LAMP<U29> 		8-97220-214-1 01 1 0008-0012
18 HARNESS; DOOR
POWER WINDOW<A30> ANTI THEFT<UA6> 		8-97220-214-3 01 1 0101-0206
18 HARNESS; DOOR
POWER WINDOW<A30> ANTI THEFT<UA6> 		8-97320-444-0 01 1 0207-0307
18 HARNESS; DOOR
ANTI THEFT<UA6> 		8-97362-878-0 01 1 0308-0402
18 HARNESS; DOOR
ANTI THEFT<UA6> 		8-97362-878-0 01 1 0403-
18 HARNESS; DOOR
POWER WINDOW<A30> ANTI THEFT<UA6> 		8-97137-983-7 01 1 9707-9908
18 HARNESS; DOOR
POWER WINDOW<A30> ANTI THEFT<UA6> 		8-97220-216-1 01 1 9909-0007
18 HARNESS; DOOR
POWER WINDOW<A30> ANTI THEFT<UA6> COURTESY LAMP<U29> 		8-97220-216-1 01 1 0008-0012
18 HARNESS; DOOR
POWER WINDOW<A30> ANTI THEFT<UA6> 		8-97220-216-3 01 1 0101-0206
18 HARNESS; DOOR
POWER WINDOW<A30> ANTI THEFT<UA6> 		8-97320-447-0 01 1 0207-0307
18 HARNESS; DOOR
ANTI THEFT<UA6> 		8-97362-879-0 01 1 0308-0402
18 HARNESS; DOOR
ANTI THEFT<UA6> 		8-97362-879-0 01 1 0403-
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97124-989-7 01 1 9707-9908
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97220-213-1 01 1 9909-0007
18 HARNESS; DOOR
POWER WINDOW<A30> COURTESY LAMP<U29> EXC. ANTI THEFT<UA6> 		8-97220-213-1 01 1 0008-0012
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97220-213-3 01 1 0101-0106
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97309-928-1 01 1 0107-0206
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97320-445-0 01 1 0207-0307
18 HARNESS; DOOR
EXC. ANTI THEFT<UA6> 		8-97362-876-0 01 1 0308-0402
18 HARNESS; DOOR
EXC. ANTI THEFT<UA6> 		8-97362-876-0 01 1 0403-
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97124-991-7 01 1 9707-9908
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97220-215-1 01 1 9909-0007
18 HARNESS; DOOR
POWER WINDOW<A30> COURTESY LAMP<U29> EXC. ANTI THEFT<UA6> 		8-97220-215-1 01 1 0008-0012
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97220-215-3 01 1 0101-0206
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97320-446-0 01 1 0207-0307
18 HARNESS; DOOR
EXC. ANTI THEFT<UA6> 		8-97362-877-0 01 1 0308-0402
18 HARNESS; DOOR
EXC. ANTI THEFT<UA6> 		8-97362-877-0 01 1 0403-
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. ANTI THEFT<UA6>,COURTESY LAMP<U29> 		8-97236-860-0 01 1 0008-0012
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. ANTI THEFT<UA6>,COURTESY LAMP<U29> 		8-97236-861-0 01 1 0008-0012
18 HARNESS; DOOR
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> 		8-97124-990-4 02 1 9707-9908
18 HARNESS; DOOR
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> 		8-97208-795-0 02 1 9909-0007
18 HARNESS; DOOR
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6>,COURTESY LAMP<U29> 		8-97208-795-0 02 1 0008-0012
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		8-97208-795-0 02 1 0101-0206
18 HARNESS; DOOR
EXC. POWER WINDOW<A30>,ANTI THEFT<UA6> 		8-97208-795-0 02 1 0207-0307
226 HARNESS; RR DOOR
POWER WINDOW<A30> ANTI THEFT<UA6> 		8-97137-984-4 02 1 9707-9908
226 HARNESS; RR DOOR
POWER WINDOW<A30> ANTI THEFT<UA6> 		8-97208-812-0 02 1 9909-0007
226 HARNESS; RR DOOR
POWER WINDOW<A30> ANTI THEFT<UA6> 		8-97220-895-2 02 1 0008-0307
226 HARNESS; RR DOOR
ANTI THEFT<UA6> 		8-97220-895-2 02 1 0308-
226 HARNESS; RR DOOR
POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97124-993-4 02 1 9707-9908
226 HARNESS; RR DOOR
POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97208-811-0 02 1 9909-0007
226 HARNESS; RR DOOR
POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97220-894-2 02 1 0008-0307
226 HARNESS; RR DOOR
EXC. ANTI THEFT<UA6> 		8-97220-894-2 02 1 0308-
226 HARNESS; RR DOOR
EXC. POWER WINDOW<A30> 		8-97220-896-2 02 1 0008-0307
334 HARNESS; CABLE,BACK DOOR
ANTI THEFT<UA6> SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97137-986-4 01 1 9707-9908
334 HARNESS; CABLE,BACK DOOR
ANTI THEFT<UA6> SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97208-805-2 01 1 9909-
334 HARNESS; CABLE,BACK DOOR
ANTI THEFT<UA6> EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97137-985-4 01 1 9707-9908
334 HARNESS; CABLE,BACK DOOR
ANTI THEFT<UA6> EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97208-804-2 01 1 9909-
334 HARNESS; CABLE,BACK DOOR
EXC. ANTI THEFT<UA6>,SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97124-994-4 01 1 9707-9908
334 HARNESS; CABLE,BACK DOOR
EXC. ANTI THEFT<UA6>,SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97208-800-2 01 1 9909-
334 HARNESS; CABLE,BACK DOOR
SPARE TIRE UNDER FLOOR MTG<7PF> EXC. ANTI THEFT<UA6> 		8-97136-968-4 01 1 9707-9908
334 HARNESS; CABLE,BACK DOOR
SPARE TIRE UNDER FLOOR MTG<7PF> EXC. ANTI THEFT<UA6> 		8-97208-803-2 01 1 9909-
476 HARNESS; HATCH GLASS 8-97124-988-4 01 1 9707-9908
476 HARNESS; HATCH GLASS 8-97208-814-2 01 1 9909-
476 HARNESS; HATCH GLASS 8-97124-987-2 01 1 9707-9908
476 HARNESS; HATCH GLASS 8-97208-813-2 01 1 9909-

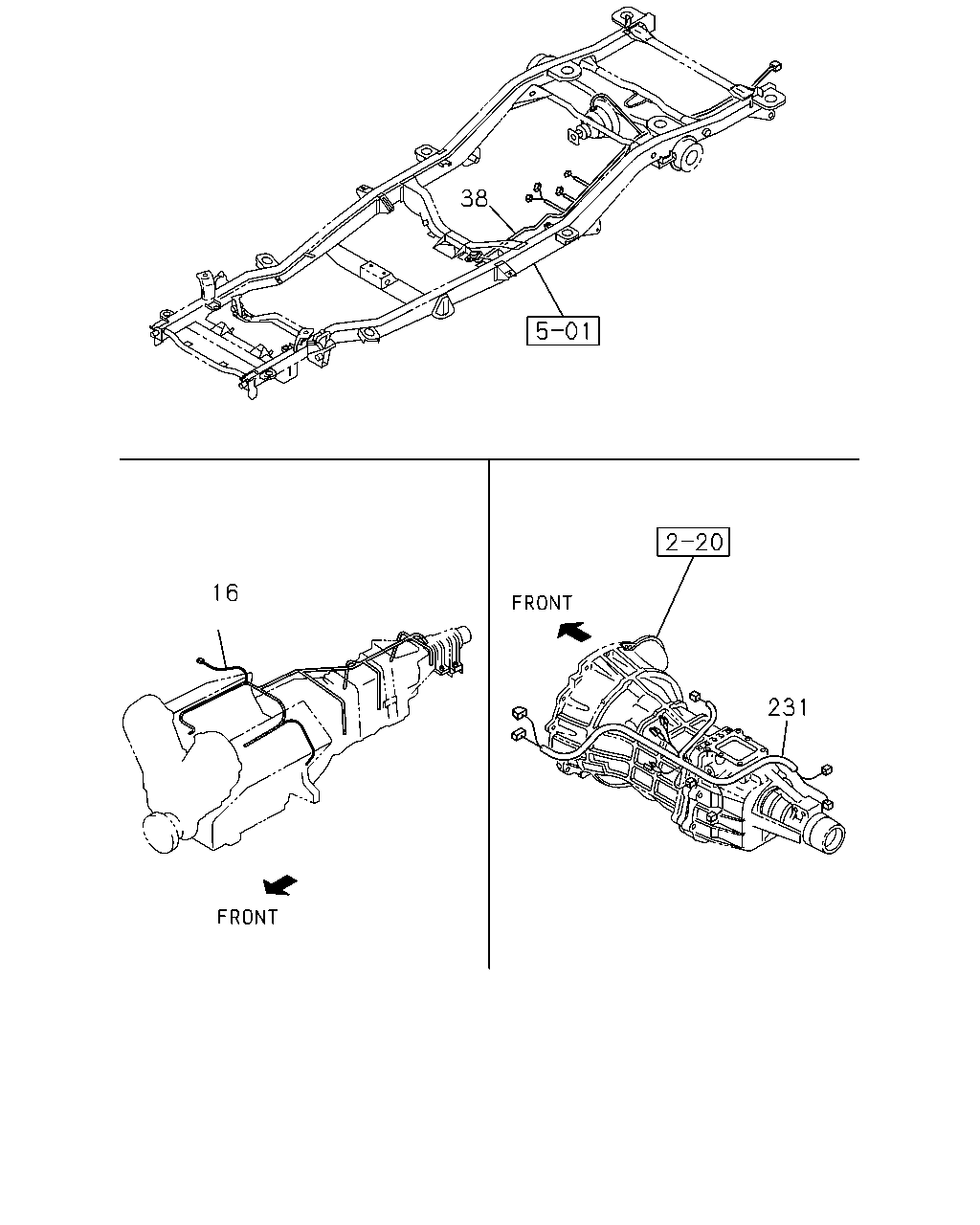

çizim 69619
38 16 231
BalonParca AdiParca NoAdetTipApplied Date
16 HARNESS; ENG,ECGI 8-97131-972-8 01 1 9707-9908
16 HARNESS; ENG,ECGI
A/T THM(RMQ) 		8-97211-219-6 01 1 9909-0007
16 HARNESS; ENG,ECGI
A/T THM(RMQ) 		8-97234-352-4 01 1 0008-0103
16 HARNESS; ENG,ECGI
A/T THM(RMQ) 		8-97310-276-0 01 1 0104-0106
16 HARNESS; ENG,ECGI
A/T THM(RMQ) 		8-97256-690-2 01 1 0107-0206
16 HARNESS; ENG,ECGI
M/T MUA 5 SPEED 5C(RSN) 		8-97288-489-2 01 1 0207-0307
16 HARNESS; ENG,ECGI
M/T MUA 5 SPEED(RMN) 		8-97213-220-6 01 1 9909-0007
16 HARNESS; ENG,ECGI
M/T MUA 5 SPEED(RMN) 		8-97234-354-4 01 1 0008-0104
16 HARNESS; ENG,ECGI
M/T MUA 5 SPEED(RMN) 		8-97310-274-0 01 1 0105-0106
16 HARNESS; ENG,ECGI
M/T MUA 5 SPEED(RMN) 		8-97256-691-2 01 1 0107-0206
16 HARNESS; ENG,ECGI
A/T AISIN(RMD) 		8-97288-487-3 01 1 0207-0307
16 HARNESS; ENG,ECGI 8-97288-487-3 01 1 0308-0309
16 HARNESS; ENG,ECGI 8-97363-797-0 01 1 0310-
38 HARNESS; CHAS 8-97125-345-4 01 1 9707-9908
38 HARNESS; CHAS
ACTIVE RIDE CONTROL(7WD) 		8-97233-282-1 01 1 9909-0007
38 HARNESS; CHAS
ACTIVE RIDE CONTROL(7WD) 		8-97259-743-3 01 1 0008-0307
38 HARNESS; CHAS
ACTIVE RIDE CONTROL(7WD) EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97356-749-0 01 1 0308-
38 HARNESS; CHAS
EXC. ACTIVE RIDE CONTROL(7WD) 		8-97233-280-0 01 1 9909-0007
38 HARNESS; CHAS
EXC. ACTIVE RIDE CONTROL(7WD) 		8-97259-742-2 01 1 0008-0307
38 HARNESS; CHAS
EXC. SPARE TIRE UNDER FLOOR MTG<7PF>,ACTIVE RIDE CONTROL(7WD) 		8-97356-748-0 01 1 0308-
38 HARNESS; CHAS
SPARE TIRE UNDER FLOOR MTG<7PF> ACTIVE RIDE CONTROL(7WD) 		8-97234-179-4 01 1 0308-
38 HARNESS; CHAS
SPARE TIRE UNDER FLOOR MTG<7PF> EXC. ACTIVE RIDE CONTROL(7WD) 		8-97312-830-1 01 1 0308-
231 HARNESS; TRANS
A/T AISIN(RMD) 		8-97310-209-2 01 1 0207-0307
231 HARNESS; TRANS 8-97310-209-2 01 1 0308-
231 HARNESS; TRANS
A/T THM(RMQ) 		8-97125-353-7 01 1 9707-9908
231 HARNESS; TRANS
M/T MUA 5 SPEED(RMN) 		8-97125-351-7 01 1 9707-9908

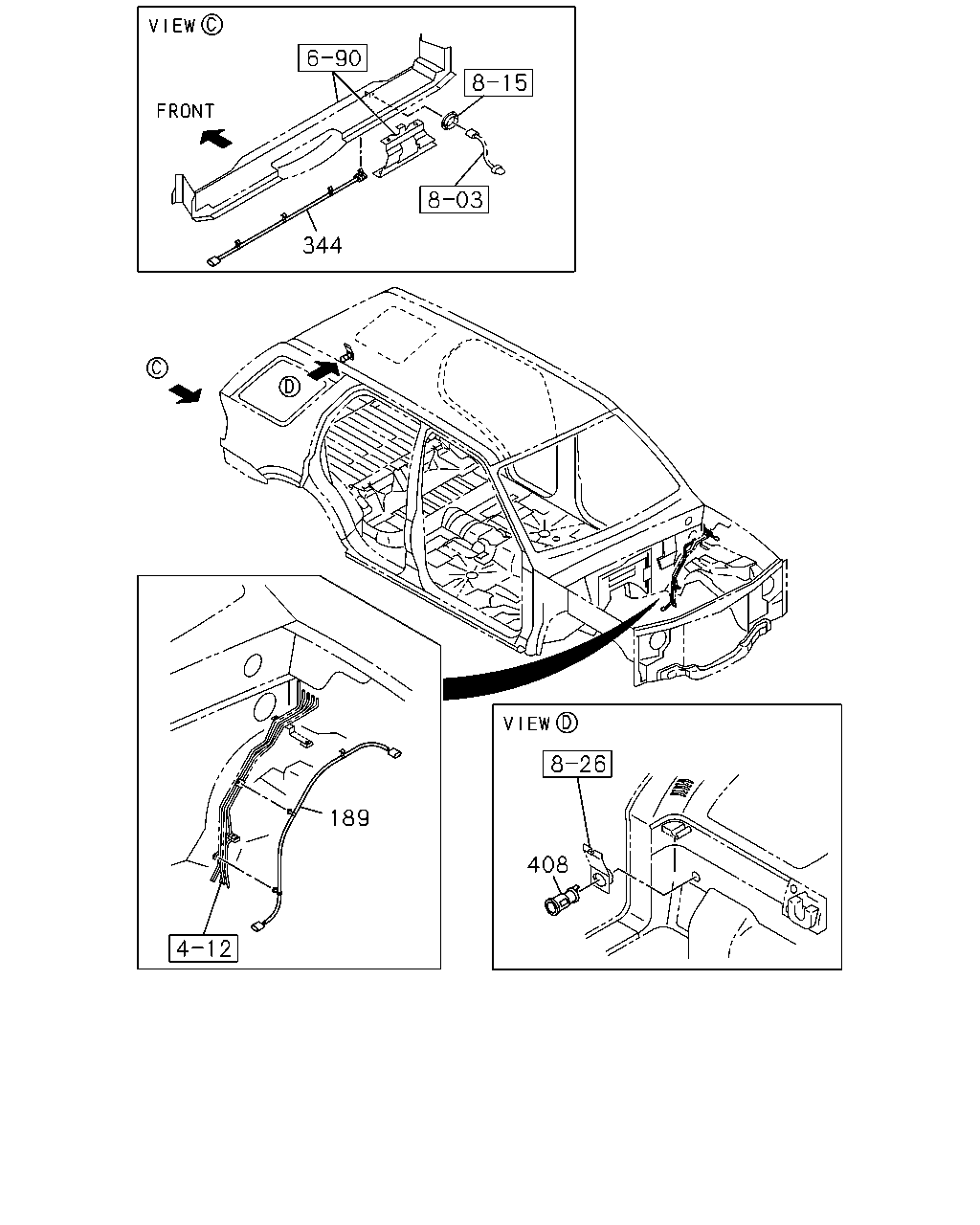

çizim 69866
344 189 408
BalonParca AdiParca NoAdetTipApplied Date
189 HARNESS; EXT 8-97135-102-1 01 1 9707-9908
344 HARNESS; CABLE,LICENSE LAMP
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97127-981-0 01 1 9707-9908
344 HARNESS; CABLE,LICENSE LAMP
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97208-724-1 01 1 9909-
408 SOCKET ASM; ACCESSORY 8-94382-451-0 01 1 9707-9807
408 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET LUGGAGE ROOM<6MP> 		8-94382-451-1 01 1 9808-0206
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
