Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-05 - INTERIOR LAMP
▶
8-05 — INTERIOR LAMP
(#42644) — 28 parça
◀

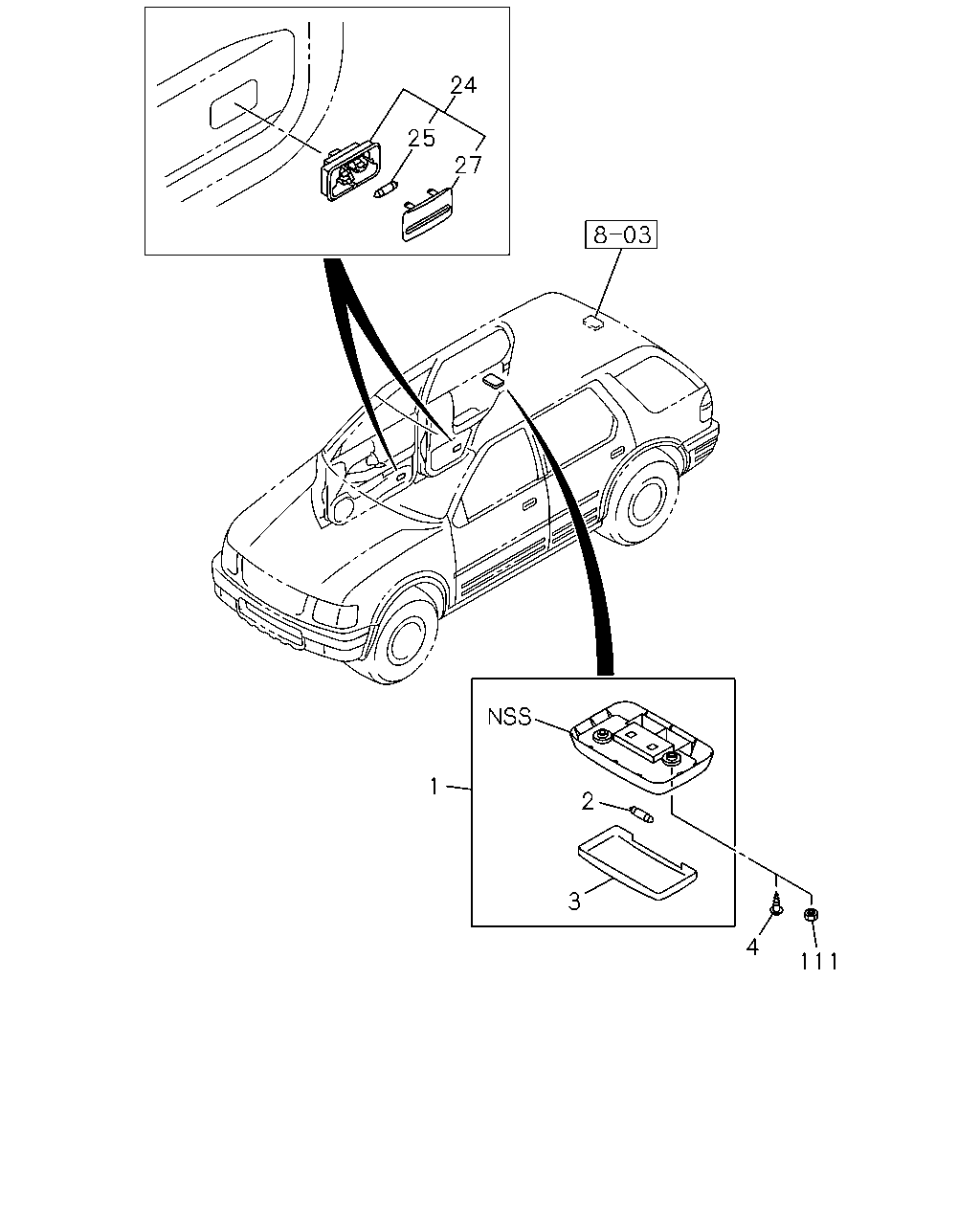

[805A] ROOM LAMP AND STEP LAMP (26 parça)
[805A] GLOVE BOX LAMP (2 parça)
▶
24
25
27
1
2
3
4
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; ROOM
8-97125-189-1
01
1
9707-9908
1
LAMP ASM; ROOM
8-97224-444-1
01
1
9909-9911
1
LAMP ASM; ROOM
LIGHT GRAY
8-97295-035-2
01
1
9912-0007
1
LAMP ASM; ROOM
INTERIOR COLOR GRAY(180) LIGHT GRAY
8-97295-035-2
01
1
0008-0206
1
LAMP ASM; ROOM
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY
8-97391-863-3
01
1
0207-
1
LAMP ASM; ROOM
INTERIOR COLOR BEIGE(181) BEIGE
8-97295-036-3
01
1
0008-
2
BULB; ROOM LAMP
12V 8W
8-97178-460-0
01
1
9707-9908
2
BULB; ROOM LAMP
12V 10W
8-97128-771-0
01
1
9909-
3
LENS; ROOM LAMP
8-97178-459-0
01
1
9707-9908
3
LENS; ROOM LAMP
8-97252-106-0
01
1
9909-
4
SCREW; ROOM LAMP
EXC. SUNROOF<CF5> M5X16
8-94295-854-0
02
1
9707-
24
LAMP; STEP
COURTESY LAMP<U29>
8-97125-274-0
04
1
9707-9908
24
LAMP; STEP
INTERIOR COLOR BEIGE(181) LIGHT BEIGE
8-97292-582-0
04
1
9909-0007
24
LAMP; STEP
INTERIOR COLOR BEIGE(181) LIGHT BEIGE
8-97292-582-0
02
1
0008-0012
24
LAMP; STEP
INTERIOR COLOR BEIGE(181) LIGHT BEIGE
8-97298-412-0
02
1
0101-0206
24
LAMP; STEP
INTERIOR COLOR GRAY(180) POWER WINDOW<A30> GRAY
8-97292-581-0
04
1
9909-0007
24
LAMP; STEP
INTERIOR COLOR GRAY(180) POWER WINDOW<A30> GRAY
8-97292-581-0
02
1
0008-0012
24
LAMP; STEP
INTERIOR COLOR GRAY(180) POWER WINDOW<A30> GRAY
8-97298-411-0
02
1
0101-0206
25
BULB; STEP LAMP
COURTESY LAMP<U29> 12V 3.4W
8-97178-434-0
04
1
9707-9908
25
BULB; STEP LAMP
POWER WINDOW<A30> 12V 3.4W
8-97178-434-0
04
1
9909-0007
25
BULB; STEP LAMP
POWER WINDOW<A30> 12V 3.4W
8-97178-434-0
02
1
0008-0206
27
LENS; STEP LAMP
COURTESY LAMP<U29>
8-97178-433-0
04
1
9707-9908
27
LENS; STEP LAMP
POWER WINDOW<A30>
8-97178-433-0
04
1
9909-0007
27
LENS; STEP LAMP
POWER WINDOW<A30>
8-97178-433-0
02
1
0008-0012
27
LENS; STEP LAMP
POWER WINDOW<A30>
8-97308-075-0
02
1
0101-0206
111
NUT; ROOM LAMP
SUNROOF<CF5> M5 FLANGE
8-94178-699-0
02
1
9707-
13
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
LAMP ASM; GLOVE BOX
8-97305-080-0
01
1
0207-0207
14
BULB; GLOVE BOX LAMP
12V 1.2W
8-97352-272-0
01
1
0207-0207
