◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#42643) — 66 parça

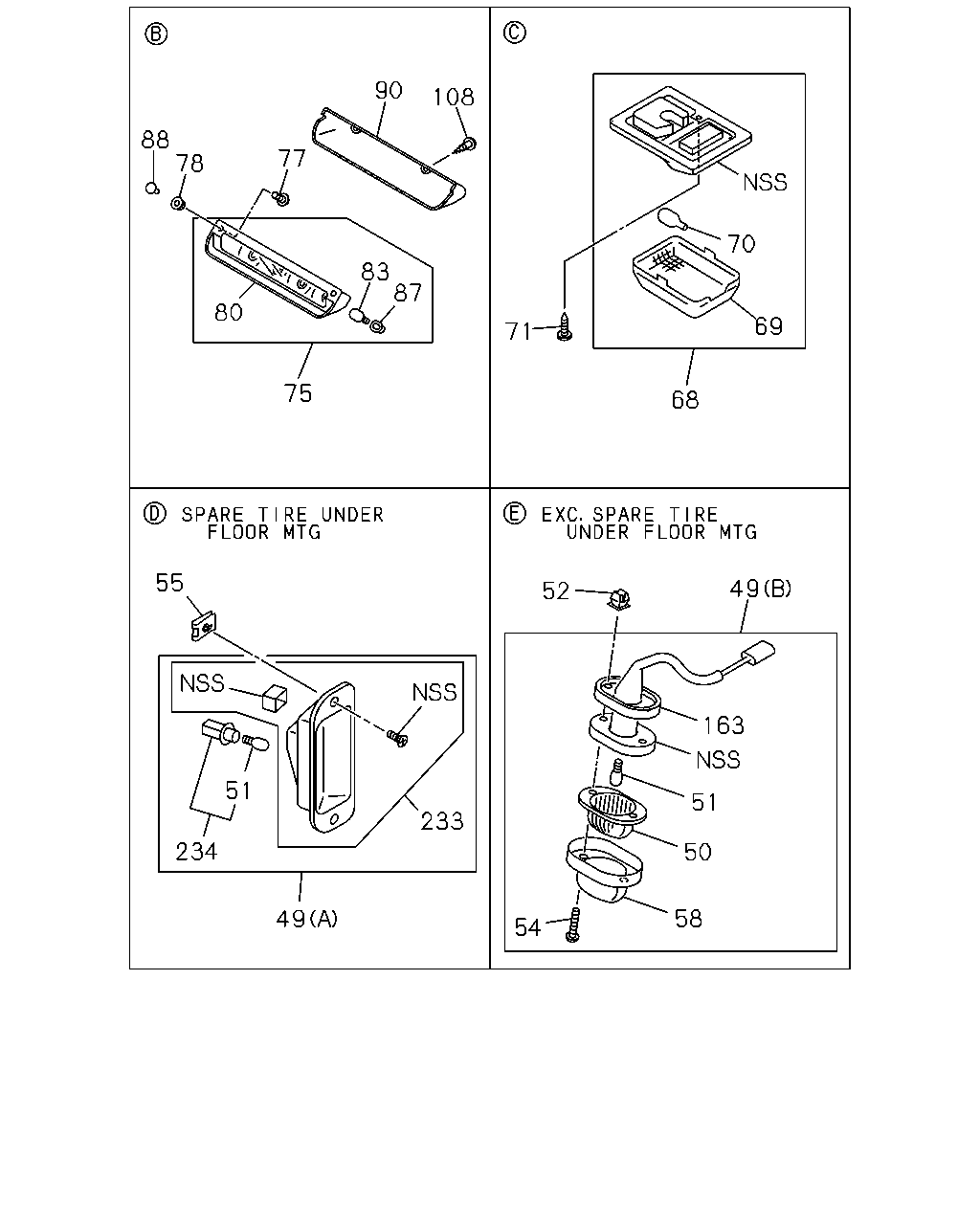

çizim 68829
90 108 88 78 77 70 83 87 80 69 71 75 68 55 49 52 163 51 51 233 234 50 58 49 54
BalonParca AdiParca NoAdetTipApplied Date
49 LAMP; LICENSE PLATE
SPARE TIRE UNDER FLOOR MTG<7PF> (A) 		8-97135-965-1 01 1 9707-
49 LAMP; LICENSE PLATE
SPARE TIRE UNDER FLOOR MTG<7PF> (A) 		8-97135-963-1 01 1 9707-
49 LAMP; LICENSE PLATE
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> (B) 		8-97126-975-2 01 1 9707-
50 LENS; LICENSE PLATE LAMP
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-94135-878-2 01 1 9707-
51 BULB; LICENSE PLATE LAMP
SPARE TIRE UNDER FLOOR MTG<7PF> 12V 5W 		8-94423-044-0 02 1 9707-
51 BULB; LICENSE PLATE LAMP
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 12V 5W 		8-94124-595-0 01 1 9707-
52 GROMMET; SCREW,LICENSE PLATE LAMP
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> D=7.5X7.5 L=7 		8-94430-147-0 02 1 9707-
54 SCREW; LICENSE PLATE LAMP
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97178-864-0 02 1 9707-
55 NUT; LICENSE PLATE LAMP
SPARE TIRE UNDER FLOOR MTG<7PF> 		8-94382-501-0 04 1 9707-9805
58 COVER; LICENSE PLATE LAMP
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> BLACK 		8-94323-724-0 01 1 9707-
68 LAMP; LUGGAGE ROOM 8-97125-273-0 01 1 9707-9807
68 LAMP; LUGGAGE ROOM
GRAY 		8-97198-207-1 01 1 9808-9908
68 LAMP; LUGGAGE ROOM
LIGHT GRAY 		8-97198-206-1 01 1 9909-0007
68 LAMP; LUGGAGE ROOM
INTERIOR COLOR GRAY(180) LIGHT GRAY 		8-97198-206-1 01 1 0008-0103
68 LAMP; LUGGAGE ROOM
INTERIOR COLOR GRAY(180) LIGHT GRAY 		8-97298-890-0 01 1 0104-0206
68 LAMP; LUGGAGE ROOM
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97391-864-0 01 1 0207-0209
68 LAMP; LUGGAGE ROOM
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97394-763-0 01 1 0210-
68 LAMP; LUGGAGE ROOM
INTERIOR COLOR BEIGE(181) BEIGE 		8-97293-932-1 01 1 0008-0103
68 LAMP; LUGGAGE ROOM
INTERIOR COLOR BEIGE(181) BEIGE 		8-97298-892-0 01 1 0104-0210
68 LAMP; LUGGAGE ROOM
INTERIOR COLOR BEIGE(181) BEIGE 		8-97394-765-0 01 1 0211-
69 LENS; LUGGAGE ROOM LAMP 8-97178-881-0 01 1 9707-
70 BULB; LUGGAGE ROOM LAMP
12V 5W 		8-97178-882-0 01 1 9707-
71 SCREW; LUGGAGE ROOM LAMP
M4X12 TAPPING 		9-07066-412-0 01 1 9707-
75 LAMP ASM; STOP,HIGHMOUNTED 8-97124-864-0 01 1 9707-0007
75 LAMP ASM; STOP,HIGHMOUNTED 8-97220-553-0 01 1 0008-
77 BOLT; STOP LAMP,HIGHMOUNTED
M6X12 W/LK&PL WASHER 		8-94279-329-0 02 1 9707-
78 GROMMET; STOP LAMP 8-97124-866-0 02 1 9707-
80 UNIT; STOP LAMP 8-97178-167-0 01 1 9707-0007
80 UNIT; STOP LAMP 8-97200-279-0 01 1 0008-
83 BULB; STOP LAMP,HIGHMOUNTED
12V 5W 		8-94124-595-0 04 1 9707-
87 SOCKET; STOP LAMP 8-94419-202-0 04 1 9707-
88 NUT; STOP LAMP 8-97124-867-0 02 1 9707-
90 COVER; STOP LAMP 8-97145-254-0 01 1 9707-
108 SCREW; COVER,STOP LAMP
M4X14 TAPPING 		0-71080-414-0 02 1 9707-
163 SPACER; LICENSE PLATE LAMP
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-94232-866-0 01 1 9707-
233 LAMP UNIT; LICENSE PLATE
SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97178-729-0 01 1 9707-
233 LAMP UNIT; LICENSE PLATE
SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97178-730-0 01 1 9707-
234 SOCKET ASM; LICENSE PLATE LAMP
SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97178-733-0 02 1 9707-

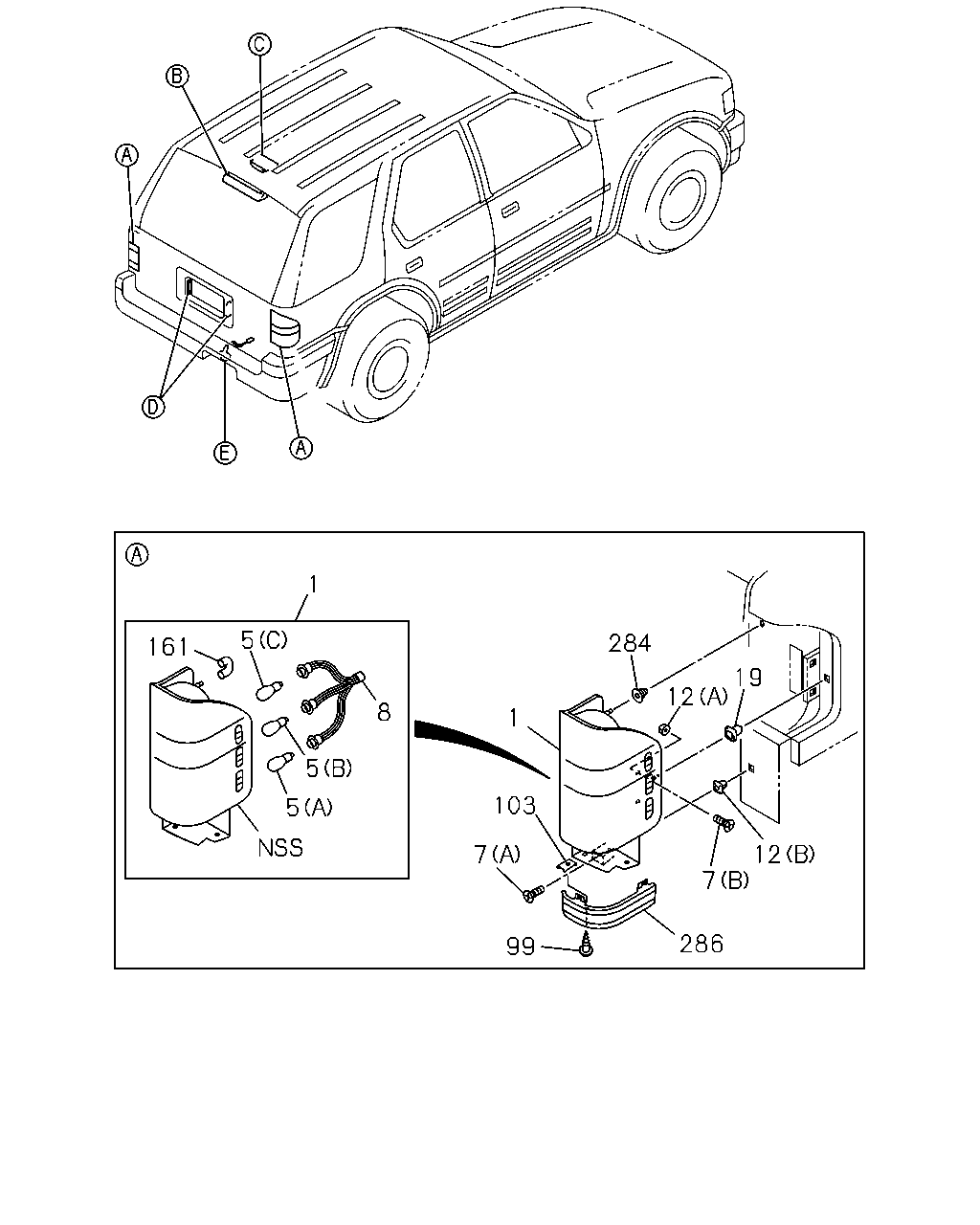

çizim 68989
1 5 284 161 19 12 8 1 5 103 5 12 7 7 286 99
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB 8-97124-008-1 01 1 9707-9908
1 LAMP ASM; RR COMB 8-97941-420-0 01 1 9909-
1 LAMP ASM; RR COMB 8-97124-007-1 01 1 9707-9908
1 LAMP ASM; RR COMB 8-97941-419-0 01 1 9909-
5 BULB; RR COMB LAMP
(B),(C) 12V 21W 		8-94124-074-0 04 1 9707-9908
5 BULB; RR COMB LAMP
(A) 12V 21/5W 		8-94125-959-0 02 1 9707-9908
5 BULB; RR COMB LAMP
(B) 12V 18W 		8-94372-897-0 02 1 9909-
5 BULB; RR COMB LAMP
(A) 12V 27/8W 		8-94404-036-0 02 1 9909-
5 BULB; RR COMB LAMP
(C) 12V 27W 		8-97222-072-0 02 1 9909-
7 SCREW; RR COMB LAMP
(A) M5X20 		8-94436-927-0 02 1 9707-9911
7 SCREW; RR COMB LAMP
(B) M5X20 		8-97811-082-0 04 1 9707-9908
7 SCREW; RR COMB LAMP
(B) M5X20 TAPPING 		8-97240-077-0 04 1 9909-9911
7 SCREW; RR COMB LAMP
(A),(B) M5X20 TAPPING 		8-97240-077-0 06 1 9912-
8 HARNESS; RR COMB LAMP 8-97174-898-0 02 1 9707-9908
8 HARNESS; RR COMB LAMP 8-97941-423-0 02 1 9909-
12 GROMMET; RR COMB LAMP
(A) D=7X7 L=7.5 		5-09983-007-0 04 1 9707-
12 GROMMET; RR COMB LAMP
(B) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 02 1 9707-9911
12 GROMMET; RR COMB LAMP
(B) D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 9912-
19 SEAL; RR COMB LAMP 8-97124-975-0 02 1 9707-
99 SCREW
M5X20 		8-94436-927-0 04 1 9707-9908
99 SCREW
M5X16 		8-97221-612-0 04 1 9909-0304
99 SCREW
M5X16 		8-94384-690-0 04 1 0305-
103 NUT 8-97162-032-0 04 1 9707-
161 TUBE; RR COMB LAMP 8-97174-897-0 06 1 9707-9908
161 TUBE; RR COMB LAMP 8-97941-425-0 04 1 9909-
284 FASTENER; RR COMB LAMP 8-97124-974-0 02 1 9707-
286 PANEL; RR COMB LAMP LWR 8-97124-385-2 01 1 9707-
286 PANEL; RR COMB LAMP LWR 8-97124-384-3 01 1 9707-
