8-01 — LAMP; FRONT AND FRONT SIDE (#42642) — 78 parça

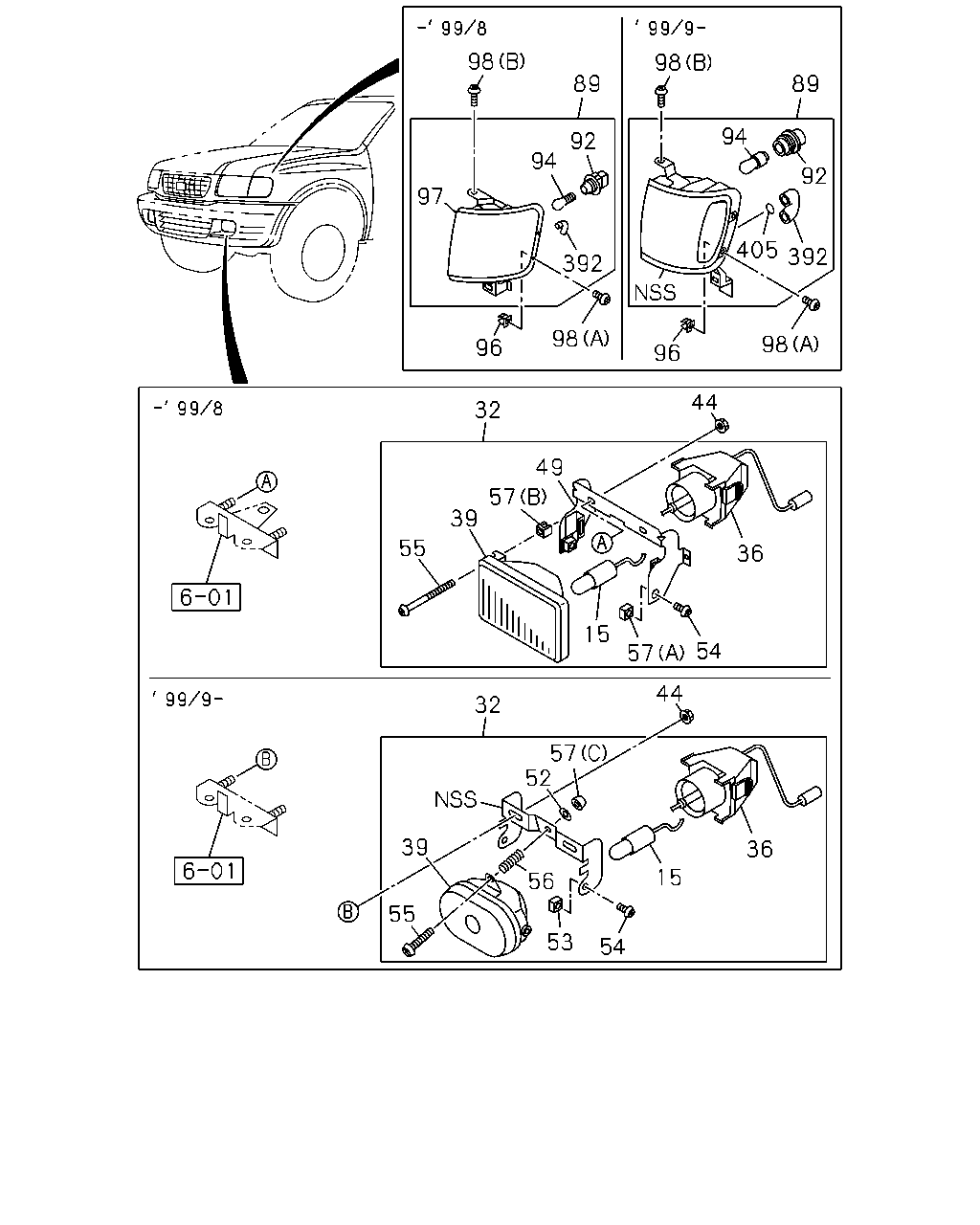

98 98 89 89 94 92 94 92 97 405 392 392 98 98 96 96 44 32 49 57 39 55 36 15 54 57 44 32 57 52 56 39 36 15 55 53 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	BULB; FOG LAMP FOG LAMP HALOGEN<T37> 12V 55W	8-94458-282-0	02	1	9707-
32	LAMP ASM; FOG FOG LAMP HALOGEN<T37>	8-97124-001-3	01	1	9707-9908
32	LAMP ASM; FOG FOG LAMP HALOGEN<T37>	8-97124-000-3	01	1	9707-9908
32	LAMP ASM; FOG FOG LAMP HALOGEN<T37>	8-97208-464-1	02	1	9909-0109
32	LAMP ASM; FOG FOG LAMP HALOGEN<T37>	8-97288-898-0	02	1	0110-
36	CORD; FOG LAMP FOG LAMP HALOGEN<T37>	8-97178-070-0	02	1	9707-9908
36	CORD; FOG LAMP FOG LAMP HALOGEN<T37>	8-97232-499-0	02	1	9909-0109
36	CORD; FOG LAMP FOG LAMP HALOGEN<T37>	8-97095-518-0	02	1	0110-
39	UNIT; FOG LAMP FOG LAMP HALOGEN<T37>	8-97178-069-0	01	1	9707-9908
39	UNIT; FOG LAMP FOG LAMP HALOGEN<T37>	8-97178-068-0	01	1	9707-9908
39	UNIT; FOG LAMP FOG LAMP HALOGEN<T37>	8-97232-495-0	02	1	9909-
44	NUT; FOG LAMP FOG LAMP HALOGEN<T37> M6 FLANGE	0-91150-106-0	04	1	9707-
49	BRACKET; LAMP FOG LAMP HALOGEN<T37>	8-97178-071-0	02	1	9707-9908
52	RING; MTG,FOG LAMP FOG LAMP HALOGEN<T37>	8-97232-496-0	02	1	9909-
53	NUT; MTG RING,FOG LAMP FOG LAMP HALOGEN<T37>	8-94379-802-0	04	1	9909-
54	BOLT; MTG RING,FOG LAMP FOG LAMP HALOGEN<T37> M5X12	8-94379-803-0	04	1	9707-
55	SCREW; ADJ,FOG LAMP FOG LAMP HALOGEN<T37>	8-97016-275-0	02	1	9707-9908
55	SCREW; ADJ,FOG LAMP FOG LAMP HALOGEN<T37>	8-97232-497-0	02	1	9909-
56	SPRING; COIL,FOG LAMP FOG LAMP HALOGEN<T37>	8-97232-498-0	02	1	9909-
57	NUT; UNIT TO SCREW,FOG LAMP FOG LAMP HALOGEN<T37> (A)	8-94379-802-0	04	1	9707-9908
57	NUT; UNIT TO SCREW,FOG LAMP FOG LAMP HALOGEN<T37> (C)	8-97232-500-0	02	1	9909-
57	NUT; UNIT TO SCREW,FOG LAMP FOG LAMP HALOGEN<T37> (B)	8-94379-806-0	02	1	9707-9908
89	LAMP; SIDE COMB	8-97123-998-2	01	1	9707-9908
89	LAMP; SIDE COMB	8-97208-431-1	01	1	9909-9909
89	LAMP; SIDE COMB	8-97249-629-1	01	1	9910-0003
89	LAMP; SIDE COMB	8-97260-014-1	01	1	0004-
89	LAMP; SIDE COMB	8-97123-997-2	01	1	9707-9908
89	LAMP; SIDE COMB	8-97208-430-1	01	1	9909-9909
89	LAMP; SIDE COMB	8-97249-628-1	01	1	9910-0003
89	LAMP; SIDE COMB	8-97260-013-1	01	1	0004-
92	SOCKET ASM; SIDE COMB LAMP	8-97174-902-0	02	1	9707-9908
92	SOCKET ASM; SIDE COMB LAMP	8-97232-490-0	02	1	9909-
94	BULB; SIDE COMB LAMP 12V 21/5W	8-94125-959-0	02	1	9707-9908
94	BULB; SIDE COMB LAMP 12V 27/8W	8-97062-105-0	02	1	9909-0003
94	BULB; SIDE COMB LAMP 12V 27/8W	8-97183-462-0	02	1	0004-
96	GROMMET; SCREW,SIDE COMB LAMP D=7.5X7.5 L=7	8-94430-147-0	04	1	9707-
97	LAMP UNIT; COMB	8-97174-911-0	01	1	9707-9908
97	LAMP UNIT; COMB	8-97174-909-0	01	1	9707-9908
98	SCREW; SIDE COMB LAMP (A) M4X20	8-94446-971-0	04	1	9707-
98	SCREW; SIDE COMB LAMP (B) M4X16 W/WASHER	8-97809-122-0	02	1	9707-
392	TUBE; COMB LAMP	8-97174-904-0	04	1	9707-9908
392	TUBE; COMB LAMP	8-97232-493-0	02	1	9909-
405	FILTER; SIDE COMB LAMP	8-97232-494-0	02	1	9909-

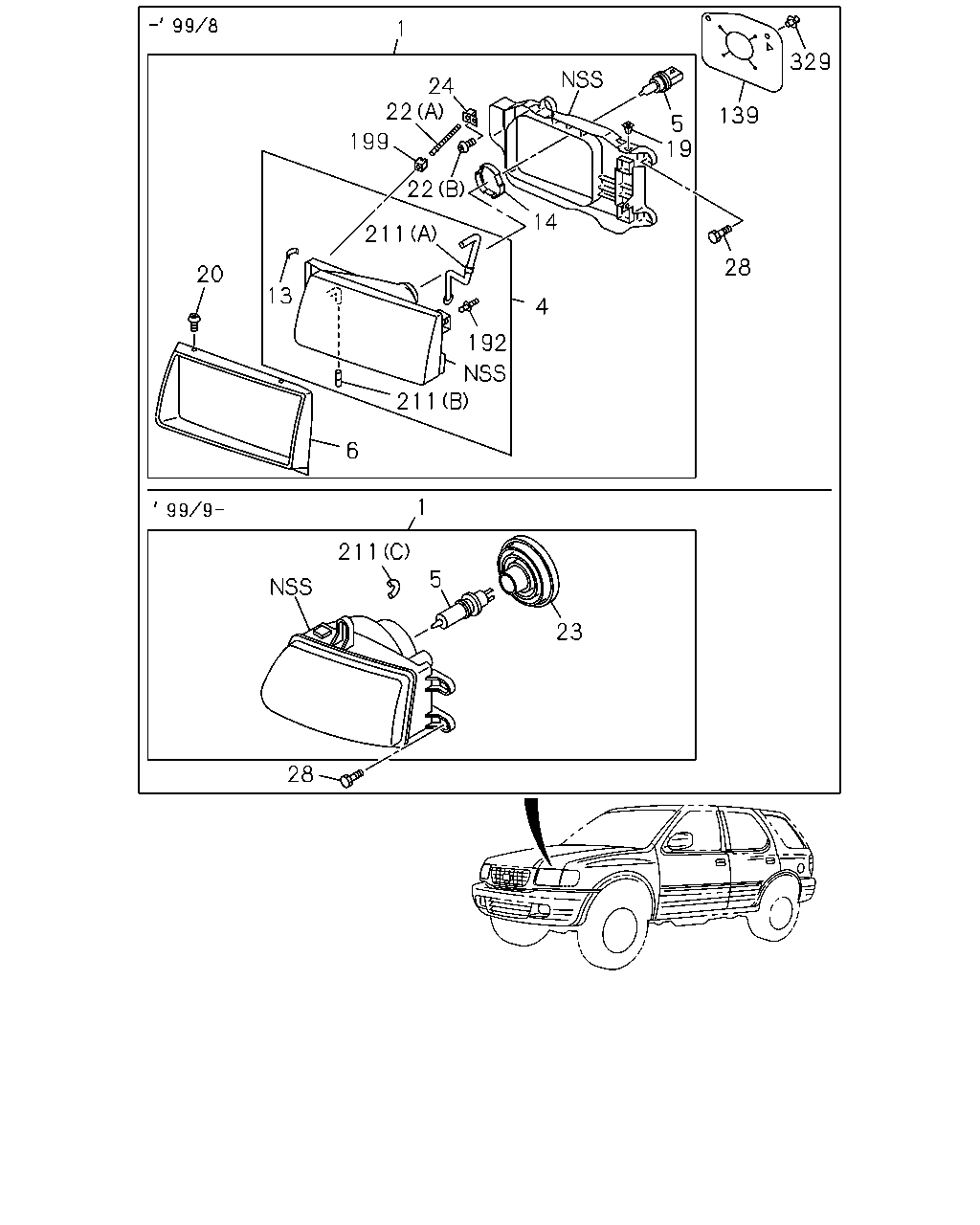

1 329 24 22 139 5 19 199 22 14 211 28 20 13 4 192 211 6 1 211 5 23 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD	8-97123-996-0	01	1	9707-9807
1	LAMP ASM; HEAD	8-97205-901-0	01	1	9808-9908
1	LAMP ASM; HEAD	8-97208-427-3	01	1	9909-0206
1	LAMP ASM; HEAD	8-97306-802-2	01	1	0207-0211
1	LAMP ASM; HEAD	8-97357-777-0	01	1	0212-
1	LAMP ASM; HEAD	8-97123-995-0	01	1	9707-9807
1	LAMP ASM; HEAD	8-97205-899-0	01	1	9808-9908
1	LAMP ASM; HEAD	8-97208-426-3	01	1	9909-0206
1	LAMP ASM; HEAD	8-97306-801-2	01	1	0207-0211
1	LAMP ASM; HEAD	8-97357-776-0	01	1	0212-
4	HEADLAMP UNIT	8-97178-076-0	01	1	9707-9908
4	HEADLAMP UNIT	8-97178-077-0	01	1	9707-9908
5	BULB; HEADLAMP 12V 65/45W YELLOW	8-94452-694-0	02	1	9707-9908
5	BULB; HEADLAMP 12V 60/55W	8-97214-872-0	02	1	9909-
6	RIM; HEADLAMP	8-97178-078-0	01	1	9707-9908
6	RIM; HEADLAMP	8-97178-079-0	01	1	9707-9908
13	CLIP; HEADLAMP	8-94381-588-0	04	1	9707-9908
14	CAP; BULB,LAMP	8-94319-296-0	02	1	9707-9908
19	NUT; HEADLAMP	8-94387-096-0	02	1	9707-9908
20	SCREW; HEADLAMP	8-97024-695-0	06	1	9707-9908
22	SCREW; ADJ,HEADLAMP (A)	8-97024-687-0	04	1	9707-9807
22	SCREW; ADJ,HEADLAMP (A)	8-97210-823-0	04	1	9808-9908
22	SCREW; ADJ,HEADLAMP (B)	8-97027-702-0	04	1	9707-9908
23	COVER; BULB,HEADLAMP	8-97232-491-0	02	1	9909-
24	MOUNTING; ADJ SCREW HD LAMP	8-97024-686-0	04	1	9707-9908
28	BOLT; HEADLAMP M6X18 TAPPING W/LK&PL WASHER	8-97147-194-0	08	1	9707-
139	COVER; HEADLAMP	8-97123-999-1	02	1	9707-9908
192	PIVOT; HEADLAMP	8-97024-693-0	02	1	9707-9807
192	PIVOT; HEADLAMP	8-97210-826-0	02	1	9808-9908
199	BUSHING	8-97178-080-0	06	1	9707-9908
211	TUBE; HEADLAMP (A)	8-97178-126-0	02	1	9707-9908
211	TUBE; HEADLAMP (C)	8-97232-492-0	04	1	9909-
211	TUBE; HEADLAMP (B)	8-97210-824-0	01	1	9808-9908
211	TUBE; HEADLAMP (B)	8-97210-825-0	01	1	9808-9908
329	FASTENER; COVER D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	04	1	9707-9908
