Sayfa 7-60 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶

7-60 — SEAT BELT (#42641) — 89 parça

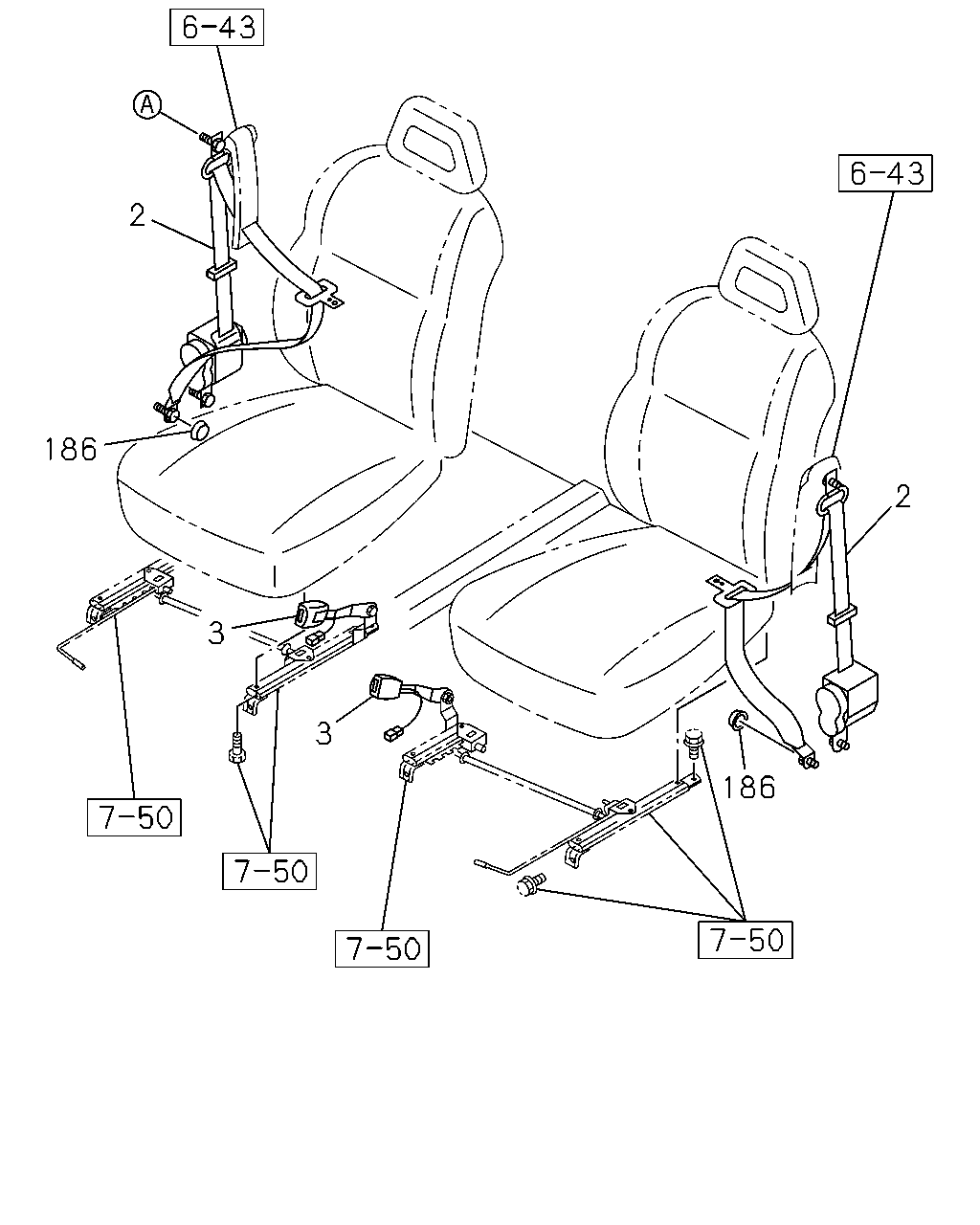

2 186 2 3 3 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BELT; SEAT,TONGUE SIDE GRAY	8-97157-392-4	01	1	9707-9908
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(180) GRAY	8-97292-195-1	01	1	9909-0007
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(180) GRAY	8-97293-865-3	01	1	0008-0107
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(180) GRAY	8-97292-195-3	01	1	0108-0206
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR TAUPE GRAY(182) DARK GRAY	8-97391-782-1	01	1	0207-0307
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR TAUPE GRAY(182) DARK GRAY	8-97396-465-0	01	1	0308-
2	BELT; SEAT,TONGUE SIDE GRAY	8-97157-391-3	01	1	9707-9908
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(180) GRAY	8-97292-193-1	01	1	9909-0007
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(180) GRAY	8-97293-863-3	01	1	0008-0107
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR GRAY(180) GRAY	8-97292-193-3	01	1	0108-0206
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR TAUPE GRAY(182) DARK GRAY	8-97391-780-1	01	1	0207-
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97292-196-1	01	1	9909-0007
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97293-866-3	01	1	0008-0107
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97292-196-3	01	1	0108-0206
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97391-783-1	01	1	0207-0307
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97396-466-0	01	1	0308-
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97292-194-1	01	1	9909-0007
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97293-864-3	01	1	0008-0107
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97292-194-3	01	1	0108-0206
2	BELT; SEAT,TONGUE SIDE INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97391-781-1	01	1	0207-
3	BELT; SEAT,BUCKLE SIDE GRAY	8-97158-483-1	01	1	9707-9908
3	BELT; SEAT,BUCKLE SIDE GRAY	8-97158-482-1	01	1	9707-9908
3	BELT; SEAT,BUCKLE SIDE INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97291-602-6	01	1	9909-0208
3	BELT; SEAT,BUCKLE SIDE INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97291-601-6	01	1	9909-0208
3	BELT; SEAT,BUCKLE SIDE INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97291-602-6	01	1	0209-
3	BELT; SEAT,BUCKLE SIDE INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97291-601-6	01	1	0209-
3	BELT; SEAT,BUCKLE SIDE INTERIOR COLOR GRAY(180) GRAY	8-97158-483-6	01	1	9909-0206
3	BELT; SEAT,BUCKLE SIDE INTERIOR COLOR TAUPE GRAY(182) DARK GRAY	8-97391-807-6	01	1	0207-0208
3	BELT; SEAT,BUCKLE SIDE INTERIOR COLOR GRAY(180) GRAY	8-97158-482-6	01	1	9909-0206
3	BELT; SEAT,BUCKLE SIDE INTERIOR COLOR TAUPE GRAY(182) DARK GRAY	8-97391-806-6	01	1	0207-0208
3	BELT; SEAT,BUCKLE SIDE INTERIOR COLOR TAUPE GRAY(182) DARK GRAY	8-97391-807-6	01	1	0209-
3	BELT; SEAT,BUCKLE SIDE INTERIOR COLOR TAUPE GRAY(182) DARK GRAY	8-97391-806-6	01	1	0209-
186	CAP; BUCKLE BOLT	8-97162-601-0	02	1	9801-0206

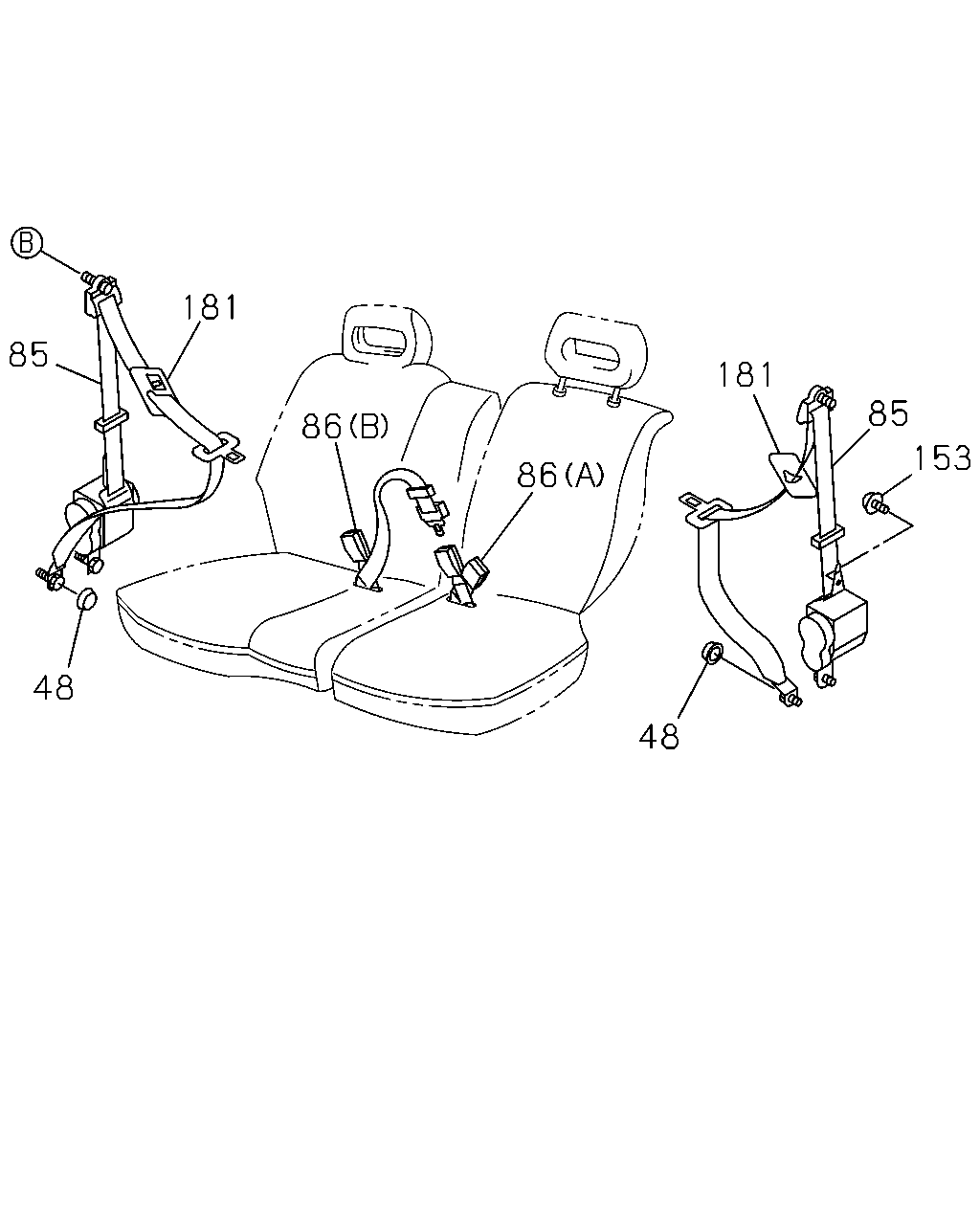

181 85 181 85 86 153 86 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	CAP; LAP OUTER	8-97162-601-0	04	1	9707-0007
48	CAP; LAP OUTER	8-97162-601-0	02	1	0108-
85	BELT; SEAT,RR OUTER GRAY	8-97157-394-4	01	1	9707-9907
85	BELT; SEAT,RR OUTER GRAY	8-97292-902-0	01	1	9908-9908
85	BELT; SEAT,RR OUTER INTERIOR COLOR GRAY(180) GRAY	8-97292-902-0	01	1	9909-0007
85	BELT; SEAT,RR OUTER INTERIOR COLOR GRAY(180) GRAY	8-97295-808-3	01	1	0008-0106
85	BELT; SEAT,RR OUTER INTERIOR COLOR GRAY(180) GRAY	8-97391-109-1	01	1	0107-0206
85	BELT; SEAT,RR OUTER INTERIOR COLOR TAUPE GRAY(182) DARK GRAY	8-97391-787-1	01	1	0207-
85	BELT; SEAT,RR OUTER GRAY	8-97157-393-4	01	1	9707-9907
85	BELT; SEAT,RR OUTER GRAY	8-97292-901-0	01	1	9908-9908
85	BELT; SEAT,RR OUTER INTERIOR COLOR GRAY(180) GRAY	8-97292-901-0	01	1	9909-0007
85	BELT; SEAT,RR OUTER INTERIOR COLOR GRAY(180) GRAY	8-97295-806-3	01	1	0008-0106
85	BELT; SEAT,RR OUTER INTERIOR COLOR GRAY(180) GRAY	8-97391-107-1	01	1	0107-0206
85	BELT; SEAT,RR OUTER INTERIOR COLOR TAUPE GRAY(182) DARK GRAY	8-97391-786-1	01	1	0207-
85	BELT; SEAT,RR OUTER INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97292-938-0	01	1	9909-0007
85	BELT; SEAT,RR OUTER INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97295-809-3	01	1	0008-0106
85	BELT; SEAT,RR OUTER INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97391-110-1	01	1	0107-
85	BELT; SEAT,RR OUTER INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97292-937-0	01	1	9909-0007
85	BELT; SEAT,RR OUTER INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97295-807-3	01	1	0008-0106
85	BELT; SEAT,RR OUTER INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97391-108-1	01	1	0107-
86	BELT; SEAT,RR INNER (A) GRAY	8-97158-485-1	01	1	9707-9908
86	BELT; SEAT,RR INNER INTERIOR COLOR GRAY(180) (A) GRAY	8-97158-485-1	01	1	9909-0206
86	BELT; SEAT,RR INNER INTERIOR COLOR TAUPE GRAY(182) (A) DARK GRAY	8-97391-809-1	01	1	0207-0208
86	BELT; SEAT,RR INNER (B) GRAY	8-97158-484-1	01	1	9707-9908
86	BELT; SEAT,RR INNER INTERIOR COLOR GRAY(180) (B) GRAY	8-97158-484-3	01	1	9909-0206
86	BELT; SEAT,RR INNER INTERIOR COLOR TAUPE GRAY(182) (B) DARK GRAY	8-97391-808-3	01	1	0207-0208
86	BELT; SEAT,RR INNER INTERIOR COLOR BEIGE(181) (A) LIGHT BEIGE	8-97291-604-1	01	1	9909-0208
86	BELT; SEAT,RR INNER INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE	8-97291-603-3	01	1	9909-0208
86	BELT; SEAT,RR INNER INTERIOR COLOR BEIGE(181) (A) LIGHT BEIGE	8-97291-604-1	01	1	0209-
86	BELT; SEAT,RR INNER INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE	8-97291-603-3	01	1	0209-
86	BELT; SEAT,RR INNER INTERIOR COLOR TAUPE GRAY(182) (A) DARK GRAY	8-97391-809-1	01	1	0209-
86	BELT; SEAT,RR INNER INTERIOR COLOR TAUPE GRAY(182) (B) DARK GRAY	8-97391-808-3	01	1	0209-
153	SCREW; RETRACTOR M6X16	8-97020-619-0	02	1	9908-
181	TRIM; SLIDER PLATE GRAY	8-97157-396-1	01	1	9707-9908
181	TRIM; SLIDER PLATE GRAY	8-97196-205-1	01	1	9909-0007
181	TRIM; SLIDER PLATE INTERIOR COLOR GRAY(180) GRAY	8-97196-205-2	01	1	0008-0103
181	TRIM; SLIDER PLATE INTERIOR COLOR GRAY(180) GRAY	8-97298-224-0	01	1	0104-0206
181	TRIM; SLIDER PLATE INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY	8-97391-789-0	01	1	0207-
181	TRIM; SLIDER PLATE GRAY	8-97157-395-1	01	1	9707-9908
181	TRIM; SLIDER PLATE GRAY	8-97196-204-1	01	1	9909-0007
181	TRIM; SLIDER PLATE INTERIOR COLOR GRAY(180) GRAY	8-97196-204-2	01	1	0008-0103
181	TRIM; SLIDER PLATE INTERIOR COLOR GRAY(180) GRAY	8-97298-222-0	01	1	0104-0206
181	TRIM; SLIDER PLATE INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY	8-97391-788-0	01	1	0207-
181	TRIM; SLIDER PLATE INTERIOR COLOR BEIGE(181) BEIGE	8-97293-868-2	01	1	0008-0103
181	TRIM; SLIDER PLATE INTERIOR COLOR BEIGE(181) BEIGE	8-97298-225-0	01	1	0104-
181	TRIM; SLIDER PLATE INTERIOR COLOR BEIGE(181) BEIGE	8-97293-867-2	01	1	0008-0103
181	TRIM; SLIDER PLATE INTERIOR COLOR BEIGE(181) BEIGE	8-97298-223-0	01	1	0104-

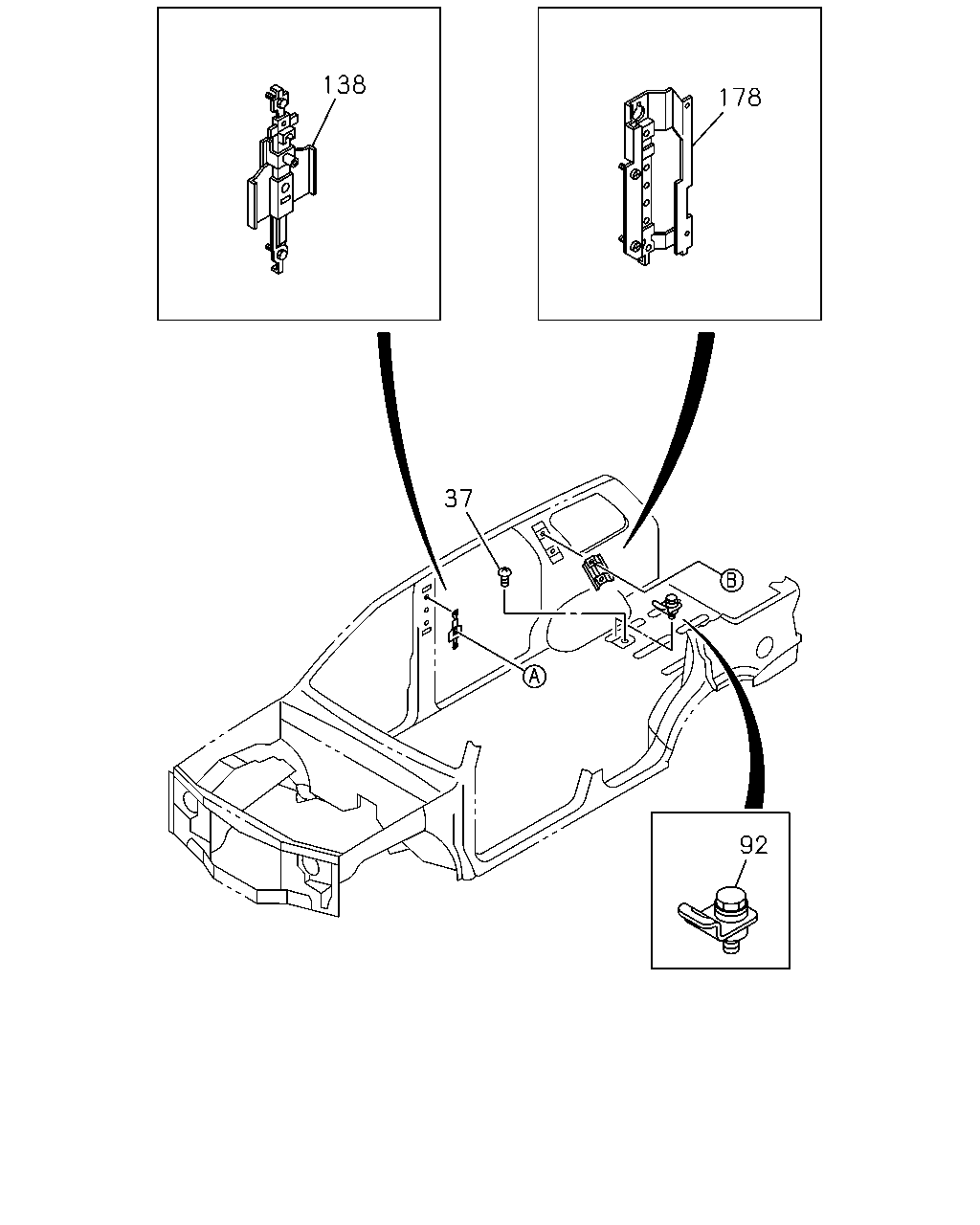

138 178 37 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	PLUG; SEAT BELT ANCHOR M8X16	8-94188-667-0	01	1	9707-0004
37	PLUG; SEAT BELT ANCHOR M8X16	8-94188-667-0	03	1	0005-0007
37	PLUG; SEAT BELT ANCHOR M8X16	8-94188-667-0	01	1	0008-
92	BRACKET; SEAT BELT ANCHOR	8-97248-080-1	02	1	0008-
138	BRACKET; ANCHOR,SEAT BELT	8-97126-541-3	02	1	9707-
178	ANCHOR; SEAT BELT	8-97147-994-4	01	1	9707-0103
178	ANCHOR; SEAT BELT	8-97301-051-1	01	1	0104-
178	ANCHOR; SEAT BELT	8-97125-137-4	01	1	9707-0103
178	ANCHOR; SEAT BELT	8-97301-050-1	01	1	0104-
