◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-55 - REAR SEAT ▶
7-55 — REAR SEAT (#42640) — 325 parça

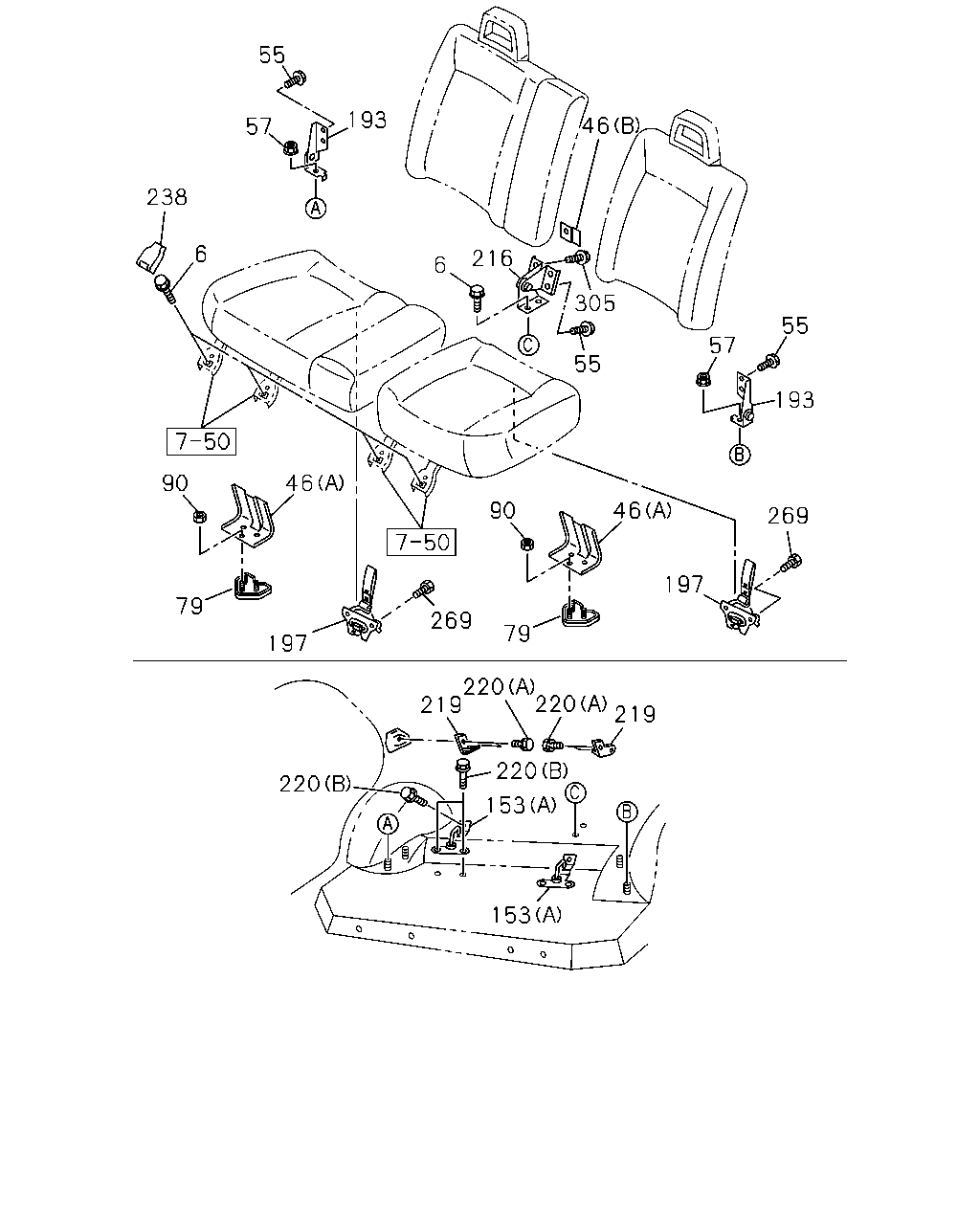

çizim 68686
55 193 46 57 238 6 216 6 305 55 57 55 193 90 46 90 46 269 197 79 269 79 197 220 219 220 219 220 220 153 153
BalonParca AdiParca NoAdetTipApplied Date A B C
6 BOLT; RR SEAT
M10X25 FLANGE 		0-28481-025-0 06 1 9707-9802 ● ●
6 BOLT; RR SEAT
M10X20 FLANGE 		0-28681-020-0 06 1 9803-9908 ● ●
6 BOLT; RR SEAT
M10X20 FLANGE 		0-28681-020-0 06 1 9909-0307 ● ● ●
6 BOLT; RR SEAT
M10X20 FLANGE 		0-28681-020-0 06 1 0308- ● ●
46 BRACKET; RR SEAT
(A) 		8-97185-130-0 02 1 9707-9908 ● ●
46 BRACKET; RR SEAT
(A) 		8-97185-130-1 02 1 9909-0208 ● ● ●
46 BRACKET; RR SEAT
(B) 		8-97251-962-0 01 1 0002-0007 ● ● ●
46 BRACKET; RR SEAT
(B) 		8-97251-961-0 01 1 0002-0007 ● ● ●
46 BRACKET; RR SEAT
(A) 		8-97185-130-1 02 1 0209-0307 ● ● ●
46 BRACKET; RR SEAT
(A) 		8-97185-130-1 02 1 0308- ● ●
55 BOLT; HINGE,RR SEAT
M10X25 		8-97066-704-0 06 1 9707-9908 ● ●
55 BOLT; HINGE,RR SEAT
M10X25 		8-97066-704-0 06 1 9909-0307 ● ● ●
55 BOLT; HINGE,RR SEAT
M10X25 		8-97066-704-0 06 1 0308- ● ●
57 NUT; RR SEAT STOPPER
M10 FLANGE 		0-91150-210-0 02 1 9707-9908 ● ●
57 NUT; RR SEAT STOPPER
M10 FLANGE 		0-91150-210-0 02 1 9909-0307 ● ● ●
57 NUT; RR SEAT STOPPER
M10 FLANGE 		0-91150-210-0 02 1 0308- ● ●
79 PLATE ASM; LK 8-97185-131-0 02 1 9707-9908 ● ●
79 PLATE ASM; LK 8-97185-131-1 02 1 9909-0307 ● ● ●
79 PLATE ASM; LK 8-97185-131-1 02 1 0308- ● ●
90 NUT; LOCK 8-97185-833-0 06 1 9707-9908 ● ●
90 NUT; LOCK 8-97185-833-0 06 1 9909-0106 ● ● ●
90 NUT; LOCK 8-97185-833-0 04 1 0107-0307 ● ● ●
90 NUT; LOCK 8-97185-833-0 04 1 0308- ● ●
153 STRIKER; SEAT LOCK
(A) 		8-97121-467-1 02 1 9707-9908 ● ●
153 STRIKER; SEAT LOCK
(A) 		8-97121-467-1 02 1 9909-0307 ● ● ●
153 STRIKER; SEAT LOCK
(A) 		8-97121-467-1 02 1 0308- ● ●
153 STRIKER; SEAT LOCK
(B) 		8-97249-362-1 02 1 0008-0307 ● ● ●
153 STRIKER; SEAT LOCK
(B) 		8-97249-362-1 02 1 0308- ● ●
153 STRIKER; SEAT LOCK
(C) 		8-97249-364-1 01 1 0008-0307 ● ● ●
153 STRIKER; SEAT LOCK
(C) 		8-97249-364-1 01 1 0308- ● ●
153 STRIKER; SEAT LOCK
(C) 		8-97249-363-1 01 1 0008-0307 ● ● ●
153 STRIKER; SEAT LOCK
(C) 		8-97249-363-1 01 1 0308- ● ●
193 HINGE; RR BACK OUTER 8-97121-558-2 01 1 9707-9908 ● ●
193 HINGE; RR BACK OUTER 8-97121-558-2 01 1 9909-0007 ● ● ●
193 HINGE; RR BACK OUTER 8-97248-593-0 01 1 0008-0208 ● ● ●
193 HINGE; RR BACK OUTER 8-97121-557-2 01 1 9707-9908 ● ●
193 HINGE; RR BACK OUTER 8-97121-557-2 01 1 9909-0007 ● ● ●
193 HINGE; RR BACK OUTER 8-97248-592-0 01 1 0008-0208 ● ● ●
193 HINGE; RR BACK OUTER 8-97248-593-0 01 1 0209-0307 ● ● ●
193 HINGE; RR BACK OUTER 8-97248-593-0 01 1 0308- ● ●
193 HINGE; RR BACK OUTER 8-97248-592-0 01 1 0209-0307 ● ● ●
193 HINGE; RR BACK OUTER 8-97248-592-0 01 1 0308- ● ●
197 LOCK; FLOOR,RR CUSHION
GRAY 		8-97159-730-0 01 1 9707-9908 ● ●
197 LOCK; FLOOR,RR CUSHION
INTERIOR COLOR GRAY(180) GRAY 		8-97159-730-2 01 1 9909-0206 ● ● ●
197 LOCK; FLOOR,RR CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-257-2 01 1 0207-0208 ● ● ●
197 LOCK; FLOOR,RR CUSHION
GRAY 		8-97159-729-0 01 1 9707-9908 ● ●
197 LOCK; FLOOR,RR CUSHION
INTERIOR COLOR GRAY(180) GRAY 		8-97159-729-2 01 1 9909-0206 ● ● ●
197 LOCK; FLOOR,RR CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-217-2 01 1 0207-0208 ● ● ●
197 LOCK; FLOOR,RR CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-257-2 01 1 0209-0307 ● ● ●
197 LOCK; FLOOR,RR CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-257-2 01 1 0308- ● ●
197 LOCK; FLOOR,RR CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-217-2 01 1 0209-0307 ● ● ●
197 LOCK; FLOOR,RR CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-217-2 01 1 0308- ● ●
197 LOCK; FLOOR,RR CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-369-2 01 1 9909-0208 ● ●
197 LOCK; FLOOR,RR CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-358-2 01 1 9909-0208 ● ●
197 LOCK; FLOOR,RR CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-369-2 01 1 0209- ● ●
197 LOCK; FLOOR,RR CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-358-2 01 1 0209- ● ●
216 HINGE; RR CENTER 8-97121-559-2 01 1 9707-9908 ● ●
216 HINGE; RR CENTER 8-97121-559-2 01 1 9909-0007 ● ● ●
216 HINGE; RR CENTER 8-97248-594-0 01 1 0008-0307 ● ● ●
216 HINGE; RR CENTER 8-97248-594-0 01 1 0308- ● ●
219 STRIKER ASM; RR SEAT BACK 8-97121-466-0 01 1 9707-9908 ● ●
219 STRIKER ASM; RR SEAT BACK 8-97121-466-0 01 1 9909-0307 ● ● ●
219 STRIKER ASM; RR SEAT BACK 8-97121-466-0 01 1 0308- ● ●
219 STRIKER ASM; RR SEAT BACK 8-97121-465-0 01 1 9707-9908 ● ●
219 STRIKER ASM; RR SEAT BACK 8-97121-465-0 01 1 9909-0307 ● ● ●
219 STRIKER ASM; RR SEAT BACK 8-97121-465-0 01 1 0308- ● ●
220 BOLT; STRIKER TO BODY
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9707-9908 ● ●
220 BOLT; STRIKER TO BODY
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9909-0307 ● ● ●
220 BOLT; STRIKER TO BODY
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0308- ● ●
220 BOLT; STRIKER TO BODY
(B) 		8-97035-067-0 08 1 9707-9908 ● ●
220 BOLT; STRIKER TO BODY
(B) 		8-97035-067-0 08 1 9909-0307 ● ● ●
220 BOLT; STRIKER TO BODY
(B) 		8-97035-067-0 08 1 0308- ● ●
238 COVER; LEG
GRAY 		8-97157-407-2 04 1 9707-9908 ● ●
238 COVER; LEG
INTERIOR COLOR GRAY(180) GRAY 		8-97157-407-3 04 1 9909-0206 ● ● ●
238 COVER; LEG
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-831-4 04 1 0207-0307 ● ● ●
238 COVER; LEG
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-831-4 04 1 0308- ● ●
238 COVER; LEG
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-612-4 04 1 9909- ● ●
269 BOLT; FLOOR LOCK
7/16"X31 UNF 		8-94371-938-0 04 1 9707-9908 ● ●
269 BOLT; FLOOR LOCK
7/16"X31 UNF 		8-94371-938-0 04 1 9909-0307 ● ● ●
269 BOLT; FLOOR LOCK
7/16"X31 UNF 		8-94371-938-0 04 1 0308- ● ●
305 BOLT; RR SEAT
M10X20 FLANGE 		0-28681-020-0 02 1 9707-9802 ● ●
305 BOLT; RR SEAT
M10X25 		8-97066-704-0 02 1 9803-9908 ● ●
305 BOLT; RR SEAT
M10X25 		8-97066-704-0 02 1 9909-0307 ● ● ●
305 BOLT; RR SEAT
M10X25 		8-97066-704-0 02 1 0308- ● ●

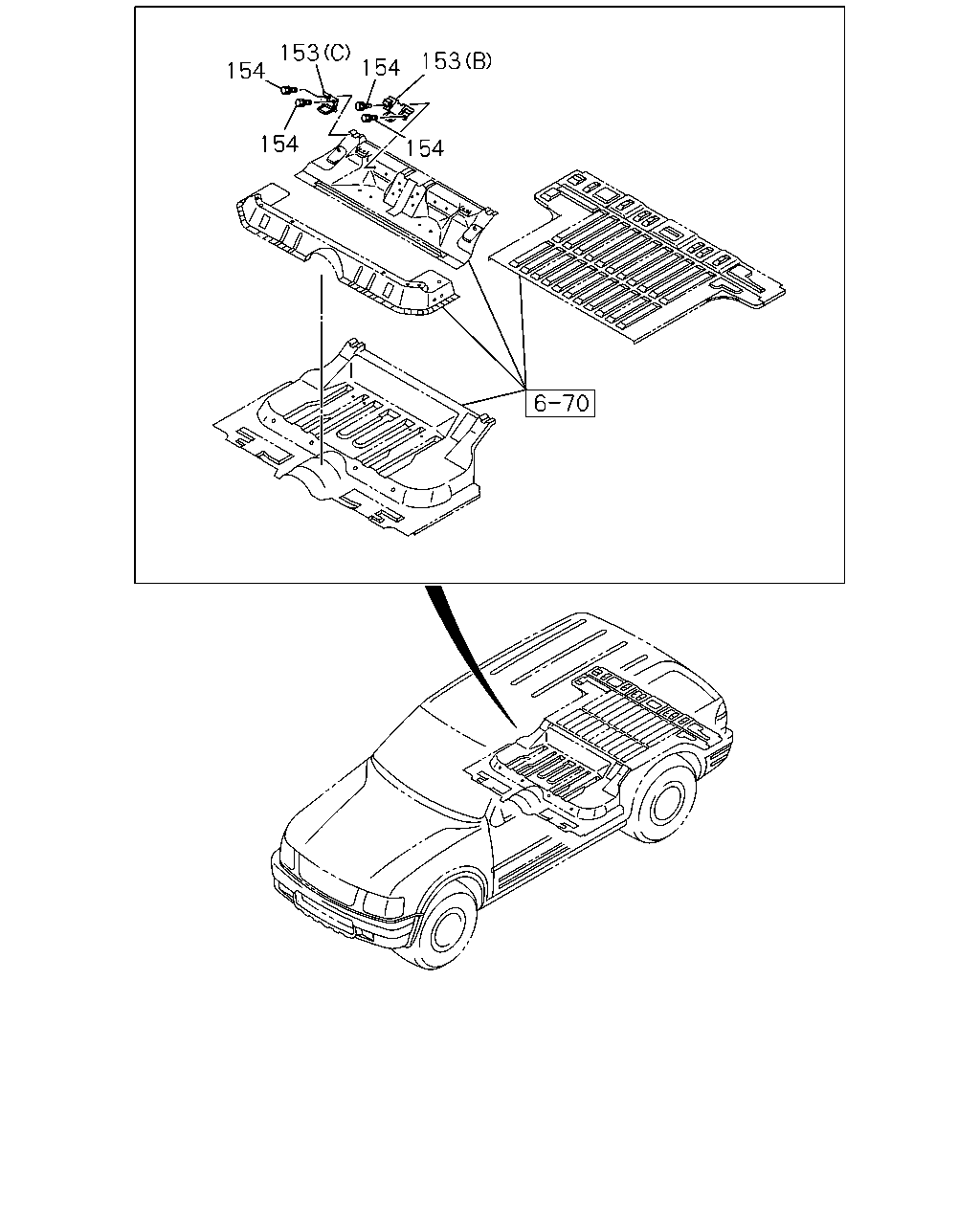

çizim 69585
153 153 154 154 154 154
BalonParca AdiParca NoAdetTipApplied Date A B C
153 STRIKER; SEAT LOCK
(A) 		8-97121-467-1 02 1 9707-9908 ● ●
153 STRIKER; SEAT LOCK
(A) 		8-97121-467-1 02 1 9909-0307 ● ● ●
153 STRIKER; SEAT LOCK
(A) 		8-97121-467-1 02 1 0308- ● ●
153 STRIKER; SEAT LOCK
(B) 		8-97249-362-1 02 1 0008-0307 ● ● ●
153 STRIKER; SEAT LOCK
(B) 		8-97249-362-1 02 1 0308- ● ●
153 STRIKER; SEAT LOCK
(C) 		8-97249-364-1 01 1 0008-0307 ● ● ●
153 STRIKER; SEAT LOCK
(C) 		8-97249-364-1 01 1 0308- ● ●
153 STRIKER; SEAT LOCK
(C) 		8-97249-363-1 01 1 0008-0307 ● ● ●
153 STRIKER; SEAT LOCK
(C) 		8-97249-363-1 01 1 0308- ● ●
154 BOLT; STRIKER TO FLOOR
M8X16 FLANGE 		0-28080-816-0 08 1 0008-0307 ● ● ●
154 BOLT; STRIKER TO FLOOR
M8X16 FLANGE 		0-28080-816-0 08 1 0308- ● ●

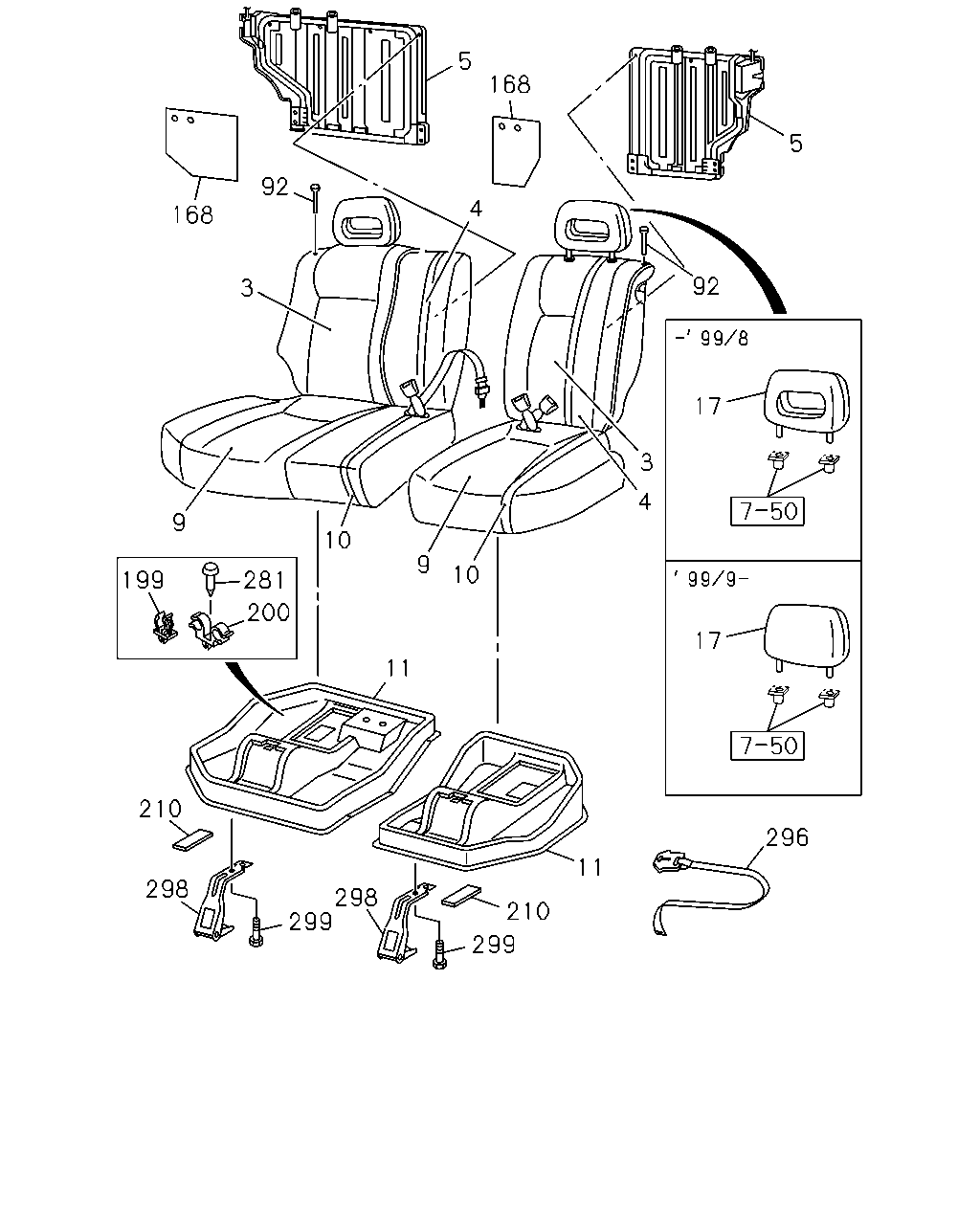

çizim 71862
5 168 5 92 4 168 92 3 17 3 4 9 10 9 10 281 199 200 17 11 210 296 11 298 298 299 210 299
BalonParca AdiParca NoAdetTipApplied Date A B C
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97159-746-0 01 1 9707-9807 ●
3 COVER; TRIM,RR SEAT BACK
EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97159-746-0 01 1 9808-9908 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR GRAY(180) GRAY 		8-97293-453-3 01 1 9909-0007 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR GRAY(180) GRAY 		8-97295-079-0 01 1 0008-0206 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-268-0 01 1 0207-0208 ●
3 COVER; TRIM,RR SEAT BACK
GRAY 		8-97159-741-0 01 1 9707-9807 ●
3 COVER; TRIM,RR SEAT BACK
EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97159-741-0 01 1 9808-9908 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR GRAY(180) GRAY 		8-97293-449-3 01 1 9909-0007 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR GRAY(180) GRAY 		8-97295-077-0 01 1 0008-0206 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-232-0 01 1 0207-0208 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-268-0 01 1 0209-0307 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-232-0 01 1 0209-0307 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97295-189-0 01 1 0107-0201 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97394-092-0 01 1 0202- ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97394-084-0 01 1 0209- ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> LIGHT BEIGE 		8-97293-410-1 01 1 9909-0007 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> LIGHT BEIGE 		8-97293-406-1 01 1 9909-0007 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97295-188-0 02 1 0008-0106 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97295-188-0 01 1 0107-0201 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97394-084-0 01 1 0202-0208 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR GRAY(180) LEATHER SEAT<6TB> GRAY 		8-97293-327-1 01 1 9909-0007 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR GRAY(180) GRAY 		8-97295-175-0 01 1 0008-0201 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR GRAY(180) GRAY 		8-97394-147-0 01 1 0202-0206 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-091-0 01 1 0207-0208 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR GRAY(180) LEATHER SEAT<6TB> GRAY 		8-97293-323-1 01 1 9909-0007 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR GRAY(180) GRAY 		8-97295-173-0 01 1 0008-0201 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR GRAY(180) GRAY 		8-97394-145-0 01 1 0202-0206 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-083-0 01 1 0207-0208 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-091-0 01 1 0209- ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-083-0 01 1 0209- ●
3 COVER; TRIM,RR SEAT BACK
LEATHER SEAT<6TB> GRAY 		8-97159-750-1 01 1 9707-9908 ●
3 COVER; TRIM,RR SEAT BACK
LEATHER SEAT<6TB> GRAY 		8-97159-745-1 01 1 9707-9908 ●
3 COVER; TRIM,RR SEAT BACK
EXC. LEATHER SEAT<6TB> GRAY 		8-97159-748-0 01 1 9707-9807 ●
3 COVER; TRIM,RR SEAT BACK
UP GRADE PACKAGE<7MA> GRAY 		8-97159-748-0 01 1 9808-9908 ●
3 COVER; TRIM,RR SEAT BACK
EXC. LEATHER SEAT<6TB> GRAY 		8-97159-748-0 01 1 9808-9908 ●
3 COVER; TRIM,RR SEAT BACK
EXC. LEATHER SEAT<6TB> GRAY 		8-97159-743-0 01 1 9707-9807 ●
3 COVER; TRIM,RR SEAT BACK
UP GRADE PACKAGE<7MA> GRAY 		8-97159-743-0 01 1 9808-9908 ●
3 COVER; TRIM,RR SEAT BACK
EXC. LEATHER SEAT<6TB> GRAY 		8-97159-743-0 01 1 9808-9908 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-371-2 01 1 9909-0007 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97295-117-0 01 1 0008-0206 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97392-270-0 01 1 0207-0208 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-360-2 01 1 9909-0007 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97295-116-0 01 1 0008-0206 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97392-234-0 01 1 0207-0208 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97392-270-0 01 1 0209- ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97392-234-0 01 1 0209- ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR GRAY(180) GRAY 		8-97293-267-2 01 1 9909-0007 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR GRAY(180) GRAY 		8-97295-111-0 01 1 0008-0206 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-269-0 01 1 0207-0208 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR GRAY(180) GRAY 		8-97293-261-2 01 1 9909-0007 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR GRAY(180) GRAY 		8-97295-110-0 01 1 0008-0206 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-233-0 01 1 0207-0208 ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-269-0 01 1 0209- ●
3 COVER; TRIM,RR SEAT BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-233-0 01 1 0209- ●
4 PAD; RR,SEAT BACK 8-97181-276-0 01 1 9707-9908 ● ●
4 PAD; RR,SEAT BACK 8-97181-276-0 01 1 9909-0007 ● ● ●
4 PAD; RR,SEAT BACK 8-97248-589-0 01 1 0008-0208 ● ● ●
4 PAD; RR,SEAT BACK 8-97181-275-0 01 1 9707-9908 ● ●
4 PAD; RR,SEAT BACK 8-97181-275-0 01 1 9909-0007 ● ● ●
4 PAD; RR,SEAT BACK 8-97248-588-0 01 1 0008-0208 ● ● ●
4 PAD; RR,SEAT BACK 8-97248-589-0 01 1 0209-0307 ● ● ●
4 PAD; RR,SEAT BACK 8-97248-589-0 01 1 0308- ● ●
4 PAD; RR,SEAT BACK 8-97248-588-0 01 1 0209-0307 ● ● ●
4 PAD; RR,SEAT BACK 8-97248-588-0 01 1 0308- ● ●
5 FRAME ASM; RR SEAT BACK 8-97121-566-1 01 1 9707-9908 ● ●
5 FRAME ASM; RR SEAT BACK 8-97121-566-3 01 1 9909-0007 ● ● ●
5 FRAME ASM; RR SEAT BACK 8-97248-591-3 01 1 0008-0208 ● ● ●
5 FRAME ASM; RR SEAT BACK 8-97121-565-1 01 1 9707-9908 ● ●
5 FRAME ASM; RR SEAT BACK 8-97121-565-3 01 1 9909-0007 ● ● ●
5 FRAME ASM; RR SEAT BACK 8-97248-590-4 01 1 0008-0208 ● ● ●
5 FRAME ASM; RR SEAT BACK 8-97248-591-3 01 1 0209-0307 ● ● ●
5 FRAME ASM; RR SEAT BACK 8-97356-560-0 01 1 0308- ● ●
5 FRAME ASM; RR SEAT BACK 8-97248-590-4 01 1 0209-0307 ● ● ●
5 FRAME ASM; RR SEAT BACK 8-97356-559-0 01 1 0308- ● ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97159-723-0 01 1 9707-9807 ●
9 COVER ASM; TRIM,RR,CUSHION
EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97159-723-0 01 1 9808-9908 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR GRAY(180) GRAY 		8-97293-451-2 01 1 9909-0206 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-254-0 01 1 0207-0208 ●
9 COVER ASM; TRIM,RR,CUSHION
GRAY 		8-97159-718-0 01 1 9707-9807 ●
9 COVER ASM; TRIM,RR,CUSHION
EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97159-718-0 01 1 9808-9908 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR GRAY(180) GRAY 		8-97293-447-2 01 1 9909-0206 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-211-0 01 1 0207-0208 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-254-0 01 1 0209-0307 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-211-0 01 1 0209-0307 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97394-088-0 01 1 0209- ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97394-080-0 01 1 0209- ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> LIGHT BEIGE 		8-97293-408-0 01 1 9909-0007 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-408-0 01 1 0008-0201 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97394-088-0 01 1 0202-0208 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> LIGHT BEIGE 		8-97293-404-0 01 1 9909-0007 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-404-0 01 1 0008-0201 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97394-080-0 01 1 0202-0208 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR GRAY(180) LEATHER SEAT<6TB> GRAY 		8-97293-325-0 01 1 9909-0007 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR GRAY(180) GRAY 		8-97293-325-0 01 1 0008-0201 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR GRAY(180) GRAY 		8-97394-135-0 01 1 0202-0206 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-087-0 01 1 0207-0208 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR GRAY(180) LEATHER SEAT<6TB> GRAY 		8-97293-321-0 01 1 9909-0007 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR GRAY(180) GRAY 		8-97293-321-0 01 1 0008-0201 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR GRAY(180) GRAY 		8-97394-129-0 01 1 0202-0206 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-079-0 01 1 0207-0208 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-087-0 01 1 0209- ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-079-0 01 1 0209- ●
9 COVER ASM; TRIM,RR,CUSHION
LEATHER SEAT<6TB> GRAY 		8-97159-727-0 01 1 9707-9908 ●
9 COVER ASM; TRIM,RR,CUSHION
LEATHER SEAT<6TB> GRAY 		8-97159-722-0 01 1 9707-9908 ●
9 COVER ASM; TRIM,RR,CUSHION
EXC. LEATHER SEAT<6TB> GRAY 		8-97159-725-0 01 1 9707-9807 ●
9 COVER ASM; TRIM,RR,CUSHION
UP GRADE PACKAGE<7MA> GRAY 		8-97159-725-0 01 1 9808-9908 ●
9 COVER ASM; TRIM,RR,CUSHION
EXC. LEATHER SEAT<6TB> GRAY 		8-97159-725-0 01 1 9808-9908 ●
9 COVER ASM; TRIM,RR,CUSHION
EXC. LEATHER SEAT<6TB> GRAY 		8-97159-720-0 01 1 9707-9807 ●
9 COVER ASM; TRIM,RR,CUSHION
UP GRADE PACKAGE<7MA> GRAY 		8-97159-720-0 01 1 9808-9908 ●
9 COVER ASM; TRIM,RR,CUSHION
EXC. LEATHER SEAT<6TB> GRAY 		8-97159-720-0 01 1 9808-9908 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-368-1 01 1 9909-0206 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97392-256-0 01 1 0207-0208 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-356-1 01 1 9909-0206 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97392-213-0 01 1 0207-0208 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97392-256-0 01 1 0209- ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97392-213-0 01 1 0209- ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR GRAY(180) GRAY 		8-97293-265-1 01 1 9909-0206 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-255-0 01 1 0207-0208 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR GRAY(180) GRAY 		8-97293-259-1 01 1 9909-0206 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-212-0 01 1 0207-0208 ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-255-0 01 1 0209- ●
9 COVER ASM; TRIM,RR,CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-212-0 01 1 0209- ●
10 PAD; CUSHION,RR SEAT 8-97181-274-0 01 1 9707-9908 ● ●
10 PAD; CUSHION,RR SEAT 8-97181-274-2 01 1 9909-0208 ● ● ●
10 PAD; CUSHION,RR SEAT 8-97181-273-0 01 1 9707-9908 ● ●
10 PAD; CUSHION,RR SEAT 8-97181-273-2 01 1 9909-0208 ● ● ●
10 PAD; CUSHION,RR SEAT 8-97181-274-2 01 1 0209-0307 ● ● ●
10 PAD; CUSHION,RR SEAT 8-97181-274-2 01 1 0308- ● ●
10 PAD; CUSHION,RR SEAT 8-97181-273-2 01 1 0209-0307 ● ● ●
10 PAD; CUSHION,RR SEAT 8-97181-273-2 01 1 0308- ● ●
11 FRAME ASM; CUSHION,RR SEAT 8-97121-476-3 01 1 9707-9908 ● ●
11 FRAME ASM; CUSHION,RR SEAT 8-97121-476-4 01 1 9909-0208 ● ● ●
11 FRAME ASM; CUSHION,RR SEAT 8-97121-475-3 01 1 9707-9908 ● ●
11 FRAME ASM; CUSHION,RR SEAT 8-97121-475-4 01 1 9909-0208 ● ● ●
11 FRAME ASM; CUSHION,RR SEAT 8-97121-476-4 01 1 0209-0307 ● ● ●
11 FRAME ASM; CUSHION,RR SEAT 8-97121-476-4 01 1 0308- ● ●
11 FRAME ASM; CUSHION,RR SEAT 8-97121-475-4 01 1 0209-0307 ● ● ●
11 FRAME ASM; CUSHION,RR SEAT 8-97121-475-4 01 1 0308- ● ●
17 REST; HD,RR SEAT
GRAY 		8-97159-659-0 02 1 9707-9908 ●
17 REST; HD,RR SEAT
EXC. LEATHER SEAT<6TB> GRAY 		8-97159-659-0 02 1 9707-9908 ●
17 REST; HD,RR SEAT
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-819-1 02 1 0209-0307 ●
17 REST; HD,RR SEAT
INTERIOR COLOR GRAY(180) GRAY 		8-97293-245-3 02 1 9909-0007 ● ●
17 REST; HD,RR SEAT
GRAY 		8-97293-245-5 02 1 0008-0106 ●
17 REST; HD,RR SEAT
INTERIOR COLOR GRAY(180) GRAY 		8-97293-245-5 02 1 0008-0106 ●
17 REST; HD,RR SEAT
GRAY 		8-97298-884-5 02 1 0107-0206 ●
17 REST; HD,RR SEAT
INTERIOR COLOR GRAY(180) GRAY 		8-97298-884-5 02 1 0107-0206 ●
17 REST; HD,RR SEAT
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-819-1 02 1 0207-0208 ●
17 REST; HD,RR SEAT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97394-981-0 02 1 0209- ●
17 REST; HD,RR SEAT
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> LIGHT BEIGE 		8-97293-392-2 02 1 9909-0007 ●
17 REST; HD,RR SEAT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-392-3 02 1 0008-0201 ●
17 REST; HD,RR SEAT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97394-056-0 02 1 0202-0206 ●
17 REST; HD,RR SEAT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97394-981-0 02 1 0207-0208 ●
17 REST; HD,RR SEAT
INTERIOR COLOR GRAY(180) LEATHER SEAT<6TB> GRAY 		8-97293-311-2 02 1 9909-0007 ●
17 REST; HD,RR SEAT
INTERIOR COLOR GRAY(180) GRAY 		8-97293-311-3 02 1 0008-0201 ●
17 REST; HD,RR SEAT
INTERIOR COLOR GRAY(180) GRAY 		8-97394-115-0 02 1 0202-0206 ●
17 REST; HD,RR SEAT
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-117-0 02 1 0207-0208 ●
17 REST; HD,RR SEAT
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-980-0 02 1 0207- ●
17 REST; HD,RR SEAT
LEATHER SEAT<6TB> GRAY 		8-97159-660-0 02 1 9707-9908 ●
17 REST; HD,RR SEAT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-335-5 02 1 9909-0106 ●
17 REST; HD,RR SEAT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97298-929-5 02 1 0107-0206 ●
17 REST; HD,RR SEAT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97392-118-0 02 1 0207- ●
17 REST; HD,RR SEAT
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-117-0 02 1 0209- ●
92 KNOB; RR SEAT BACK,LK
GRAY 		8-97159-751-0 02 1 9707-9908 ● ●
92 KNOB; RR SEAT BACK,LK
INTERIOR COLOR GRAY(180) GRAY 		8-97159-751-0 02 1 9909-0206 ● ● ●
92 KNOB; RR SEAT BACK,LK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-244-0 02 1 0207-0307 ● ● ●
92 KNOB; RR SEAT BACK,LK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-244-0 02 1 0308- ● ●
92 KNOB; RR SEAT BACK,LK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-363-0 02 1 9909- ● ●
168 SUPPORT; RR BACK 8-97185-135-0 02 1 9707-9908 ● ●
168 SUPPORT; RR BACK 8-97230-488-0 01 1 9909-0208 ● ● ●
168 SUPPORT; RR BACK 8-97185-135-0 01 1 9909-0208 ● ● ●
168 SUPPORT; RR BACK 8-97230-488-0 01 1 0209-0307 ● ● ●
168 SUPPORT; RR BACK 8-97230-488-0 01 1 0308- ● ●
168 SUPPORT; RR BACK 8-97185-135-0 01 1 0209-0307 ● ● ●
168 SUPPORT; RR BACK 8-97185-135-0 01 1 0308- ● ●
199 HOLDER; WHEEL WRENCH 8-97181-786-0 03 1 9707-9908 ● ●
199 HOLDER; WHEEL WRENCH 8-97181-786-0 03 1 9909-0307 ● ● ●
199 HOLDER; WHEEL WRENCH 8-97181-786-0 03 1 0308- ● ●
200 HOLDER; JACK 8-97074-761-0 02 1 9707-9908 ● ●
200 HOLDER; JACK 8-97074-761-0 02 1 9909-0307 ● ● ●
200 HOLDER; JACK 8-97074-761-0 02 1 0308- ● ●
210 SUPPORT 8-97185-149-0 02 1 9707-9908 ● ●
210 SUPPORT 8-97185-149-0 02 1 9909-0307 ● ● ●
210 SUPPORT 8-97185-149-0 02 1 0308- ● ●
281 SCREW
M4X12 TAPPING 		0-71080-412-0 05 1 9707-9908 ● ●
281 SCREW
M4X12 TAPPING 		0-71080-412-0 05 1 9909-0307 ● ● ●
281 SCREW
M4X12 TAPPING 		0-71080-412-0 05 1 0308- ● ●
296 BAND; RR SEAT CUSHION
GRAY 		8-97195-944-0 02 1 9707-9908 ● ●
296 BAND; RR SEAT CUSHION
INTERIOR COLOR GRAY(180) GRAY 		8-97195-944-0 02 1 9909-0206 ● ● ●
296 BAND; RR SEAT CUSHION
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-215-0 02 1 0207-0307 ● ● ●
296 BAND; RR SEAT CUSHION
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-357-0 02 1 9909-0307 ● ●
298 LEG ASM; RR SEAT CUSHION 8-97084-271-1 04 1 9707-9908 ● ●
298 LEG ASM; RR SEAT CUSHION 8-97084-271-1 04 1 9909-0307 ● ● ●
298 LEG ASM; RR SEAT CUSHION 8-97084-271-1 04 1 0308- ● ●
299 BOLT; LEG 8-97181-785-0 08 1 9707-9908 ● ●
299 BOLT; LEG 8-97181-785-0 08 1 9909-0307 ● ● ●
299 BOLT; LEG 8-97181-785-0 08 1 0308- ● ●
çizim 72220
207 336 82 81 307 287
BalonParca AdiParca NoAdetTipApplied Date A B C
81 BAND; RR SEAT BACK
GRAY 		8-97159-752-1 02 1 9707-9908 ● ●
81 BAND; RR SEAT BACK
INTERIOR COLOR GRAY(180) GRAY 		8-97159-752-2 02 1 9909-0206 ● ● ●
81 BAND; RR SEAT BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-245-2 02 1 0207-0307 ● ● ●
81 BAND; RR SEAT BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-245-2 02 1 0308- ● ●
81 BAND; RR SEAT BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-364-2 02 1 9909- ● ●
82 SCREW; BAND TO SEAT
M5X10 		9-09829-320-1 04 1 9707-9908 ● ●
82 SCREW; BAND TO SEAT
M5X10 		9-09829-320-1 02 1 9909-0307 ● ● ●
82 SCREW; BAND TO SEAT
M5X10 		9-09829-320-1 02 1 0308- ● ●
207 LOCK ASM; RR SEAT 8-97121-556-6 01 1 9707-9908 ● ●
207 LOCK ASM; RR SEAT 8-97121-556-7 01 1 9909-0110 ● ● ●
207 LOCK ASM; RR SEAT 8-97327-608-0 01 1 0111-0208 ● ● ●
207 LOCK ASM; RR SEAT 8-97121-555-6 01 1 9707-9908 ● ●
207 LOCK ASM; RR SEAT 8-97121-555-7 01 1 9909-0110 ● ● ●
207 LOCK ASM; RR SEAT 8-97327-607-0 01 1 0111-0208 ● ● ●
207 LOCK ASM; RR SEAT 8-97327-608-0 01 1 0209-0307 ● ● ●
207 LOCK ASM; RR SEAT 8-97327-608-0 01 1 0308- ● ●
207 LOCK ASM; RR SEAT 8-97327-607-0 01 1 0209-0307 ● ● ●
207 LOCK ASM; RR SEAT 8-97327-607-0 01 1 0308- ● ●
287 SCREW; COVER
M5X10 		9-09829-320-1 02 1 9707-9908 ● ●
287 SCREW; COVER
M5X10 		9-09829-320-1 02 1 9909-0307 ● ● ●
287 SCREW; COVER
M5X10 		9-09829-320-1 02 1 0308- ● ●
307 COVER; LOCK,RR BACK
GRAY 		8-97157-828-0 01 1 9707-9908 ● ●
307 COVER; LOCK,RR BACK
INTERIOR COLOR GRAY(180) GRAY 		8-97157-828-0 01 1 9909-0206 ● ● ●
307 COVER; LOCK,RR BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-836-0 01 1 0207-0307 ● ● ●
307 COVER; LOCK,RR BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-836-0 01 1 0308- ● ●
307 COVER; LOCK,RR BACK
GRAY 		8-97157-827-0 01 1 9707-9908 ● ●
307 COVER; LOCK,RR BACK
INTERIOR COLOR GRAY(180) GRAY 		8-97157-827-0 01 1 9909-0206 ● ● ●
307 COVER; LOCK,RR BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-835-0 01 1 0207-0307 ● ● ●
307 COVER; LOCK,RR BACK
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-835-0 01 1 0308- ● ●
307 COVER; LOCK,RR BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-614-0 01 1 9909- ● ●
307 COVER; LOCK,RR BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-613-0 01 1 9909- ● ●
336 BOLT; RR SEAT BACK
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9707-9908 ● ●
336 BOLT; RR SEAT BACK
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9909-0307 ● ● ●
336 BOLT; RR SEAT BACK
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 0308- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
