◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#42638) — 130 parça

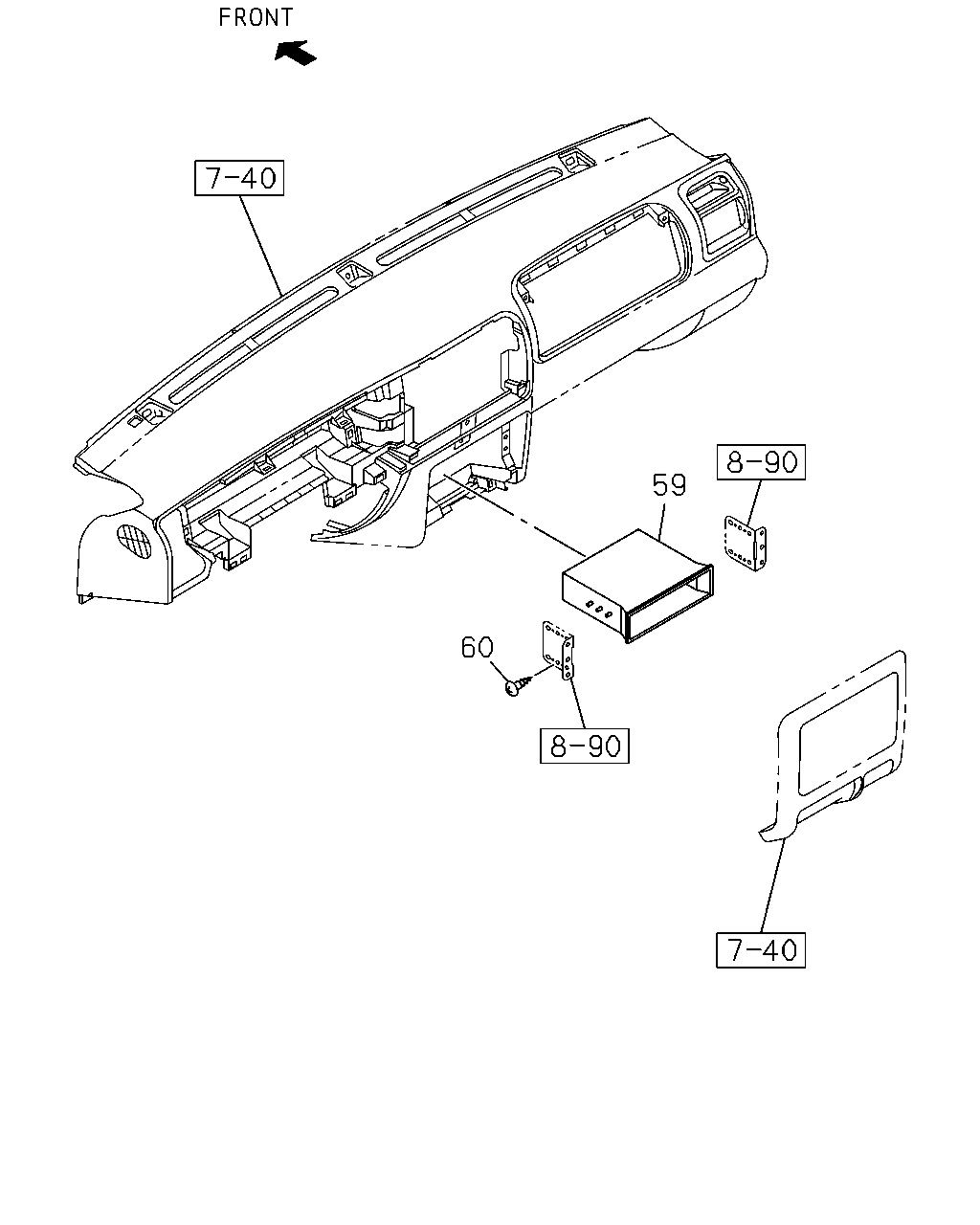

çizim 16176
59 60
BalonParca AdiParca NoAdetTipApplied Date A B C
59 BOX; FRT CONSOLE 8-97129-980-0 01 1 9707-9908 ● ●
59 BOX; FRT CONSOLE 8-97129-980-0 02 1 9909- ● ● ●
60 SCREW; BOX
M5X16 		8-94295-854-0 02 1 9707-9908 ● ●
60 SCREW; BOX
M5X16 		8-94295-854-0 04 1 9909- ● ● ●

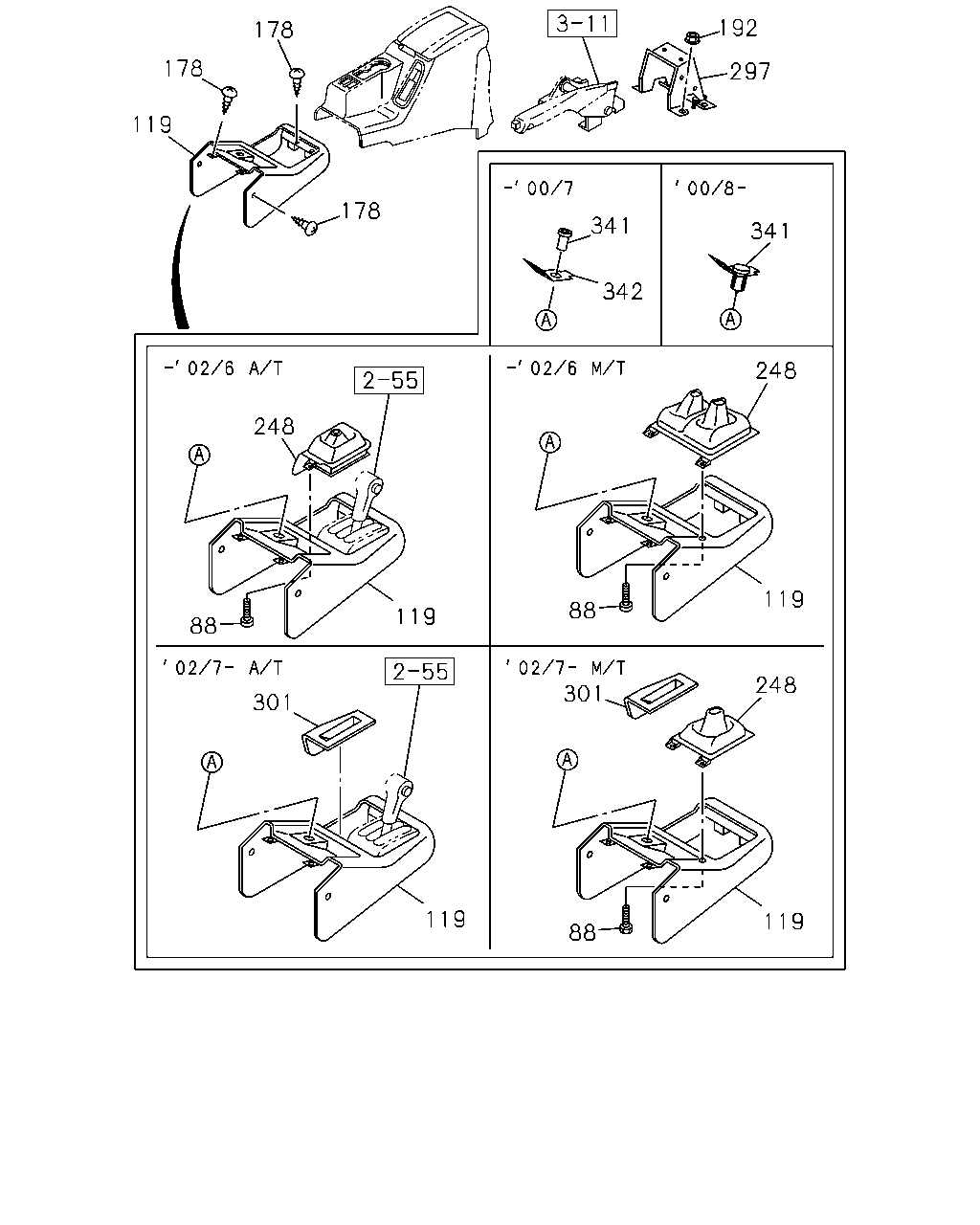

çizim 67247
192 178 178 297 119 178 341 341 342 248 248 119 88 119 88 301 248 119 119 88 301
BalonParca AdiParca NoAdetTipApplied Date A B C
88 SCREW
A/T THM(RMQ) INTERIOR COLOR GRAY(180),INTERIOR COLOR BEIGE(181) M5X16 		8-94295-854-0 01 1 9707-0206 ● ● ●
88 SCREW
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(180),INTERIOR COLOR BEIGE(181) M5X16 		8-94295-854-0 02 1 9707-0206 ● ● ●
88 SCREW
M/T MUA 5 SPEED 5C(RSN) INTERIOR COLOR BEIGE(181),INTERIOR COLOR TAUPE GRAY(182) M5X16 		8-94295-854-0 02 1 0207-0307 ● ● ●
119 CONSOLE; SHIFT LEVER
GRAY 		8-97157-417-0 01 1 9707-9908 ● ●
119 CONSOLE; SHIFT LEVER
M/T MUA 5 SPEED(RMN),A/T THM(RMQ) INTERIOR COLOR GRAY(180) GRAY 		8-97157-417-0 01 1 9909-0109 ● ● ●
119 CONSOLE; SHIFT LEVER
M/T MUA 5 SPEED(RMN),A/T THM(RMQ) INTERIOR COLOR GRAY(180) GRAY 		8-97392-830-0 01 1 0110-0206 ● ● ●
119 CONSOLE; SHIFT LEVER
A/T AISIN(RMD) INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97392-644-0 01 1 0207- ● ● ●
119 CONSOLE; SHIFT LEVER
M/T MUA 5 SPEED 5C(RSN) INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97392-646-0 01 1 0207-0307 ● ● ●
119 CONSOLE; SHIFT LEVER
M/T MUA 5 SPEED 5C(RSN) INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-645-0 01 1 0207-0307 ● ● ●
119 CONSOLE; SHIFT LEVER
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97292-141-0 01 1 9909-0109 ● ●
119 CONSOLE; SHIFT LEVER
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97392-831-0 01 1 0110-0206 ● ●
119 CONSOLE; SHIFT LEVER
A/T AISIN(RMD) INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-643-0 01 1 0207- ● ● ●
178 SCREW; CTR,CONSOLE
M5X16 		8-94295-854-0 06 1 9707-9908 ● ●
178 SCREW; CTR,CONSOLE
M5X16 		8-94295-854-0 06 1 9909-0307 ● ● ●
178 SCREW; CTR,CONSOLE
M5X16 		8-94295-854-0 06 1 0308- ● ●
192 NUT; BRKT
M6 FLANGE 		8-97063-399-0 04 1 9707-9908 ● ●
192 NUT; BRKT
M6 FLANGE 		8-97063-399-0 04 1 9909-0307 ● ● ●
192 NUT; BRKT
M6 FLANGE 		8-97063-399-0 04 1 0308- ● ●
248 BOOT; SHIFT CONT
A/T THM(RMQ) GRAY 		8-97157-418-1 01 1 9707-9804 ● ● ●
248 BOOT; SHIFT CONT
A/T THM(RMQ) GRAY 		8-97157-420-2 01 1 9805-9807 ● ● ●
248 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR GRAY(180),INTERIOR COLOR BEIGE(181) BLACK 		8-97195-881-2 01 1 9808-0206 ● ● ●
248 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) GRAY 		8-97157-421-2 01 1 9707-9807 ● ● ●
248 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(180),INTERIOR COLOR BEIGE(181) BLACK 		8-97195-880-2 01 1 9808-0011 ● ● ●
248 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(180),INTERIOR COLOR BEIGE(181) BLACK 		8-97298-390-0 01 1 0012-0206 ● ● ●
248 BOOT; SHIFT CONT
M/T MUA 5 SPEED 5C(RSN) INTERIOR COLOR BEIGE(181),INTERIOR COLOR TAUPE GRAY(182) BLACK 		8-97197-348-3 01 1 0207-0307 ● ● ●
297 BRACKET; RR CONSOLE 8-97121-744-0 01 1 9707-9908 ● ●
297 BRACKET; RR CONSOLE 8-97121-744-1 01 1 9909-0307 ● ● ●
297 BRACKET; RR CONSOLE 8-97121-744-1 01 1 0308- ● ●
301 BEZEL; CONSOLE
A/T AISIN(RMD) INTERIOR COLOR BEIGE(181),INTERIOR COLOR TAUPE GRAY(182) BLACK 		8-97197-332-1 01 1 0207-0307 ● ● ●
301 BEZEL; CONSOLE
BLACK 		8-97197-332-1 01 1 0308- ● ●
301 BEZEL; CONSOLE
M/T MUA 5 SPEED 5C(RSN) INTERIOR COLOR BEIGE(181),INTERIOR COLOR TAUPE GRAY(182) BLACK 		8-97197-334-1 01 1 0207-0307 ● ● ●
341 SOCKET; ACCESSORY 8-94382-451-0 01 1 9707-9908 ● ●
341 SOCKET; ACCESSORY 8-94382-451-1 01 1 9909-0007 ● ● ●
341 SOCKET; ACCESSORY
BLACK 		8-97296-235-1 01 1 0008-0206 ● ● ●
341 SOCKET; ACCESSORY
BLACK 		8-97393-879-0 01 1 0207-0307 ● ● ●
341 SOCKET; ACCESSORY
BLACK 		8-97393-879-0 01 1 0308- ● ●
342 COVER; SOCKET 8-97146-121-0 01 1 9707-9908 ● ●
342 COVER; SOCKET 8-97146-121-0 01 1 9909-9911 ● ● ●
342 COVER; SOCKET
BLACK 		8-97293-933-0 01 1 9912-0007 ● ● ●

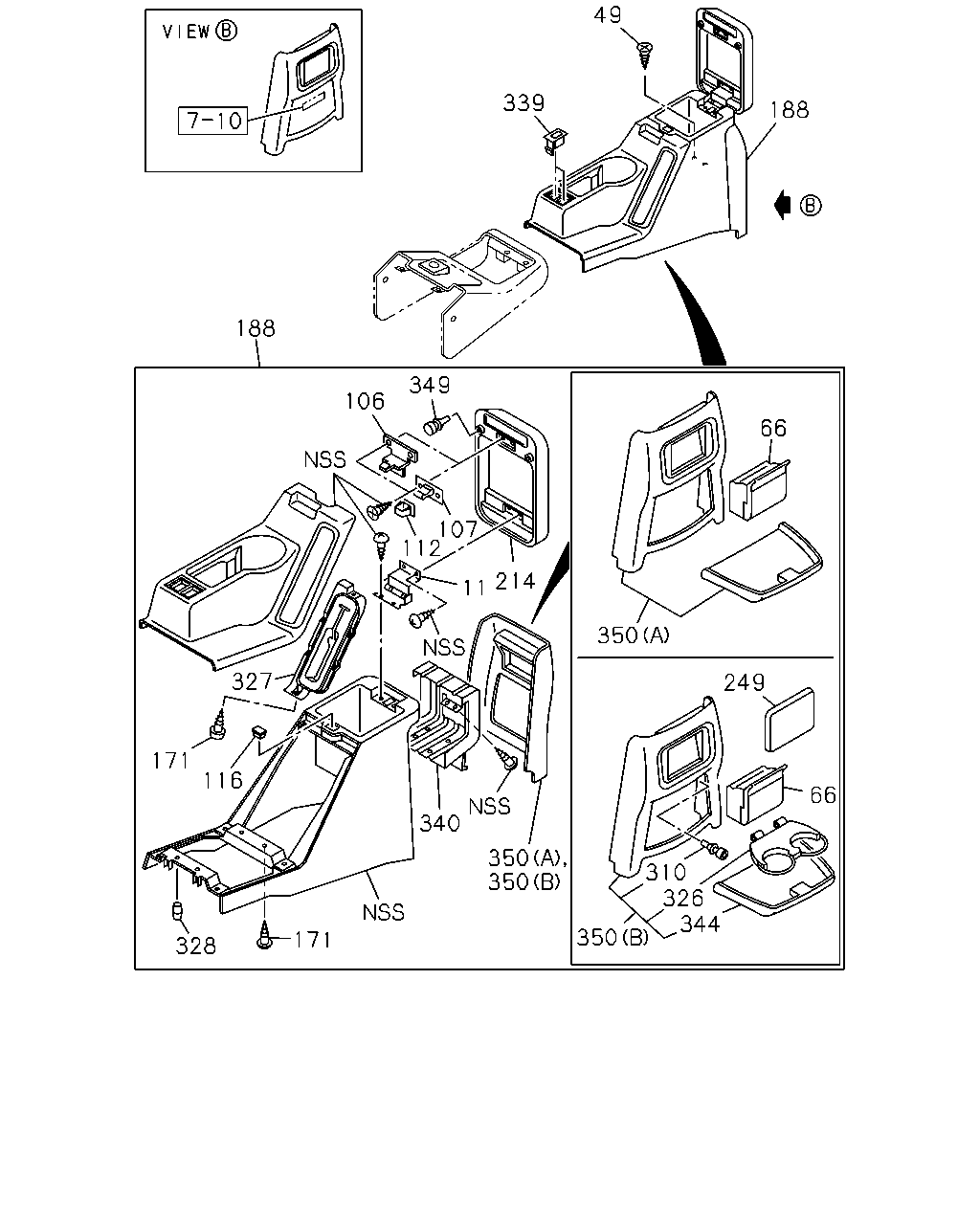

çizim 67318
49 339 188 188 349 106 66 107 112 214 11 350 327 249 171 116 66 340 350 350 310 326 344 350 171 328
BalonParca AdiParca NoAdetTipApplied Date A B C
11 HINGE; CONSOLE LID 8-97144-231-0 01 1 9707-9908 ● ●
11 HINGE; CONSOLE LID 8-97144-231-0 01 1 9909-0307 ● ● ●
11 HINGE; CONSOLE LID 8-97144-231-0 01 1 0308- ● ●
49 SCREW; CONSOLE
M5X16 		8-94295-854-0 02 1 9707-9908 ● ●
49 SCREW; CONSOLE
M5X16 		8-94295-854-0 02 1 9909-0307 ● ● ●
49 SCREW; CONSOLE
M5X16 		8-94295-854-0 02 1 0308- ● ●
66 TRAY ASM; ASH
GRAY 		8-97157-415-1 01 1 9707-9908 ● ●
66 TRAY ASM; ASH
INTERIOR COLOR GRAY(180) GRAY 		8-97157-415-1 01 1 9909-0206 ● ● ●
66 TRAY ASM; ASH
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97291-540-1 01 1 9909-0206 ● ●
106 LOCK; CONSOLE LID 8-97304-387-0 01 1 0207- ● ●
107 LOCK; LID,RR CONSOLE
INTERIOR COLOR TAUPE GRAY(182) 		8-97046-948-1 01 1 0207-0307 ●
107 LOCK; LID,RR CONSOLE 8-97046-948-1 01 1 9707-9908 ● ●
107 LOCK; LID,RR CONSOLE 8-97046-948-1 01 1 9909-0106 ● ● ●
112 LOCK; HOLE,RR CONSOLE
INTERIOR COLOR TAUPE GRAY(182) 		8-97046-949-0 01 1 0207-0307 ●
112 LOCK; HOLE,RR CONSOLE 8-97046-949-0 01 1 9707-9908 ● ●
112 LOCK; HOLE,RR CONSOLE 8-97046-949-0 01 1 9909-0106 ● ● ●
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR GRAY(180) GRAY 		8-97299-396-1 01 1 0107-0206 ● ● ●
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-876-1 01 1 0207- ● ●
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97299-397-1 01 1 0107-0206 ● ●
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97391-889-1 01 1 0207- ● ●
171 SCREW; CONSOLE BOX
M5X16 		8-94295-854-0 06 1 9707-9908 ● ●
171 SCREW; CONSOLE BOX
M5X16 		8-94295-854-0 06 1 9909-0307 ● ● ●
171 SCREW; CONSOLE BOX
M5X16 		8-94295-854-0 06 1 0308- ● ●
188 CONSOLE; RR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-886-1 01 1 0207-0307 ●
188 CONSOLE; RR
GRAY 		8-97158-238-3 01 1 9707-9712 ● ●
188 CONSOLE; RR
GRAY 		8-97195-850-1 01 1 9801-9807 ● ●
188 CONSOLE; RR
GRAY 		8-97197-260-3 01 1 9808-9908 ● ●
188 CONSOLE; RR
INTERIOR COLOR GRAY(180) GRAY 		8-97197-260-7 01 1 9909-0106 ● ● ●
188 CONSOLE; RR
INTERIOR COLOR GRAY(180) GRAY 		8-97298-378-5 01 1 0107-0206 ● ● ●
188 CONSOLE; RR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-636-1 01 1 0207- ● ●
188 CONSOLE; RR
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97291-541-7 01 1 9909-0106 ● ●
188 CONSOLE; RR
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97298-379-5 01 1 0107-0206 ● ●
188 CONSOLE; RR
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97391-637-1 01 1 0207- ● ●
214 LID; CONSOLE
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-889-0 01 1 0207-0307 ●
214 LID; CONSOLE
GRAY 		8-97157-414-0 01 1 9707-9908 ● ●
214 LID; CONSOLE
INTERIOR COLOR GRAY(180) GRAY 		8-97157-414-0 01 1 9909-0106 ● ● ●
214 LID; CONSOLE
INTERIOR COLOR GRAY(180) GRAY 		8-97299-158-2 01 1 0107-0206 ● ● ●
214 LID; CONSOLE
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-875-2 01 1 0207- ● ●
214 LID; CONSOLE
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97292-132-0 01 1 9909-0106 ● ●
214 LID; CONSOLE
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97299-159-2 01 1 0107-0206 ● ●
214 LID; CONSOLE
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97391-888-2 01 1 0207- ● ●
249 COVER
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-903-0 01 1 0207-0307 ● ● ●
249 COVER
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-903-0 01 1 0308- ● ●
249 COVER
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97391-905-0 01 1 0207- ● ●
310 CUSHION; CTR CONSOLE 8-97135-790-0 03 1 9808-9908 ● ●
310 CUSHION; CTR CONSOLE 8-97135-790-0 03 1 9909-0307 ● ● ●
310 CUSHION; CTR CONSOLE 8-97135-790-0 03 1 0308- ● ●
326 HOLDER; CUP
GRAY 		8-97198-423-2 01 1 9808-9808 ● ●
326 HOLDER; CUP
GRAY 		8-97199-130-0 01 1 9809-9908 ● ●
326 HOLDER; CUP
INTERIOR COLOR GRAY(180) GRAY 		8-97199-130-1 01 1 9909-0206 ● ● ●
326 HOLDER; CUP
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-882-1 01 1 0207-0307 ● ● ●
326 HOLDER; CUP
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-882-1 01 1 0308- ● ●
326 HOLDER; CUP
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97292-137-1 01 1 9909-0206 ● ●
326 HOLDER; CUP
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97391-895-1 01 1 0207- ● ●
327 STRIPE; HAND BRAKE 8-97135-786-1 01 1 9707-9807 ● ●
327 STRIPE; HAND BRAKE 8-97187-650-0 01 1 9808-9908 ● ●
327 STRIPE; HAND BRAKE 8-97187-650-0 01 1 9909-0307 ● ● ●
327 STRIPE; HAND BRAKE 8-97187-650-0 01 1 0308- ● ●
328 CLIP 8-97144-233-0 02 1 9707-9908 ● ●
328 CLIP 8-97144-233-0 02 1 9909-0307 ● ● ●
328 CLIP 8-97144-233-0 02 1 0308- ● ●
339 HOLDER; COIN
M/T MUA 5 SPEED(RMN) 		8-97140-081-0 01 1 9707-0106 ● ● ●
339 HOLDER; COIN 8-97140-081-0 01 1 9707-0106 ● ● ●
339 HOLDER; COIN
M/T MUA 5 SPEED(RMN) 		8-97140-081-0 01 1 0107-0206 ● ● ●
339 HOLDER; COIN
EXC. ACTIVE RIDE CONTROL(7WD) 		8-97140-081-0 01 1 0107-0206 ● ● ●
339 HOLDER; COIN
EXC. ACTIVE RIDE CONTROL(7WD) 		8-97140-081-0 01 1 0207-0307 ● ● ●
339 HOLDER; COIN
M/T MUA 5 SPEED 5C(RSN) 		8-97140-081-0 01 1 0207-0307 ● ● ●
339 HOLDER; COIN 8-97140-081-0 01 1 0308- ●
340 BRACKET; CONSOLE BOX 8-97148-777-1 01 1 9707-9908 ● ●
340 BRACKET; CONSOLE BOX 8-97148-777-1 01 1 9909-0307 ● ● ●
340 BRACKET; CONSOLE BOX 8-97148-777-1 01 1 0308- ● ●
344 LID; CUP HOLDER
GRAY 		8-97198-424-2 01 1 9808-9908 ● ●
344 LID; CUP HOLDER
INTERIOR COLOR GRAY(180) GRAY 		8-97198-424-3 01 1 9909-0206 ● ● ●
344 LID; CUP HOLDER
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-885-3 01 1 0207-0307 ● ● ●
344 LID; CUP HOLDER
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-885-3 01 1 0308- ● ●
344 LID; CUP HOLDER
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97292-140-3 01 1 9909-0206 ● ●
344 LID; CUP HOLDER
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97391-898-3 01 1 0207- ● ●
349 CUSHION; CONSOLE LID 8-97135-790-0 02 1 9707-9908 ● ●
349 CUSHION; CONSOLE LID 8-97135-790-0 02 1 9909-0307 ● ● ●
349 CUSHION; CONSOLE LID 8-97135-790-0 02 1 0308- ● ●
350 COVER; CONSOLE
(A) GRAY 		8-97158-239-0 01 1 9707-9807 ● ●
350 COVER; CONSOLE
(B) GRAY 		8-97198-421-3 01 1 9808-9908 ● ●
350 COVER; CONSOLE
INTERIOR COLOR GRAY(180) (B) GRAY 		8-97198-421-5 01 1 9909-0206 ● ● ●
350 COVER; CONSOLE
INTERIOR COLOR TAUPE GRAY(182) (B) DARK GRAY 		8-97391-878-5 01 1 0207-0307 ● ● ●
350 COVER; CONSOLE
INTERIOR COLOR TAUPE GRAY(182) (B) DARK GRAY 		8-97391-878-5 01 1 0308- ● ●
350 COVER; CONSOLE
INTERIOR COLOR BEIGE(181) (B) DARK BEIGE 		8-97292-133-5 01 1 9909-0206 ● ●
350 COVER; CONSOLE
INTERIOR COLOR BEIGE(181) (B) DARK BEIGE 		8-97391-891-5 01 1 0207- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
