◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#42635) — 106 parça

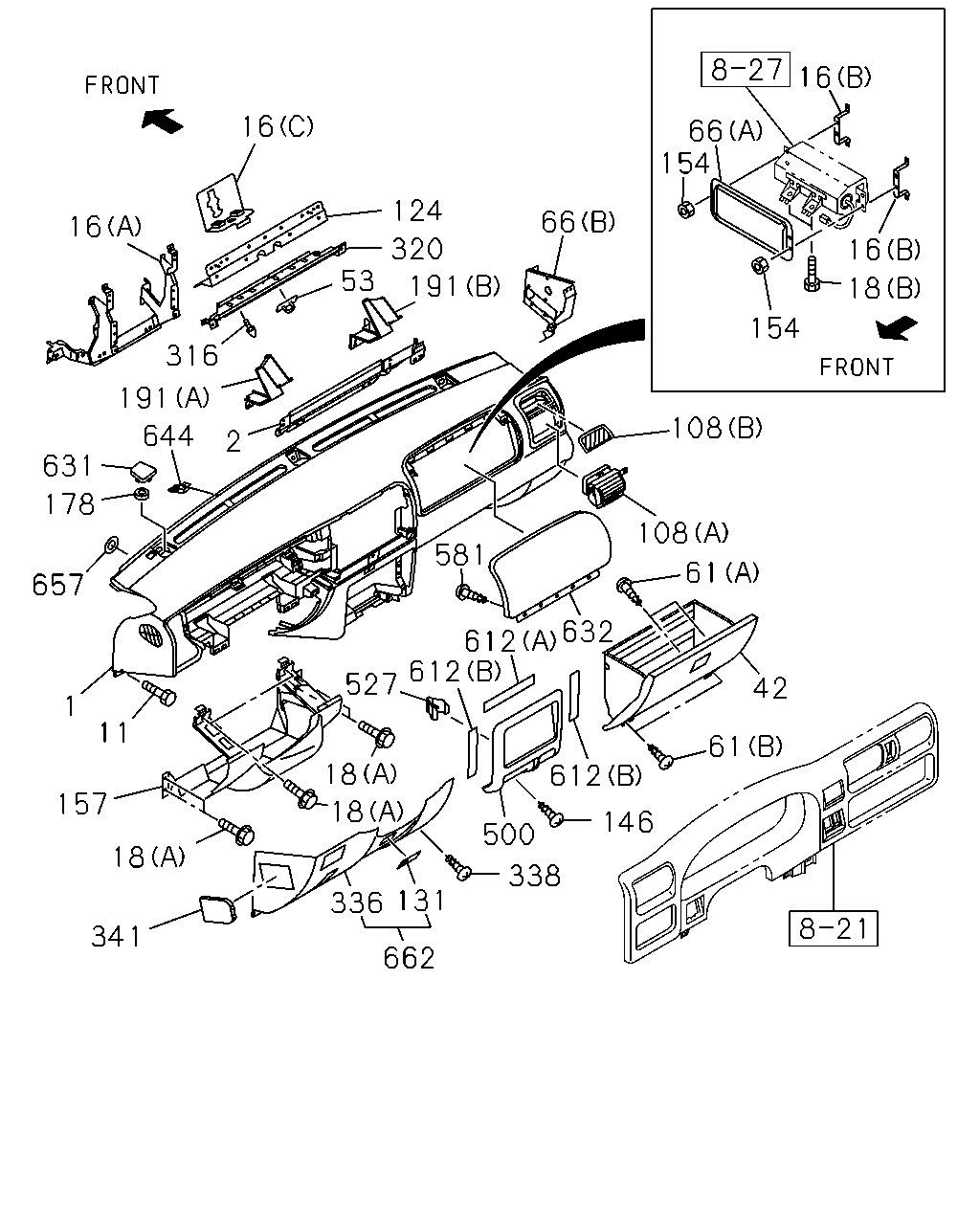

çizim 17469
16 16 66 154 16 124 66 16 320 53 191 18 154 316 191 108 644 2 631 178 108 581 61 657 612 612 527 632 42 1 11 61 18 612 157 18 146 500 18 338 131 336 341 662
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97157-471-6 01 1 9707-9908
1 PANEL; INST
INTERIOR COLOR GRAY(180) GRAY 		8-97157-471-8 01 1 9909-0206
1 PANEL; INST
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-908-8 01 1 0207-
1 PANEL; INST
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97292-825-8 01 1 9909-0206
1 PANEL; INST
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97391-913-8 01 1 0207-
2 REINFORCEMENT; INST PNL,LWR 8-97121-688-1 01 1 9707-
11 BOLT; INST PNL
M6X25 W/LK&PL WASHER 		8-94416-136-0 06 1 9707-
16 BRACKET; INST PNL
(A) 		8-97121-687-0 01 1 9707-0106
16 BRACKET; INST PNL
(A) 		8-97306-915-0 01 1 0107-
16 BRACKET; INST PNL
(B) 		8-97146-480-1 02 1 9707-
16 BRACKET; INST PNL
(C) 		8-97319-579-0 01 1 0207-0207
18 BOLT; BRKT
(A) M8X18 		8-94478-122-0 06 1 9707-
18 BOLT; BRKT
(B) M6X18 W/LK&PL WASHER 		8-97060-719-0 02 1 9707-
42 BOX; GLOVE,INST PNL
GRAY 		8-97157-336-1 01 1 9707-9806
42 BOX; GLOVE,INST PNL
GRAY 		8-97197-261-0 01 1 9807-9908
42 BOX; GLOVE,INST PNL
INTERIOR COLOR GRAY(180) GRAY 		8-97291-615-1 01 1 9909-0011
42 BOX; GLOVE,INST PNL
INTERIOR COLOR GRAY(180) GRAY 		8-97298-750-1 01 1 0012-0206
42 BOX; GLOVE,INST PNL
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-659-2 01 1 0207-0208
42 BOX; GLOVE,INST PNL
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-671-1 01 1 0209-
42 BOX; GLOVE,INST PNL
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97291-554-1 01 1 9909-0011
42 BOX; GLOVE,INST PNL
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97298-752-1 01 1 0012-0206
42 BOX; GLOVE,INST PNL
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97392-660-2 01 1 0207-0208
42 BOX; GLOVE,INST PNL
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97391-672-1 01 1 0209-
53 STRIKER; GLOVE BOX 8-97121-685-0 01 1 9707-
61 SCREW; GLOVE BOX
(A) M5X16 		8-94279-312-0 02 1 9707-
61 SCREW; GLOVE BOX
(B) M4X14 TAPPING 		8-97111-555-0 02 1 9707-
66 REINFORCEMENT; INST PANEL
(A) 		8-97145-951-1 01 1 9707-9908
66 REINFORCEMENT; INST PANEL
(B) 		8-97146-482-2 01 1 9707-
108 GRILLE; INST PNL
(A) GRAY 		8-97157-473-2 01 1 9707-9908
108 GRILLE; INST PNL
INTERIOR COLOR GRAY(180) (A) GRAY 		8-97157-473-2 01 1 9909-0206
108 GRILLE; INST PNL
INTERIOR COLOR TAUPE GRAY(182) (B) DARK GRAY 		8-97391-912-0 01 1 0207-
108 GRILLE; INST PNL
(B) GRAY 		8-97157-475-0 01 1 9707-9908
108 GRILLE; INST PNL
INTERIOR COLOR GRAY(180) (B) GRAY 		8-97157-475-0 01 1 9909-0206
108 GRILLE; INST PNL
(A) BLACK 		8-97395-119-0 01 1 0207-
108 GRILLE; INST PNL
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE 		8-97292-829-2 01 1 9909-0206
108 GRILLE; INST PNL
INTERIOR COLOR BEIGE(181) (B) DARK BEIGE 		8-97391-917-0 01 1 0207-
108 GRILLE; INST PNL
INTERIOR COLOR BEIGE(181) (B) DARK BEIGE 		8-97292-831-0 01 1 9909-0206
124 REINFORCEMENT; INST PNL,UPR 8-97121-682-1 01 1 9707-0206
124 REINFORCEMENT; INST PNL,UPR 8-97289-727-0 01 1 0207-0211
124 REINFORCEMENT; INST PNL,UPR 8-97121-682-1 01 1 0212-
131 GRILLE ASM; LAP VENT 8-97146-566-0 01 1 9707-9908
146 SCREW; TAP
M5X16 		8-94295-854-0 01 1 9707-
154 NUT
M6 W/DISHED WASHER 		8-94170-192-0 04 1 9707-
157 PAD ASM; KNEE 8-97121-730-5 01 1 9707-0106
157 PAD ASM; KNEE 8-97306-935-3 01 1 0107-
178 NUT; INST PANEL
M6 FLANGE 		8-97063-399-0 03 1 9707-
191 REINFORCEMENT; GLOVE BOX
(A) 		8-97121-733-1 01 1 9707-
191 REINFORCEMENT; GLOVE BOX
(B) 		8-97121-735-1 01 1 9707-
316 RUBBER; CUSHION,GLOVE BOX LID 8-97146-481-0 03 1 9707-
320 COVER; GLOVE BOX
GRAY 		8-97157-472-1 01 1 9707-9908
320 COVER; GLOVE BOX
INTERIOR COLOR GRAY(180) GRAY 		8-97157-472-1 01 1 9909-0206
320 COVER; GLOVE BOX
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-909-1 01 1 0207-
320 COVER; GLOVE BOX
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97292-827-1 01 1 9909-0206
320 COVER; GLOVE BOX
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97391-914-1 01 1 0207-
336 COVER; INST PANEL SIDE
GRAY 		8-97157-423-3 01 1 9707-9908
338 SCREW; COVER
M5X16 		8-94295-854-0 01 1 9707-
341 LID; FUSE BOX
GRAY 		8-97157-337-1 01 1 9707-9908
341 LID; FUSE BOX
INTERIOR COLOR GRAY(180) GRAY 		8-97157-337-1 01 1 9909-0206
341 LID; FUSE BOX
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-673-1 01 1 0207-
341 LID; FUSE BOX
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97291-555-1 01 1 9909-0206
341 LID; FUSE BOX
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97391-674-1 01 1 0207-
500 CLUSTER; INST CENTER
WOOD PRINT TRIM<7QR> 		8-97146-530-1 01 1 9707-9908
500 CLUSTER; INST CENTER
GRADE LS/LSE(RBD) 		8-97146-530-1 01 1 9909-0007
500 CLUSTER; INST CENTER
GRADE LS(RBB) WOOD PRINT TRIM<7QR> 		8-97146-530-2 01 1 0008-
500 CLUSTER; INST CENTER
GRADE LS/LSE(RBD) 		8-97146-530-2 01 1 0008-
500 CLUSTER; INST CENTER
EXC. WOOD PRINT TRIM<7QR> 		8-97146-486-1 01 1 9707-9908
500 CLUSTER; INST CENTER
GRADE S(RBA),GRADE LS(RBB) BLACK 		8-97292-557-0 01 1 9909-0007
500 CLUSTER; INST CENTER
GRADE S(RBA),GRADE LS(RBB) EXC. WOOD PRINT TRIM<7QR> BLACK 		8-97292-557-1 01 1 0008-0307
500 CLUSTER; INST CENTER
GRADE LS(RBB) EXC. WOOD PRINT TRIM<7QR> BLACK 		8-97292-557-1 01 1 0308-
527 CLIP; INST CLUSTER 8-97238-828-0 04 1 9707-
581 SCREW
M5X16 		8-94295-854-0 04 1 9707-
612 TAPE; SOFT
(A) 		8-97146-531-0 01 1 9707-
612 TAPE; SOFT
(B) 		8-97146-532-0 02 1 9707-
631 CAP; INST PANEL
GRAY 		8-97157-321-3 03 1 9707-9908
631 CAP; INST PANEL
INTERIOR COLOR GRAY(180) GRAY 		8-97157-321-3 03 1 9909-0206
631 CAP; INST PANEL
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-646-3 03 1 0207-
631 CAP; INST PANEL
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97291-548-3 03 1 9909-0206
631 CAP; INST PANEL
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97391-647-3 03 1 0207-
632 DOOR; AIR BAG
GRAY 		8-97157-328-2 01 1 9707-9908
632 DOOR; AIR BAG
INTERIOR COLOR GRAY(180) GRAY 		8-97157-328-3 01 1 9909-0206
632 DOOR; AIR BAG
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-656-3 01 1 0207-
632 DOOR; AIR BAG
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97291-553-3 01 1 9909-0206
632 DOOR; AIR BAG
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97391-657-3 01 1 0207-
644 PIN; INST PANEL 8-97146-479-0 02 1 9707-
657 FELT; INST PANEL 8-97219-713-0 02 1 9902-
662 COVER; LWR,INST PANEL
GRAY 		8-97157-327-3 01 1 9707-9908
662 COVER; LWR,INST PANEL
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97291-552-3 01 1 9909-0206
662 COVER; LWR,INST PANEL
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97391-654-3 01 1 0207-
662 COVER; LWR,INST PANEL
INTERIOR COLOR GRAY(180) GRAY 		8-97291-486-3 01 1 9909-0206
662 COVER; LWR,INST PANEL
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-653-3 01 1 0207-

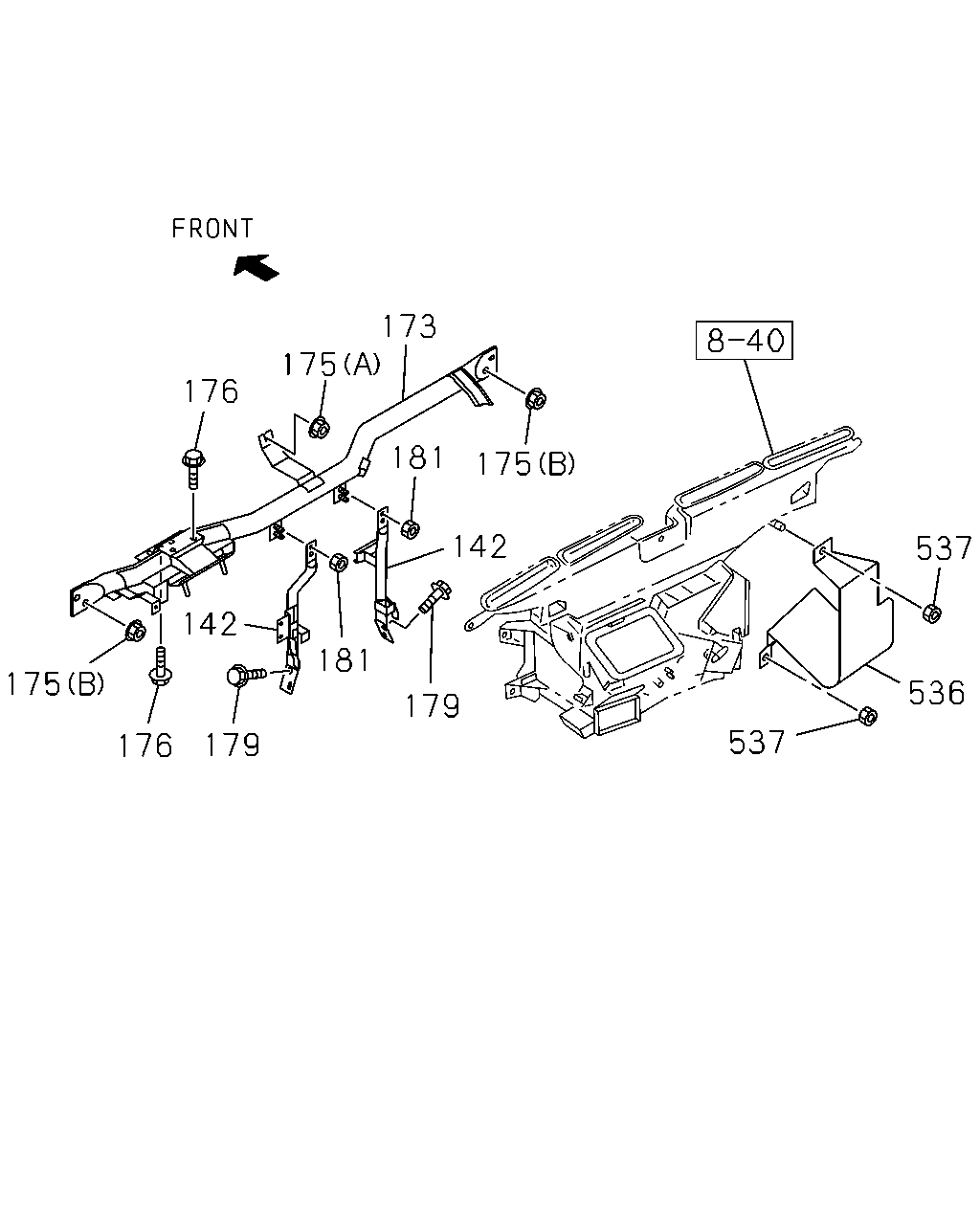

çizim 72148
173 175 176 181 175 142 537 142 181 175 536 179 537 179 176
BalonParca AdiParca NoAdetTipApplied Date
142 STAY; INST PANEL 8-97121-726-1 01 1 9707-0106
142 STAY; INST PANEL 8-97306-888-1 01 1 0107-
142 STAY; INST PANEL 8-97121-728-0 01 1 9707-0201
142 STAY; INST PANEL 8-97332-967-0 01 1 0202-
173 BEAM ASM; CROSS,INST PANEL 8-97121-724-3 01 1 9707-9908
173 BEAM ASM; CROSS,INST PANEL 8-97221-927-2 01 1 9909-0106
173 BEAM ASM; CROSS,INST PANEL 8-97307-212-2 01 1 0107-0206
173 BEAM ASM; CROSS,INST PANEL 8-97289-609-0 01 1 0207-
175 NUT; CROSS BEAM
(A) M6 FLANGE 		8-97063-399-0 01 1 9707-
175 NUT; CROSS BEAM
(B) M8 W/LK WASHER 		8-97065-435-0 04 1 9707-
176 BOLT; CROSS BEAM
M8X16 FLANGE 		0-28080-816-0 01 1 9707-
176 BOLT; CROSS BEAM
M8X18 		8-94478-122-0 02 1 9707-
179 BOLT; STAY,INST PANEL
M8X18 		8-94478-122-0 04 1 9707-
181 NUT; STAY,INST PANEL
M6 FLANGE 		0-91150-106-0 04 1 9707-
536 BRACKET; KNEE PROTECTOR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97085-813-1 01 1 9707-0307
537 NUT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE 		8-97063-399-0 02 1 9707-0307
