Sayfa 7-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

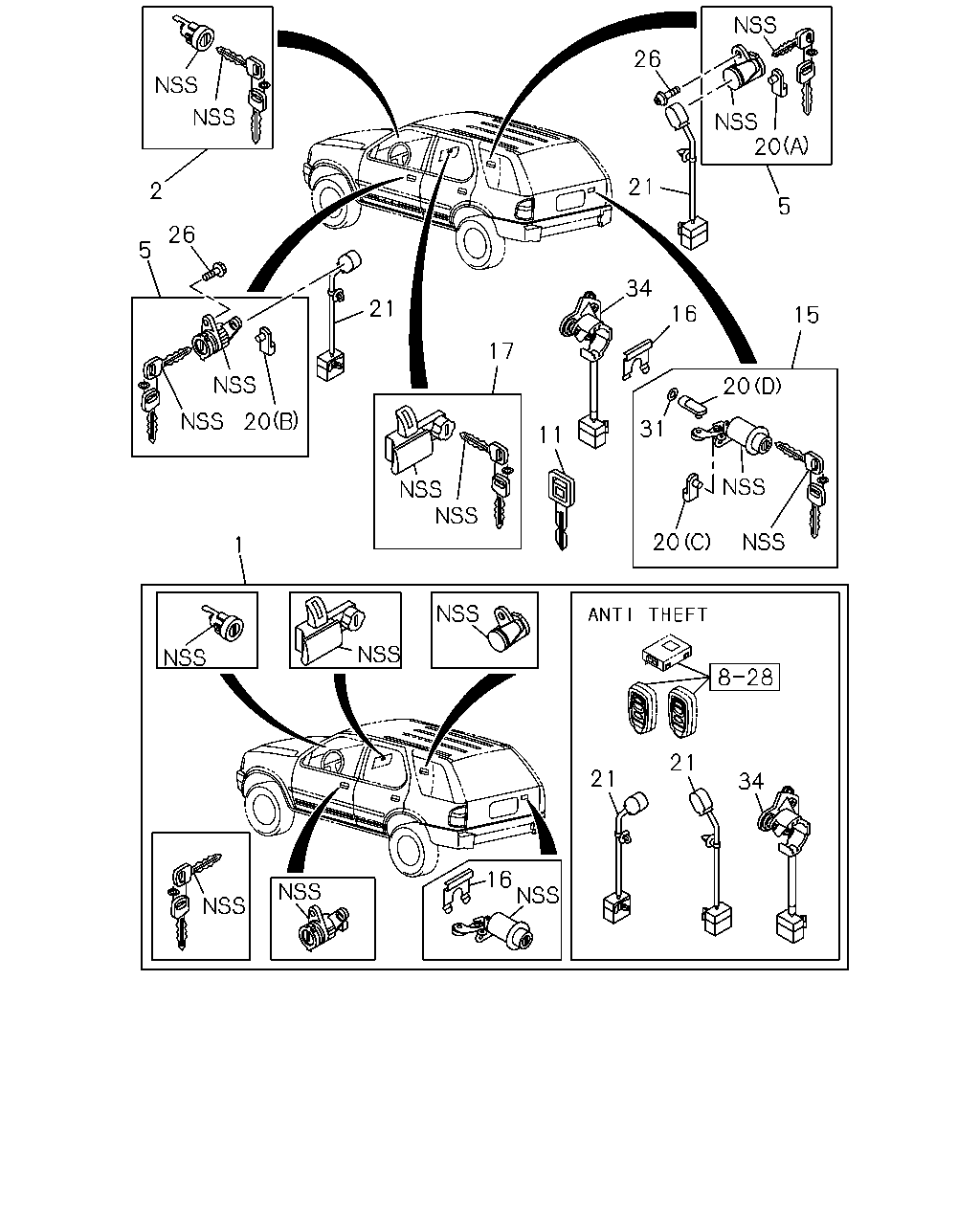

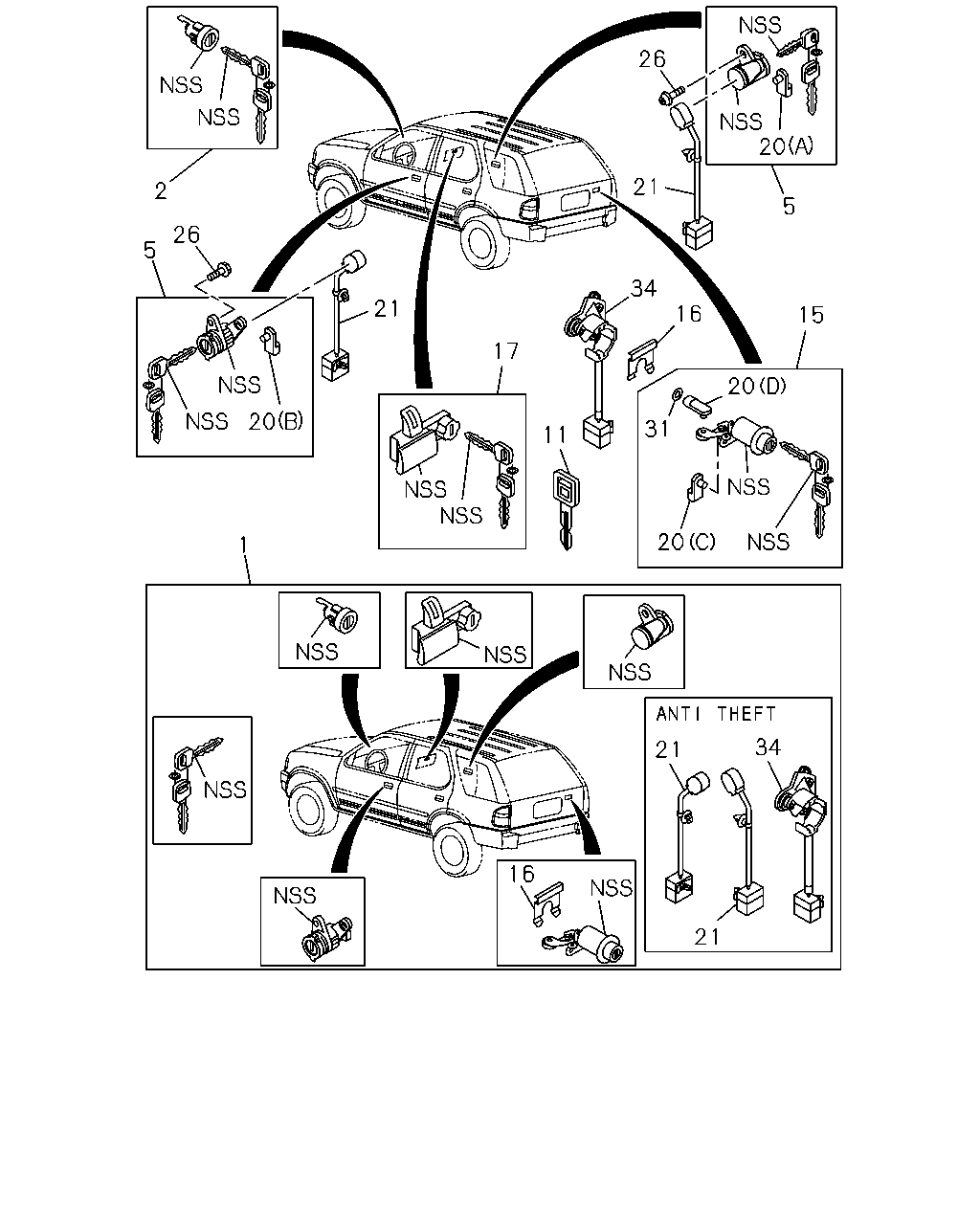

7-30 — LOCK CYLINDER SET (#42634) — 144 parça

26 20 21 2 5 26 5 34 21 16 15 17 20 20 31 11 20 1 21 21 34 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CYLINDER SET; CAR LOCK ANTI THEFT<UA6> GRAY	8-97157-399-1	01	1	9707-9908
1	CYLINDER SET; CAR LOCK INTERIOR COLOR GRAY(180) ANTI THEFT<UA6> GRAY	8-97292-563-0	01	1	9909-0206
1	CYLINDER SET; CAR LOCK INTERIOR COLOR TAUPE GRAY(182) ANTI THEFT<UA6> DARK GRAY	8-97391-796-0	01	1	0207-0210
1	CYLINDER SET; CAR LOCK INTERIOR COLOR TAUPE GRAY(182) ANTI THEFT<UA6> DARK GRAY	8-97396-088-0	01	1	0211-0307
1	CYLINDER SET; CAR LOCK INTERIOR COLOR TAUPE GRAY(182) ANTI THEFT<UA6> DARK GRAY	8-97391-794-1	01	1	0308-
1	CYLINDER SET; CAR LOCK EXC. ANTI THEFT<UA6> GRAY	8-97157-397-1	01	1	9707-9908
1	CYLINDER SET; CAR LOCK INTERIOR COLOR GRAY(180) EXC. ANTI THEFT<UA6> GRAY	8-97292-559-0	01	1	9909-0206
1	CYLINDER SET; CAR LOCK INTERIOR COLOR TAUPE GRAY(182) EXC. ANTI THEFT<UA6> DARK GRAY	8-97391-798-0	01	1	0207-0210
1	CYLINDER SET; CAR LOCK INTERIOR COLOR TAUPE GRAY(182) EXC. ANTI THEFT<UA6> DARK GRAY	8-97396-090-0	01	1	0211-
1	CYLINDER SET; CAR LOCK INTERIOR COLOR BEIGE(181) ANTI THEFT<UA6> DARK BEIGE	8-97292-564-0	01	1	9909-0206
1	CYLINDER SET; CAR LOCK INTERIOR COLOR BEIGE(181) ANTI THEFT<UA6> DARK BEIGE	8-97391-797-0	01	1	0207-0210
1	CYLINDER SET; CAR LOCK INTERIOR COLOR BEIGE(181) ANTI THEFT<UA6> DARK BEIGE	8-97396-089-0	01	1	0211-0307
1	CYLINDER SET; CAR LOCK INTERIOR COLOR BEIGE(181) ANTI THEFT<UA6> DARK BEIGE	8-97391-795-1	01	1	0308-
1	CYLINDER SET; CAR LOCK INTERIOR COLOR BEIGE(181) EXC. ANTI THEFT<UA6> DARK BEIGE	8-97292-560-0	01	1	9909-0206
1	CYLINDER SET; CAR LOCK INTERIOR COLOR BEIGE(181) EXC. ANTI THEFT<UA6> DARK BEIGE	8-97391-799-0	01	1	0207-0210
1	CYLINDER SET; CAR LOCK INTERIOR COLOR BEIGE(181) EXC. ANTI THEFT<UA6> DARK BEIGE	8-97396-091-0	01	1	0211-
2	BARREL ASM; W/KEY,STRG LOCK ANTI THEFT<UA6>	8-97352-237-0	01	1	0308-
2	BARREL ASM; W/KEY,STRG LOCK	8-97178-557-0	01	1	9707-0206
2	BARREL ASM; W/KEY,STRG LOCK ANTI THEFT<UA6>	8-97352-251-0	01	1	0207-0210
2	BARREL ASM; W/KEY,STRG LOCK ANTI THEFT<UA6>	8-97361-217-0	01	1	0211-0307
2	BARREL ASM; W/KEY,STRG LOCK EXC. ANTI THEFT<UA6>	8-97352-244-0	01	1	0207-0210
2	BARREL ASM; W/KEY,STRG LOCK EXC. ANTI THEFT<UA6>	8-97361-224-0	01	1	0211-
5	CYLINDER ASM; DOOR LOCK	8-97178-560-0	01	1	9707-0206
5	CYLINDER ASM; DOOR LOCK ANTI THEFT<UA6>	8-97352-254-0	01	1	0207-0210
5	CYLINDER ASM; DOOR LOCK ANTI THEFT<UA6>	8-97361-220-0	01	1	0211-0307
5	CYLINDER ASM; DOOR LOCK ANTI THEFT<UA6>	8-97352-240-0	01	1	0308-
5	CYLINDER ASM; DOOR LOCK	8-97178-559-0	01	1	9707-0206
5	CYLINDER ASM; DOOR LOCK ANTI THEFT<UA6>	8-97352-253-0	01	1	0207-0210
5	CYLINDER ASM; DOOR LOCK ANTI THEFT<UA6>	8-97361-219-0	01	1	0211-0307
5	CYLINDER ASM; DOOR LOCK ANTI THEFT<UA6>	8-97352-239-0	01	1	0308-
5	CYLINDER ASM; DOOR LOCK EXC. ANTI THEFT<UA6>	8-97352-247-0	01	1	0207-0210
5	CYLINDER ASM; DOOR LOCK EXC. ANTI THEFT<UA6>	8-97361-227-0	01	1	0211-
5	CYLINDER ASM; DOOR LOCK EXC. ANTI THEFT<UA6>	8-97352-246-0	01	1	0207-0210
5	CYLINDER ASM; DOOR LOCK EXC. ANTI THEFT<UA6>	8-97361-226-0	01	1	0211-
11	KEY; BLANK	8-97201-564-0	AR	1	9707-0206
11	KEY; BLANK ANTI THEFT<UA6>	8-97318-855-0	AR	1	0207-0307
11	KEY; BLANK ANTI THEFT<UA6>	8-97318-854-0	AR	1	0308-
11	KEY; BLANK EXC. ANTI THEFT<UA6>	8-97319-552-0	AR	1	0207-0210
11	KEY; BLANK	8-97319-552-0	AR	1	0211-
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK	8-97178-562-0	01	1	9707-9908
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK	8-97227-497-0	01	1	9909-0206
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK ANTI THEFT<UA6>	8-97352-256-0	01	1	0207-0210
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK ANTI THEFT<UA6>	8-97361-222-0	01	1	0211-0307
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK ANTI THEFT<UA6>	8-97352-242-0	01	1	0308-
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK EXC. ANTI THEFT<UA6>	8-97352-249-0	01	1	0207-0210
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK EXC. ANTI THEFT<UA6>	8-97361-229-0	01	1	0211-
16	RETAINER; TAIL GATE LOCK CYL	8-97131-020-0	01	1	9707-
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK	5-87410-626-0	01	1	9707-9908
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR BEIGE(181)	5-87410-696-0	01	1	9909-0206
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR BEIGE(181) EXC. ANTI THEFT<UA6>	5-87410-866-0	01	1	0207-0210
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR BEIGE(181) EXC. ANTI THEFT<UA6>	5-87410-945-0	01	1	0211-
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR GRAY(180)	5-87410-626-0	01	1	9909-0206
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR BEIGE(181) ANTI THEFT<UA6>	5-87410-864-0	01	1	0207-0210
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR BEIGE(181) ANTI THEFT<UA6>	5-87410-943-0	01	1	0211-0307
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR BEIGE(181) ANTI THEFT<UA6>	5-87410-862-0	01	1	0308-
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR TAUPE GRAY(182) ANTI THEFT<UA6>	5-87410-863-0	01	1	0207-0210
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR TAUPE GRAY(182) ANTI THEFT<UA6>	5-87410-942-0	01	1	0211-0307
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR TAUPE GRAY(182) ANTI THEFT<UA6>	5-87410-861-0	01	1	0308-
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR TAUPE GRAY(182) EXC. ANTI THEFT<UA6>	5-87410-865-0	01	1	0207-0210
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR TAUPE GRAY(182) EXC. ANTI THEFT<UA6>	5-87410-944-0	01	1	0211-
20	SNAP; DOOR LOCK CYL (A)	8-97179-551-0	01	1	9707-
20	SNAP; DOOR LOCK CYL (B)	8-97179-552-0	01	1	9707-
20	SNAP; DOOR LOCK CYL (D)	8-97179-562-0	01	1	9707-
20	SNAP; DOOR LOCK CYL (C)	8-97179-564-0	01	1	9707-
21	SWITCH ASM; DOOR LOCK CYL ANTI THEFT<UA6>	8-97149-853-0	01	1	9707-9803
21	SWITCH ASM; DOOR LOCK CYL ANTI THEFT<UA6>	8-97179-554-0	01	1	9804-
21	SWITCH ASM; DOOR LOCK CYL ANTI THEFT<UA6>	8-97149-852-0	01	1	9707-9803
21	SWITCH ASM; DOOR LOCK CYL ANTI THEFT<UA6>	8-97179-553-0	01	1	9804-
26	BOLT; KEY CYL,DOOR M6X8 FLANGE	8-97175-668-0	02	1	9707-
31	GASKET; TAIL GATE LOCK CYL	8-97179-561-0	01	1	9707-
34	SWITCH ASM; TAIL GATE LOCK CYL ANTI THEFT<UA6>	8-97149-854-0	01	1	9707-
67	SCREW; CASE,KEY ANTI THEFT<UA6>	8-97175-335-0	01	1	0403-

26 20 21 2 5 26 5 34 21 16 15 17 20 20 31 11 20 1 34 21 16 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CYLINDER SET; CAR LOCK ANTI THEFT<UA6> GRAY	8-97157-399-1	01	1	9707-9908
1	CYLINDER SET; CAR LOCK INTERIOR COLOR GRAY(180) ANTI THEFT<UA6> GRAY	8-97292-563-0	01	1	9909-0206
1	CYLINDER SET; CAR LOCK INTERIOR COLOR TAUPE GRAY(182) ANTI THEFT<UA6> DARK GRAY	8-97391-796-0	01	1	0207-0210
1	CYLINDER SET; CAR LOCK INTERIOR COLOR TAUPE GRAY(182) ANTI THEFT<UA6> DARK GRAY	8-97396-088-0	01	1	0211-0307
1	CYLINDER SET; CAR LOCK INTERIOR COLOR TAUPE GRAY(182) ANTI THEFT<UA6> DARK GRAY	8-97391-794-1	01	1	0308-
1	CYLINDER SET; CAR LOCK EXC. ANTI THEFT<UA6> GRAY	8-97157-397-1	01	1	9707-9908
1	CYLINDER SET; CAR LOCK INTERIOR COLOR GRAY(180) EXC. ANTI THEFT<UA6> GRAY	8-97292-559-0	01	1	9909-0206
1	CYLINDER SET; CAR LOCK INTERIOR COLOR TAUPE GRAY(182) EXC. ANTI THEFT<UA6> DARK GRAY	8-97391-798-0	01	1	0207-0210
1	CYLINDER SET; CAR LOCK INTERIOR COLOR TAUPE GRAY(182) EXC. ANTI THEFT<UA6> DARK GRAY	8-97396-090-0	01	1	0211-
1	CYLINDER SET; CAR LOCK INTERIOR COLOR BEIGE(181) ANTI THEFT<UA6> DARK BEIGE	8-97292-564-0	01	1	9909-0206
1	CYLINDER SET; CAR LOCK INTERIOR COLOR BEIGE(181) ANTI THEFT<UA6> DARK BEIGE	8-97391-797-0	01	1	0207-0210
1	CYLINDER SET; CAR LOCK INTERIOR COLOR BEIGE(181) ANTI THEFT<UA6> DARK BEIGE	8-97396-089-0	01	1	0211-0307
1	CYLINDER SET; CAR LOCK INTERIOR COLOR BEIGE(181) ANTI THEFT<UA6> DARK BEIGE	8-97391-795-1	01	1	0308-
1	CYLINDER SET; CAR LOCK INTERIOR COLOR BEIGE(181) EXC. ANTI THEFT<UA6> DARK BEIGE	8-97292-560-0	01	1	9909-0206
1	CYLINDER SET; CAR LOCK INTERIOR COLOR BEIGE(181) EXC. ANTI THEFT<UA6> DARK BEIGE	8-97391-799-0	01	1	0207-0210
1	CYLINDER SET; CAR LOCK INTERIOR COLOR BEIGE(181) EXC. ANTI THEFT<UA6> DARK BEIGE	8-97396-091-0	01	1	0211-
2	BARREL ASM; W/KEY,STRG LOCK ANTI THEFT<UA6>	8-97352-237-0	01	1	0308-
2	BARREL ASM; W/KEY,STRG LOCK	8-97178-557-0	01	1	9707-0206
2	BARREL ASM; W/KEY,STRG LOCK ANTI THEFT<UA6>	8-97352-251-0	01	1	0207-0210
2	BARREL ASM; W/KEY,STRG LOCK ANTI THEFT<UA6>	8-97361-217-0	01	1	0211-0307
2	BARREL ASM; W/KEY,STRG LOCK EXC. ANTI THEFT<UA6>	8-97352-244-0	01	1	0207-0210
2	BARREL ASM; W/KEY,STRG LOCK EXC. ANTI THEFT<UA6>	8-97361-224-0	01	1	0211-
5	CYLINDER ASM; DOOR LOCK	8-97178-560-0	01	1	9707-0206
5	CYLINDER ASM; DOOR LOCK ANTI THEFT<UA6>	8-97352-254-0	01	1	0207-0210
5	CYLINDER ASM; DOOR LOCK ANTI THEFT<UA6>	8-97361-220-0	01	1	0211-0307
5	CYLINDER ASM; DOOR LOCK ANTI THEFT<UA6>	8-97352-240-0	01	1	0308-
5	CYLINDER ASM; DOOR LOCK	8-97178-559-0	01	1	9707-0206
5	CYLINDER ASM; DOOR LOCK ANTI THEFT<UA6>	8-97352-253-0	01	1	0207-0210
5	CYLINDER ASM; DOOR LOCK ANTI THEFT<UA6>	8-97361-219-0	01	1	0211-0307
5	CYLINDER ASM; DOOR LOCK ANTI THEFT<UA6>	8-97352-239-0	01	1	0308-
5	CYLINDER ASM; DOOR LOCK EXC. ANTI THEFT<UA6>	8-97352-247-0	01	1	0207-0210
5	CYLINDER ASM; DOOR LOCK EXC. ANTI THEFT<UA6>	8-97361-227-0	01	1	0211-
5	CYLINDER ASM; DOOR LOCK EXC. ANTI THEFT<UA6>	8-97352-246-0	01	1	0207-0210
5	CYLINDER ASM; DOOR LOCK EXC. ANTI THEFT<UA6>	8-97361-226-0	01	1	0211-
11	KEY; BLANK	8-97201-564-0	AR	1	9707-0206
11	KEY; BLANK ANTI THEFT<UA6>	8-97318-855-0	AR	1	0207-0307
11	KEY; BLANK ANTI THEFT<UA6>	8-97318-854-0	AR	1	0308-
11	KEY; BLANK EXC. ANTI THEFT<UA6>	8-97319-552-0	AR	1	0207-0210
11	KEY; BLANK	8-97319-552-0	AR	1	0211-
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK	8-97178-562-0	01	1	9707-9908
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK	8-97227-497-0	01	1	9909-0206
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK ANTI THEFT<UA6>	8-97352-256-0	01	1	0207-0210
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK ANTI THEFT<UA6>	8-97361-222-0	01	1	0211-0307
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK ANTI THEFT<UA6>	8-97352-242-0	01	1	0308-
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK EXC. ANTI THEFT<UA6>	8-97352-249-0	01	1	0207-0210
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK EXC. ANTI THEFT<UA6>	8-97361-229-0	01	1	0211-
16	RETAINER; TAIL GATE LOCK CYL	8-97131-020-0	01	1	9707-
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK	5-87410-626-0	01	1	9707-9908
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR BEIGE(181)	5-87410-696-0	01	1	9909-0206
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR BEIGE(181) EXC. ANTI THEFT<UA6>	5-87410-866-0	01	1	0207-0210
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR BEIGE(181) EXC. ANTI THEFT<UA6>	5-87410-945-0	01	1	0211-
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR GRAY(180)	5-87410-626-0	01	1	9909-0206
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR BEIGE(181) ANTI THEFT<UA6>	5-87410-864-0	01	1	0207-0210
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR BEIGE(181) ANTI THEFT<UA6>	5-87410-943-0	01	1	0211-0307
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR BEIGE(181) ANTI THEFT<UA6>	5-87410-862-0	01	1	0308-
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR TAUPE GRAY(182) ANTI THEFT<UA6>	5-87410-863-0	01	1	0207-0210
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR TAUPE GRAY(182) ANTI THEFT<UA6>	5-87410-942-0	01	1	0211-0307
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR TAUPE GRAY(182) ANTI THEFT<UA6>	5-87410-861-0	01	1	0308-
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR TAUPE GRAY(182) EXC. ANTI THEFT<UA6>	5-87410-865-0	01	1	0207-0210
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK INTERIOR COLOR TAUPE GRAY(182) EXC. ANTI THEFT<UA6>	5-87410-944-0	01	1	0211-
20	SNAP; DOOR LOCK CYL (A)	8-97179-551-0	01	1	9707-
20	SNAP; DOOR LOCK CYL (B)	8-97179-552-0	01	1	9707-
20	SNAP; DOOR LOCK CYL (D)	8-97179-562-0	01	1	9707-
20	SNAP; DOOR LOCK CYL (C)	8-97179-564-0	01	1	9707-
21	SWITCH ASM; DOOR LOCK CYL ANTI THEFT<UA6>	8-97149-853-0	01	1	9707-9803
21	SWITCH ASM; DOOR LOCK CYL ANTI THEFT<UA6>	8-97179-554-0	01	1	9804-
21	SWITCH ASM; DOOR LOCK CYL ANTI THEFT<UA6>	8-97149-852-0	01	1	9707-9803
21	SWITCH ASM; DOOR LOCK CYL ANTI THEFT<UA6>	8-97179-553-0	01	1	9804-
26	BOLT; KEY CYL,DOOR M6X8 FLANGE	8-97175-668-0	02	1	9707-
31	GASKET; TAIL GATE LOCK CYL	8-97179-561-0	01	1	9707-
34	SWITCH ASM; TAIL GATE LOCK CYL ANTI THEFT<UA6>	8-97149-854-0	01	1	9707-
67	SCREW; CASE,KEY ANTI THEFT<UA6>	8-97175-335-0	01	1	0403-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
