◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#42632) — 18 parça
çizim 69584
140 49 148 108
BalonParca AdiParca NoAdetTipApplied Date
49 PLATE; CAUTION,FUSE BOX 8-97125-002-1 01 1 9707-9807
49 PLATE; CAUTION,FUSE BOX 8-97183-425-0 01 1 9808-9908
49 PLATE; CAUTION,FUSE BOX 8-97229-006-1 01 1 9909-0007
49 PLATE; CAUTION,FUSE BOX 8-97254-258-0 01 1 0008-0106
49 PLATE; CAUTION,FUSE BOX 8-97287-951-0 01 1 0107-0206
49 PLATE; CAUTION,FUSE BOX 8-97305-265-1 01 1 0207-
108 LABEL; CAUTION,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97086-244-0 01 1 9707-0005
108 LABEL; CAUTION,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-457-0 01 1 0006-0307
108 LABEL; CAUTION,A/C 8-97257-457-0 01 1 0308-
140 PLATE; CAUTION,SRS 8-97134-568-0 01 1 9707-
148 PLATE; CAUTION,ANTI THEFT
ANTI THEFT<UA6> 		8-97129-695-0 02 1 9707-0202

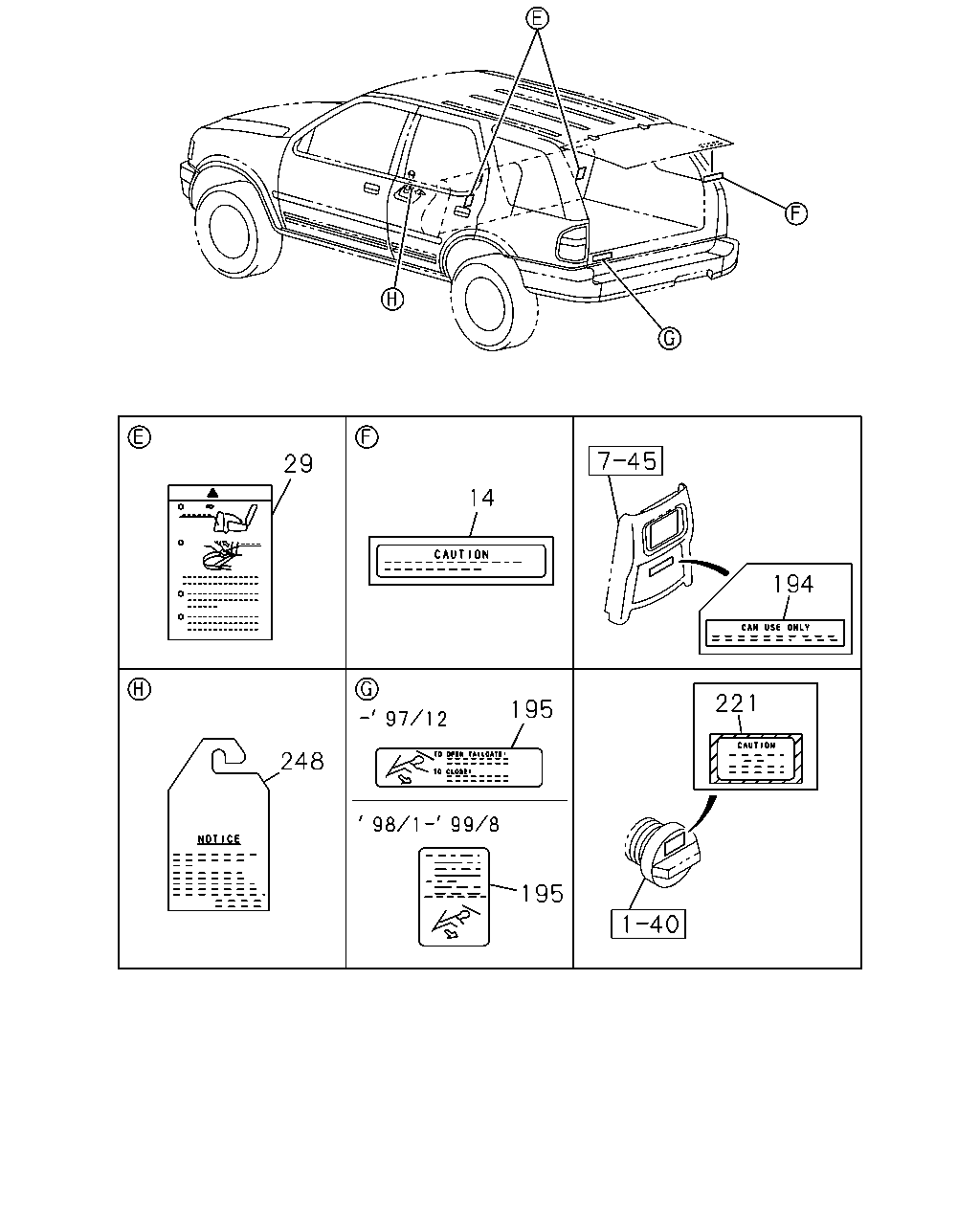

çizim 69589
29 14 194 221 195 248 195
BalonParca AdiParca NoAdetTipApplied Date
14 LABEL; CAUTION,TAIL GATE 8-97136-203-0 01 1 9707-
29 PLATE; CAUTION,RR CUSHION 8-97185-136-1 02 1 9707-
194 PLATE; CAUTION,CUP HOLDER 8-97184-074-0 01 1 9707-9807
195 LABEL; BACK DOOR STOPPER 8-97183-552-0 01 1 9707-9712
195 LABEL; BACK DOOR STOPPER 8-97186-984-0 01 1 9801-9908
221 PLATE; CAUTION,FILLAR CAP 8-97214-261-0 01 1 9808-9810
248 TAG; CAUTION,THROTTLE CONT & HVAC 8-97248-944-0 01 1 0002-0007
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
