6-90 — REAR BUMPER (#42630) — 111 parça

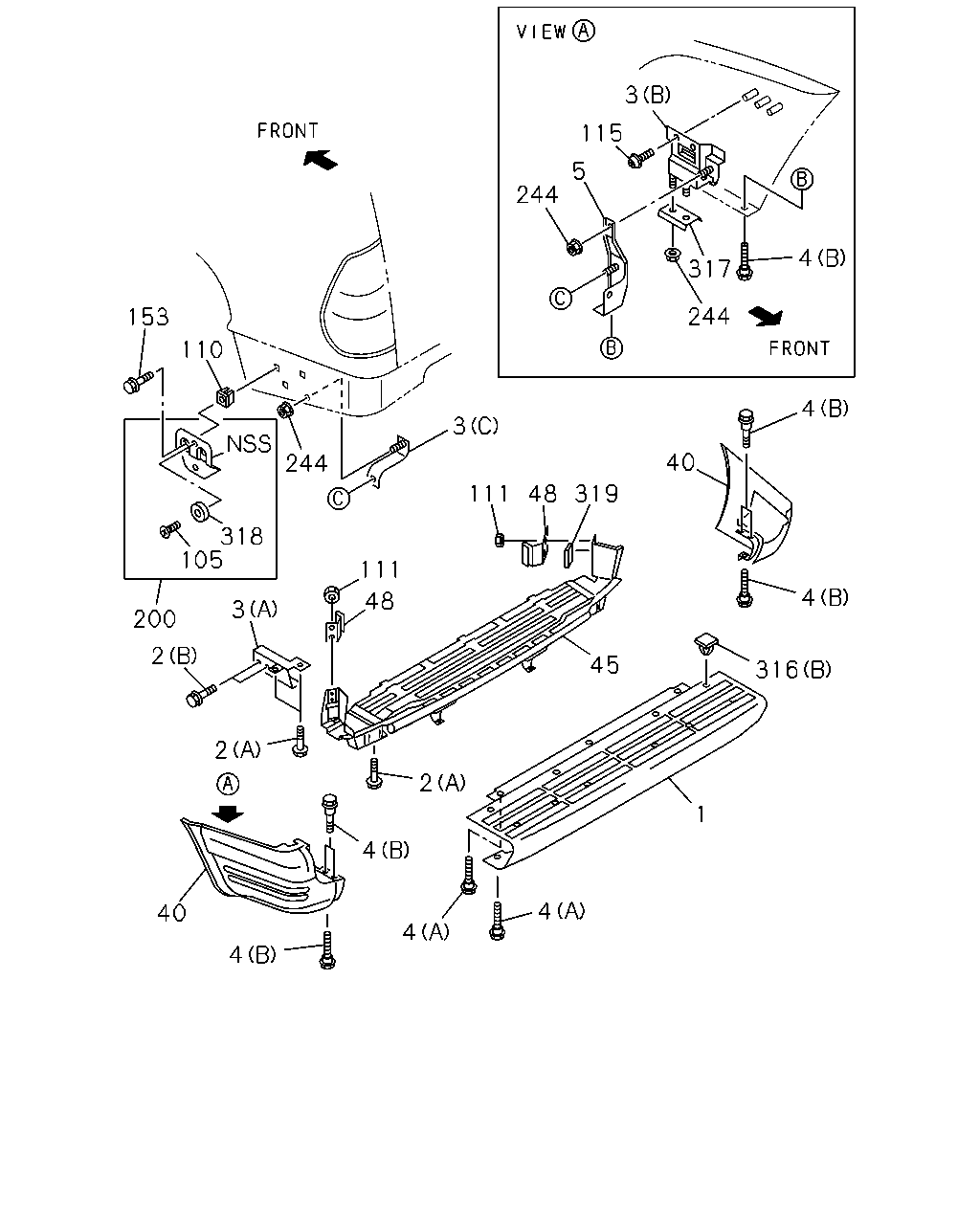

3 115 5 244 4 317 244 153 110 4 3 40 244 48 319 111 318 105 45 111 316 4 48 3 200 113 316 4 114 2 2 1 2 4 4 40 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER; RR COLOR KEYED BUMPER(S4H) SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER	8-97143-313-1	01	1	9707-9807
1	BUMPER; RR COLOR KEYED BUMPER(S4H) SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER	8-97179-689-1	01	1	9808-9908
1	BUMPER; RR COLOR KEYED BUMPER(S4H) SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER	8-97221-627-1	01	1	9909-0007
1	BUMPER; RR COLOR KEYED BUMPER(S4H) EXC. SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER	8-97138-416-2	01	1	9707-9807
1	BUMPER; RR COLOR KEYED BUMPER(S4H) EXC. SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER	8-97179-686-1	01	1	9808-9908
1	BUMPER; RR COLOR KEYED BUMPER(S4H) EXC. SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER	8-97221-628-1	01	1	9909-0007
1	BUMPER; RR EXC. COLOR KEYED BUMPER(S4H),SPARE TIRE UNDER FLOORMTG<7PF> PRIMER	8-97138-415-4	01	1	9707-9908
1	BUMPER; RR EXC. COLOR KEYED BUMPER(S4H),SPARE TIRE UNDER FLOORMTG<7PF>,GRAY PAINTED PACKAGE<7XA> PRIMER	8-97209-022-0	01	1	9909-0007
1	BUMPER; RR SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER	8-97221-627-1	01	1	0008-
1	BUMPER; RR SPARE TIRE UNDER FLOOR MTG<7PF> EXC. COLOR KEYED BUMPER(S4H) PRIMER	8-97173-978-2	01	1	9707-9908
1	BUMPER; RR SPARE TIRE UNDER FLOOR MTG<7PF> EXC. COLOR KEYED BUMPER(S4H) PRIMER	8-97234-922-0	01	1	9909-0007
1	BUMPER; RR EXC. SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER	8-97221-628-1	01	1	0008-
2	BOLT; BACK BAR (A) M8X20 FLANGE	0-28480-820-0	06	1	9707-9801
2	BOLT; BACK BAR (A) M8X20 FLANGE	0-28680-820-0	06	1	9802-
2	BOLT; BACK BAR (B) M12X30 FLANGE	8-97161-815-1	04	1	9707-
3	BRACKET; BUMPER (C)	8-97139-527-0	02	1	9707-
3	BRACKET; BUMPER (A)	8-97125-802-5	01	1	9707-9908
3	BRACKET; BUMPER EXC. SPARE TIRE UNDER FLOOR MTG<7PF> (A)	8-97125-802-5	01	1	9909-
3	BRACKET; BUMPER (B)	8-97125-810-1	01	1	9707-
3	BRACKET; BUMPER (A)	8-97125-801-5	01	1	9707-9908
3	BRACKET; BUMPER EXC. SPARE TIRE UNDER FLOOR MTG<7PF> (A)	8-97125-801-5	01	1	9909-
3	BRACKET; BUMPER (B)	8-97125-809-1	01	1	9707-
3	BRACKET; BUMPER SPARE TIRE UNDER FLOOR MTG<7PF> (A)	8-97227-021-0	01	1	9909-
3	BRACKET; BUMPER SPARE TIRE UNDER FLOOR MTG<7PF> (A)	8-97227-020-0	01	1	9909-
4	BOLT; BUMPER (B) M6X16 FLANGE	8-97804-671-1	08	1	9707-
4	BOLT; BUMPER EXC. SPARE TIRE UNDER FLOOR MTG<7PF> (B) M6X16 FLANGE	8-97804-671-1	08	1	9707-
4	BOLT; BUMPER SPARE TIRE UNDER FLOOR MTG<7PF> (A) M6X16 FLANGE	8-97804-671-1	07	1	9707-
5	SUPPORT; RR BUMPER	8-97139-416-1	01	1	9707-
5	SUPPORT; RR BUMPER	8-97139-415-1	01	1	9707-
40	BUMPER; RR SIDE COLOR KEYED BUMPER(S4H) PRIMER	8-97179-709-0	01	1	9707-9908
40	BUMPER; RR SIDE PRIMER	8-97221-630-2	01	1	9909-
40	BUMPER; RR SIDE COLOR KEYED BUMPER(S4H) PRIMER	8-97179-693-0	01	1	9707-9908
40	BUMPER; RR SIDE PRIMER	8-97221-629-2	01	1	9909-0307
40	BUMPER; RR SIDE PRIMER	8-97221-629-2	01	1	0308-
40	BUMPER; RR SIDE EXC. COLOR KEYED BUMPER(S4H)	8-97138-420-4	01	1	9707-9908
40	BUMPER; RR SIDE EXC. COLOR KEYED BUMPER(S4H)	8-97138-419-4	01	1	9707-9908
45	REINFORCEMENT; RR BUMPER SPARE TIRE UNDER FLOOR MTG<7PF>	8-97136-024-3	01	1	9707-9908
45	REINFORCEMENT; RR BUMPER SPARE TIRE UNDER FLOOR MTG<7PF>	8-97214-705-1	01	1	9909-
45	REINFORCEMENT; RR BUMPER EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97138-822-5	01	1	9707-
48	RETAINER; BUMPER RR SIDE	8-97141-779-0	02	1	9707-
105	SCREW; SLIDER M6X18	8-97805-235-0	02	1	9707-
110	GROMMET; BUMPER D=9.7X9.7 L=8	8-94222-314-0	06	1	9707-
111	NUT; FLANGE M6 FLANGE	0-91150-106-0	04	1	9707-
113	BRACKET; LICENSE PLATE EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97125-807-2	01	1	9707-
114	BOLT; BRKT,LICENSE PLATE EXC. SPARE TIRE UNDER FLOOR MTG<7PF> M8X20 FLANGE	0-28480-820-0	02	1	9707-9801
114	BOLT; BRKT,LICENSE PLATE EXC. SPARE TIRE UNDER FLOOR MTG<7PF> M8X20 FLANGE	0-28680-820-0	02	1	9802-
115	SCREW; BRKT M4X16 TAPPING W/PL WASHER	0-74300-416-0	04	1	9707-
153	BOLT; BRKT M6X16	8-94493-405-0	06	1	9707-
200	SLIDER; RR	8-97148-451-0	01	1	9707-
200	SLIDER; RR	8-97148-450-0	01	1	9707-
244	NUT; BUMPER RR M6 FLANGE	0-91150-106-0	10	1	9707-
316	FASTENER; STEP SPARE TIRE UNDER FLOOR MTG<7PF> (B)	8-97142-091-2	10	1	9707-
316	FASTENER; STEP EXC. SPARE TIRE UNDER FLOOR MTG<7PF> (A)	8-97125-839-2	06	1	9707-
316	FASTENER; STEP EXC. SPARE TIRE UNDER FLOOR MTG<7PF> (B)	8-97142-091-2	02	1	9707-
317	PLATE; BUMPER SIDE	8-97143-287-0	02	1	9707-
318	SLIDER; RR BUMPER	8-97805-152-2	02	1	9707-
319	PAD; SIDE,RR BUMPER	8-97172-510-1	01	1	9707-

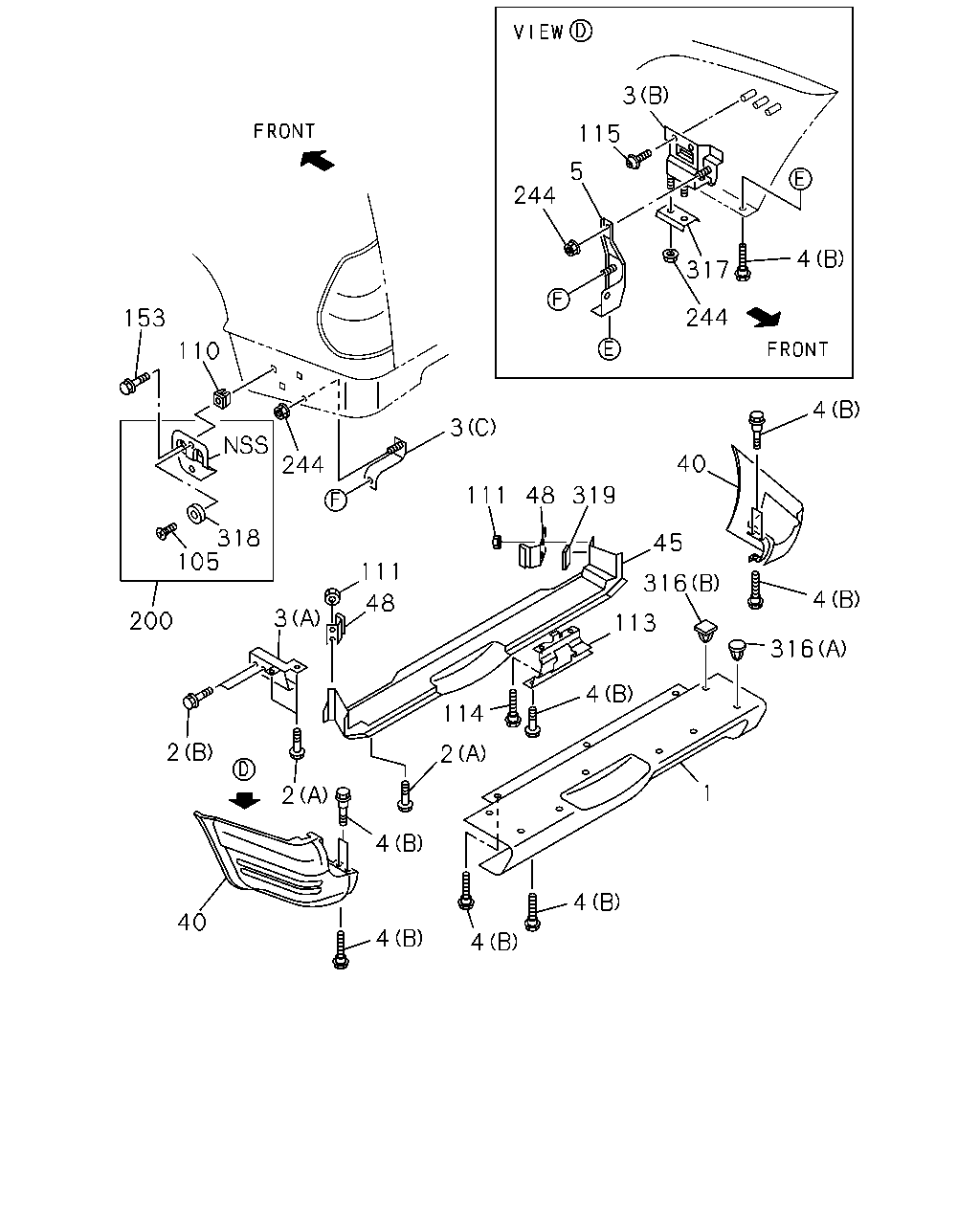

3 115 5 244 4 317 244 153 110 4 3 40 244 48 319 111 318 105 111 4 48 3 200 2 45 316 2 2 1 4 4 40 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER; RR COLOR KEYED BUMPER(S4H) SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER	8-97143-313-1	01	1	9707-9807
1	BUMPER; RR COLOR KEYED BUMPER(S4H) SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER	8-97179-689-1	01	1	9808-9908
1	BUMPER; RR COLOR KEYED BUMPER(S4H) SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER	8-97221-627-1	01	1	9909-0007
1	BUMPER; RR COLOR KEYED BUMPER(S4H) EXC. SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER	8-97138-416-2	01	1	9707-9807
1	BUMPER; RR COLOR KEYED BUMPER(S4H) EXC. SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER	8-97179-686-1	01	1	9808-9908
1	BUMPER; RR COLOR KEYED BUMPER(S4H) EXC. SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER	8-97221-628-1	01	1	9909-0007
1	BUMPER; RR EXC. COLOR KEYED BUMPER(S4H),SPARE TIRE UNDER FLOORMTG<7PF> PRIMER	8-97138-415-4	01	1	9707-9908
1	BUMPER; RR EXC. COLOR KEYED BUMPER(S4H),SPARE TIRE UNDER FLOORMTG<7PF>,GRAY PAINTED PACKAGE<7XA> PRIMER	8-97209-022-0	01	1	9909-0007
1	BUMPER; RR SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER	8-97221-627-1	01	1	0008-
1	BUMPER; RR SPARE TIRE UNDER FLOOR MTG<7PF> EXC. COLOR KEYED BUMPER(S4H) PRIMER	8-97173-978-2	01	1	9707-9908
1	BUMPER; RR SPARE TIRE UNDER FLOOR MTG<7PF> EXC. COLOR KEYED BUMPER(S4H) PRIMER	8-97234-922-0	01	1	9909-0007
1	BUMPER; RR EXC. SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER	8-97221-628-1	01	1	0008-
2	BOLT; BACK BAR (A) M8X20 FLANGE	0-28480-820-0	06	1	9707-9801
2	BOLT; BACK BAR (A) M8X20 FLANGE	0-28680-820-0	06	1	9802-
2	BOLT; BACK BAR (B) M12X30 FLANGE	8-97161-815-1	04	1	9707-
3	BRACKET; BUMPER (C)	8-97139-527-0	02	1	9707-
3	BRACKET; BUMPER (A)	8-97125-802-5	01	1	9707-9908
3	BRACKET; BUMPER EXC. SPARE TIRE UNDER FLOOR MTG<7PF> (A)	8-97125-802-5	01	1	9909-
3	BRACKET; BUMPER (B)	8-97125-810-1	01	1	9707-
3	BRACKET; BUMPER (A)	8-97125-801-5	01	1	9707-9908
3	BRACKET; BUMPER EXC. SPARE TIRE UNDER FLOOR MTG<7PF> (A)	8-97125-801-5	01	1	9909-
3	BRACKET; BUMPER (B)	8-97125-809-1	01	1	9707-
3	BRACKET; BUMPER SPARE TIRE UNDER FLOOR MTG<7PF> (A)	8-97227-021-0	01	1	9909-
3	BRACKET; BUMPER SPARE TIRE UNDER FLOOR MTG<7PF> (A)	8-97227-020-0	01	1	9909-
4	BOLT; BUMPER (B) M6X16 FLANGE	8-97804-671-1	08	1	9707-
4	BOLT; BUMPER EXC. SPARE TIRE UNDER FLOOR MTG<7PF> (B) M6X16 FLANGE	8-97804-671-1	08	1	9707-
4	BOLT; BUMPER SPARE TIRE UNDER FLOOR MTG<7PF> (A) M6X16 FLANGE	8-97804-671-1	07	1	9707-
5	SUPPORT; RR BUMPER	8-97139-416-1	01	1	9707-
5	SUPPORT; RR BUMPER	8-97139-415-1	01	1	9707-
40	BUMPER; RR SIDE COLOR KEYED BUMPER(S4H) PRIMER	8-97179-709-0	01	1	9707-9908
40	BUMPER; RR SIDE PRIMER	8-97221-630-2	01	1	9909-
40	BUMPER; RR SIDE COLOR KEYED BUMPER(S4H) PRIMER	8-97179-693-0	01	1	9707-9908
40	BUMPER; RR SIDE PRIMER	8-97221-629-2	01	1	9909-0307
40	BUMPER; RR SIDE PRIMER	8-97221-629-2	01	1	0308-
40	BUMPER; RR SIDE EXC. COLOR KEYED BUMPER(S4H)	8-97138-420-4	01	1	9707-9908
40	BUMPER; RR SIDE EXC. COLOR KEYED BUMPER(S4H)	8-97138-419-4	01	1	9707-9908
45	REINFORCEMENT; RR BUMPER SPARE TIRE UNDER FLOOR MTG<7PF>	8-97136-024-3	01	1	9707-9908
45	REINFORCEMENT; RR BUMPER SPARE TIRE UNDER FLOOR MTG<7PF>	8-97214-705-1	01	1	9909-
45	REINFORCEMENT; RR BUMPER EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97138-822-5	01	1	9707-
48	RETAINER; BUMPER RR SIDE	8-97141-779-0	02	1	9707-
105	SCREW; SLIDER M6X18	8-97805-235-0	02	1	9707-
110	GROMMET; BUMPER D=9.7X9.7 L=8	8-94222-314-0	06	1	9707-
111	NUT; FLANGE M6 FLANGE	0-91150-106-0	04	1	9707-
115	SCREW; BRKT M4X16 TAPPING W/PL WASHER	0-74300-416-0	04	1	9707-
153	BOLT; BRKT M6X16	8-94493-405-0	06	1	9707-
200	SLIDER; RR	8-97148-451-0	01	1	9707-
200	SLIDER; RR	8-97148-450-0	01	1	9707-
244	NUT; BUMPER RR M6 FLANGE	0-91150-106-0	10	1	9707-
316	FASTENER; STEP SPARE TIRE UNDER FLOOR MTG<7PF> (B)	8-97142-091-2	10	1	9707-
316	FASTENER; STEP EXC. SPARE TIRE UNDER FLOOR MTG<7PF> (A)	8-97125-839-2	06	1	9707-
316	FASTENER; STEP EXC. SPARE TIRE UNDER FLOOR MTG<7PF> (B)	8-97142-091-2	02	1	9707-
317	PLATE; BUMPER SIDE	8-97143-287-0	02	1	9707-
318	SLIDER; RR BUMPER	8-97805-152-2	02	1	9707-
319	PAD; SIDE,RR BUMPER	8-97172-510-1	01	1	9707-
