6-86 — TRUNK OPENER AND FUEL LID (#42627) — 17 parça

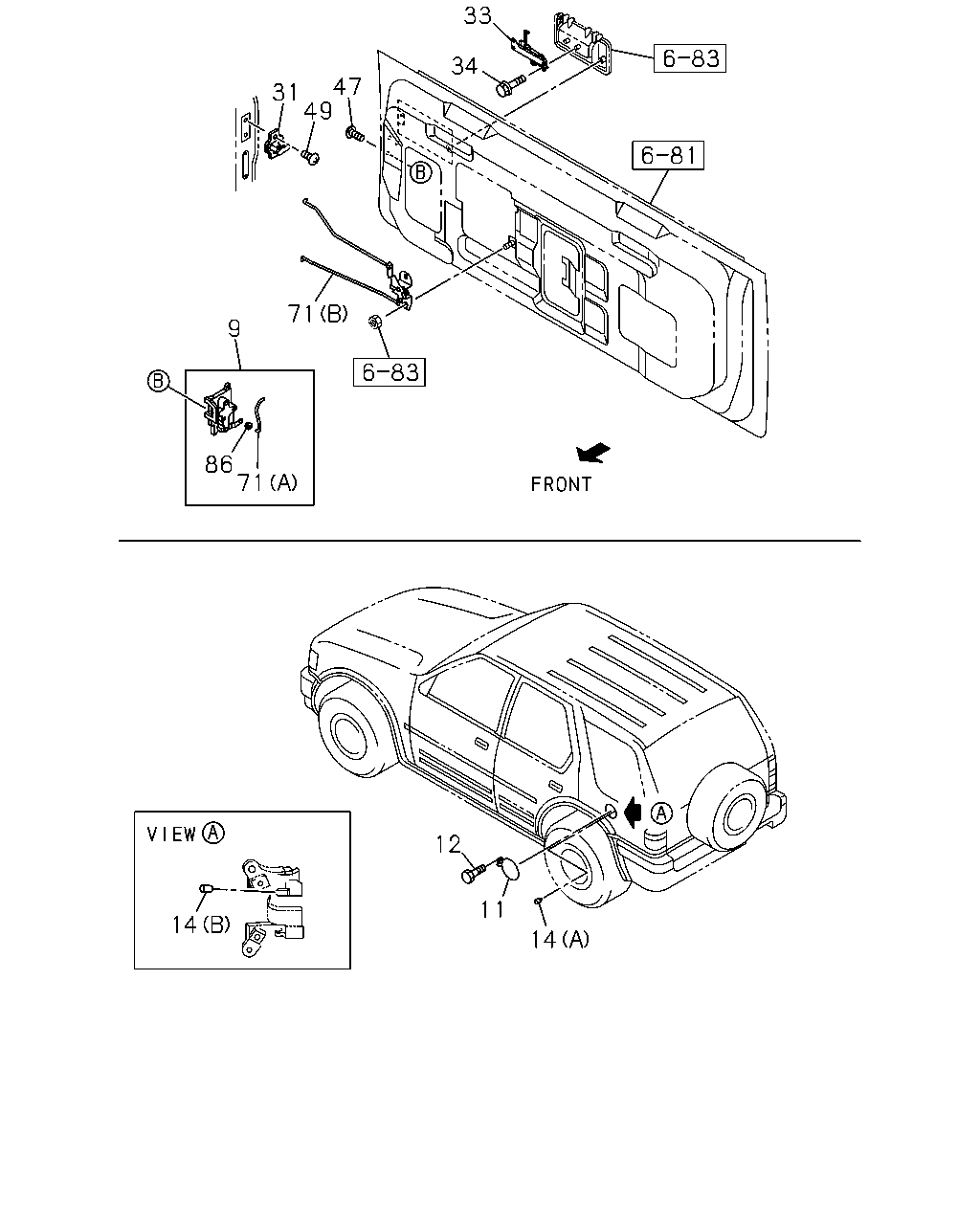

çizim 72226
33 34 47 31 49 71 9 86 71 12 11 14 14
BalonParca AdiParca NoAdetTipApplied Date
9 LOCK; TRUNK LID 8-97124-126-2 01 1 9707-
11 LID; FUEL 8-15630-142-0 01 1 9707-0104
11 LID; FUEL 8-97314-427-1 01 1 0105-
12 SCREW; FUEL LID 8-15953-840-0 02 1 9707-
14 CUSHION; RUBBER,FUEL LID
(A) 		8-15521-576-0 02 1 9707-
14 CUSHION; RUBBER,FUEL LID
(B) 		8-97178-438-0 02 1 9707-0201
14 CUSHION; RUBBER,FUEL LID
(B) 		8-97178-438-0 01 1 0202-
31 STRIKER; TAIL GATE 8-21090-040-0 01 1 9707-
33 CRANK ASM; TAIL GATE LK 8-97124-837-1 01 1 9707-
34 BOLT; BELL CRANK,DOOR LOCK
M6X8 		8-94155-893-0 02 1 9707-
47 SCREW; TAIL GATE LK 8-15685-550-0 03 1 9707-0102
47 SCREW; TAIL GATE LK 8-97310-734-0 03 1 0103-
49 SCREW; STRIKER TO TAIL GATE 8-09442-471-0 02 1 9707-
71 LINK; TAIL GATE
(A) 		8-16636-038-1 01 1 9707-
71 LINK; TAIL GATE
(B) 		8-97124-132-3 01 1 9707-
86 HOLDER; LINK ROD 8-16636-047-0 01 1 9707-9712
86 HOLDER; LINK ROD 8-16632-180-0 01 1 9801-
