◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#42626) — 15 parça

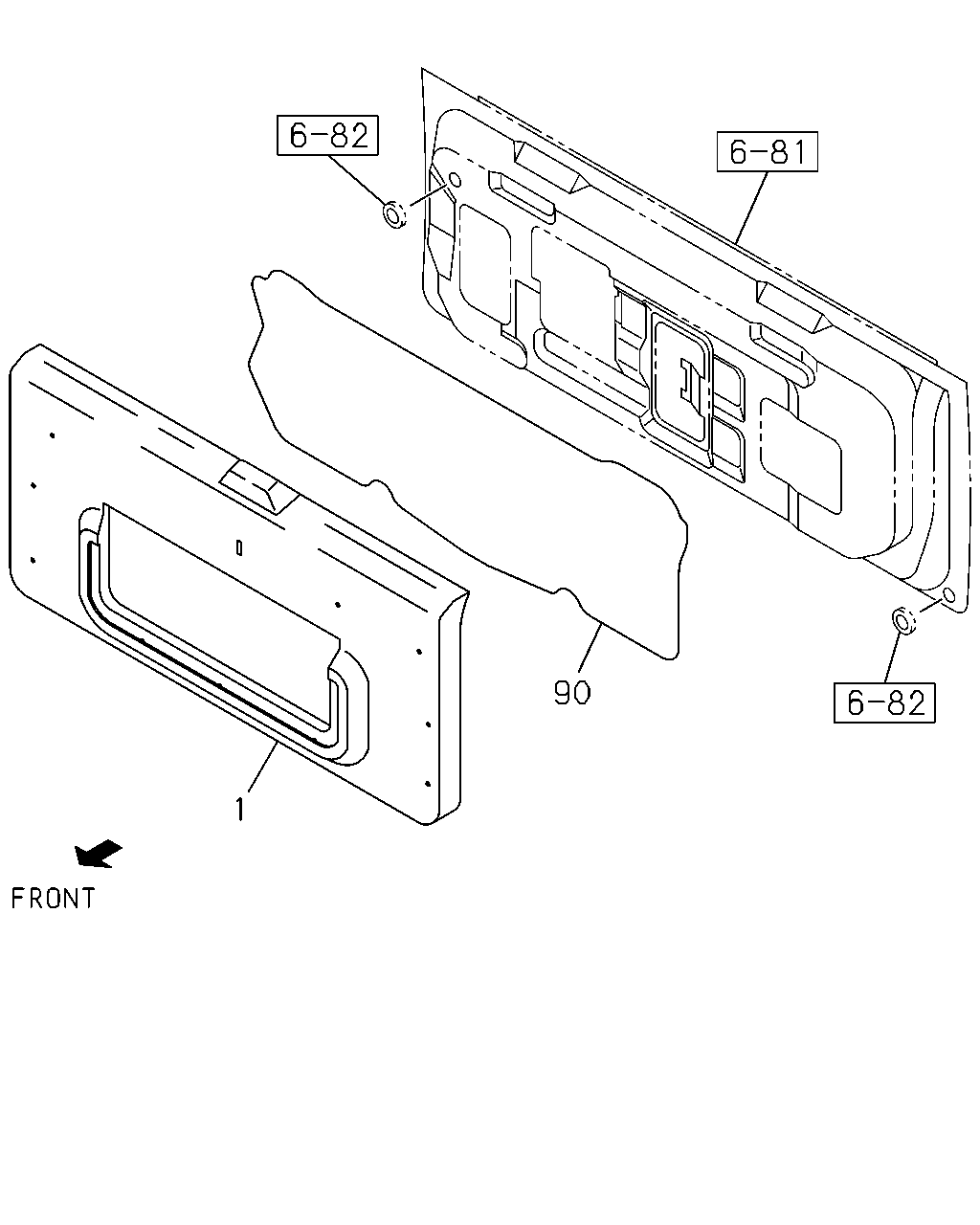

çizim 18013
90 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR BEIGE(181) SPARE TIRE UNDER FLOOR MTG<7PF> LIGHT BEIGE 		8-97291-592-3 01 1 9909-0307 ● ● ●
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR BEIGE(181) SPARE TIRE UNDER FLOOR MTG<7PF> LIGHT BEIGE 		8-97291-592-3 01 1 0308- ● ●
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR BEIGE(181) EXC. SPARE TIRE UNDER FLOOR MTG<7PF> LIGHT BEIGE 		8-97291-591-3 01 1 9909-0307 ● ● ●
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR BEIGE(181) EXC. SPARE TIRE UNDER FLOOR MTG<7PF> LIGHT BEIGE 		8-97291-591-3 01 1 0308- ● ●
1 PAD; TRIM,BACK DOOR
SPARE TIRE UNDER FLOOR MTG<7PF> GRAY 		8-97157-390-3 01 1 9707-9908 ● ● ●
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR GRAY(180) SPARE TIRE UNDER FLOOR MTG<7PF> GRAY 		8-97157-390-3 01 1 9909-0206 ● ● ●
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR TAUPE GRAY(182) SPARE TIRE UNDER FLOOR MTG<7PF> DARK GRAY 		8-97391-777-3 01 1 0207-0307 ● ● ●
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR TAUPE GRAY(182) SPARE TIRE UNDER FLOOR MTG<7PF> DARK GRAY 		8-97391-777-3 01 1 0308- ● ●
1 PAD; TRIM,BACK DOOR
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> GRAY 		8-97157-389-3 01 1 9707-9908 ● ● ●
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR GRAY(180) EXC. SPARE TIRE UNDER FLOOR MTG<7PF> GRAY 		8-97157-389-3 01 1 9909-0206 ● ● ●
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR TAUPE GRAY(182) EXC. SPARE TIRE UNDER FLOOR MTG<7PF> DARK GRAY 		8-97391-776-3 01 1 0207-0307 ● ● ●
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR TAUPE GRAY(182) EXC. SPARE TIRE UNDER FLOOR MTG<7PF> DARK GRAY 		8-97391-776-3 01 1 0308- ● ●
90 SHEET; WATER PROOF,BACK DOOR 8-97124-137-0 01 1 9707-9908 ● ●
90 SHEET; WATER PROOF,BACK DOOR 8-97124-137-0 01 1 9909-0307 ● ● ●
90 SHEET; WATER PROOF,BACK DOOR 8-97124-137-0 01 1 0308- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
