◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-83 - BACK DOOR LOCK AND HANDLE ▶
6-83 — BACK DOOR LOCK AND HANDLE (#42625) — 26 parça

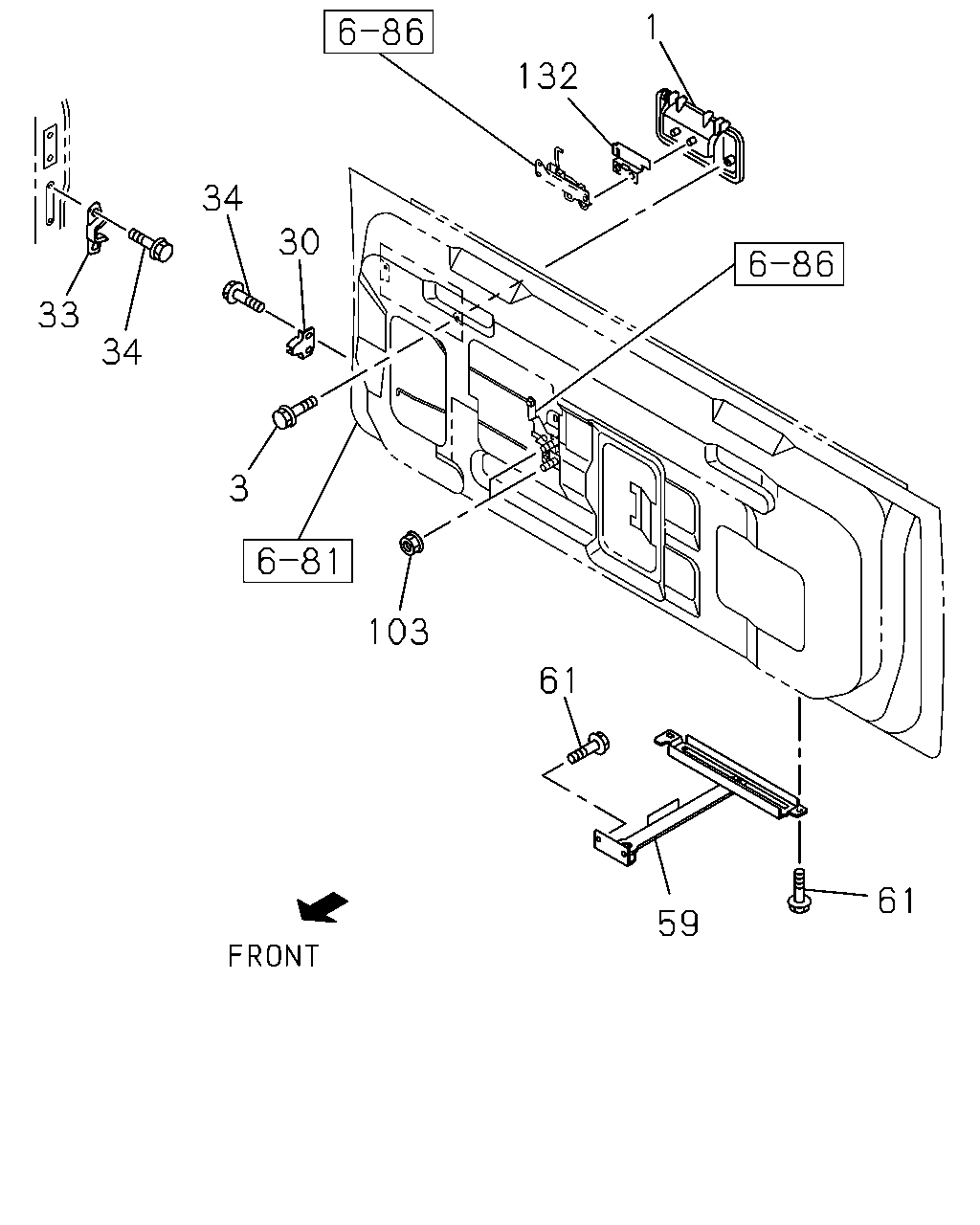

çizim 69581
1 132 34 30 33 34 3 103 61 61 59
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,BACK DOOR
GRADE LS(RBB) SPARE TIRE UNDER FLOOR MTG<7PF> PRIMER 		8-97185-529-0 01 1 9909-0207
1 HANDLE; OUTSIDE,BACK DOOR
GRADE LS/LSE(RBD) PRIMER 		8-97185-529-0 01 1 9909-0207
1 HANDLE; OUTSIDE,BACK DOOR
GRADE LS/LSE(RBD) PRIMER 		8-97185-529-0 01 1 0208-0307
1 HANDLE; OUTSIDE,BACK DOOR
HANDLE O/S DOOR BODY COLOR<D75> PRIMER 		8-97185-529-0 01 1 0308-
1 HANDLE; OUTSIDE,BACK DOOR
GRADE LS/LSE(RBD) PRIMER 		8-97181-733-0 01 1 9707-9712
1 HANDLE; OUTSIDE,BACK DOOR
GRADE LS/LSE(RBD) PRIMER 		8-97185-529-0 01 1 9801-9807
1 HANDLE; OUTSIDE,BACK DOOR
GRADE LS/LSE(RBD) PRIMER 		8-97185-529-0 01 1 9808-9908
1 HANDLE; OUTSIDE,BACK DOOR
GRADE S(RBA) SPARE TIRE UNDER FLOOR MTG<7PF> UP GRADE PACKAGE<7MA> PRIMER 		8-97185-529-0 01 1 9808-9908
1 HANDLE; OUTSIDE,BACK DOOR
GRADE S(RBA) 		8-97137-977-1 01 1 9707-9807
1 HANDLE; OUTSIDE,BACK DOOR
GRADE S(RBA) EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97137-977-1 01 1 9808-9908
1 HANDLE; OUTSIDE,BACK DOOR
GRADE S(RBA) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. UP GRADE PACKAGE<7MA> 		8-97137-977-1 01 1 9808-9908
1 HANDLE; OUTSIDE,BACK DOOR
GRADE S(RBA) 		8-97137-977-1 01 1 9909-0207
1 HANDLE; OUTSIDE,BACK DOOR
GRADE LS(RBB) EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97137-977-1 01 1 9909-0207
1 HANDLE; OUTSIDE,BACK DOOR
GRADE S(RBA),GRADE LS(RBB) 		8-97137-977-1 01 1 0208-0307
1 HANDLE; OUTSIDE,BACK DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75> 		8-97137-977-1 01 1 0308-
3 BOLT; TAIL GATE HANDLE
M6X8 		8-94155-893-0 02 1 9707-
30 DOVETAIL; BACK DOOR 8-97167-936-0 01 1 9707-0002
30 DOVETAIL; BACK DOOR 8-97245-728-0 01 1 0003-
33 STRIKER; DOVETAIL 8-97167-807-0 01 1 9707-
34 BOLT; DOVETAIL TO BACK DOOR
M8X20 FLANGE 		8-97165-883-0 04 1 9707-
59 ARM ASM; CHECK,BACK DOOR 8-97124-997-1 01 1 9707-9908
59 ARM ASM; CHECK,BACK DOOR 8-97143-144-3 01 1 9909-0007
59 ARM ASM; CHECK,BACK DOOR 8-97259-303-2 01 1 0008-
61 BOLT; TAIL GATE STOPPER
M8X23 FLANGE 		8-97105-376-0 04 1 9707-
103 NUT
M6 FLANGE 		8-97063-399-0 02 1 9707-
132 PLATE; HANDLE 8-97170-766-1 01 1 9707-
