◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-81 - BACK DOOR AND HINGE ▶
6-81 — BACK DOOR AND HINGE (#42623) — 74 parça

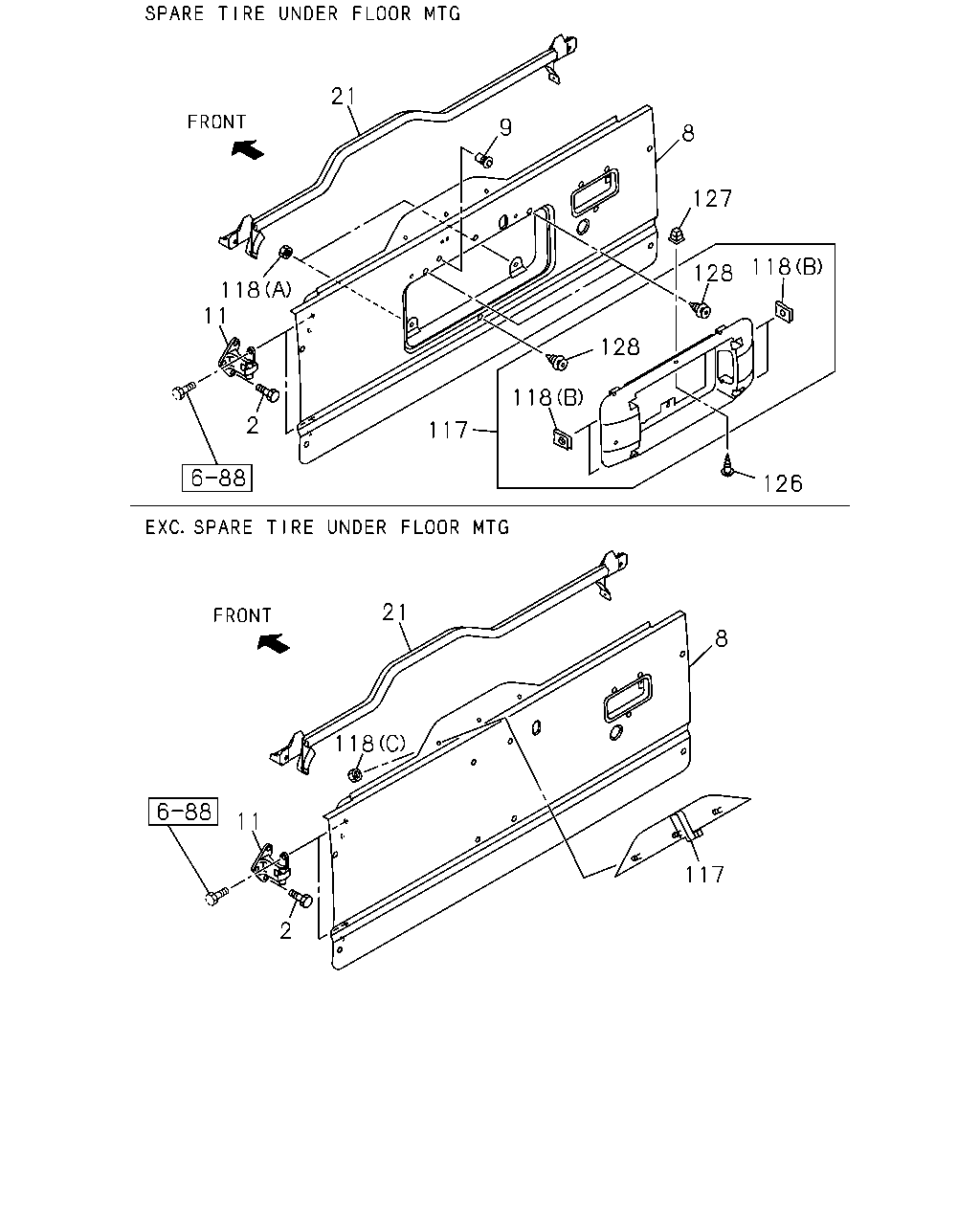

çizim 70189
21 9 8 127 118 128 118 11 128 118 2 117 126 21 8 118 11 117 2
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; HINGE TO BODY,BACK DOOR
M8X23 FLANGE 		8-94174-559-2 06 1 9707-
8 PANEL; TAIL GATE
EXC. RR WIPER W/INTERMITTENT<6WJ>,SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97225-170-1 01 1 9909-0307
8 PANEL; TAIL GATE
SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97135-041-1 01 1 9707-9807
8 PANEL; TAIL GATE
SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97201-434-0 01 1 9808-9908
8 PANEL; TAIL GATE
RR WIPER W/INTERMITTENT<6WJ> SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97201-434-0 01 1 9909-0207
8 PANEL; TAIL GATE
RR WIPER W/INTERMITTENT<6WJ> SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97357-243-1 01 1 0208-0307
8 PANEL; TAIL GATE
SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97357-243-1 01 1 0308-
8 PANEL; TAIL GATE
SPARE TIRE UNDER FLOOR MTG<7PF> EXC. RR WIPER W/INTERMITTENT<6WJ> 		8-97225-171-0 01 1 9909-0207
8 PANEL; TAIL GATE
SPARE TIRE UNDER FLOOR MTG<7PF> EXC. RR WIPER W/INTERMITTENT<6WJ> 		8-97357-244-1 01 1 0208-0307
8 PANEL; TAIL GATE
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97124-035-1 01 1 9707-9807
8 PANEL; TAIL GATE
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97201-432-0 01 1 9808-9908
8 PANEL; TAIL GATE
RR WIPER W/INTERMITTENT<6WJ> EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97201-432-1 01 1 9909-0307
8 PANEL; TAIL GATE
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97201-432-1 01 1 0308-
9 NUT; TAIL GATE
SPARE TIRE UNDER FLOOR MTG<7PF> M6 POP 		8-94455-383-0 01 1 9707-
11 HINGE; TAIL GATE 8-97125-492-2 02 1 9707-
21 SEAL; TAIL GATE WAIST
SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97135-936-4 01 1 9707-0110
21 SEAL; TAIL GATE WAIST
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97124-150-4 01 1 9707-0110
21 SEAL; TAIL GATE WAIST 8-97124-150-4 01 1 0111-
117 GARNISH
BODY COLOR ALPINE WHITE(861) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> WHITE 		8-97291-769-1 01 1 9909-0010
117 GARNISH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR ALPINE WHITE/FAWN MET(650),BODY COLOR ALPINE WHITE(861) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> WHITE 		8-97291-769-1 01 1 0011-0106
117 GARNISH
BODY COLOR ALPINE WHITE(861) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> WHITE 		8-97291-769-2 01 1 0107-0206
117 GARNISH
BODY COLOR ALPINE WHITE(861) SPARE TIRE UNDER FLOOR MTG<7PF> WHITE 		8-97291-769-2 01 1 0207-0210
117 GARNISH
BODY COLOR ALPINE WHITE(861) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> WHITE 		8-97291-769-2 01 1 0211-
117 GARNISH
BODY COLOR BRIGHT SILVER MET(835) SPARE TIRE UNDER FLOOR MTG<7PF> SILVER 		8-97157-533-2 01 1 9707-9807
117 GARNISH
BODY COLOR BRIGHT SILVER MET(835) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> SILVER 		8-97291-768-2 01 1 9909-0206
117 GARNISH
BODY COLOR BRIGHT SILVER MET(835) SPARE TIRE UNDER FLOOR MTG<7PF> SILVER 		8-97291-768-2 01 1 0207-0210
117 GARNISH
BODY COLOR BRIGHT SILVER MET(835) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> SILVER 		8-97291-768-2 01 1 0211-0307
117 GARNISH
BODY COLOR POWELLITE MET(679) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> LIGHT SILVER 		8-97395-584-2 01 1 0308-
117 GARNISH
BODY COLOR CANAL BLUE MICA(862) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> BLUE 		8-97291-770-1 01 1 9909-0106
117 GARNISH
BODY COLOR CURRANT RED MICA(640) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> RED 		8-97297-503-2 01 1 0107-0206
117 GARNISH
BODY COLOR CURRANT RED MICA(640) SPARE TIRE UNDER FLOOR MTG<7PF> RED 		8-97297-503-2 01 1 0207-0210
117 GARNISH
BODY COLOR CURRANT RED MICA(640) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> RED 		8-97297-503-2 01 1 0211-0307
117 GARNISH
BODY COLOR CAPRICE BLUE MET(836) SPARE TIRE UNDER FLOOR MTG<7PF> BLUE 		8-97159-061-2 01 1 9707-9807
117 GARNISH
BODY COLOR CLARET RED MICA(731) SPARE TIRE UNDER FLOOR MTG<7PF> DARK RED 		8-97157-529-2 01 1 9707-9807
117 GARNISH
BODY COLOR COPPER ORANGE MICA(838) SPARE TIRE UNDER FLOOR MTG<7PF> ORANGE 		8-97159-062-2 01 1 9707-9807
117 GARNISH
BODY COLOR CREAM WHITE(752) SPARE TIRE UNDER FLOOR MTG<7PF> WHITE 		8-97157-530-2 01 1 9707-9807
117 GARNISH
BODY COLOR EBONY BLACK(826) SPARE TIRE UNDER FLOOR MTG<7PF> BLACK 		8-97157-531-2 01 1 9707-9807
117 GARNISH
BODY COLOR EBONY BLACK(826) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> BLACK 		8-97291-767-1 01 1 9909-0010
117 GARNISH
BODY COLOR EBONY BLACK/IRON GRAY MET(651),BODY COLOR EBONY BLACK(826) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> BLACK 		8-97291-767-1 01 1 0011-0106
117 GARNISH
BODY COLOR EBONY BLACK(826) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> BLACK 		8-97291-767-2 01 1 0107-0206
117 GARNISH
BODY COLOR EBONY BLACK(826) SPARE TIRE UNDER FLOOR MTG<7PF> BLACK 		8-97291-767-2 01 1 0207-0210
117 GARNISH
BODY COLOR EBONY BLACK(826) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> BLACK 		8-97291-767-2 01 1 0211-
117 GARNISH
BODY COLOR FAWN BROWN MET(881) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> BROWN 		8-97291-772-2 01 1 9909-0206
117 GARNISH
BODY COLOR FAWN BROWN MET(881) SPARE TIRE UNDER FLOOR MTG<7PF> BROWN 		8-97291-772-2 01 1 0207-0210
117 GARNISH
BODY COLOR FAWN BROWN MET(881) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> BROWN 		8-97291-772-2 01 1 0211-0307
117 GARNISH
BODY COLOR BRIGHT ROSE MICA(680) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> RED 		8-97395-583-2 01 1 0308-
117 GARNISH
BODY COLOR GARDEN GREEN MICA(870) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> GREEN 		8-97291-771-2 01 1 9909-0206
117 GARNISH
BODY COLOR MISTRAL GREEN MICA(664) SPARE TIRE UNDER FLOOR MTG<7PF> DARK GREEN 		8-97391-576-2 01 1 0207-0210
117 GARNISH
BODY COLOR MISTRAL GREEN MICA(664) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> DARK GREEN 		8-97391-576-2 01 1 0211-
117 GARNISH
BODY COLOR RADIANT RED(756) SPARE TIRE UNDER FLOOR MTG<7PF> RED 		8-97159-060-2 01 1 9707-9807
117 GARNISH
BODY COLOR SPRUCE GREEN MICA(833) SPARE TIRE UNDER FLOOR MTG<7PF> DARK GREEN 		8-97157-532-2 01 1 9707-9807
117 GARNISH
BODY COLOR STRATUS BLUE MICA(703) SPARE TIRE UNDER FLOOR MTG<7PF> DARK BLUE 		8-97159-059-2 01 1 9707-9807
117 GARNISH
SPARE TIRE UNDER FLOOR MTG<7PF> DARK GRAY 		8-97198-696-2 01 1 9808-9908
117 GARNISH
BODY COLOR PALAZZO RED MICA(806) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> DARK RED 		8-97291-766-1 01 1 9909-0106
117 GARNISH
BODY COLOR CLIPPER BLUE MET(639) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> DARK BLUE 		8-97297-504-2 01 1 0107-0206
117 GARNISH
BODY COLOR CLIPPER BLUE MET(639) SPARE TIRE UNDER FLOOR MTG<7PF> DARK BLUE 		8-97297-504-2 01 1 0207-0210
117 GARNISH
BODY COLOR CLIPPER BLUE MET(639) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> DARK BLUE 		8-97297-504-2 01 1 0211-
117 GARNISH
BODY COLOR ZEPHYR GREEN MICA(898) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> LIGHT GREEN 		8-97291-773-1 01 1 9909-0007
117 GARNISH
BODY COLOR ATLANTIC BLUE MICA(886) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> BLUE 		8-97293-862-2 01 1 0008-0206
117 GARNISH
BODY COLOR CRYSTAL BLUE MET(667) SPARE TIRE UNDER FLOOR MTG<7PF> LIGHT BLUE 		8-97391-575-2 01 1 0207-0210
117 GARNISH
BODY COLOR CRYSTAL BLUE MET(667) SPARE TIRE UNDER FLOOR MTG<7PF> EXC. GRAY PAINTED PACKAGE<7XA> LIGHT BLUE 		8-97391-575-2 01 1 0211-
117 GARNISH
SPARE TIRE UNDER FLOOR MTG<7PF> GRAY PAINTED PACKAGE<7XA> LIGHT GRAY 		8-97292-535-1 01 1 9909-0106
117 GARNISH
SPARE TIRE UNDER FLOOR MTG<7PF> GRAY PAINTED PACKAGE<7XA> DARK GRAY 		8-97298-232-2 01 1 0107-0206
117 GARNISH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) SPARE TIRE UNDER FLOOR MTG<7PF> DARK GRAY 		8-97298-232-2 01 1 0207-0207
117 GARNISH
SPARE TIRE UNDER FLOOR MTG<7PF> GRAY PAINTED PACKAGE<7XA> DARK GRAY 		8-97298-232-2 01 1 0211-
117 GARNISH
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97125-322-2 01 1 9707-9912
117 GARNISH
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97247-184-0 01 1 0001-
118 NUT; GARNISH
SPARE TIRE UNDER FLOOR MTG<7PF> (B) 		8-94382-501-0 04 1 9707-
118 NUT; GARNISH
SPARE TIRE UNDER FLOOR MTG<7PF> (A) M6 FLANGE 		8-97063-399-0 02 1 9707-
118 NUT; GARNISH
EXC. SPARE TIRE UNDER FLOOR MTG<7PF> (C) M6 FLANGE 		8-97063-399-0 01 1 9707-
126 SCREW; GARNISH
SPARE TIRE UNDER FLOOR MTG<7PF> M5X16 		8-94243-069-0 01 1 9707-
127 GROMMET; SCREW
SPARE TIRE UNDER FLOOR MTG<7PF> 		8-94279-039-0 01 1 9707-
128 CLIP; GARNISH
SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97117-942-0 03 1 9707-0204
128 CLIP; GARNISH
SPARE TIRE UNDER FLOOR MTG<7PF> 		8-97117-942-0 02 1 0205-
