◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#42620) — 84 parça

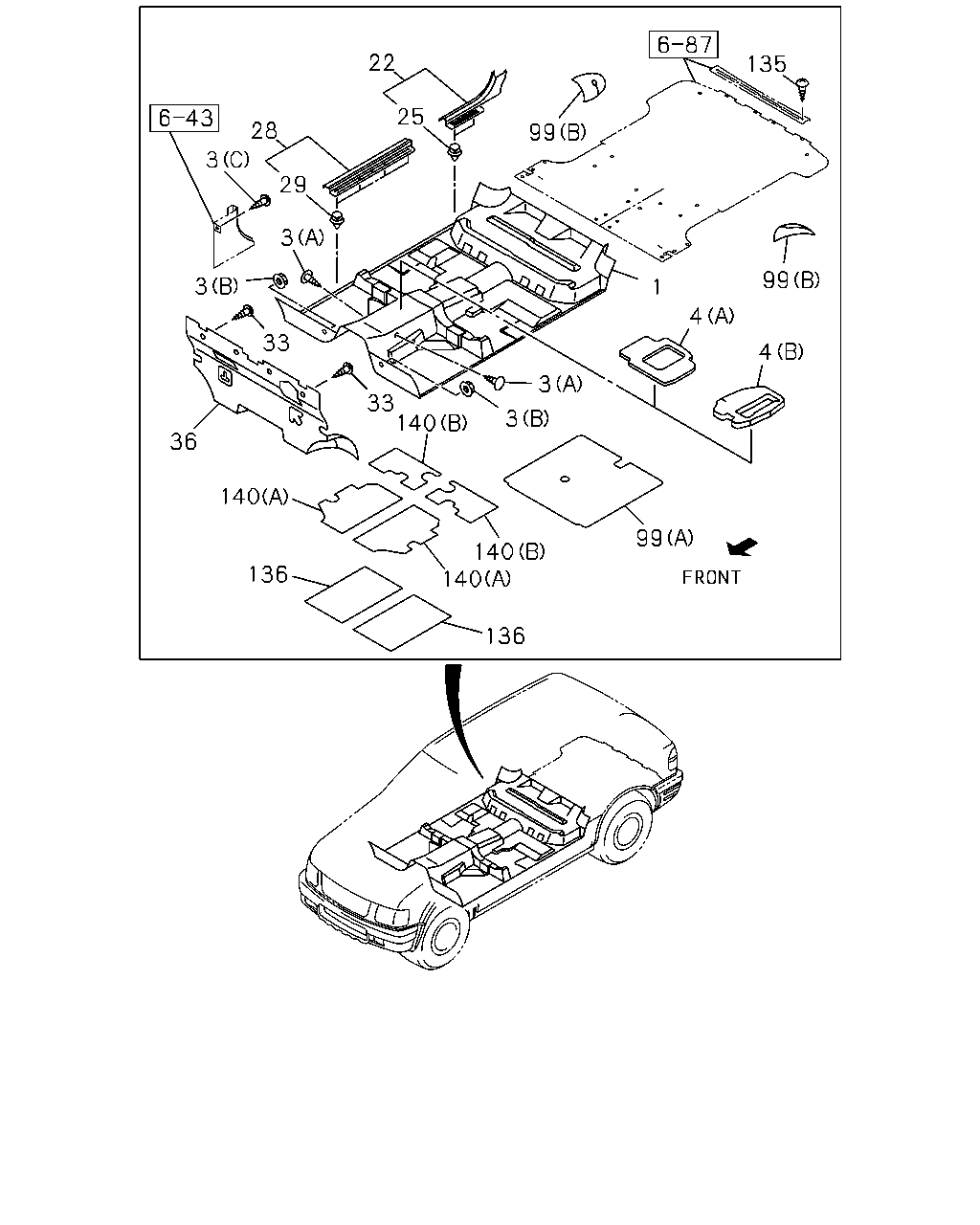

çizim 69563
22 135 25 28 99 3 29 3 99 3 1 4 33 4 3 33 140 3 36 99 140 140 136 136
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CARPET; FLOOR,FRT
GRAY 		8-97157-299-5 01 1 9707-9908 ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR GRAY(180) GRAY 		8-97157-299-7 01 1 9909-0005 ● ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR GRAY(180) GRAY 		8-97296-799-1 01 1 0006-0008 ● ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR GRAY(180) GRAY 		8-97297-904-2 01 1 0009-0206 ● ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97395-411-0 01 1 0207-0307 ● ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97395-411-0 01 1 0308- ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97292-262-7 01 1 9909-0005 ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97296-800-1 01 1 0006-0008 ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97297-905-2 01 1 0009-0206 ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97395-410-0 01 1 0207- ● ●
3 CLIP; CARPET FIX
(B) H=10.5 		8-94441-810-0 02 1 9707-9908 ● ●
3 CLIP; CARPET FIX
(B) H=10.5 		8-94441-810-0 02 1 9909-0307 ● ● ●
3 CLIP; CARPET FIX
(B) H=10.5 		8-94441-810-0 02 1 0308- ● ●
3 CLIP; CARPET FIX
(A) GRAY 		8-97157-300-0 02 1 9707-9908 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR GRAY(180) (A) GRAY 		8-97157-300-0 02 1 9909-0206 ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR TAUPE GRAY(182) (A) DARK GRAY 		8-97391-623-0 02 1 0207-0307 ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR TAUPE GRAY(182) (A) DARK GRAY 		8-97391-623-0 02 1 0308- ● ●
3 CLIP; CARPET FIX
(C) GRAY 		8-97157-324-0 02 1 9707-9908 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR GRAY(180) (C) GRAY 		8-97157-324-0 02 1 9909-0206 ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR TAUPE GRAY(182) (C) DARK GRAY 		8-97391-650-0 02 1 0207-0212 ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR BEIGE(181) (A) LIGHT BEIGE 		8-97291-533-0 02 1 9909-0206 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR BEIGE(181) (A) BEIGE 		8-97392-837-0 02 1 0207- ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR BEIGE(181) (C) LIGHT BEIGE 		8-97291-551-0 02 1 9909-0212 ● ●
3 CLIP; CARPET FIX
(C) 		8-97351-343-0 02 1 0301-0304 ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR TAUPE GRAY(182) (C) 		8-97351-343-0 02 1 0305- ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR BEIGE(181) (C) LIGHT BEIGE 		8-97291-551-0 02 1 0305- ● ●
4 INSULATOR; FRT
A/T AISIN(RMD) (B) 		8-97300-750-0 01 1 0212-0307 ● ● ●
4 INSULATOR; FRT
(B) 		8-97300-750-0 01 1 0308- ● ●
4 INSULATOR; FRT
M/T MUA 5 SPEED 5C(RSN) (A) 		8-97203-497-0 01 1 0212-0307 ● ● ●
22 PLATE; SILL,RR
GRAY 		8-97157-303-2 01 1 9707-9908 ● ●
22 PLATE; SILL,RR
INTERIOR COLOR GRAY(180) GRAY 		8-97157-303-2 01 1 9909-0206 ● ● ●
22 PLATE; SILL,RR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-627-2 01 1 0207-0307 ● ● ●
22 PLATE; SILL,RR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-627-2 01 1 0308- ● ●
22 PLATE; SILL,RR
GRAY 		8-97157-302-2 01 1 9707-9908 ● ●
22 PLATE; SILL,RR
INTERIOR COLOR GRAY(180) GRAY 		8-97157-302-2 01 1 9909-0206 ● ● ●
22 PLATE; SILL,RR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-626-2 01 1 0207-0307 ● ● ●
22 PLATE; SILL,RR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-626-2 01 1 0308- ● ●
22 PLATE; SILL,RR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-536-2 01 1 9909- ● ●
22 PLATE; SILL,RR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-535-2 01 1 9909- ● ●
25 RETAINER; RR SILL PLATE 8-97178-530-0 04 1 9707-9908 ● ●
25 RETAINER; RR SILL PLATE 8-97178-530-0 04 1 9909-0307 ● ● ●
25 RETAINER; RR SILL PLATE 8-97178-530-0 04 1 0308- ● ●
28 PLATE; SILL,FRT
GRAY 		8-97157-305-2 01 1 9707-9908 ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR GRAY(180) GRAY 		8-97157-305-2 01 1 9909-0206 ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-629-2 01 1 0207-0307 ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-629-2 01 1 0308- ● ●
28 PLATE; SILL,FRT
GRAY 		8-97157-304-2 01 1 9707-9908 ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR GRAY(180) GRAY 		8-97157-304-2 01 1 9909-0206 ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-628-2 01 1 0207-0307 ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-628-2 01 1 0308- ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-538-2 01 1 9909- ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-537-2 01 1 9909- ● ●
29 RETAINER; FRT SILL PLATE 8-97178-530-0 08 1 9707-9908 ● ●
29 RETAINER; FRT SILL PLATE 8-97178-530-0 08 1 9909- ● ● ●
33 CLIP; INSULATION
BROWN 		8-94476-811-0 02 1 9707-9908 ● ●
33 CLIP; INSULATION
BROWN 		8-94476-811-0 02 1 9909-0307 ● ● ●
33 CLIP; INSULATION
BROWN 		8-94476-811-0 02 1 0308- ● ●
36 INSULATION; PAD,DASH INNER 8-97121-341-2 01 1 9707-9808 ● ●
36 INSULATION; PAD,DASH INNER 8-97211-034-0 01 1 9809-9908 ● ●
36 INSULATION; PAD,DASH INNER 8-97211-034-2 01 1 9909-0206 ● ● ●
36 INSULATION; PAD,DASH INNER 8-97355-973-0 01 1 0207-0307 ● ● ●
36 INSULATION; PAD,DASH INNER 8-97355-973-0 01 1 0308- ● ●
99 DEADENER; FLOOR
(A) 		8-97135-808-0 01 1 9707-9807 ● ●
99 DEADENER; FLOOR
(A) 		8-97211-787-0 01 1 9808-9908 ● ●
99 DEADENER; FLOOR
(A) 		8-97211-787-0 01 1 9909-0006 ● ● ●
99 DEADENER; FLOOR
(A) 		8-97249-652-0 01 1 0007-0307 ● ● ●
99 DEADENER; FLOOR
(A) 		8-97249-652-0 01 1 0308- ● ●
99 DEADENER; FLOOR
(B) 		8-97164-965-0 01 1 9707-9809 ● ●
99 DEADENER; FLOOR
(B) 		8-97164-965-0 01 1 9910-0307 ● ● ●
99 DEADENER; FLOOR
(B) 		8-97164-965-0 01 1 0308- ● ●
99 DEADENER; FLOOR
(B) 		8-97164-964-1 01 1 9707-9809 ● ●
99 DEADENER; FLOOR
(B) 		8-97164-964-1 01 1 9910-0307 ● ● ●
99 DEADENER; FLOOR
(B) 		8-97164-964-1 01 1 0308- ● ●
135 SCREW; MAT TO FLOOR
M5X20 		9-09829-324-1 05 1 9707-9908 ● ●
135 SCREW; MAT TO FLOOR
M5X20 		9-09829-324-1 05 1 9909-0307 ● ● ●
135 SCREW; MAT TO FLOOR
M5X20 		9-09829-324-1 05 1 0308- ● ●
136 INSULATION; HEAT,FRT FLOOR 8-97130-178-1 02 1 9707-9908 ● ●
136 INSULATION; HEAT,FRT FLOOR 8-97130-178-1 02 1 9909-0307 ● ● ●
136 INSULATION; HEAT,FRT FLOOR 8-97130-178-1 02 1 0308- ● ●
140 DEADENER; DASH LWR PANEL
(A) 		8-94331-142-1 02 1 9707-9908 ● ●
140 DEADENER; DASH LWR PANEL
(A) 		8-97227-553-0 02 1 9909-0307 ● ● ●
140 DEADENER; DASH LWR PANEL
(A) 		8-97227-553-0 02 1 0308- ● ●
140 DEADENER; DASH LWR PANEL
(B) 		8-97260-046-0 01 1 0012-0106 ● ● ●
140 DEADENER; DASH LWR PANEL
(B) 		8-97260-045-0 01 1 0012-0106 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
