◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#42618) — 94 parça

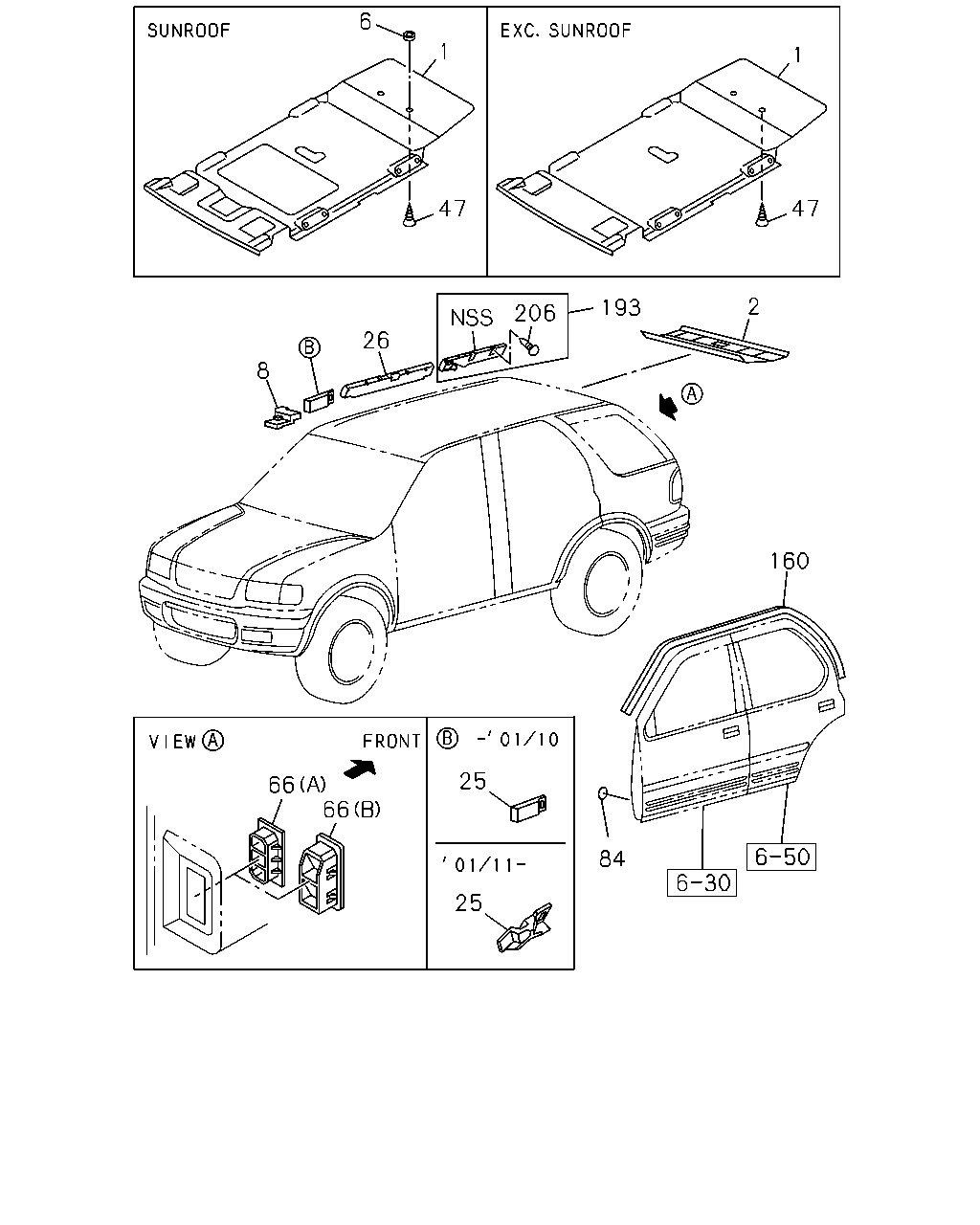

çizim 69831
6 1 1 47 47 2 193 206 26 8 160 25 66 66 84 25
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINING; HD
SUNROOF<CF5> LIGHT GRAY 		8-97157-339-3 01 1 9707-9908 ● ●
1 LINING; HD
SUNROOF<CF5> LIGHT GRAY 		8-97157-339-3 01 1 9909-0007 ● ● ●
1 LINING; HD
INTERIOR COLOR GRAY(180) SUNROOF<CF5> LIGHT GRAY 		8-97157-339-3 01 1 0008-0010 ● ● ●
1 LINING; HD
INTERIOR COLOR GRAY(180) SUNROOF<CF5> LIGHT GRAY 		8-97296-734-0 01 1 0011-0110 ● ● ●
1 LINING; HD
INTERIOR COLOR GRAY(180) SUNROOF<CF5> LIGHT GRAY 		8-97392-798-3 01 1 0111-0206 ● ● ●
1 LINING; HD
INTERIOR COLOR TAUPE GRAY(182) SUNROOF<CF5> LIGHT GRAY 		8-97391-681-3 01 1 0207-0307 ● ● ●
1 LINING; HD
INTERIOR COLOR TAUPE GRAY(182) SUNROOF<CF5> LIGHT GRAY 		8-97391-681-3 01 1 0308- ● ●
1 LINING; HD
EXC. SUNROOF<CF5> LIGHT GRAY 		8-97157-338-2 01 1 9707-9908 ● ●
1 LINING; HD
EXC. SUNROOF<CF5> LIGHT GRAY 		8-97157-338-2 01 1 9909-0007 ● ● ●
1 LINING; HD
INTERIOR COLOR GRAY(180) EXC. SUNROOF<CF5> LIGHT GRAY 		8-97157-338-2 01 1 0008-0010 ● ● ●
1 LINING; HD
INTERIOR COLOR GRAY(180) EXC. SUNROOF<CF5> LIGHT GRAY 		8-97296-732-0 01 1 0011-0110 ● ● ●
1 LINING; HD
INTERIOR COLOR GRAY(180) EXC. SUNROOF<CF5> LIGHT GRAY 		8-97392-797-2 01 1 0111-0206 ● ● ●
1 LINING; HD
INTERIOR COLOR TAUPE GRAY(182) EXC. SUNROOF<CF5> LIGHT GRAY 		8-97391-683-2 01 1 0207-0307 ● ● ●
1 LINING; HD
INTERIOR COLOR TAUPE GRAY(182) EXC. SUNROOF<CF5> LIGHT GRAY 		8-97391-683-2 01 1 0308- ● ●
1 LINING; HD
INTERIOR COLOR BEIGE(181) SUNROOF<CF5> BEIGE 		8-97293-822-3 01 1 0008-0010 ● ●
1 LINING; HD
INTERIOR COLOR BEIGE(181) SUNROOF<CF5> BEIGE 		8-97296-735-0 01 1 0011-0110 ● ●
1 LINING; HD
INTERIOR COLOR BEIGE(181) SUNROOF<CF5> BEIGE 		8-97391-682-3 01 1 0111- ● ●
1 LINING; HD
INTERIOR COLOR BEIGE(181) EXC. SUNROOF<CF5> BEIGE 		8-97293-821-2 01 1 0008-0010 ● ●
1 LINING; HD
INTERIOR COLOR BEIGE(181) EXC. SUNROOF<CF5> BEIGE 		8-97296-733-0 01 1 0011-0110 ● ●
1 LINING; HD
INTERIOR COLOR BEIGE(181) EXC. SUNROOF<CF5> BEIGE 		8-97391-684-2 01 1 0111- ● ●
2 LINING; HD,ROOF RR
GRAY 		8-97157-341-1 01 1 9707-9908 ● ●
2 LINING; HD,ROOF RR
LIGHT GRAY 		8-97159-256-1 01 1 9909-9910 ● ● ●
2 LINING; HD,ROOF RR
LIGHT GRAY 		8-97294-769-0 01 1 9911-0007 ● ● ●
2 LINING; HD,ROOF RR
INTERIOR COLOR GRAY(180) LIGHT GRAY 		8-97294-769-0 01 1 0008-0205 ● ● ●
2 LINING; HD,ROOF RR
INTERIOR COLOR GRAY(180) LIGHT GRAY 		8-97395-018-0 01 1 0206-0206 ● ● ●
2 LINING; HD,ROOF RR
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97395-015-2 01 1 0207-0307 ● ● ●
2 LINING; HD,ROOF RR
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97395-015-2 01 1 0308- ● ●
2 LINING; HD,ROOF RR
INTERIOR COLOR BEIGE(181) BEIGE 		8-97294-950-0 01 1 0008-0205 ● ●
2 LINING; HD,ROOF RR
INTERIOR COLOR BEIGE(181) BEIGE 		8-97395-016-2 01 1 0206- ● ●
6 SPACER; HD LINING
SUNROOF<CF5> 		8-97184-457-1 02 1 9709-9908 ● ●
6 SPACER; HD LINING
SUNROOF<CF5> 		8-97184-457-1 02 1 9909-0307 ● ● ●
6 SPACER; HD LINING
SUNROOF<CF5> 		8-97184-457-1 02 1 0308- ● ●
8 PAD; HEADLINING 8-97162-655-3 01 1 9707-9708 ● ●
8 PAD; HEADLINING 8-97189-257-0 01 1 9709-9806 ● ●
8 PAD; HEADLINING 8-97162-651-3 01 1 9707-9708 ● ●
8 PAD; HEADLINING 8-97189-256-0 01 1 9709-9806 ● ●
25 PAD; ROOF 8-97162-645-2 01 1 9707-9908 ● ●
25 PAD; ROOF 8-97162-645-2 01 1 9909-0006 ● ● ●
25 PAD; ROOF 8-97260-113-0 01 1 0007-0110 ● ● ●
25 PAD; ROOF 8-97316-725-1 01 1 0111-0307 ● ● ●
25 PAD; ROOF 8-97316-725-1 01 1 0308- ● ●
25 PAD; ROOF 8-97162-644-2 01 1 9707-9908 ● ●
25 PAD; ROOF 8-97162-644-2 01 1 9909-0006 ● ● ●
25 PAD; ROOF 8-97260-112-0 01 1 0007-0110 ● ● ●
25 PAD; ROOF 8-97316-724-1 01 1 0111-0307 ● ● ●
25 PAD; ROOF 8-97316-724-1 01 1 0308- ● ●
26 PAD; ROOF 8-97162-647-1 01 1 9707-9908 ● ●
26 PAD; ROOF 8-97162-647-1 01 1 9909-0307 ● ● ●
26 PAD; ROOF 8-97162-647-1 01 1 0308- ● ●
26 PAD; ROOF 8-97162-646-1 01 1 9707-9908 ● ●
26 PAD; ROOF 8-97162-646-1 01 1 9909-0307 ● ● ●
26 PAD; ROOF 8-97162-646-1 01 1 0308- ● ●
47 CLIP; HEADLINING
SUNROOF<CF5> LIGHT GRAY 		8-97158-658-0 02 1 9707-9908 ● ●
47 CLIP; HEADLINING
SUNROOF<CF5> LIGHT GRAY 		8-97158-658-0 02 1 9909-0007 ● ● ●
47 CLIP; HEADLINING
INTERIOR COLOR GRAY(180) SUNROOF<CF5> LIGHT GRAY 		8-97158-658-0 02 1 0008-0206 ● ● ●
47 CLIP; HEADLINING
INTERIOR COLOR TAUPE GRAY(182) SUNROOF<CF5> LIGHT GRAY 		8-97391-687-0 02 1 0207-0307 ● ● ●
47 CLIP; HEADLINING
INTERIOR COLOR TAUPE GRAY(182) SUNROOF<CF5> LIGHT GRAY 		8-97391-687-0 02 1 0308- ● ●
47 CLIP; HEADLINING
EXC. SUNROOF<CF5> LIGHT GRAY 		8-97157-340-0 02 1 9707-9908 ● ●
47 CLIP; HEADLINING
EXC. SUNROOF<CF5> LIGHT GRAY 		8-97157-340-0 02 1 9909-0007 ● ● ●
47 CLIP; HEADLINING
INTERIOR COLOR GRAY(180) EXC. SUNROOF<CF5> LIGHT GRAY 		8-97157-340-0 02 1 0008-0206 ● ● ●
47 CLIP; HEADLINING
INTERIOR COLOR TAUPE GRAY(182) EXC. SUNROOF<CF5> LIGHT GRAY 		8-97391-686-0 02 1 0207-0307 ● ● ●
47 CLIP; HEADLINING
INTERIOR COLOR TAUPE GRAY(182) EXC. SUNROOF<CF5> LIGHT GRAY 		8-97391-686-0 02 1 0308- ● ●
47 CLIP; HEADLINING
INTERIOR COLOR BEIGE(181) SUNROOF<CF5> BEIGE 		8-97293-824-0 02 1 0008- ● ●
47 CLIP; HEADLINING
INTERIOR COLOR BEIGE(181) EXC. SUNROOF<CF5> BEIGE 		8-97293-823-0 02 1 0008- ● ●
66 GRILLE; AIR OUTLET
(A) 		8-97124-471-1 02 1 9707-9908 ● ●
66 GRILLE; AIR OUTLET
(B) 		8-97224-544-0 02 1 9909-9910 ● ● ●
66 GRILLE; AIR OUTLET
(B) 		8-97246-720-0 02 1 9911-0202 ● ● ●
66 GRILLE; AIR OUTLET
(B) 		8-97333-993-0 02 1 0203-0307 ● ● ●
66 GRILLE; AIR OUTLET
(B) 		8-97333-993-0 02 1 0308- ● ●
84 PATCH; WATER PROOF SHEET,DOOR 8-97808-119-1 02 1 9707-9908 ● ●
84 PATCH; WATER PROOF SHEET,DOOR 8-97808-119-1 02 1 9909-0112 ● ● ●
84 PATCH; WATER PROOF SHEET,DOOR
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0201-0307 ● ● ●
84 PATCH; WATER PROOF SHEET,DOOR
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0308- ● ●
160 SEAL; DRIP 8-97124-813-3 01 1 9707-9908 ● ●
160 SEAL; DRIP 8-97124-813-3 01 1 9909-0001 ● ● ●
160 SEAL; DRIP 8-97231-079-0 01 1 0002-0102 ● ● ●
160 SEAL; DRIP 8-97311-911-0 01 1 0103-0109 ● ● ●
160 SEAL; DRIP 8-97319-796-0 01 1 0110-0307 ● ● ●
160 SEAL; DRIP 8-97319-796-0 01 1 0308- ● ●
160 SEAL; DRIP 8-97124-812-3 01 1 9707-9908 ● ●
160 SEAL; DRIP 8-97124-812-3 01 1 9909-0001 ● ● ●
160 SEAL; DRIP 8-97231-078-0 01 1 0002-0102 ● ● ●
160 SEAL; DRIP 8-97311-910-0 01 1 0103-0109 ● ● ●
160 SEAL; DRIP 8-97319-795-0 01 1 0110-0307 ● ● ●
160 SEAL; DRIP 8-97319-795-0 01 1 0308- ● ●
193 PAD; REAR QUARTER 8-97176-452-2 01 1 9707-9908 ● ●
193 PAD; REAR QUARTER 8-97176-452-4 01 1 9909-0307 ● ● ●
193 PAD; REAR QUARTER 8-97176-452-4 01 1 0308- ● ●
193 PAD; REAR QUARTER 8-97176-451-2 01 1 9707-9908 ● ●
193 PAD; REAR QUARTER 8-97176-451-4 01 1 9909-0307 ● ● ●
193 PAD; REAR QUARTER 8-97176-451-4 01 1 0308- ● ●
206 CLIP; PAD,RR QTR 8-97031-665-1 04 1 9707-9908 ● ●
206 CLIP; PAD,RR QTR 8-97031-665-1 04 1 9909-0307 ● ● ●
206 CLIP; PAD,RR QTR 8-97031-665-1 04 1 0308- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
