◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-52 - REAR DOOR LOCK AND HANDLE ▶
6-52 — REAR DOOR LOCK AND HANDLE (#42614) — 79 parça

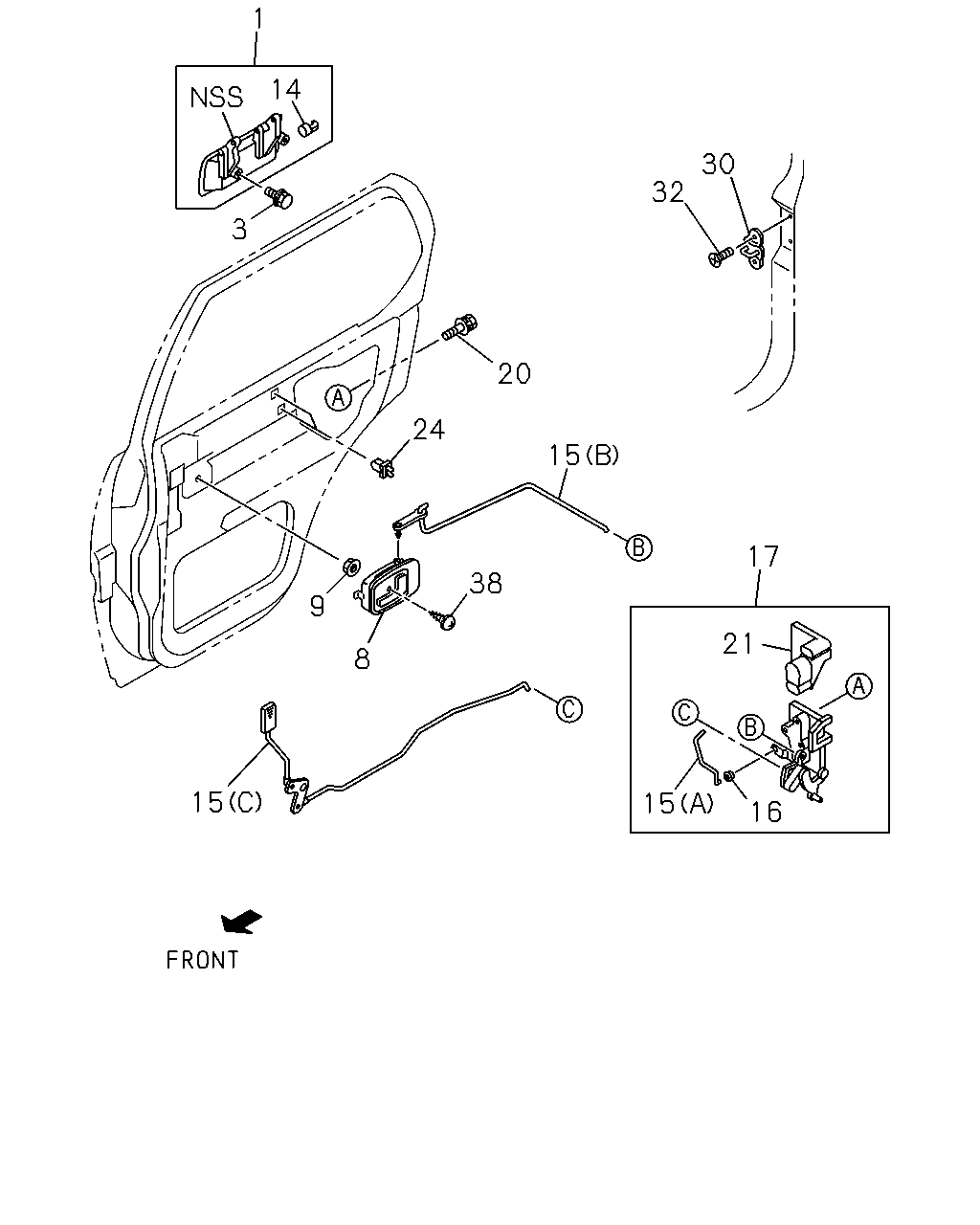

çizim 69490
1 14 30 32 3 20 24 15 17 38 9 21 8 15 15 16
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,RR DOOR
GRADE LS/LSE(RBD) PRIMER 		8-97181-731-0 01 1 9707-0307
1 HANDLE; OUTSIDE,RR DOOR
HANDLE O/S DOOR BODY COLOR<D75> PRIMER 		8-97181-731-0 01 1 0308-
1 HANDLE; OUTSIDE,RR DOOR
GRADE LS/LSE(RBD) PRIMER 		8-97181-732-0 01 1 0207-0307
1 HANDLE; OUTSIDE,RR DOOR
HANDLE O/S DOOR BODY COLOR<D75> PRIMER 		8-97181-732-0 01 1 0308-
1 HANDLE; OUTSIDE,RR DOOR
GRADE S(RBA) 		8-97163-261-2 01 1 9707-9908
1 HANDLE; OUTSIDE,RR DOOR
GRADE S(RBA),GRADE LS(RBB) 		8-97163-261-2 01 1 9909-0307
1 HANDLE; OUTSIDE,RR DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75> 		8-97163-261-2 01 1 0308-
1 HANDLE; OUTSIDE,RR DOOR
GRADE S(RBA) 		8-97163-260-1 01 1 9707-9908
1 HANDLE; OUTSIDE,RR DOOR
GRADE S(RBA),GRADE LS(RBB) 		8-97163-260-1 01 1 9909-0307
1 HANDLE; OUTSIDE,RR DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75> 		8-97163-260-1 01 1 0308-
3 BOLT; DOOR OUTSIDE HANDLE
M6X8 		8-94155-893-0 04 1 9707-
8 HANDLE; INSIDE,RR DOOR
GRAY 		8-97157-357-6 01 1 9707-9908
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR GRAY(180) GRAY 		8-97157-357-6 01 1 9909-0206
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-741-6 01 1 0207-0207
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-052-0 01 1 0208-0307
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR BEIGE(181) DARK GRAY 		8-97394-052-0 01 1 0308-0311
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-052-0 01 1 0312-
8 HANDLE; INSIDE,RR DOOR
GRAY 		8-97157-356-6 01 1 9707-9908
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR GRAY(180) GRAY 		8-97157-356-6 01 1 9909-0206
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-740-6 01 1 0207-0207
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-051-0 01 1 0208-
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-672-6 01 1 9909-0207
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97394-050-0 01 1 0208-
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-379-6 01 1 9909-0207
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97394-048-0 01 1 0208-
9 GROMMET; SCREW,INSIDE HANDLE 8-94152-494-0 02 1 9707-
14 HOLDER; DOOR LK ROD
YELLOW 		8-97044-834-0 01 1 9707-
14 HOLDER; DOOR LK ROD
WHITE 		8-97037-508-0 01 1 9707-
15 LINK; RR DOOR LK
(A) 		8-16636-037-1 01 1 9707-9807
15 LINK; RR DOOR LK
(B) 		8-97124-712-0 01 1 9707-
15 LINK; RR DOOR LK
(C) GRAY 		8-97157-378-0 01 1 9707-9908
15 LINK; RR DOOR LK
INTERIOR COLOR GRAY(180) (C) GRAY 		8-97157-378-0 01 1 9909-0206
15 LINK; RR DOOR LK
INTERIOR COLOR TAUPE GRAY(182) (C) DARK GRAY 		8-97391-764-0 01 1 0207-
15 LINK; RR DOOR LK
(A) 		8-16636-036-1 01 1 9707-9807
15 LINK; RR DOOR LK
(B) 		8-97124-711-0 01 1 9707-
15 LINK; RR DOOR LK
(C) GRAY 		8-97157-377-0 01 1 9707-9908
15 LINK; RR DOOR LK
INTERIOR COLOR GRAY(180) (C) GRAY 		8-97157-377-0 01 1 9909-0206
15 LINK; RR DOOR LK
INTERIOR COLOR TAUPE GRAY(182) (C) DARK GRAY 		8-97391-763-0 01 1 0207-
15 LINK; RR DOOR LK
(A) 		8-16619-939-0 01 1 9808-9901
15 LINK; RR DOOR LK
EXC. AUTO DOOR LOCK<AU4> (A) 		8-16619-939-0 01 1 9902-9908
15 LINK; RR DOOR LK
(A) 		8-16619-938-0 01 1 9808-9901
15 LINK; RR DOOR LK
EXC. AUTO DOOR LOCK<AU4> (A) 		8-16619-938-0 01 1 9902-9908
15 LINK; RR DOOR LK
INTERIOR COLOR BEIGE(181) (C) LIGHT BEIGE 		8-97291-582-0 01 1 9909-
15 LINK; RR DOOR LK
INTERIOR COLOR BEIGE(181) (C) LIGHT BEIGE 		8-97291-581-0 01 1 9909-
16 CLIP; DOOR LK LINK 8-16636-047-0 02 1 9707-9712
16 CLIP; DOOR LK LINK 8-16632-180-0 01 1 9801-9901
16 CLIP; DOOR LK LINK
EXC. AUTO DOOR LOCK<AU4> 		8-16632-180-0 01 1 9902-9908
16 CLIP; DOOR LK LINK 8-16632-181-0 01 1 9801-9901
16 CLIP; DOOR LK LINK
EXC. AUTO DOOR LOCK<AU4> 		8-16632-181-0 01 1 9902-9908
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> 		8-97125-473-3 01 1 9707-9901
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> 		8-97223-849-0 01 1 9902-9908
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> 		8-97236-339-0 01 1 9909-0307
17 LOCK; DOOR,RR DOOR
ANTI THEFT<UA6> 		8-97236-339-0 01 1 0308-
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> 		8-97125-472-3 01 1 9707-9901
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> 		8-97223-848-0 01 1 9902-9908
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> 		8-97236-338-0 01 1 9909-0307
17 LOCK; DOOR,RR DOOR
ANTI THEFT<UA6> 		8-97236-338-0 01 1 0308-
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> 		8-97125-471-3 01 1 9707-9901
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> 		8-97223-847-0 01 1 9902-9908
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> 		8-97236-337-0 01 1 9909-0307
17 LOCK; DOOR,RR DOOR
EXC. ANTI THEFT<UA6> 		8-97236-337-0 01 1 0308-
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> 		8-97125-470-3 01 1 9707-9901
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> 		8-97223-846-0 01 1 9902-9908
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> 		8-97236-336-0 01 1 9909-0307
17 LOCK; DOOR,RR DOOR
EXC. ANTI THEFT<UA6> 		8-97236-336-0 01 1 0308-
17 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97125-469-3 01 1 9707-9908
17 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97236-335-0 01 1 9909-0307
17 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97125-468-3 01 1 9707-9908
17 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97236-334-0 01 1 9909-0307
20 SCREW; DOOR LK 8-15685-550-0 06 1 9707-0102
20 SCREW; DOOR LK 8-97310-734-0 06 1 0103-
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> 		8-16636-067-0 01 1 9707-9807
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-16820-539-0 01 1 9808-9901
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> 		8-16636-066-0 01 1 9707-9807
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-16820-538-0 01 1 9808-9901
24 ANTIRATTLER; DOOR INSIDE HANDLE 8-97126-660-0 04 1 9707-
30 STRIKER; RR DOOR 8-97176-259-0 02 1 9707-
32 SCREW; DOOR STRIKER 8-09442-471-0 04 1 9707-
38 SCREW; INSIDE LEVER,RR DOOR LK
M5X14 		8-94152-495-0 02 1 9707-
