◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-50 - REAR DOOR AND HINGE ▶
6-50 — REAR DOOR AND HINGE (#42612) — 28 parça

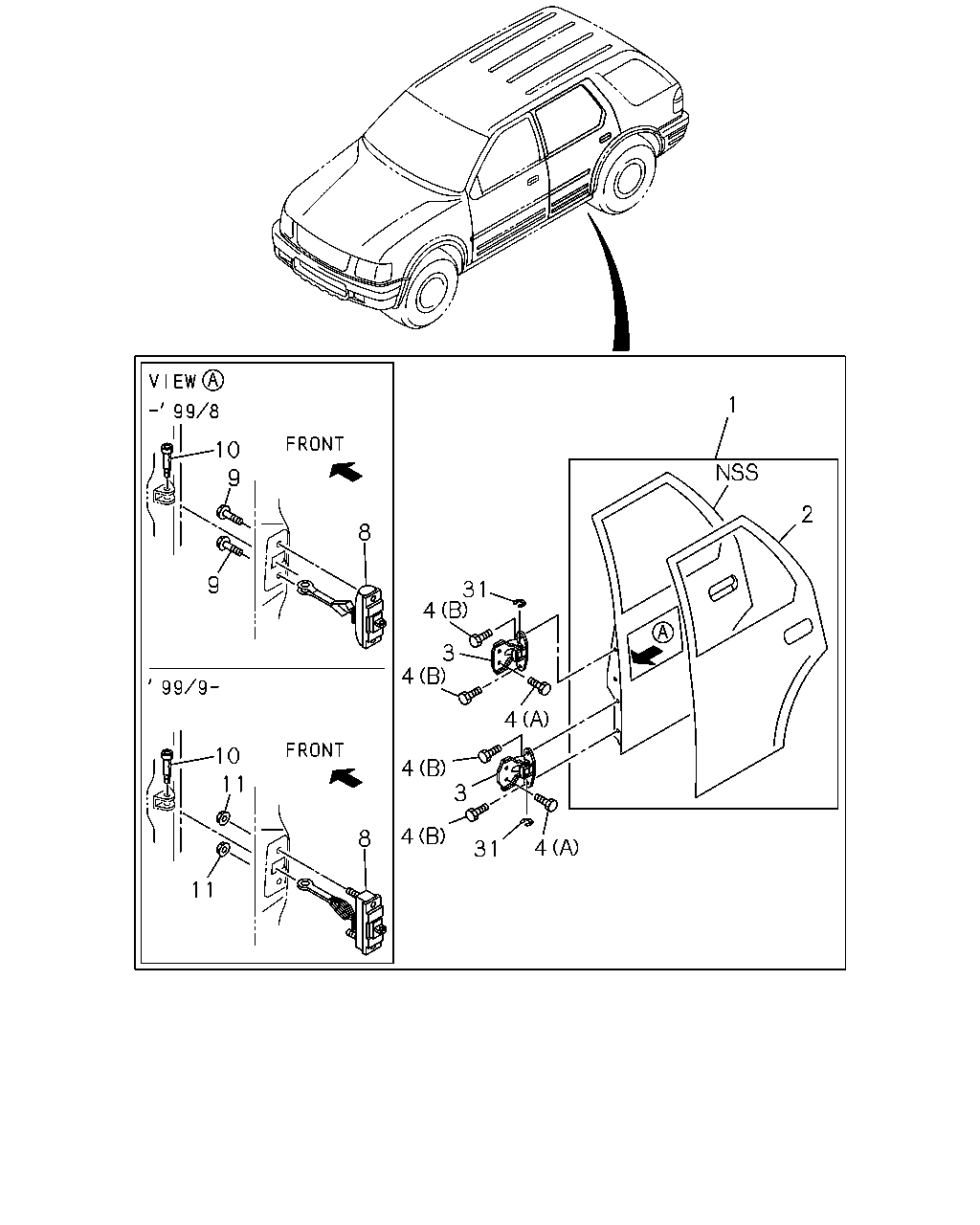

çizim 70033
1 10 9 2 8 9 31 4 3 4 4 10 11 4 3 4 8 4 31 11
BalonParca AdiParca NoAdetTipApplied Date
1 DOOR ASM; REAR
12V 21W 		8-97124-074-0 01 1 9707-9908
1 DOOR ASM; REAR
EXC. OVER FENDER<6GH> 12V 21W 		8-97124-074-2 01 1 9909-0103
1 DOOR ASM; REAR
EXC. OVER FENDER<6GH> 		8-97302-949-0 01 1 0104-
1 DOOR ASM; REAR 8-97124-073-0 01 1 9707-9908
1 DOOR ASM; REAR
EXC. OVER FENDER<6GH> 		8-97124-073-2 01 1 9909-0103
1 DOOR ASM; REAR
EXC. OVER FENDER<6GH> 		8-97302-948-0 01 1 0104-
1 DOOR ASM; REAR
OVER FENDER<6GH> 		8-97211-867-2 01 1 9909-0103
1 DOOR ASM; REAR
OVER FENDER<6GH> 		8-97302-959-0 01 1 0104-
1 DOOR ASM; REAR
OVER FENDER<6GH> 		8-97211-866-2 01 1 9909-0103
1 DOOR ASM; REAR
OVER FENDER<6GH> 		8-97302-958-0 01 1 0104-
2 PANEL; RR DOOR OUTER 8-97135-130-2 01 1 9707-9908
2 PANEL; RR DOOR OUTER
EXC. OVER FENDER<6GH> 		8-97135-130-3 01 1 9909-
2 PANEL; RR DOOR OUTER 8-97135-129-2 01 1 9707-9908
2 PANEL; RR DOOR OUTER
EXC. OVER FENDER<6GH> 		8-97135-129-3 01 1 9909-
2 PANEL; RR DOOR OUTER
OVER FENDER<6GH> 		8-97211-869-1 01 1 9909-
2 PANEL; RR DOOR OUTER
OVER FENDER<6GH> 		8-97211-868-1 01 1 9909-
3 HINGE; RR DOOR
LH LOWER / RH UPPER 		8-97147-595-3 02 1 9707-
3 HINGE; RR DOOR
LH UPPER / RH LOWER 		8-97147-596-3 02 1 9707-
4 BOLT; HINGE
(A) M8X23 FLANGE 		8-94174-559-2 08 1 9707-
4 BOLT; HINGE
(B) M8X20 FLANGE 		8-97089-067-0 08 1 9707-
8 ARM; CHECK,RR DOOR 8-94334-153-1 02 1 9707-9908
8 ARM; CHECK,RR DOOR 8-97233-755-0 02 1 9909-0007
8 ARM; CHECK,RR DOOR 8-97288-286-0 02 1 0008-0109
8 ARM; CHECK,RR DOOR 8-97325-332-0 02 1 0110-
9 BOLT; CHECK ARM
M6X20 FLANGE 		0-28680-620-0 04 1 9707-9908
10 PIN; CHECK ARM 8-94111-468-0 02 1 9707-
11 NUT
M6 FLANGE 		5-09440-004-0 04 1 9909-
31 RING; SNAP 8-97166-473-0 04 1 9707-
