◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#42611) — 31 parça
çizim 19366
28 332 353
BalonParca AdiParca NoAdetTipApplied Date
28 CLIP
OD=22 L=10.7 		8-94215-211-0 02 1 9707-
332 COVER; FRT FENDER 8-97174-474-1 01 1 9707-
353 TAPE; FENDER,CHIPPING GUARD 8-97214-893-0 02 1 9909-

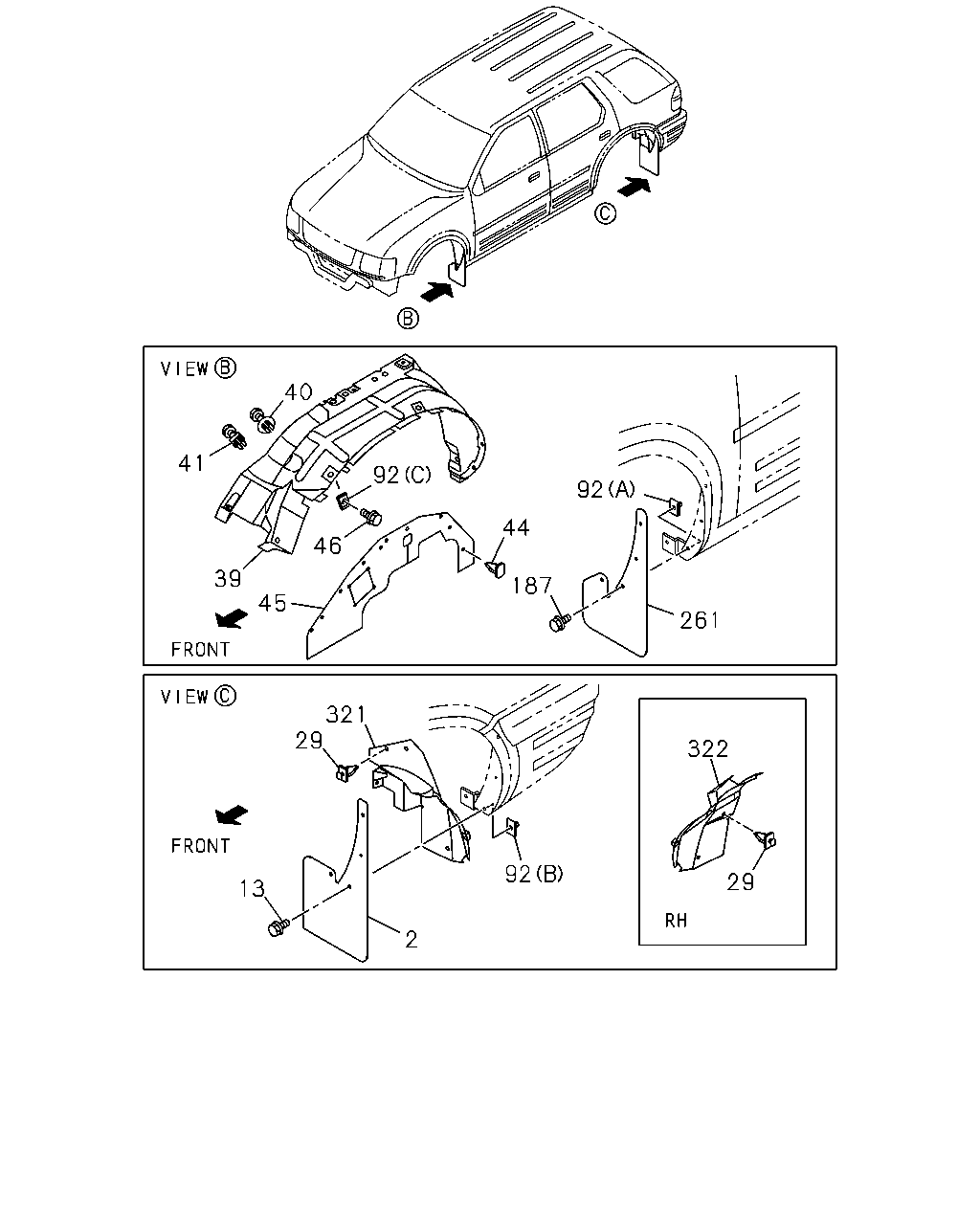

çizim 69531
40 41 92 92 44 46 39 187 45 261 321 29 322 92 29 13 2
BalonParca AdiParca NoAdetTipApplied Date
2 COVER; MUD,TIRE RR 8-97124-481-1 02 1 9707-
13 SCREW; RR MUD FLAP
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 9707-
29 RIVET 8-94221-150-0 08 1 9707-
39 LINER; FENDER
FRONT 		8-97124-426-4 01 1 9707-9810
39 LINER; FENDER
FRONT 		8-97216-280-0 01 1 9811-9812
39 LINER; FENDER
FRONT 		8-97223-909-0 01 1 9901-9911
39 LINER; FENDER
FRONT 		8-97240-462-0 01 1 9912-
39 LINER; FENDER
FRONT 		8-97124-425-5 01 1 9707-9812
39 LINER; FENDER
FRONT 		8-97223-908-0 01 1 9901-9911
39 LINER; FENDER
FRONT 		8-97240-460-0 01 1 9912-
40 CLIP; INNER LINER
M5 SCREW & GROMMET 		8-94328-493-2 14 1 9907-
40 CLIP; INNER LINER 8-94221-150-0 14 1 0304-0304
41 RIVET; INNER LINER 8-94221-150-0 14 1 9707-9906
44 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 17 1 9707-
45 COVER; MUD,FENDER SKIRT 8-97138-444-2 01 1 9707-9908
45 COVER; MUD,FENDER SKIRT 8-97222-524-1 01 1 9909-
45 COVER; MUD,FENDER SKIRT 8-97125-488-1 01 1 9707-9908
45 COVER; MUD,FENDER SKIRT 8-97222-523-1 01 1 9909-
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 9707-
92 NUT; MUD COVER
(A) 		8-97125-519-0 04 1 9707-
92 NUT; MUD COVER
(C) 		8-97125-519-0 10 1 9707-
92 NUT; MUD COVER
(B) 		8-97160-230-0 06 1 9707-
187 SCREW; FENDER COVER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 9707-9904
187 SCREW; FENDER COVER
M6X25 W/PL WASHER TAPPING 		8-97094-909-1 08 1 9905-
261 RUBBER; FRT,MUD GUARD 8-97124-480-0 02 1 9707-0007
261 RUBBER; FRT,MUD GUARD 8-97261-990-0 02 1 0008-
321 PROTECTOR; FUEL FILLER 8-97124-849-1 01 1 9707-
322 PROTECTOR; RR WHEEL 8-97137-631-1 01 1 9707-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
