◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-45 - MOLDING AND STRIPE ▶
6-45 — MOLDING AND STRIPE (#42610) — 211 parça

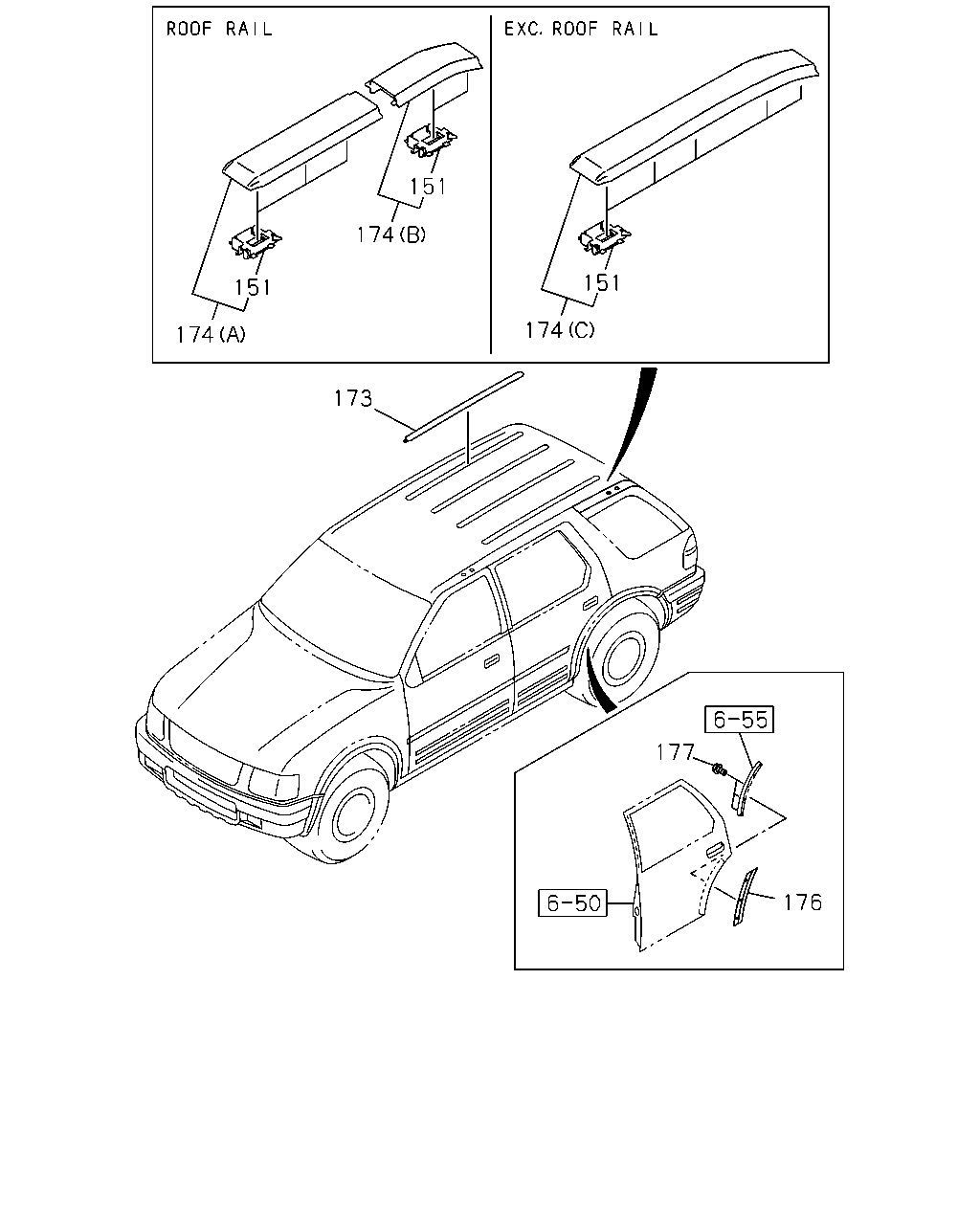

çizim 19365
151 174 151 151 174 174 173 177 176
BalonParca AdiParca NoAdetTipApplied Date A B C
151 CLIP; MOLDING 8-97124-470-0 10 1 9707-9908 ● ●
151 CLIP; MOLDING 8-97124-470-0 10 1 9909-0307 ● ● ●
151 CLIP; MOLDING 8-97124-470-0 10 1 0308- ● ●
173 PROTECTOR; ROOF
ROOF RAIL<7LC> 		8-97139-677-0 04 1 9707-9908 ● ● ●
173 PROTECTOR; ROOF
ROOF RAIL<7LC>,ROOF RAIL WITH CROSS BAR<8BV> 		8-97139-677-0 04 1 9909-0007 ● ● ●
173 PROTECTOR; ROOF
ROOF RAIL WITH CROSS BAR<8BV> 		8-97139-677-0 04 1 0008-0009 ● ● ●
173 PROTECTOR; ROOF
IRONMAN/ANNIVERSARY EDITION<ER5> 		8-97139-677-0 04 1 0010-0104 ● ● ●
173 PROTECTOR; ROOF
ROOF RAIL WITH CROSS BAR<8BV> 		8-97139-677-0 04 1 0010-0104 ● ● ●
173 PROTECTOR; ROOF
IRONMAN/ANNIVERSARY EDITION<ER5> 		8-97316-606-0 04 1 0105-0106 ● ● ●
173 PROTECTOR; ROOF
ROOF RAIL WITH CROSS BAR<8BV> 		8-97316-606-0 04 1 0105-0106 ● ● ●
173 PROTECTOR; ROOF
ROOF RAIL WITH CROSS BAR<8BV> 		8-97316-606-0 04 1 0107-0206 ● ● ●
174 MOLDING; ROOF
ROOF RAIL<7LC> (A) 		8-97131-099-0 01 1 9707-9908 ● ● ●
174 MOLDING; ROOF
ROOF RAIL<7LC>,ROOF RAIL WITH CROSS BAR<8BV> (A) 		8-97131-099-0 01 1 9909-0008 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> (A) 		8-97131-099-0 01 1 0009-0009 ● ● ●
174 MOLDING; ROOF
IRONMAN/ANNIVERSARY EDITION<ER5> (A) 		8-97131-099-0 01 1 0010-0106 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> (A) 		8-97131-099-0 01 1 0010-0106 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> (A) 		8-97131-099-0 01 1 0107-0206 ● ● ●
174 MOLDING; ROOF
GRAY PAINTED PACKAGE<7XA> (A) 		8-97131-099-0 01 1 0207-0207 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> EXC. GRAY PAINTED PACKAGE<7XA> (A) 		8-97131-099-0 01 1 0207-0207 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> (A) 		8-97131-099-0 01 1 0208-0307 ● ● ●
174 MOLDING; ROOF
(A) 		8-97131-099-0 01 1 0308- ● ●
174 MOLDING; ROOF
ROOF RAIL<7LC> (B) 		8-97131-101-0 01 1 9707-9908 ● ● ●
174 MOLDING; ROOF
ROOF RAIL<7LC>,ROOF RAIL WITH CROSS BAR<8BV> (B) 		8-97131-101-0 01 1 9909-0008 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> (B) 		8-97131-101-0 01 1 0009-0009 ● ● ●
174 MOLDING; ROOF
IRONMAN/ANNIVERSARY EDITION<ER5> (B) 		8-97131-101-0 01 1 0010-0106 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> (B) 		8-97131-101-0 01 1 0010-0106 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> (B) 		8-97131-101-0 01 1 0107-0206 ● ● ●
174 MOLDING; ROOF
GRAY PAINTED PACKAGE<7XA> (B) 		8-97131-101-0 01 1 0207-0207 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> EXC. GRAY PAINTED PACKAGE<7XA> (B) 		8-97131-101-0 01 1 0207-0207 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> (B) 		8-97131-101-0 01 1 0208-0307 ● ● ●
174 MOLDING; ROOF
(B) 		8-97131-101-0 01 1 0308- ● ●
174 MOLDING; ROOF
ROOF RAIL<7LC> (A) 		8-97131-098-0 01 1 9707-9908 ● ● ●
174 MOLDING; ROOF
ROOF RAIL<7LC>,ROOF RAIL WITH CROSS BAR<8BV> (A) 		8-97131-098-0 01 1 9909-0008 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> (A) 		8-97131-098-0 01 1 0009-0009 ● ● ●
174 MOLDING; ROOF
IRONMAN/ANNIVERSARY EDITION<ER5> (A) 		8-97131-098-0 01 1 0010-0106 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> (A) 		8-97131-098-0 01 1 0010-0106 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> (A) 		8-97131-098-0 01 1 0107-0206 ● ● ●
174 MOLDING; ROOF
GRAY PAINTED PACKAGE<7XA> (A) 		8-97131-098-0 01 1 0207-0207 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> EXC. GRAY PAINTED PACKAGE<7XA> (A) 		8-97131-098-0 01 1 0207-0207 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> (A) 		8-97131-098-0 01 1 0208-0307 ● ● ●
174 MOLDING; ROOF
(A) 		8-97131-098-0 01 1 0308- ● ●
174 MOLDING; ROOF
ROOF RAIL<7LC> (B) 		8-97131-100-0 01 1 9707-9908 ● ● ●
174 MOLDING; ROOF
ROOF RAIL<7LC>,ROOF RAIL WITH CROSS BAR<8BV> (B) 		8-97131-100-0 01 1 9909-0008 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> (B) 		8-97131-100-0 01 1 0009-0009 ● ● ●
174 MOLDING; ROOF
IRONMAN/ANNIVERSARY EDITION<ER5> (B) 		8-97131-100-0 01 1 0010-0106 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> (B) 		8-97131-100-0 01 1 0010-0106 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> (B) 		8-97131-100-0 01 1 0107-0206 ● ● ●
174 MOLDING; ROOF
GRAY PAINTED PACKAGE<7XA> (B) 		8-97131-100-0 01 1 0207-0207 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> EXC. GRAY PAINTED PACKAGE<7XA> (B) 		8-97131-100-0 01 1 0207-0207 ● ● ●
174 MOLDING; ROOF
ROOF RAIL WITH CROSS BAR<8BV> (B) 		8-97131-100-0 01 1 0208-0307 ● ● ●
174 MOLDING; ROOF
(B) 		8-97131-100-0 01 1 0308- ● ●
174 MOLDING; ROOF
EXC. ROOF RAIL<7LC> (C) 		8-97124-469-0 01 1 9707-9908 ● ● ●
174 MOLDING; ROOF
EXC. ROOF RAIL<7LC>,ROOF RAIL WITH CROSS BAR<8BV> (C) 		8-97124-469-0 01 1 9909-0008 ● ● ●
174 MOLDING; ROOF
EXC. ROOF RAIL WITH CROSS BAR<8BV> (C) 		8-97124-469-0 01 1 0009-0009 ● ● ●
174 MOLDING; ROOF
EXC. IRONMAN/ANNIVERSARY EDITION<ER5>,ROOF RAIL WITH CROSS BAR<8BV> (C) 		8-97124-469-0 01 1 0010-0106 ● ● ●
174 MOLDING; ROOF
EXC. ROOF RAIL WITH CROSS BAR<8BV> (C) 		8-97124-469-0 01 1 0107-0206 ● ● ●
174 MOLDING; ROOF
EXC. GRAY PAINTED PACKAGE<7XA>,ROOF RAIL WITH CROSS BAR<8BV> (C) 		8-97124-469-0 01 1 0207-0207 ● ● ●
174 MOLDING; ROOF
EXC. ROOF RAIL WITH CROSS BAR<8BV> (C) 		8-97124-469-0 01 1 0208-0307 ● ● ●
174 MOLDING; ROOF
EXC. ROOF RAIL<7LC> (C) 		8-97124-468-0 01 1 9707-9908 ● ● ●
174 MOLDING; ROOF
EXC. ROOF RAIL<7LC>,ROOF RAIL WITH CROSS BAR<8BV> (C) 		8-97124-468-0 01 1 9909-0008 ● ● ●
174 MOLDING; ROOF
EXC. ROOF RAIL WITH CROSS BAR<8BV> (C) 		8-97124-468-0 01 1 0009-0009 ● ● ●
174 MOLDING; ROOF
EXC. IRONMAN/ANNIVERSARY EDITION<ER5>,ROOF RAIL WITH CROSS BAR<8BV> (C) 		8-97124-468-0 01 1 0010-0106 ● ● ●
174 MOLDING; ROOF
EXC. ROOF RAIL WITH CROSS BAR<8BV> (C) 		8-97124-468-0 01 1 0107-0206 ● ● ●
174 MOLDING; ROOF
EXC. GRAY PAINTED PACKAGE<7XA>,ROOF RAIL WITH CROSS BAR<8BV> (C) 		8-97124-468-0 01 1 0207-0207 ● ● ●
174 MOLDING; ROOF
EXC. ROOF RAIL WITH CROSS BAR<8BV> (C) 		8-97124-468-0 01 1 0208-0307 ● ● ●
176 PROTECTOR; CHIPPING 8-97124-702-1 01 1 9707-9908 ● ●
176 PROTECTOR; CHIPPING
EXC. OVER FENDER<6GH> 		8-97124-702-2 01 1 9909-0307 ● ● ●
176 PROTECTOR; CHIPPING
EXC. OVER FENDER<6GH> 		8-97124-702-2 01 1 0308- ● ●
176 PROTECTOR; CHIPPING 8-97124-701-1 01 1 9707-9908 ● ●
176 PROTECTOR; CHIPPING
EXC. OVER FENDER<6GH> 		8-97124-701-2 01 1 9909-0307 ● ● ●
176 PROTECTOR; CHIPPING
EXC. OVER FENDER<6GH> 		8-97124-701-2 01 1 0308- ● ●
177 SCREW; PROTECTOR
M4X8 		8-94110-529-0 04 1 9707-9709 ● ●
177 SCREW; PROTECTOR
M4X10 		8-97185-196-0 04 1 9710-9908 ● ●
177 SCREW; PROTECTOR
M4X10 		8-97185-196-0 04 1 9909-0006 ● ● ●
177 SCREW; PROTECTOR
EXC. OVER FENDER<6GH> M4X10 		8-97185-196-0 04 1 0007-0307 ● ● ●
177 SCREW; PROTECTOR
EXC. OVER FENDER<6GH> M4X10 		8-97185-196-0 04 1 0308- ● ●

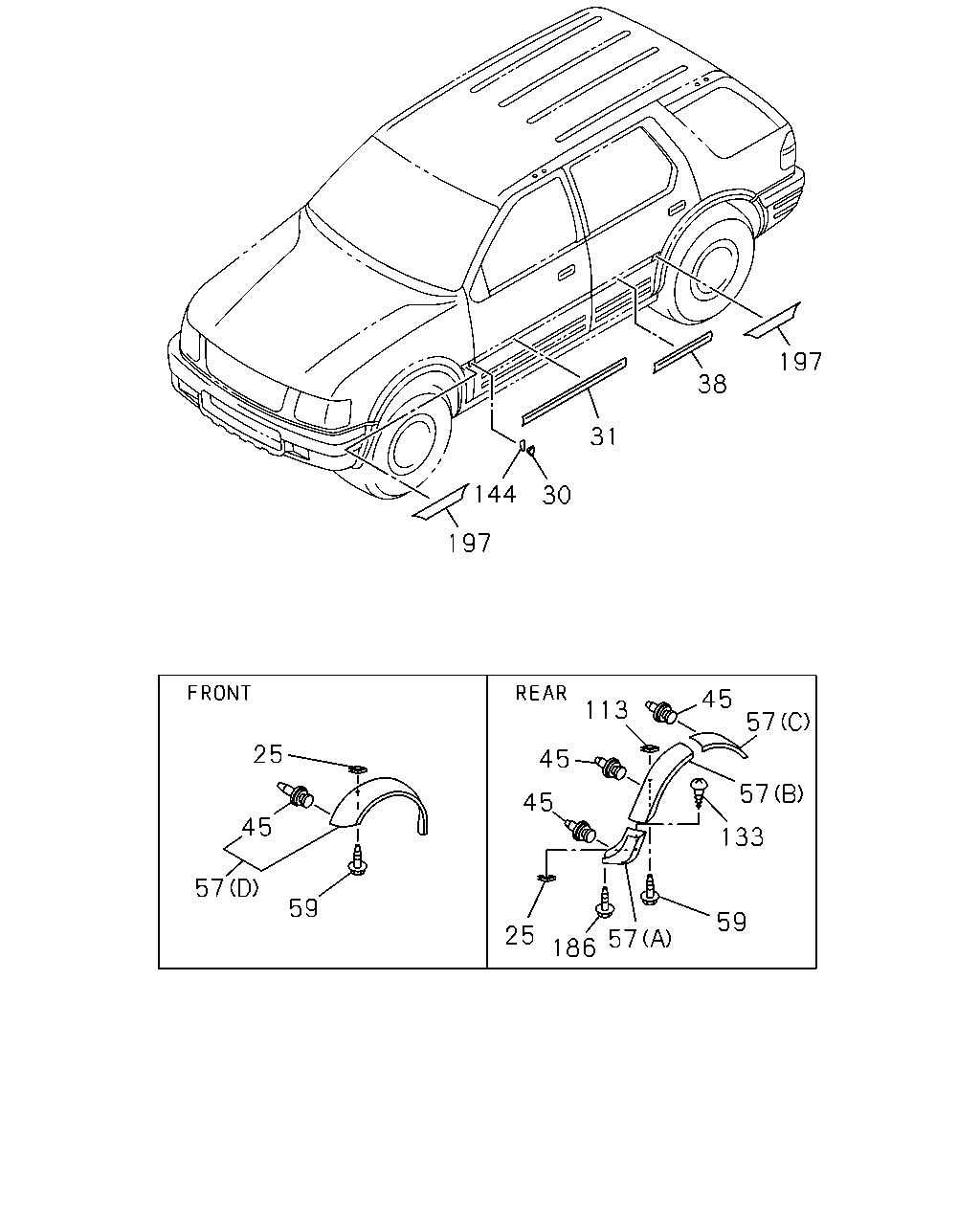

çizim 72251
197 38 31 144 30 197 45 113 57 25 45 57 45 45 133 57 59 59 25 57 186
BalonParca AdiParca NoAdetTipApplied Date A B C
25 NUT; SPIRE,MOLDING
OVER FENDER<6GH> 		8-97125-519-0 06 1 9909-0307 ● ● ●
25 NUT; SPIRE,MOLDING
OVER FENDER<6GH> 		8-97125-519-0 02 1 0308- ● ●
25 NUT; SPIRE,MOLDING
OVER FENDER<6GH> 		8-97125-519-0 02 1 9911-0307 ● ● ●
25 NUT; SPIRE,MOLDING
OVER FENDER<6GH> 		8-97125-519-0 06 1 0308- ● ●
30 MOLDING; FENDER
DOOR MOLDING BLACK<C01> PRIMER 		8-97175-713-0 01 1 9707-9908 ●
30 MOLDING; FENDER
DOOR MOLDING BLACK<C01> PRIMER 		8-97175-713-0 01 1 9909-0002 ● ●
30 MOLDING; FENDER
DOOR MOLDING BLACK<C01> PRIMER 		8-97245-738-0 01 1 0003- ● ●
30 MOLDING; FENDER
DOOR MOLDING BLACK<C01> PRIMER 		8-97175-712-0 01 1 9707-9908 ●
30 MOLDING; FENDER
DOOR MOLDING BLACK<C01> PRIMER 		8-97175-712-0 01 1 9909-0002 ● ●
30 MOLDING; FENDER
DOOR MOLDING BLACK<C01> PRIMER 		8-97245-737-0 01 1 0003- ● ●
31 MOLDING; FRT DOOR
DOOR MOLDING BLACK<C01> PRIMER 		8-97175-715-0 01 1 9707-9811 ●
31 MOLDING; FRT DOOR
DOOR MOLDING BLACK<C01> PRIMER 		8-97219-634-0 01 1 9812-9908 ●
31 MOLDING; FRT DOOR
DOOR MOLDING BLACK<C01> PRIMER 		8-97219-634-0 01 1 9909- ● ●
31 MOLDING; FRT DOOR
DOOR MOLDING BLACK<C01> PRIMER 		8-97175-714-0 01 1 9707-9811 ●
31 MOLDING; FRT DOOR
DOOR MOLDING BLACK<C01> PRIMER 		8-97219-633-0 01 1 9812-9908 ●
31 MOLDING; FRT DOOR
DOOR MOLDING BLACK<C01> PRIMER 		8-97219-633-0 01 1 9909- ● ●
38 MOLDING; RR DOOR
DOOR MOLDING BLACK<C01> PRIMER 		8-97175-717-0 01 1 9707-9908 ●
38 MOLDING; RR DOOR
DOOR MOLDING BLACK<C01> PRIMER 		8-97175-717-0 01 1 9909- ● ●
38 MOLDING; RR DOOR
DOOR MOLDING BLACK<C01> PRIMER 		8-97175-716-0 01 1 9707-9908 ●
38 MOLDING; RR DOOR
DOOR MOLDING BLACK<C01> PRIMER 		8-97175-716-0 01 1 9909- ● ●
45 CLIP; WHEEL ARCH MOLDING
OVER FENDER<6GH> L=15.8 		8-97223-172-0 16 1 9909-0210 ● ● ●
45 CLIP; WHEEL ARCH MOLDING
OVER FENDER<6GH> L=15.8 		8-97223-172-0 08 1 0211-0307 ● ● ●
45 CLIP; WHEEL ARCH MOLDING
OVER FENDER<6GH> L=15.8 		8-97223-172-0 08 1 0308- ● ●
45 CLIP; WHEEL ARCH MOLDING
OVER FENDER<6GH> L=21.3 		8-97223-173-0 08 1 9909-0210 ● ● ●
45 CLIP; WHEEL ARCH MOLDING
OVER FENDER<6GH> L=17.5 		8-97351-158-0 08 1 0211-0307 ● ● ●
45 CLIP; WHEEL ARCH MOLDING
OVER FENDER<6GH> L=17.5 		8-97351-158-0 08 1 0211-0307 ● ● ●
45 CLIP; WHEEL ARCH MOLDING
OVER FENDER<6GH> L=17.5 		8-97351-158-0 08 1 0308- ●
45 CLIP; WHEEL ARCH MOLDING
OVER FENDER<6GH> L=17.5 		8-97351-158-0 08 1 0308- ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/FAWN MET(650) OVER FENDER<6GH> (D) FRONT SILVER 		8-97291-699-3 01 1 0011-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/FAWN MET(650) OVER FENDER<6GH> (B) REAR SILVER 		8-97291-713-2 01 1 0011-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/FAWN MET(650) OVER FENDER<6GH> (C) REAR SILVER 		8-97291-719-1 01 1 0011-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/FAWN MET(650) OVER FENDER<6GH> (A) REAR SILVER 		8-97291-725-3 01 1 0011-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/FAWN MET(650) OVER FENDER<6GH> (D) FRONT SILVER 		8-97291-696-3 01 1 0011-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/FAWN MET(650) OVER FENDER<6GH> (B) REAR SILVER 		8-97291-710-2 01 1 0011-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/FAWN MET(650) OVER FENDER<6GH> (C) REAR SILVER 		8-97291-716-1 01 1 0011-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/FAWN MET(650) OVER FENDER<6GH> (A) REAR SILVER 		8-97291-722-3 01 1 0011-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) OVER FENDER<6GH> (D) FRONT DARK GRAY 		8-97291-700-3 01 1 0011-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> GRAY PAINTED PACKAGE<7XA> (D) FRONT DARK GRAY 		8-97291-700-3 01 1 0107-0206 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR MISTRAL GREEN MICA(664),BODY COLOR CRYSTAL BLUE MET(667),BODY COLOR EBONY BLACK(826),BODY COLOR BRIGHT SILVER MET(835), BODY COLOR ALPINE WHITE(861),BODY COLOR FAWN BROWN MET(881) OVER FENDER<6GH> (D) FRONT LIGHT GRAY 		8-97394-428-0 01 1 0207-0210 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR MISTRAL GREEN MICA(664),BODY COLOR EBONY BLACK(826),BODY COLOR BRIGHTSILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR FAWN BROWN MET(881) OVER FENDER<6GH> (D) FRONT DARK GRAY 		8-97394-429-1 01 1 0211-0307 ● ● ●
57 MOLDING; WHEEL ARCH
OVER FENDER<6GH> (D) FRONT DARK GRAY 		8-97394-429-1 01 1 0308- ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) OVER FENDER<6GH> (B) REAR DARK GRAY 		8-97291-714-2 01 1 0011-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> GRAY PAINTED PACKAGE<7XA> (B) REAR DARK GRAY 		8-97291-714-2 01 1 0107-0206 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR MISTRAL GREEN MICA(664),BODY COLOR CRYSTAL BLUE MET(667),BODY COLOR EBONY BLACK(826),BODY COLOR BRIGHT SILVER MET(835), BODY COLOR ALPINE WHITE(861),BODY COLOR FAWN BROWN MET(881) OVER FENDER<6GH> (B) REAR LIGHT GRAY 		8-97394-436-0 01 1 0207-0210 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR MISTRAL GREEN MICA(664),BODY COLOR EBONY BLACK(826),BODY COLOR BRIGHTSILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR FAWN BROWN MET(881) OVER FENDER<6GH> (B) REAR DARK GRAY 		8-97394-437-1 01 1 0211-0307 ● ● ●
57 MOLDING; WHEEL ARCH
OVER FENDER<6GH> (B) REAR DARK GRAY 		8-97394-437-1 01 1 0308- ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) OVER FENDER<6GH> (C) REAR DARK GRAY 		8-97291-720-1 01 1 0011-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> GRAY PAINTED PACKAGE<7XA> (C) REAR DARK GRAY 		8-97291-720-1 01 1 0107-0108 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> GRAY PAINTED PACKAGE<7XA> (C) REAR DARK GRAY 		8-97390-768-0 01 1 0109-0206 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR MISTRAL GREEN MICA(664),BODY COLOR CRYSTAL BLUE MET(667),BODY COLOR EBONY BLACK(826),BODY COLOR BRIGHT SILVER MET(835), BODY COLOR ALPINE WHITE(861),BODY COLOR FAWN BROWN MET(881) OVER FENDER<6GH> (A) REAR LIGHT GRAY 		8-97394-444-0 01 1 0207-0210 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR MISTRAL GREEN MICA(664),BODY COLOR EBONY BLACK(826),BODY COLOR BRIGHTSILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR FAWN BROWN MET(881) OVER FENDER<6GH> (A) REAR DARK GRAY 		8-97394-445-1 01 1 0211-0307 ● ● ●
57 MOLDING; WHEEL ARCH
OVER FENDER<6GH> (A) REAR DARK GRAY 		8-97394-445-1 01 1 0308- ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) OVER FENDER<6GH> (A) REAR DARK GRAY 		8-97291-726-3 01 1 0011-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> GRAY PAINTED PACKAGE<7XA> (A) REAR DARK GRAY 		8-97291-726-3 01 1 0107-0206 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR MISTRAL GREEN MICA(664),BODY COLOR CRYSTAL BLUE MET(667),BODY COLOR EBONY BLACK(826),BODY COLOR BRIGHT SILVER MET(835), BODY COLOR ALPINE WHITE(861),BODY COLOR FAWN BROWN MET(881) OVER FENDER<6GH> (C) REAR LIGHT GRAY 		8-97394-440-0 01 1 0207-0210 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR MISTRAL GREEN MICA(664),BODY COLOR EBONY BLACK(826),BODY COLOR BRIGHTSILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR FAWN BROWN MET(881) OVER FENDER<6GH> (C) REAR DARK GRAY 		8-97394-441-1 01 1 0211-0307 ● ● ●
57 MOLDING; WHEEL ARCH
OVER FENDER<6GH> (C) REAR DARK GRAY 		8-97394-441-1 01 1 0308- ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) OVER FENDER<6GH> (D) FRONT DARK GRAY 		8-97291-697-3 01 1 0011-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> GRAY PAINTED PACKAGE<7XA> (D) FRONT DARK GRAY 		8-97291-697-3 01 1 0107-0206 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR MISTRAL GREEN MICA(664),BODY COLOR CRYSTAL BLUE MET(667),BODY COLOR EBONY BLACK(826),BODY COLOR BRIGHT SILVER MET(835), BODY COLOR ALPINE WHITE(861),BODY COLOR FAWN BROWN MET(881) OVER FENDER<6GH> (D) FRONT LIGHT GRAY 		8-97394-426-0 01 1 0207-0210 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR MISTRAL GREEN MICA(664),BODY COLOR EBONY BLACK(826),BODY COLOR BRIGHTSILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR FAWN BROWN MET(881) OVER FENDER<6GH> (D) FRONT DARK GRAY 		8-97394-427-1 01 1 0211-0307 ● ● ●
57 MOLDING; WHEEL ARCH
OVER FENDER<6GH> (D) FRONT DARK GRAY 		8-97394-427-1 01 1 0308- ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) OVER FENDER<6GH> (B) REAR DARK GRAY 		8-97291-711-2 01 1 0011-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> GRAY PAINTED PACKAGE<7XA> (B) REAR DARK GRAY 		8-97291-711-2 01 1 0107-0206 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR MISTRAL GREEN MICA(664),BODY COLOR CRYSTAL BLUE MET(667),BODY COLOR EBONY BLACK(826),BODY COLOR BRIGHT SILVER MET(835), BODY COLOR ALPINE WHITE(861),BODY COLOR FAWN BROWN MET(881) OVER FENDER<6GH> (B) REAR LIGHT GRAY 		8-97394-434-0 01 1 0207-0210 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR MISTRAL GREEN MICA(664),BODY COLOR EBONY BLACK(826),BODY COLOR BRIGHTSILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR FAWN BROWN MET(881) OVER FENDER<6GH> (B) REAR DARK GRAY 		8-97394-435-1 01 1 0211-0307 ● ● ●
57 MOLDING; WHEEL ARCH
OVER FENDER<6GH> (B) REAR DARK GRAY 		8-97394-435-1 01 1 0308- ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) OVER FENDER<6GH> (C) REAR DARK GRAY 		8-97291-717-1 01 1 0011-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> GRAY PAINTED PACKAGE<7XA> (C) REAR DARK GRAY 		8-97291-717-1 01 1 0107-0108 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> GRAY PAINTED PACKAGE<7XA> (C) REAR DARK GRAY 		8-97390-765-0 01 1 0109-0206 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR MISTRAL GREEN MICA(664),BODY COLOR CRYSTAL BLUE MET(667),BODY COLOR EBONY BLACK(826),BODY COLOR BRIGHT SILVER MET(835), BODY COLOR ALPINE WHITE(861),BODY COLOR FAWN BROWN MET(881) OVER FENDER<6GH> (A) REAR LIGHT GRAY 		8-97394-442-0 01 1 0207-0210 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR MISTRAL GREEN MICA(664),BODY COLOR EBONY BLACK(826),BODY COLOR BRIGHTSILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR FAWN BROWN MET(881) OVER FENDER<6GH> (A) REAR LIGHT GRAY 		8-97394-443-1 01 1 0211-0307 ● ● ●
57 MOLDING; WHEEL ARCH
OVER FENDER<6GH> (A) REAR LIGHT GRAY 		8-97394-443-1 01 1 0308- ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) OVER FENDER<6GH> (A) REAR DARK GRAY 		8-97291-723-3 01 1 0011-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> GRAY PAINTED PACKAGE<7XA> (A) REAR DARK GRAY 		8-97291-723-3 01 1 0107-0206 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR MISTRAL GREEN MICA(664),BODY COLOR CRYSTAL BLUE MET(667),BODY COLOR EBONY BLACK(826),BODY COLOR BRIGHT SILVER MET(835), BODY COLOR ALPINE WHITE(861),BODY COLOR FAWN BROWN MET(881) OVER FENDER<6GH> (C) REAR LIGHT GRAY 		8-97394-438-0 01 1 0207-0210 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR MISTRAL GREEN MICA(664),BODY COLOR EBONY BLACK(826),BODY COLOR BRIGHTSILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR FAWN BROWN MET(881) OVER FENDER<6GH> (C) REAR DARK GRAY 		8-97394-439-1 01 1 0211-0307 ● ● ●
57 MOLDING; WHEEL ARCH
OVER FENDER<6GH> (C) REAR DARK GRAY 		8-97394-439-1 01 1 0308- ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR PALAZZO RED MICA(806),BODY COLOR EBONYBLACK(826),BODY COLOR BRIGHT SILVER MET(835),BOD Y COLOR ALPINE WHITE(861),BODY COLOR CANAL BLUE MICA(862),BODY COLOR GARDEN GREEN MICA(870),BODY COLOR FAWN BROWN MET(881),BODY COLOR ZEPHYR GREENMICA(898) OVER FENDER<6GH> (D) FRONT LIGHT GRAY 		8-97291-698-3 01 1 9909-0007 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR PALAZZO RED MICA(806),BODY COLOR EBONYBLACK(826),BODY COLOR BRIGHT SILVER MET(835),BOD Y COLOR ALPINE WHITE(861),BODY COLOR CANAL BLUE MICA(862),BODY COLOR GARDEN GREEN MICA(870),BODY COLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUEMICA(886) OVER FENDER<6GH> (D) FRONT LIGHT GRAY 		8-97291-698-3 01 1 0008-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> EXC. GRAY PAINTED PACKAGE<7XA> (D) FRONT LIGHT GRAY 		8-97291-698-3 01 1 0107-0206 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) OVER FENDER<6GH> (D) FRONT DARK GRAY 		8-97394-429-0 01 1 0207-0207 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR PALAZZO RED MICA(806),BODY COLOR EBONYBLACK(826),BODY COLOR BRIGHT SILVER MET(835),BOD Y COLOR ALPINE WHITE(861),BODY COLOR CANAL BLUE MICA(862),BODY COLOR GARDEN GREEN MICA(870),BODY COLOR FAWN BROWN MET(881),BODY COLOR ZEPHYR GREENMICA(898) OVER FENDER<6GH> (B) REAR LIGHT GRAY 		8-97291-712-2 01 1 9909-0007 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR PALAZZO RED MICA(806),BODY COLOR EBONYBLACK(826),BODY COLOR BRIGHT SILVER MET(835),BOD Y COLOR ALPINE WHITE(861),BODY COLOR CANAL BLUE MICA(862),BODY COLOR GARDEN GREEN MICA(870),BODY COLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUEMICA(886) OVER FENDER<6GH> (B) REAR LIGHT GRAY 		8-97291-712-2 01 1 0008-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> EXC. GRAY PAINTED PACKAGE<7XA> (B) REAR LIGHT GRAY 		8-97291-712-2 01 1 0107-0206 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) OVER FENDER<6GH> (B) REAR DARK GRAY 		8-97394-437-0 01 1 0207-0207 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR PALAZZO RED MICA(806),BODY COLOR EBONYBLACK(826),BODY COLOR BRIGHT SILVER MET(835),BOD Y COLOR ALPINE WHITE(861),BODY COLOR CANAL BLUE MICA(862),BODY COLOR GARDEN GREEN MICA(870),BODY COLOR FAWN BROWN MET(881),BODY COLOR ZEPHYR GREENMICA(898) OVER FENDER<6GH> (C) REAR LIGHT GRAY 		8-97291-718-1 01 1 9909-0007 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR PALAZZO RED MICA(806),BODY COLOR EBONYBLACK(826),BODY COLOR BRIGHT SILVER MET(835),BOD Y COLOR ALPINE WHITE(861),BODY COLOR CANAL BLUE MICA(862),BODY COLOR GARDEN GREEN MICA(870),BODY COLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUEMICA(886) OVER FENDER<6GH> (C) REAR LIGHT GRAY 		8-97291-718-1 01 1 0008-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> EXC. GRAY PAINTED PACKAGE<7XA> (C) REAR LIGHT GRAY 		8-97291-718-1 01 1 0107-0108 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> EXC. GRAY PAINTED PACKAGE<7XA> (C) REAR LIGHT GRAY 		8-97390-767-0 01 1 0109-0206 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) OVER FENDER<6GH> (A) REAR DARK GRAY 		8-97394-445-0 01 1 0207-0207 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR PALAZZO RED MICA(806),BODY COLOR EBONYBLACK(826),BODY COLOR BRIGHT SILVER MET(835),BOD Y COLOR ALPINE WHITE(861),BODY COLOR CANAL BLUE MICA(862),BODY COLOR GARDEN GREEN MICA(870),BODY COLOR FAWN BROWN MET(881),BODY COLOR ZEPHYR GREENMICA(898) OVER FENDER<6GH> (A) REAR LIGHT GRAY 		8-97291-724-3 01 1 9909-0007 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR PALAZZO RED MICA(806),BODY COLOR EBONYBLACK(826),BODY COLOR BRIGHT SILVER MET(835),BOD Y COLOR ALPINE WHITE(861),BODY COLOR CANAL BLUE MICA(862),BODY COLOR GARDEN GREEN MICA(870),BODY COLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUEMICA(886) OVER FENDER<6GH> (A) REAR LIGHT GRAY 		8-97291-724-3 01 1 0008-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> EXC. GRAY PAINTED PACKAGE<7XA> (A) REAR LIGHT GRAY 		8-97291-724-3 01 1 0107-0206 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) OVER FENDER<6GH> (C) REAR DARK GRAY 		8-97394-441-0 01 1 0207-0207 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR PALAZZO RED MICA(806),BODY COLOR EBONYBLACK(826),BODY COLOR BRIGHT SILVER MET(835),BOD Y COLOR ALPINE WHITE(861),BODY COLOR CANAL BLUE MICA(862),BODY COLOR GARDEN GREEN MICA(870),BODY COLOR FAWN BROWN MET(881),BODY COLOR ZEPHYR GREENMICA(898) OVER FENDER<6GH> (D) FRONT LIGHT GRAY 		8-97291-695-3 01 1 9909-0007 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR PALAZZO RED MICA(806),BODY COLOR EBONYBLACK(826),BODY COLOR BRIGHT SILVER MET(835),BOD Y COLOR ALPINE WHITE(861),BODY COLOR CANAL BLUE MICA(862),BODY COLOR GARDEN GREEN MICA(870),BODY COLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUEMICA(886) OVER FENDER<6GH> (D) FRONT LIGHT GRAY 		8-97291-695-3 01 1 0008-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> EXC. GRAY PAINTED PACKAGE<7XA> (D) FRONT LIGHT GRAY 		8-97291-695-3 01 1 0107-0206 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) OVER FENDER<6GH> (D) FRONT DARK GRAY 		8-97394-427-0 01 1 0207-0207 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR PALAZZO RED MICA(806),BODY COLOR EBONYBLACK(826),BODY COLOR BRIGHT SILVER MET(835),BOD Y COLOR ALPINE WHITE(861),BODY COLOR CANAL BLUE MICA(862),BODY COLOR GARDEN GREEN MICA(870),BODY COLOR FAWN BROWN MET(881),BODY COLOR ZEPHYR GREENMICA(898) OVER FENDER<6GH> (B) REAR LIGHT GRAY 		8-97291-709-2 01 1 9909-0007 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR PALAZZO RED MICA(806),BODY COLOR EBONYBLACK(826),BODY COLOR BRIGHT SILVER MET(835),BOD Y COLOR ALPINE WHITE(861),BODY COLOR CANAL BLUE MICA(862),BODY COLOR GARDEN GREEN MICA(870),BODY COLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUEMICA(886) OVER FENDER<6GH> (B) REAR LIGHT GRAY 		8-97291-709-2 01 1 0008-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> EXC. GRAY PAINTED PACKAGE<7XA> (B) REAR LIGHT GRAY 		8-97291-709-2 01 1 0107-0206 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) OVER FENDER<6GH> (B) REAR DARK GRAY 		8-97394-435-0 01 1 0207-0207 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR PALAZZO RED MICA(806),BODY COLOR EBONYBLACK(826),BODY COLOR BRIGHT SILVER MET(835),BOD Y COLOR ALPINE WHITE(861),BODY COLOR CANAL BLUE MICA(862),BODY COLOR GARDEN GREEN MICA(870),BODY COLOR FAWN BROWN MET(881),BODY COLOR ZEPHYR GREENMICA(898) OVER FENDER<6GH> (C) REAR LIGHT GRAY 		8-97291-715-1 01 1 9909-0007 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR PALAZZO RED MICA(806),BODY COLOR EBONYBLACK(826),BODY COLOR BRIGHT SILVER MET(835),BOD Y COLOR ALPINE WHITE(861),BODY COLOR CANAL BLUE MICA(862),BODY COLOR GARDEN GREEN MICA(870),BODY COLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUEMICA(886) OVER FENDER<6GH> (C) REAR LIGHT GRAY 		8-97291-715-1 01 1 0008-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> EXC. GRAY PAINTED PACKAGE<7XA> (C) REAR LIGHT GRAY 		8-97291-715-1 01 1 0107-0108 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> EXC. GRAY PAINTED PACKAGE<7XA> (C) REAR LIGHT GRAY 		8-97390-764-0 01 1 0109-0206 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) OVER FENDER<6GH> (A) REAR LIGHT GRAY 		8-97394-443-0 01 1 0207-0207 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR PALAZZO RED MICA(806),BODY COLOR EBONYBLACK(826),BODY COLOR BRIGHT SILVER MET(835),BOD Y COLOR ALPINE WHITE(861),BODY COLOR CANAL BLUE MICA(862),BODY COLOR GARDEN GREEN MICA(870),BODY COLOR FAWN BROWN MET(881),BODY COLOR ZEPHYR GREENMICA(898) OVER FENDER<6GH> (A) REAR LIGHT GRAY 		8-97291-721-3 01 1 9909-0007 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR PALAZZO RED MICA(806),BODY COLOR EBONYBLACK(826),BODY COLOR BRIGHT SILVER MET(835),BOD Y COLOR ALPINE WHITE(861),BODY COLOR CANAL BLUE MICA(862),BODY COLOR GARDEN GREEN MICA(870),BODY COLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUEMICA(886) OVER FENDER<6GH> (A) REAR LIGHT GRAY 		8-97291-721-3 01 1 0008-0106 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR CLIPPER BLUE MET(639),BODY COLOR CURRANT RED MICA(640),BODY COLOR EBONY BLACK(826), BODYCOLOR BRIGHT SILVER MET(835),BODY COLOR ALPINE WHITE(861),BODY COLOR GARDEN GREEN MICA(870), BODYCOLOR FAWN BROWN MET(881),BODY COLOR ATLANTIC BLUE MICA(886) OVER FENDER<6GH> EXC. GRAY PAINTED PACKAGE<7XA> (A) REAR LIGHT GRAY 		8-97291-721-3 01 1 0107-0206 ● ● ●
57 MOLDING; WHEEL ARCH
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) OVER FENDER<6GH> (C) REAR DARK GRAY 		8-97394-439-0 01 1 0207-0207 ● ● ●
59 SCREW; MOLDING
OVER FENDER<6GH> REAR M4X16 TAPPING W/PL WASHER 		0-74100-416-0 06 1 9909-0307 ● ● ●
59 SCREW; MOLDING
OVER FENDER<6GH> REAR M4X16 TAPPING W/PL WASHER 		0-74100-416-0 06 1 0308- ● ●
59 SCREW; MOLDING
OVER FENDER<6GH> FRONT M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 9909-0108 ● ● ●
59 SCREW; MOLDING
OVER FENDER<6GH> FRONT M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 9909-0108 ● ● ●
59 SCREW; MOLDING
OVER FENDER<6GH> FRONT M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 0109-0307 ● ● ●
59 SCREW; MOLDING
OVER FENDER<6GH> FRONT M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 0308- ● ●
59 SCREW; MOLDING
OVER FENDER<6GH> FRONT M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 0109-0307 ● ● ●
59 SCREW; MOLDING
OVER FENDER<6GH> FRONT M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 0308- ● ●
113 NUT; MOLDING
OVER FENDER<6GH> 		8-97125-519-0 06 1 9909-0108 ● ● ●
113 NUT; MOLDING
OVER FENDER<6GH> 		8-97125-519-0 04 1 0109-0307 ● ● ●
113 NUT; MOLDING
OVER FENDER<6GH> 		8-97125-519-0 04 1 0308- ● ●
133 SCREW; MOLDING
OVER FENDER<6GH> M6X14 TAPPING W/PL WASHER 		0-74100-614-0 02 1 9911-0307 ● ● ●
133 SCREW; MOLDING
OVER FENDER<6GH> M6X14 TAPPING W/PL WASHER 		0-74100-614-0 02 1 0308- ● ●
144 TAPE; MOLDING 8-97218-978-0 01 1 9808-9908 ● ●
144 TAPE; MOLDING 8-97218-118-1 01 1 9808-9908 ● ●
186 BOLT; MOLDING
OVER FENDER<6GH> M6X10 FLANGE 		0-28080-610-0 02 1 9909-0307 ● ● ●
186 BOLT; MOLDING
OVER FENDER<6GH> M6X10 FLANGE 		0-28080-610-0 02 1 0308- ● ●
197 STRIPE; 2 TONE,BODY SIDE
BODY COLOR ALPINE WHITE/FAWN MET(650) IRONMAN/ANNIVERSARY EDITION<ER5> RH FRONT,LH REAR SILVER 		8-97292-481-1 02 1 0010-0106 ● ● ●
197 STRIPE; 2 TONE,BODY SIDE
BODY COLOR ALPINE WHITE/FAWN MET(650) IRONMAN/ANNIVERSARY EDITION<ER5> RH REAR,LH FRONT SILVER 		8-97292-859-0 02 1 0010-0106 ● ● ●
197 STRIPE; 2 TONE,BODY SIDE
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) IRONMAN/ANNIVERSARY EDITION<ER5> RH FRONT,LH REAR DARK GRAY 		8-97292-482-1 02 1 0010-0206 ● ● ●
197 STRIPE; 2 TONE,BODY SIDE
BODY COLOR ALPINE WHITE/IRON GRAY MET(649),BODY COLOR EBONY BLACK/IRON GRAY MET(651) IRONMAN/ANNIVERSARY EDITION<ER5> RH REAR,LH FRONT DARK GRAY 		8-97292-860-0 02 1 0010-0206 ● ● ●
197 STRIPE; 2 TONE,BODY SIDE
GRAY PAINTED PACKAGE<7XA> RH FRONT,LH REAR DARK GRAY 		8-97292-482-1 02 1 0207-0207 ● ● ●
197 STRIPE; 2 TONE,BODY SIDE
GRAY PAINTED PACKAGE<7XA> RH REAR,LH FRONT DARK GRAY 		8-97292-860-0 02 1 0207-0207 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
