◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#42609) — 215 parça
çizim 17761
199 198
BalonParca AdiParca NoAdetTipApplied Date A B C
198 GROMMET; QTR RR
OD=15.0 		8-94279-040-0 01 1 9707-9908 ● ●
198 GROMMET; QTR RR
OD=15.0 		8-94279-040-0 01 1 9909-0307 ● ● ●
198 GROMMET; QTR RR
OD=15.0 		8-94279-040-0 01 1 0308- ● ●
199 GROMMET; ROCKER RR
OD=19 		8-94279-055-0 02 1 9707-9908 ● ●
199 GROMMET; ROCKER RR
OD=19 		8-94279-055-0 02 1 9909-0307 ● ● ●
199 GROMMET; ROCKER RR
OD=19 		8-94279-055-0 02 1 0308- ● ●

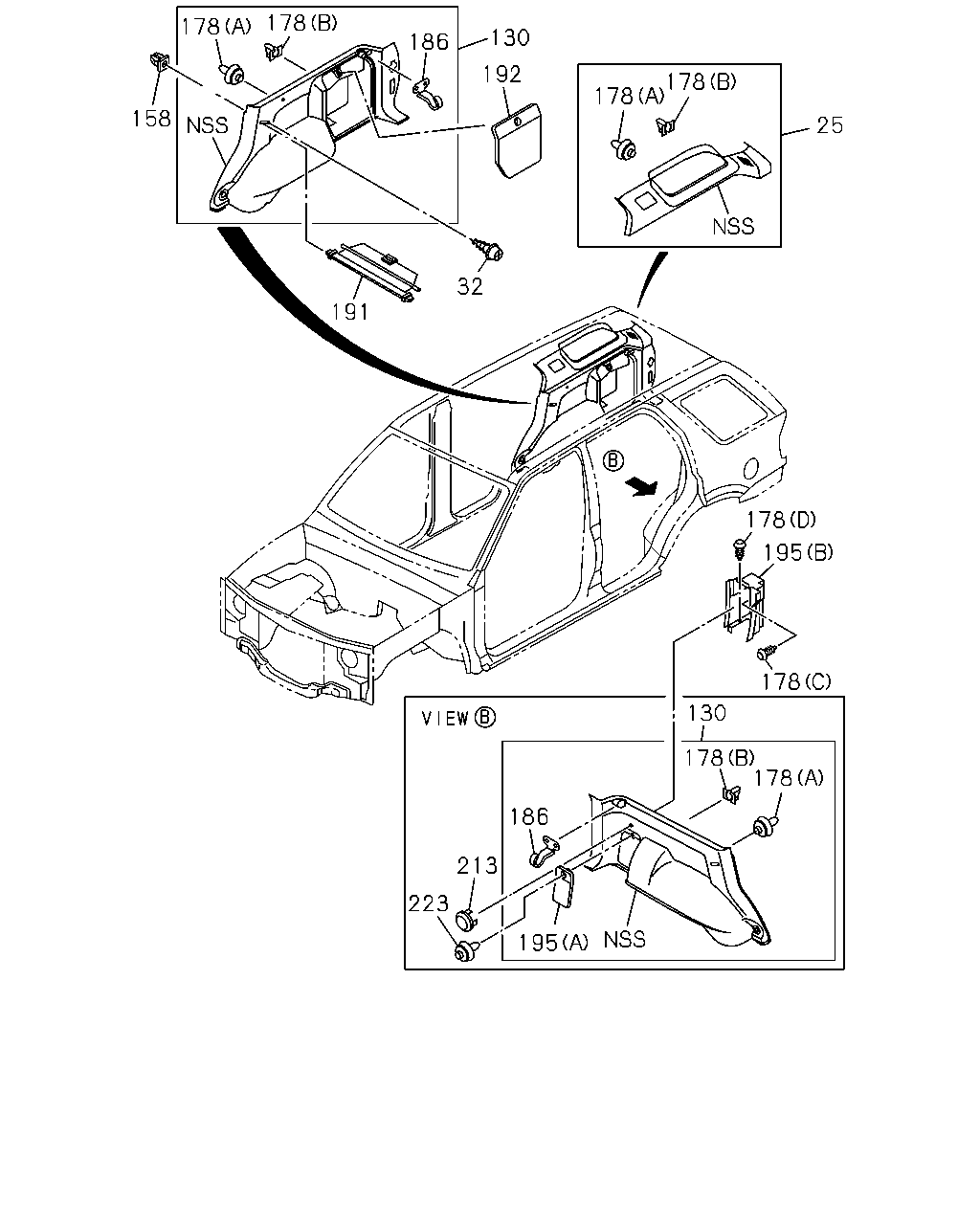

çizim 67229
178 178 130 186 192 178 178 158 25 32 191 178 195 178 130 178 178 186 213 223 195
BalonParca AdiParca NoAdetTipApplied Date A B C
25 COVER; TRIM,QUARTER PILLAR,UPR
LIGHT GRAY 		8-97291-492-3 01 1 9909-0007 ● ● ●
25 COVER; TRIM,QUARTER PILLAR,UPR
INTERIOR COLOR GRAY(180) LIGHT GRAY 		8-97291-492-4 01 1 0008-0206 ● ● ●
25 COVER; TRIM,QUARTER PILLAR,UPR
LIGHT GRAY 		8-97291-491-3 01 1 9909-0007 ● ● ●
25 COVER; TRIM,QUARTER PILLAR,UPR
INTERIOR COLOR GRAY(180) LIGHT GRAY 		8-97291-491-4 01 1 0008-0206 ● ● ●
25 COVER; TRIM,QUARTER PILLAR,UPR
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97391-711-4 01 1 0207-0307 ● ● ●
25 COVER; TRIM,QUARTER PILLAR,UPR
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97391-711-4 01 1 0308- ● ●
25 COVER; TRIM,QUARTER PILLAR,UPR
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97391-712-4 01 1 0207-0307 ● ● ●
25 COVER; TRIM,QUARTER PILLAR,UPR
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97391-712-4 01 1 0308- ● ●
25 COVER; TRIM,QUARTER PILLAR,UPR
INTERIOR COLOR BEIGE(181) BEIGE 		8-97293-830-4 01 1 0008- ● ●
25 COVER; TRIM,QUARTER PILLAR,UPR
INTERIOR COLOR BEIGE(181) BEIGE 		8-97294-078-4 01 1 0008- ● ●
32 SCREW; TRIM COVER
M5X16 		8-94380-268-0 05 1 9707-9908 ● ●
32 SCREW; TRIM COVER
M5X16 		8-94380-268-0 01 1 9909-0307 ● ● ●
32 SCREW; TRIM COVER
M5X16 		8-94380-268-0 01 1 0308- ● ●
130 COVER; TRIM,QUARTER PILLAR
GRAY 		8-97157-349-4 01 1 9707-9908 ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR GRAY(180) GRAY 		8-97291-494-3 01 1 9909-0005 ● ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR GRAY(180) GRAY 		8-97293-833-1 01 1 0006-0206 ● ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-719-2 01 1 0207-0307 ● ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97396-346-0 01 1 0308- ● ●
130 COVER; TRIM,QUARTER PILLAR
GRAY 		8-97157-348-4 01 1 9707-9908 ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR GRAY(180) GRAY 		8-97291-493-3 01 1 9909-0005 ● ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR GRAY(180) GRAY 		8-97293-831-1 01 1 0006-0206 ● ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-718-1 01 1 0207-0307 ● ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97396-344-0 01 1 0308- ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-560-3 01 1 9909-0005 ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-834-2 01 1 0006-0307 ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97396-345-0 01 1 0308- ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-559-3 01 1 9909-0005 ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-832-1 01 1 0006-0307 ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97396-343-0 01 1 0308- ● ●
158 GROMMET; SCREW,TRIM 5-09470-001-0 05 1 9707-9908 ● ●
158 GROMMET; SCREW,TRIM 5-09470-001-0 01 1 9909-0307 ● ● ●
158 GROMMET; SCREW,TRIM 5-09470-001-0 01 1 0308- ● ●
178 CLIP; TRIM COVER
(A) HIDDEN TYPE H=16.7 		8-97022-017-0 14 1 9707-9908 ● ●
178 CLIP; TRIM COVER
(B) METAL TYPE 		8-97139-382-0 11 1 9707-9908 ● ●
178 CLIP; TRIM COVER
(A) HIDDEN TYPE H=16.7 		8-97022-017-0 08 1 9909-0007 ● ● ●
178 CLIP; TRIM COVER
(A) HIDDEN TYPE H=16.7 		8-97022-017-0 24 1 0008-0307 ● ● ●
178 CLIP; TRIM COVER
(A) HIDDEN TYPE H=16.7 		8-97022-017-0 24 1 0308- ● ●
178 CLIP; TRIM COVER
(A) HIDDEN TYPE H=16.7 		8-97022-017-0 16 1 9909-0007 ● ● ●
178 CLIP; TRIM COVER
(B) METAL TYPE 		8-97139-382-0 08 1 9909-0007 ● ● ●
178 CLIP; TRIM COVER
(B) METAL TYPE 		8-97139-382-0 03 1 9909-0007 ● ● ●
178 CLIP; TRIM COVER
(B) METAL TYPE 		8-97139-382-0 11 1 0008-0307 ● ● ●
178 CLIP; TRIM COVER
(B) METAL TYPE 		8-97139-382-0 11 1 0308- ● ●
178 CLIP; TRIM COVER
(C) BLACK 		8-94145-515-0 01 1 0101-0203 ● ● ●
178 CLIP; TRIM COVER
(D) ID=6 OD=16 L=18 		8-94178-705-0 02 1 0101-0203 ● ● ●
186 HANGER
GRAY 		8-97197-095-0 02 1 9710-9908 ● ●
186 HANGER
INTERIOR COLOR GRAY(180) GRAY 		8-97197-095-0 02 1 9909-0206 ● ● ●
186 HANGER
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-927-0 02 1 0207-0307 ● ● ●
186 HANGER
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-927-0 02 1 0308- ● ●
186 HANGER
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97193-489-0 02 1 9909- ● ●
191 COVER; TONNEAU
TONNEAU COVER<7PU> GRAY 		8-97157-350-1 01 1 9707-9908 ●
191 COVER; TONNEAU
GRAY 		8-97157-350-1 01 1 9707-9908 ●
191 COVER; TONNEAU
INTERIOR COLOR GRAY(180) TONNEAU COVER<7PU> GRAY 		8-97291-495-4 01 1 9909-0206 ● ● ●
191 COVER; TONNEAU
INTERIOR COLOR TAUPE GRAY(182) TONNEAU COVER<7PU> DARK GRAY 		8-97395-387-1 01 1 0207-0307 ● ● ●
191 COVER; TONNEAU
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97395-387-1 01 1 0308- ● ●
191 COVER; TONNEAU
INTERIOR COLOR BEIGE(181) TONNEAU COVER<7PU> LIGHT BEIGE 		8-97291-561-4 01 1 9909-0206 ● ● ●
191 COVER; TONNEAU
INTERIOR COLOR BEIGE(181) TONNEAU COVER<7PU> LIGHT BEIGE 		8-97395-386-1 01 1 0207-0307 ● ● ●
191 COVER; TONNEAU
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97395-386-1 01 1 0308- ● ●
192 LID; SIDE
GRAY 		8-97195-828-2 01 1 9707-9908 ● ●
192 LID; SIDE
INTERIOR COLOR GRAY(180) GRAY 		8-97195-828-2 01 1 9909-0206 ● ● ●
192 LID; SIDE
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-715-3 01 1 0207-0307 ● ● ●
192 LID; SIDE
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-715-3 01 1 0308-0402 ● ●
192 LID; SIDE
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-715-3 01 1 0403- ● ●
192 LID; SIDE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-558-3 01 1 9909-0402 ● ●
192 LID; SIDE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-558-3 01 1 0403- ● ●
195 LID; JACK & TOOL
(A) GRAY 		8-97197-097-1 01 1 9707-9908 ● ●
195 LID; JACK & TOOL
INTERIOR COLOR GRAY(180) (A) GRAY 		8-97197-097-1 01 1 9909-0206 ● ● ●
195 LID; JACK & TOOL
INTERIOR COLOR TAUPE GRAY(182) (A) DARK GRAY 		8-97391-929-2 01 1 0207-0307 ● ● ●
195 LID; JACK & TOOL
INTERIOR COLOR TAUPE GRAY(182) (A) DARK GRAY 		8-97391-929-2 01 1 0308- ● ●
195 LID; JACK & TOOL
(B) 		8-97255-374-0 01 1 0101-0203 ● ● ●
195 LID; JACK & TOOL
INTERIOR COLOR BEIGE(181) (A) LIGHT BEIGE 		8-97293-488-2 01 1 9909- ● ●
213 LID; A/C SOCKET HOLE
EXC. ACCESSORY SOCKET LUGGAGE ROOM<6MP> GRAY 		8-97198-839-0 01 1 9808-9908 ● ● ●
213 LID; A/C SOCKET HOLE
INTERIOR COLOR GRAY(180) EXC. ACCESSORY SOCKET LUGGAGE ROOM<6MP> GRAY 		8-97198-839-0 01 1 9909-0206 ● ● ●
213 LID; A/C SOCKET HOLE
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-728-0 01 1 0207-0307 ● ● ●
213 LID; A/C SOCKET HOLE
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-728-0 01 1 0308- ● ●
213 LID; A/C SOCKET HOLE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97391-729-0 01 1 0207- ● ●
223 LOCK; LID,TRIM COVER
INTERIOR COLOR GRAY(180) GRAY 		8-97394-481-1 02 1 0203-0206 ● ● ●
223 LOCK; LID,TRIM COVER
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-478-1 02 1 0207-0307 ● ● ●
223 LOCK; LID,TRIM COVER
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-478-1 02 1 0308- ● ●
223 LOCK; LID,TRIM COVER
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97394-482-1 02 1 0203- ● ●

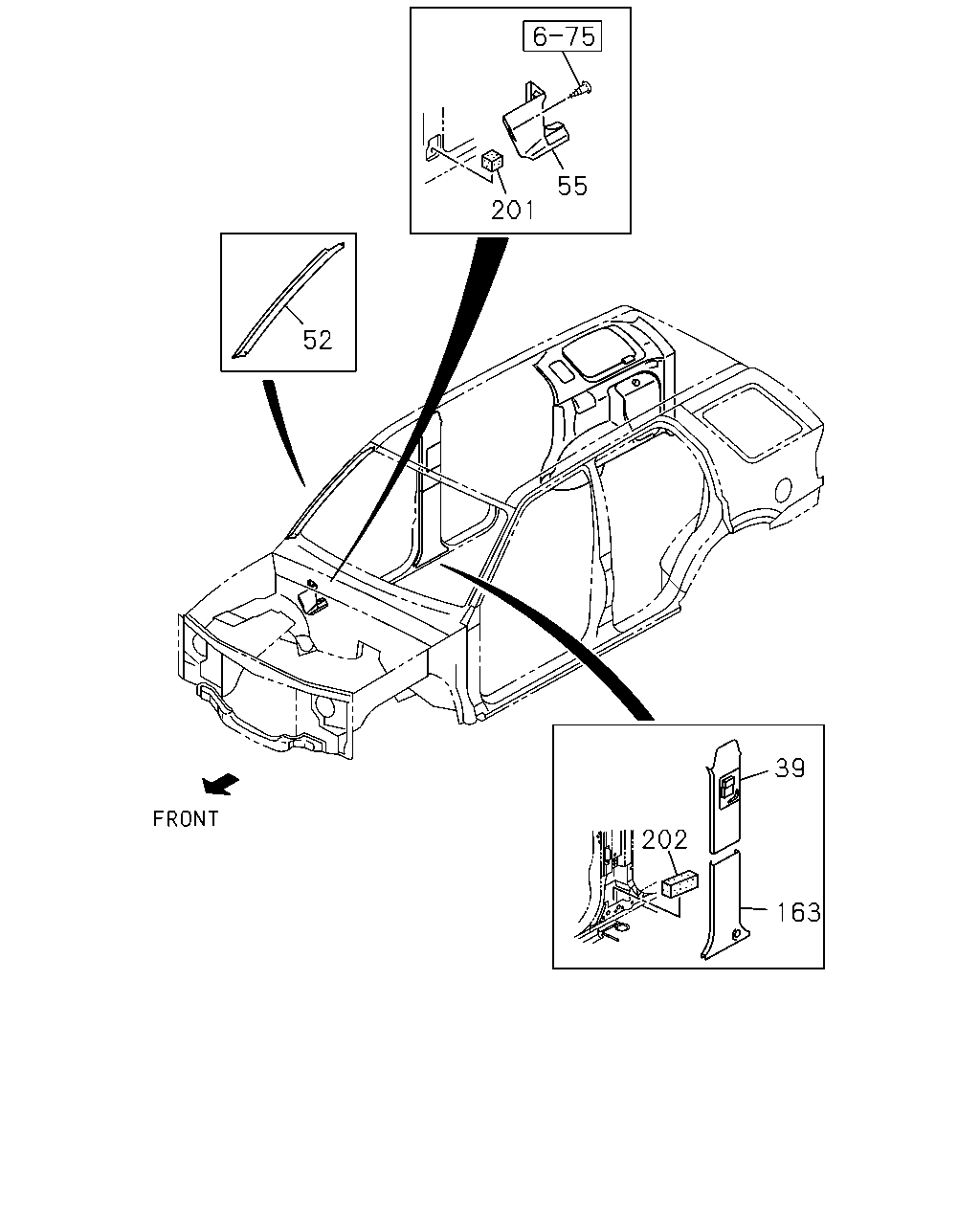

çizim 68886
55 201 52 39 202 163
BalonParca AdiParca NoAdetTipApplied Date A B C
39 COVER; TRIM,CENTER PILLAR
LIGHT GRAY 		8-97157-345-4 01 1 9707-9908 ● ●
39 COVER; TRIM,CENTER PILLAR
LIGHT GRAY 		8-97157-345-4 01 1 9909-0007 ● ● ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR GRAY(180) LIGHT GRAY 		8-97157-345-4 01 1 0008-0206 ● ● ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97391-708-4 01 1 0207-0211 ● ● ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97396-462-0 01 1 0212-0307 ● ● ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97396-462-0 01 1 0308- ● ●
39 COVER; TRIM,CENTER PILLAR
LIGHT GRAY 		8-97157-344-4 01 1 9707-9908 ● ●
39 COVER; TRIM,CENTER PILLAR
LIGHT GRAY 		8-97157-344-4 01 1 9909-0007 ● ● ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR GRAY(180) LIGHT GRAY 		8-97157-344-4 01 1 0008-0206 ● ● ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97391-707-4 01 1 0207-0211 ● ● ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97396-459-0 01 1 0212-0307 ● ● ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97396-459-0 01 1 0308- ● ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR BEIGE(181) BEIGE 		8-97293-829-4 01 1 0008-0211 ● ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR BEIGE(181) BEIGE 		8-97396-464-0 01 1 0212- ● ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR BEIGE(181) BEIGE 		8-97293-828-4 01 1 0008-0211 ● ●
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR BEIGE(181) BEIGE 		8-97396-461-0 01 1 0212- ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97157-326-1 01 1 9707-9803 ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97198-140-0 01 1 9804-9908 ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97294-739-0 01 1 9909-0007 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(180) LIGHT GRAY 		8-97296-032-0 01 1 0008-0012 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(180) LIGHT GRAY 		8-97294-739-0 01 1 0101-0110 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(180) LIGHT GRAY 		8-97296-032-1 01 1 0111-0206 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97391-652-1 01 1 0207-0307 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97391-652-1 01 1 0308- ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97157-325-1 01 1 9707-9803 ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97198-139-0 01 1 9804-9908 ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97294-737-0 01 1 9909-0007 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(180) LIGHT GRAY 		8-97296-030-0 01 1 0008-0012 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(180) LIGHT GRAY 		8-97294-737-0 01 1 0101-0110 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR GRAY(180) LIGHT GRAY 		8-97296-030-1 01 1 0111-0206 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97391-651-1 01 1 0207-0307 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR TAUPE GRAY(182) LIGHT GRAY 		8-97391-651-1 01 1 0308- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BEIGE(181) BEIGE 		8-97296-033-0 01 1 0008-0012 ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BEIGE(181) BEIGE 		8-97294-740-0 01 1 0101-0110 ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BEIGE(181) BEIGE 		8-97296-033-1 01 1 0111- ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BEIGE(181) BEIGE 		8-97296-031-0 01 1 0008-0012 ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BEIGE(181) BEIGE 		8-97294-738-0 01 1 0101-0110 ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BEIGE(181) BEIGE 		8-97296-031-1 01 1 0111- ● ●
55 PAD; TRIM,DASH SIDE
GRAY 		8-97157-323-1 01 1 9707-9908 ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR GRAY(180) GRAY 		8-97157-323-1 01 1 9909-0206 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-649-1 01 1 0207-0307 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-649-1 01 1 0308- ● ●
55 PAD; TRIM,DASH SIDE
GRAY 		8-97157-322-0 01 1 9707-9908 ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR GRAY(180) GRAY 		8-97157-322-0 01 1 9909-0206 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-648-0 01 1 0207-0307 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-648-0 01 1 0308- ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-550-1 01 1 9909- ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-549-0 01 1 9909- ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
GRAY 		8-97157-347-1 01 1 9707-9908 ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR GRAY(180) GRAY 		8-97157-347-1 01 1 9909-0206 ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-710-1 01 1 0207-0307 ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-710-1 01 1 0308- ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
GRAY 		8-97157-346-1 01 1 9707-9908 ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR GRAY(180) GRAY 		8-97157-346-1 01 1 9909-0206 ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-709-1 01 1 0207-0307 ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-709-1 01 1 0308- ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-557-1 01 1 9909- ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-556-1 01 1 9909- ● ●
201 SEAL; DASH SIDE LWR 8-97147-941-0 02 1 9707-9709 ● ●
201 SEAL; DASH SIDE LWR 8-97162-419-1 02 1 9710-9908 ● ●
201 SEAL; DASH SIDE LWR 8-97162-419-1 02 1 9909-0307 ● ● ●
201 SEAL; DASH SIDE LWR 8-97162-419-1 02 1 0308- ● ●
202 SEAL; CENTER PILLAR 8-97162-419-1 02 1 9707-9908 ● ●
202 SEAL; CENTER PILLAR 8-97162-419-1 02 1 9909-0307 ● ● ●
202 SEAL; CENTER PILLAR 8-97162-419-1 02 1 0308- ● ●

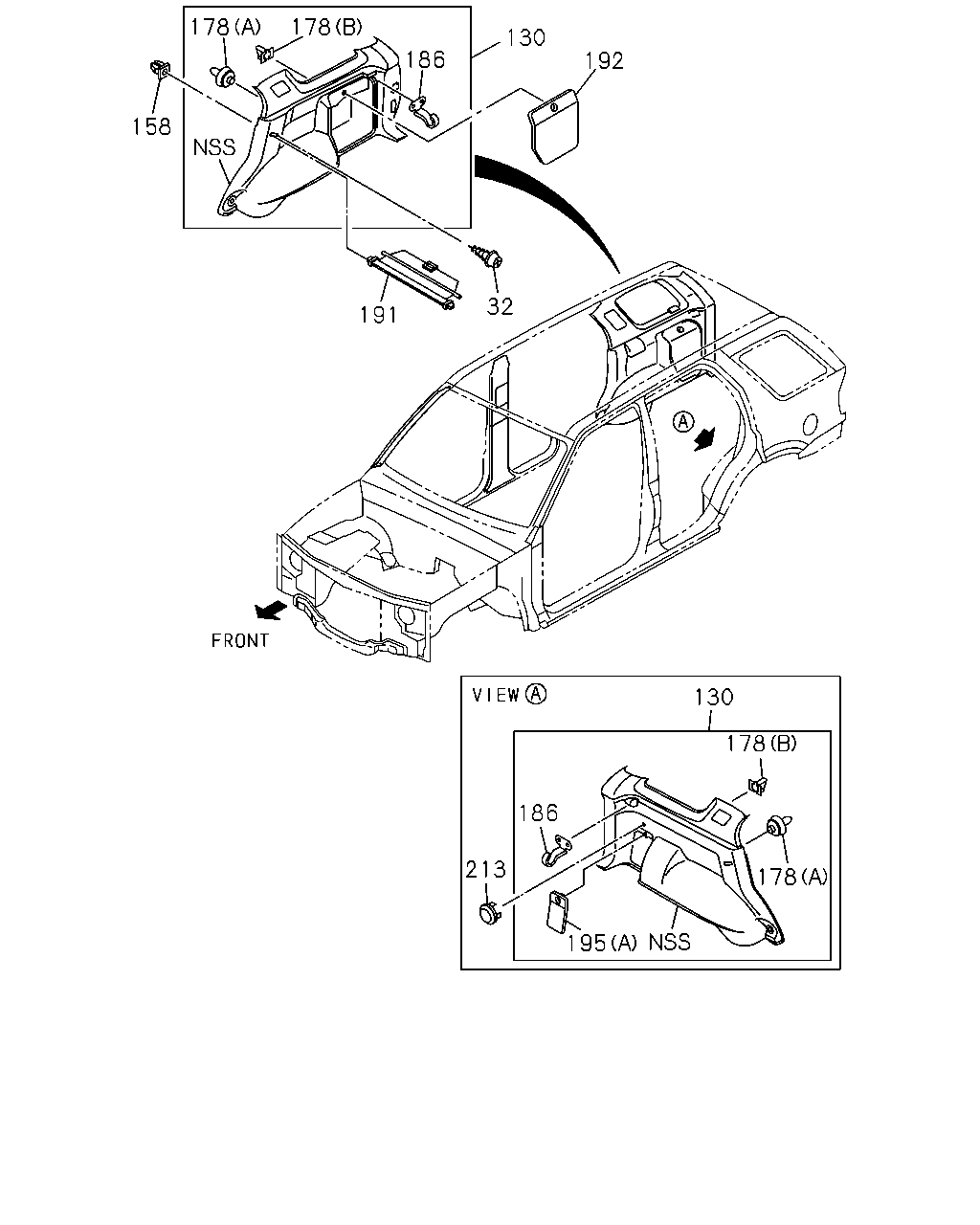

çizim 68918
178 178 130 186 192 158 32 191 130 178 186 213 178 195
BalonParca AdiParca NoAdetTipApplied Date A B C
32 SCREW; TRIM COVER
M5X16 		8-94380-268-0 05 1 9707-9908 ● ●
32 SCREW; TRIM COVER
M5X16 		8-94380-268-0 01 1 9909-0307 ● ● ●
32 SCREW; TRIM COVER
M5X16 		8-94380-268-0 01 1 0308- ● ●
130 COVER; TRIM,QUARTER PILLAR
GRAY 		8-97157-349-4 01 1 9707-9908 ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR GRAY(180) GRAY 		8-97291-494-3 01 1 9909-0005 ● ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR GRAY(180) GRAY 		8-97293-833-1 01 1 0006-0206 ● ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-719-2 01 1 0207-0307 ● ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97396-346-0 01 1 0308- ● ●
130 COVER; TRIM,QUARTER PILLAR
GRAY 		8-97157-348-4 01 1 9707-9908 ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR GRAY(180) GRAY 		8-97291-493-3 01 1 9909-0005 ● ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR GRAY(180) GRAY 		8-97293-831-1 01 1 0006-0206 ● ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-718-1 01 1 0207-0307 ● ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97396-344-0 01 1 0308- ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-560-3 01 1 9909-0005 ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-834-2 01 1 0006-0307 ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97396-345-0 01 1 0308- ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-559-3 01 1 9909-0005 ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-832-1 01 1 0006-0307 ● ●
130 COVER; TRIM,QUARTER PILLAR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97396-343-0 01 1 0308- ● ●
158 GROMMET; SCREW,TRIM 5-09470-001-0 05 1 9707-9908 ● ●
158 GROMMET; SCREW,TRIM 5-09470-001-0 01 1 9909-0307 ● ● ●
158 GROMMET; SCREW,TRIM 5-09470-001-0 01 1 0308- ● ●
178 CLIP; TRIM COVER
(A) HIDDEN TYPE H=16.7 		8-97022-017-0 14 1 9707-9908 ● ●
178 CLIP; TRIM COVER
(B) METAL TYPE 		8-97139-382-0 11 1 9707-9908 ● ●
178 CLIP; TRIM COVER
(A) HIDDEN TYPE H=16.7 		8-97022-017-0 08 1 9909-0007 ● ● ●
178 CLIP; TRIM COVER
(A) HIDDEN TYPE H=16.7 		8-97022-017-0 24 1 0008-0307 ● ● ●
178 CLIP; TRIM COVER
(A) HIDDEN TYPE H=16.7 		8-97022-017-0 24 1 0308- ● ●
178 CLIP; TRIM COVER
(A) HIDDEN TYPE H=16.7 		8-97022-017-0 16 1 9909-0007 ● ● ●
178 CLIP; TRIM COVER
(B) METAL TYPE 		8-97139-382-0 08 1 9909-0007 ● ● ●
178 CLIP; TRIM COVER
(B) METAL TYPE 		8-97139-382-0 03 1 9909-0007 ● ● ●
178 CLIP; TRIM COVER
(B) METAL TYPE 		8-97139-382-0 11 1 0008-0307 ● ● ●
178 CLIP; TRIM COVER
(B) METAL TYPE 		8-97139-382-0 11 1 0308- ● ●
178 CLIP; TRIM COVER
(C) BLACK 		8-94145-515-0 01 1 0101-0203 ● ● ●
178 CLIP; TRIM COVER
(D) ID=6 OD=16 L=18 		8-94178-705-0 02 1 0101-0203 ● ● ●
186 HANGER
GRAY 		8-97197-095-0 02 1 9710-9908 ● ●
186 HANGER
INTERIOR COLOR GRAY(180) GRAY 		8-97197-095-0 02 1 9909-0206 ● ● ●
186 HANGER
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-927-0 02 1 0207-0307 ● ● ●
186 HANGER
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-927-0 02 1 0308- ● ●
186 HANGER
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97193-489-0 02 1 9909- ● ●
191 COVER; TONNEAU
TONNEAU COVER<7PU> GRAY 		8-97157-350-1 01 1 9707-9908 ●
191 COVER; TONNEAU
GRAY 		8-97157-350-1 01 1 9707-9908 ●
191 COVER; TONNEAU
INTERIOR COLOR GRAY(180) TONNEAU COVER<7PU> GRAY 		8-97291-495-4 01 1 9909-0206 ● ● ●
191 COVER; TONNEAU
INTERIOR COLOR TAUPE GRAY(182) TONNEAU COVER<7PU> DARK GRAY 		8-97395-387-1 01 1 0207-0307 ● ● ●
191 COVER; TONNEAU
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97395-387-1 01 1 0308- ● ●
191 COVER; TONNEAU
INTERIOR COLOR BEIGE(181) TONNEAU COVER<7PU> LIGHT BEIGE 		8-97291-561-4 01 1 9909-0206 ● ● ●
191 COVER; TONNEAU
INTERIOR COLOR BEIGE(181) TONNEAU COVER<7PU> LIGHT BEIGE 		8-97395-386-1 01 1 0207-0307 ● ● ●
191 COVER; TONNEAU
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97395-386-1 01 1 0308- ● ●
192 LID; SIDE
GRAY 		8-97195-828-2 01 1 9707-9908 ● ●
192 LID; SIDE
INTERIOR COLOR GRAY(180) GRAY 		8-97195-828-2 01 1 9909-0206 ● ● ●
192 LID; SIDE
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-715-3 01 1 0207-0307 ● ● ●
192 LID; SIDE
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-715-3 01 1 0308-0402 ● ●
192 LID; SIDE
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-715-3 01 1 0403- ● ●
192 LID; SIDE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-558-3 01 1 9909-0402 ● ●
192 LID; SIDE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-558-3 01 1 0403- ● ●
195 LID; JACK & TOOL
(A) GRAY 		8-97197-097-1 01 1 9707-9908 ● ●
195 LID; JACK & TOOL
INTERIOR COLOR GRAY(180) (A) GRAY 		8-97197-097-1 01 1 9909-0206 ● ● ●
195 LID; JACK & TOOL
INTERIOR COLOR TAUPE GRAY(182) (A) DARK GRAY 		8-97391-929-2 01 1 0207-0307 ● ● ●
195 LID; JACK & TOOL
INTERIOR COLOR TAUPE GRAY(182) (A) DARK GRAY 		8-97391-929-2 01 1 0308- ● ●
195 LID; JACK & TOOL
(B) 		8-97255-374-0 01 1 0101-0203 ● ● ●
195 LID; JACK & TOOL
INTERIOR COLOR BEIGE(181) (A) LIGHT BEIGE 		8-97293-488-2 01 1 9909- ● ●
213 LID; A/C SOCKET HOLE
EXC. ACCESSORY SOCKET LUGGAGE ROOM<6MP> GRAY 		8-97198-839-0 01 1 9808-9908 ● ● ●
213 LID; A/C SOCKET HOLE
INTERIOR COLOR GRAY(180) EXC. ACCESSORY SOCKET LUGGAGE ROOM<6MP> GRAY 		8-97198-839-0 01 1 9909-0206 ● ● ●
213 LID; A/C SOCKET HOLE
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-728-0 01 1 0207-0307 ● ● ●
213 LID; A/C SOCKET HOLE
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-728-0 01 1 0308- ● ●
213 LID; A/C SOCKET HOLE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97391-729-0 01 1 0207- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
